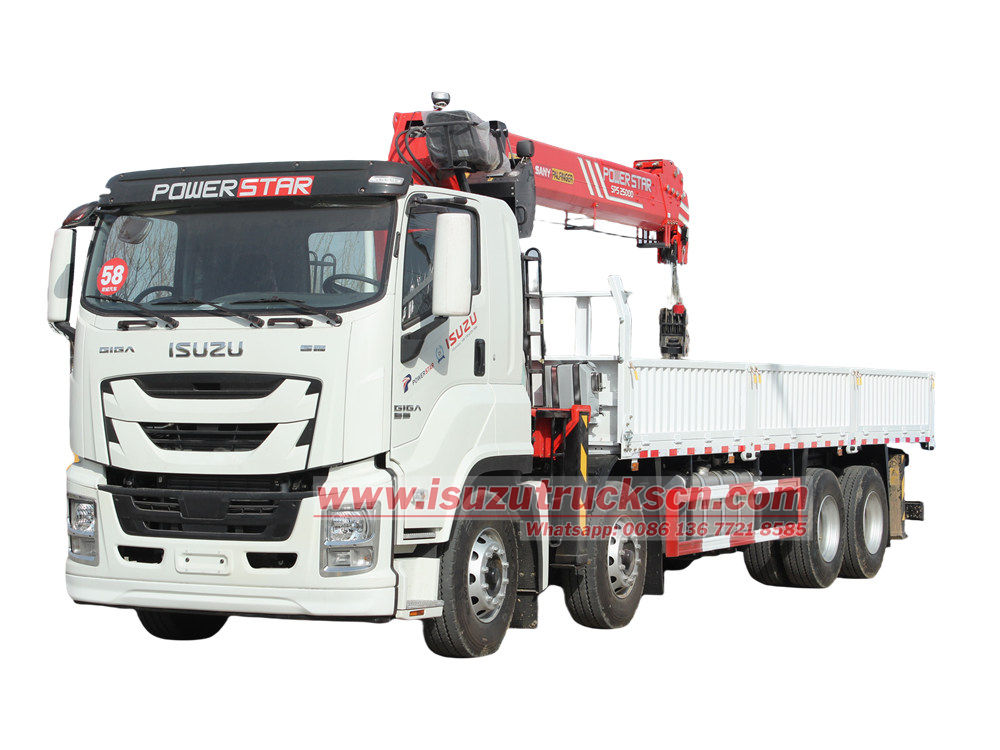

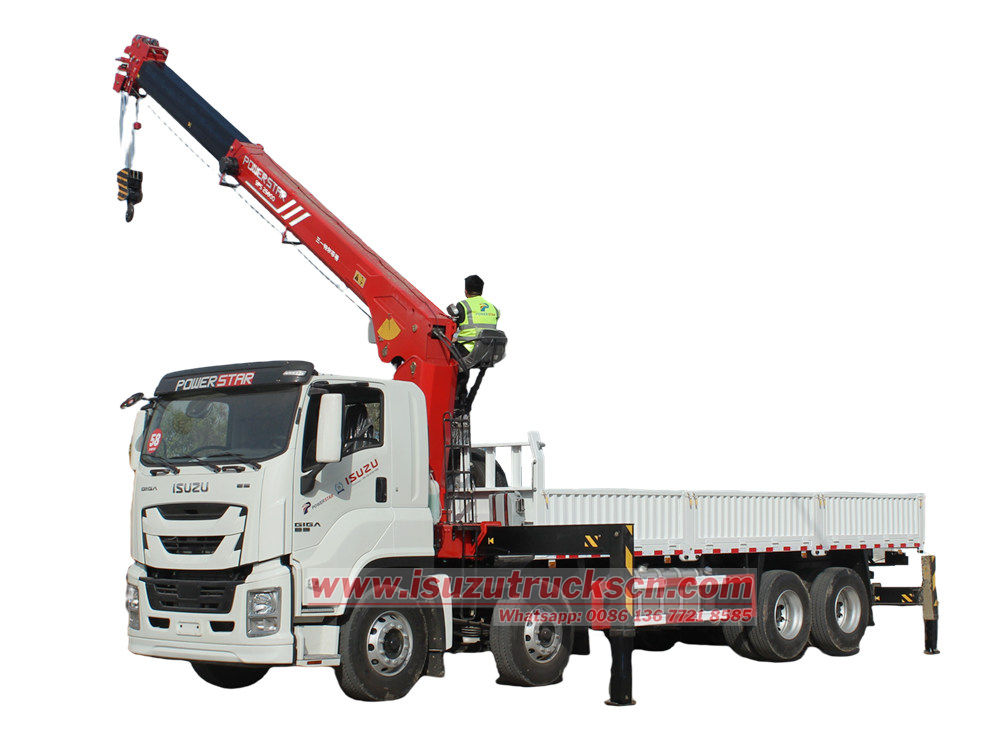

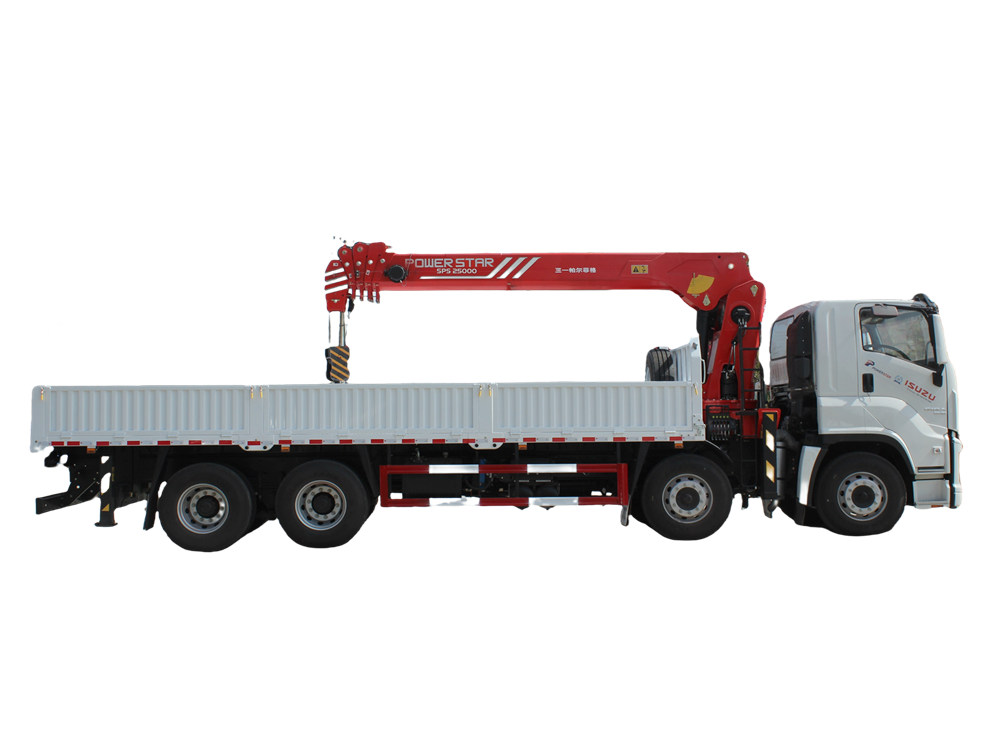

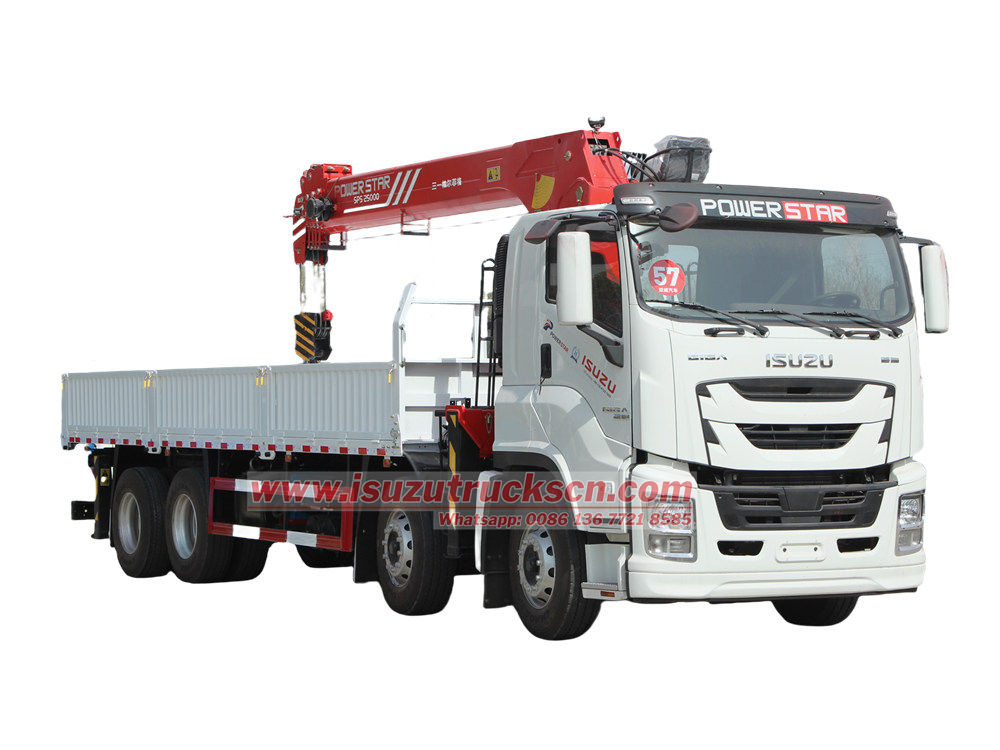

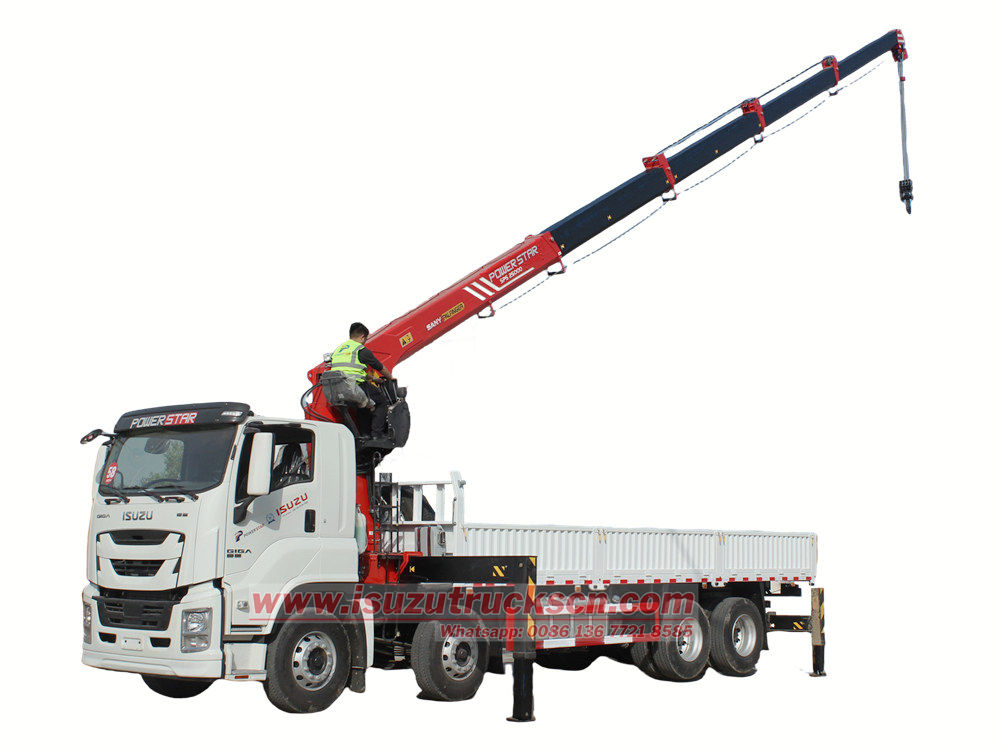

Isuzu crane truck

Isuzu VC66 GIGA telescopic crane truck is an efficient and versatile engineering lifting equipment with a maximum lifting capacity of 10 tons. It is widely used in logistics handling, construction and other scenarios. Its high-strength straight arm design can achieve a maximum working radius of 17.5m, and cooperate with the hydraulic system to achieve 360° full rotation operation and accurately control the lifting angle.

Equipped with an intelligent safety system, including overload protection, torque limiter and real-time monitoring display screen to ensure operational safety. Optional grab buckets, hanging baskets and other accessories are available to meet the needs of different working conditions.

Isuzu GIGA telescopic crane truck also called boom truck crane,mobile truck crane, truck with crane,hydraulic crane telescopic boom,telescopic boom truck mounted crane,etc. The vehicle is modified on the Isuzu VC66 GIGA chassis, equipped with an Isuzu 6WG1-TCG61 460HP engine, powerful, matched with fast 12 gears transmission, smooth shifting, and a SPS25000 crane at the rear of the vehicle body, with large lifting capacity and reach, and a 7200x2400x600mm cargo box below, which can easily carry heavy objects lifted by the crane hook.

The optional tonnage of Isuzu telescopic crane truck is 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, and 30 tons. The crane can For selection, you can choose a straight arm or a folding arm crane.

The Isuzu boom crane truck is composed of a boom, turntable, frame, legs and other parts. The mechanical movements of the truck-mounted crane are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements.

1. Chassis configuration: Isuzu 8x4 heavy truck

This hydraulic crane truck adopts Isuzu 8x4 drive chassis and is equipped with a high-power 6WG1-TCG61 diesel engine, providing strong power and excellent load-bearing capacity. The chassis adopts a high-strength steel frame and a four-axle design to ensure high stability, suitable for complex road conditions and heavy-load transportation. The cab is ergonomically designed and equipped with a multi-function steering wheel, LCD instrument panel and other systems to improve the comfort and safety of long-distance driving.

2. Crane configuration: Palfinger SPS25000 straight boom truck crane

Lifting capacity: Maximum lifting capacity 10 tons, working radius covers 3.5~17.5 meters, meeting various lifting needs.

Boom structure: High-strength alloy steel straight boom design, 5-section telescopic boom, full hydraulic control, flexible telescopic, wide operating range.

Rotation system: 360° full-rotation hydraulic slewing mechanism, stable operation and precise positioning.

Intelligent safety system: Equipped with electronic torque limiter, overload protection, automatic balance control and real-time monitoring system to ensure safe operation.

Multifunctional accessories: It can be adapted to grab buckets, hanging baskets, electromagnetic suction cups and other accessories, suitable for various lifting scenarios such as building materials, equipment, containers, etc.

3. Core advantages

Efficient and stable: Isuzu chassis has strong power, Palfinger crane has excellent lifting performance, and the combination is efficient and reliable.

Intelligent safety: Multiple safety protection systems reduce operating risks.

Flexible and versatile: Modular design can be adapted to a variety of attachments to meet different working conditions.

4. Application scenarios

Logistics and transportation: efficient loading and unloading of heavy goods, such as machinery and equipment, steel, prefabricated components, etc.

Construction: suitable for hoisting steel bars, concrete components, steel structures, etc. on construction sites.

Municipal engineering: can be used for street light installation, pipeline laying, landscaping and other operations.

Emergency rescue: quickly hoist obstacles or equipment in disaster relief.
