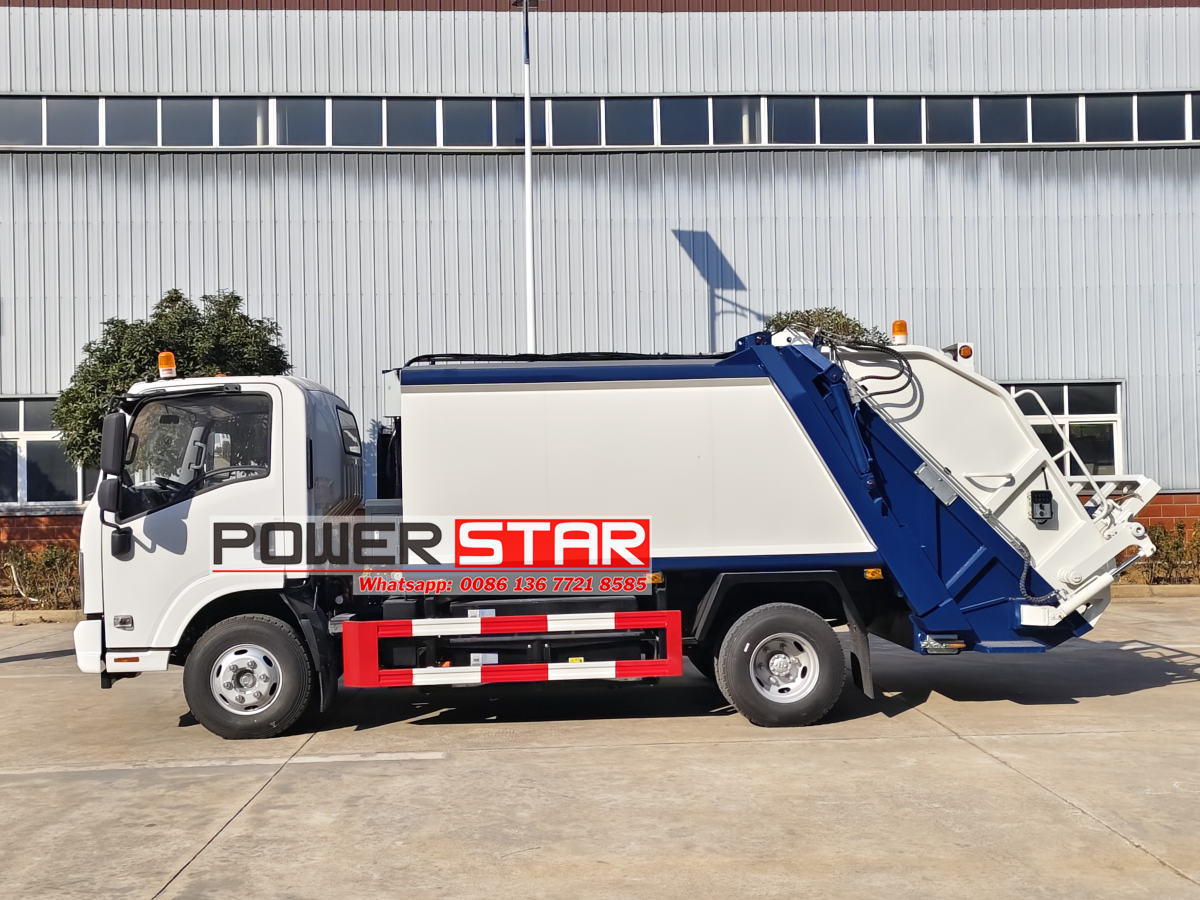

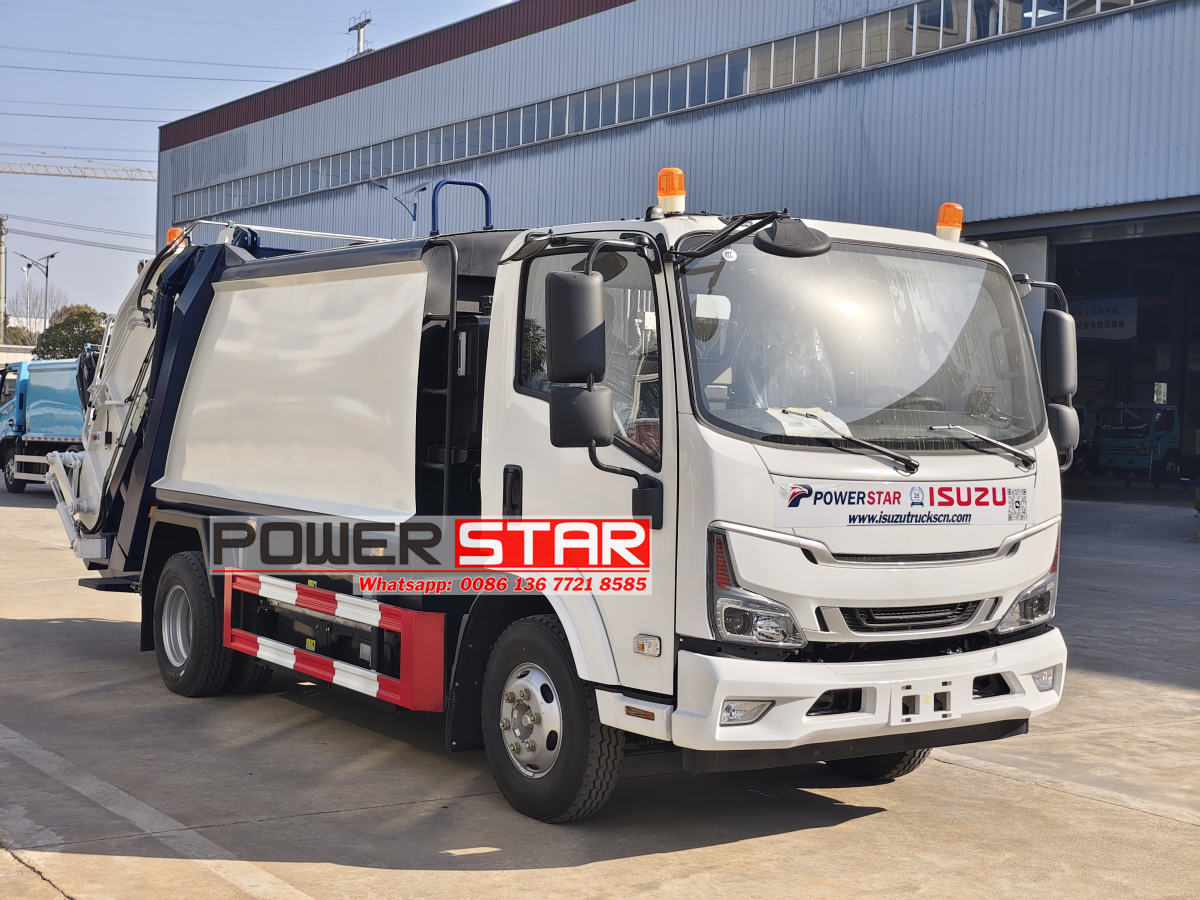

Full electric garbage truck compactor, also named Isuzu EV garbage collection truck or Isuzu EV battery garbage truck.Operating under heavy loads, in stop-and-go conditions, at low speeds, and on a predictable route, electric vehicles are well-suited to waste collection applications – especially in cities, where the average day’s work happens in well under 100 miles of driving.
The following is a simplified description of the working principle of Isuzu's electric compression garbage truck (designed for market sales scenarios):
1. Core power system (analogous to the "heart")

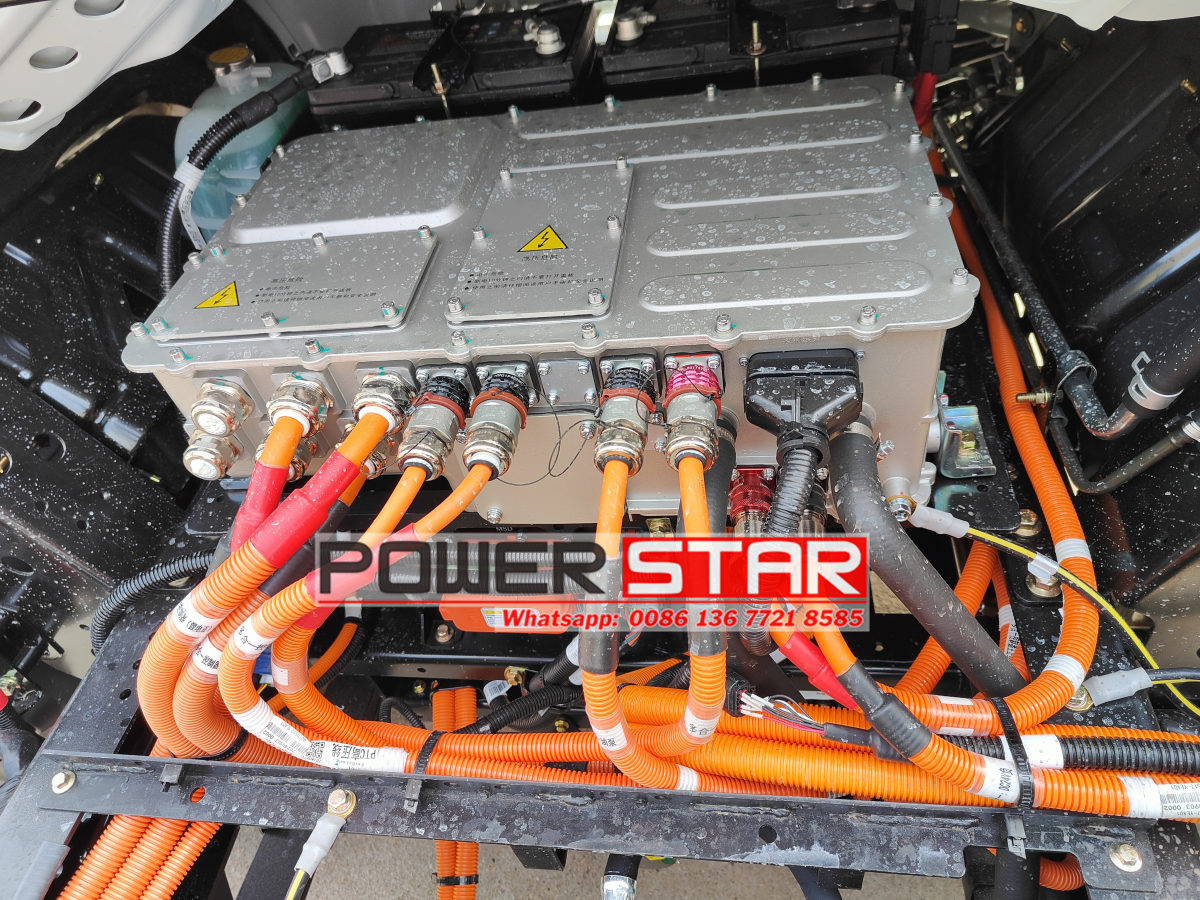

Electric drive: powered by the on-board lithium battery pack (replacing the traditional diesel engine), and the hydraulic system is driven by the motor
Energy conversion: electrical energy → hydraulic energy → mechanical energy (saving more than 30% energy than fuel vehicles, zero tail gas emissions)
2. Four-step workflow (visual operation)
Intelligent collection (rear-mounted/side-mounted)

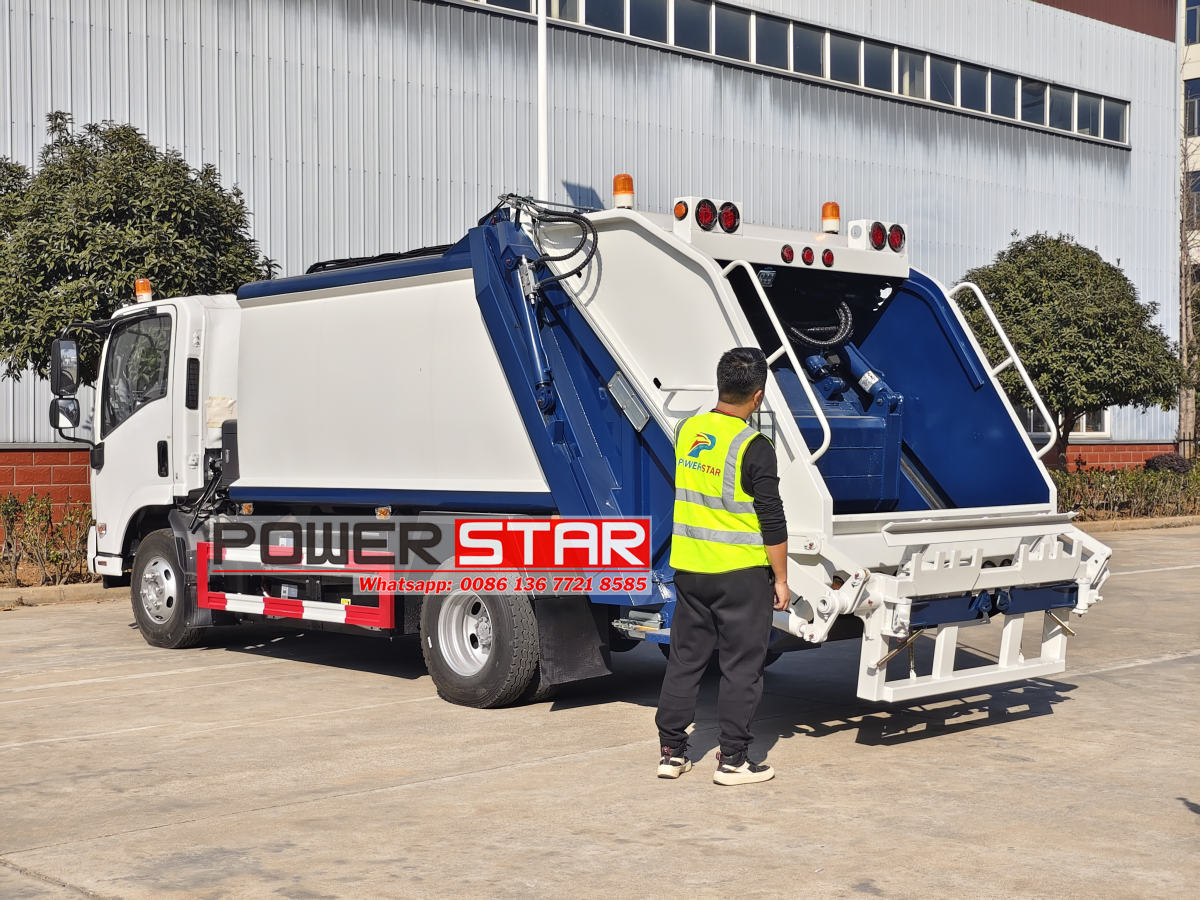

Rear-mounted: The garbage can is docked at the rear of the vehicle, and the lifting device automatically lifts and flips (suitable for communities/streets)
Side-mounted: The mechanical arm grabs the roadside garbage can and pours it into the hopper sideways (suitable for narrow roads)
Powerful compression (core selling point)
Dual-stage compression: ① The scraper breaks up loose garbage ②Hydraulic bulldozer bidirectional extrusion (compression ratio of 1:4)
Sealing and leakproof: four-level sealing strip + leachate collection bin (eliminating transportation dripping)
Efficient transportation
Full load lock: compression box automatically seals, GPS monitors transportation route

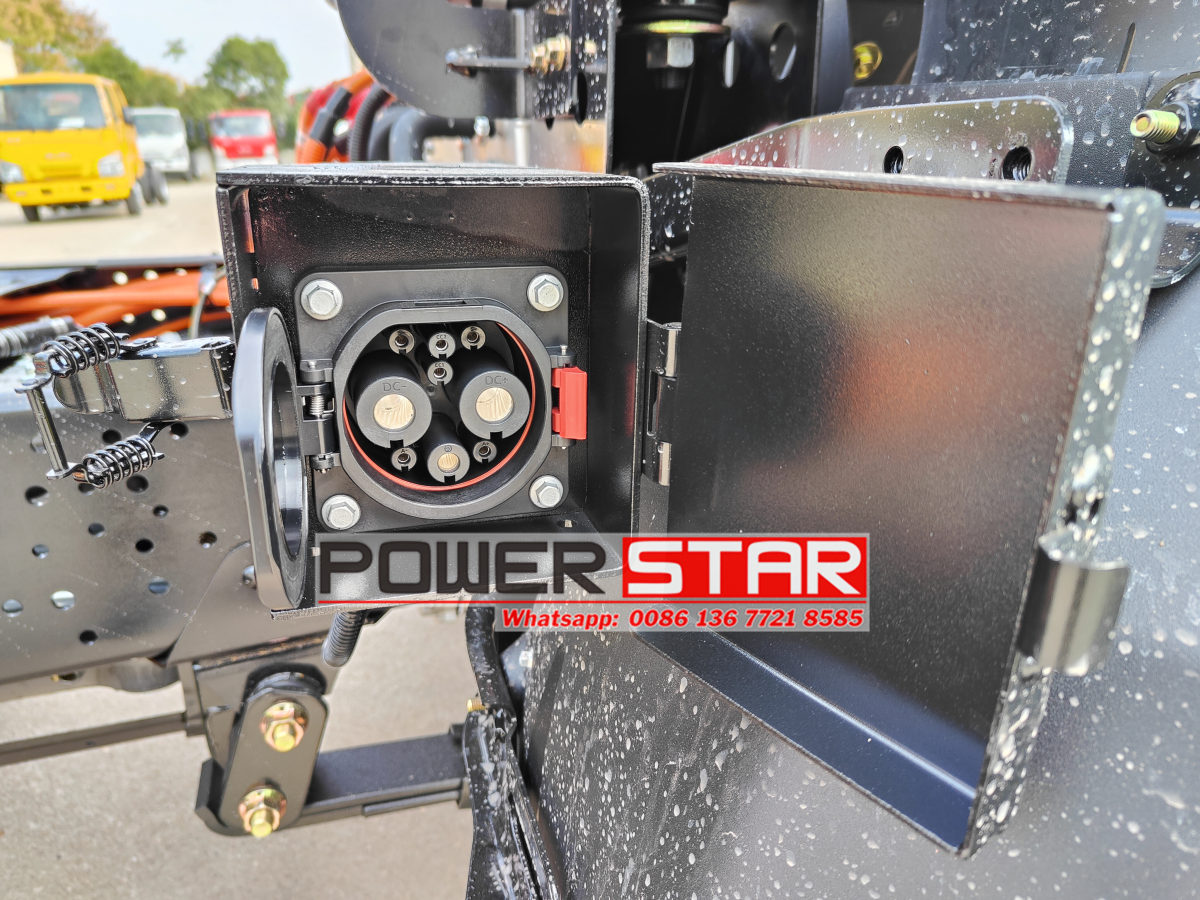

Endurance: fast charge for 1 hour and endurance of 150km (battery capacity 120kWh)
One-key unloading
Busher unloading: hydraulic push plate pushes out the garbage as a whole (residual rate <0.5%)
Self-cleaning function: high-pressure water gun automatically washes the box (optional bio-enzyme deodorization)
3. Key points of sales talk
Comparative advantage: operating noise ≤65 decibels (traditional diesel vehicles ≥85 decibels)
Cost calculation: 23% reduction in garbage treatment cost per ton (electricity fee vs diesel fee)
Policy support: 46 key cities’ new energy sanitation vehicle replacement subsidies (up to 80,000 yuan/unit)
Isuzu electric compression garbage truck working principle analysis
I. Core power system
1. Electric drive structure

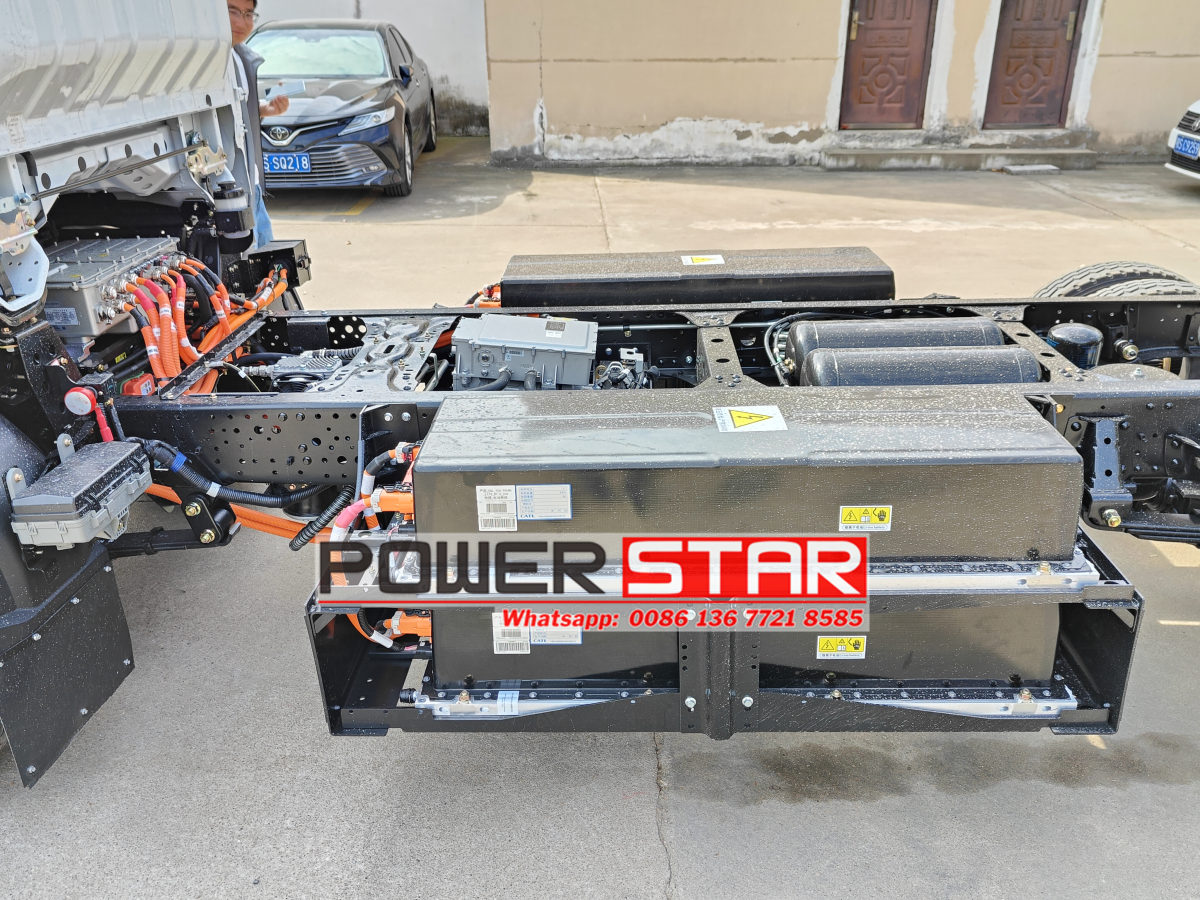

Lithium battery pack: replaces the traditional diesel engine and drives the hydraulic oil pump through the motor
Energy conversion: electrical energy → hydraulic energy → mechanical energy, zero exhaust emissions and energy consumption reduced by more than 30%
2. Hydraulic system control
Oil pump and multi-way reversing valve: The motor drives the oil pump to generate high-pressure oil, and the reversing valve controls the cylinder action
Pressure protection: The maximum working pressure of the system is 16MPa. When overpressure occurs, the hydraulic oil returns to the oil tank through the overflow valve
II. Special mechanism working process
1. Garbage collection
Rear-mounted/side-mounted:
Rear-mounted: The tail lifting device automatically lifts the garbage can and flips it into the hopper (suitable for residential areas)
Side-mounted: The mechanical arm grabs the roadside garbage can and dumps it sideways (suitable for narrow sections)
2. Dynamic compression
Two-stage compression technology:
Pre-compression stage: Scraper crushes loose garbage (compression ratio 1:2)
Main compression stage: Bidirectional hydraulic shovel squeezes garbage (pressure 18-22MPa, density up to 0.8 tons/m³)
Sealing and leakproof: Four-level sealing strip + leachate collection bin to prevent transportation pollution
3. Enclosed transportation
Box locking: Automatically seal after compression, GPS plans the optimal route
Real-time monitoring: Humidity sensor detects leakage and triggers emergency sealing bin
4. One-click unloading
Bulldozer unloading: Hydraulic push plate pushes out the garbage as a whole (residual rate <0.5%)
Self-cleaning function: High-pressure water gun washes the box, and optional biological enzymes decompose odor
III. Technical advantages (core sales tactics)
Silent operation: Noise ≤ 65 decibels (traditional diesel vehicles ≥ 85 decibels)
Energy-saving: Fast charging for 1 hour, 150km endurance, 23% lower garbage disposal cost per ton
Intelligent adaptation: Supports staggered operation algorithm to avoid residents' rest time
