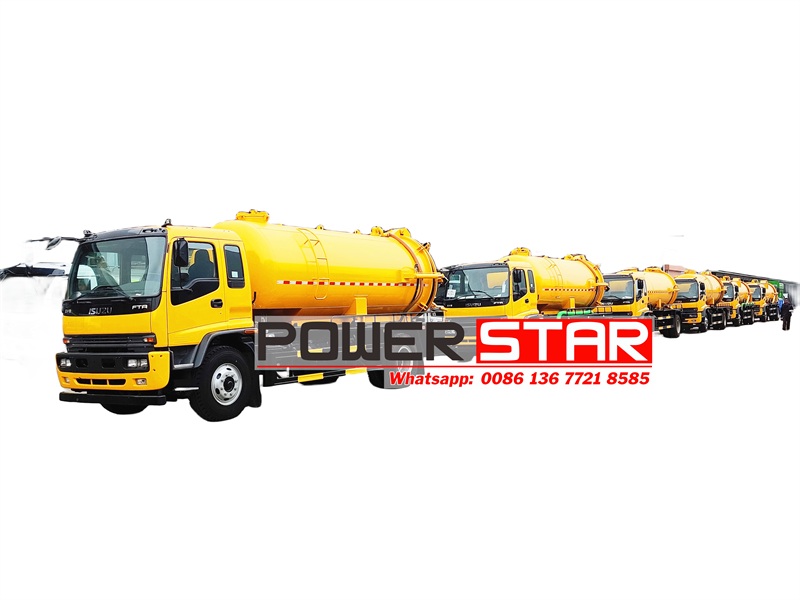

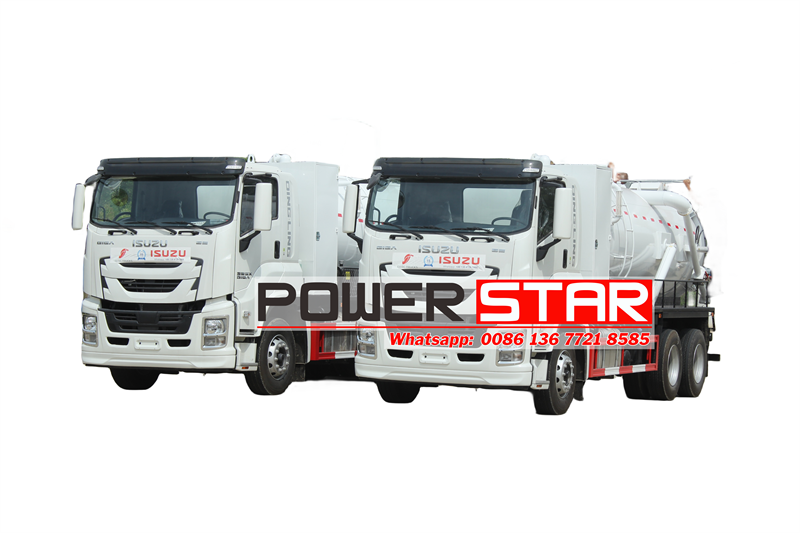

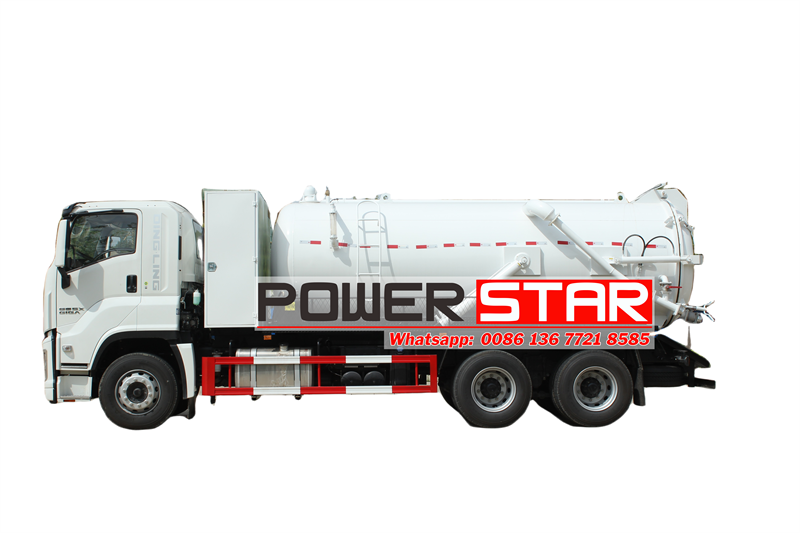

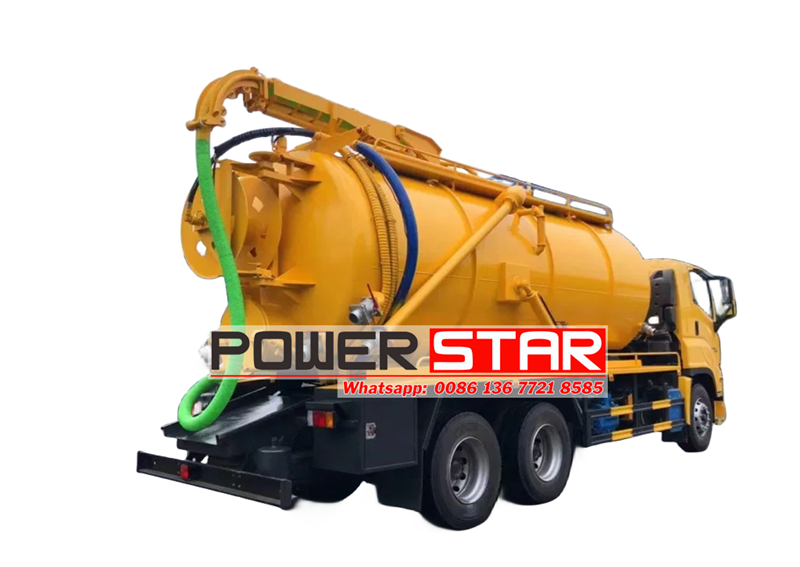

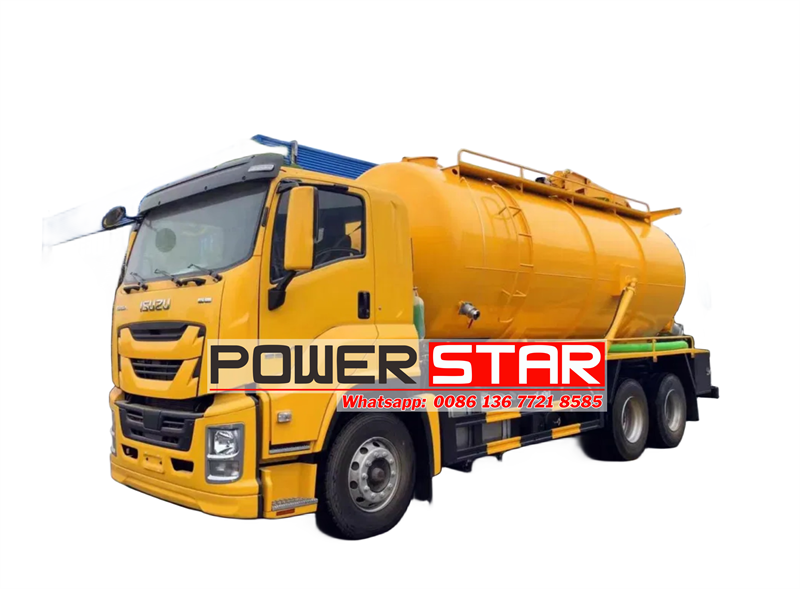

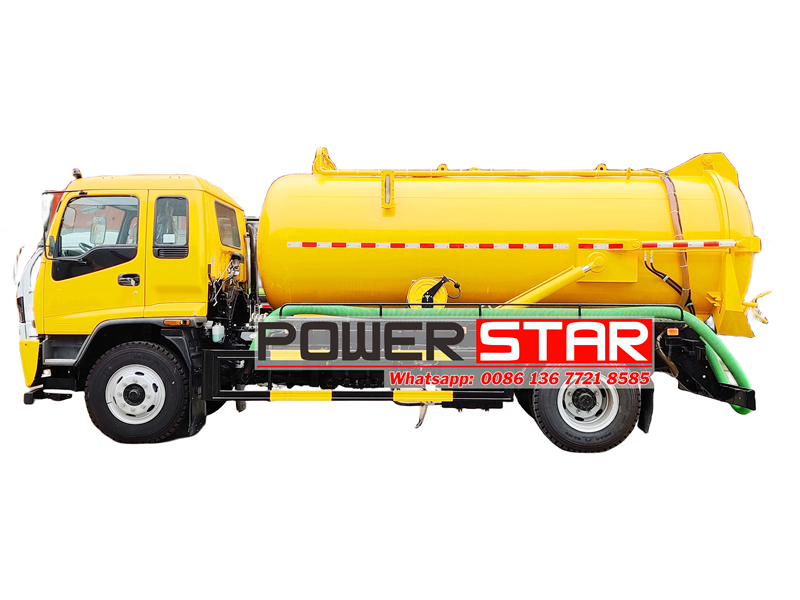

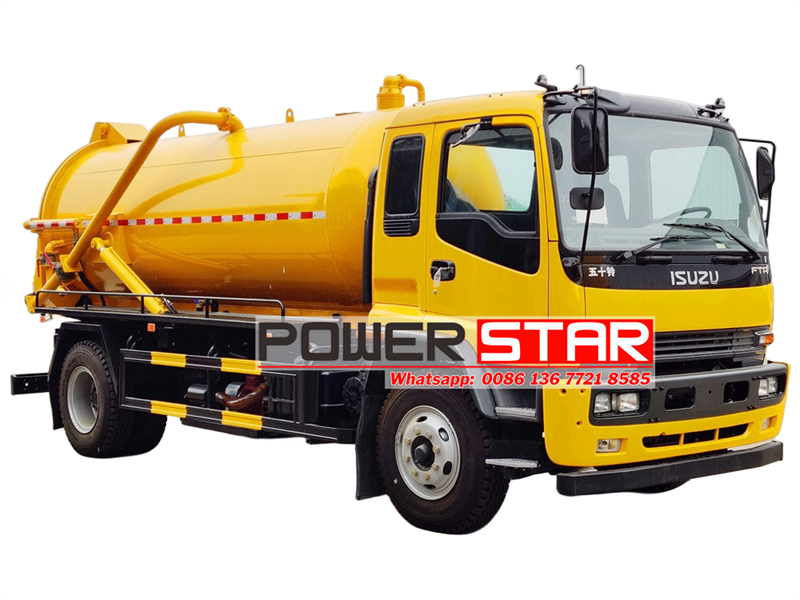

Isuzu FTR vacuum tanker suction truck
Vac-Con uses the simplicity of a hydrostatic drive to power both the vacuum and water systems with a single engine. Both systems can be independently operated for...
Many businesses, property owners, and municipalities often wonder, "What are isuzu vacuum trucks?" These isuzu specialized vehicles are designed to collect, store, and transport liquid and solid waste, helping to maintain clean towns and worksites. If you're unfamiliar with isuzu vacuum trucks, this article will provide insights into isuzu vacuum truck design, operation, and advantages.
How Do Isuzu Vacuum Trucks Function?
Isuzu Vacuum trucks are equipped with a large storage tank connected to a vacuum pump mounted on an industrial truck. When the pump is activated, it creates a negative pressure inside the tank. By opening the shut-off valves on the suction hoses, outside air is drawn in to equalize the pressure, allowing the isuzu vacuum truck to effectively suck up various types of debris, slurry, and liquids. After completing the task, the truck is usually taken to a treatment plant for emptying by releasing a valve at the tank's bottom or using a separate pump system.
Types of Isuzu Vacuum Trucks
Isuzu Vacuum trucks come in different categories based on their specific uses:
- Isuzu Hydro Excavation: Utilizes high-pressure water jets to loosen and liquefy soil for suctioning, often used for delicate structures.
- Isuzu Dry Vacuum: Designed to remove dry materials like dirt, sand, and leaves with specialized filters to trap debris.
-Isuzu Liquid Waste: Equipped with a powerful pump to suction sludge, sewage, and wastewater.
-Isuzu Combination Trucks: Can handle both dry and liquid waste and may include a water jet for added versatility.
Before selecting a Isuzu vacuum truck, factors such as the material to be handled, volume, site conditions, and local regulations should be considered.
Applications of Isuzu Vacuum Trucks
Isuzu Vacuum trucks find applications in various industries for tasks such as sewer line maintenance, underground installations, debris removal, excavation, and hazardous waste removal. They are essential for clearing clogs, providing access to utilities, managing waste, and ensuring environmental safety.
Advantages of Isuzu Vacuum Trucks
Isuzu Vacuum trucks offer several benefits over traditional excavation methods, including being non-destructive, cost-effective, efficient, precise, and versatile. They comply with environmental regulations by safely containing and transporting hazardous materials, minimizing exposure to harmful substances.
In conclusion, Isuzu vacuum trucks provided by Illini offer efficient solutions for handling waste, debris, and contaminants. Their capabilities make them a valuable asset for routine and emergency cleanups, ensuring projects are completed effectively and in compliance with regulations. Contact powerstar trucks for reliable Isuzu vacuum truck services.

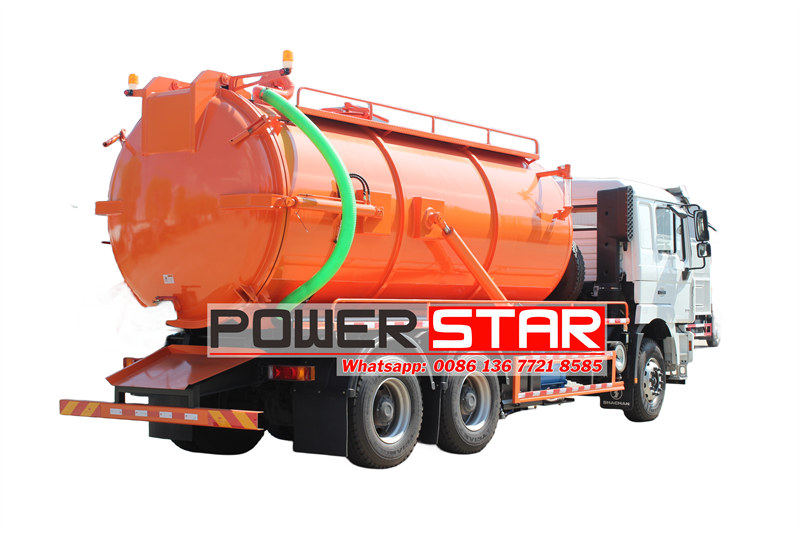

Vac-Con uses the simplicity of a hydrostatic drive to power both the vacuum and water systems with a single engine. Both systems can be independently operated for...
Only Vac-Con combines the flexibility of a two-engine design to get the toughest jobs done right. Our efficient design, allowing the chassis engine to drive either the...
The premier Titan Combination Machine provides operators with the performance and power they’ve been asking for. This redesigned model was designed, tested, and built by the sewer...

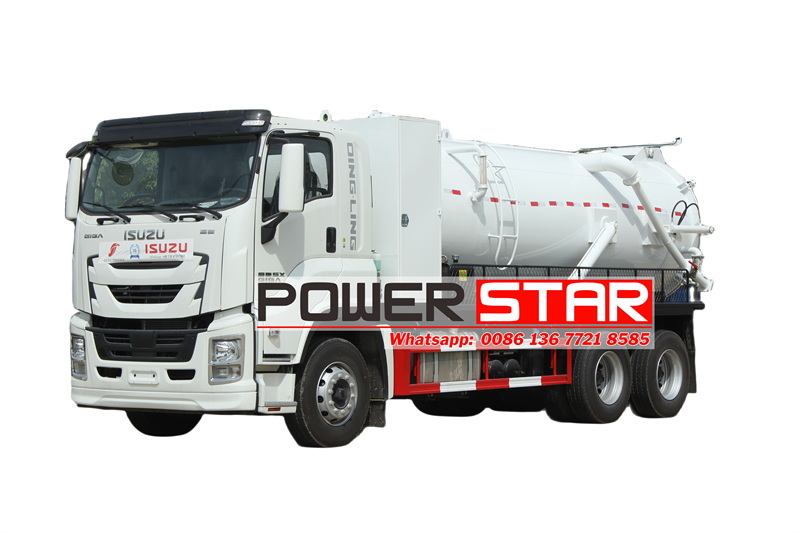

The Neptune is designed & manufactured for Vac•Con adding the power of portability to an impressive line of truck-mounted combination machines, excavators & industrial machines.
The much-anticipated powerstar vacuum truck is here, and it is worth the wait! Designed from proven European technology and the durability to keep you on the job working...
Powerstar is your leading provider of Industrial Vacuum Trucks and Heavy-Duty Machines. Our wide range of heavy-duty machines and vacuum trucks include Titan Machine, Single Engine Combination Machine, Dual Engine Combination Machine, X-Cavator, XX-Cavator, Industrial Vacuum Loaders, and so forth. No matter how tough the job can be or how harsh the working condition is, our heavy-duty machines and vacuum trucks are guaranteed to deliver excellent results that will surpass your expectations.

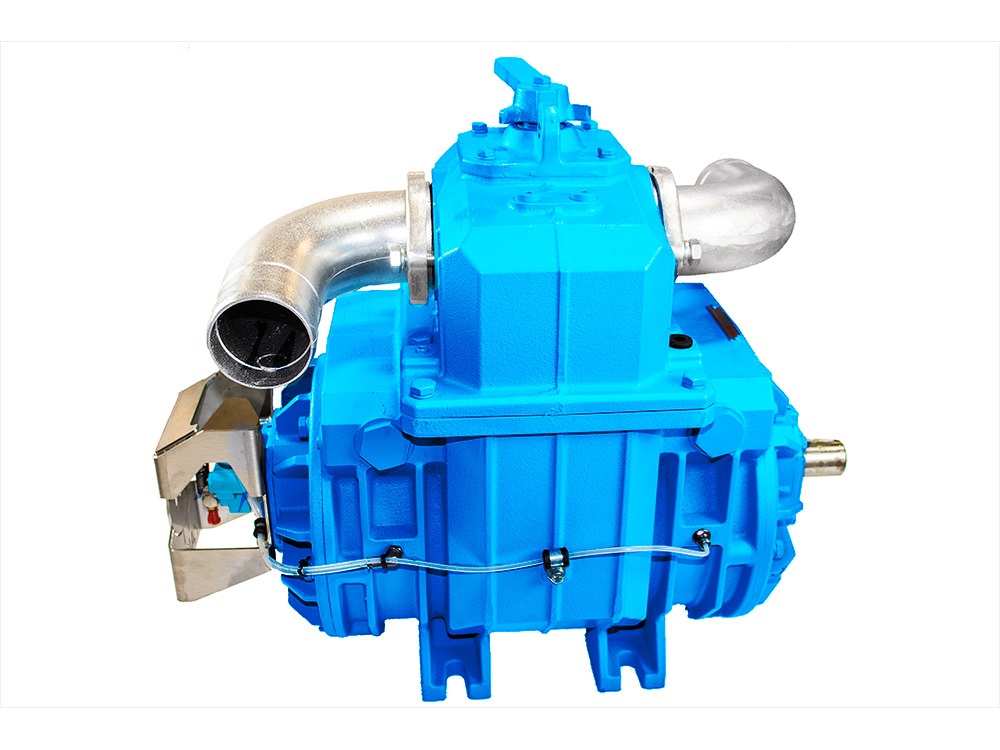

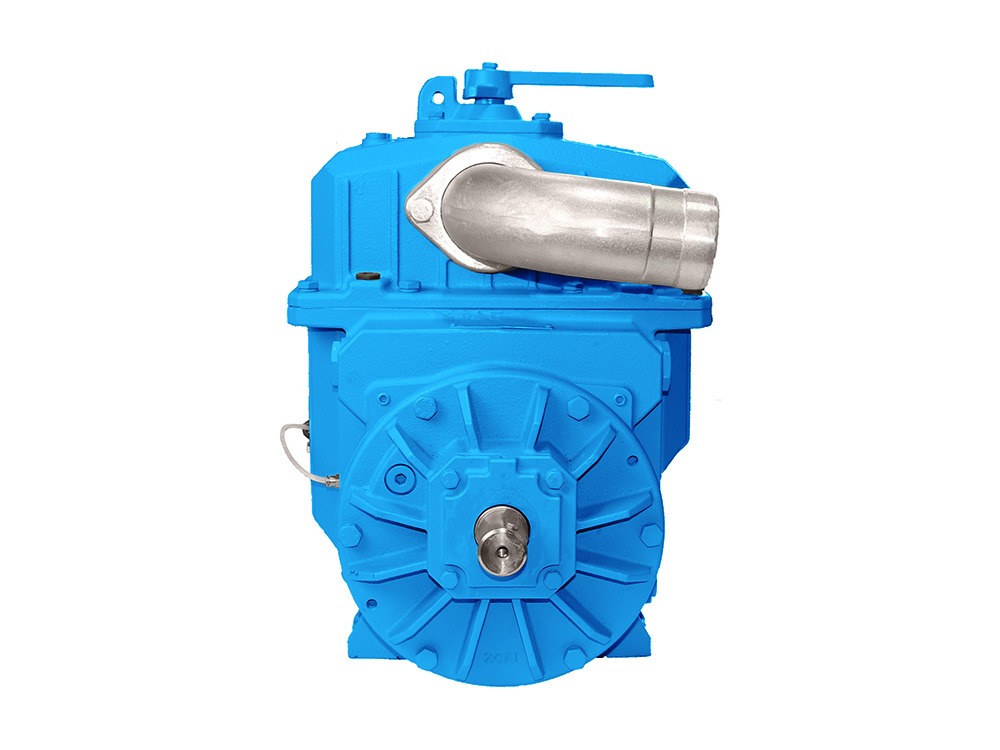

FEATURES

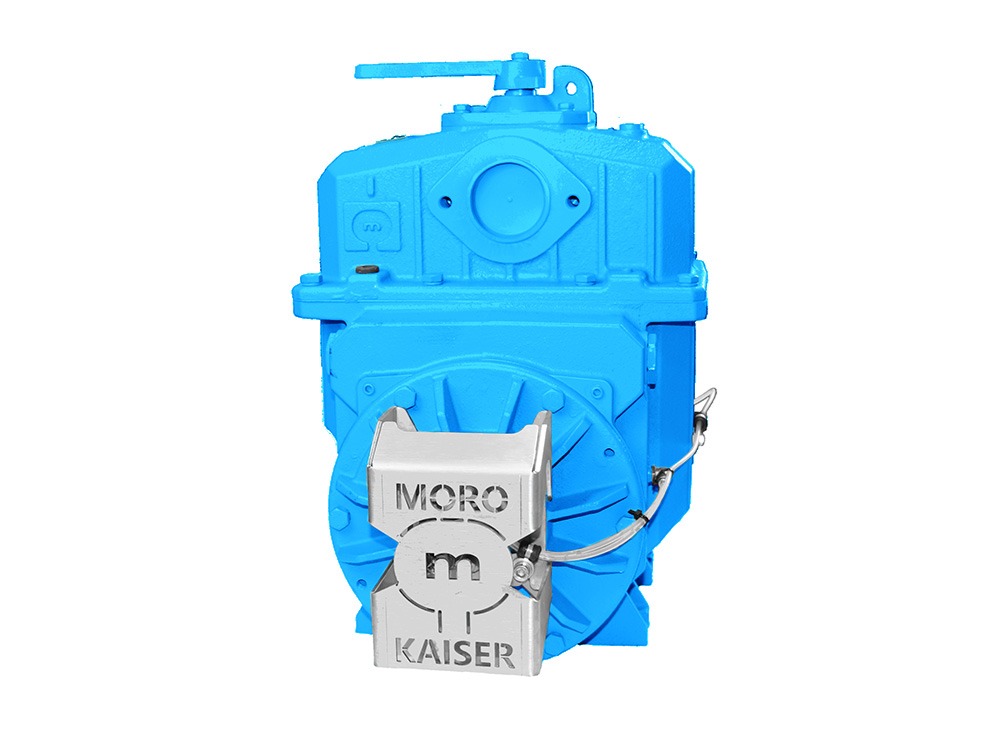

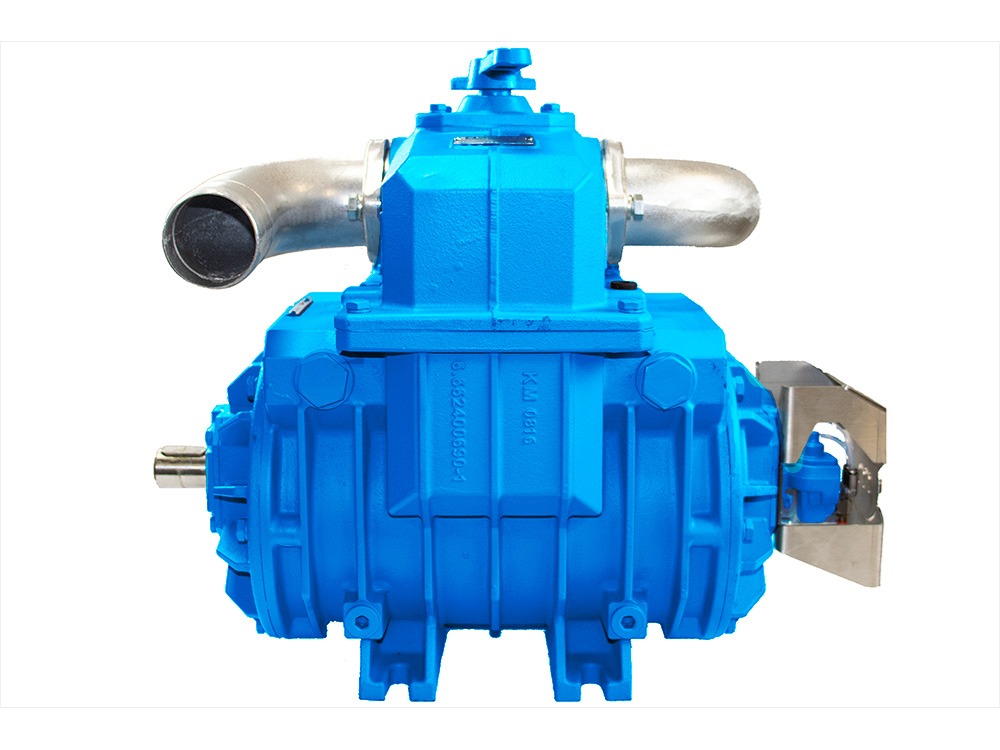

| Specification | Unit | Value |
| Free air capacity | cfm | 332 |
| Air capacity at 15" Hg/50% vacuum | cfm | 298 |
| Max. Vacuum | Hg (in.) | 28 |
| Max. Pressure | psig | 29 |
| Power required at 15" of vacuum | hp | 12 |
| Power required at max. pressure | hp | 31 |
| Rotation speed | rpm | 1100 |
| Oil tank capacity | quart(us) | 4 |
| Oil consumption | gal (US)/Hr | 0.046 |
| Recommended oil | ISO100 | |
| Sound pressure at 7 meters (23 ft) 60% vacuum | dB | 78 |
| Hose | in | 3 |
| Flange | in | - |
| Weight | lbs | 309 |
| Continuous vacuum | Hg (in.) | 18 |
| Suggested tank size | gal | 1000-3000 |
Powerstar is a top provider of heavy-duty machines and vacuum trucks, offering a wide range of options such as the Titan Machine, Single Engine Combination Machine, Dual Engine Combination Machine, X-Cavator, XX-Cavator, and Industrial Vacuum Loaders. These machines are designed to handle tough jobs and harsh conditions, exceeding expectations with their excellent results.
Industrial vacuum trucks and loaders from Powerstar are utilized across various industries like construction, oil and gas, mining, safety, and environmental sectors. These machines can tackle the most challenging tasks in severe conditions, performing operations from hydro excavation to sewer jetting and debris removal. They are also dependable for tasks like cold weather digging, piling hole excavation, and oilfield operations, saving time, money, and effort for municipalities, operators, and contractors.

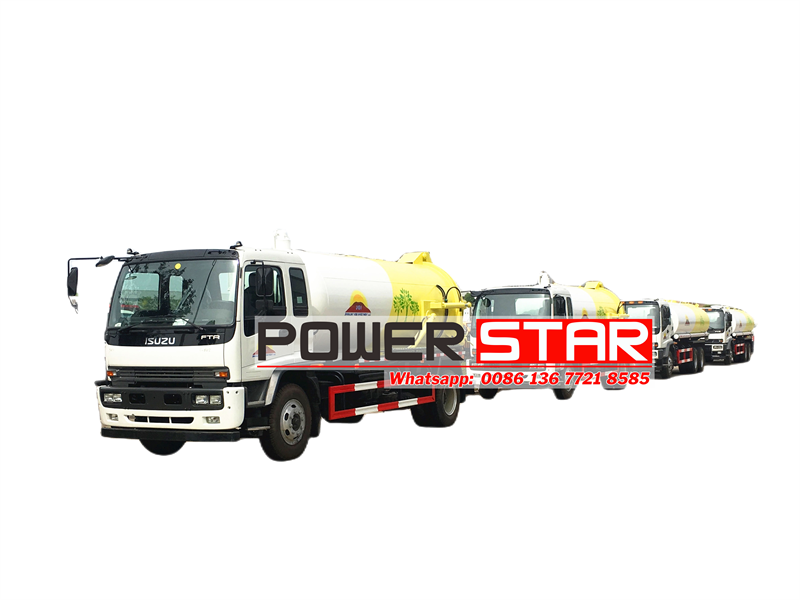

Powerstar's combination machines, including the Single Engine Combination Machine and Dual Engine Combination Machine, combine water excavation and vacuum loader systems seamlessly. The Single Engine Machine operates both systems independently for flexibility without sacrificing performance, while the Dual Engine Machine features a two-engine design for handling tough jobs efficiently with fuel efficiency and reduced wear and tear. These machines are designed to deliver outstanding performance for any excavation job.
