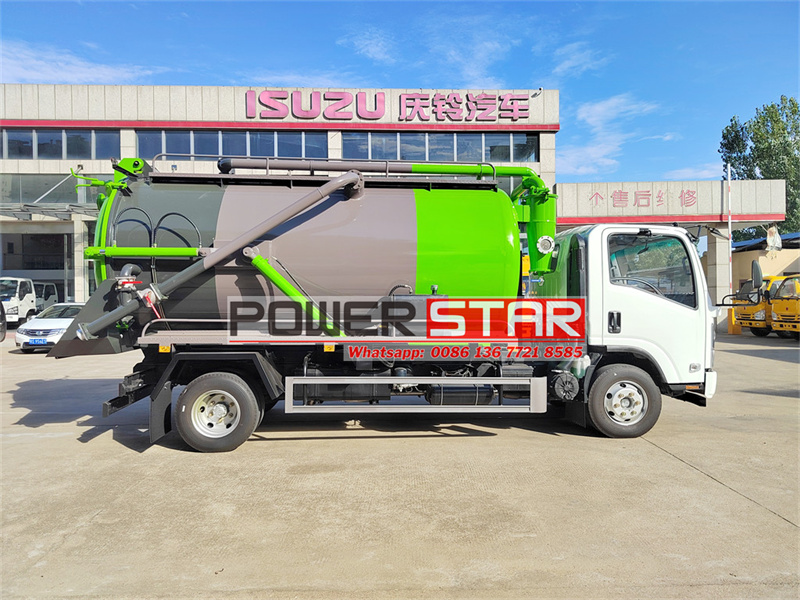

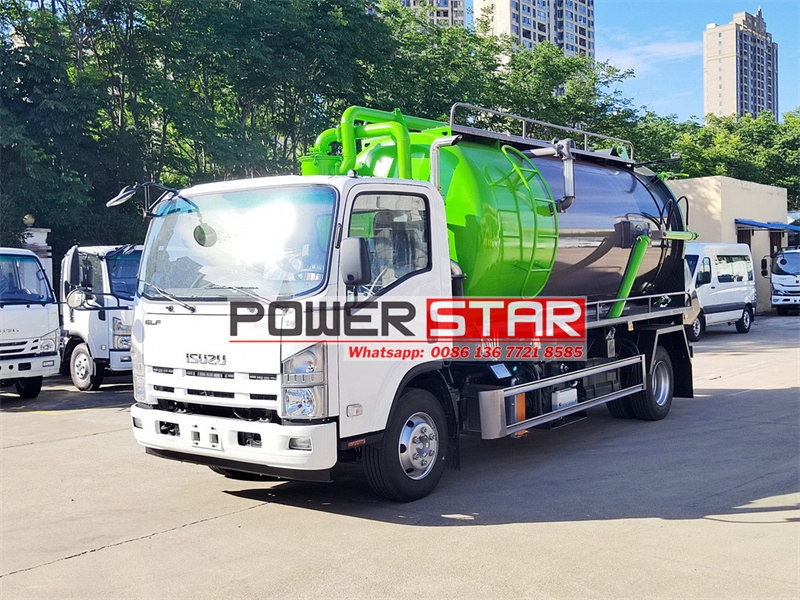

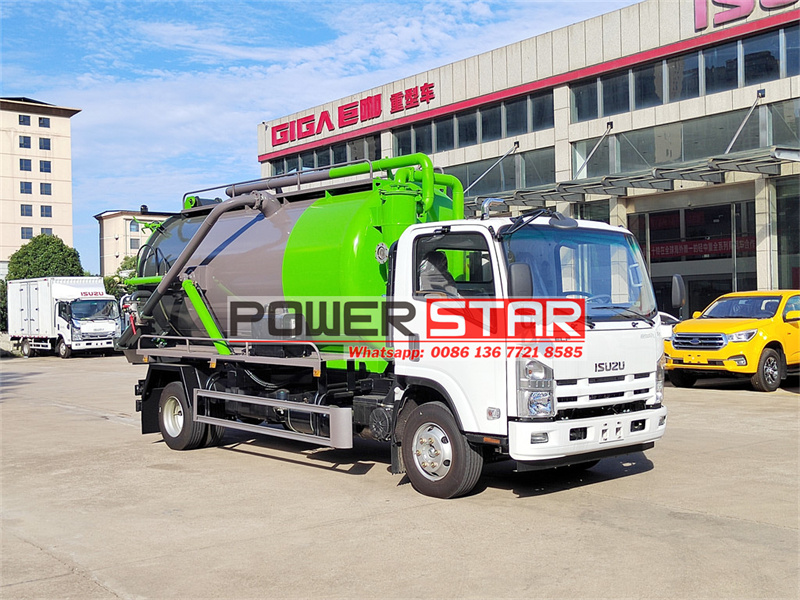

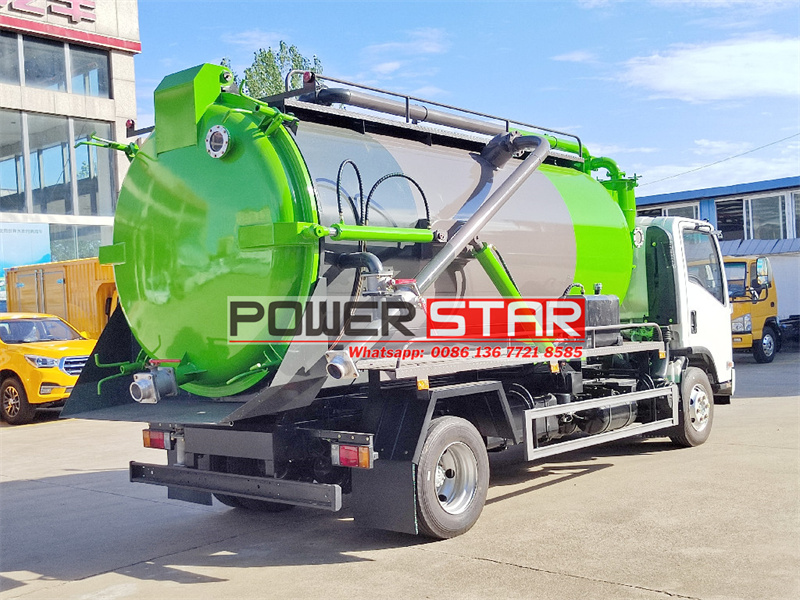

Isuzu sewage pump truck plays an important role in urban environmental management. First of all, Isuzu sewage tank truck can effectively clean up sewage, garbage and debris in urban roads and sewers, keep the urban environment clean and hygienic, reduce environmental pollution and diffusion, improve air quality, and maintain ecological balance. Secondly, Isuzu vacuum tank truck can deal with blockages and silt in sewers in time, prevent flooding, mosquito breeding and other problems, ensure urban public health safety, and provide citizens with a healthy living environment. In addition, the government can better manage urban waste treatment and cleaning work by using Isuzu lorry vacuum tanker, improve urban management efficiency and level, and enhance the city's image and attractiveness. Finally, in emergency situations, Isuzu sewage pump truck can also play a role, such as dealing with emergencies such as sewage leakage and chemical leakage, and providing emergency rescue and emergency treatment capabilities. In short, Isuzu super sucker vacuum truck has irreplaceable and important significance in urban environmental protection and management, and is one of the important tools for maintaining the urban ecological environment and promoting urban sustainable development.
Therefore, as a loyal user of Isuzu sewer tanker truck, we need to have a deep understanding of Isuzu vacuum sucker truck. The first thing to understand is the most important components and functions of Isuzu super sucker vacuum truck:
1. Four-way valve The four-way valve mainly plays the role of converting the gas direction of vacuum suction truck suction and discharge.
2. Anti-overflow valve The anti-overflow valve is a one-way valve device with a float, which is installed on the top of the Isuzu super sucker vacuum truck tank and connected to the suction port of the pump. Its function is to push the one-way valve to the suction port of the device due to the action of the float when the suction tank is almost full. Under the combined action of the float and vacuum suction, the suction port is closed, effectively preventing the floating objects in the sewage and large storage tanks from being sucked into the vacuum pump pipeline and vacuum pump.
3. Gas-water separator function: ① The gas sucked out from the large tank sometimes contains a small amount of water. After passing through the gas-water separator, the water and gas are separated, and the water remains in the separator. After accumulating more, it is discharged through the drain valve, and the gas enters the pump. ② There is a rubber ball in the bent pipe of the gas-water separator that acts as a one-way valve to prevent gas and oil from flowing back into the water-gas separator and pump reversal when the pump stops working.
4. Functions of the primary and secondary oil-gas separators: The oil-gas mixture in the vacuum pump is discharged and separated into the primary oil-gas separator. Most of the oil returns to the bottom of the secondary oil-gas separator through the return pipe for use by the pump. The gas (containing a small amount of oil) enters the secondary oil-gas separator for the second oil-gas separation. The gas is discharged and the oil remains at the bottom of the separator for reuse.

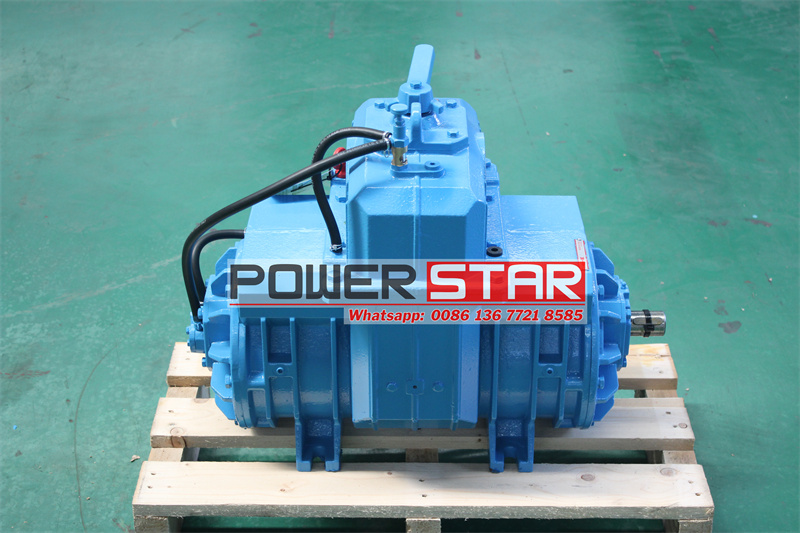

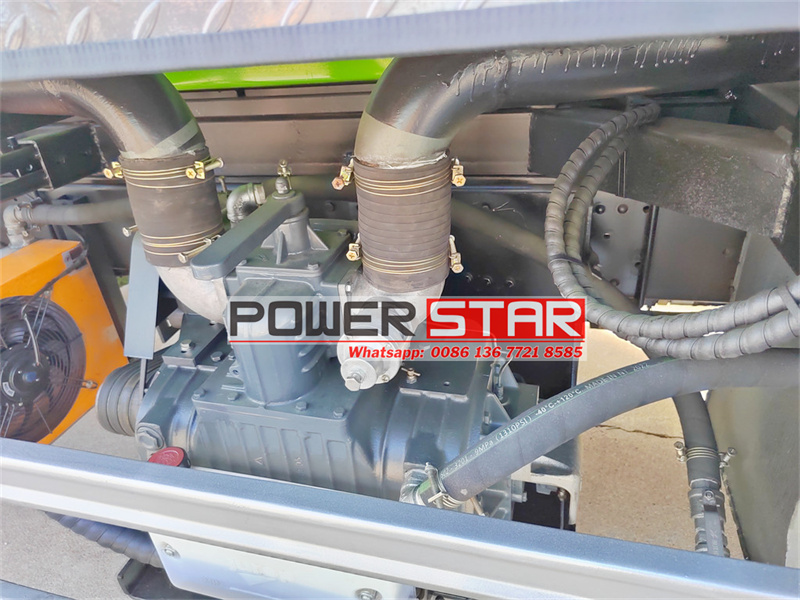

5. Vacuum pump: The core power system of Isuzu vacuum sucker truck. Its main function is to generate a strong negative pressure so that sewage and sludge can be quickly and effectively sucked into the on-board storage tank. High-performance rotary vane pumps or screw pumps are usually used to provide stable and continuous suction to ensure the efficiency and reliability of sewage suction. The high-quality sewage suction pump, such as moro pump can improve the overall performance of the sewage suction truck.
6. Sewage storage tank: An important carrier of Isuzu sewer tanker truck, usually made of high-strength steel, with the characteristics of corrosion resistance, pressure resistance, and good sealing. The tank is usually designed with an internal support structure to enhance the carrying capacity, and is equipped with a liquid level sensor to monitor the sewage loading in real time to prevent overloading.
7. Sewage system: including sewage valves, sewage pipelines and high-pressure sewage pumps. When the tank is full of sewage, the sewage can be unloaded to the treatment station or designated sewage treatment site through the sewage system. The high-pressure sewage pump can quickly and thoroughly empty the tank and improve work efficiency.
8. Hydraulic system: mainly controls the lifting, steering and other auxiliary functions of the Isuzu sewer tanker truck. Through the hydraulic cylinder and hydraulic pump, the tilting unloading of the carriage and the extension and retraction of the suction arm can be realized, which enhances the versatility and operational flexibility of the vehicle.
9. Control system: Modern Isuzu sewer pump trucks are equipped with advanced electronic control systems, including on-board computers, touch screen displays and various sensors. The control system can monitor the vehicle status, sewage volume, working parameters in real time, and provide fault diagnosis and early warning functions, which greatly improves the intelligence level of the equipment.
10. Cleaning system: In order to prevent pollution and maintain hygiene, Isuzu waste tanker is usually equipped with a high-pressure cleaning system. By using high-pressure water guns and special cleaning equipment, the interior of the vehicle and the sewage suction pipeline can be cleaned and disinfected quickly and effectively to ensure the cleanliness and service life of the equipment.
