The CAN-BUS control system of the ISUZU refuse compactor truck is a Controller Area Network bus used for information exchange and collaborative work among various electronic control units (ECUs) within the vehicle. As a specialized vehicle integrating garbage collection, compression, and transfer functions, the ISUZU garbage compactor truck has complex operations and high requirements for its control system. The introduction of the CAN-BUS control system enables efficient data exchange and collaborative work among various control units, significantly enhancing the vehicle's performance and reliability.
The CAN-BUS control system of the ISUZU garbage compactor trucks adopt a modular design approach and mainly consists of the following five components:
1. Control Box Assembly
The control box assembly is the core component of the CAN-BUS control system, responsible for receiving and processing signals from various sensors and outputting control instructions based on preset control strategies. The control box integrates key components such as a microprocessor, CAN controller, and power module to ensure stable system operation.

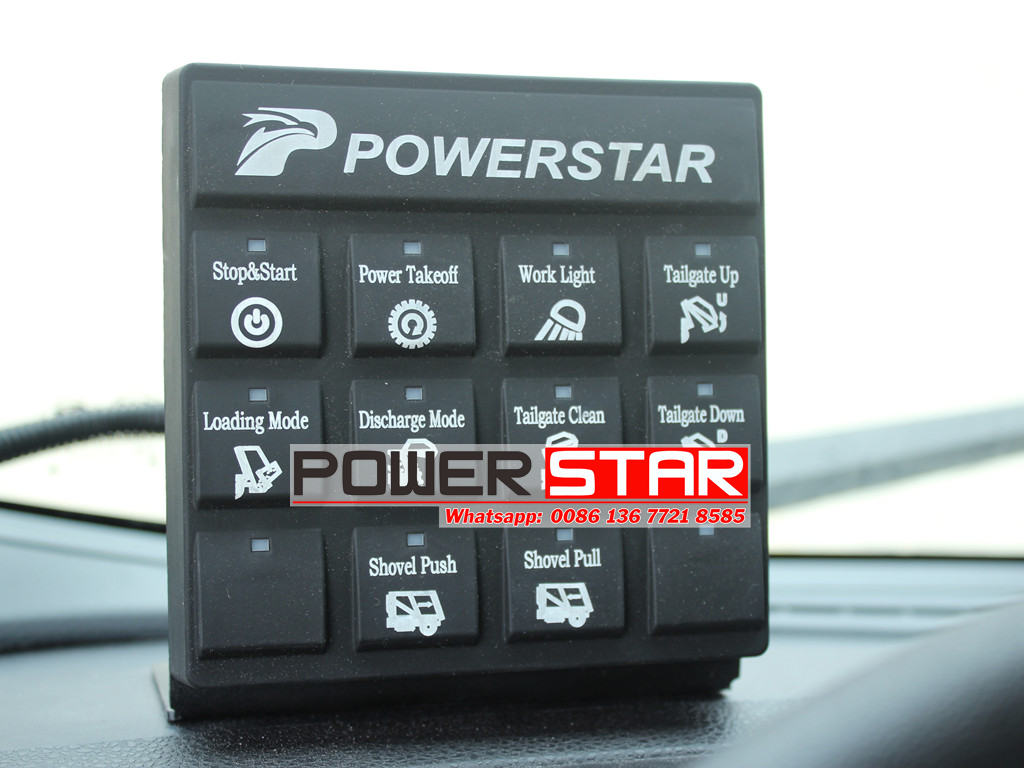

2. Front Operation Keypad
The front operation keypad is installed in the driver's cab of the ISUZU garbage compactor truck, allowing the driver to input various operation instructions conveniently. The keypad is connected to the control box assembly via the CAN-bus, enabling rapid transmission and response of instructions. Each key on the keypad is carefully designed to ensure easy operation and comfortable tactile feel.

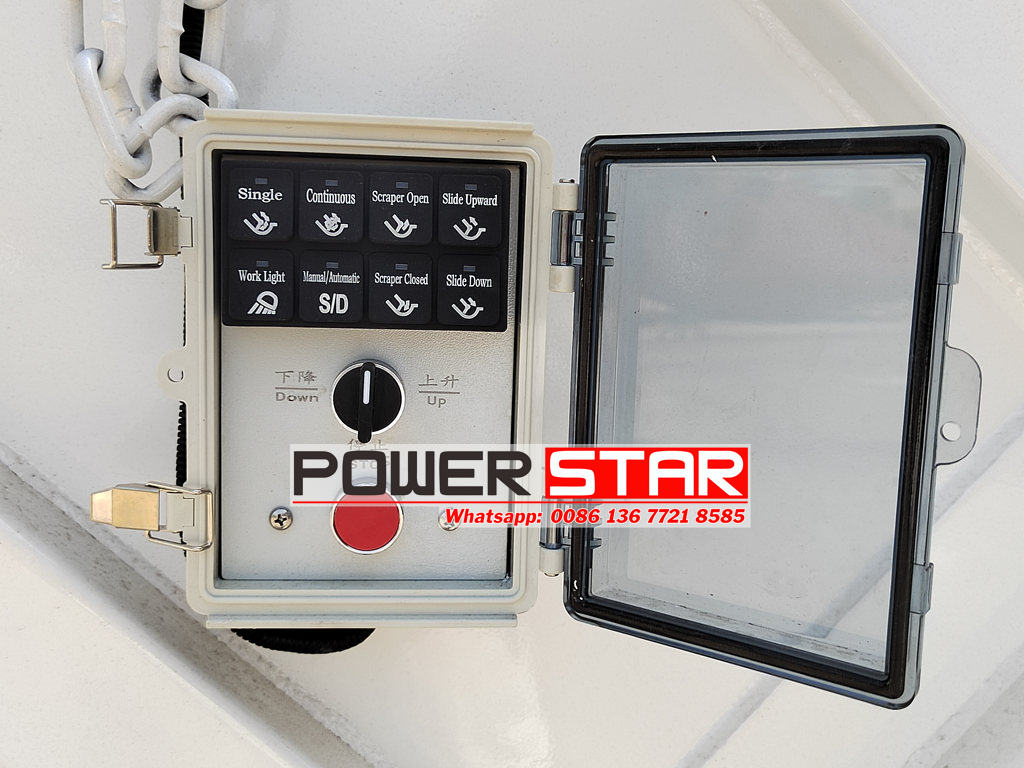

3. Rear Operation Key Box Assembly
The rear operation key box assembly is usually installed at the rear of the ISUZU waste compactor trucks, facilitating operation by personnel outside the vehicle. Similar to the front operation CAN bus keypad, the rear operation key box assembly is also connected to the control box assembly via the CAN bus, enabling remote operation and control.
4. Proximity Switch Sensors
Proximity switch sensors are used to detect the position and status of various vehicle components, such as the position of the compression device and the arrival of garbage bins. The sensors transmit the detected signals to the control box assembly via the CAN bus, providing accurate feedback information for the system.
5. Vehicle Harness
The vehicle harness serves as a bridge connecting various components, responsible for transmitting control signals and power to various control units and actuators. The vehicle harness of the ISUZU rear load garbage trucks is made of high-quality materials with good water and corrosion resistance, ensuring stable and reliable signal transmission.
CAN-BUS System Features and Advantages
1. High Integration
The CAN-BUS electrical control system of the ISUZU waste compactor truck adopts a highly integrated design approach, integrating multiple functions such as control, operation, sensing, and connection, achieving simplicity and efficiency in the system. This highly integrated design not only reduces the number of components and connection lines but also improves system stability and reliability.
2. Easy Installation
The system adopts a modular design and standardized interfaces, making the installation process simpler and faster. Users can complete the installation with simple operations according to the instructions, without the need for complex debugging and configuration. This reduces installation costs and time, improving user satisfaction.
3. Simple Wiring
The system internally adopts a plug-and-play connection method, reducing the tedium and error rate of manual wiring. At the same time, the system provides complete wiring labels and instructions, making the wiring process more intuitive and easy to understand. This reduces wiring difficulty and error rate, improving system reliability and stability.
4. High Protection Level
The system has a high protection level (IP67), with water and corrosion resistance, capable of stable operation in various harsh environments. This allows the ISUZU waste compactor truck to maintain normal operational performance and service life in rainy, snowy, or dusty environments.
5. Wide Operating Voltage Range
The system supports a wide operating voltage range of 9~36VDC, with strong adaptability, capable of stable operation in different voltage environments. This allows the ISUZU rear loader truck to maintain optimal working status and performance in various working conditions.
6. Long-lasting Keys
The keys used in the system have a lifespan of over 1 million presses, with strong durability. This allows operators to maintain a comfortable tactile feel and accurate operational performance even after long-term use, improving work efficiency and satisfaction.
7. Backlight Function
The system has a backlight function, convenient for nighttime operations. This allows operators to clearly see the keys and indicator lights in night or low-light environments, improving operational efficiency and safety.
The CAN-BUS electrical control system of the ISUZU refuse compactor truck, with its high integration, intelligence, and outstanding performance, has become a mainstream in the urban waste treatment field. With the continuous advancement of technology, the system will continue to be optimized and upgraded, providing more efficient and reliable solutions for the sanitation industry.
