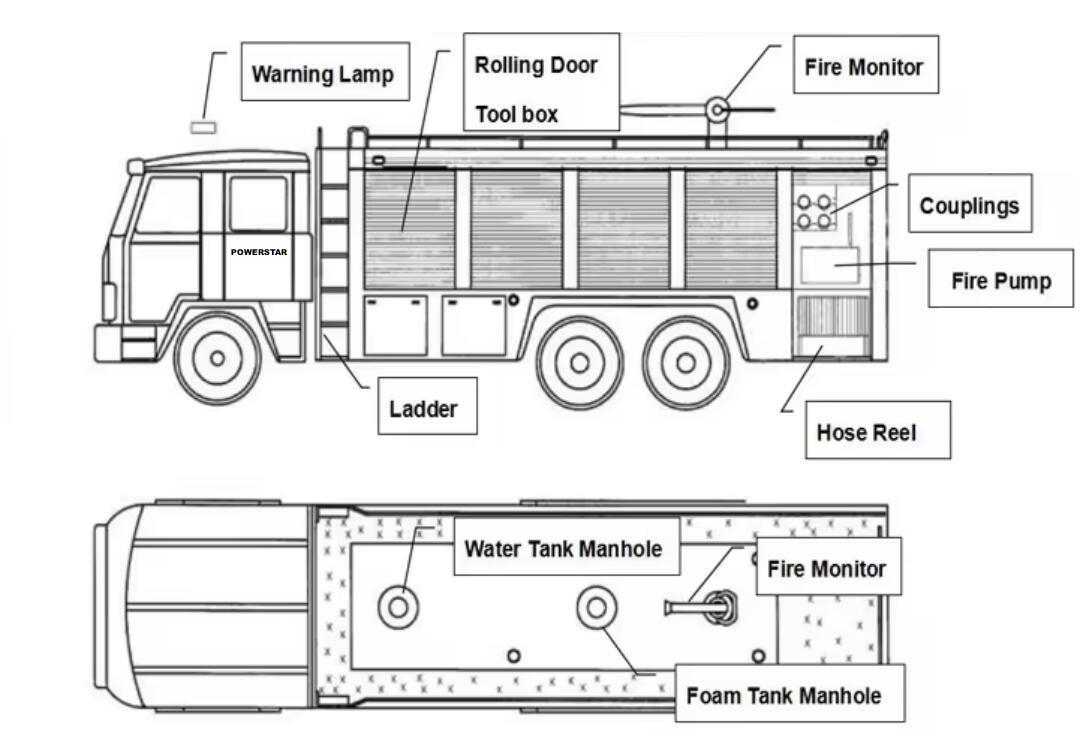

POWERSTAR TRUCKS Isuzu GIGA Fire Engine based on type II ISUZU GIGA 6x4 Left Hand Drive chassis, body capacity could up to 12,000Liters, including 9,000Liters water tanker and 3,000Liters foam tank, all based on stainless material tank, truck equipped with XIONGZHEN CB10/60 fire pump and PL48 fire monitor, very convenient for daily use. Mainly used for firefighting project in any areas of need. Isuzu fire truck is a special vehicle modified from the chassis of a Class II truck. The detailed introduction to Isuzu fire truck including Structural composition. The special part of Isuzu GIGA fire truck is mainly composed of liquid tank, pump room, equipment box, power output and transmission system, pipeline system, electrical system, etc. These components work together to ensure that the fire truck can quickly approach the fire scene and launch an effective fire fighting.
The vehicle designed to fully rely on the advantages of the original of ISUZU brand chassis, fully consider the product's convenience and reliability, also the chassis ISUZU GIGA technology features. The body material is international standard stainless steel, which can effective to avoid rusting and service for long life. The ISUZU GIGA 6x4 Fire Truck equipped with Sandwich PTO, fire pump, fire monitor, crew room, hose box, pump room, English version control box, inlet and outlet pipeline, rear climbing ladder, top pillow lamp, and all necessary firefighting equipment. Customized Double-row cabin with 2+4 seats nice driving feeling. Therefore, the vehicle is an ideal Fire Truck mainly for firefighting project.
The ISUZU GIGA Firefighting Truck makes use of the sandwich power take off (PTO) to get power from the engine, and then transfer the power to the XIONGZHEN CB10/60 Fire Pump via drive axle so to rotate the rear-installed fire pump. The pump start working: Optional one, transfer water and foam inside of the tank to fire monitor, and jetting out for firefighting process; Optional two, suction water through pool, river, fire hydrant etc. and jetting out through fire monitor. And Isuzu GIGA fire trucks can be optional as ISUZU GIGA 4x2 fire truck, Isuzu GIGA 6x4 fire engine, Isuzu GIGA 8x4 water foam dry powder fire engine.
The GIGA rescue fire truck is refitted based on the ISUZU GIGA 6x4 LHD chassis. The refit part includes tanker system, actuator device, operation system and firefighting equipment.
→ Tanker: Stainless steel material water tanker and foam tanker, standard steel pipelines for firefighting process.
→ Actuator device: includes sandwich power take off, drive line, etc., which can pass the power from the chassis to the fire pump.
→ Operation system: the Electric control system located at rear of pump house, which can view pump vacuum rate, water tanker and foam tanker level, light system, etc. this helps come to all special functions’ convert.
→ Firefighting equipment: whole standard firefighting equipment.
Advanced features and design of ISUZU GIGA fire trucks:
Streamlined design: The Isuzu GIGA fire truck adopts a streamlined design, with a novel appearance and flexible maneuverability.
Reasonable internal layout: The Isuzu fire fighting pumper truck internal equipment rack partition materials are made of high-strength aluminum alloy profiles, the equipment is placed reasonably, and fixed with special clamps to ensure safety and stability during driving.
Double-row integral structure: The fire fighting truck adopts a double-row integral structure, with many passengers and a wide field of vision.
Strong firefighting ability: The rescue fire truck can extinguish fires while moving, with a long range and strong firefighting combat capability.
Configuration and performance of ISUZU GIGA fire engine:
A variety of models to choose from: Isuzu fire tender series products include Isuzu NKR light fire truck, ISUZU GIGA 4X 5X medium fire tender and ISUZU GIGA heavy fire trucks, as well as Isuzu water tank fire trucks, Isuzu foam fire trucks, ISUZU GIGA dry powder foam combined fire trucks, ISUZU pickup emergency rescue fire trucks and other models to meet the firefighting needs of different departments and places.
Powerful power: Equipped with an original Japanese ISUZU technology diesel engine, the power output is stable and strong, which can meet the operation needs of fire trucks in complex environments.
Large liquid capacity: The liquid capacity of the liquid tank of different models ranges from 2000L to 18000L to meet the needs of different fire-fighting tasks.
Fire pump and fire cannon: The Isuzufire truck is equipped with a well-known brand fire pump CB10/20, CB10/30, CB10/40, CB10/60, CB10/80, CB10/100 and fire cannon PS or PL model. The effective range of the fire cannon varies according to the model, but it can meet the needs of fast and efficient fire fighting.
Scope of application for ISUZU GIGA fire engine:
Isuzu fire trucks GIGA fire engines are widely used in petrochemical, factory and mining enterprises, forests, ports, docks and other departments. They can quickly approach the fire scene and start fire fighting to put out various fires. Which have advanced features and advantages:
High reliability: The performance and quality of fire trucks produced by Isuzu are stable and reliable.
Good economy: The price is relatively low, and the operation and maintenance costs are not high.
Easy to obtain spare parts: simple maintenance and repair, reducing downtime and repair costs.
Service in place: The manufacturer's after-sales service is in place, the chassis is under national joint warranty, the special parts are three-guaranteed for one year, and the purchase method is flexible.
