Isuzu fire truck is a fire truck specially used for fire fighting and rescue. Its main feature is that it is equipped with a large number of water tanks and high-pressure water guns. With the powerful high-pressure water gun, Isuzu fire truck can quickly put into fire fighting at the fire scene and effectively control the fire. In the emergency rescue of urban fires, Isuzu fire trucks can often play a key role in extinguishing fires in time and minimizing casualties and property losses.

Isuzu fire truck also called fire engine, water fire truck, foam fire truck, fire rescue truck) is a vehicle designed primarity for fire fighting operations, equipped with high-pressure water pumps and fire-fighting equipment, it can provide a large amount of water flow and high-pressure water guns for rapid fire extinguishing and rescue. It can also carry a large number of fire-fighting equipment and rescue tools, such as fire extinguishers, fire hydrants, life ropes, etc., to deal with various emergency situations.
The structure of Isuzu fire truck can be divided into several parts, such as body, power system, water tank system and communication system.

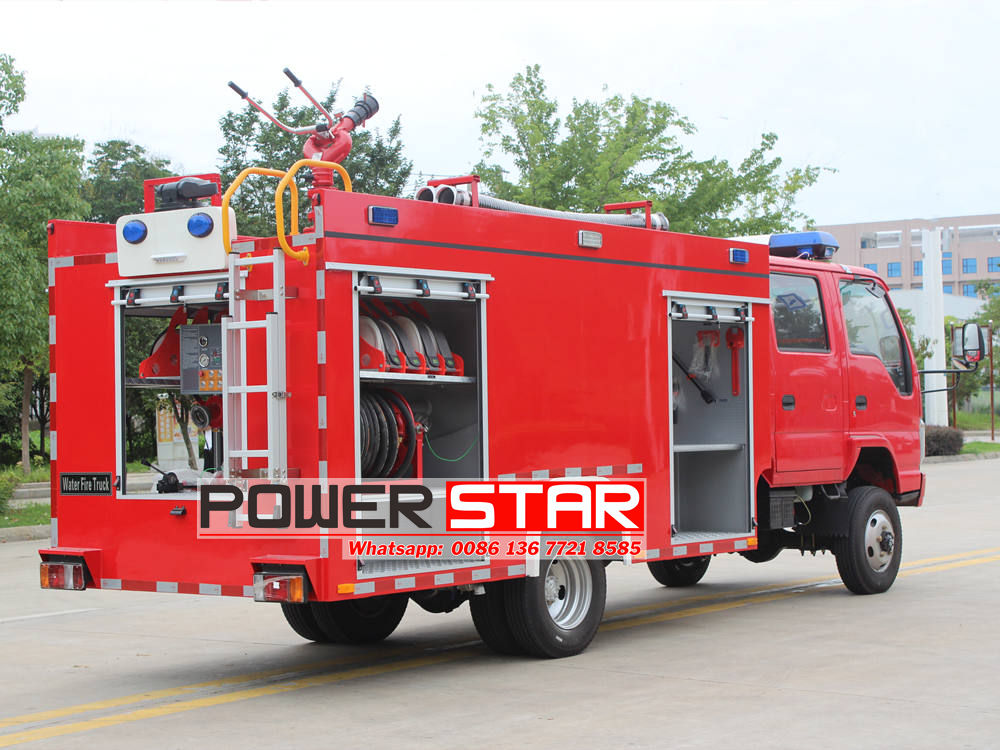

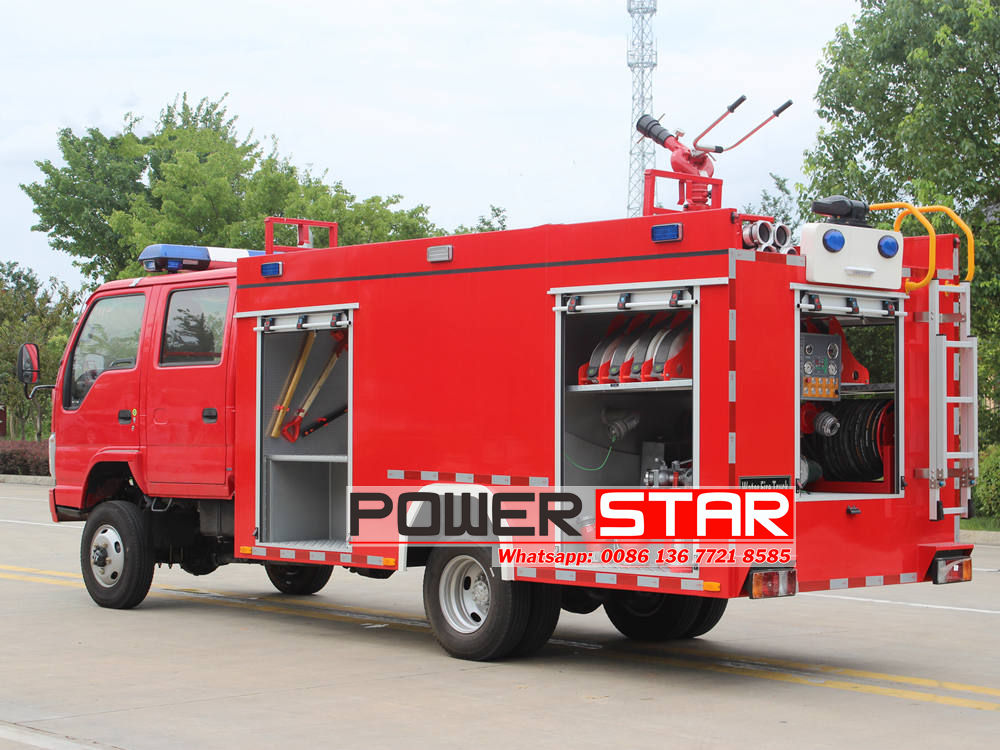

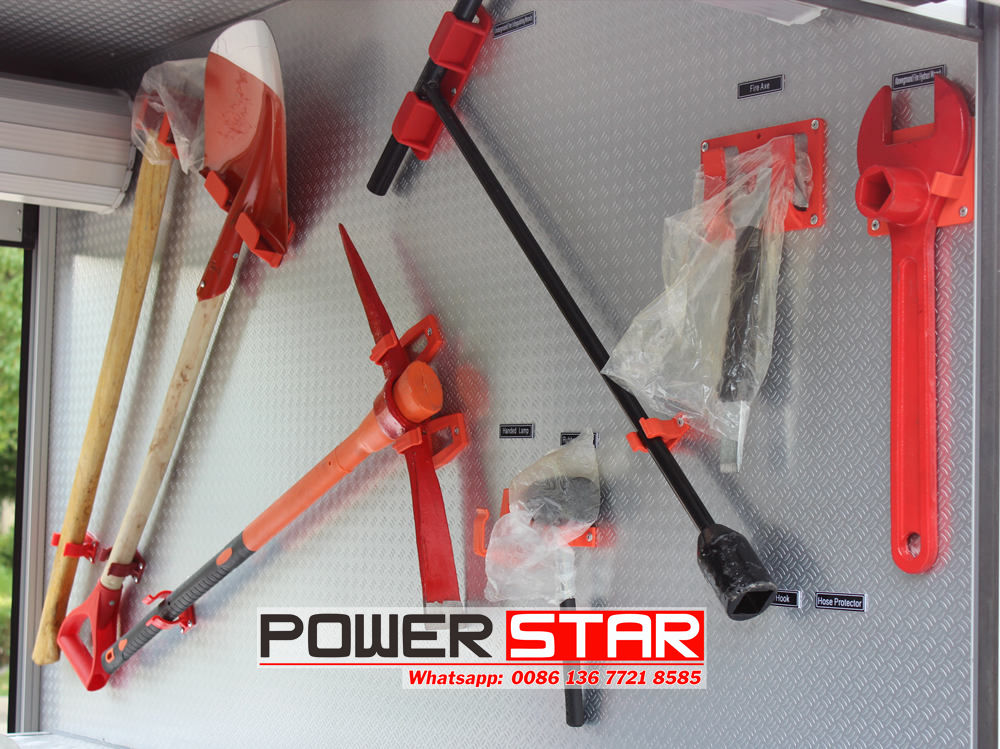

1. Body: The body of Isuzu fire engine is made of high-hardness steel plate and has strong impact resistance. There are multiple lockers and tool boxes on the body to store fire extinguishers and rescue tools. The body can also be equipped with light alarm devices to send out warning signals to remind traffic drivers to be vigilant.
2. Power system: Isuzu fire engine is equipped with a powerful power system to ensure that it can quickly reach the scene of the accident. The power system is generally composed of a diesel engine or a gasoline engine with high power and torque.
3. Water tank system: The water tank system of Isuzu fire engine is its main fire extinguishing device. The water tank is made of special materials resistant to high pressure, and the capacity ranges from several thousand liters to tens of thousands of liters. The water tank is equipped with a water pump and a water spraying device, which can transport water to the fire scene and spray water to extinguish the fire.
4. Communication system: Isuzu fire engine is equipped with advanced communication equipment to ensure timely communication with the command center and other rescue forces. Communication systems usually include radios and walkie-talkies, which can maintain contact during combat and obtain important instructions and information.
|
TECHNICAL SPECIFICATIONS |
||
|
Main specifications |
Chassis brand |
ISUZU |
|
Overall dimension(L*W*H) |
5998×2000×2860mm |
|
|
GVW |
7300Kg |
|
|
Curb weight |
3300Kg |
|
|
Water tank volume |
3,000 liters |
|
|
Cabin |
double cabin, 2+3seats,with Air conditioner, electronic windows, USB |
|
|
Chassis |
Drive model |
4x4 left hand drive |
|
Axle (front/rear) loading |
2.5t/4.8t |
|
|
Front/rear suspension |
1015/1623mm |
|
|
Wheel Base |
3360mm |
|
|
Approach/departure angle |
24/13(°) |
|
|
Tyre size & number |
7.00R16 with one spare tire |
|
|
Transmission |
ISUZU MSB brand, manual, 5 gears with reverse |
|
|
Brake |
Oil brake, With ABS |
|
|
Color |
Red and white including tanker , standard . |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4KH1CN6LB |
|
|
Engine Type |
Four-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling |
|
|
Horse power |
120 HP/88Kw |
|
|
Displacement |
2999ml |
|
|
Emission |
Euro 6 |
|
|
Upper Body |
||
|
Water tank volume |
3000 Liters |
|
|
Tank material |
Carbon steel |
|
|
Water tank thickness |
4 mm |
|
|

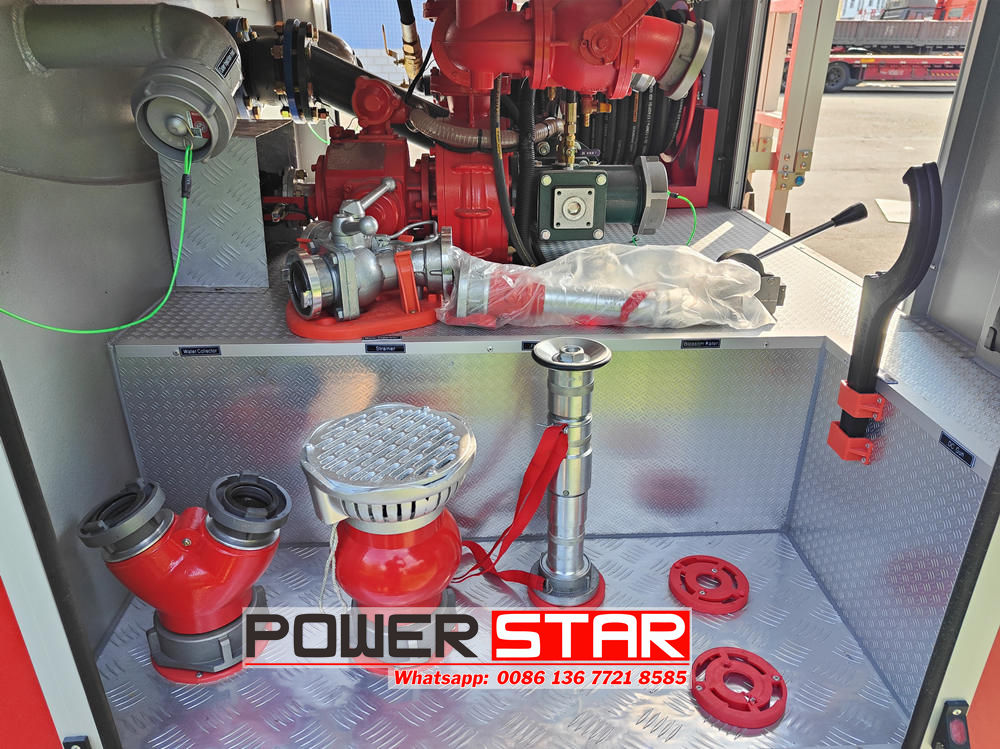

Fire pump model |
CB10/30, Normal pressure pump |
|
|
Fire pump pressure |
≥1.0 Mpa |
|
|
Fire pump max suction height |
7 m |
|
|
Fire pump flow |
30 (L/S) |
|
|
Fire pump rated speed |
3000 (r/min) |
|
|
Fire pump time of drawing water |
≤35 (s) |
|
|
Fire pump Input |
1 unit, diameter: 100mm |
|
|
Fire pump Outlet |
2 units, diameter: 65mm |
|
|
Fire monitor Model |
PS8/30W, mounted on the top of tank |
|
|
Fire monitor rated working pressure |
0.8 Mpa |
|
|
Fire monitor max working pressure |
1Mpa |
|
|
Fire monitor rated flow |
30 L/S |
|
|
Fire monitor rotation angle |
360° |
|
|
Standard configurations |

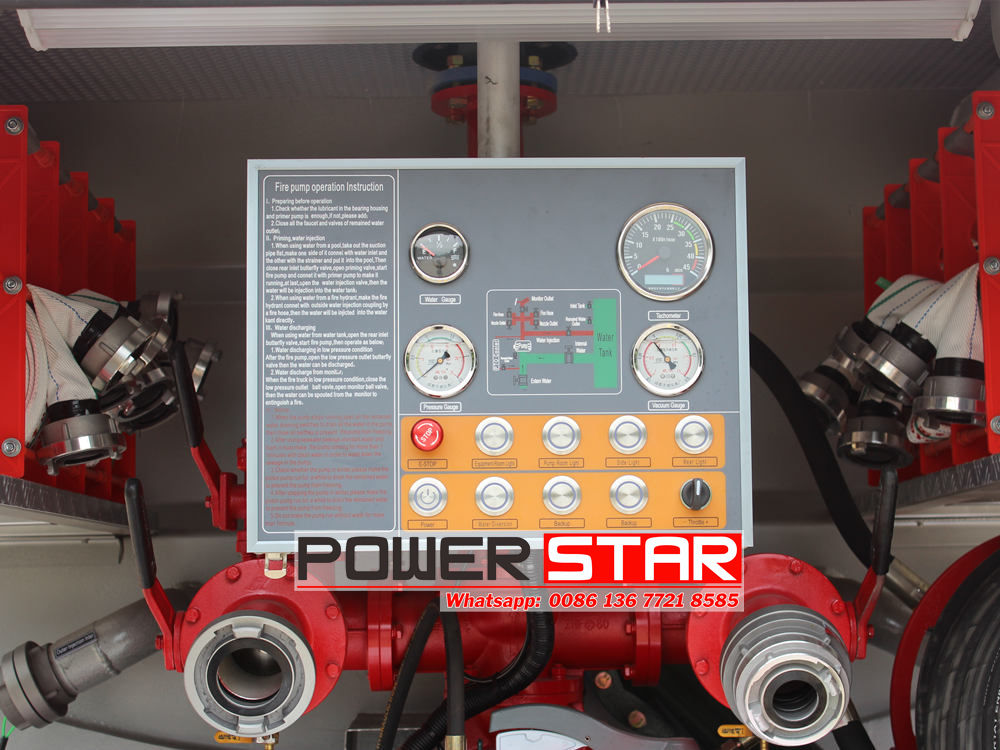

Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose |
|
Isuzu water fire trucks are crucial vehicles used by firefighters to combat fires and emergencies. These innovative trucks are equipped with specialized firefighting equipment to efficiently and effectively extinguish flames. To properly utilize an Isuzu water fire truck, one must follow specific steps to maximize its capabilities and ensure the safety of both the firefighters and the individuals affected by the fire. Below are three key points on how to use an Isuzu water fire truck.
Familiarize Yourself with the Equipment:
Before operating an Isuzu water fire truck, it is essential to familiarize yourself with the various components and features of the vehicle. Start by inspecting the water tank, pump, hoses, nozzles, and other firefighting tools to ensure they are in working condition. Make sure all the equipment is securely stored and easily accessible in case of an emergency. Additionally, it is important to understand how to operate the pump and control the water flow to effectively extinguish fires.


Plan and Coordinate Firefighting Efforts:
Effective teamwork and coordination are essential when using an Isuzu water fire truck to combat fires. As a firefighter, it is crucial to communicate with your team members and establish a plan of action before approaching the fire scene. Determine the best approach to extinguish the fire based on factors such as the size of the fire, the type of building or structure involved, and the presence of hazardous materials. Coordinate with other emergency responders, such as police and medical personnel, to ensure a seamless and efficient response to the emergency.


Deploy Isuzu Water Fire Truck Effectively:
Once on the scene, it is important to deploy the Isuzu water fire truck strategically to suppress the fire and prevent it from spreading further. Position the truck in a safe and accessible location, ensuring that it is close enough to the fire to reach the flames with the hoses and nozzles. Use the pump to draw water from the tank and pressurize it to create a strong stream of water that can be directed at the fire. Adjust the water flow according to the intensity of the flames and the type of materials burning to effectively extinguish the fire.


In conclusion, using an Isuzu water fire truck requires a thorough understanding of the equipment, deploying the water effectively, and following strict safety procedures. By following these steps, firefighters can effectively extinguish fires and protect lives and property.
