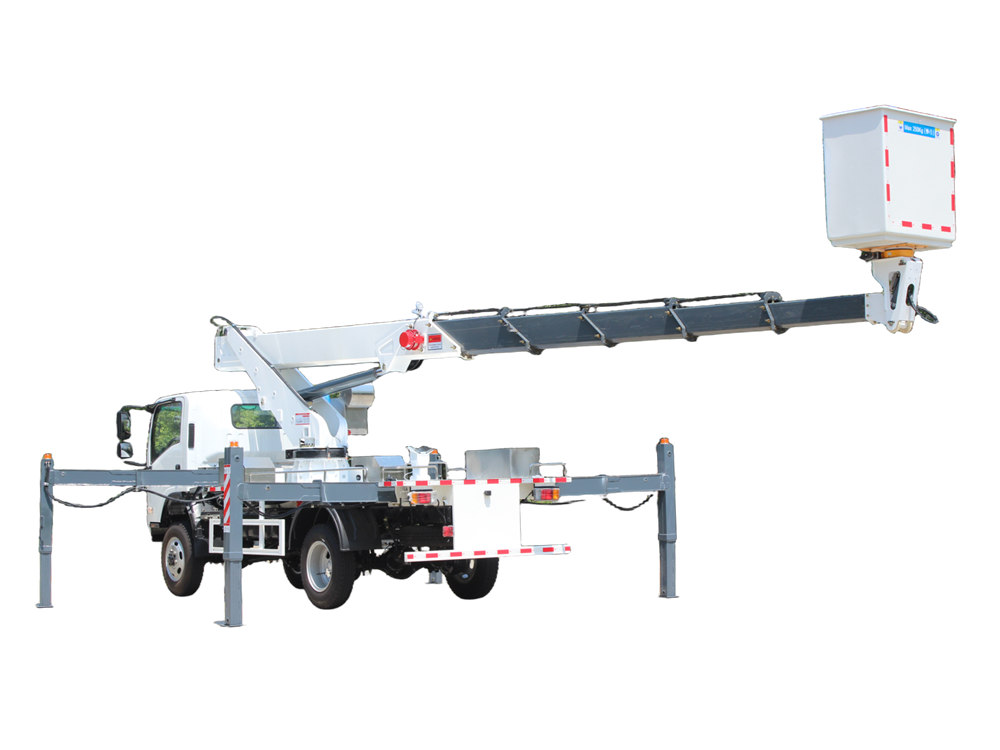

Isuzu ELF 4 wheels off-road man lift truck adopts four-wheel drive chassis and is equipped with high-strength telescopic boom, which is suitable for complex terrain and high-altitude operation needs. Its straight arm structure provides a larger working radius and precise positioning capability, and can rotate 360° to cover a wider operating range.
The four-wheel drive system ensures stable driving and operation in harsh environments such as rugged roads and construction sites. The hydraulic leveling outriggers enhance stability, the intelligent control system monitors load and safety in real time, and is equipped with an emergency descending device to ensure safe operation.

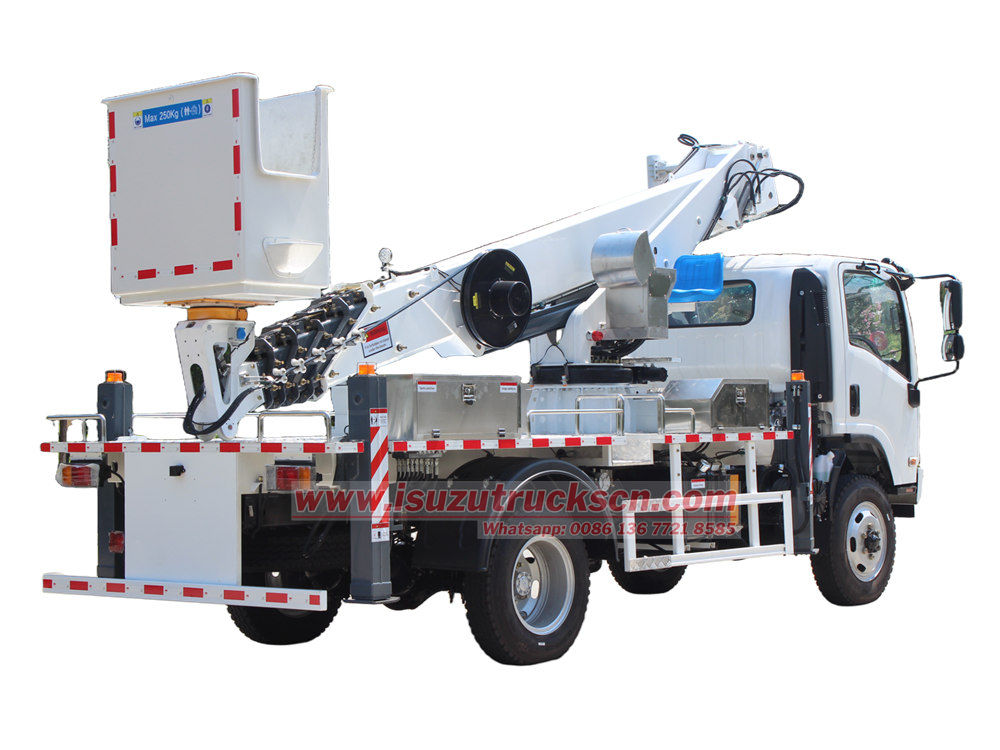

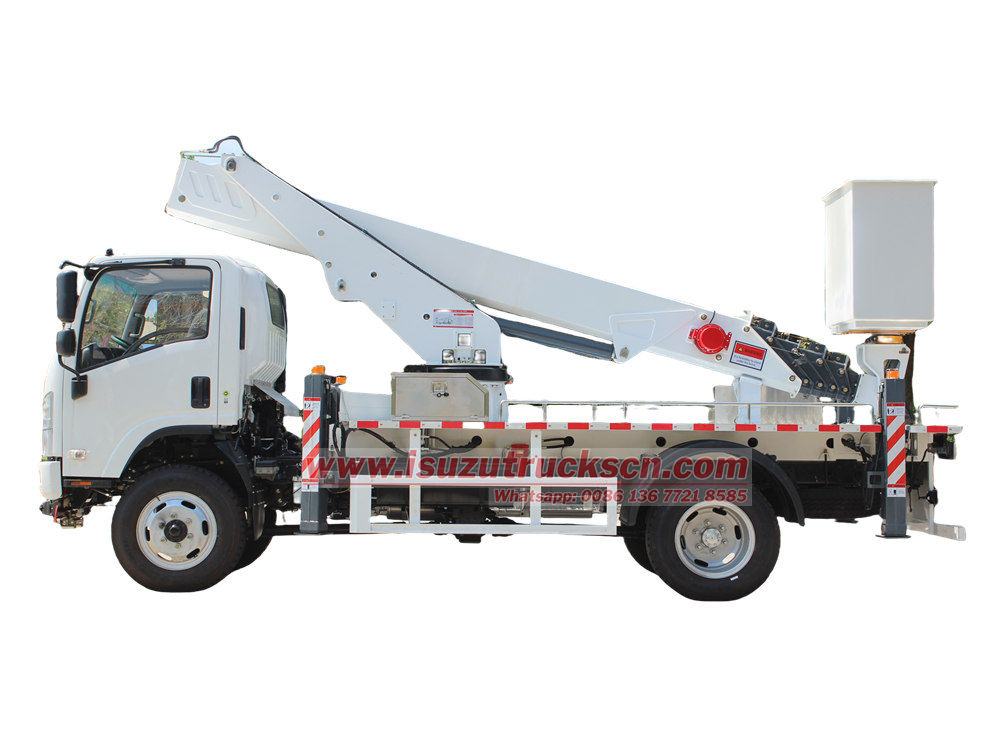

Isuzu man lift truck also aerial platform truck, telescopic platform truck, aerial lift platform vehicle, bucket lift truck,lifting platform truck, is an efficient and safe aerial work equipment, 3815mm wheelbase, equipped with Isuzu 4HK1-TCG61 diesel engine, 190HP 140KW, Isuzu MLD-6 gear gearbox, 8.25R20 tires with totally 4 units, aerial work lifting height of 29 meters, three-section telescopic arm, working bucket load limit of 200kg, hydraulic 360 degree full rotation, with automatic hydraulic leveling, hydraulic system with proportional control, stepless speed regulation, emergency operation, stainless steel tool box and control box, with wireless remote control device.
|
Main specification |
Chassis brand |
ISUZU |
|
|
Chassis model |
PT1110ANJGK |
||
|
Overall dimension(LxWxH) |
6840x2200x3450mm |
||
|
Gross / Curb weight |
10,550kg / 6,350kg |
||
|
Chassis |
Drive modle |
4x2 left hand drive |
|
|
Wheel Base |
3815 mm |
||
|
Tyre size & number |
8.25R20, totally 4 wheelers with one spare tyre |
||
|
Fuel/Engine type: |
Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail |
||
|
Engine model |
4HK1-TCG61 |
||
|
Engine horse power |
190HP (140KW) |
||
|
Emission |
Euro 6 |
||
|
Transmission |
ISUZU MLD 6 speed forward, 1 reverse |
||
|
Working condition |
Maximum operating height |
29 m |
|
|
Max. bucket bottom height |
16 m |
||
|
Rotation |
360° |
||
|
Boom Type |
3Sections telescopic boom |
||
|
Outrigger type |
Outrigger type |
Front V Rear H type. Controlled independently |
|
|
Outrigger span |
Vertical |
4000mm |
|
|
horizontal |
4350mm |
||
|
Operation system |
Operation |

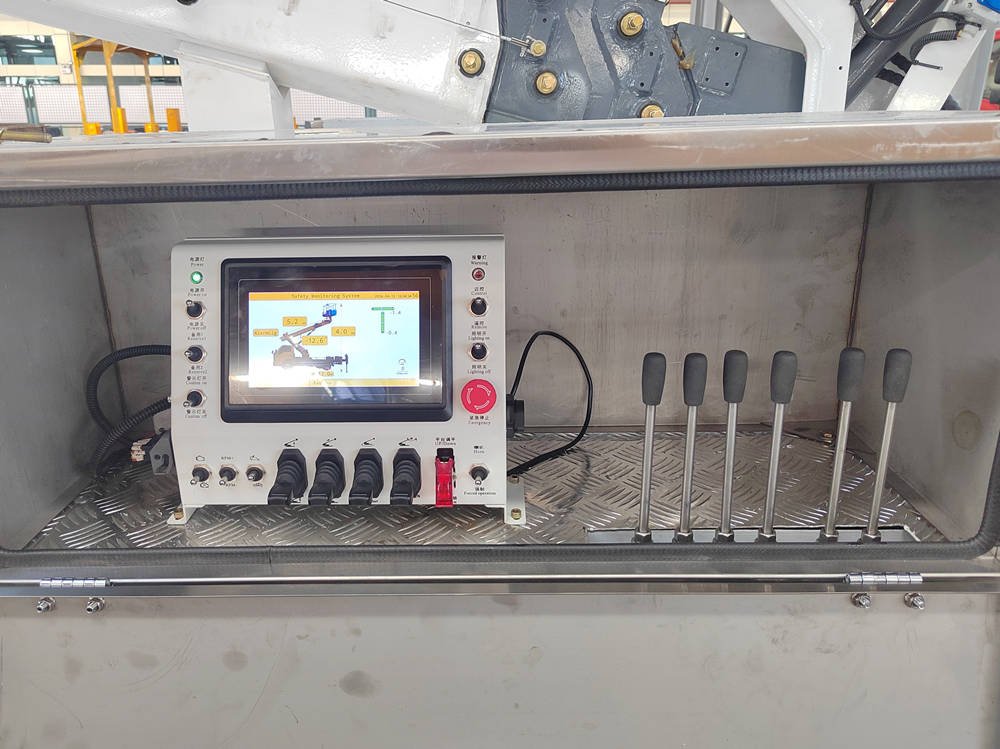

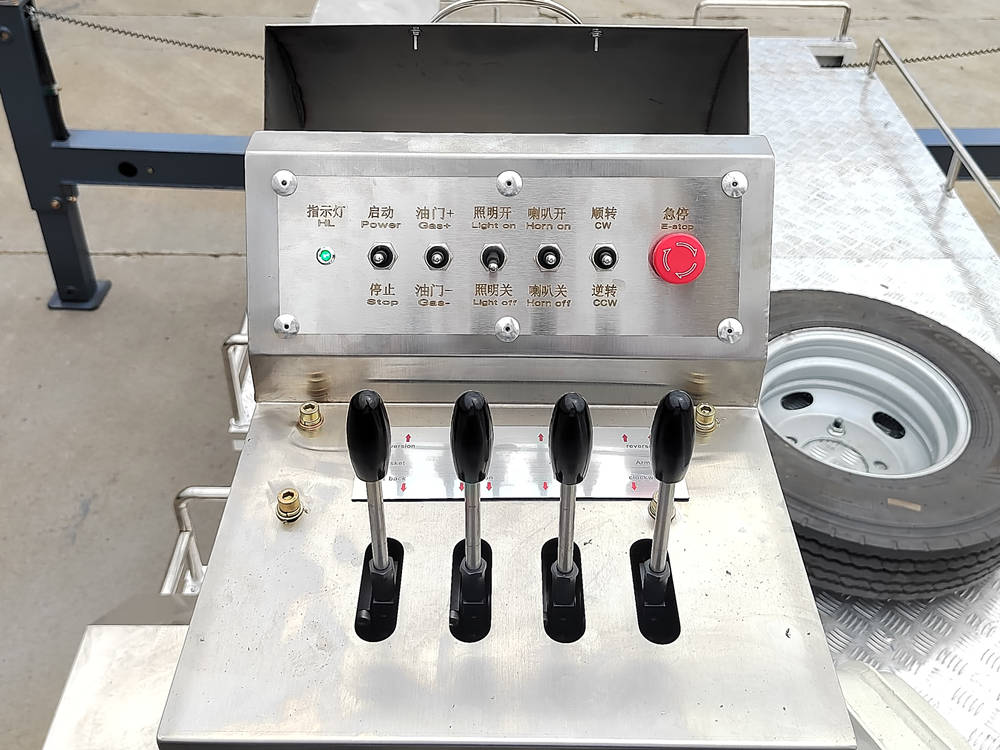

4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever. |
|
|
Control system |
Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation. |
||
|
Leveling system |
Hydraulic automatic leveling |
||
|
Security configuration |
Automatic interlocking device for up and down |
For locking up and down the truck to prevent the risk of misoperation. |
|
|
Basket |
360 degree rotation |
||
|
Horizontal function |
Real time display |
||
|
Real time communication |
There is wireless intercom between the platform and the vehicle |
||
|
Emergency electric emergency pump |
When the engine and main pump failure, the operator can be sent back to the ground. |
||

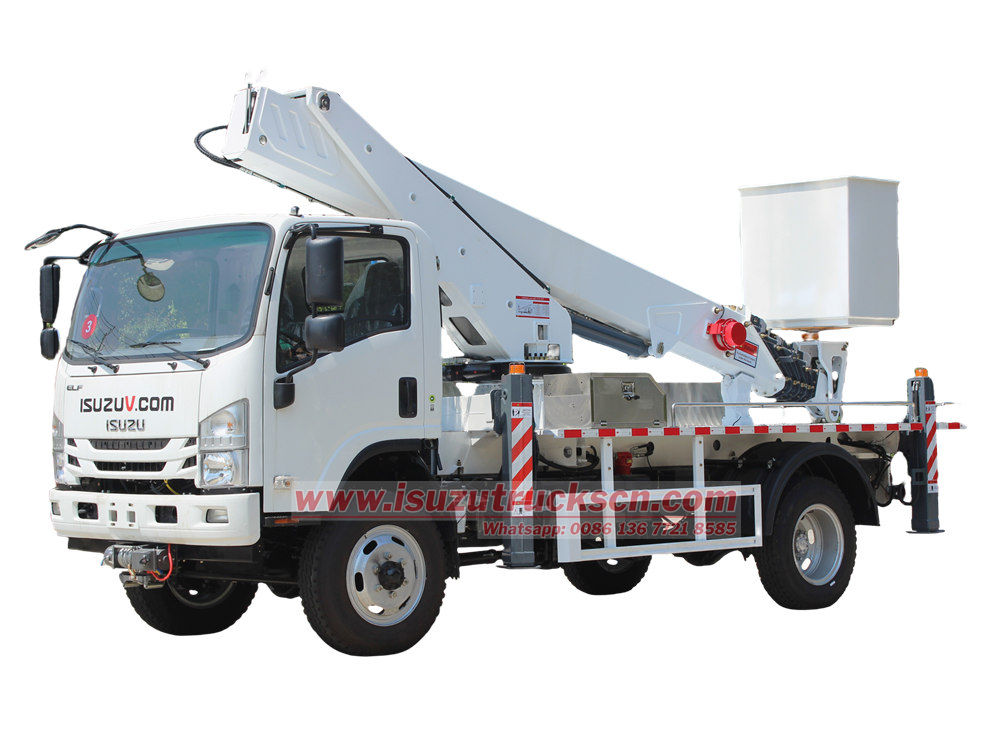

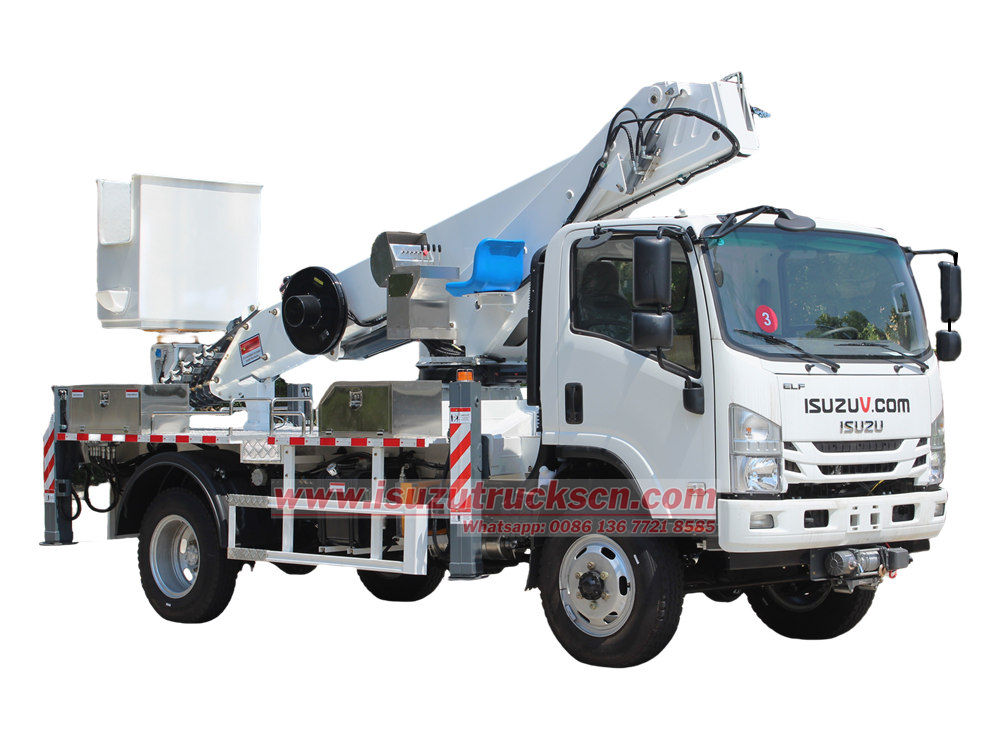

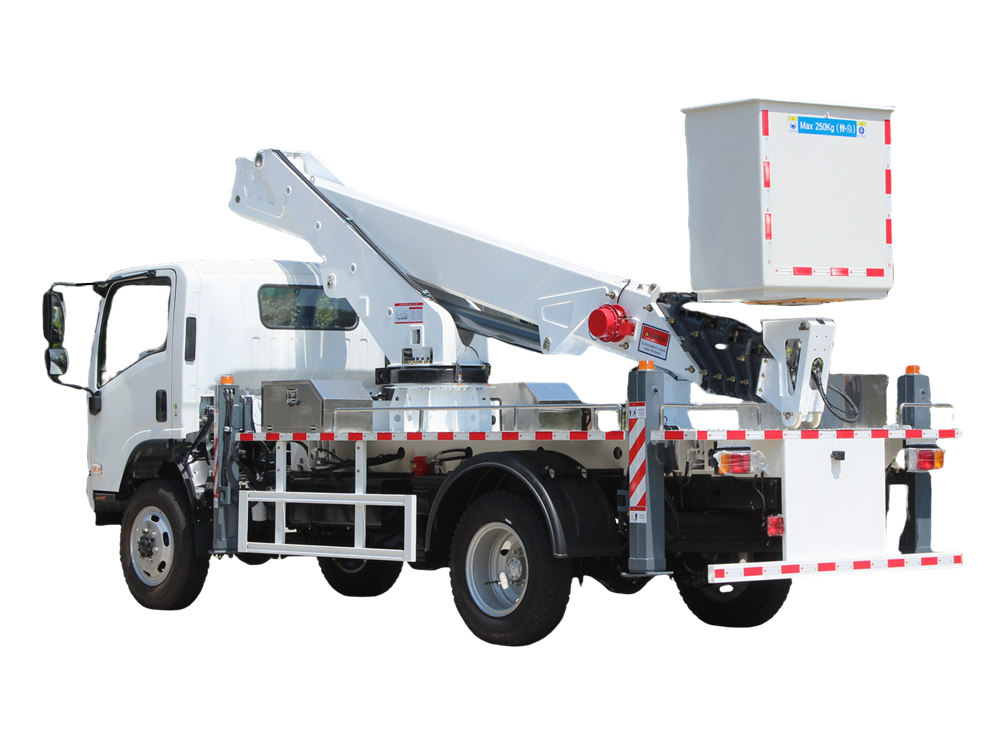

Year 2025 newly designed and produced Isuzu straight arm high altitude aerial work platform truck has a height of 29 meters. It uses the full-retractable working arm with large leg span and good stability. It can be operated simultaneously or separately, which is safe and reliable. With flexibility in high altitude operation, widely used in municipal, electric power, street lamp, advertising, communication, photography, landscape, shipbuilding, transportation, wharf, airport port, rescue and rescue, large industrial, mining enterprises and other industries of installation and maintenance and climbing operations.
1. The material of the Isuzu ELF lifting platform truck
This model adopts high-strength and lightweight materials to ensure operational safety and maneuverability:

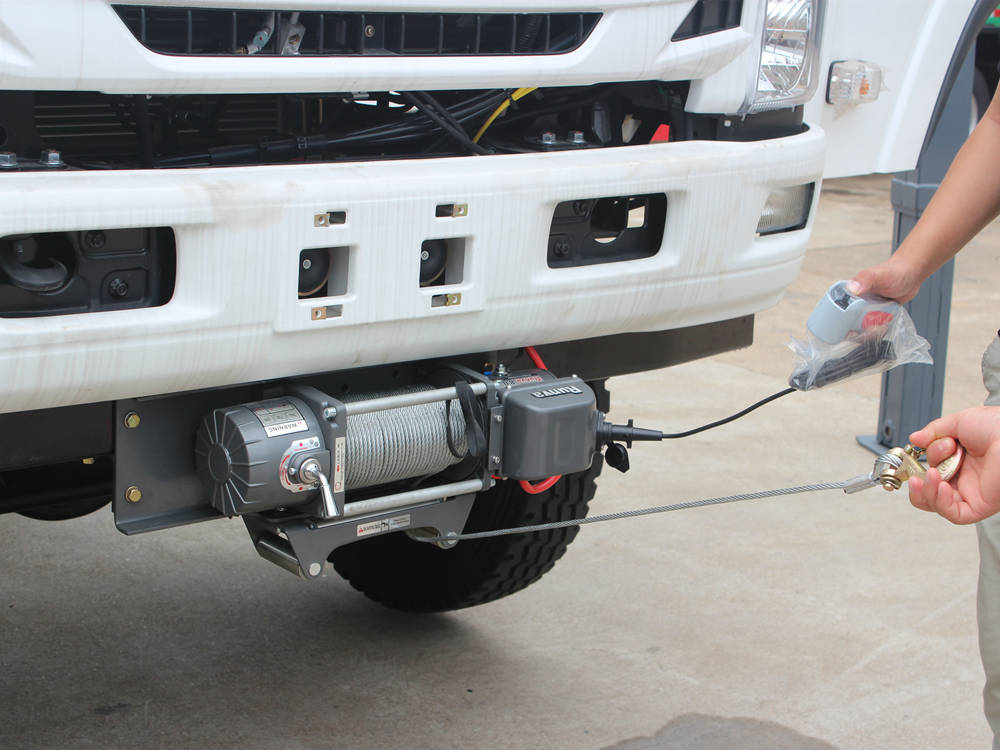

(1) Chassis and drive system
●High-strength alloy steel frame: It adopts a welded box-type structure with excellent torsion resistance and impact resistance, and is suitable for rugged terrain.
●Full-time four-wheel drive system: 4×4 drive mode with central differential lock enhances passability in harsh road conditions such as mud, snow, and gravel roads.
●Single-wheel narrow body design: The front and rear single-wheel layout controls the width of the vehicle within 2.2 meters, which is suitable for narrow streets or construction sites.
(2) Telescopic arm and working platform
●Telescopic arm: The main arm adopts a composite structure of high-strength aluminum alloy and special steel, which is 30% lighter than traditional steel arms, with a maximum operating height of 29 meters and a working range of 16 meters.
●Insulated and non-slip working platform: FRP fence + non-slip stainless steel bottom plate, with optional fully insulated arm (10kV/35kV/110kV withstand voltage level), suitable for power maintenance.
2. Advantages of Isuzu 4x4 off-road telescopic aerial truck
(1) Efficient and accurate operation capability
◆Quick lifting: 0-29m full lifting time <90 seconds, 360° continuous platform rotation, 40% higher operation efficiency.
◆Intelligent control system: CAN bus integrated control, real-time monitoring of oil pressure, battery, boom angle, and support for remote fault diagnosis.
(2) Multiple safety guarantees
◆Anti-overturning protection: Dual angle sensors + automatic limit, automatic locking action when tilt exceeds limit.
◆Emergency descent system: When the main hydraulic pressure fails, the mechanical emergency pump can be manually operated for smooth landing.
◆Anti-collision warning: Optional ultrasonic/radar detection to prevent the boom from colliding with obstacles.
3. Wide application of Isuzu 4x4 man lift truck
●Urban viaduct inspection and maintenance: The working height of 29 meters can easily cope with the inspection and maintenance needs of most urban overpasses, and the single-wheel design can be operated without closing the road.
●Maintenance of large public facilities: Suitable for lighting system maintenance and exterior wall cleaning operations of large buildings such as stadiums and exhibition centers.
●Urban garden management: Equipped with a special branch pruner, it can efficiently complete the shaping and pruning of street trees.
