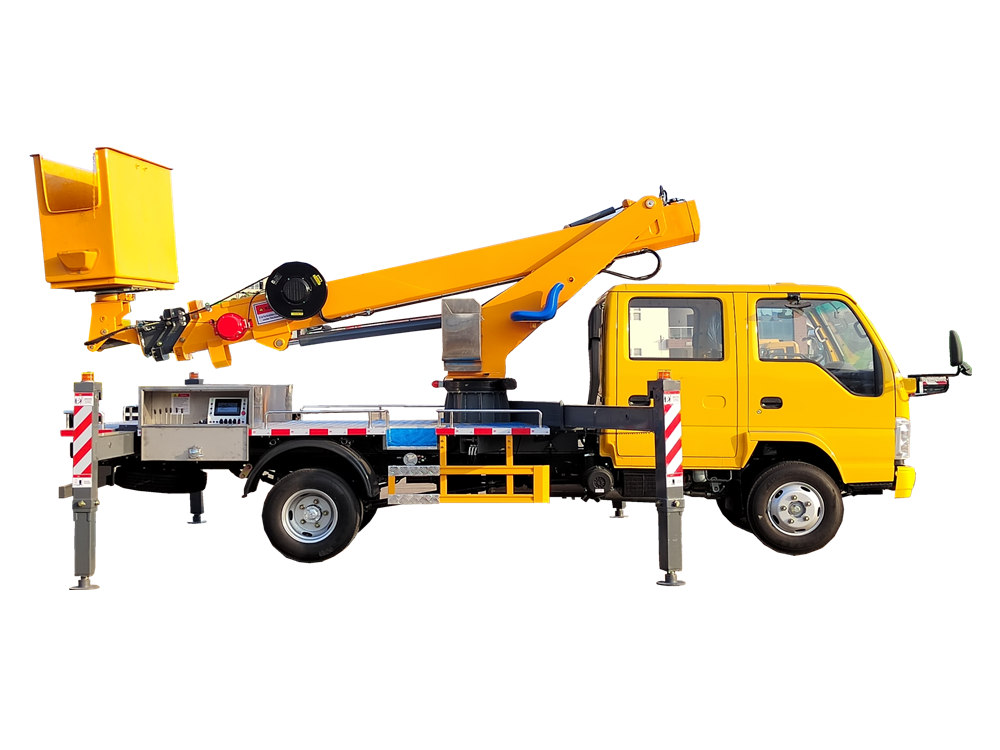

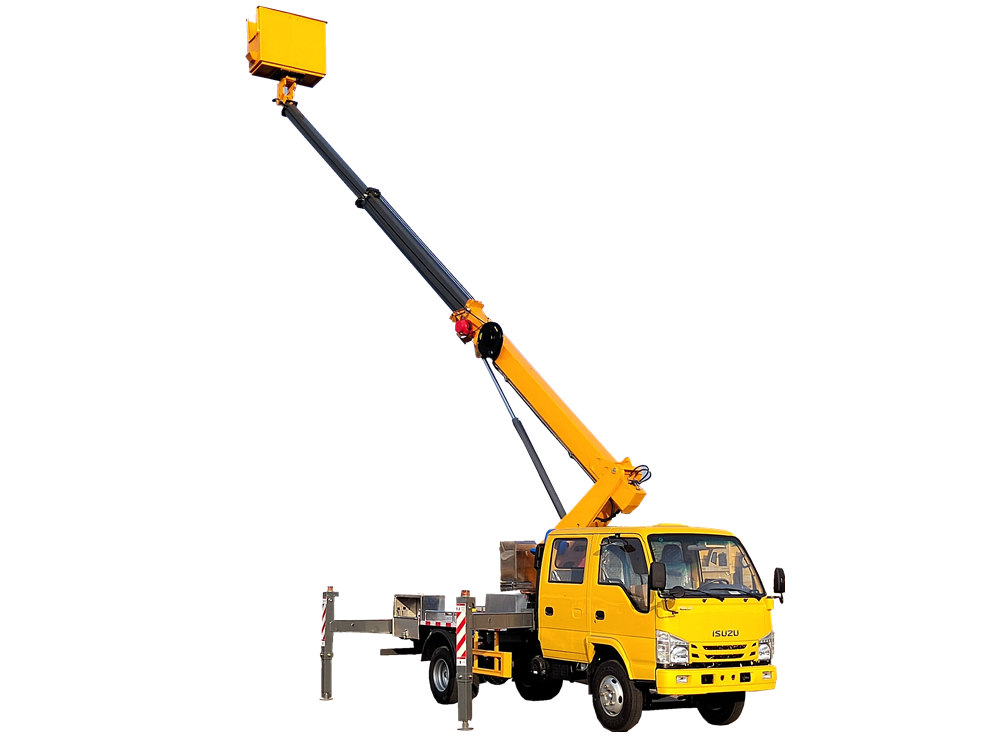

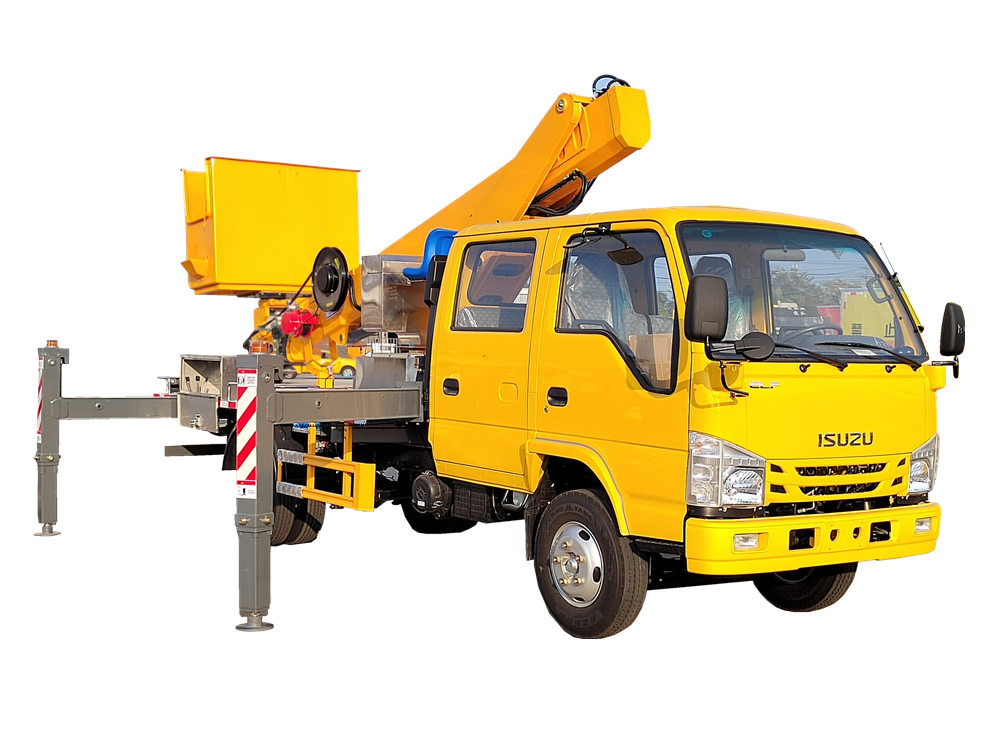

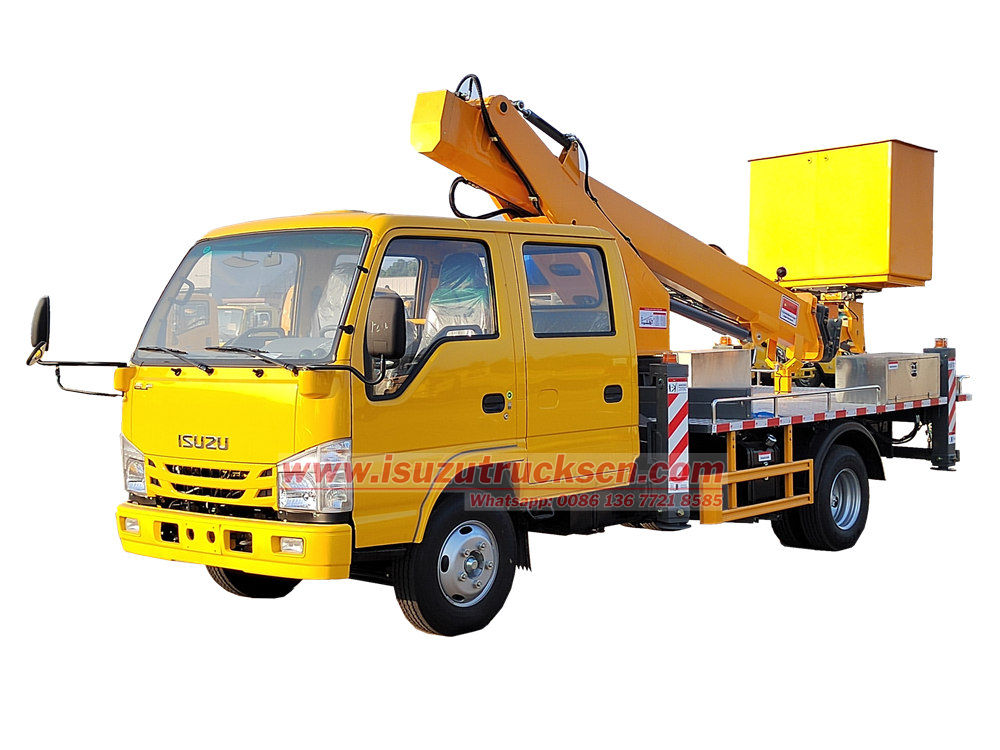

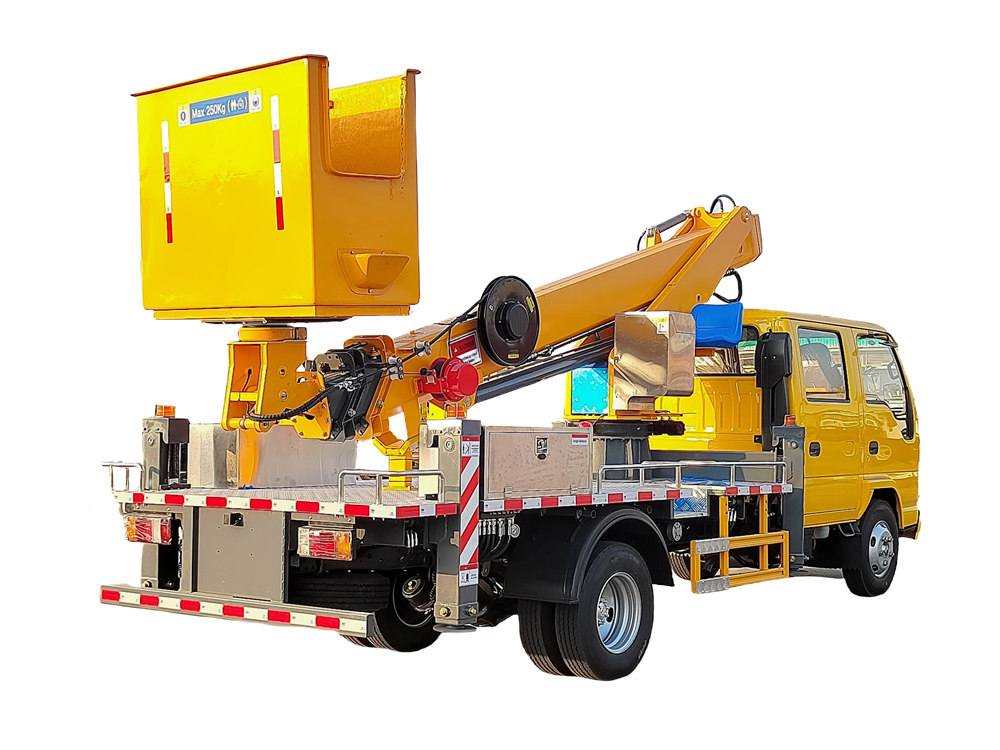

Isuzu bucket truck

Isuzu double row cab 16m telescopic aerial truck is an efficient and versatile construction machinery equipment, mainly used for aerial work tasks. Its core component is a hydraulically driven telescopic arm that can be flexibly extended and rotated to cover a wide range of work. The work platform can carry multiple workers and tools, and is equipped with safety guardrails and emergency descent systems to ensure the safety of aerial work.

This equipment is suitable for many fields such as construction, electricity, municipal administration, gardening, such as exterior wall construction, street lamp maintenance, tree pruning, etc.

Isuzu ELF telescopic aerial truck also aerial platform truck, manlift truck, aerial lift platform vehicle, bucket lift truck, lifting platform truck. is an efficient and safe aerial work equipment, 3360mm wheelbase, equipped with Isuzu 4KH1CN6LB diesel engine, 120HP 88KW, Isuzu MSB-5 gear gearbox, aerial work lifting height of 16 meters, three-section telescopic arm, fiberglass insulated working bucket, working bucket load limit of 200kg, hydraulic 360 degree full rotation, with automatic hydraulic leveling, hydraulic system with proportional control, stepless speed regulation, emergency operation, stainless steel tool box and control box, with wireless remote control device.

1. Material of Isuzu ELF telescopic aerial truck

● Boom material: The telescopic boom is the core component of the telescopic aerial truck and is made of high-strength alloy steel or special steel. This material has excellent tensile strength and compressive resistance, and can withstand huge loads and complex stresses during high-altitude operations. At the same time, the surface of the boom is treated with anti-corrosion (such as painting or galvanizing) to enhance its weather resistance and corrosion resistance to adapt to outdoor working environments.

● Working platform material: The working platform is the working area of ​​the operator and is made of non-slip steel plate or aluminum alloy. The non-slip design ensures that the staff can still work safely in a slippery or oily environment, while the aluminum alloy material reduces the overall weight and improves the maneuverability of the equipment.

● Chassis material: The chassis is the foundation that supports the entire equipment and is made of high-strength steel to ensure stability and durability.

● Hydraulic system material: The hydraulic system is the power source of the Isuzu ELF telescopic aerial truck. Its pipes and joints are usually made of high-pressure and corrosion-resistant stainless steel or special alloy materials to ensure the stable operation of the system under high load.

2. Safety of Isuzu man lift truck

◆ Emergency descent system: In the event of a hydraulic system failure or power outage, the emergency descent system can be manually or automatically activated to ensure that the work platform can land safely on the ground.

◆ Overload protection device: When the load on the work platform exceeds the rated value, the overload protection device will automatically lock the equipment to prevent tipping or structural damage caused by overload.

◆ Anti-collision system: Isuzu man lift truck is equipped with infrared or ultrasonic sensors that can detect surrounding obstacles and automatically stop the boom movement to avoid collision accidents.

◆ Safety guardrails and seat belts: High-strength guardrails are set around the work platform to prevent workers from accidentally falling. At the same time, operators are required to wear seat belts to further ensure the safety of aerial work.

◆ Stability control: The equipment is equipped with hydraulic outriggers or automatic leveling systems, which can maintain stability on uneven ground to prevent the equipment from tilting or tipping over.

3. Features and advantages of Isuzu telescopic aerial truck

● Wide operating range: The design of the telescopic arm enables it to extend and rotate flexibly, covering high-altitude areas that are difficult for traditional equipment to reach. Whether it is the exterior wall construction of high-rise buildings or the maintenance of power lines, Isuzu telescopic aerial truck can easily cope with it.

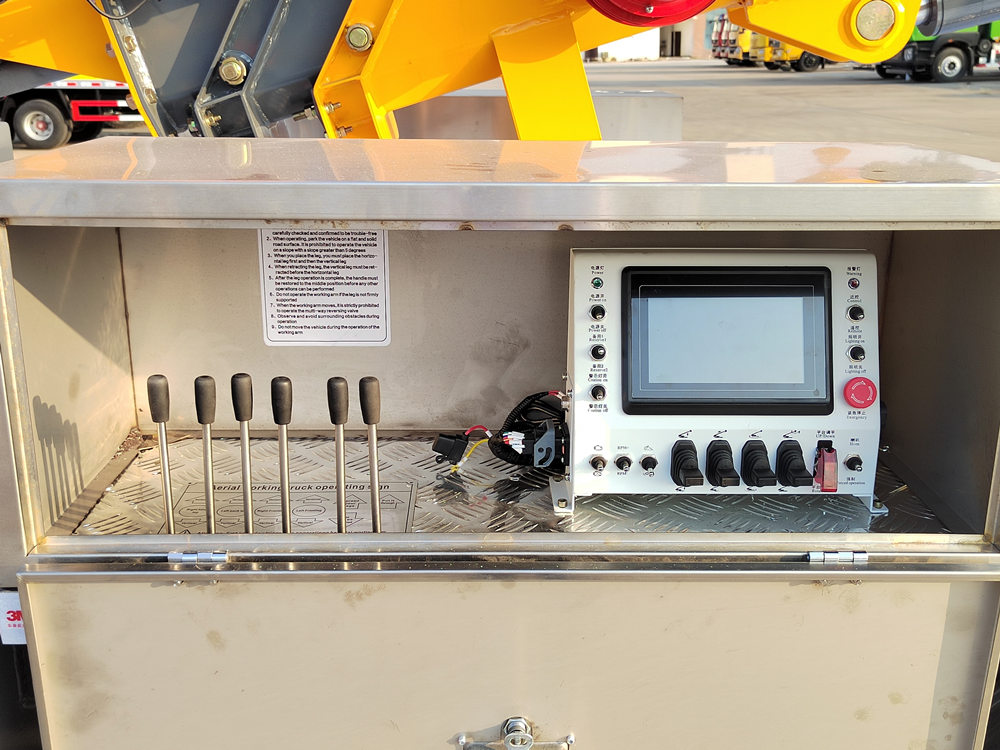

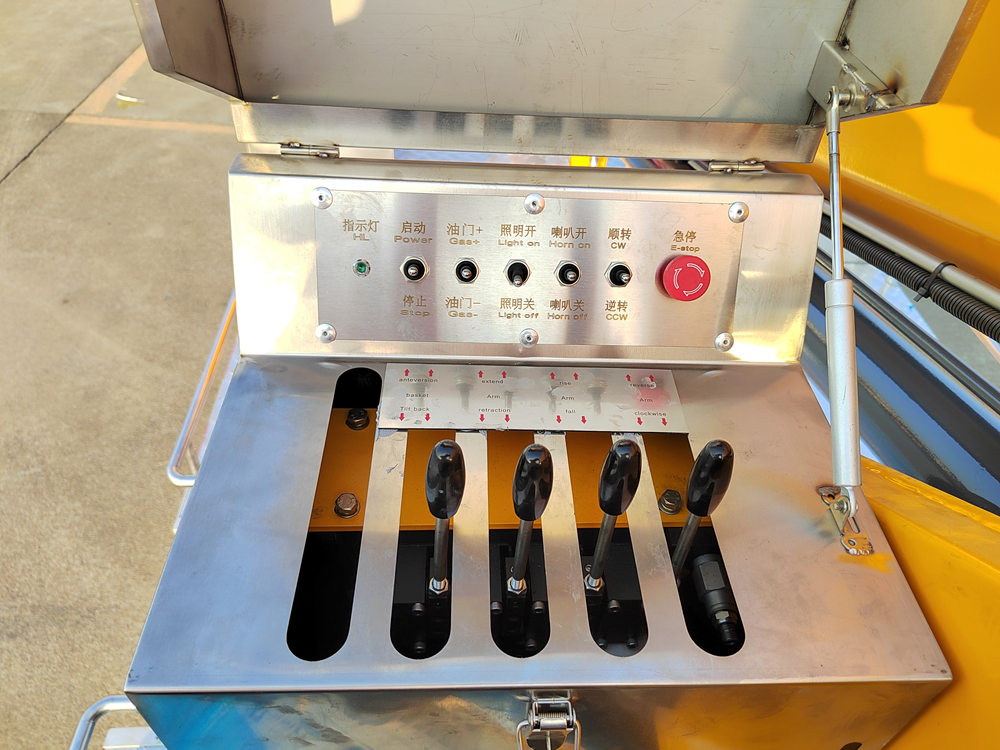

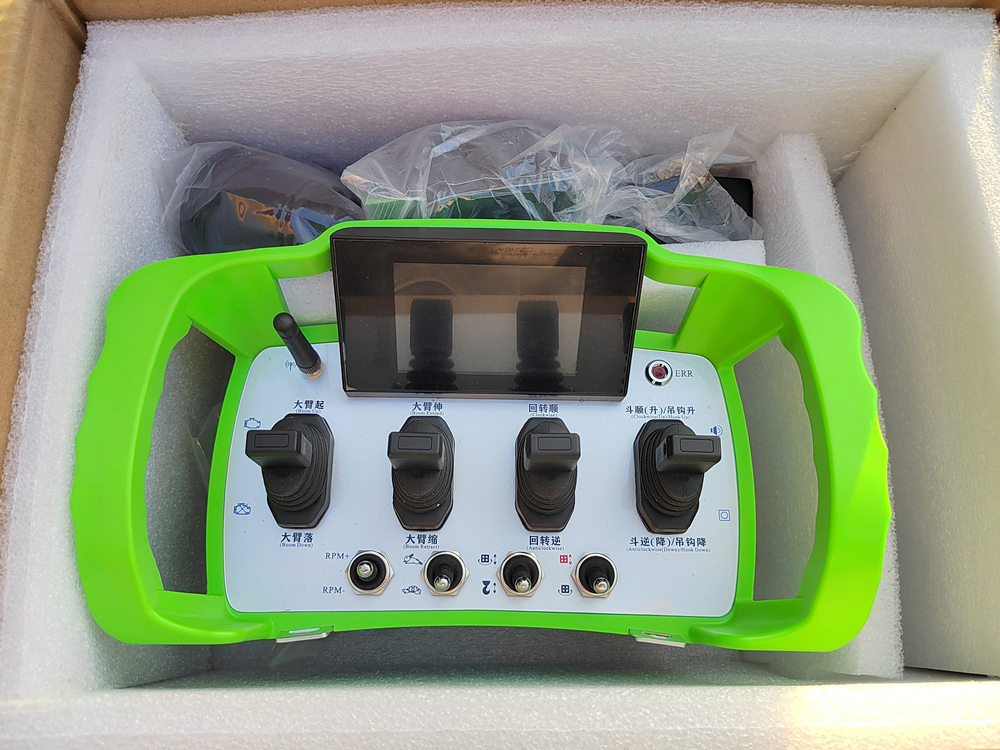

● Efficient and convenient: The equipment is easy to operate, equipped with a remote control and joystick, and the operator can quickly adjust the position of the boom and platform, significantly improving work efficiency. In addition, the equipment is highly maneuverable and can be quickly transferred to different work locations.

● Strong adaptability: Whether it is urban streets, construction sites, or field environments, Isuzu telescopic aerial truck can adapt to complex terrain and working conditions.

● Economical: Compared with traditional scaffolding, Isuzu man lift truck does not need to be built and disassembled, saving a lot of manpower and time costs. At the same time, it has a long service life, low maintenance costs, and high economic efficiency.

4.Application fields of Isuzu ELF telescopic aerial truck

●Construction: exterior wall installation of high-rise buildings, cleaning of glass curtain walls, etc.

●Power maintenance: inspection and maintenance of high-voltage lines.

●Municipal engineering: installation of street lights, maintenance of billboards, etc.

●Landscaping: tree pruning, landscape maintenance, etc.

●Fire rescue: fire rescue and personnel evacuation of high-rise buildings.
