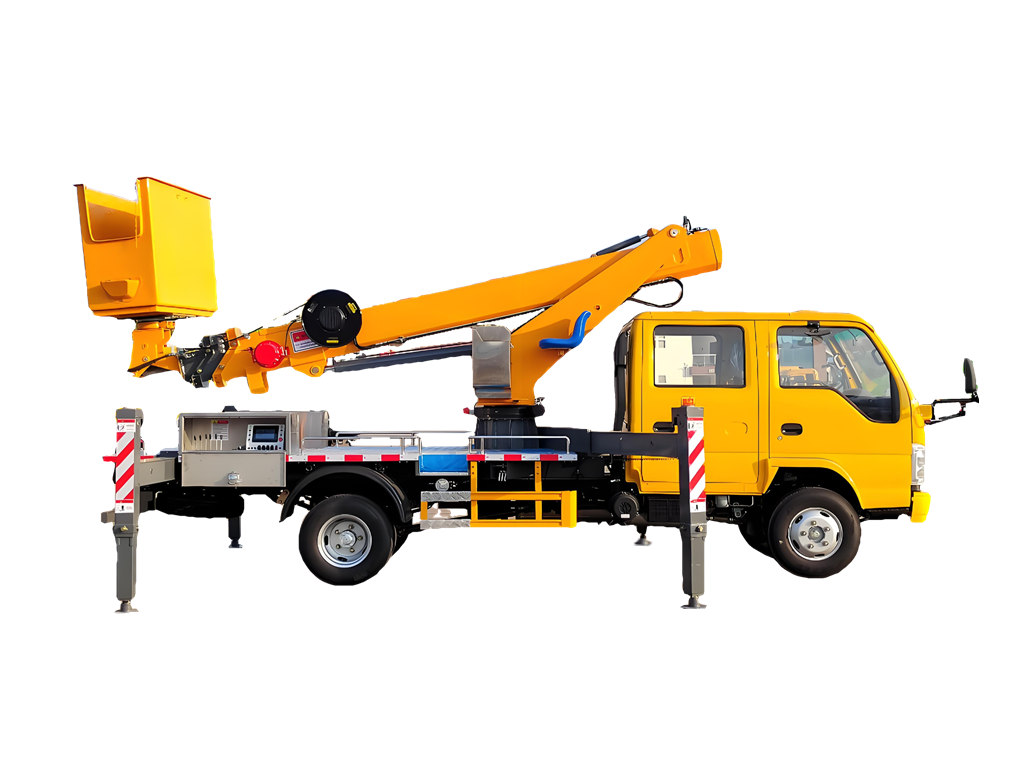

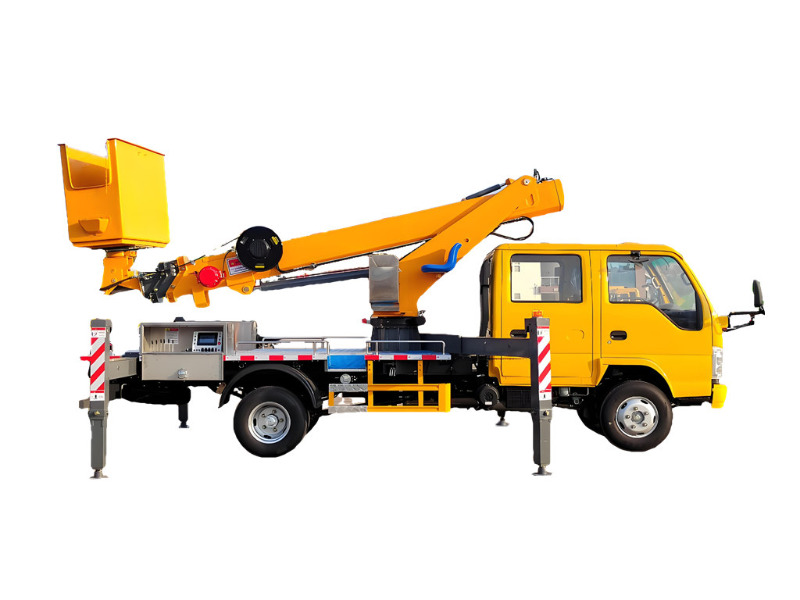

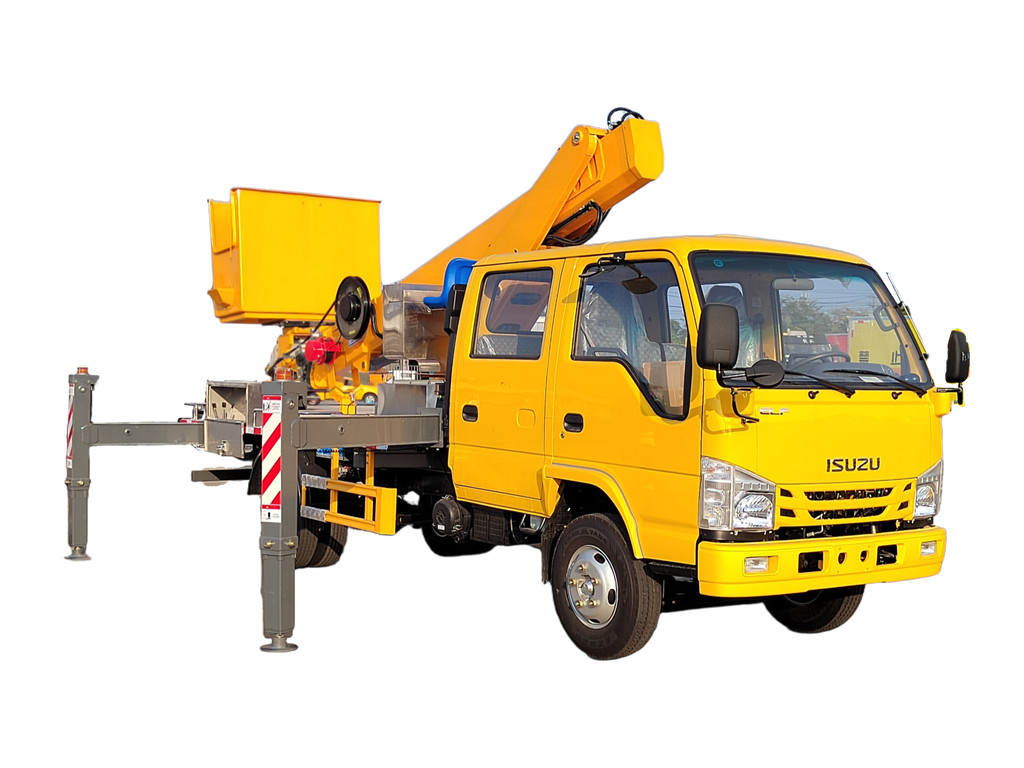

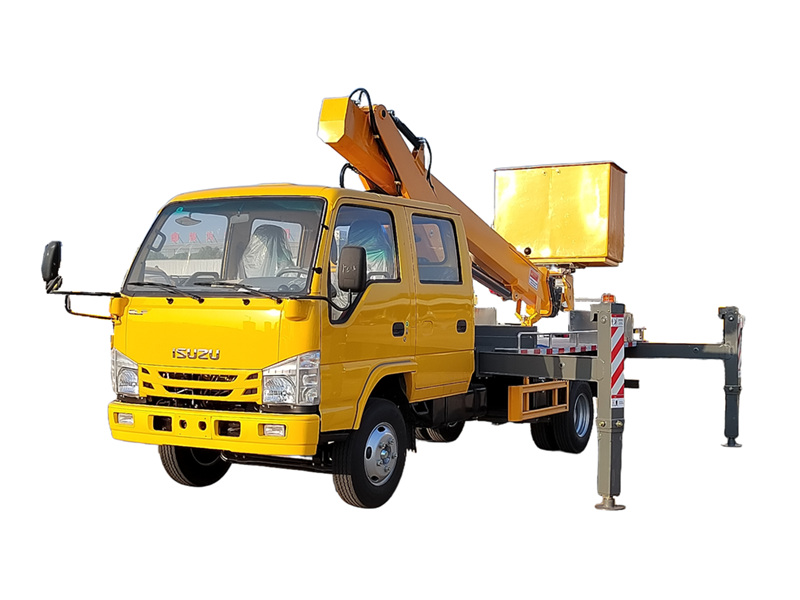

ISUZU double cabin 16m manlift truck
In modern urban construction, power maintenance, and landscaping, aerial work platforms are essential specialized vehicles whose performance and safety directly impact operational efficiency and personnel safety. The ISUZU 16m aerial work vehicle, built on the ISUZU NKR dual-row cab chassis, stands out as an ideal choice in the aerial work field due to its exceptional design and reliable performance.
Manufacturer:
Powerstar TrucksWork capacity:
16 mDimension:
6200 x 2080 x 2700mmCabin type:
Isuzu ELF, double row cab, 2+3 seatsWheelbase:
3360mmEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed,manualRemarks:
High lifting height,stable and smooth operationThe ISUZU 16m aerial work platform is based on the ISUZU QL1070BUH chassis and powered by the 4KH1CN6LB engine, which has a displacement of 3.0 liters and a maximum output of 88 kW (approximately 120HP). This engine delivers robust power and excellent fuel efficiency, meeting the demands of prolonged operations. Paired with the ISUZU MSB 5-speed manual transmission, it ensures smooth gear shifting and flexible operation, making it well-suited for various complex road conditions.
The ISUZU 16m manlift truck features an ELF double-row cab that accommodates 2+3 passengers, offering spacious and comfortable seating. The cab is equipped with an air conditioning system, providing a comfortable working environment for drivers and crew, whether in hot summers or cold winters. The dual-row seat design not only facilitates teamwork but also provides additional storage space for tools and equipment.

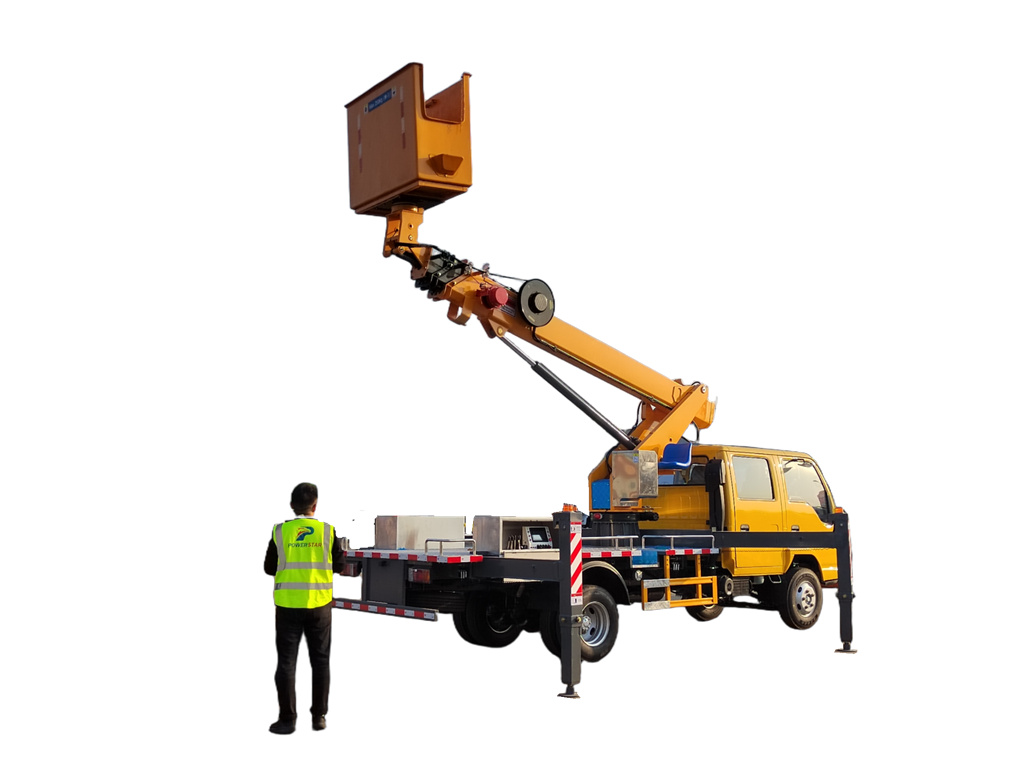

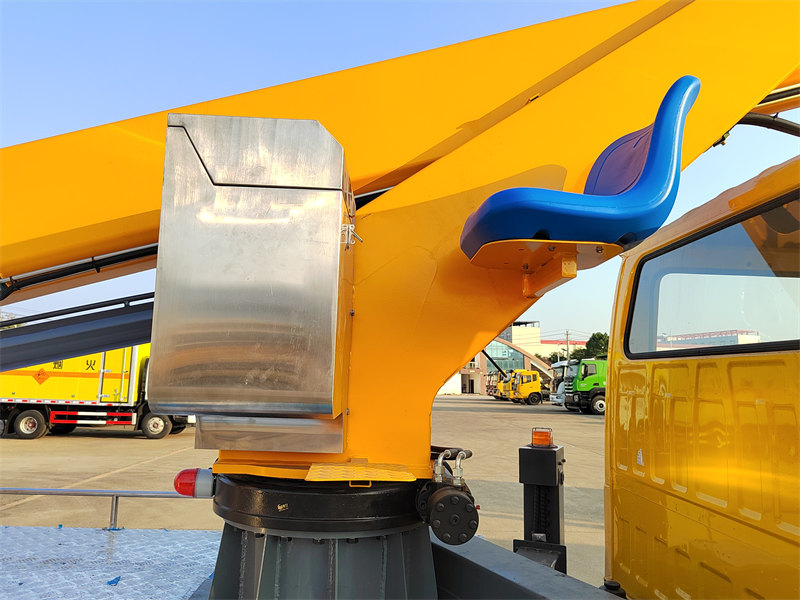

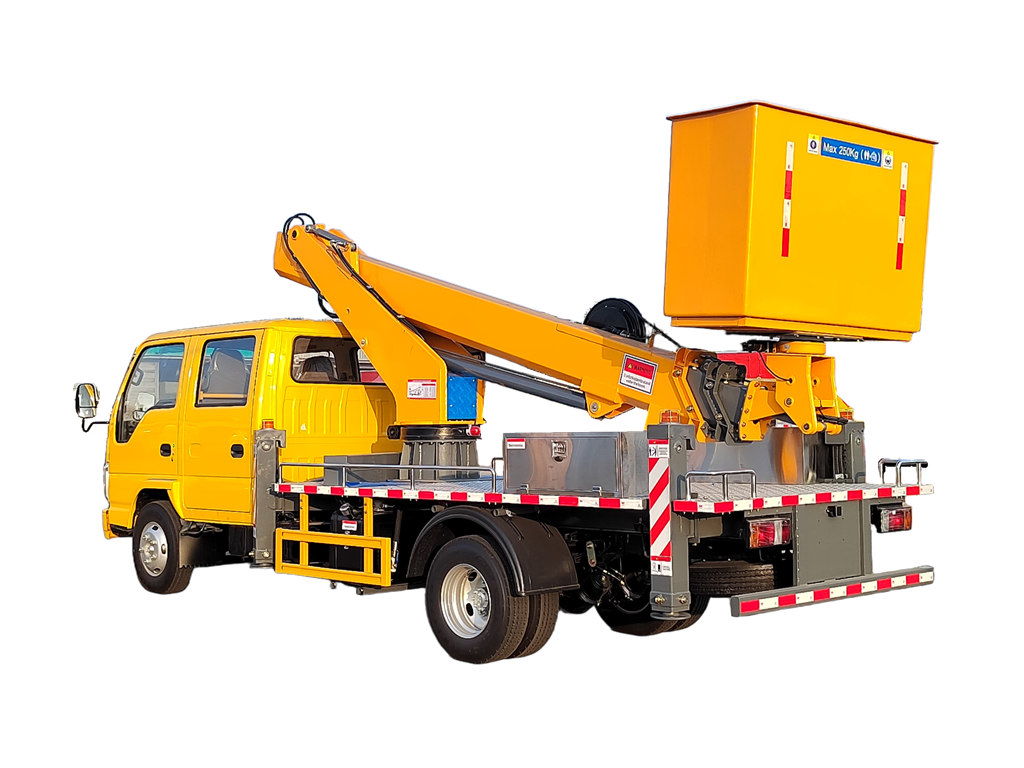

The standout feature of this ISUZU bucket lift truck is its 3-section hexagonal telescopic boom, which reaches a maximum working height of 16 meters and a maximum working radius of 10 meters, covering a wide range and meeting most aerial work needs. The boom, made of high-strength steel, ensures structural stability and excellent torsional resistance, maintaining high efficiency in complex working conditions. Additionally, the boom offers a 360° working angle and a maximum tilt angle of 75°, providing flexible operation to handle various aerial work scenarios. The work basket measures 1600×680×1000 mm, with a load capacity of 200 kg, accommodating two workers and their tools, meeting most operational requirements.

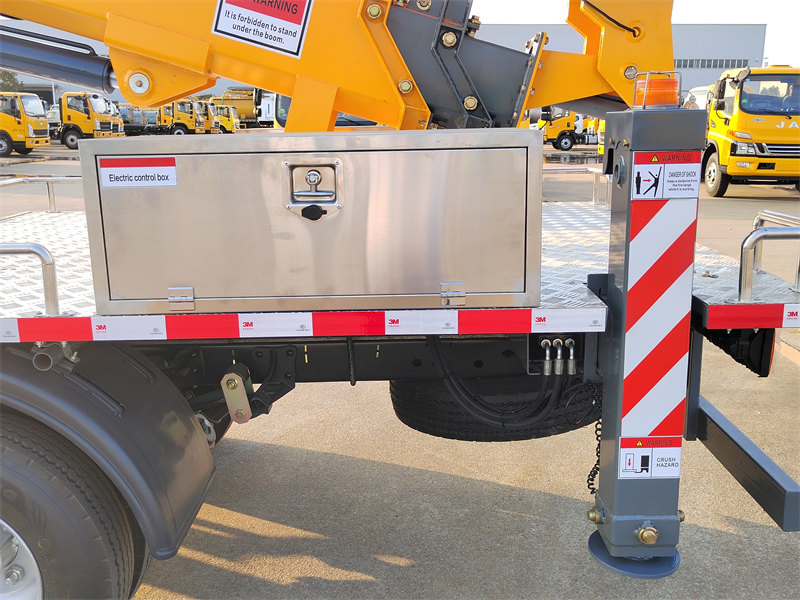

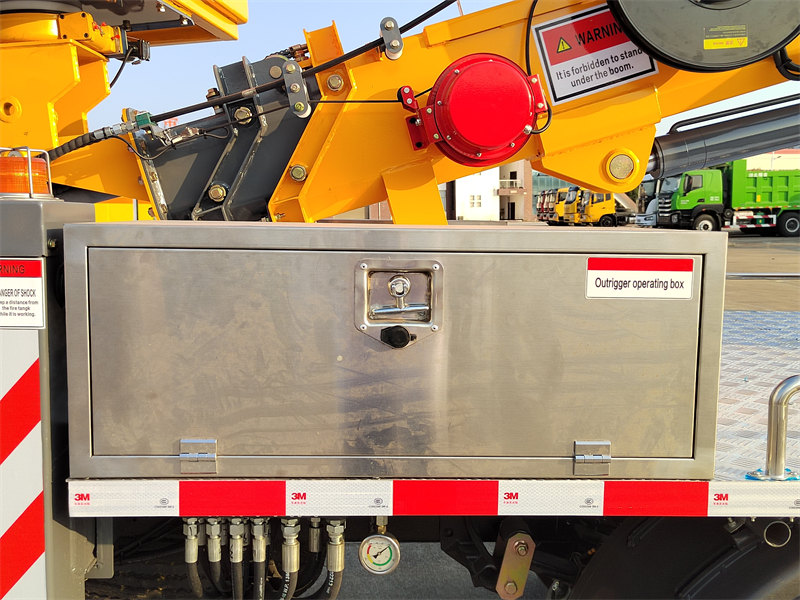

The ISUZU 16m aerial lift bucket truck is equipped with front V-type and rear H-type outriggers, with a longitudinal span of 4800 mm and a transverse span of 6000 mm. When deployed, the outriggers provide exceptional stability, ensuring the vehicle remains steady during operations without tilting or shaking. This design not only enhances operational safety but also expands the vehicle's applicability, allowing it to operate stably on uneven terrain.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading Isuzu manlift truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
Vehicle Specifications |
|||
|
Overall dimensions (L*W*H) |
6200X2080X2700mm |
||
|
GVW |
7300 kg |
||
|
Curb weight |
4800 kg |
||
|
Chassis brand |
ISUZU |
||
|
Driving type |
4X2, Left Hand Drive |
||
|
Chassis Specifications |
|||
|
Model |
QL1070BUH |
||
|
Cab |
ELF, double row cab, 2+3 seats, with AC |
||
|
Wheelbase |
3360mm |
||
|
Tire specification |
7.00R16 |
||
|
Tire quantity |
6+1 units |
||
|
Engine |
Engine model |
4KH1CN6LB |
|
|
Emission standard |
Euro 6 |
||
|
Output |
88KW |
||
|
Displacement |
3.0 L |
||
|
Horsepower (HP) |
120 HP |
||
|
Gearbox |
ISUZU MSB, 5 forward gears &1 reverse |
||
|
Axle |
Front |
2.5 T |
|
|
Rear |
4.8 T |
||
|
Suspension |
Front |
Leaf spring |
|
|
Rear |
leaf spring |
||
|
Fuel tanker |
100L |
||
|
Superstructure Specifications |
|||
|
Boom |
Type |
Hexagonal 3-section telescopic boom |
|
|
Max working range |
10 m |
||
|
Max working height |
16 m |
||
|
Max working angle |
360° |
||
|
Max tilt angle |
75° |
||
|
Outriggers |
Front type |
V-type |
|
|
Rear type |
H-type |
||
|
Longitudinal span |
4800 mm |
||
|
Transverse span |
6000 mm |
||
|
Bucket |
Dimension |
1600×680×1000mm |
|
|
Material |
Fiber glass, insulated |
||
|
Loading capacity |
200kg |
||
|
Control system |

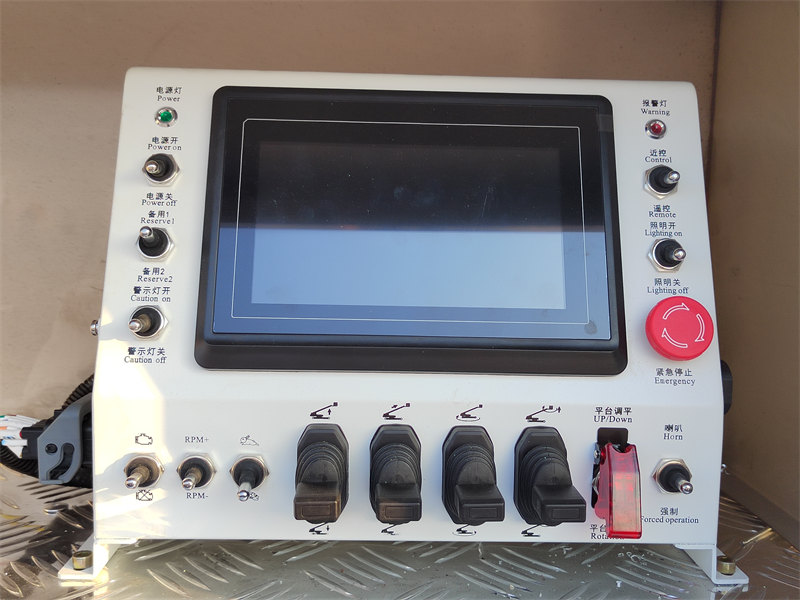

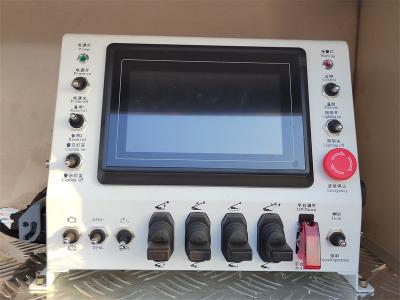

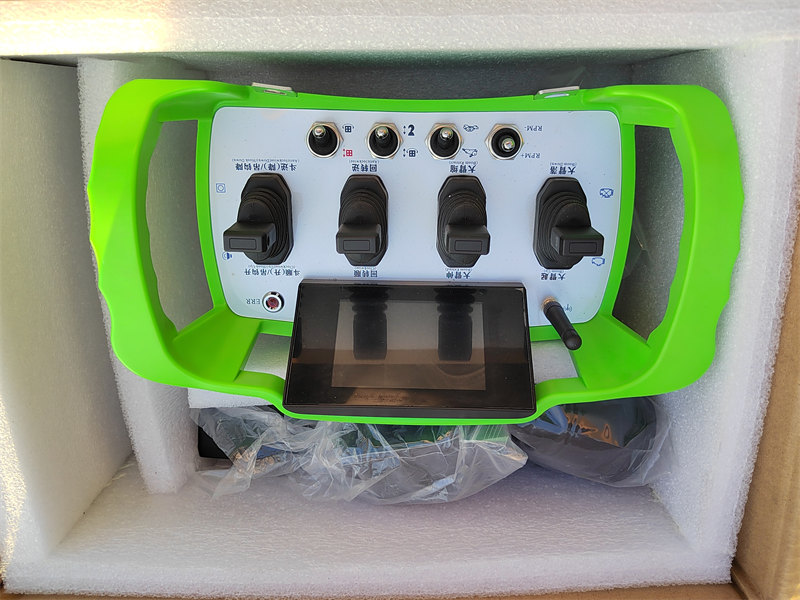

Hydraulic manual control and remote control |
||
Product Applications
The ISUZU 16-meter aerial work truck, with its outstanding performance and flexible design, is widely used in various fields. Its main applications include:
1. Urban Construction and Maintenance: Used for tasks such as streetlight installation and repair, exterior wall cleaning, and billboard installation. Its 16-meter working height and 360° rotation capability enable efficient completion of aerial tasks.
2. Power Industry: Suitable for tasks like power line installation and transformer maintenance. The fiberglass work basket provides insulation, ensuring safety during electrical operations.
3. Landscaping: Used for tree trimming and landscape maintenance. With a 16-meter working height and a 75° tilt angle, it easily handles tall tree trimming.
4. Telecommunications Industry: Used for the installation and maintenance of communication base stations and antennas. The front V-type and rear H-type outriggers provide stable support, ensuring safe operations.
5. Other Fields: Such as film shooting and bridge inspection, meeting diverse aerial work needs.
