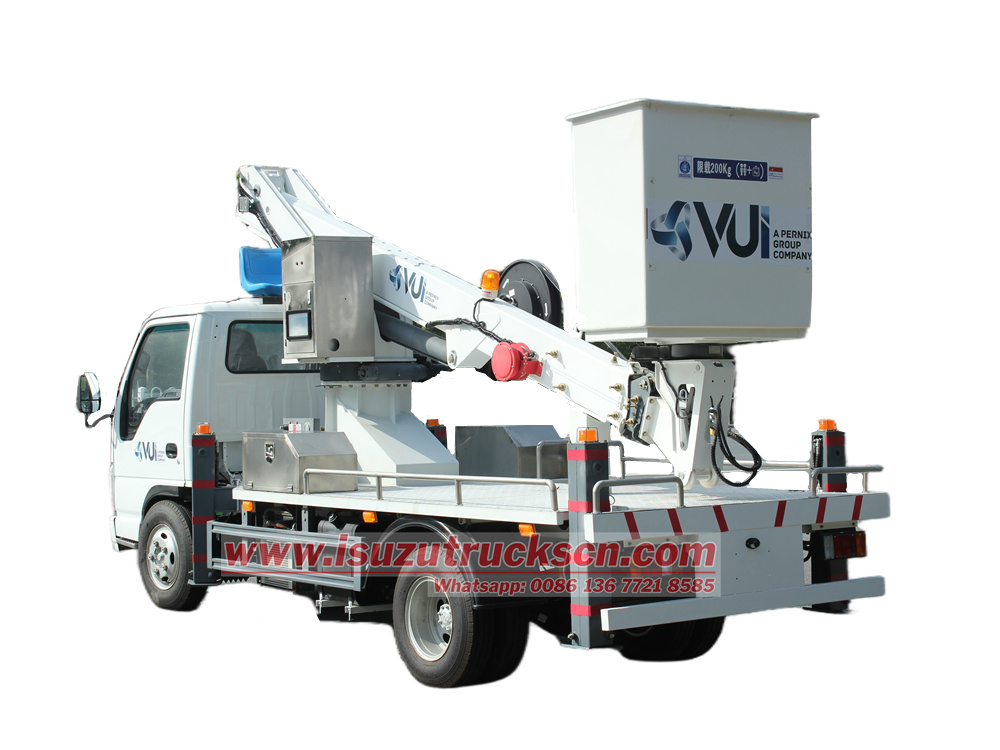

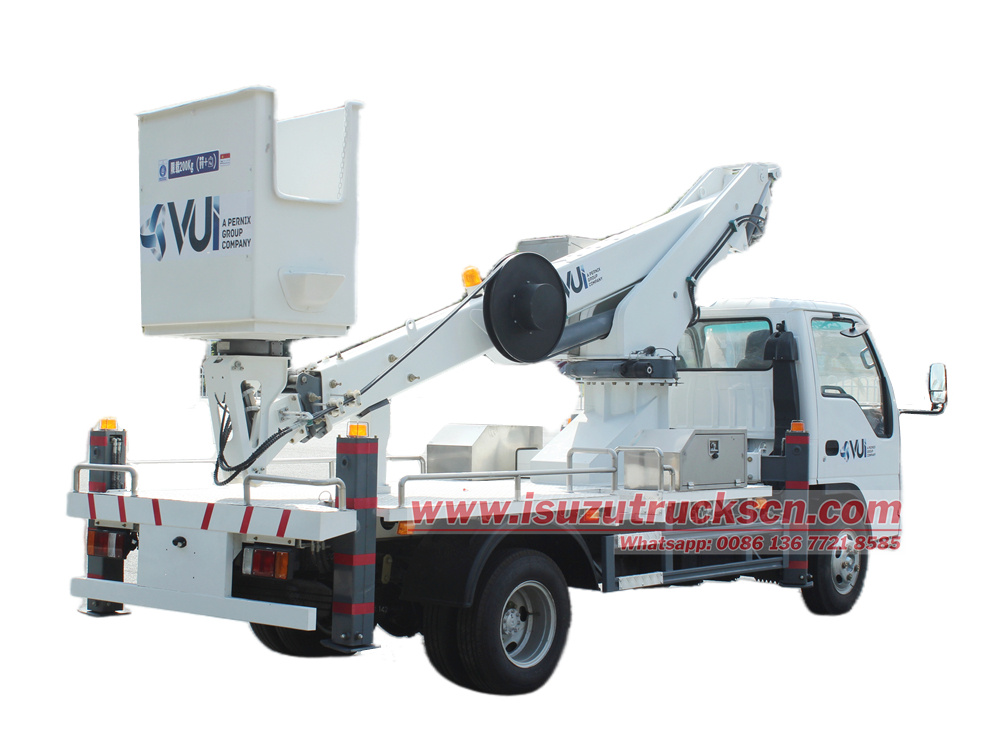

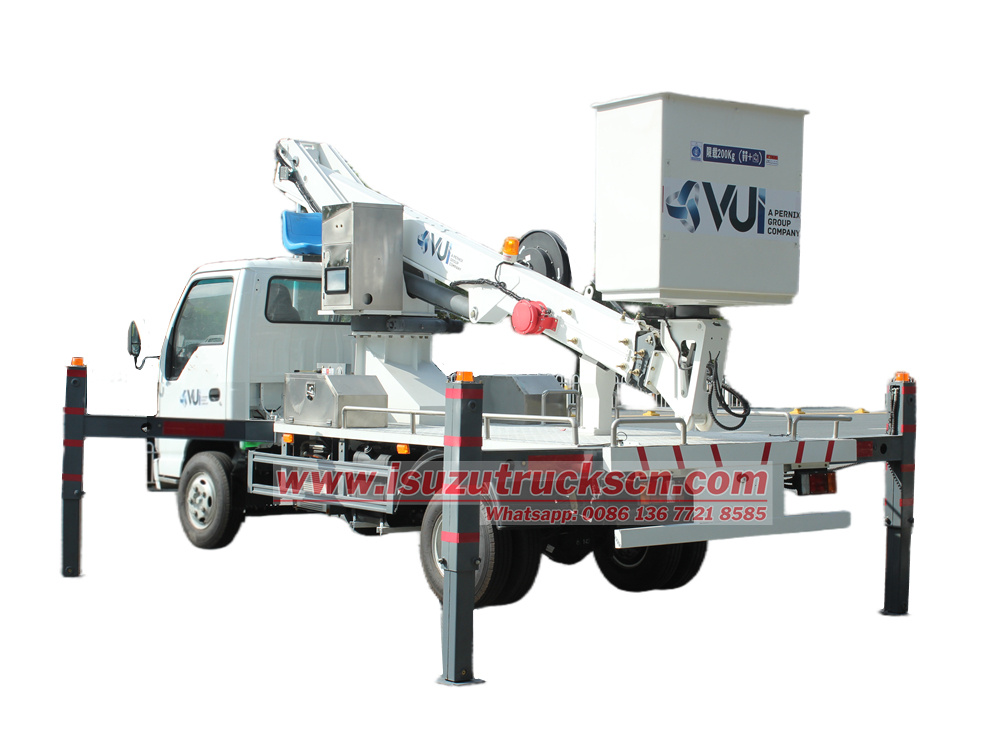

Isuzu 100P 20m aerial work vehicle is modified on the basis of Isuzu ELF 100P chassis. The chassis adopts 4500mm wheelbase, with air conditioning, USB, power steering, equipped with Isuzu 4KH1CN6LB engine, Isuzu MSB 5-speed gearbox, 3-section working arm with maximum lifting height of 20 meters, working range of 12 meters, equipped with electronic control system to monitor the working status in real time, supporting hydraulic manual operation and remote control operation. The vehicle has multiple safety protection functions, including anti-tilt sensing, emergency braking and hydraulic self-leveling, carrying up to 200kg basket, flexible operation and convenient maintenance.
Manufacturer:
Powerstar TrucksWork capacity:
20mDimension:

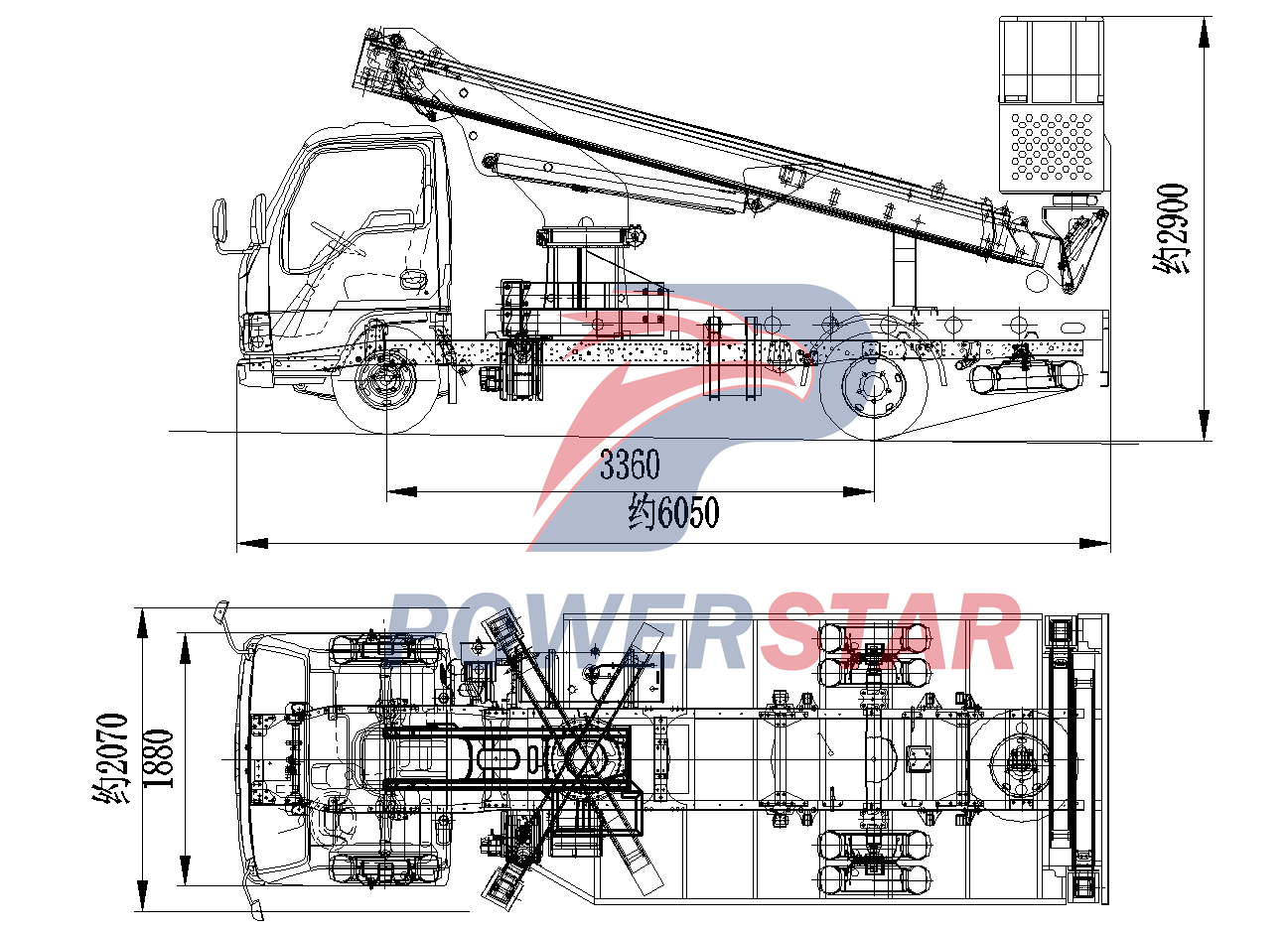

6050 x 2070 x 2950mmCabin type:
Isuzu 100P single row cab,2 seatsWheelbase:
3360mmEngine power:
120HPEngine type:
Isuzu 4KH1CN6LBAxle drive:
4x2Gear box:
Isuzu MSB 5-speed,manualRemarks:
Large aerial working heightThe Isuzu 20m man lift boom truck is an aerial work equipment with excellent performance. It is equipped with the Isuzu ELF 100P chassis and a 4KH1CN6LB engine, which is powerful and stable. The working arm has a three-section design, a lifting height of up to 20 meters, and a wide range of operations. The electronic control system is advanced, supports multiple operating modes, and monitors the operating status in real time to ensure safe and accurate operations. The vehicle has outstanding safety performance and is equipped with safety devices such as anti-tilt sensing and emergency braking to provide all-round protection for aerial operations. The hanging basket is reasonably designed and has a strong carrying capacity to ensure the safety and comfort of the operators. In addition, the vehicle is easy to maintain, and key components are easy to replace and repair. It is an ideal choice for aerial operations such as urban construction and power maintenance.
● China best Isuzu aerial platform truck factory
● 30 years experience on aerial working truck designing
● Professional sales team which will help you to choose suitable truck
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
|
Isuzu 20 meter aerial work platform truck |
|||||
|
Vehicle Description |
|||||
|
Vehicle model |
Platform Truck |
Overall dimensions |
6050*2070*2950mm |
||
|
GVW |
7300kg |
Operational height |
20m |
||
|
Curb weight |
4150kg |
Max. Speed |
110km/h |
||
|
Chassis Description |
|||||
|
Chassis brand |
ISUZU |
||||
|
Cab |
100P single row cab with A/C |
||||
|
Wheel base |
3360mm |
||||
|
Number of axles |
2 |
||||
|
Axle |
Front axle |
2500kg |
|||
|
Rear axle |
4800kg |
||||
|
Traction system |
4x2 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Oil brake |
||||
|
Transmission |
Isuzu 5-speed MSB |
||||
|
Tire specification |
7.00R16 |
||||
|
Tire quantity |
6+1 |
||||
|
Engine Description |
|||||
|
Engine manufacture |
ISUZU Engine |
||||
|
Engine model |
4KH1CN6LB |
||||
|
Type |
Inline 4 cylinders, 4 stroke,water-cooled, supercharged inter-cooling |
||||
|
Emission standard |
Euro 6 |
||||
|
Up-parts Description |
|||||
|
Working condition |
|||||
|
Max. working height |
20m |
||||
|
Working radius at Max. height |
2m |
||||
|
Max. working radius |
12m |
||||
|
Working height at Max. radius |
8m |
||||
|
Control mode |
1.Bucket control 2.Manual operation |
||||
|
Bucket |
|||||
|
Rated loading |
200kg |
||||
|
Size |
1080*610*1100mm |
||||
|
Material |
Stainless steel |
||||
|
Adjusting balance mode |
Hydrostatic Leveling System |
||||
|
Safety belt |
1 set |
||||
|

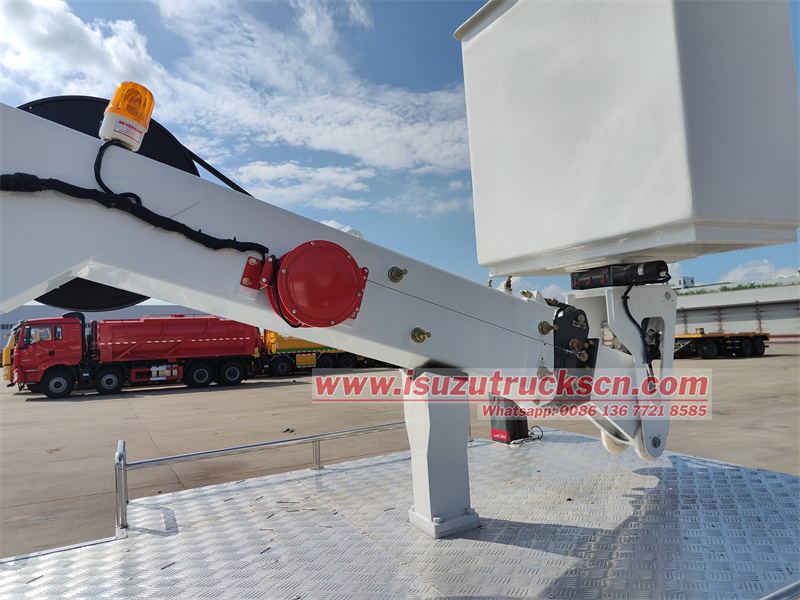

Boom |
|||||
|
Type |
Telescopic type |
||||
|
Section |
3 |
||||
|
Rotation Angle |
360° |
||||
|
Thickness of boom plate |
4mm |
||||
|

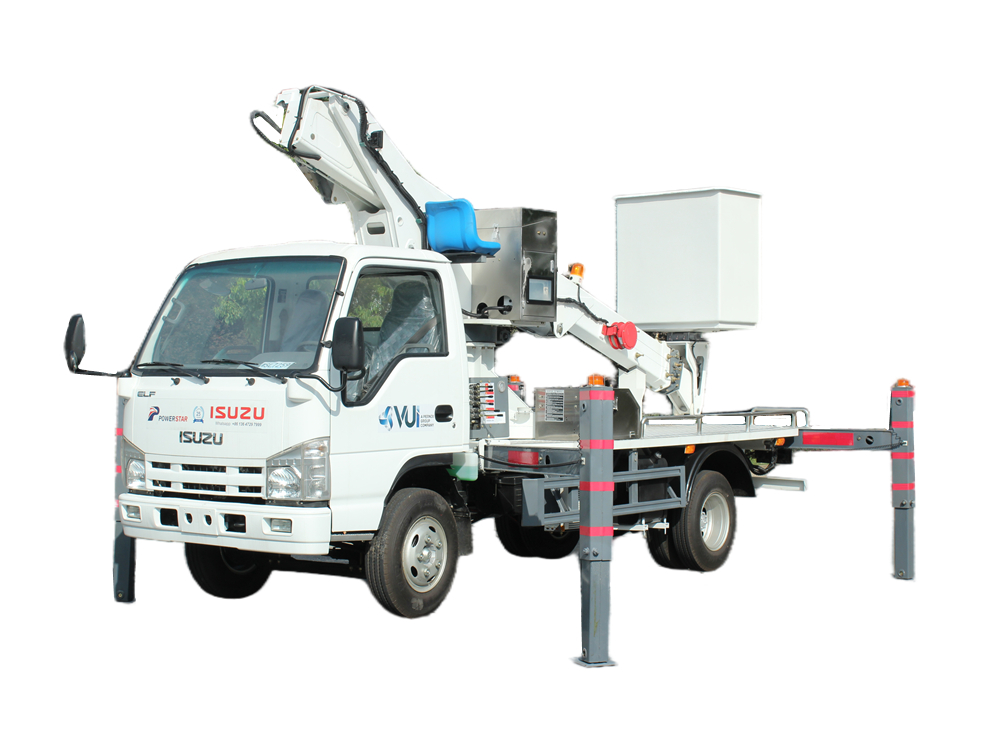

Outrigger |
|||||
|
Type |
Front V type / Rear H type |
||||
|
Vertical Breadth |
4350mm |
||||
|
Horizontal Breadth |
4020mm |
||||
|
Number |
4 |
||||
|
Adjustment |
Adjusted separately |
||||
|
Supporting leg Control mode |
Manual hydraulic operation |
||||
|
Hydraulic lock |
Two-way hydraulic lock for four legs |
||||
|
Strobe light on rear landing legs |
Two yellow lights |
||||
|
Main body structure |
|||||
|
Material |
High quality carbon steel and profiles, with slip-proof decorative steel plates |
||||
|

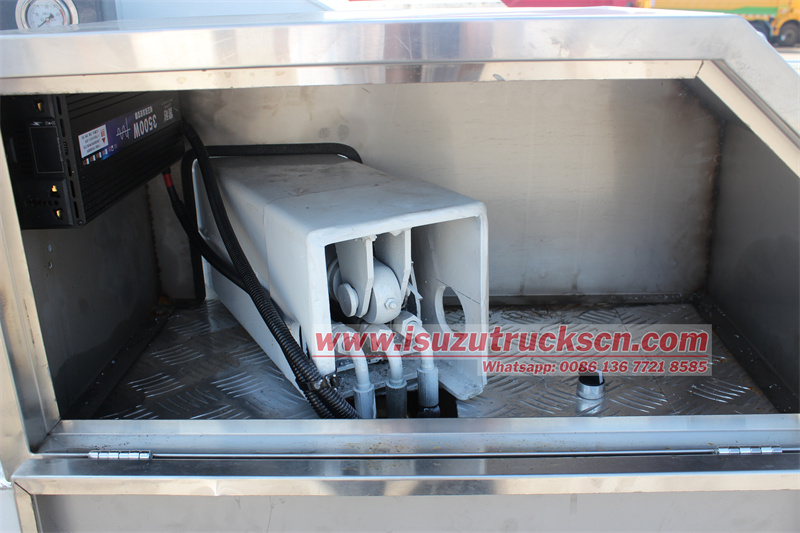

Tool box |
Mould stamping door with stainless steel door lock |
||||
|
Fencing |
Stainless steel tube |
||||
|
Steps |
With steps on drivers’ side |
||||
|
Guard railing |
High quality cold bending carbon steel profile; High strength |
||||
|
Wheel casing |
Injection mold molding, beautiful, high strength |
||||
|
Security configuration |
|||||
|
Automatic interlock device for different operating position |
Prevent the risk of misoperation |
||||
|
Hand-operated emergency pump |
When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state |
||||
|
Emergency stop device for working platform |
Used for emergency stop operation and restricted boom operation |
||||
|
Automatically limit work range |
When the working range reaches the specified value, the dangerous direction is automatically restricted. |
||||
|
Leakage protection device |
Equipped with leakage protector to ensure the safety of power supply and power tools |
||||
Isuzu 100P 20-meter aerial work vehicle: a new choice for efficient, safe and flexible operations
In the process of modern urbanization, aerial work vehicles, as an important member of special vehicles, play a pivotal role. They not only play an irreplaceable role in urban maintenance, power installation, street lamp maintenance and other fields, but also show their unique value in multiple scenarios such as emergency rescue and construction. The Isuzu 100P 20-meter aerial work vehicle is an excellent product that combines efficiency, safety and flexibility in this context.

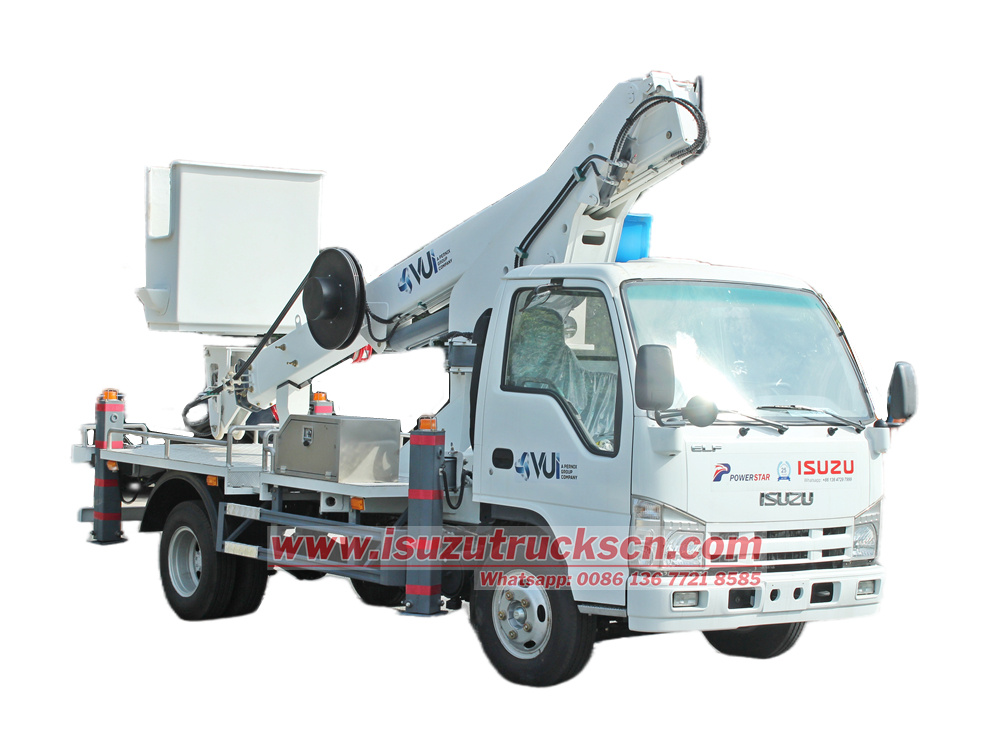

This Isuzu 20m truck mounted bucket lift is carefully modified on the basis of the Isuzu ELF 100P chassis, and fully inherits the consistent reliable quality and excellent performance of Isuzu Motors. The vehicle adopts a 4500mm wheelbase design to ensure the flexibility of the vehicle when driving on urban roads and the stability during operation. The Isuzu 4KH1CN6LB engine is equipped with advanced common rail fuel injection technology, with a strong power output of 120 horsepower, a displacement of 3.0L, a maximum power of 88kW, and a maximum torque of 290N·m, which meets the National VI emission standards. The MSB 5-speed gearbox shifts smoothly, and with the hydraulic power steering system, the vehicle can be easily controlled on urban roads and work sites.

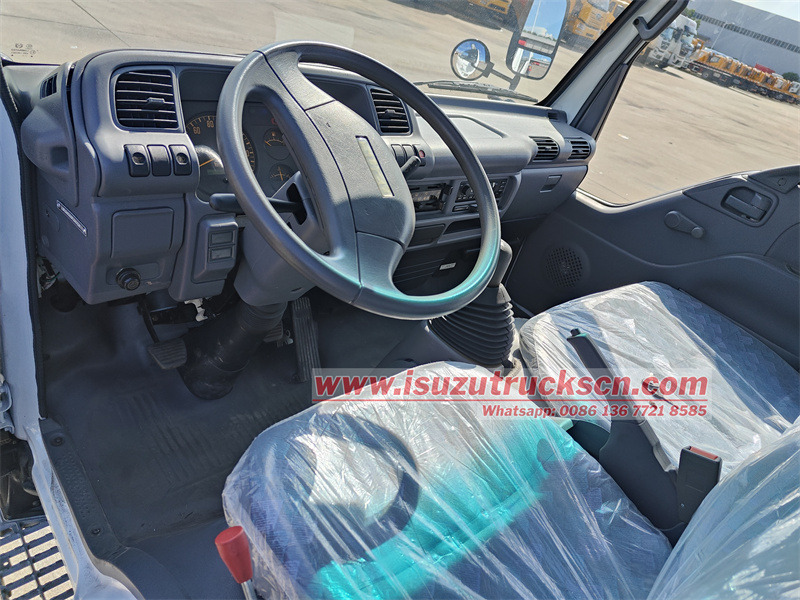

The air conditioning system and USB interface equipped on the chassis provide a comfortable working environment for operators. The wide-body cab design, wide field of vision, and ergonomic control layout greatly reduce the fatigue of operators.

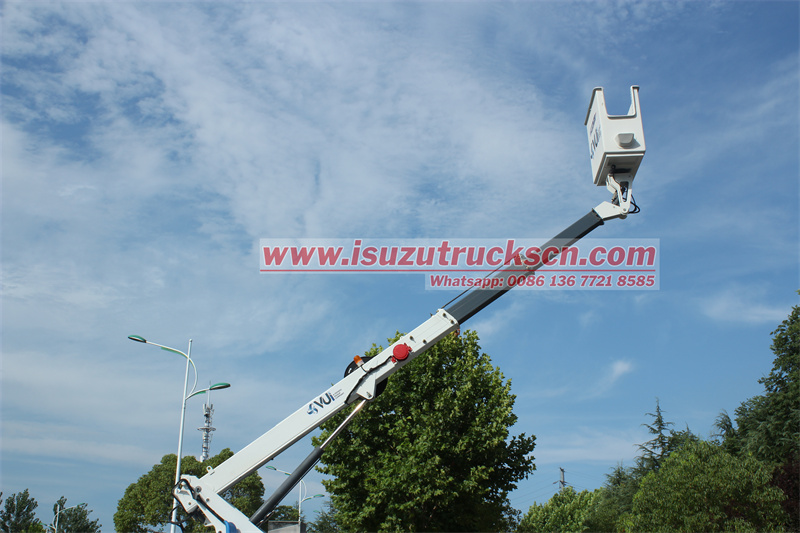

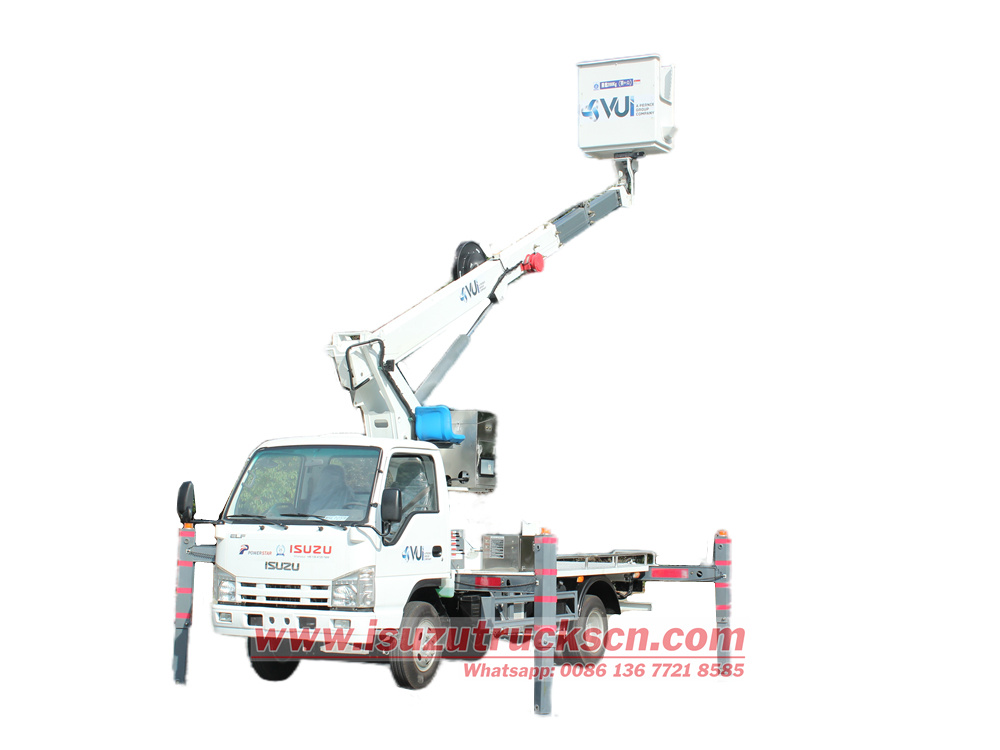

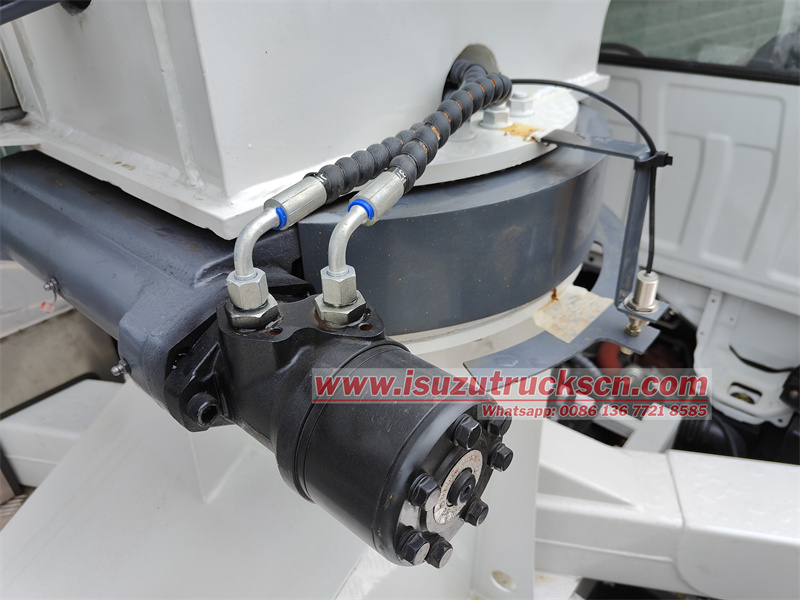

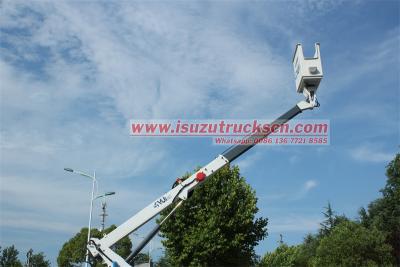

Of course, as the core part of the Isuzu ELF 20M telescoping aerial platform, the design of the working arm is crucial. This vehicle adopts a 3-section working arm structure, made of high-strength steel. After precise calculation and rigorous testing, the maximum lifting height can reach 20 meters, and the working range covers 12 meters, which fully meets the needs of most aerial operations. The telescopic and rotating movements of the working arm are driven by the hydraulic system, which is flexible and convenient to operate. The design of the working arm not only takes into account the height and range, but also focuses on the flexibility and stability of operation, so that the operator can easily deal with various complex situations during the operation.

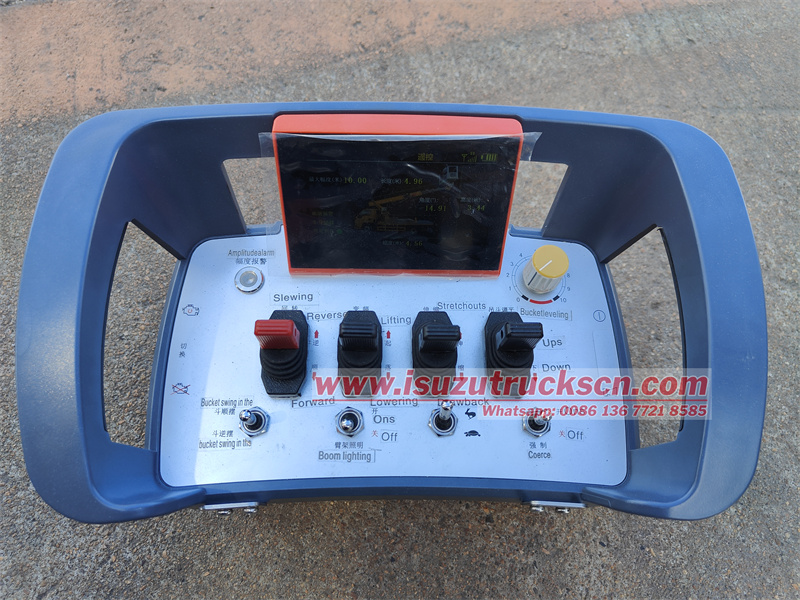

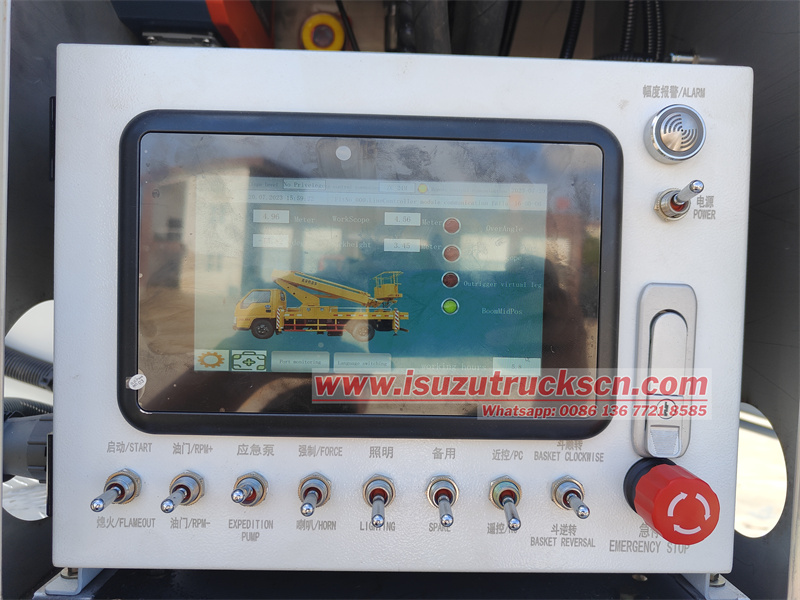

In terms of the electronic control system, this Isuzu 100P aerial lift platform vehicle is equipped with an advanced electronic control system that can monitor the operation status in real time, including key parameters such as the angle, height, load of the working arm and the working pressure of the hydraulic system. The electronic control system also supports two modes: hydraulic manual operation and remote control operation. The hydraulic manual operation is achieved through the joystick, which is simple and intuitive, suitable for close-range operations; the remote control operation is carried out through a radio remote control, allowing the driver to remotely control the vehicle at a safe distance, greatly improving the safety and efficiency of the operation.

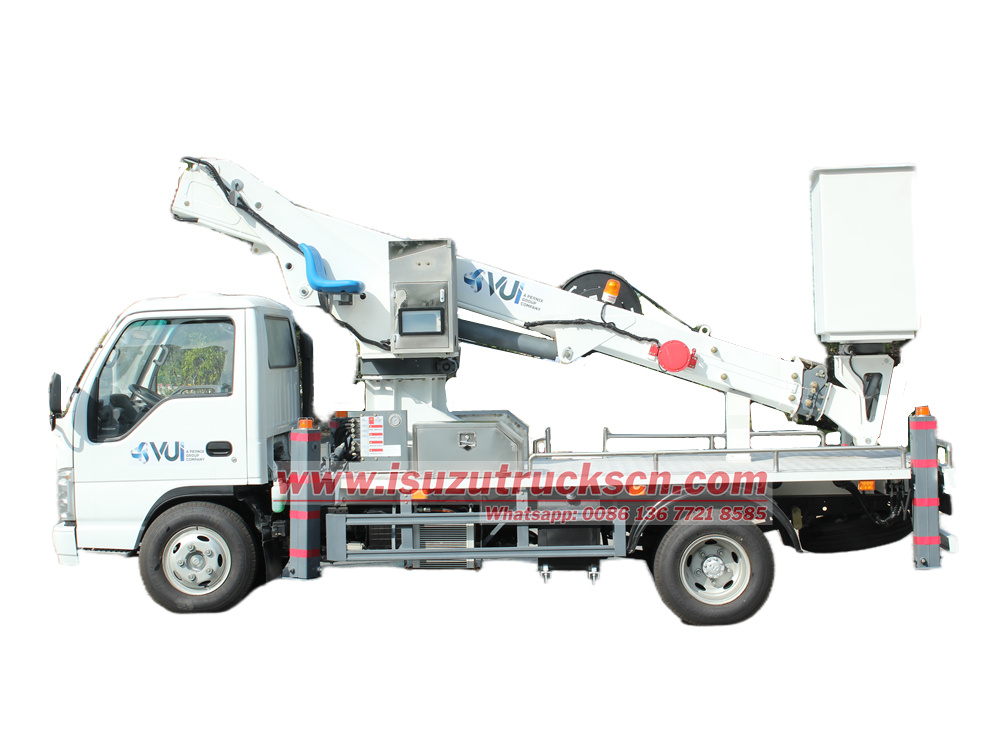

In terms of safety, this Isuzu 100P aerial working platform truck has made great efforts. It is equipped with multiple safety protection functions to ensure that there is no risk during the operation. The anti-tilt sensing system can monitor the tilt state of the vehicle in real time. Once the vehicle shows signs of excessive tilt, the system will immediately issue an alarm and take measures to prevent the vehicle from tipping over; the emergency braking system can quickly brake the vehicle in an emergency to ensure the safety of personnel and equipment; the hydraulic self-leveling system can ensure that the working arm always remains horizontal during the operation, improving the stability and accuracy of the operation. In addition, the vehicle is equipped with a safety limiter, which automatically stops when the arm reaches the maximum lifting height or working range to prevent accidents.
In terms of maintenance, the vehicle adopts a modular design, and key components are easy to disassemble and maintain. The vehicle has a compact structure and a reasonable layout of components, making daily maintenance and maintenance simpler and faster. At the same time, its excellent performance and durability also reduce long-term use costs, making it an economical and practical aerial work equipment.
