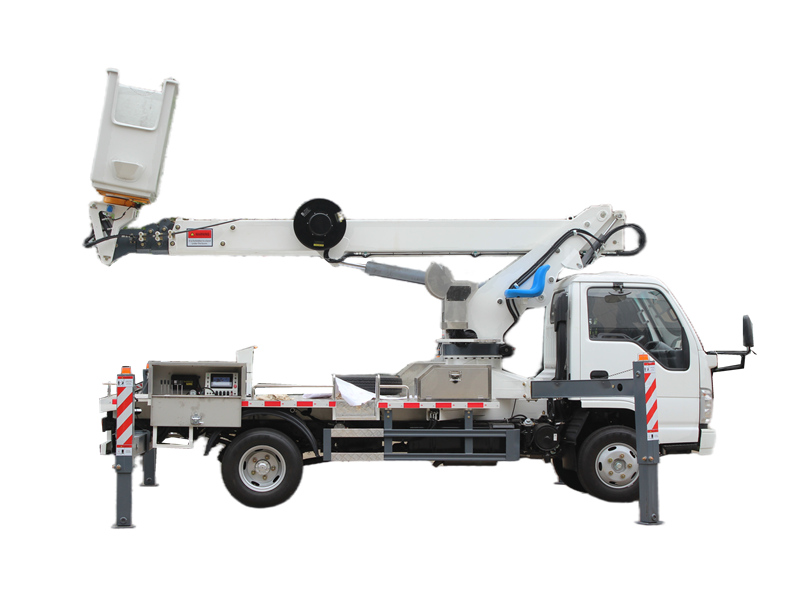

ISUZU NKR 16m manlift truck for Philippines
The ISUZU NKR 18-meter aerial work platform truck is a specialized vehicle designed for high-altitude operations, widely used in the fields of electricity, communications, municipal services, landscaping, and more. Built on the ISUZU NKR chassis, it boasts excellent power performance, a stable operating platform, and an efficient safety system, capable of meeting the needs of high-altitude operations in various complex working conditions.
Manufacturer:
Powerstar TrucksWork capacity:
18 mDimension:
6000 × 2200 × 2600mmCabin type:
Isuzu ELF 100P light chassis cabin, 2 seatsWheelbase:
3360mmEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed,manualRemarks:

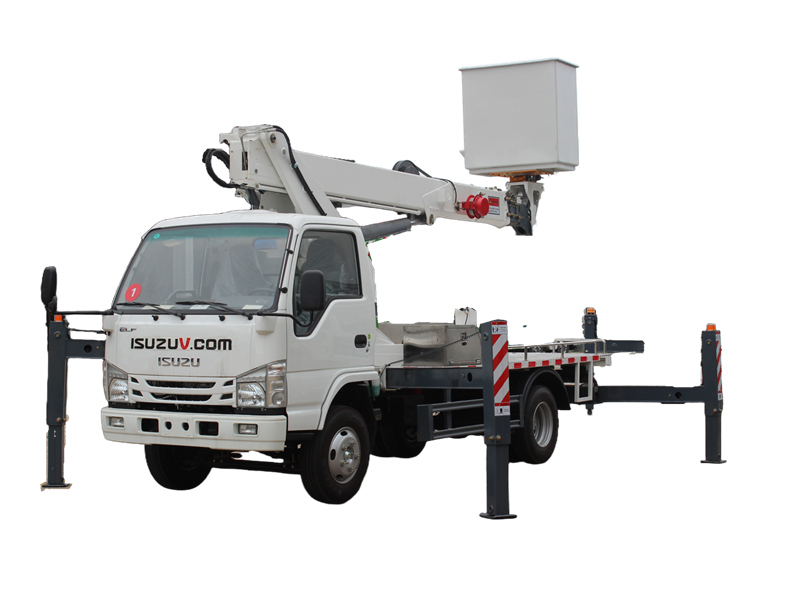

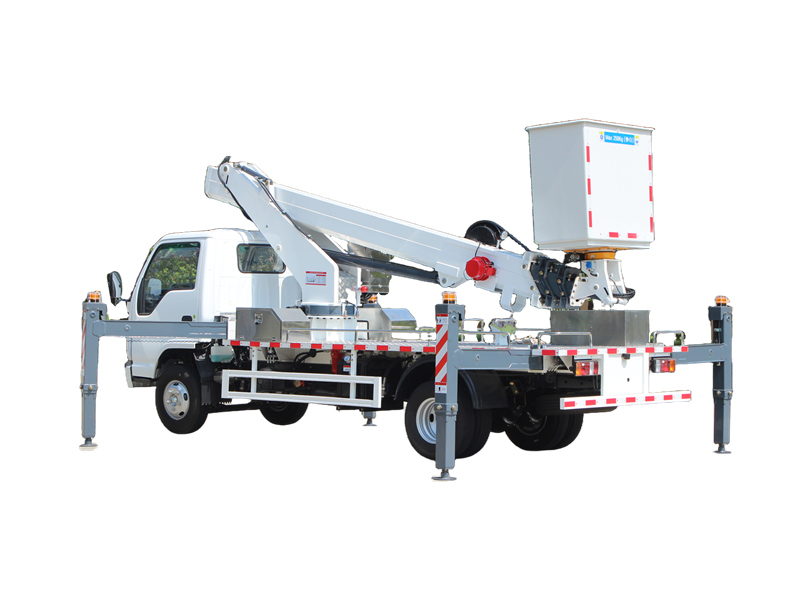

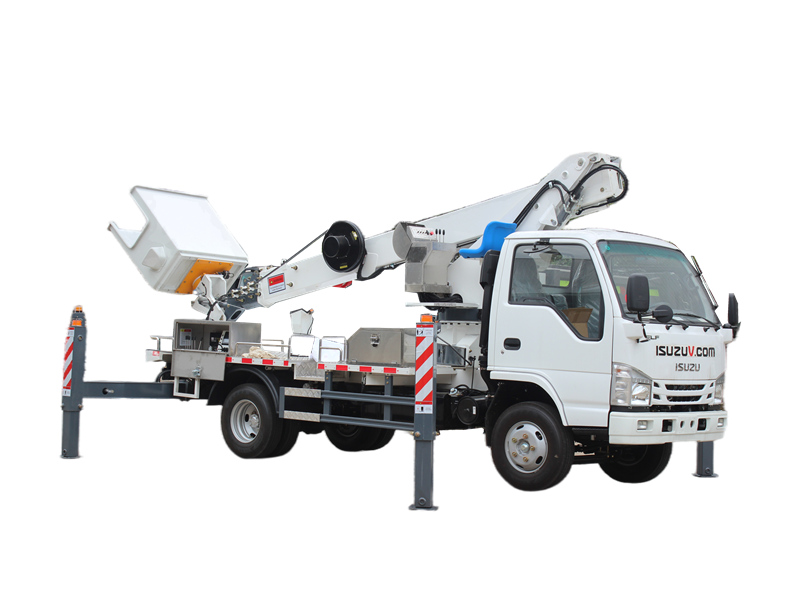

Bucket payload 250kg, insulatedThe ISUZU aerial work platform truck is a special vehicle used to lift personnel and equipment to high altitudes for work. It typically consists of an ISUZU chassis, working platform, hydraulic system, control system, and safety protection devices. The ISUZU NKR 18m bucket lift truck is based on the ISUZU NKR light chassis, with overall dimensions of 6000×2200×2600 mm, a wheelbase of 3360 mm, a curb weight of 4800 kg, and a gross vehicle weight of 7300 kg. This compact body design makes the vehicle more agile when driving on urban roads, while also ensuring sufficient carrying capacity. The front axle has a load-bearing capacity of 2.5 tons, and the rear axle is 4.8 tons, ensuring the stability of the vehicle during operations.

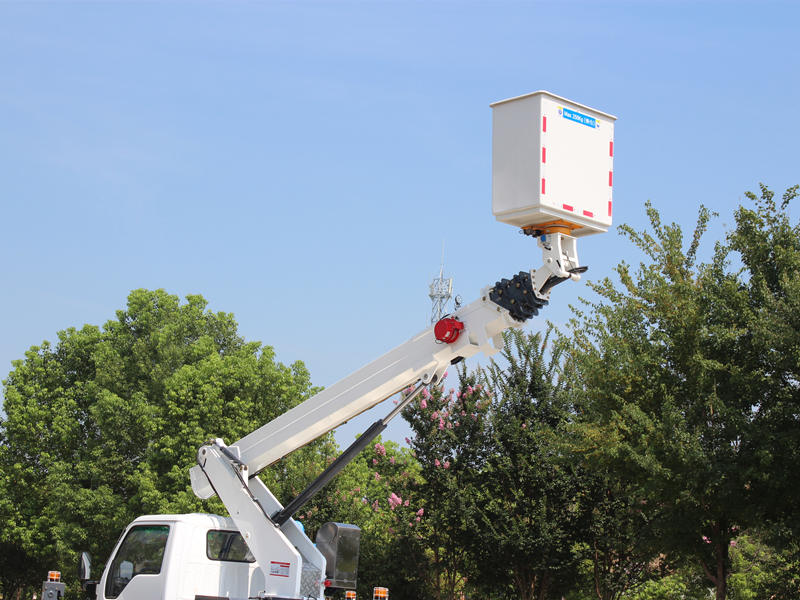

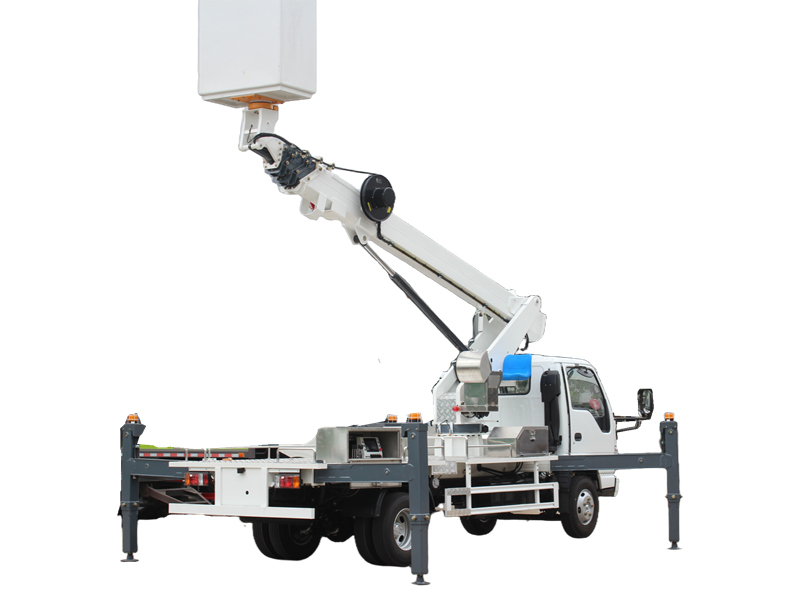

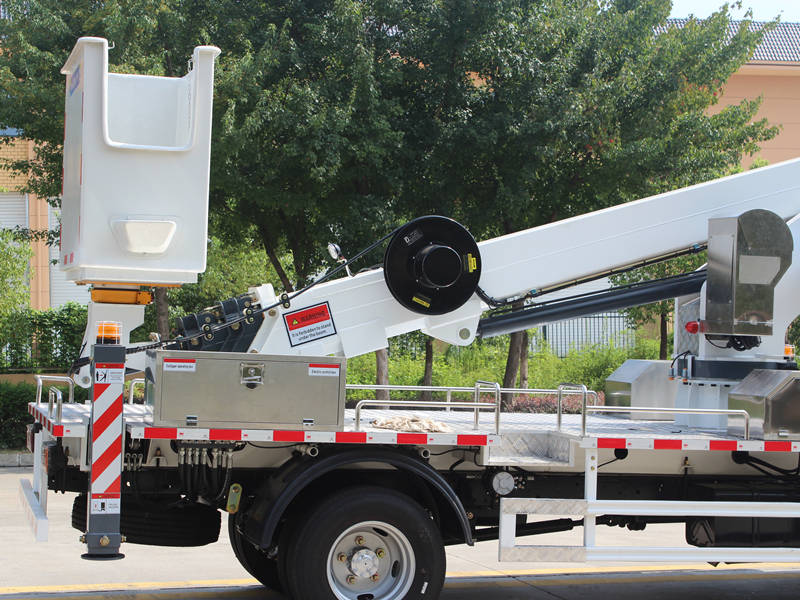

The upper body of the ISUZU NKR 18m manlift truck is its core highlight. The working platform is made of fiberglass, which has insulating properties, making it suitable for special working environments such as electrical maintenance. The platform has a rated load of 250 kg, capable of accommodating two operators and necessary tools and equipment. The platform can rotate continuously by 360°, and the work bucket can swing by ±90°, providing great flexibility for operations. The rotation speed of the platform is 0~2 rpm, ensuring smooth operation and suitability for precise tasks. The maximum working height of the vehicle is 18 m, with a maximum operating radius of 11.3 m, and at the maximum working height, the operating radius is 2.3 meters. This design allows the vehicle to complete high-altitude operations in narrow spaces, while balancing both the operating range and height.
With its outstanding performance and flexible design, the ISUZU NKR 18-meter aerial lift bucket truck is suitable for various high-altitude operation scenarios. For example, in electrical maintenance, its insulating working platform can effectively protect operators from the risk of electric shock; in municipal engineering, the vehicle's compact body and powerful engine allow it to maneuver flexibly through city streets; in landscaping trimming, the platform's 360° rotation and ±90° swing capabilities can easily cover various angles of operation.
● Fast delivery time, quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading Isuzu aerial work platform truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
ISUZU NKR 18m manlift truck specifications |
|||
|
Basic specifications |
Driving type |
4*2 left hand driving |
|
|
Chassis brand |
ISUZU |
||
|
Overall size |
6000×2200×2600mm |
||
|
Wheelbase |
3360 mm |
||
|
GVW |
7300 kg |
||
|
Curb weight |
4800 kg |
||
|
Engine |
Type |
4-cylinder in line, 4-stroke direct injection diesel engine, intercooling, turbocharged |
|
|
Model |
4KH1CN6LB |
||
|
Maximum output |
120HP (88kW) |
||
|
Maximum torque |
290 N.m |
||
|
Maximum sped |
1500 rpm |
||
|
Displacement |
2999 ml |
||
|
Transmission |
MSB, manual, 5-speed |
||
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
||
|
Front Axle |
2.5 Ton |
||
|
Rear Axle |
4.8 Ton |
||
|
Brakes |
Service brake: dual circuit compressed air brake |
||
|
Wheels & Tyres |
Tire: 235/75R17.5 Radial tire |
||
|
Upper body specifications |
Bucket rated load |
250kg |
|
|
Bucket material |
Fiber glass, insulated |
||
|
Platform rotation angle |
360° continuous rotation, work bucket ±90° |
||
|
Swing speed |
0~2 r/min |
||
|
Maximum Working height |
18 m |
||
|
Operating range at maximum working height |
2.3 m |
||
|
Work bucket maximum operating range |
11.3m |
||
|
Working height at maximum working range |
8 m |
||
|
Outriggers |
Front V-type, rear H-type |
||
|

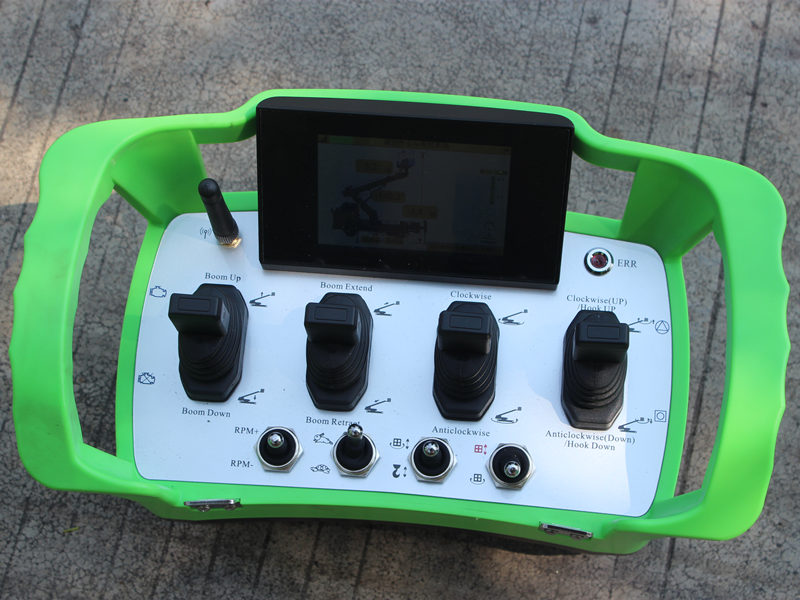

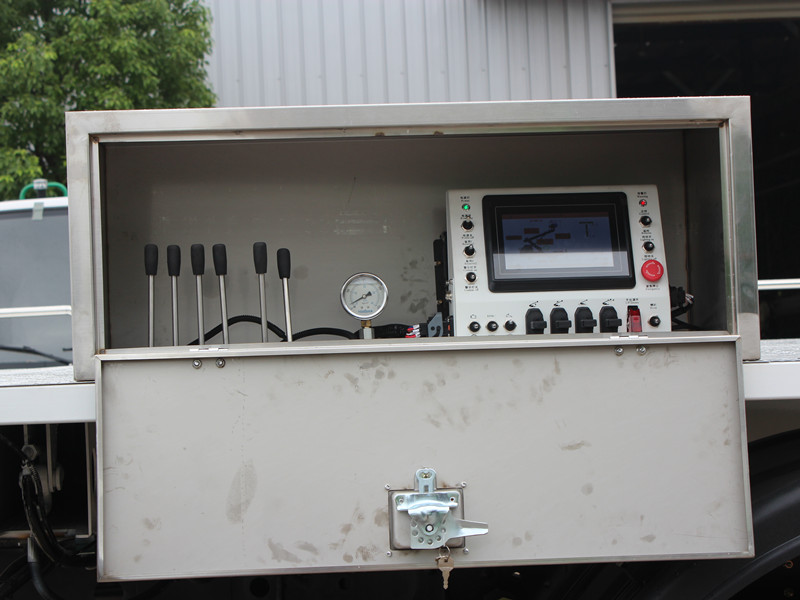

Control method |
Hydraulic control + remote control |
||
Product Advantages
1. High Working Height and Great Adjustability: The ISUZU aerial work platform truck can reach a working height of up to 18 meters. Its high adjustability in height allows for rapid adaptation to different working height requirements.
2. Wide Operating Range: The work basket of the ISUZU manlifter truck has a large rotation angle of up to 360 degrees, and a vertical working angle of up to 85 degrees, providing greater operational flexibility during high-altitude operations.
3. High Stability: The ISUZU 18m aerial lift truck features an automatically leveling work platform and full-proportional control handles, ensuring stability and precise control during operations.
4. Excellent Safety Performance: The ISUZU bucket lift truck is equipped with a comprehensive safety protection system, ensuring safety and reliability during operations. Its sturdy structure, reliable operation, and low failure rate make it suitable for multiple operators to work simultaneously.
