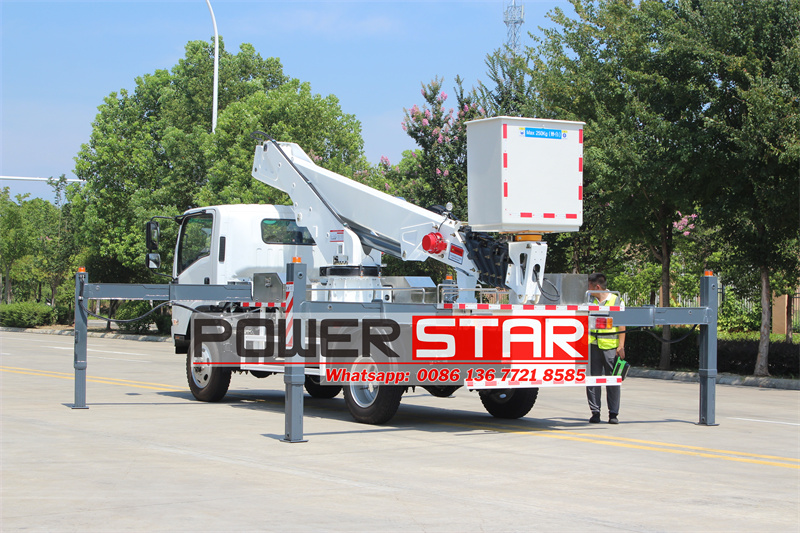

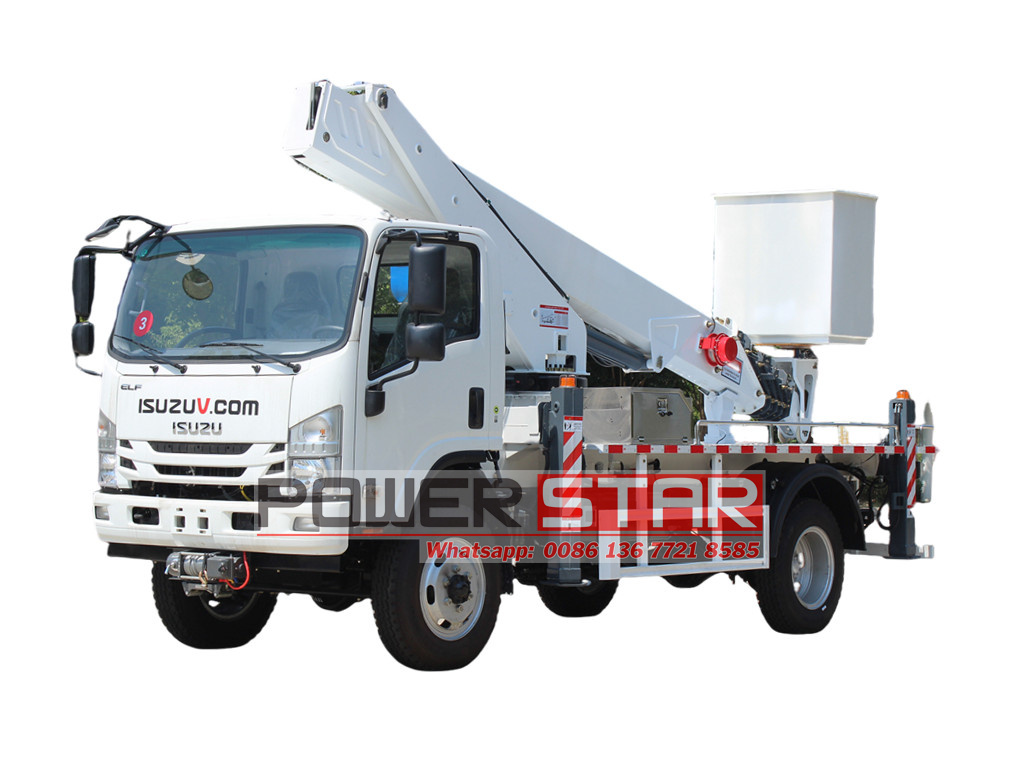

Isuzu 4x4 AWD 29m manlifter truck

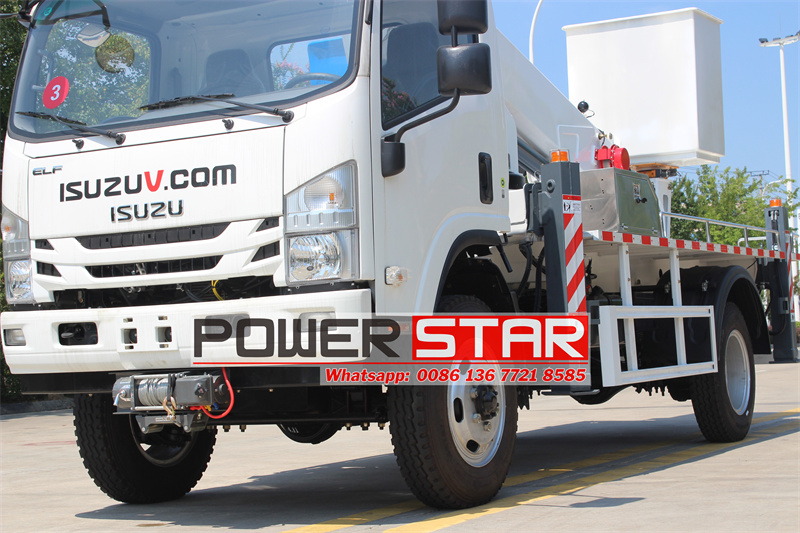

ISUZU NPR truck mounted 29m aerial work platform export to Moldova, Built on the Japanese brand Isuzu ELF 4x4 offroad truck chassis, the Isuzu 29m telescopic manlifter truck is equipped with a 190HP Euro 6 diesel engine 4HK1-TCG61 model and Isuzu MLD 6-speed transmission. Standard 8.25R20 stronger tires with totally 4 units, very suitable for tough road condition. Remote wireless control system for easy operation.
Manufacturer:
Powerstar TrucksWork capacity:
29mDimension:
6840 x 2200 x 3450mmCabin type:
Isuzu 700P 4x4 chassis cabin,2 seatsWheelbase:
3815mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X4Gear box:
MLD 6-speed,manualRemarks:

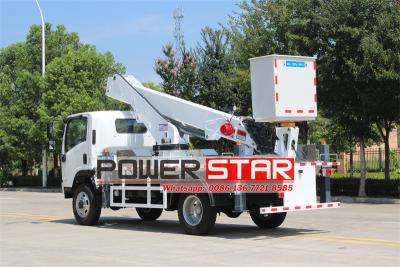

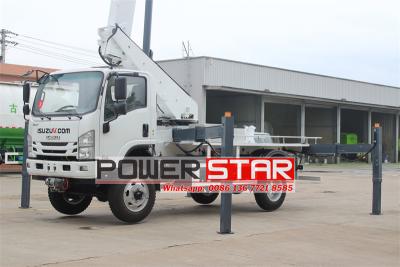

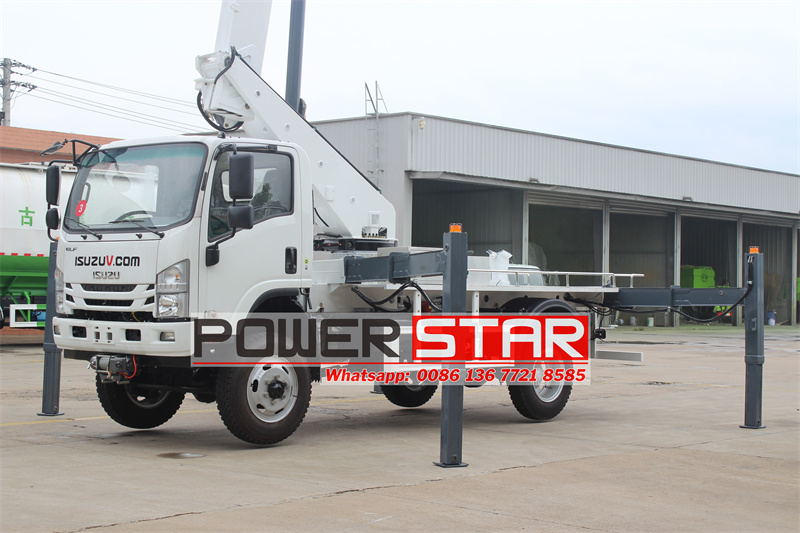

3 Sections telescopic boomMoldove customer buy ISUZU ELF 700P NPR 4x4 offroad 4 wheeler 29m telescopic aerial platform truck mounted manlifter

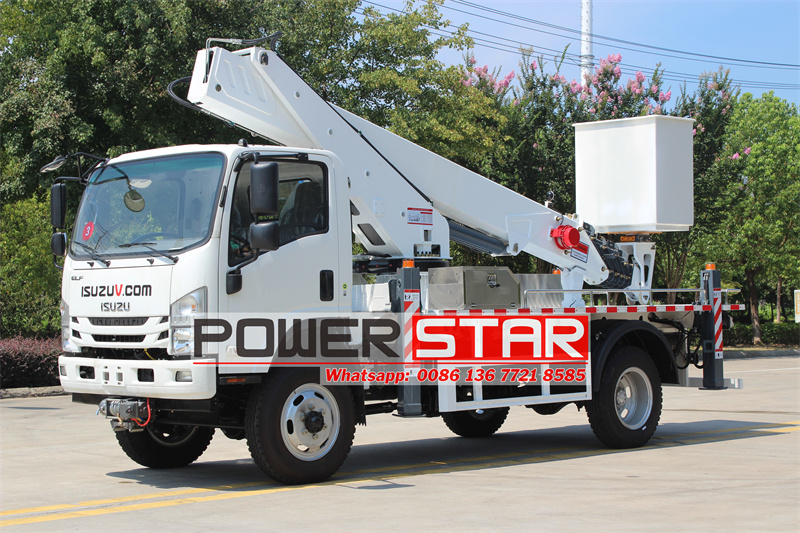

ISUZU 29m straight arm aerial work vehicle with insulated bucket is a special aerial work equipment, mainly used for aerial work in the fields of electricity, communication, gardening, transportation, etc. Isuzu 29m 4x4 telescopic manlifter truck adopts ISUZU offroad 4x4 truck chassis. The original Japanese brand ISUZU truck chassis is a well known for its high-quality and high-performance, ISUZU 4HK1 diesel engine with 140KW / 190HP and 5193cc emission, meet EURO 4 to 6 standard. Isuzu MLD 6 shift manual gearbox for convenient working with 6 forward and 1 reverse, 8.25R20 tires with totally 4 units, very convenient for tough road working. The use of ISUZU chassis means that this aerial work platform truck has good driving stability and carrying capacity. The working arm of the aerial work platform adopts a straight arm design, which makes the working range wider and the working height higher. and the maximum extension height of the working arm can be 29m, equipped with special designed insulated bucket, very suitable for different kind of working.
ISUZU 29m insulated manlifter truck is an advanced equipment for high-altitude work needs in the fields of communications, gardening, transportation, etc. An ISUZU aerial work platform (AWP), also an aerial device, aerial lift, boom lift, bucket truck, cherry picker, elevating work platform (EWP), mobile elevating work platform (MEWP), or scissor lift, is a mechanical device used to provide temporary access for people or equipment to inaccessible areas, usually at height. There are various distinct types of mechanized access platforms.
They are generally used for temporary, flexible access purposes such as maintenance and construction work or by firefighters for emergency access, which distinguishes them from permanent access equipment such as elevators. They are designed to lift limited weights usually 200-500kg, although some have a higher safe working load distinguishing them from most types of cranes. They are usually capable of being set up and operated by a single person.
● 30 years experience on Aerial Platform truck designing
● 50 units Isuzu manlifter truck in stock, 14 cbm, 19 cbm, 24 cbm, 30cbm
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight

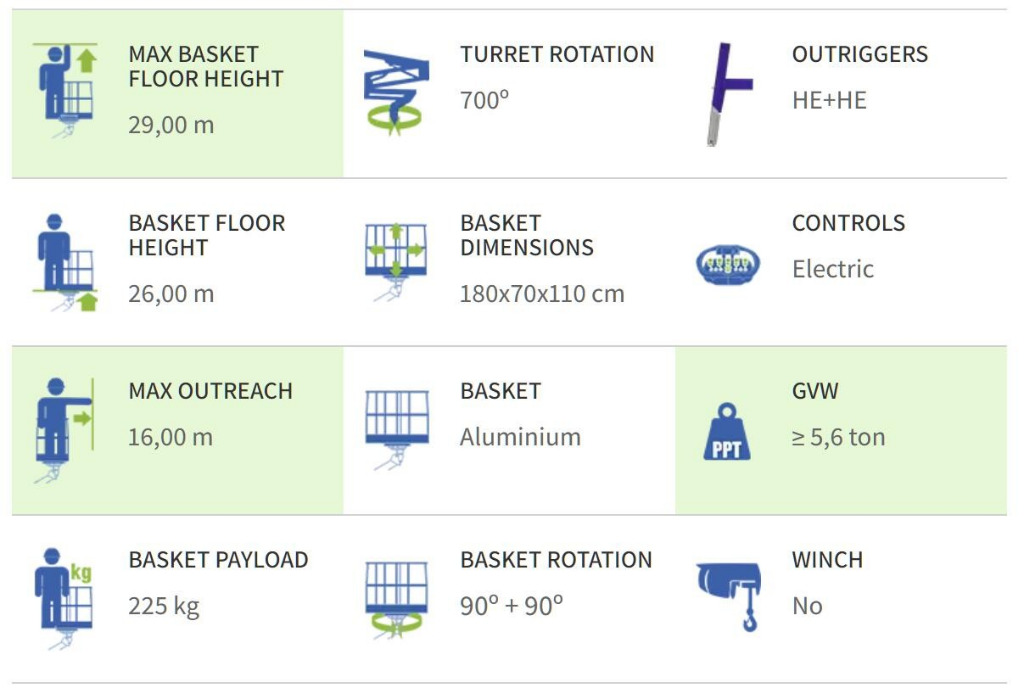

Technical Parameters for ISUZU 29m Aerial Platform Truck:
The PT5110JGK is an articulated aerial platform from Socage’s mid-height range, installed on trucks from GVW 11 tons.
It reaches a working height of 29m and a horizontal reach of 16m, in addition has a large load capacity of 225 kg (2 operators + material)
The POWERSTAR Isuzu Manlifter Truck has an excellent performance and extremely compact dimensions, very similar to platforms on 7.3 ton vehicles, it is only 6900 mm (*) in length by 2100 mm (*) in width.
| Main specification | Chassis brand | ISUZU | |||
| Chassis model | PT1110ANJGK | ||||
| Overall dimension(L*W*H) | 6840x2200x3450mm | ||||
| Gross / Curb weight | 10,550kg / 6,350kg | ||||
| Chassis | Drive modle | 4*2 left hand drive | |||
| Wheel Base | 3815 mm | ||||
| Tyre size & number | 8.25R20, totally 4 wheelers with one spare tyre | ||||
| Fuel/Engine type: | Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail | ||||
| Engine model | 4HK1-TCG61 | ||||
| Engine horse power | 190HP (140KW) | ||||
| Emission | Euro VI | ||||
| Transmission | ISUZU MLD 6 speed forward, 1 reverse | ||||
| Working condition | Maximum operating height | 29 m / 95 ft | |||
| Max. bucket bottom height | 16 m | ||||
| Rotation | 360° | ||||
| Boom Type | 3 Sections telescopic boom | ||||
| Outrigger type | Outrigger type | Front V Rear H type. Controlled independently | |||
| Outrigger span | Vertical | 4000mm | |||
| horizontal | 4350mm | ||||
| Basket | Rated loading weight | 225kgs | |||
| L*W*H | 1500x700x1150mm | ||||

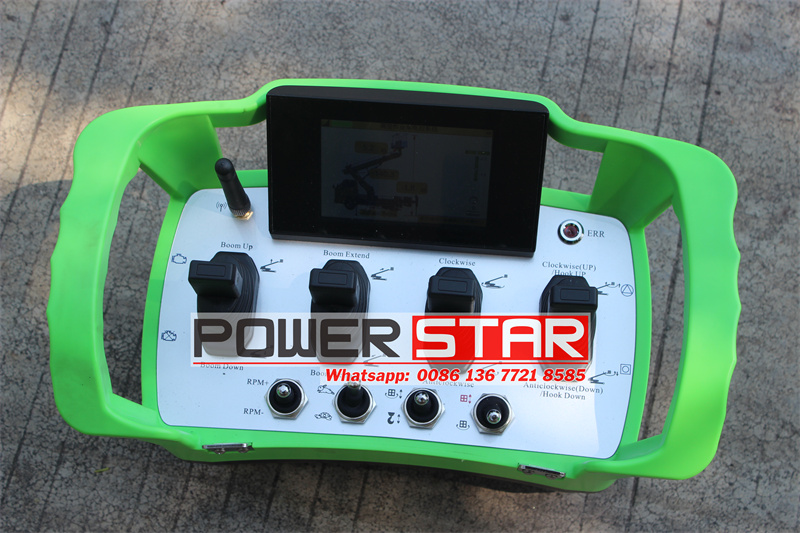

| Operation system | Operation | 4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever. | |||
| Control system | Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation | ||||
| Leveling system | Hydraulic automatic leveling | ||||
| Security configuration | Automatic interlocking device for up and down | For locking up and down the truck to prevent the risk of misoperation. | |||
| Basket | 360 degree rotation | ||||
| Horizontal function | Real time display | ||||
| Real time communication | There is wireless intercom between the platform and the vehicle | ||||
| Emergency electric emergency pump | When the engine and main pump failure, the operator can be sent back to the ground. | ||||

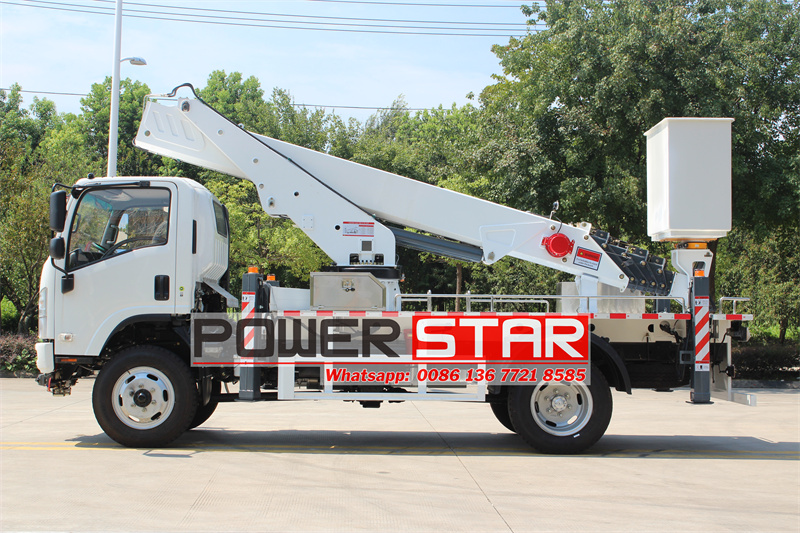

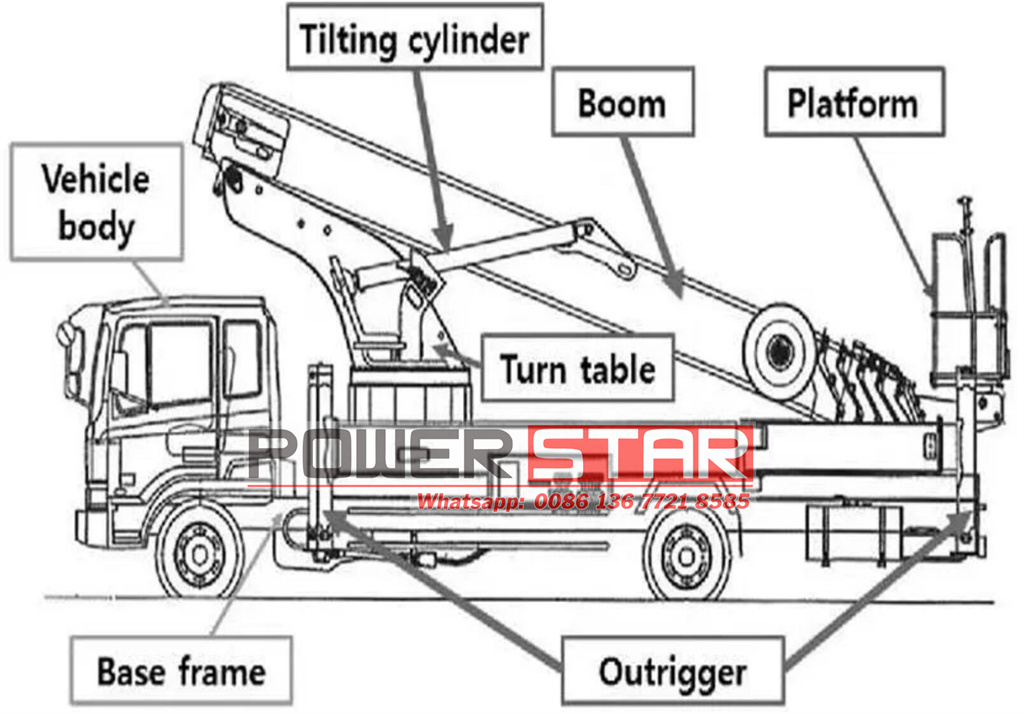

Features for ISUZU 29m straight aerial working platform truck:
Year 2025 newly designed and produced Isuzu straight arm high altitude aerial work platform truck has a height of 29 meters. It uses the full-retractable working arm with large leg span and good stability. It can be operated simultaneously or separately, which is safe and reliable. With flexibility in high altitude operation, widely used in municipal, electric power, street lamp, advertising, communication, photography, landscape, shipbuilding, transportation, wharf, airport port, rescue and rescue, large industrial, mining enterprises and other industries of installation and maintenance and climbing operations.
The ISUZU 29m 4x4 offroad 4 wheeler manlifter truck is a telescopic aerial platform mounted on a lightweight vehicle that you can drive with the B guide licence. It is suitable for many uses such as: maintenance on buildings, industrial cleaning, work on electricity cables, pruning. The 2500 mm short step allows it to be compact and to access historic centers or bendy corners safely. Vehicle contour stabilization and 225 kg drivetrain with the simplicity of fully hydraulic controls.
