Isuzu vacuum truck

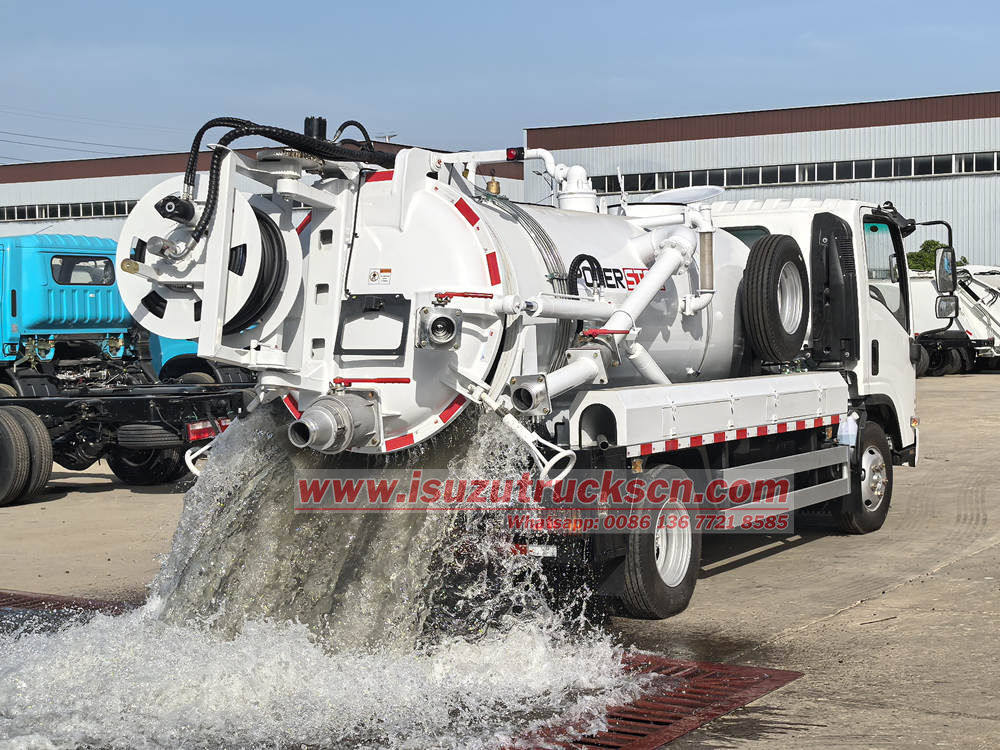

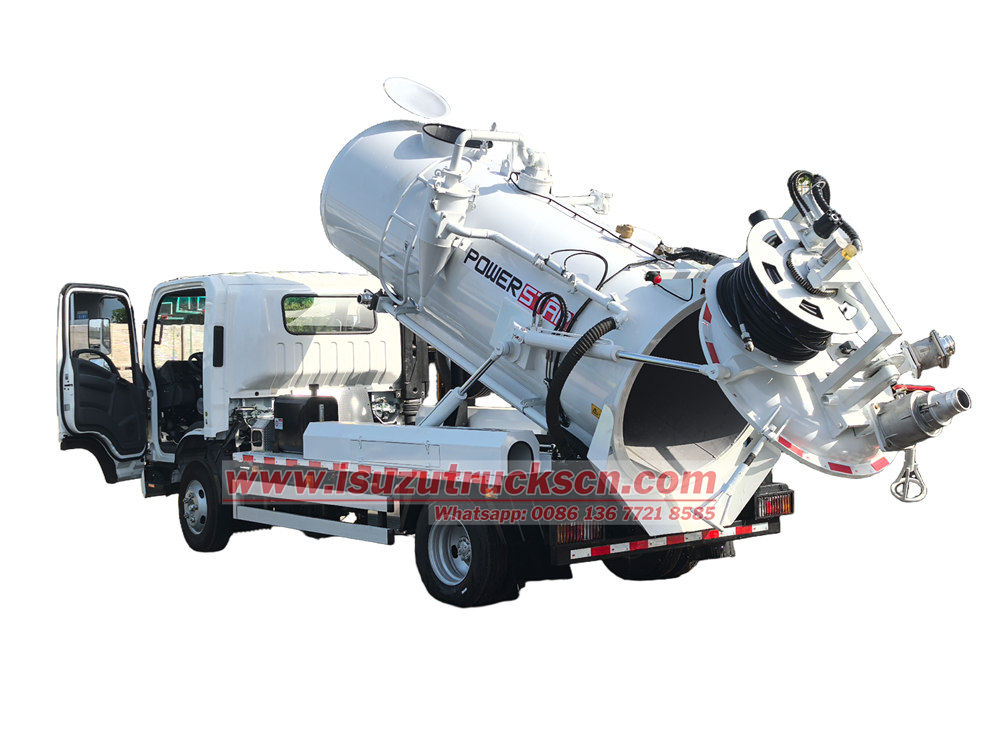

Isuzu ELF KV100 4,000 liters combination vacuum jetter truck is a professional sanitation vehicle that integrates high-pressure flushing, vacuum suction and pipe dredging functions. It is mainly used for maintenance of urban drainage pipes, municipal pipe networks and industrial pipes.

The core feature of this vehicle is multi-functional integration. It uses high-pressure water jets to quickly flush the sediment on the pipe wall, and uses a high-power vacuum pump to suck sewage and debris into a sealed tank, realizing the simultaneous operation of "flushing, suction and drainage".

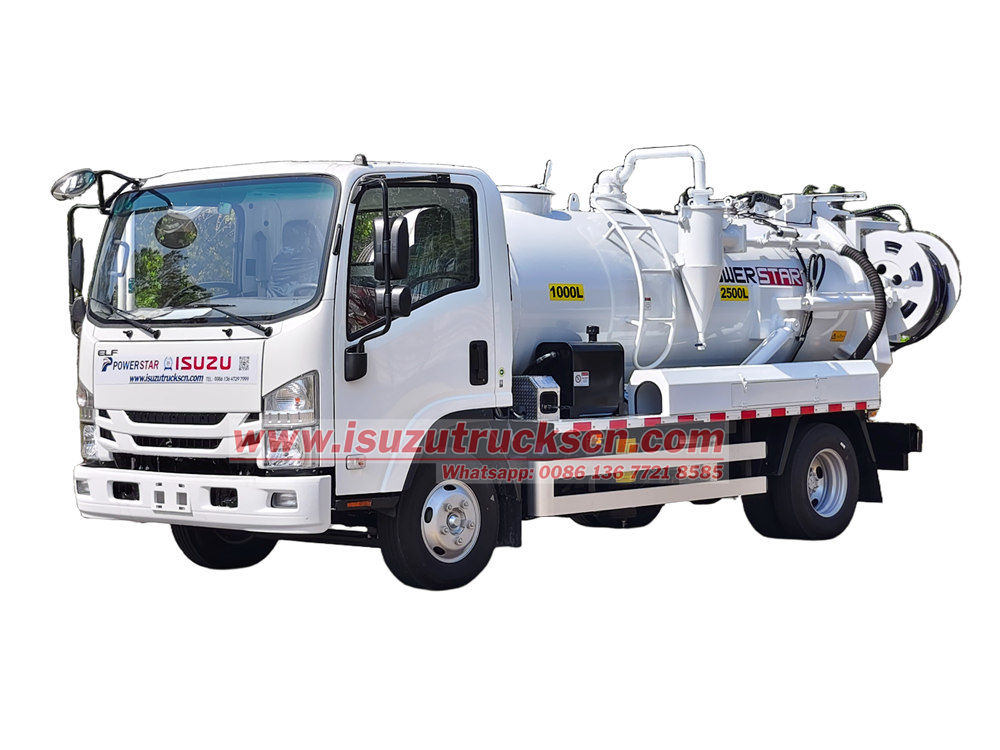

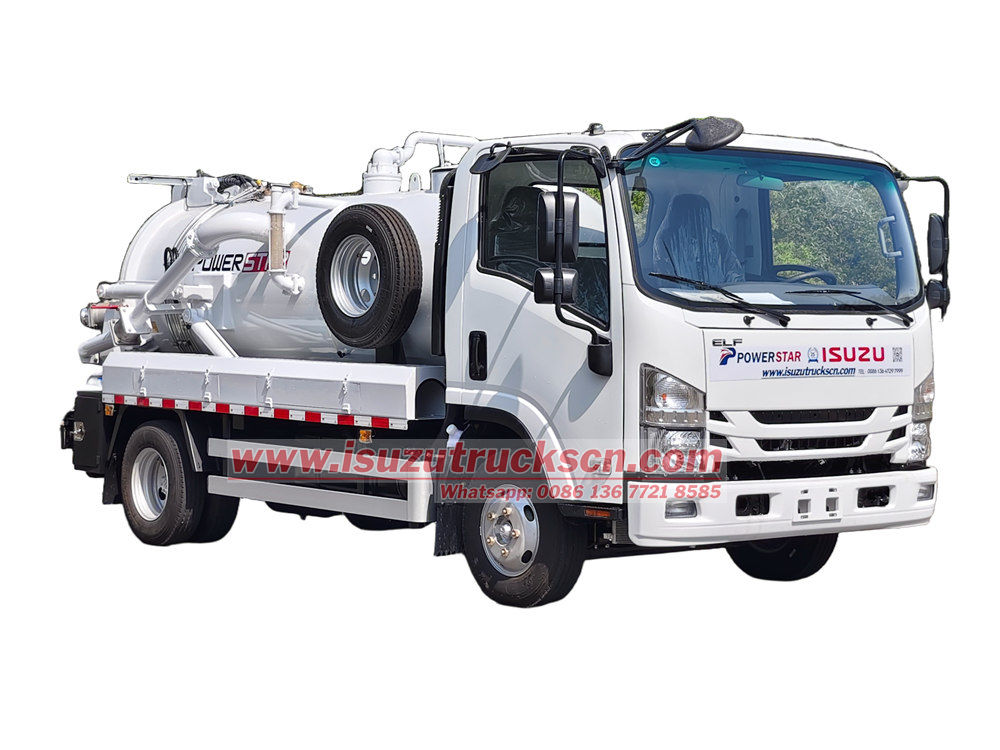

Isuzu combination vacuum jetter truck are based on the ELF KV100 chassis, equipped with a 120hp 4KH1CN6LB diesel engine and an Isuzu MSB 5-speed gearbox, which is powerful and easy to operate. The vehicle is equipped with an 2.5cbm vacuum tank and a 1cbm clean water tank, which can meet various dredging needs such as urban sewers and industrial pipelines.

Isuzu ELF combination vacuum jetter truck (also called vacuum cleaner truck,sewage vacuum truck,combined sewer cleaning truck,etc.), It uses a high-pressure water pump to generate a strong water flow, and cooperates with high-pressure pipes to flush and clear blocked areas that are difficult for human labor to reach; at the same time, it uses a vacuum pump and a sewage suction tank to directly suck and transport the cleaned dirt.

The vehicle is suitable for scenes such as urban roads, industrial parks, and residential areas. It can efficiently complete tasks such as pipeline dredging and septic tank cleaning to ensure the smooth flow of drainage systems.

1. Material and structural design of Isuzu combination vacuum jetter truck

As a modern pipeline maintenance vehicle, the material selection of Isuzu combination vacuum jetter truck directly affects the durability and operating performance of the equipment. The whole vehicle adopts a high-strength carbon steel frame structure, and the key load-bearing parts are reinforced to ensure the stability of the vehicle under complex working conditions.

♦ Tank material: Both the suction tank and the clean water tank are made of high-quality carbon steel anti-corrosion coating, which has excellent corrosion resistance and can withstand the erosion of sewage, sludge and chemicals for a long time, extending the service life.

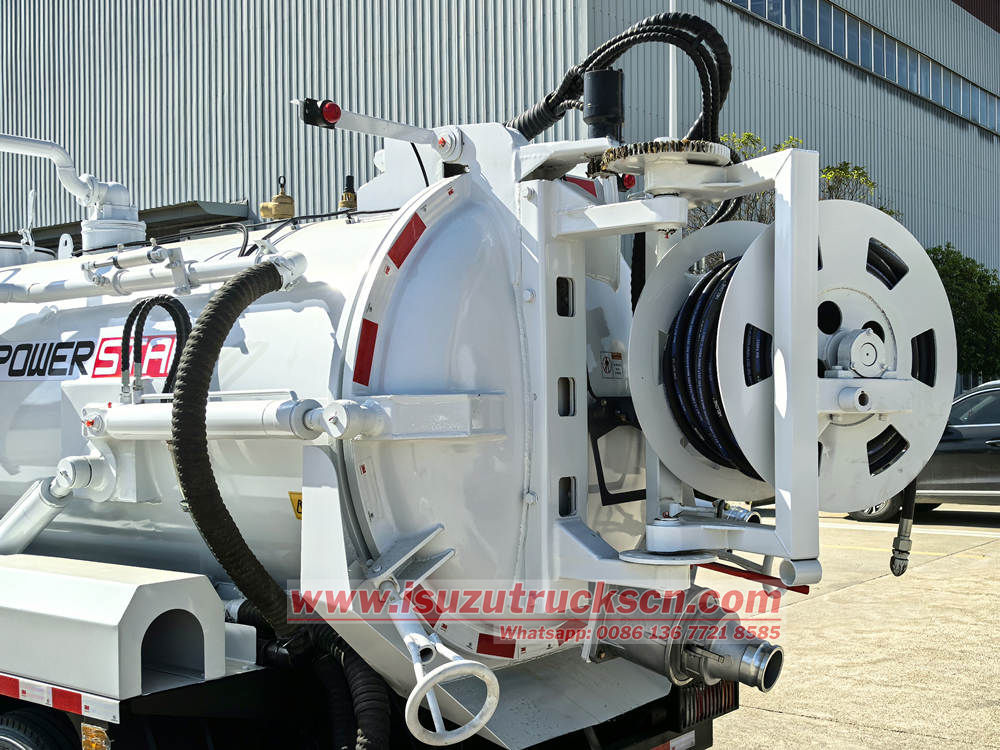

♦ High-pressure pipeline system: High-strength alloy steel pipes and wear-resistant rubber hoses are selected, with a pressure rating of more than 20MPa, to ensure that the pipeline does not burst or deform during high-pressure flushing.

♦ Sealing structure: The suction tank adopts a fully enclosed design, combined with oil-resistant and corrosion-resistant sealing rings, which effectively prevents sewage leakage and odor emission, and meets environmental protection requirements.

2. 3,000 liters sewage suction tank and 1,000 liters clean water tank system

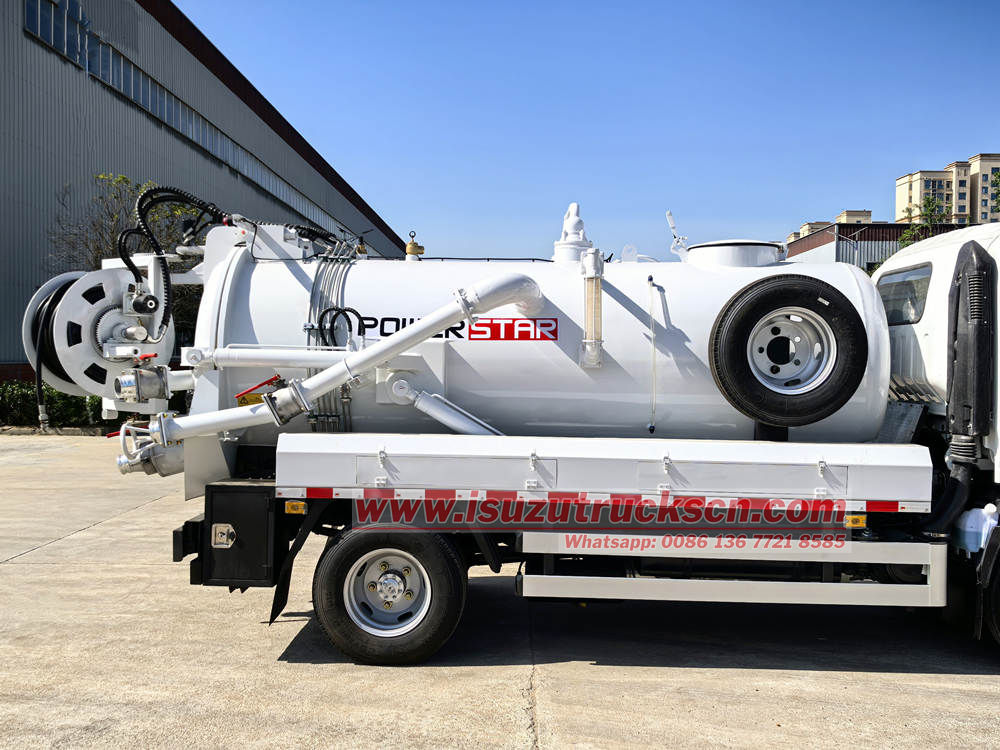

a. 3,000 liters sewage suction tank:

➤ Vacuum suction technology: Equipped with a high-power rotary vane vacuum pump, the maximum vacuum can reach -90kPa, which can quickly suck out the sludge, sewage and solid debris in the pipeline.

➤ Efficient sewage discharge design: A hydraulic sewage discharge valve is set at the bottom of the tank to quickly empty the sewage and reduce manual cleaning time.

➤ Overflow protection: Equipped with a liquid level sensor, it automatically alarms when the sewage in the tank reaches the set capacity to prevent overload and overflow.

b. 1,000 liters clean water tank

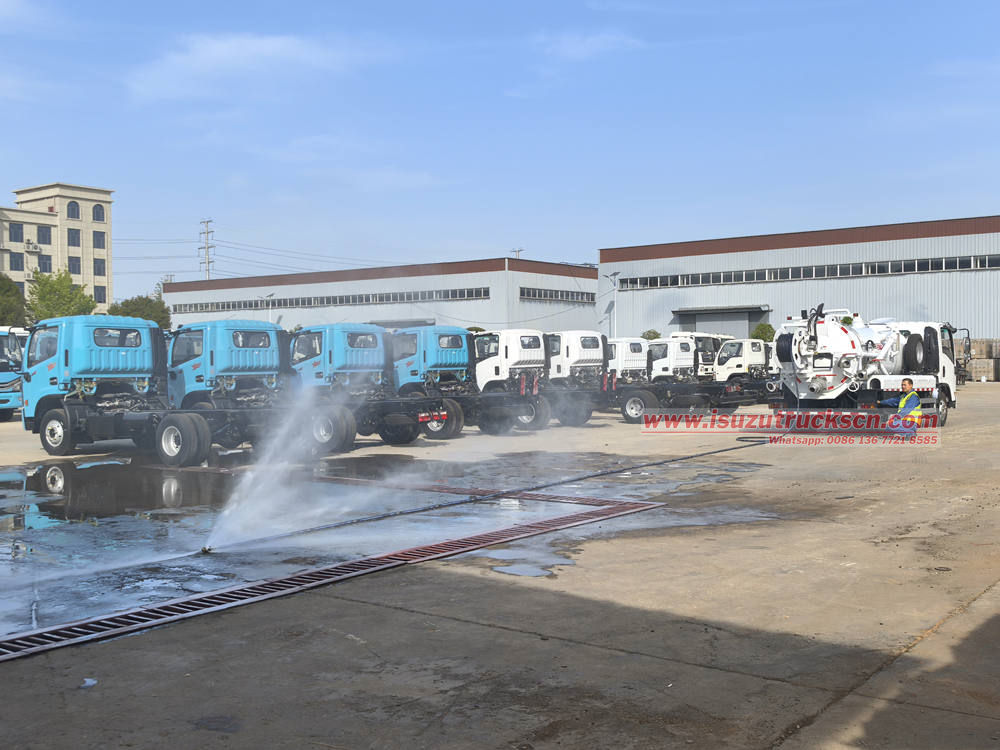

➤ High-pressure water supply: Provides a stable water source for the high-pressure cleaning pump, supports high-pressure water jets above 20MPa, and effectively flushes away attachments on the pipe wall.

➤ Intelligent temperature control (optional): When working in cold areas, a heating device can be installed to prevent the clean water tank from freezing and affecting the operation.

3. Features and advantages of Isuzu combined jetting suction truck

● Powerful unblocking and sewage suction capabilities：Equipped with a high-pressure water jet system, it can generate high-pressure water flow to easily flush out blockages such as silt, debris, grease, etc. in the pipeline, and can also adjust the water pressure according to the blockage situation. At the same time, the vacuum pump can quickly suck out sludge and sewage, and can cope with complex working conditions.

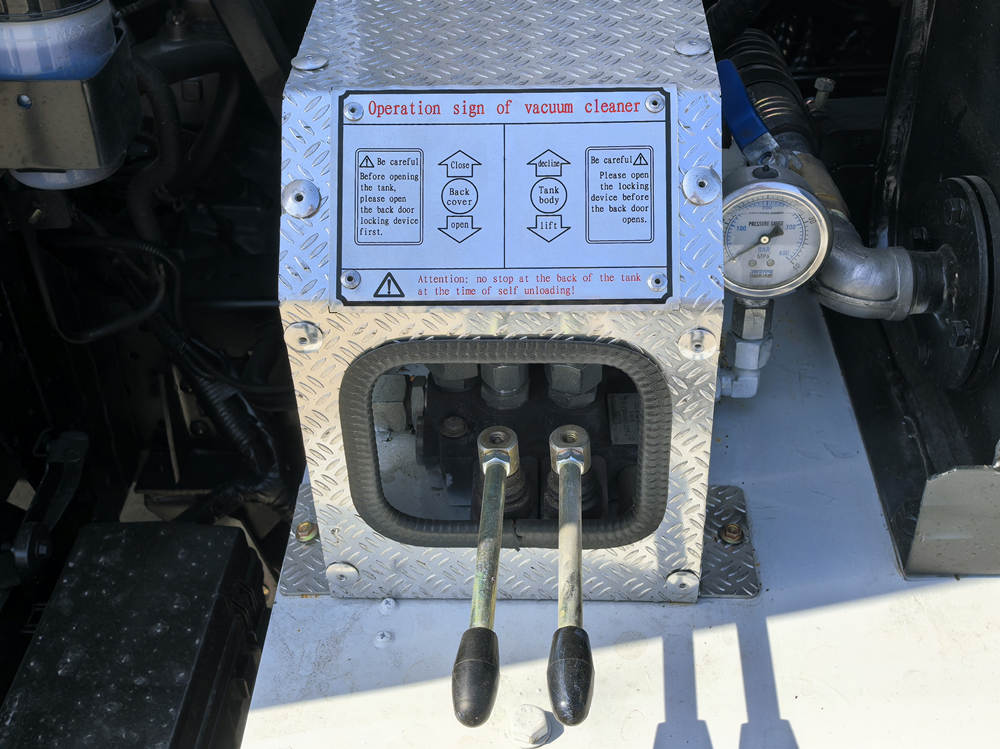

● Intelligent and multifunctional：It adopts liquid, electrical, and gas control, and has multiple automatic protection devices to ensure operational safety; it integrates flushing, unblocking, and sewage suction functions, reducing the number of vehicles and personnel required for operations and improving operational efficiency.

4. Application scenarios of Isuzu ELF combination vacuum jetter truck

1). Municipal drainage network maintenance

Applicable to daily dredging of urban rainwater pipes and sewage pipes to prevent waterlogging during heavy rain.

Clean up sediment in inspection wells, septic tanks and sedimentation tanks.

2). Property and community pipeline dredging

Dredging of sewers in residential areas and commercial complexes to solve backflow and odor problems.

Cleaning of grease traps in catering companies to prevent oil and dirt from caking pipes.

3). Emergency rescue

Drainage of road water after heavy rain and emergency dredging of pipe blockages.

Quick handling of sudden sewage leaks in municipal projects.
