Isuzu vacuum truck

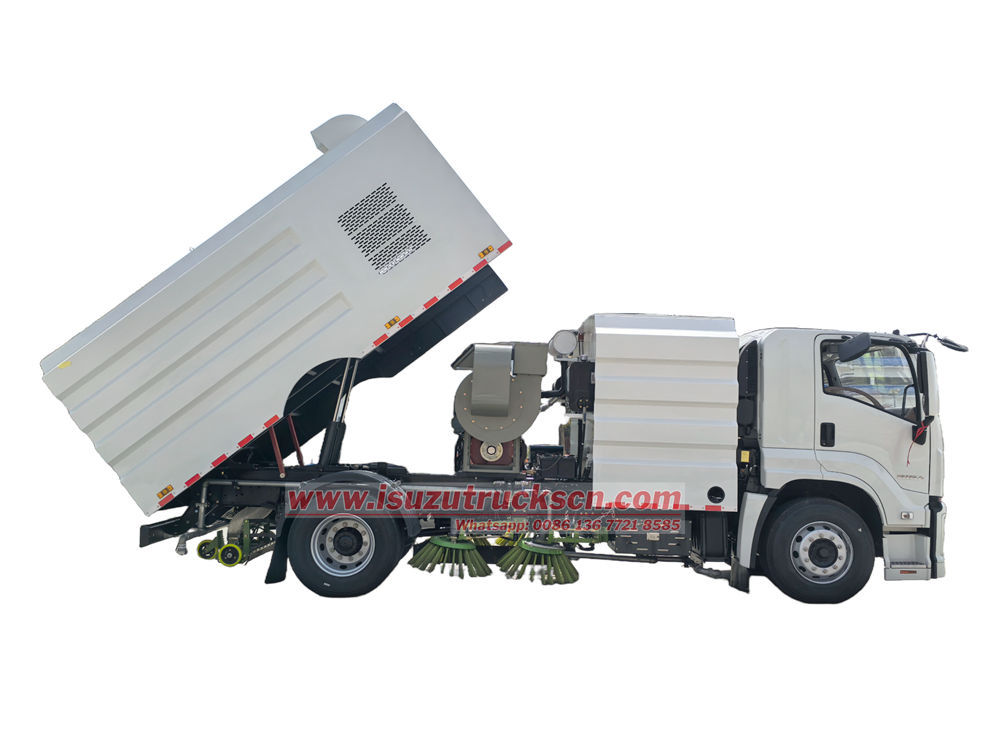

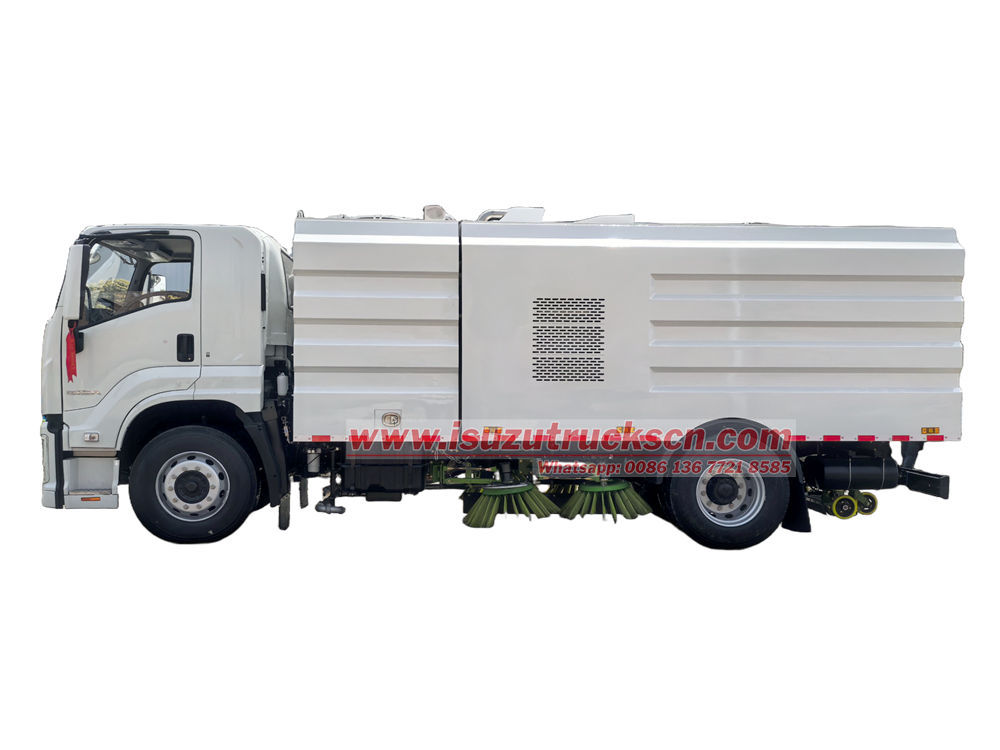

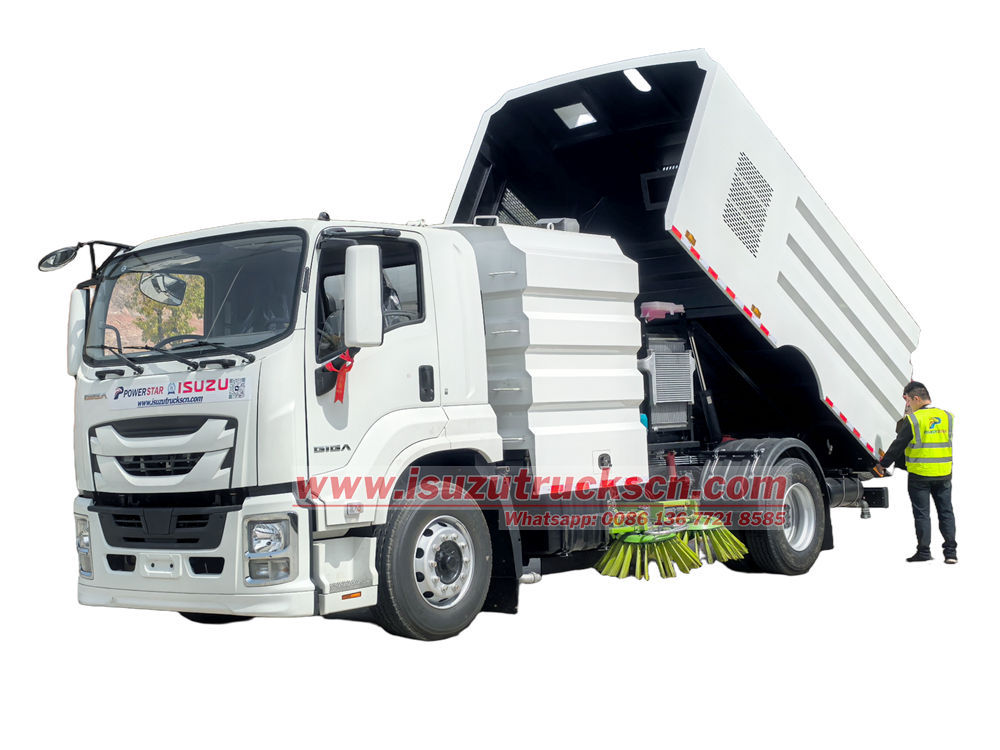

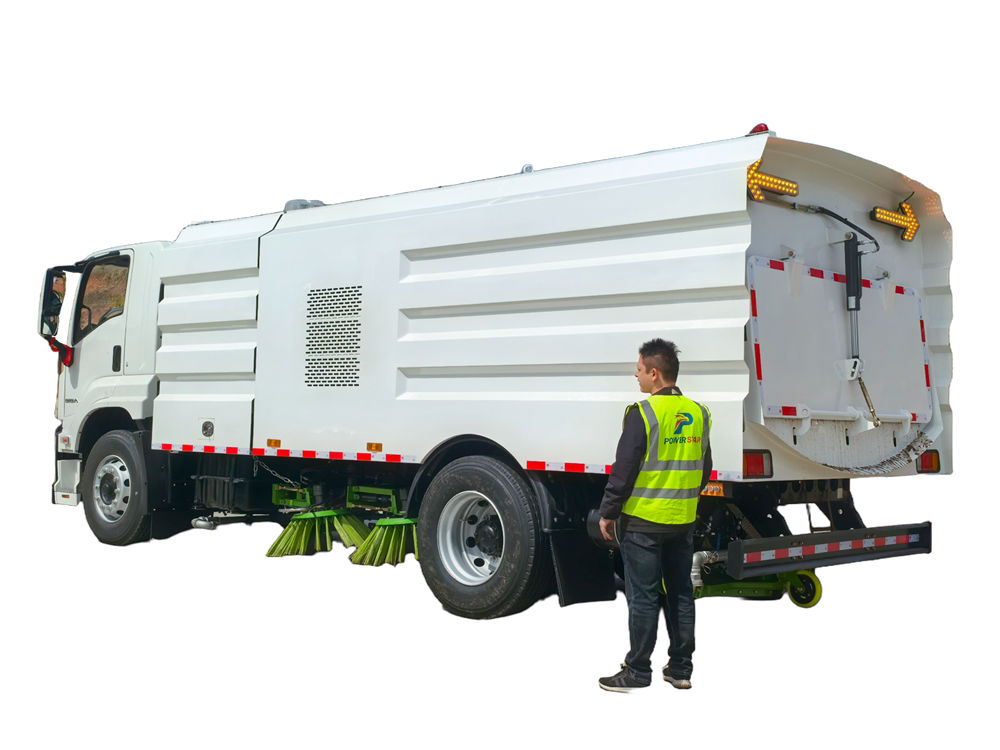

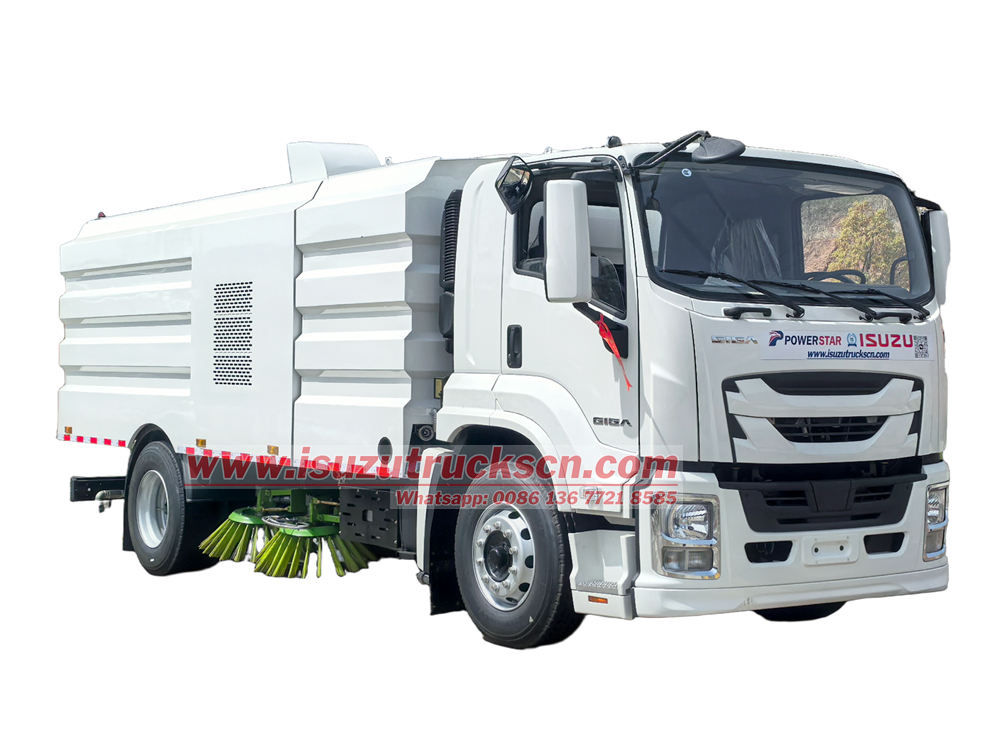

Isuzu FTR GIGA 10cbm road sweeper truck is an efficient and intelligent road cleaning equipment designed for modern urban sanitation needs. It is equipped with a rotating brush disc, a powerful vacuum system and a garbage storage box, which can simultaneously complete road sweeping, garbage collection and dust suppression.

Core features include: efficient cleaning, through the rotating brush disc and powerful vacuum system, it can quickly sweep road garbage, fallen leaves, sand and gravel and other debris. Environmental protection and energy saving, equipped with a water spray dust suppression device to reduce dust pollution during the cleaning process. Reduce carbon emissions; flexible operation, adapt to different road conditions, whether it is a wide main road or a narrow sidewalk, it can be accurately cleaned.

Isuzu GIGA road sweeper truck (also called street sweeper truck, sweeping vehicle, sweeping vehicle, street cleaning vehice, road cleaning truck , street sweeping vehicle ) is kind of vacuumed type truck mounted road sweeping machine , it is specially used in roadcleaning and collecting rubbish and transporting them to garbage collection spot.This vehicle is a new generation road sweeper combining sweeping and suction function. it is mainly suitable foimechanized cleaning and sweeping operations in city streets, municipal squares, and large factories and mines.

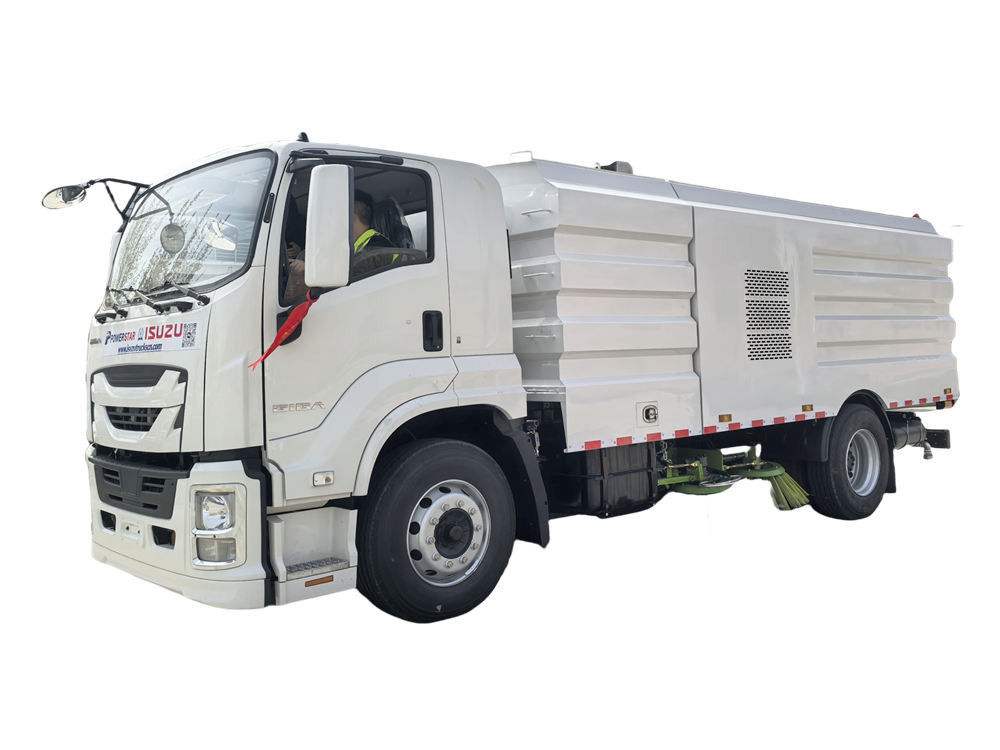

Isuzu road sweeper truck is modified on the basis of Isuzu new FTR GIGA 4X cab chassis, with 4500mm wheelbase, equipped with Isuzu 4HK1-TC60 205HP diesel engine, powerful, matched with MLD 6-speed gearbox, smooth shifting. The vehicle is equipped with a 3-cubic-meter washing water tank and a 7-cubic-meter garbage tank, equipped with Dongfeng Cummins 77HP Auxiliary Motor, China's well-known blower, German Pinfu high-pressure water pump, Hangzhou Weilong low-pressure water pump, Sweeping system, Water spraying system, hydraulic system, electronic control system, etc., which together constitute the necessary components of the road sweeper.

1. Material of Isuzu street sweeper truck

The key components of Isuzu street sweeper truck are made of high-strength and corrosion-resistant materials to ensure its stability and durability in various harsh environments. In particular, the box body is made of 304 stainless steel, which has excellent corrosion resistance and high temperature resistance, and can effectively resist the acid and alkali substances and high temperature environment encountered during the sweeping process, thereby extending the service life of the road sweeper. In addition, the garbage bin, hydraulic pipeline and other important parts of Isuzu street sweeper truck are also made of stainless steel, which is not only beautiful and durable, but also reduces maintenance costs.

2. Efficient cleaning

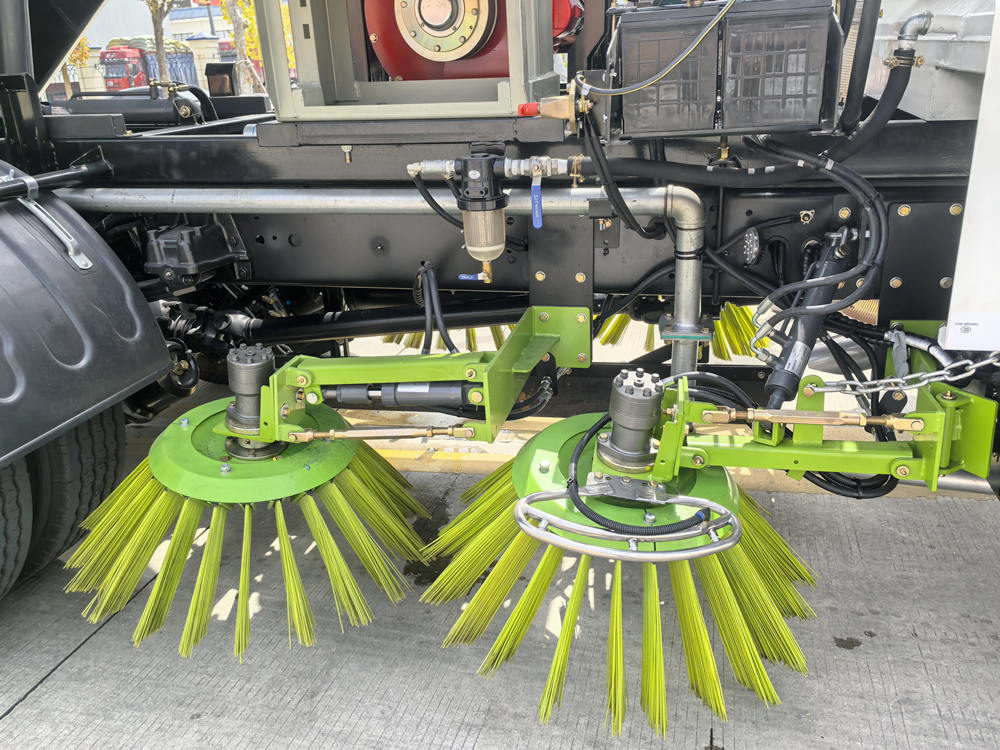

●Sweeping brush system: Isuzu street cleaning vehicle is equipped with multiple sweeping brushes, which rotate at high speed through hydraulic motor drive to sweep garbage, dust and other debris on the road to the middle of the vehicle. The sweeping brush is made of high-wear-resistant alloy material, with strong wear resistance and long service life. Isuzu street cleaning vehicle also supports the adjustment of sweeping brush angle to meet the cleaning needs of different roads.

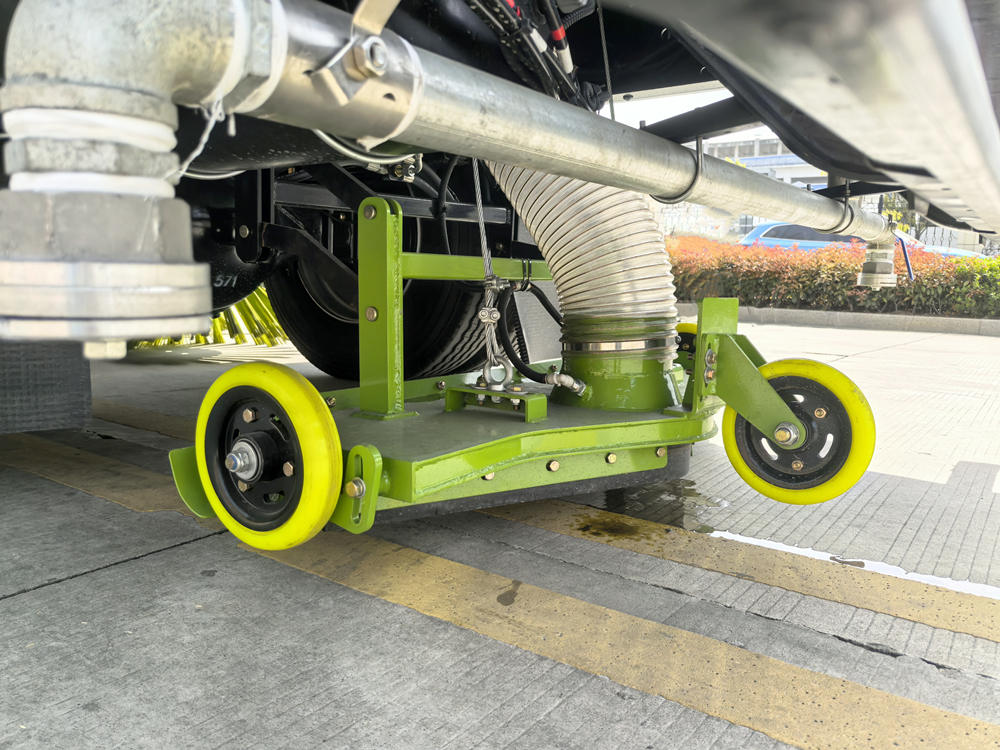

●Dust suction system: While the sweeping brush sweeps the garbage to the middle of the vehicle, the powerful vacuum cleaner built into the Isuzu street cleaning vehicle sucks the garbage and dust into the trash can. The dust suction system uses an efficient filtering device to ensure that the garbage is thoroughly collected while avoiding secondary dust pollution. The vehicle is also equipped with a spray dust suppression device, which sprays water mist during the cleaning process to further reduce dust.

●Washing system : For roads that require deep cleaning, Isuzu street cleaning vehicle is also equipped with a high-pressure cleaning system. The high-pressure water jets are used to spray strong high-pressure water to wash away stubborn dirt on the road surface, which is then sucked into the trash bin by the vacuum system. This cleaning method is not only highly efficient, but can also effectively remove oil and stubborn stains.

3. Features and Advantages

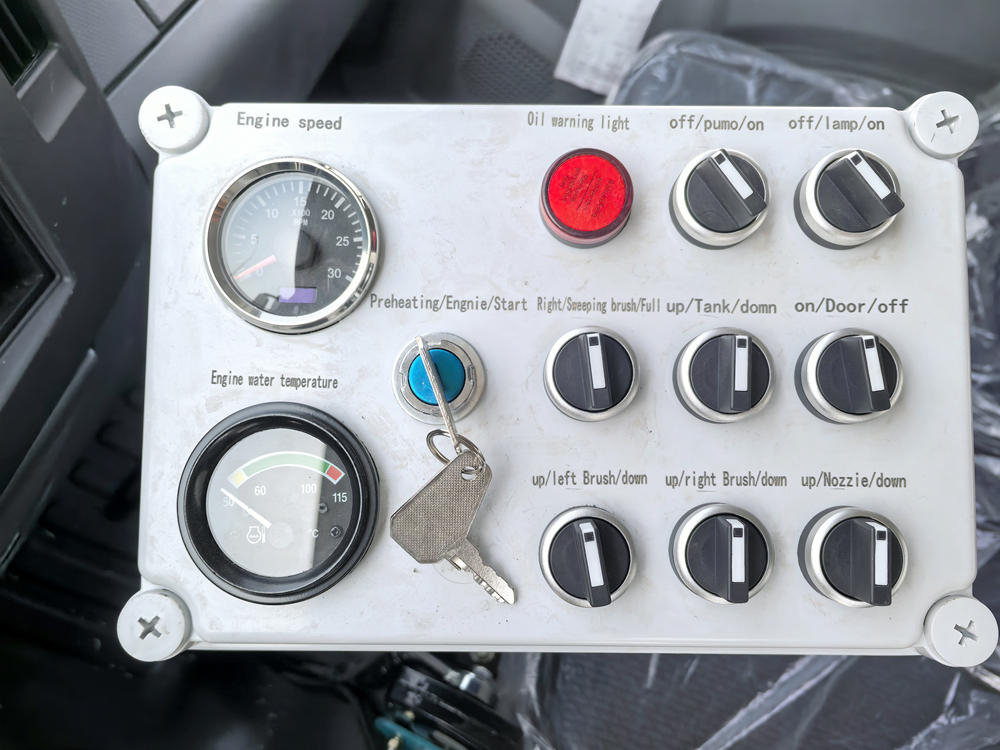

▲High degree of automation: Isuzu road cleaning truck is equipped with advanced control system to realize automatic operation. The driver only needs to operate the control panel to complete sweeping, vacuuming, cleaning and other operations.

▲Good cleaning effect: Isuzu road cleaning truck adopts a combination of sweeping and vacuuming to completely remove garbage and dust on the road. At the same time, the application of spray dust suppression device and high-pressure cleaning system further improves the cleaning effect and makes the road cleaner and tidier.

4. Application scenarios

◆Urban roads: including main roads, secondary roads, branch roads, etc., Isuzu road sweeper truck can efficiently remove garbage and dust on the road surface and keep the road clean.

◆Highways: Highways have a large volume of traffic, and garbage and dust accumulate quickly. Isuzu street sweeper truck can quickly complete the cleaning operation to ensure driving safety.

◆Factory areas and parking lots: These places have flat ground, and garbage and dust are relatively concentrated. Isuzu street sweeper truck can easily complete the cleaning task and improve the level of environmental sanitation.

◆Parks and squares: Parks, squares and other public places have a large flow of people and garbage is generated quickly. Isuzu road sweeper truck can quickly clean up garbage and provide citizens with a clean and comfortable leisure environment.

◆Airports and stations: These places have high requirements for environmental sanitation. Isuzu road sweeper truck can efficiently complete the cleaning operation to ensure the cleanliness and beauty of the place.
