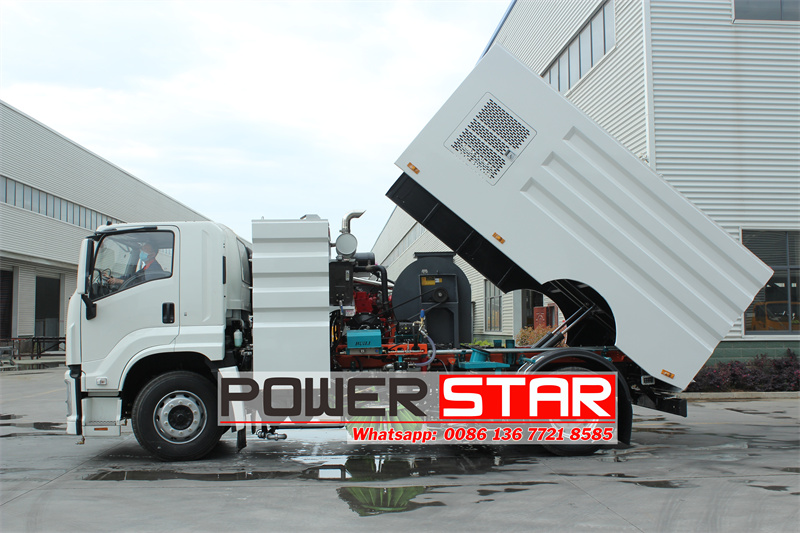

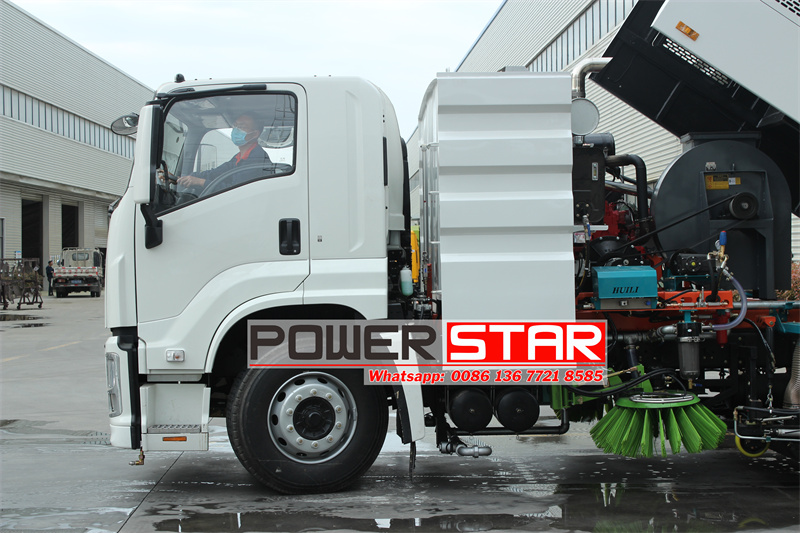

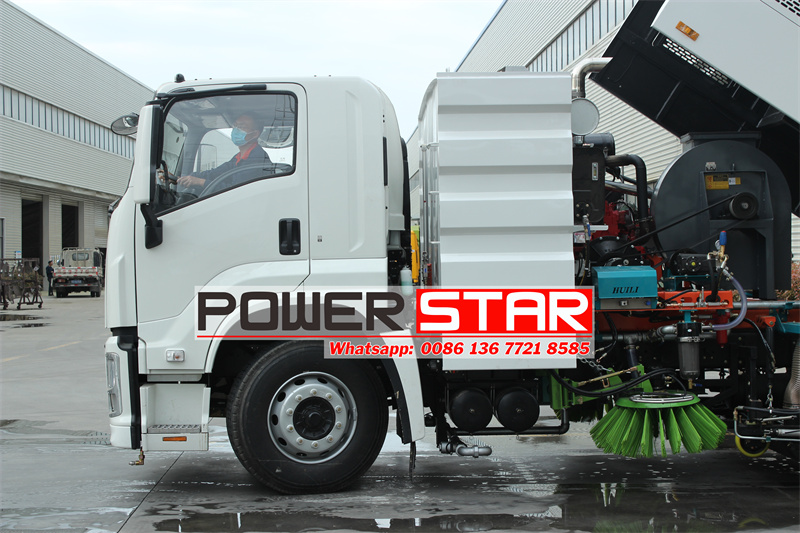

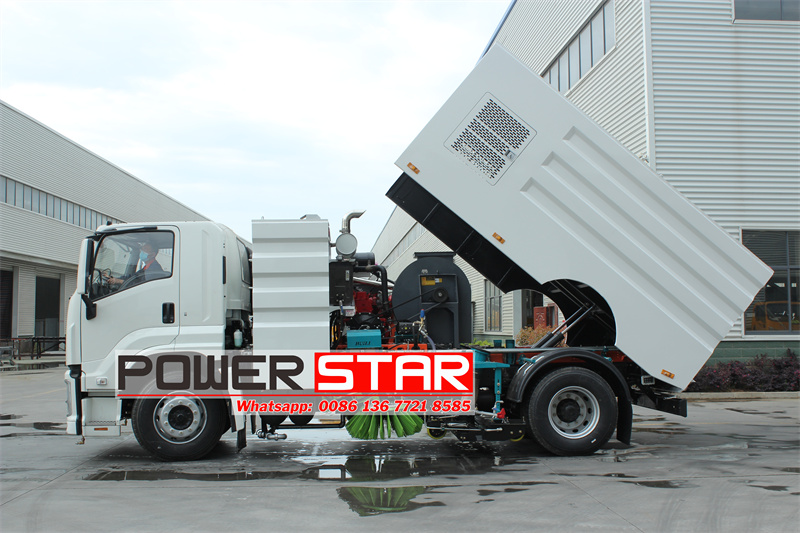

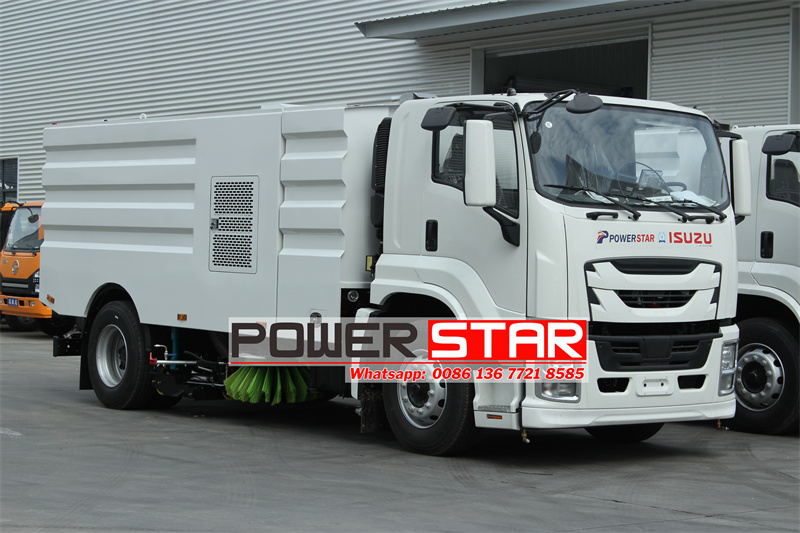

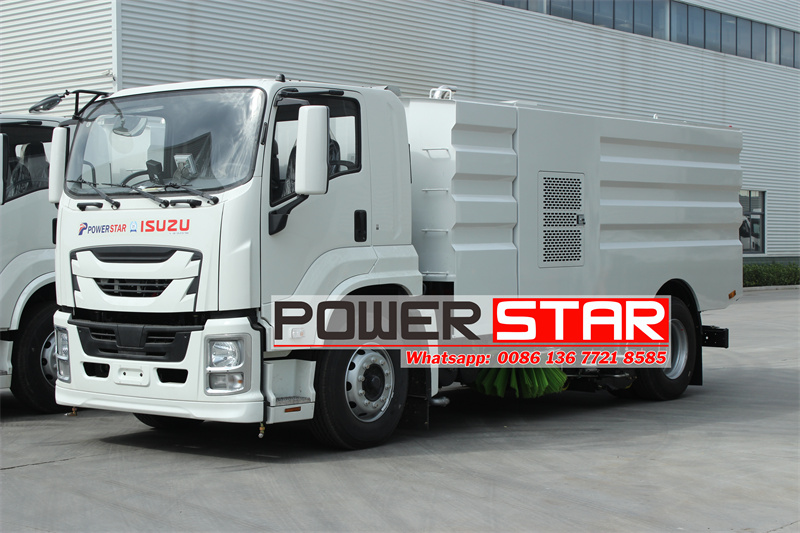

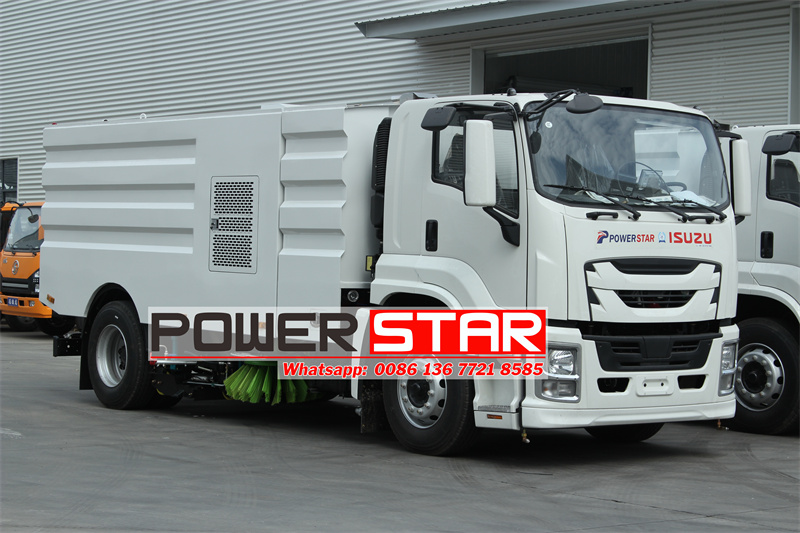

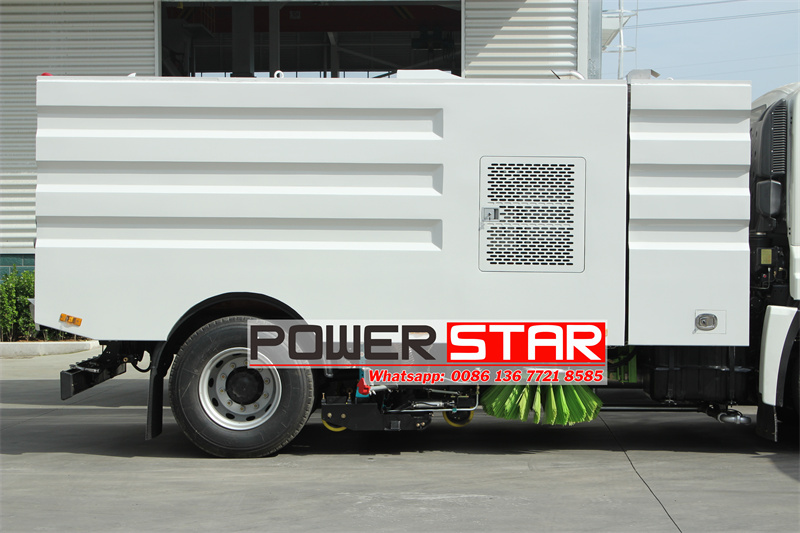

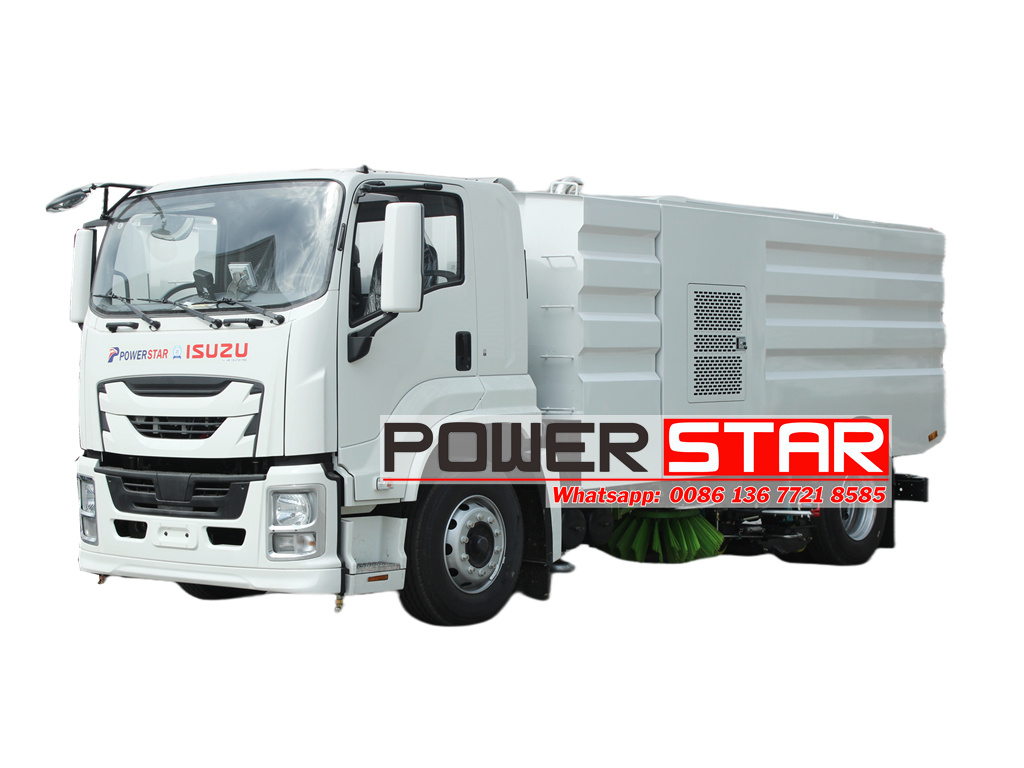

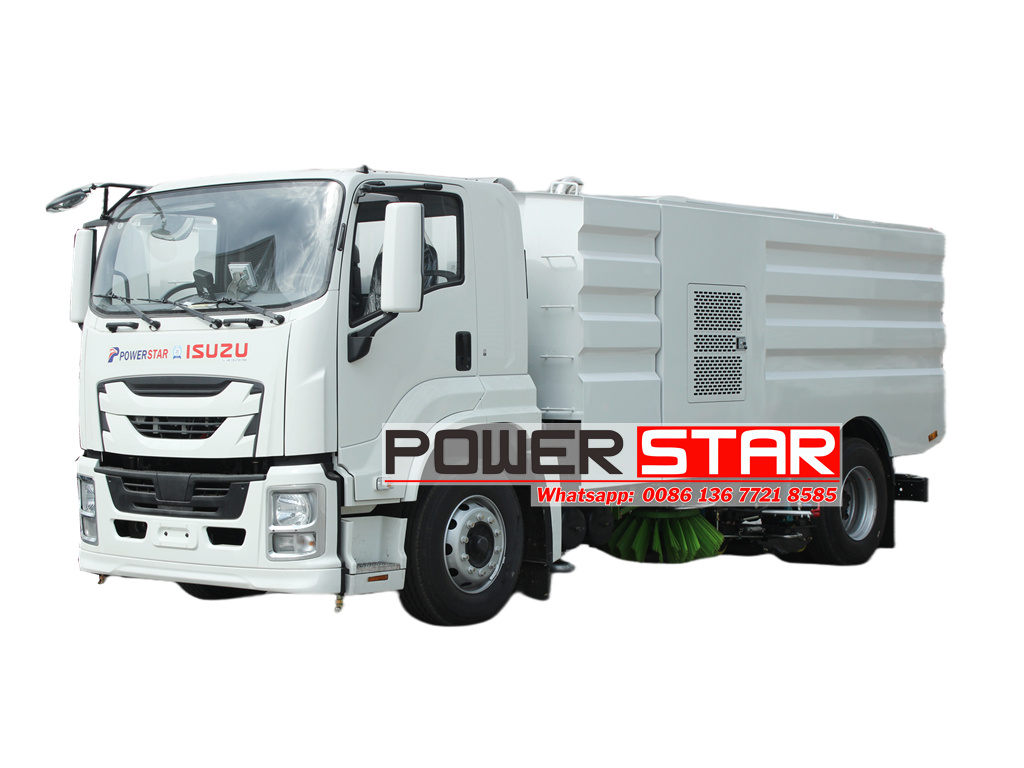

The Isuzu 10 cbm airport sweeper truck is modified on the Isuzu's new FTR GIGA 4X cab chassis, 4500mm wheelbase. Equip with Isuzu 4HK1-TCG60 205HP powerful diesel engine. Matched with MLD 6-speed gearbox. The upper structure is equipped with a 3cbm cleaning water tank and a 7cbm dustbin, Dongfeng Cummins 77HP Auxiliary Motor, a well-known Chinese fan, German PINFL high-pressure water pump, Hangzhou Weilong low-pressure water pump, sweeping system, water spraying system, hydraulic system, electronic control system, etc., which together constitute the necessary components of the airport road sweeper.
Work capacity:
10cbmEngine power:
205 HPEngine type:
4HK1-TCG60Axle drive:
4x2 Left hand driveGear box:
MLD 6 forward and 1 reverse speedRemarks:
Large capacity,powerful engineThe Isuzu 10cbm airport sweeper truck is a cleaning equipment modified based on the original Isuzu chassis, equipped with functions of road sweeping, waste collection, and transportation. The vehicle is furnished with an auxiliary engine, a hydraulic system for the fan, a road sweeping system, and high/low-pressure water spraying capabilities, making it suitable for vast scenarios such as airports.
The truck's cleaning system can not only efficiently remove road debris but also purify the air medium by removing dust, thereby reducing dust pollution and prolonging road service life. Additionally, the vehicle is equipped with an integrated PLC single-sided electric control system and a wireless remote controller, offering simple and flexible operation suitable for various working environments.
Features:

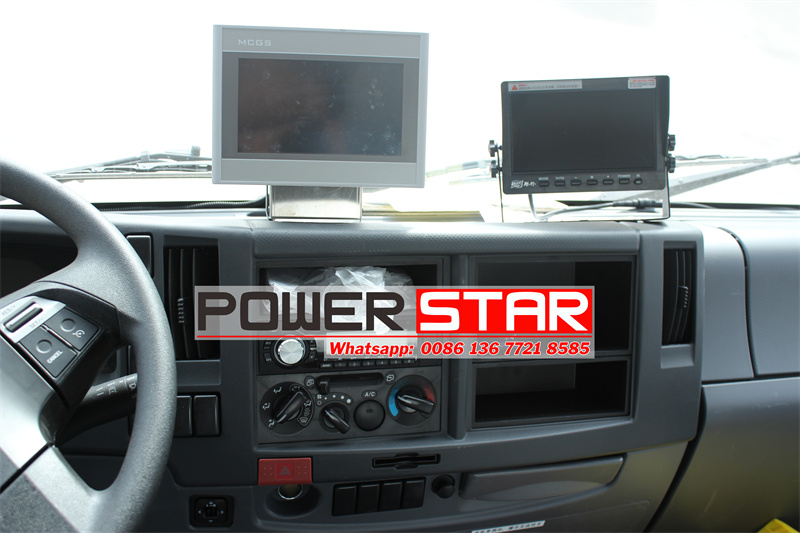

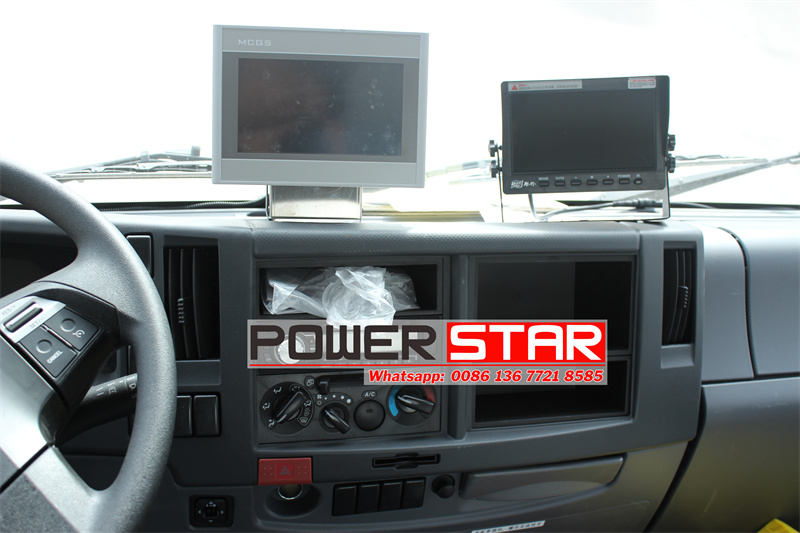

★.Control box in cabin, centraized control of allelectric system, convenient to operate.anguage can be customized as Enaish, French, Russia. Arabic, et

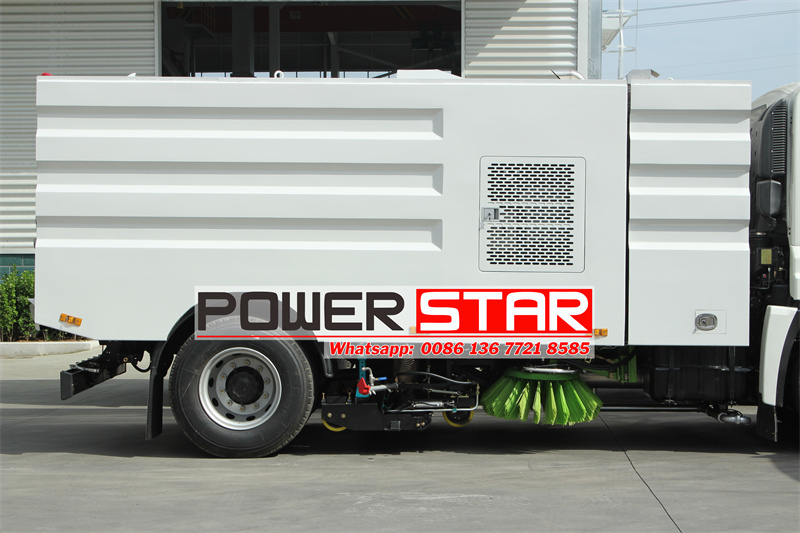

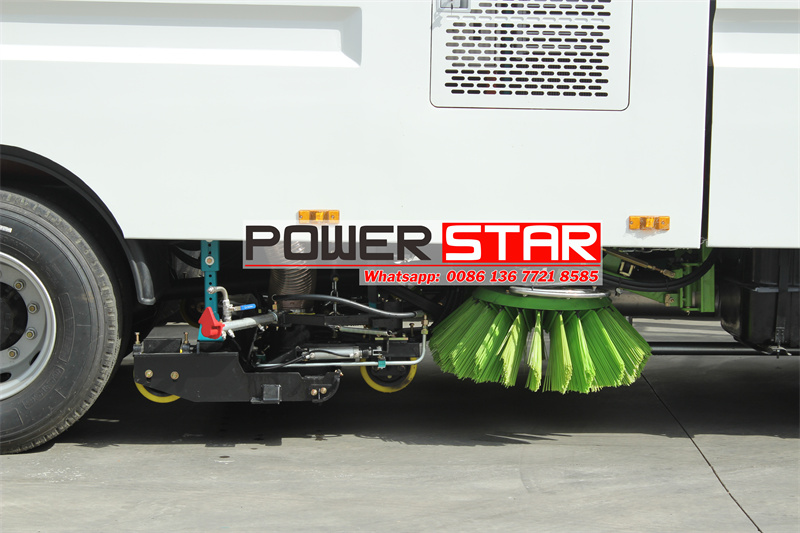

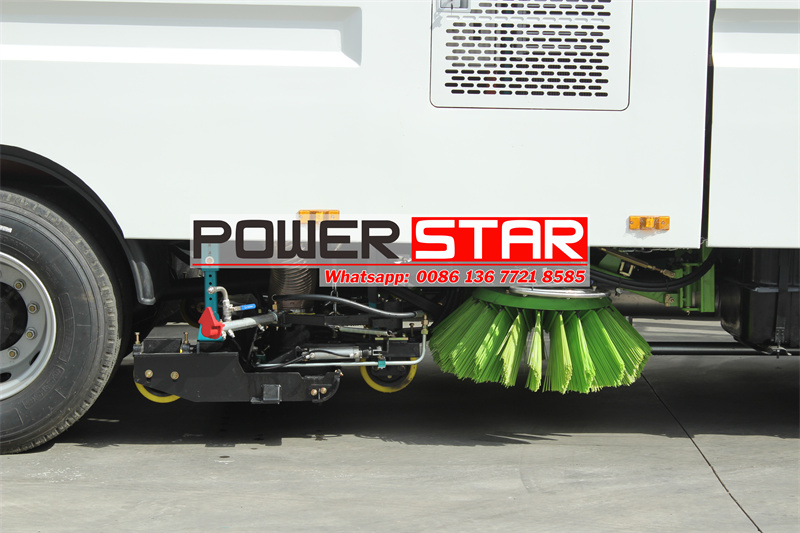

★. Four sweeping plate with matched totally 88pcs sweeper brushes and suction nozle working together for an excellent sweeping performance.
★. Both sides of sweeping brushes can work at the same time or only one side work dependently. In cabin electric control
★.Stainless truck body system, including 3000liters water tank and 7000liters dustbin
★.Originally imported hydraulic system key parts. Motor and Hydraulic valves
★. Road sweeper mounted on ISUZU truck chassis NKR, NPR, FTR. FVR. GIGA
|

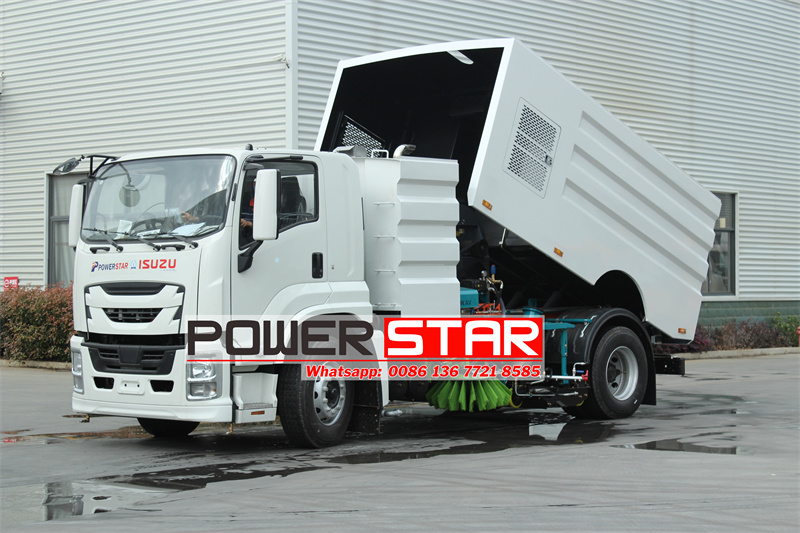

Isuzu FTR 10cbm airport sweeper truck |
||
|
Sweeper Truck Main Specification |
||
|
Vehicle Brand |
POWERSTAR |
|
|
Chassis Brand |
ISUZU |
|
|
Overall dimensions (L x W x H) |
9260x2500x2960 mm |
|
|
Drive Type |
4x2 Left hand drive, 6 wheels |
|
|
Wheelbase |
4500mm |
|
|
Cabin |

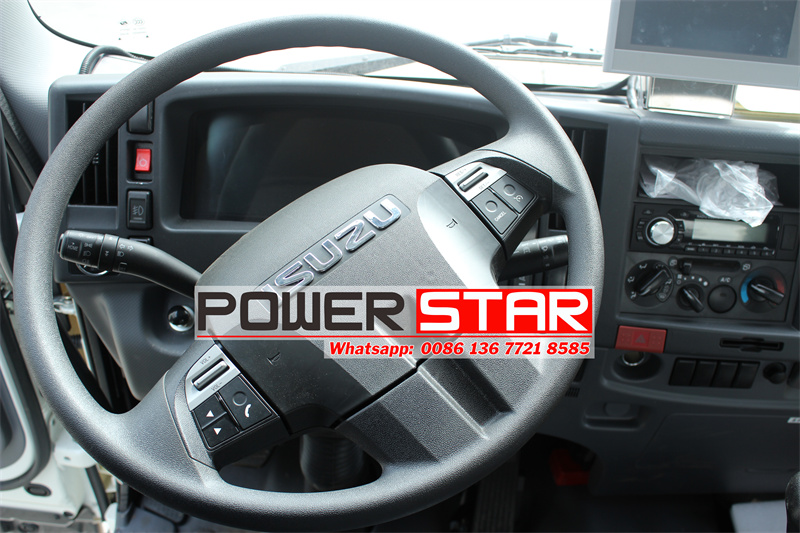

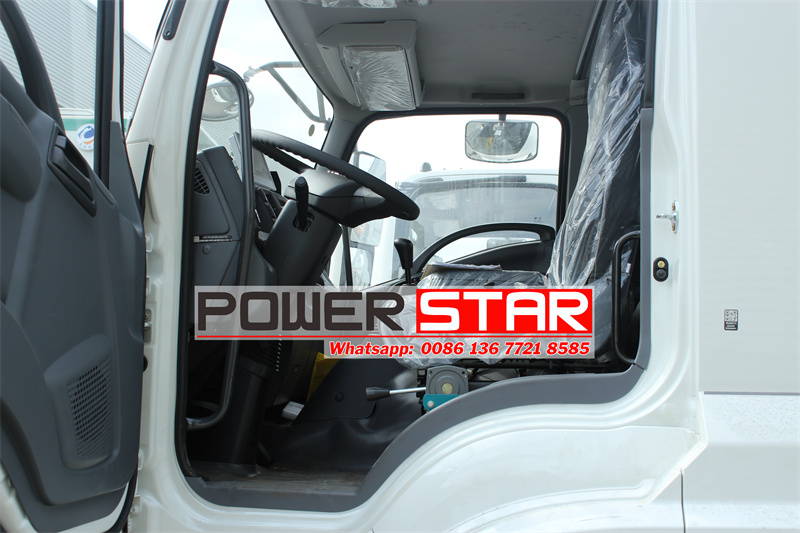

ISUZU 3D cab, with A/C, 2 seats and a sleeper, Forward control, all steel welded construction. Manual tilt, Mechanical suspension |
|
|
Weight |
GVW |
18,000kg |
|
Kerb weight |
7760kg |
|
|
Engine |
Model |
4HK1-TCG60 |
|
Horsepower |
205 HP |
|
|
Engine type |
Diesel |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
Manual |
MLD 6 forward and 1 reverse speed |
|
Tire |
295/80R22.5 |
6+1 spare tire |
|
Upper Structure Parameter |
||
|
Volume of water tank |
3000L |
|
|
Volume of Dustbin |
7000L |
|
|
Material of the water tank and garbage tank |
Stainless steel |
|
|
Hydraulic valve |
Taiwan famous brand |
|
|
Hydraulic motor |
Domestic famous brand |
|
|
Switch |
Schneider control switch |
|
|
Auxiliary Motor |
Brand |
Dongfeng Cummins |
|
Horsepower |
77 HP |
|
|
High pressure washing Technical |
washing width (mm) |
2500 mm |
|
Washing speed |
3-20km/h |
|
|
Washing water pressure |
10Mpa |
|
|
Water pump flow rate |
154L/min |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
60000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥98% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
≥400mm |
|
|

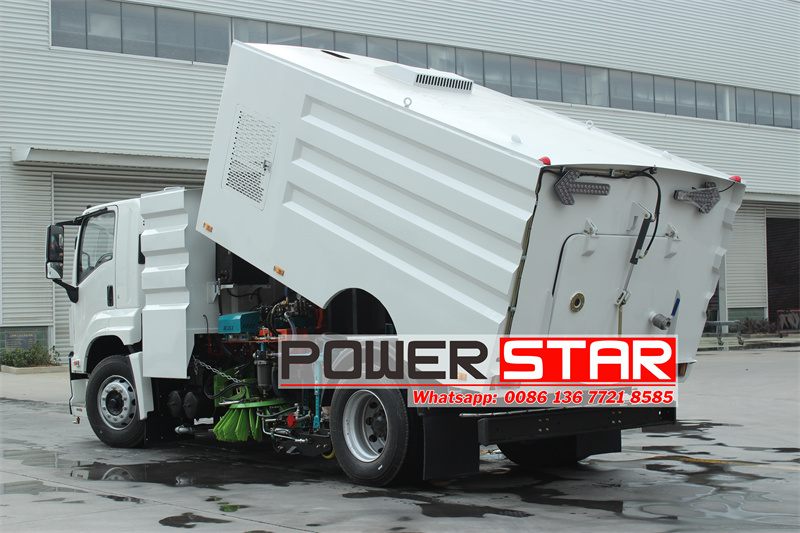

Garbage tank door max. discharge angle |
≥50° |
|
|
Sweeping system |
Type |
Total 2 pcs brushes and 1 sucking disc mounted in the medium, it is driven by the hydraulic motor, speed is adjustable, can be independently controlled, has automatic avoidance function |
|
Sweeping brush diameter |
Φ850mm |
|
|
Sweeping disk speed |
110r/min high speed,80r/min medium speed,50r/min low speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 ° ~ 7 ° |
|
|
Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction disc width |
2400mm |
|
|
Hydraulic system |
Type |
Open type, electrical control |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|
Water spraying system |
Components |
Pump, nozzle, water filter, etc. |
|
High pressure water system |
Type |
High pressure plunger pump |
|
Model |
Germany PINFL PF36 |
|
|
System Pressure |
10Mpa |
|
|
Rotation speed |
1150r/min |
|
|
Water valve type |
hydraulic high pressure ball valve |
|
|
Water valve pressure |
7MPa |
|
|
Nozzle type |
High pressure washing type |
|
|
Water filter |
Strainer mesh |
|
|

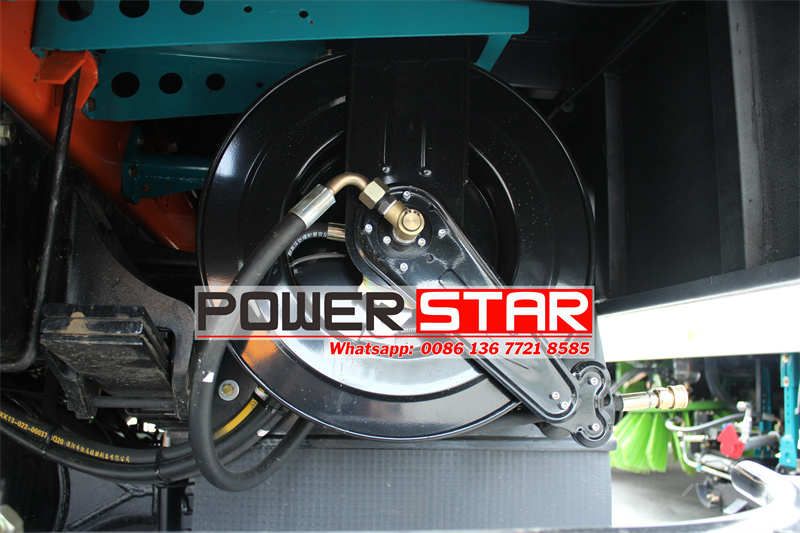

Winch |
20m |
|
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Water delivery distance |
90m |
|
|
Washing width |
24m |
|
|
Side spray rod |
type |
V-type spray bar, with automatic avoidance function |
|
Electrical system |
Type |
DC24V, PLC control |
|
Volts |
24V |
|
|

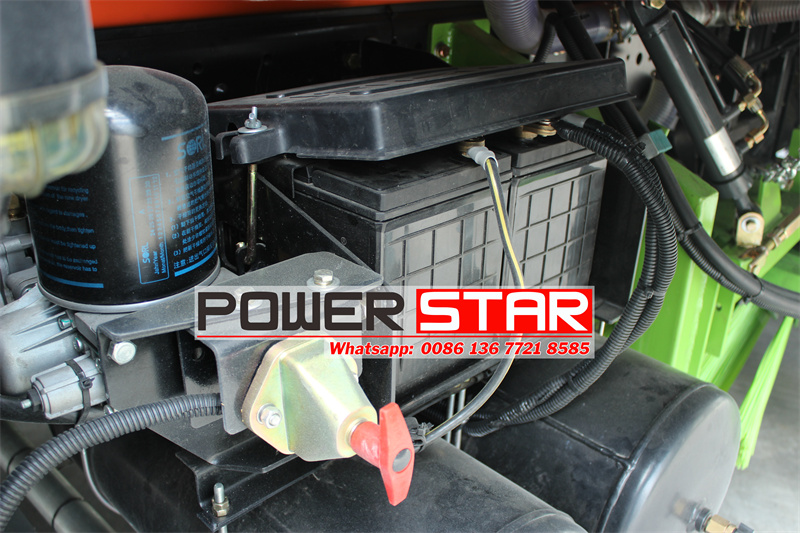

Battery |
2x12V |
|
|
Tools |
||
|
Fire hose |
2 pcs |
|
|
Fire wrench |
1 pcs |
|
|
Water filter wrench |
1 pcs |
|
|
High pressure spray gun |
1 pcs |
|
|
Manual hydraulic pump rocker |
1 pcs |
|
|
Spare parts |
||
|
Sweep brush |
88 pcs |
|
|
Fan seal |
1 pcs |
|
|
Rear door seal |
1 pcs |
|
|
Suction tube seal |
2 pcs |
|
|
Import Parts List |
||
|
High pressure water pump |
Germany PINFL PF36 |
|
|
Automatic unloading valve |
Germany PINFL VB200/150 |
|
|
Relief valve |
Germany PINFL VS200-180 |
|
|
Electric control box controller |
Germany STW |
|
|
Rotary switch |
Japan |
|
|
Sewage tank sensor |
USA |
|
|
Hydraulic valves |
Taiwan SWH-G02-C4-D2H |
|

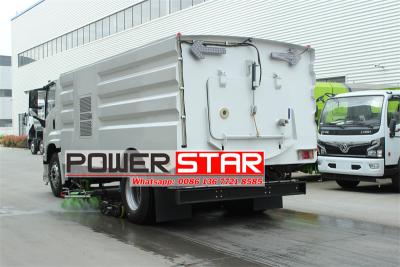

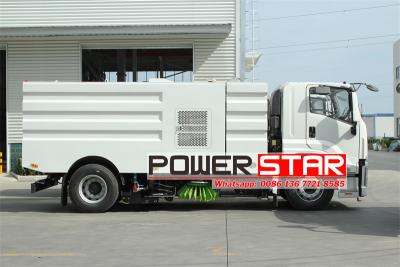

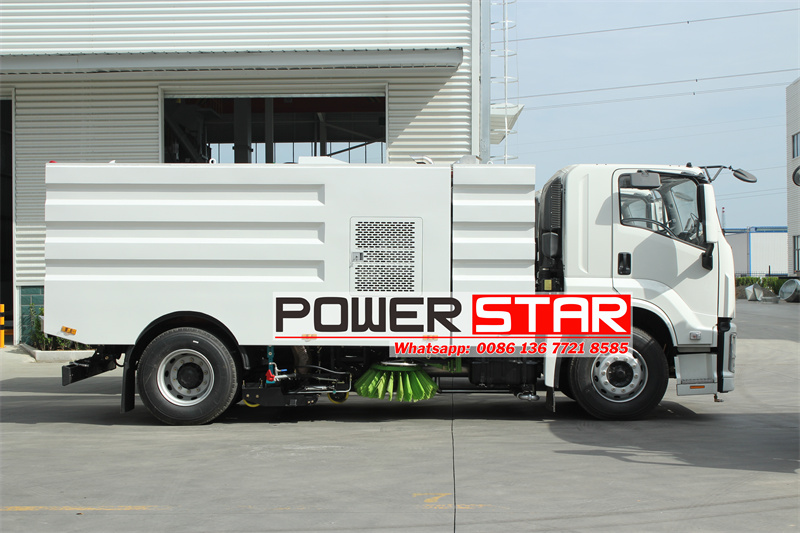

The Isuzu 10,000 liters truck mounted vacuum road sweeper is a highly efficient cleaning equipment meticulously modified based on the latest FTR GIGA 4X cab chassis of Isuzu, specifically designed for sweeping operations in large, open venues such as airports. It inherits the high quality and exceptional performance of the Isuzu FTR GIGA series, featuring a 4500mm wheelbase configuration that ensures excellent maneuvering stability and road adaptability.
In terms of its powertrain, the vehicle is equipped with the Isuzu 4HK1-TC60 diesel engine, delivering an output power of up to 205 horsepower. With its robust power performance and outstanding fuel economy, this engine provides a continuous cleaning power source for the entire vehicle. Matched with the MLD 6-speed transmission, the gear shifting process is smooth and seamless, enhancing driving comfort while optimizing power transmission efficiency, ensuring optimal performance under various operating conditions.
For the upper structure of the vehicle, it innovatively integrates a 3-cbm cleaning water tank and a 7cbm dustbin. This design not only meets the needs of continuous operation for extended periods but also significantly improves operational efficiency and waste handling capacity. To further enhance sweeping effectiveness, the vehicle is equipped with a Dongfeng Cummins 77HP auxiliary engine, which, with its high efficiency and stability, provides reliable power support for the cleaning and sweeping systems.
Additionally, the vehicle adopts a fan from a well-known Chinese brand, ensuring powerful suction and efficient waste collection capabilities. The combination of the German PINFL PF36 high-pressure water pump and the Hangzhou Weilong 60/90 low-pressure water pump allows for more flexible and diverse cleaning operations, easily handling both high-pressure rinsing and low-pressure spraying.

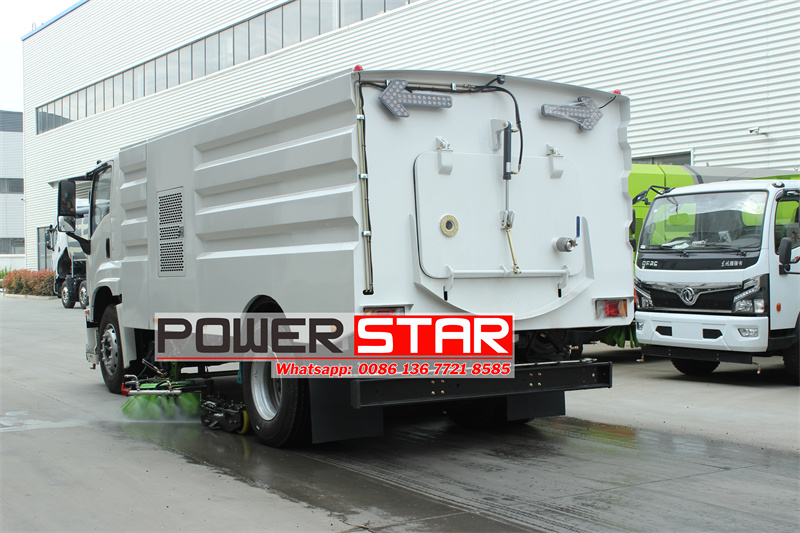

In terms of intelligent control, the Isuzu GIGA road vacuum cleaner truck is equipped with a Sweeping system, a Water spraying system, an advanced hydraulic system, and a DC24V PLC control system. The integrated application of these systems not only achieves automation and intelligence in sweeping operations but also greatly improves operational convenience and accuracy, enabling drivers to easily handle various complex cleaning scenarios and ensure the cleanliness and aesthetics of airport pavements.
