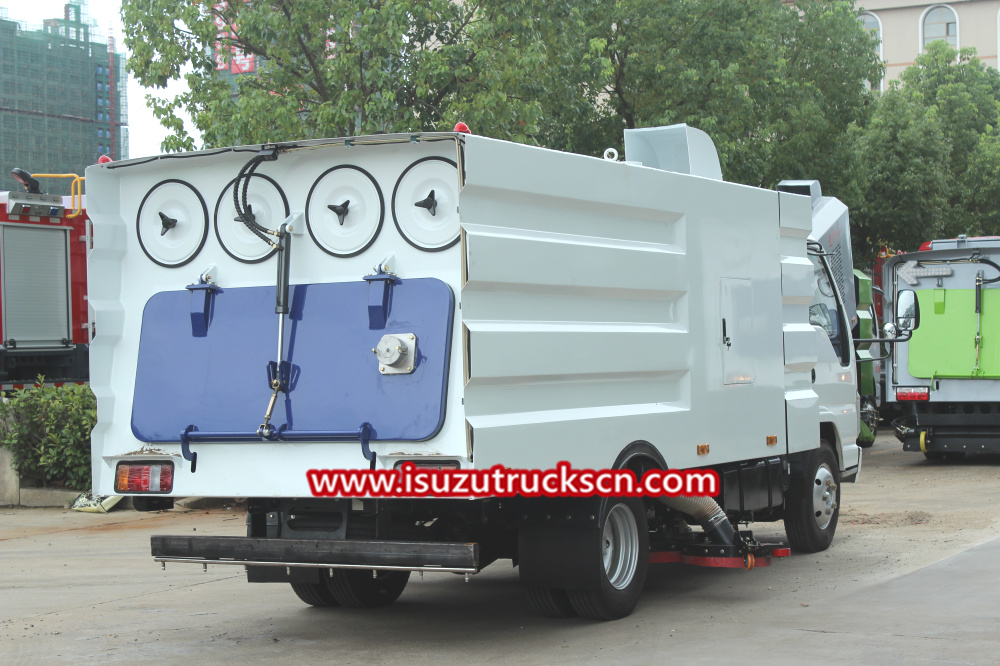

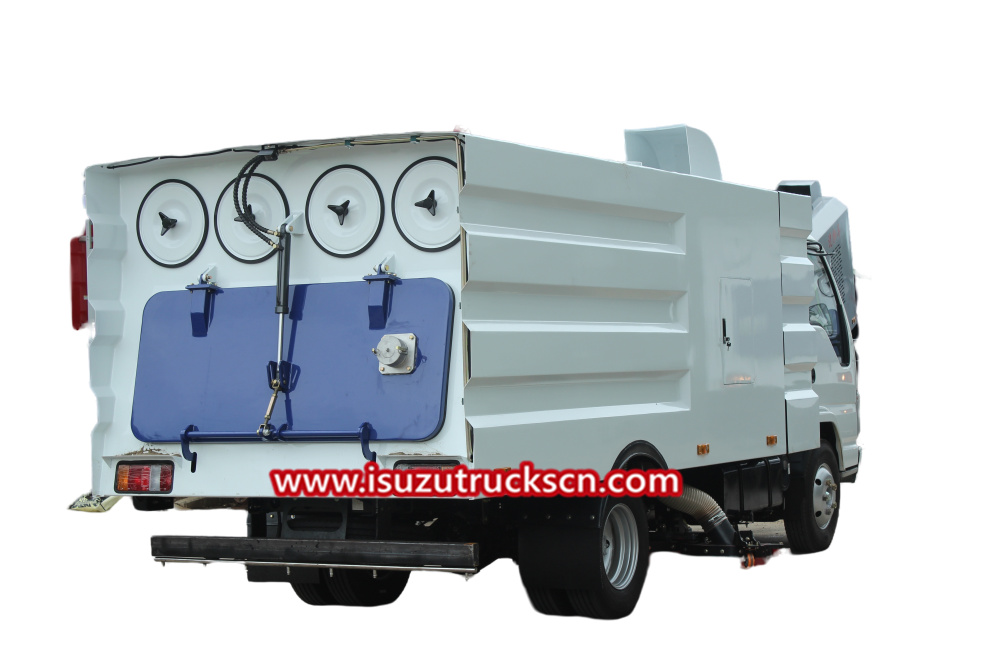

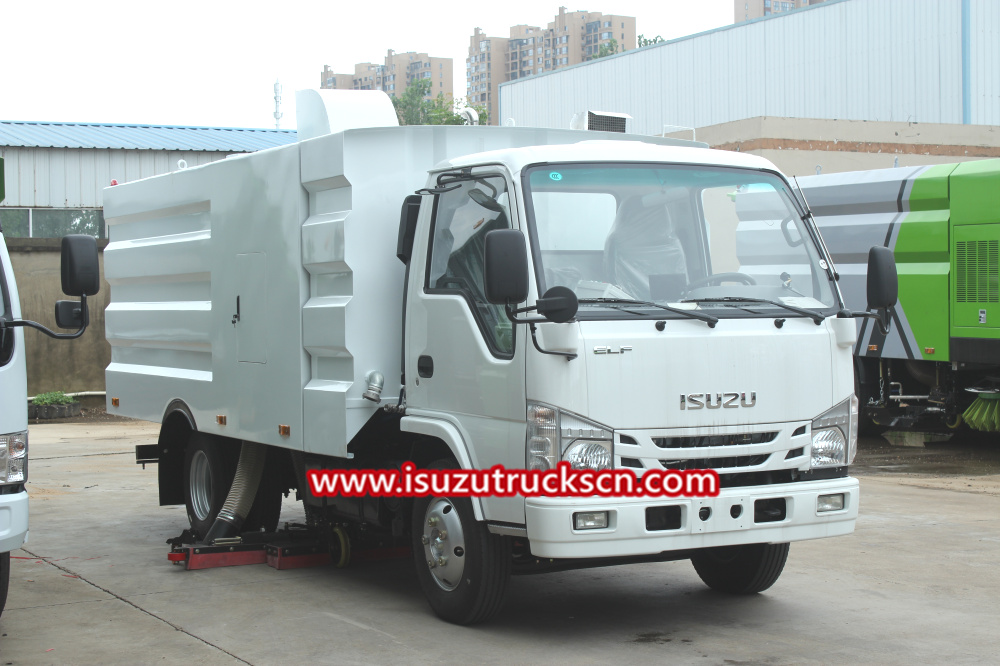

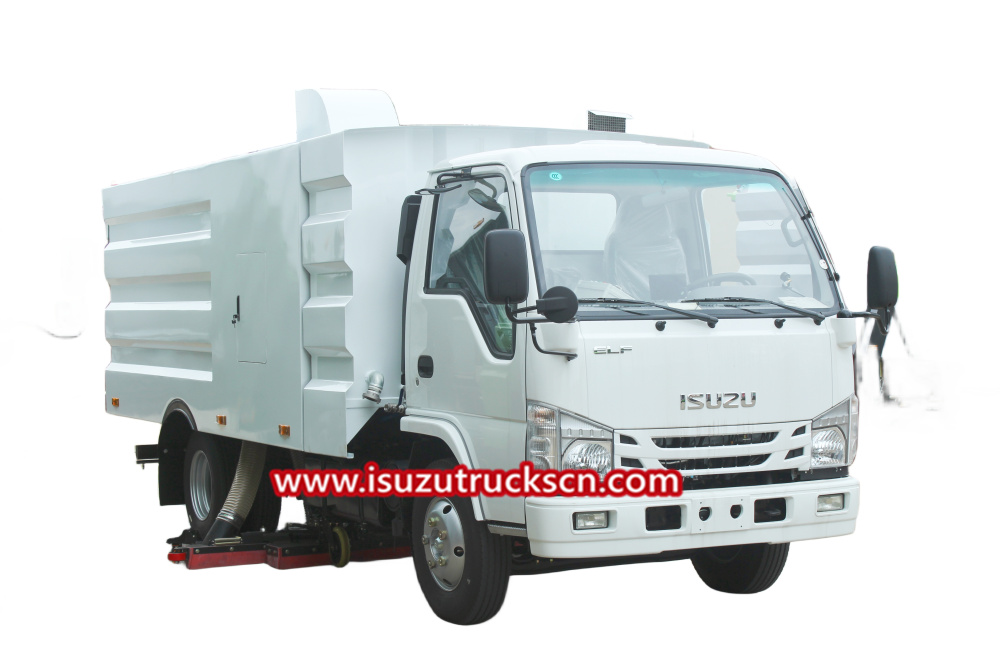

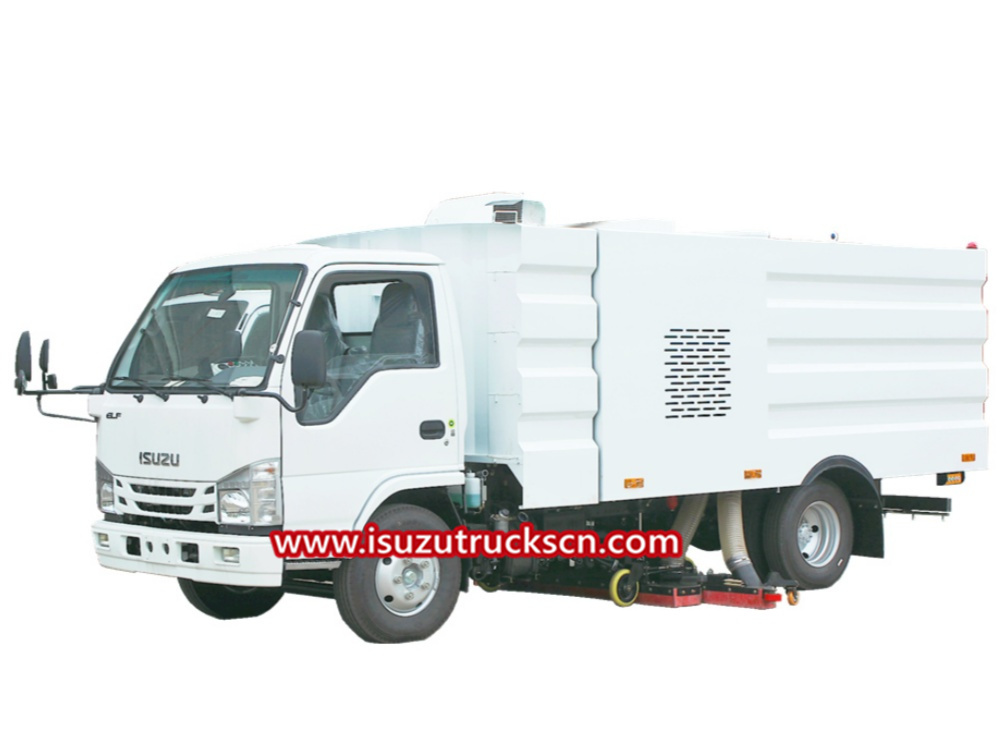

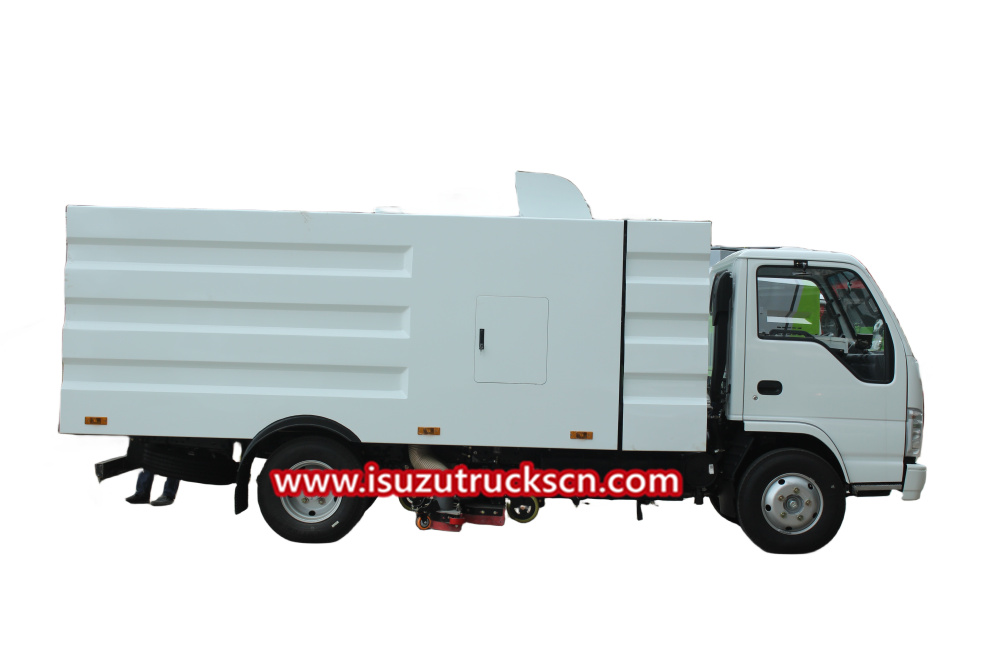

Pure vacuum sweeper truck Isuzu

Pure vacuum sweeper truck Isuzu, also called as Isuzu vacuum type sweeper truck, is researched and developed by ourselves, especially for road crack-sealing and grooving works.The Isuzu Pure Vacuum Sweeper Truck is a high-performance cleaning vehicle specifically designed for efficient and thorough debris removal from streets, roads, and public spaces. This truck combines the power and reliability of Isuzu with advanced vacuum technology, making it an ideal choice for municipalities, airports, and industrial complexes. The Pure Vacuum Sweeper Truck Isuzu offers exceptional suction power, allowing for effective cleaning of various debris types, including leaves, dirt, and small debris particles. It has the characteristics of:

1. Widely application: Gravel, dust recovery operations in road crack-sealing, groove repair construction.

2. Easy operation: Equipped with variable-speed unit, according to the construction situation can be stopped at any time, convenient and fast.

3. High efficiency: Dust absorption efficiency can reach 99%.

4. Uninterruptable Power Supply: Auto charging, realize continuous work.

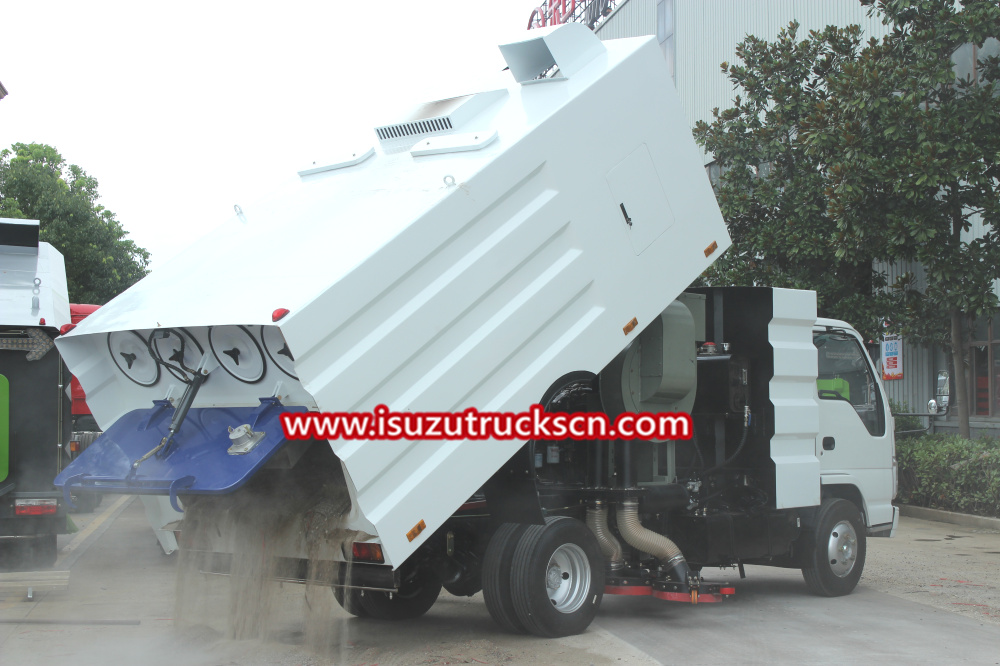

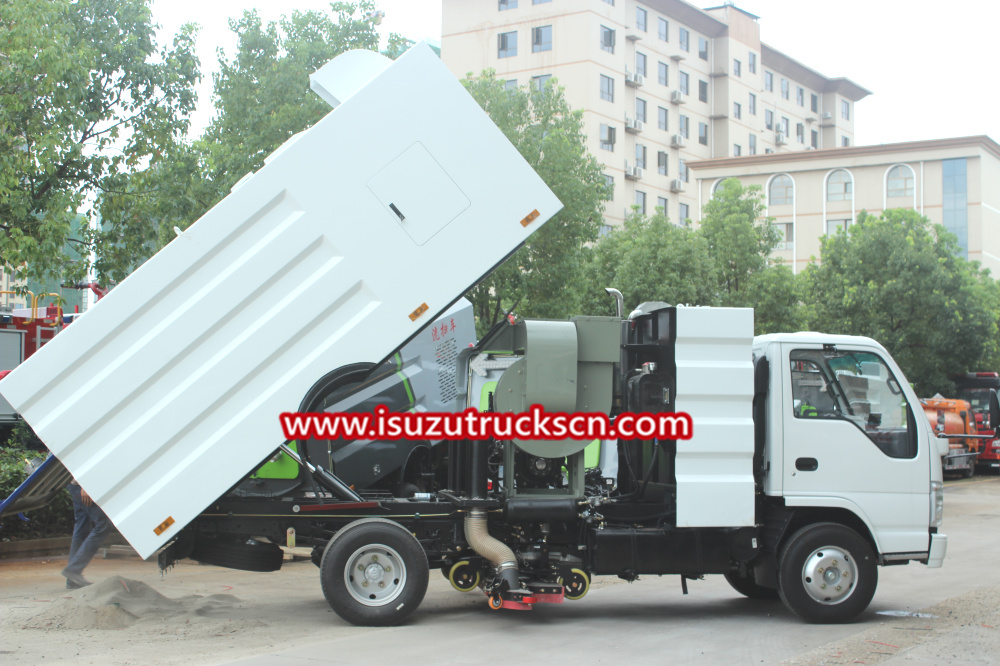

5. Auto unloading. The recovered particles can be dumped with one button, save time and labor intensity.

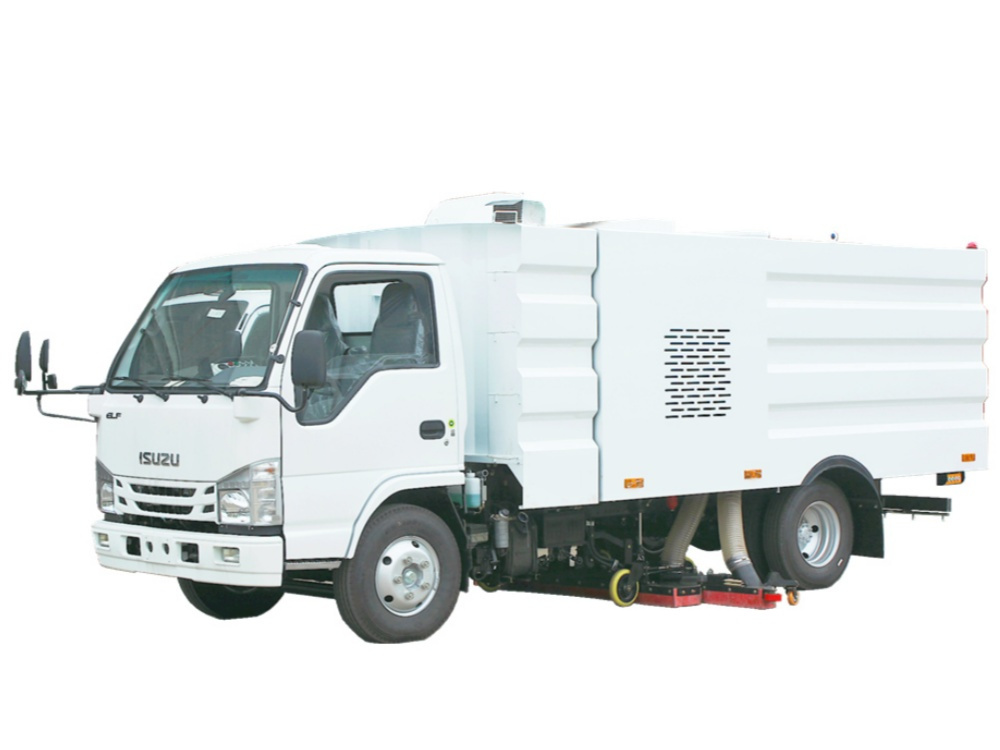

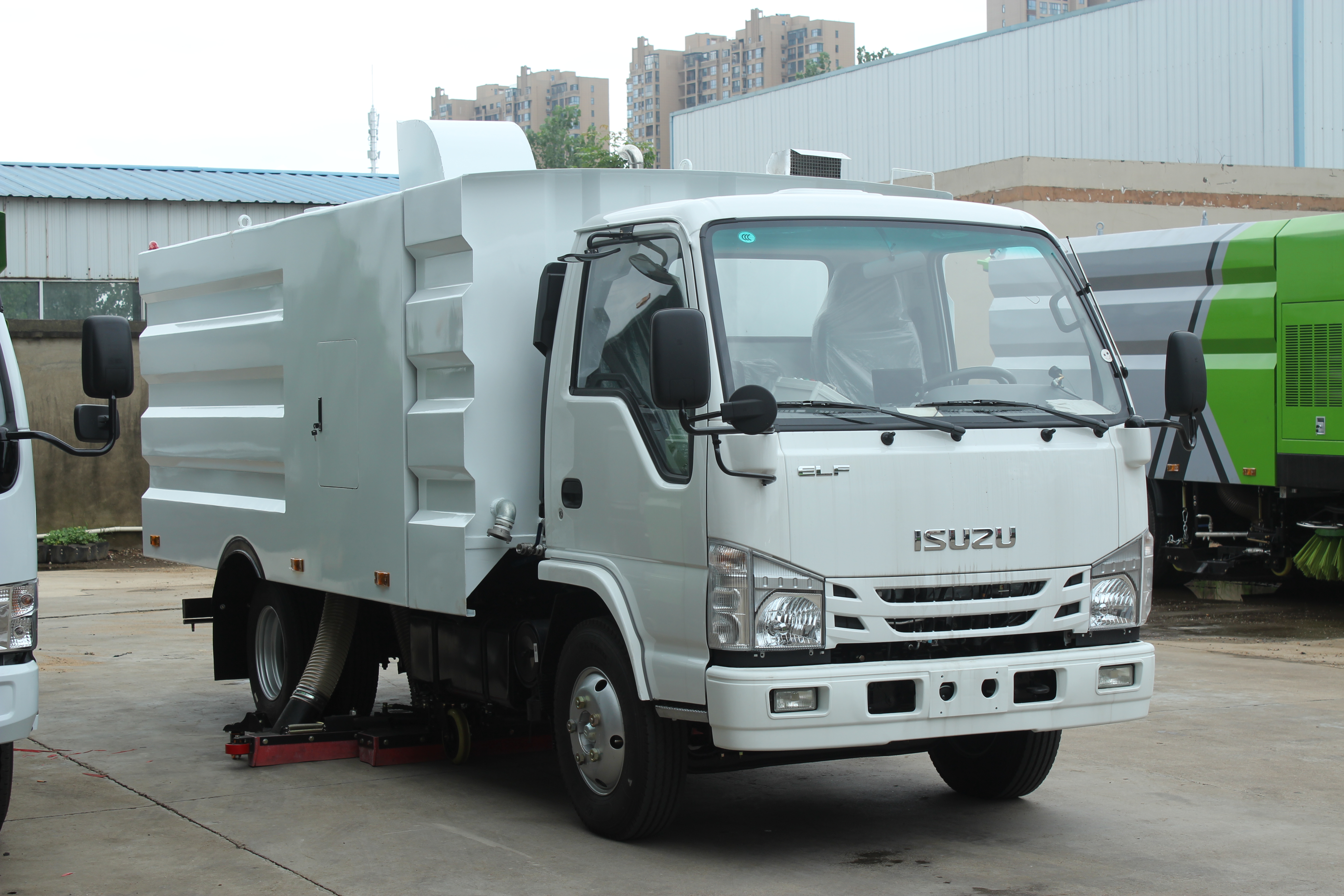

PT5075TSL vacuum type sweeper truck is modified by Isuzu NPR original chassis, with auxiliary engine, fan, dustbin, rear suction cup, far-infrared video probe, automatic pulse cleaning function, hydraulic system, special electronic control system and auxiliary frame.It has the characteristics of:

1. Widely application: Gravel, dust recovery operations in road crack-sealing, groove repair construction.

2. Easy operation: Equipped with variable-speed unit, according to the construction situation can be stopped at any time, convenient and fast.

3. High efficiency: Dust absorption efficiency can reach 99%.

4. Uninterruptable Power Supply: Auto charging, realize continuous work.

5. Auto unloading. The recovered particles can be dumped with one button, save time and labor intensity.

1. Dongfeng original chassis, diesel engine, 82 HP, 5-gear transmission, cab with rollover, with directional power, 7.00R16 tires, low fuel consumption, low noise.

2. The auxiliary engine adopts jiangxi Isuzu 57Kw engine with strong performance.(Optional Yuchai engine)

3. Adopt the maintenance-free, stepless variable speed automatic clutch of Xiamen South, which drives the fan to reduce the impact on the engine when the fan starts and stops.The clutch has the advantages of high wear resistance, long service life and low noise during use.

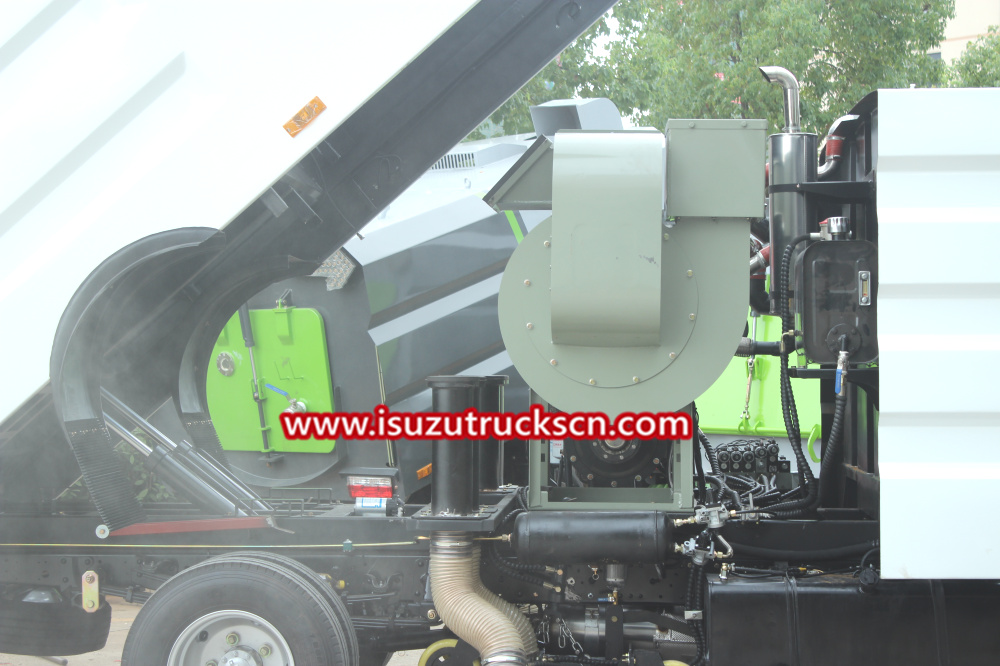

4. It adopts the high-power wear-resistant and maintenance-free centrifugal fan of the listed company -- Taiwan Xinfeng North Glass, with low noise, high efficiency, large air volume and long service life.

5. The dumpster has a volume of 5m, and the filter cartridge is equipped with imported polyurethane film coated waterproof material. The filter cartridge is acid-alkali resistant, high-temperature resistant, corrosion resistant, large filtration area, high filtration efficiency, small operation resistance, high permeability, high strength, large pull force, easy ash cleaning and other characteristics.

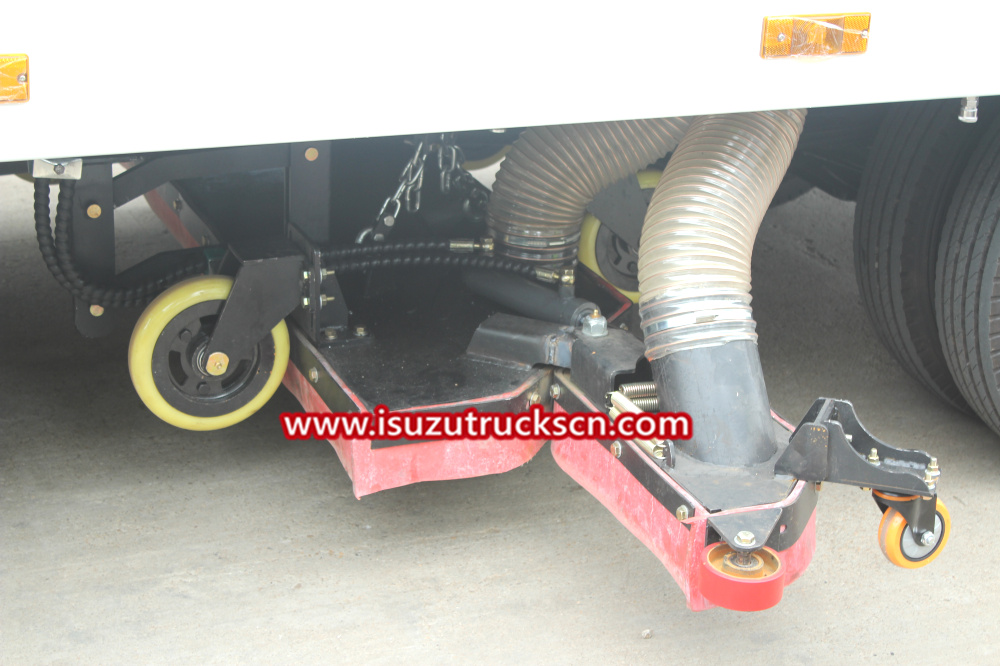

6. The width of the main sucker is 1750mm, the width of the left and right secondary suckers is 450mm, and the maximum operation width is 2.5m.Four adjustable suction nozzle wheels of high height can facilitate the adjustment and guarantee the reasonable clearance between the suction disc and the road surface, so as to achieve better vacuuming effect and higher vacuuming efficiency

7. The truck has the function of automatic pulse cleaning, vice machine with pump and tank volume, to a certain pressure, open the high voltage pulse reverse blowing device, to be back in the cartridge, cartridge in the work is not easy to jam, effectively improve the suction, which can achieve a better cleaning effect, computer PLC control, adjustable pulse interval of time.

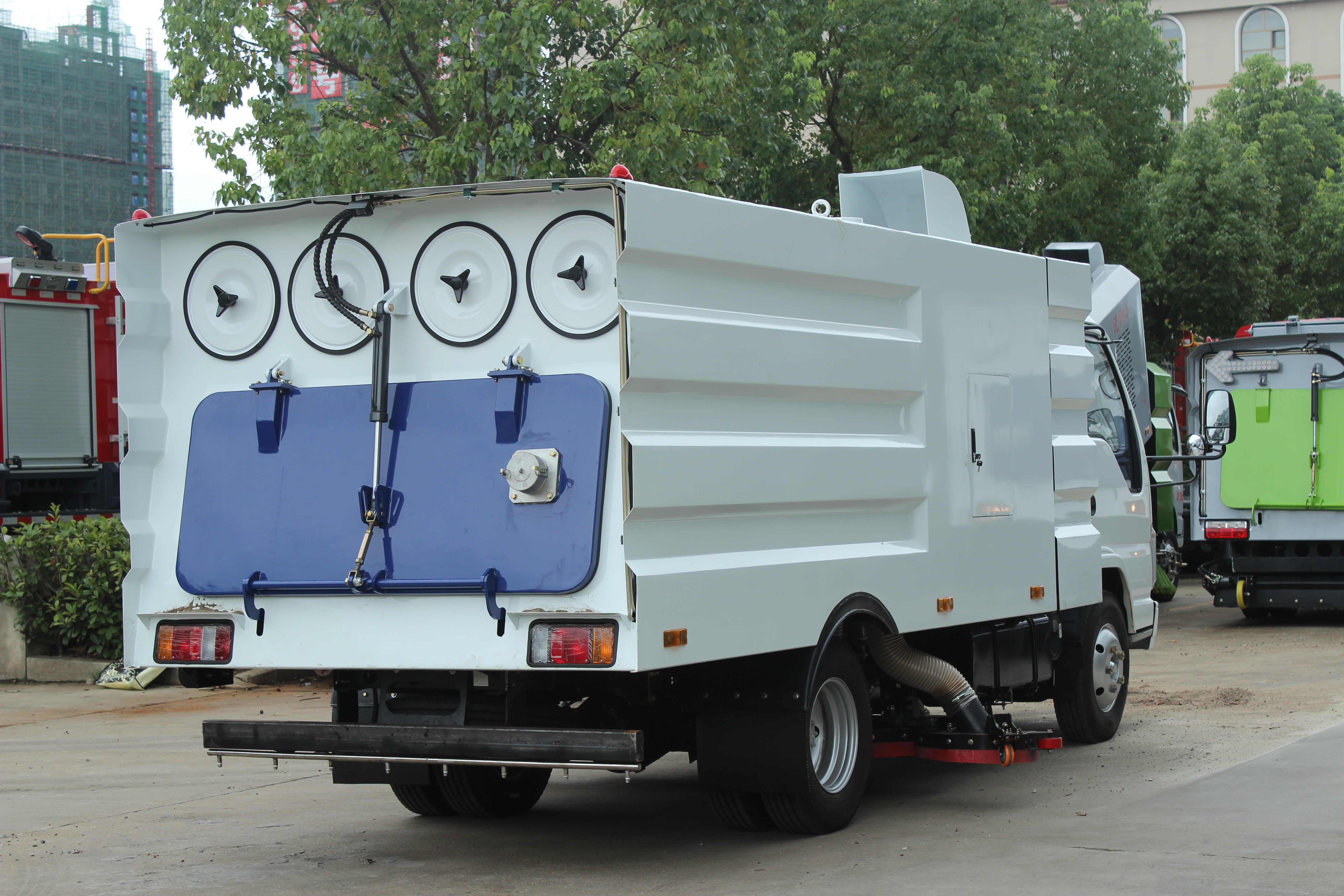

8. German Siemens electric control system is adopted to control the hydraulic system to drive the main suckers up and down, drive the left and right pair suckers, pulse cleaning function, open and close the bin back door, and reset the bin tilting, with simple operation.

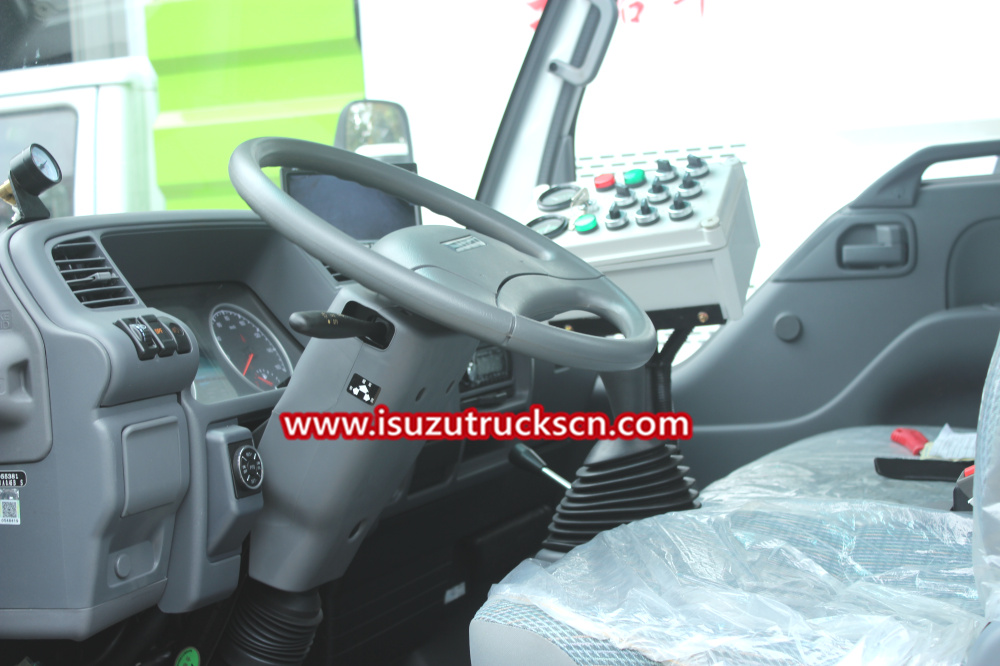

9. The driver room is equipped with a display screen. When the vehicle is working, it can monitor the suction cups of the front and rear side of the vehicle and the main and auxiliary components, so that there is no dead corner in the work and the driver is more convenient and efficient.

10.The hydraulic pipeline adopts German standard technology sealing structure form, good anti-vibration performance, high sealing reliability, can achieve no leakage sealing effect.

11.Using high quality hydraulic solenoid valve, key electronic control components using Siemens switches, high reliability, long service life.

12. Hydraulic components are designed with integrated superposition, and the electric-hydraulic control in the cab is centralized, making it easy to operate.

13. Equipped with manual pump emergency system, the auxiliary engine can also be lifted under the state of stop, easy maintenance.

14. Non-stainless steel parts are treated with electrophoretic rust prevention and durable.

15. The sub-frame bearing beam is welded with square steel with a section length of 120mm, width of 60mm and thickness of 8mm, which ensures the safety of the whole vehicle and makes it safer to drive.

16. Computerized appearance design, high side skirt, curved surface transition, overall coordination and symmetry.Achieve low fuel consumption, low noise, streamlined appearance design.

3. Advantages: The Pure Vacuum Sweeper Truck Isuzu offers several advantages:

   - Efficient Debris Removal: The truck's powerful vacuum system ensures effective debris collection, resulting in thorough cleaning of streets, roads, and public spaces.

   - Versatile Cleaning Capability: The sweeper truck is suitable for various debris types, including leaves, dirt, dust, and smaller particles, making it versatile for different cleaning applications.

   - Cost-Effectiveness: With its efficient cleaning performance and durable construction, the Pure Vacuum Sweeper Truck Isuzu provides a cost-effective solution for businesses and organizations looking to maintain cleanliness and curb appeal.

   - Easy Maintenance: The sweeper truck is designed for easy maintenance, allowing for quick and efficient servicing to keep the vehicle in optimal operating condition.

4. Application: The Pure Vacuum Sweeper Truck Isuzu can be used in various applications:

   - Municipalities: Local governments can utilize this truck for regular street cleaning, maintaining clean and presentable surfaces for residents and visitors.

   - Airports: The sweeper truck is well-suited for clearing runways, taxiways, and aprons, providing safe and clean conditions for aircraft operations.

   - Industrial Areas: Industrial complexes, warehouses, and factories can benefit from this truck to maintain cleanliness within their premises and promote a safe working environment.

5. After-sales Service: We provide comprehensive after-sales service for the Pure Vacuum Sweeper Truck Isuzu:

   - Routine Maintenance: Our skilled technicians provide regular maintenance to ensure the sweeper truck's optimal performance and minimize downtime.

   - Genuine Parts: We offer genuine Isuzu spare parts, ensuring compatibility and reliability for any necessary replacements or repairs.

   - Technical Support: Our dedicated customer support team is available to address technical inquiries, provide guidance, and assist customers with any concerns.

6. FAQ:

   Q1. How does the vacuum system work in the sweeper truck?

   Q2. What is the capacity of the destbin tank of the pure vacuum sweeper Isuzu?

   Q3. Can the truck handle both wet and dry debris?

   Q4. How often does the sweeper truck require maintenance?

7. Upper Body Customization: The upper body of the Pure Vacuum Sweeper Truck Isuzu can be customized to meet specific requirements. Customers have the option to add specialized equipment or modify the design based on their unique cleaning needs.

8. Truck Chassis Choice: We offer a range of Isuzu truck chassis options, allowing customers to select the most suitable configuration based on their specific needs, load capacity, and operational requirements.
