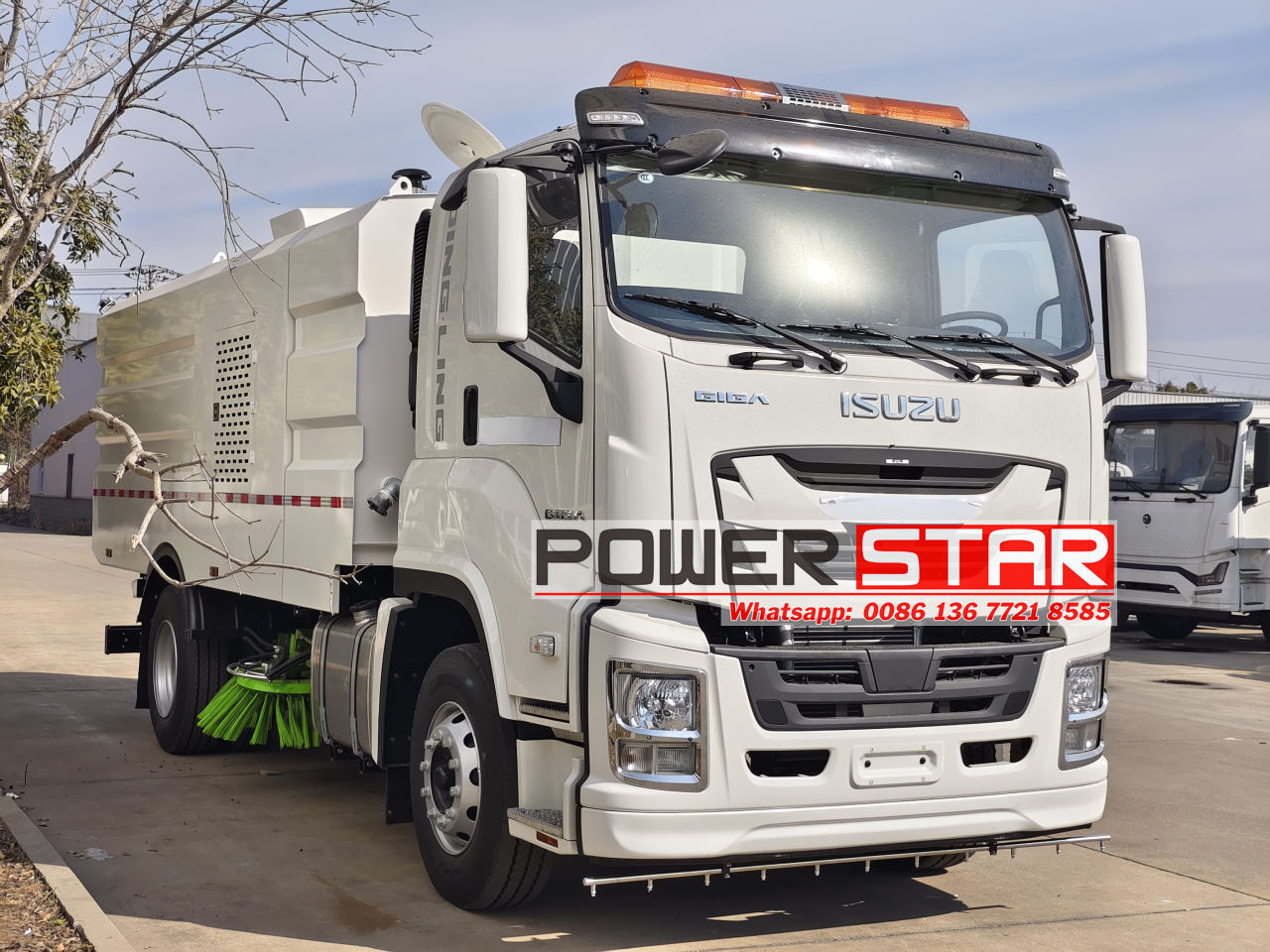

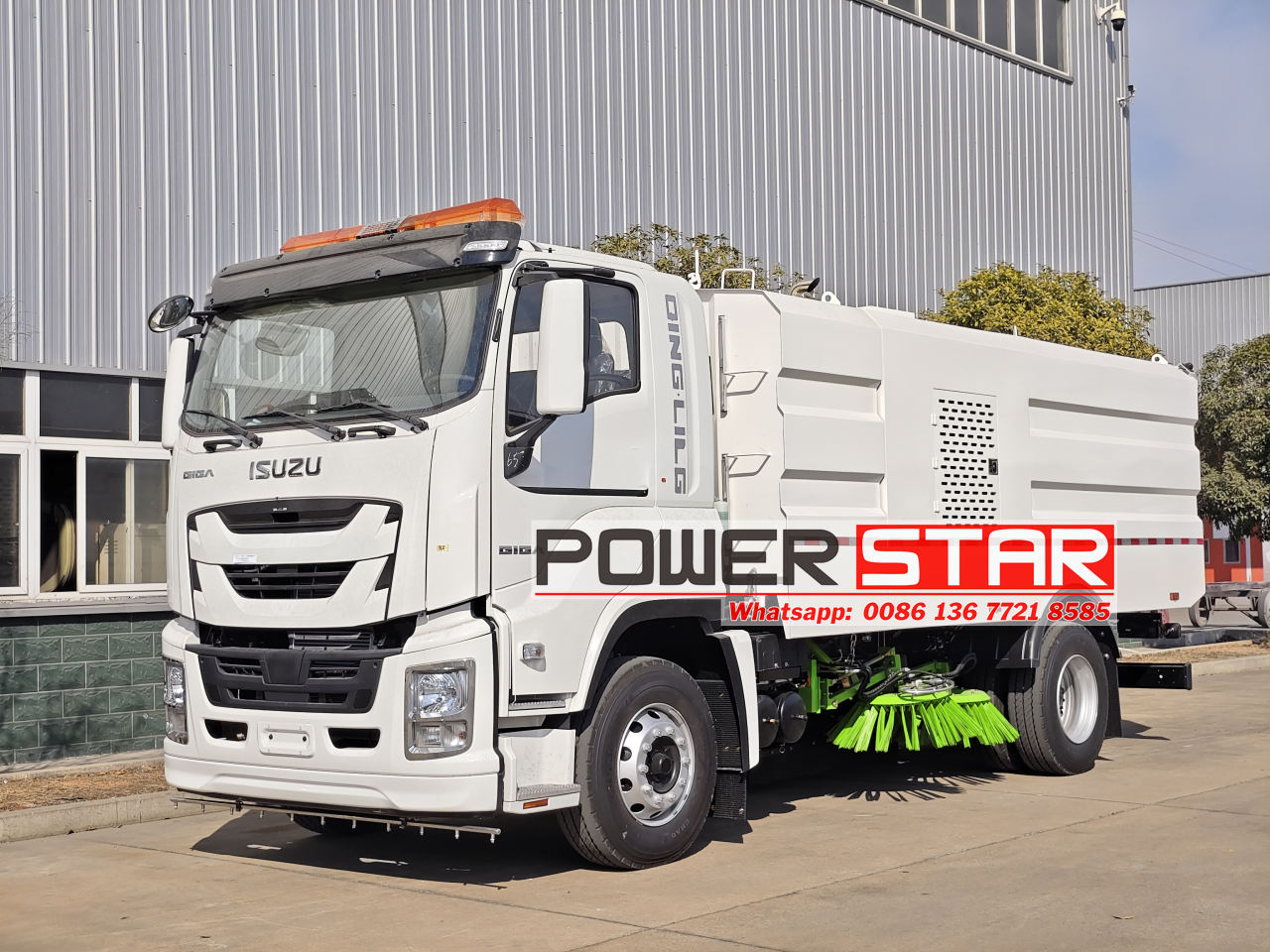

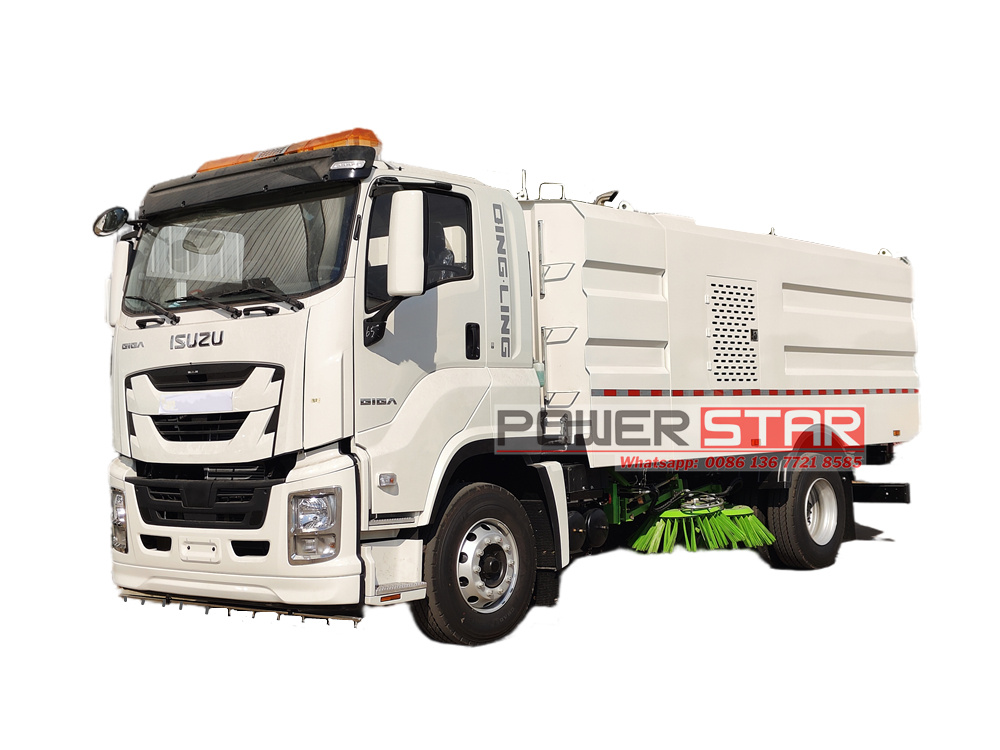

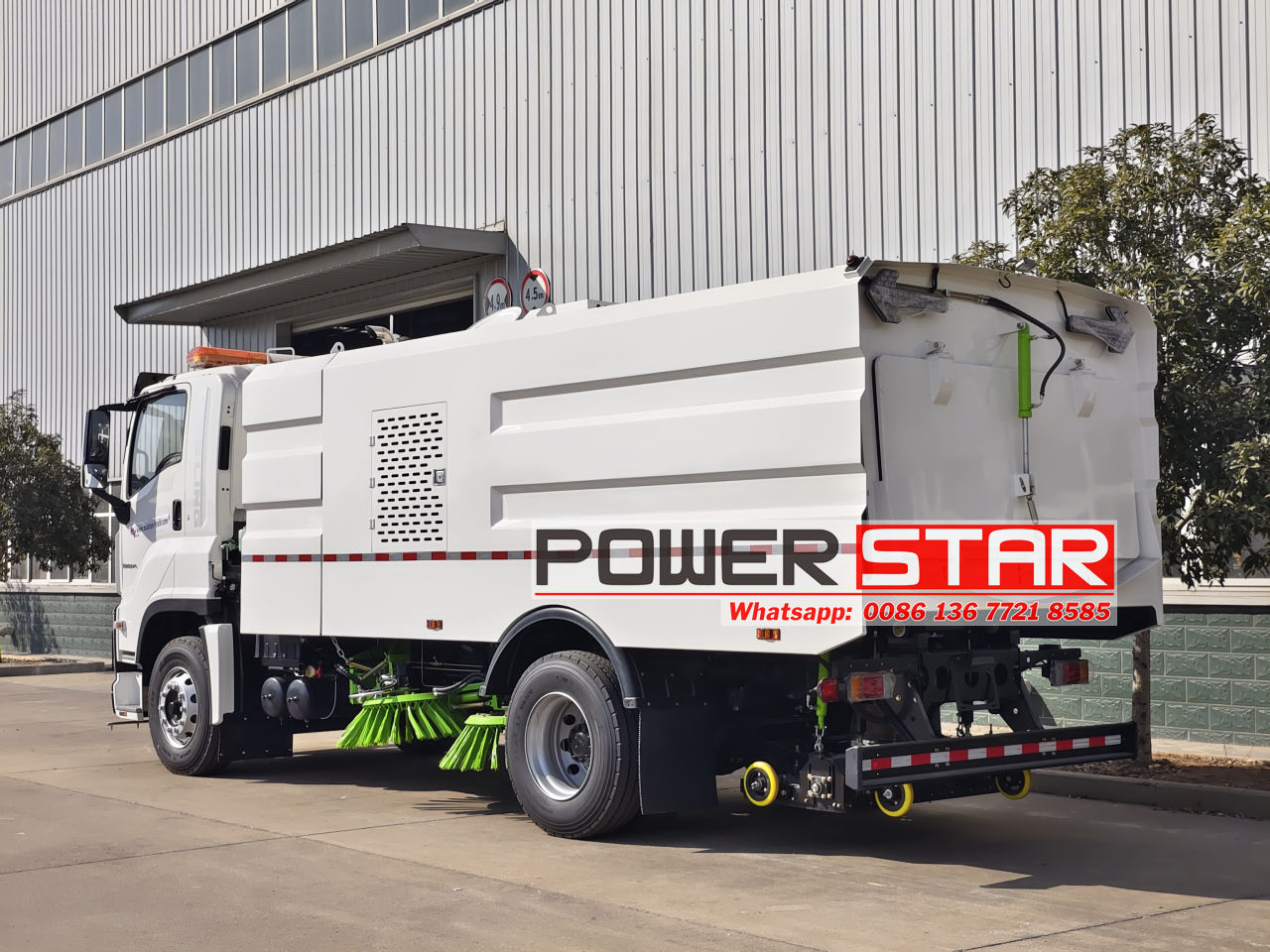

Isuzu giga brush street sweeper truck
Isuzu giga brush street sweeper truck, adopt Isuzu GIGA FVR QL1180EQFRY truck chassis, Isuzu 6HK1-TCG61 diesel engine, fast 9-shift gearbox, 4 set brush system. Isuzu giga chassis road sweepers, with their powerful dust suction capabilities and wide sweeping range, have become the main force in urban cleaning.Isuzu powerstar trucks produc many Isuzu street sweeping vehicles that differ in body sizes and fuel systems.
Work capacity:
14,000LEngine power:
240HPEngine type:
ISUZU 6HK1-TCAxle drive:
4x2Gear box:
FAST 9- shiftRemarks:
4x4 or different capacity availableIsuzu giga brush street sweeper truck, adopt Isuzu GIGA FVR QL1180EQFRY truck chassis, Isuzu 6HK1-TCG61 diesel engine, fast 9-shift gearbox, 4 set brush system. Isuzu giga chassis road sweepers, with their powerful dust suction capabilities and wide sweeping range, have become the main force in urban cleaning. These vehicles are equipped with advanced dust suction systems and efficient filtration devices, which can easily suck away dust, fallen leaves, paper scraps and other debris on the road while maintaining low noise and low emissions, achieving environmentally friendly cleaning.
● 30 years experience on road sweeper truck designing
● 50 unit isuzu GIGA brush street sweepers in stock
● FREE Spare parts supply within truck
● Container shipping, CKD & SKD parts
● 24 months long guarantee time assurance
Isuzu giga street sweeper truck – Your go-to for street sweeping machines
Once in a new city, you always look at how clean the streets are. This affects how safe and comfortable you feel. Do you want to enhance your housing estate by making it more appealing for new residents and tourists flocking to your area? Raise the standard of cleanliness! Whether you’re working in the commercial, industrial, or urban sector, a road sweeping machine is one of the most forward-thinking investments. And Powerstar trucks has a lot to offer to keep that debris and dust at bay.
As a reputable road sweeper supplier, we double down on meeting all your cleaning needs with our road sweepers. In the long run, you’ll enjoy cleaner streets and construction sites, fewer road hazards, and less air pollution.
We have many Isuzu giga street sweeping vehicles that differ in body sizes and fuel systems. You can choose a 100% electrical option, a classic truck-looking machine, or a non-engine one that uses the PTO of the tractor, among others. All our vehicles are equipped with everything they need to operate at their best and ensure excellent performance.
**1. What is a Isuzu Giga brush street sweeper? **
Isuzu giga brush street sweeper truck (Isuzu Giga Road Sweeper) is a special sanitation vehicle that combines cleaning, collection and transportation of garbage. It is mainly used for daily cleaning work in public areas such as urban roads, squares, industrial parks, etc. It replaces traditional manual cleaning through the combination of mechanical and intelligent technology, greatly improving cleaning efficiency and reducing labor costs. As the "capillaries" of modern urban management, street sweepers play an irreplaceable role in maintaining the city environment, reducing dust pollution, and protecting public health.
**2. The core composition of street sweepers**
The design of street sweepers integrates mechanical engineering, fluid mechanics and intelligent control technology. Its core components include:
1. **Cleaning system**
- **Roller brush device**: The front or side rotating roller brush is responsible for sweeping road garbage into the collection range.
- **Dust suction device**: Suction fine dust through negative pressure fan to avoid secondary dust pollution.
- **Water spray dust suppression system**: Spray water mist to suppress dust diffusion during cleaning and improve cleaning and environmental protection.
2. **Garbage storage and transfer system**
- **Garbage storage box**: It adopts a sealed design with a capacity of 3-10 cubic meters, which can store garbage and dust in categories.
- **Compression device**: Some high-end models are equipped with garbage compression function to increase the load capacity of a single operation.
3. **Power and control system**
- **Chassis power**: It is divided into fuel drive (diesel/gasoline) and new energy (pure electric/hydrogen fuel) to meet different environmental protection needs.
- **Smart control panel**: It integrates GPS positioning, operation data monitoring, fault warning and other functions to achieve remote management and scheduling.
4. **Auxiliary equipment**
- **High-pressure cleaning nozzle**: A high-pressure water gun can be optionally equipped to remove stubborn stains or oil stains.
- **Warning device**: Equipped with LED warning lights and voice prompts to ensure the safety of operators and pedestrians.
|
Vehicle Parameters
|
|||
|
Vehicle model
|
ISUZU GIGA sweeper truck
|
Vehicle brand
|
POWERSTAR
|
|
Vehicle dimension
|
8750*2530*3150mm
|
Curb weight
|
7680kg
|
|
Dust tank volume
|
8000L
|
Water tank volume
|
6000L
|
|
Chassis Parameters
|
|||
|
Chassis model
|
ISUZU GIGA
|
Chassis brand
|
ISUZU
|
|
Overall dimensions
|
8750*2530*3150mm
|
Wheel base
|
4500mm
|
|
Cab
|
Single row cab,allowable 3 passengers,cab can be flipped
|
||
|
Engine
|
ISUZU 6HK1
|
||
|
Horse power
|
240hp
|
||
|
Emission
|
Euro II/III/IV/V
|
||
|
Displacement
|
7.8l
|
||
|
Tire
|
10.00R20 steel wire tire
|
Transmission
|
9 speed forward 1 reverse
|
|
Steering device
|
Power assisted steering
|
Steering wheel
|
Left/right hand drive
|
|
Road Sweeper Parameters
|
|||
|
Dust tank volume
|
8000L
|
Water tank volume
|
6000L
|
|
Sweep width
|
3200mm
|
Cleaning speed
|
3-20km/h
|
|
Cleaning ability
|
9000-60000 m2/h
|
Cleaning efficiency
|
98%
|
|
Maximum suction particle
|
120mm
|
Min. clearance of suction nozzle
|
200mm
|
|
Unloading angle
|
45°
|
Unloading height
|
970mm
|
|
Standard configuration
|
Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic
control valve, suction cup, sprinkler system, hydraulic system and electrical system. |
||
Technical drawing for Isuzu giga brush street sweeper truck
Technical drawing for Isuzu giga brush street sweeper truck
**III. Application scenarios of street sweepers**
The flexibility and efficiency of street sweepers make them suitable for a variety of complex environments. The main scenarios include:
1. **Urban road cleaning**
- **Main roads and expressways**: Clean road garbage, fallen leaves, and gravel on a regular basis every day to keep traffic routes unobstructed.
- **Back streets and alleys**: Small electric sweepers can enter narrow areas to solve the "dead corners" that traditional sanitation vehicles cannot cover.
2. **Public place maintenance**
- **Plazas and parks**: Large sweepers can quickly clean up paper scraps, beverage bottles, etc. left by tourists to enhance the image of public spaces.
- **Schools and hospitals**: Low-noise electric models are suitable for places with high requirements for quietness to avoid disturbing normal order.
3. **Industry and special areas**
- **Industrial parks**: Handle industrial waste such as metal debris and dust in the factory area to prevent safety hazards.
- **Around construction sites**: Sweepers equipped with enhanced filtration systems can efficiently clean up sand and mud left behind by dump trucks.
4. **Emergency cleaning scenarios**
- **After natural disasters**: For example, cleaning up silt after heavy rains and removing broken branches and debris after typhoons to accelerate post-disaster recovery.
- **Large-scale event support**: Quickly clean up venues after concerts and sports events to reduce environmental pressure.

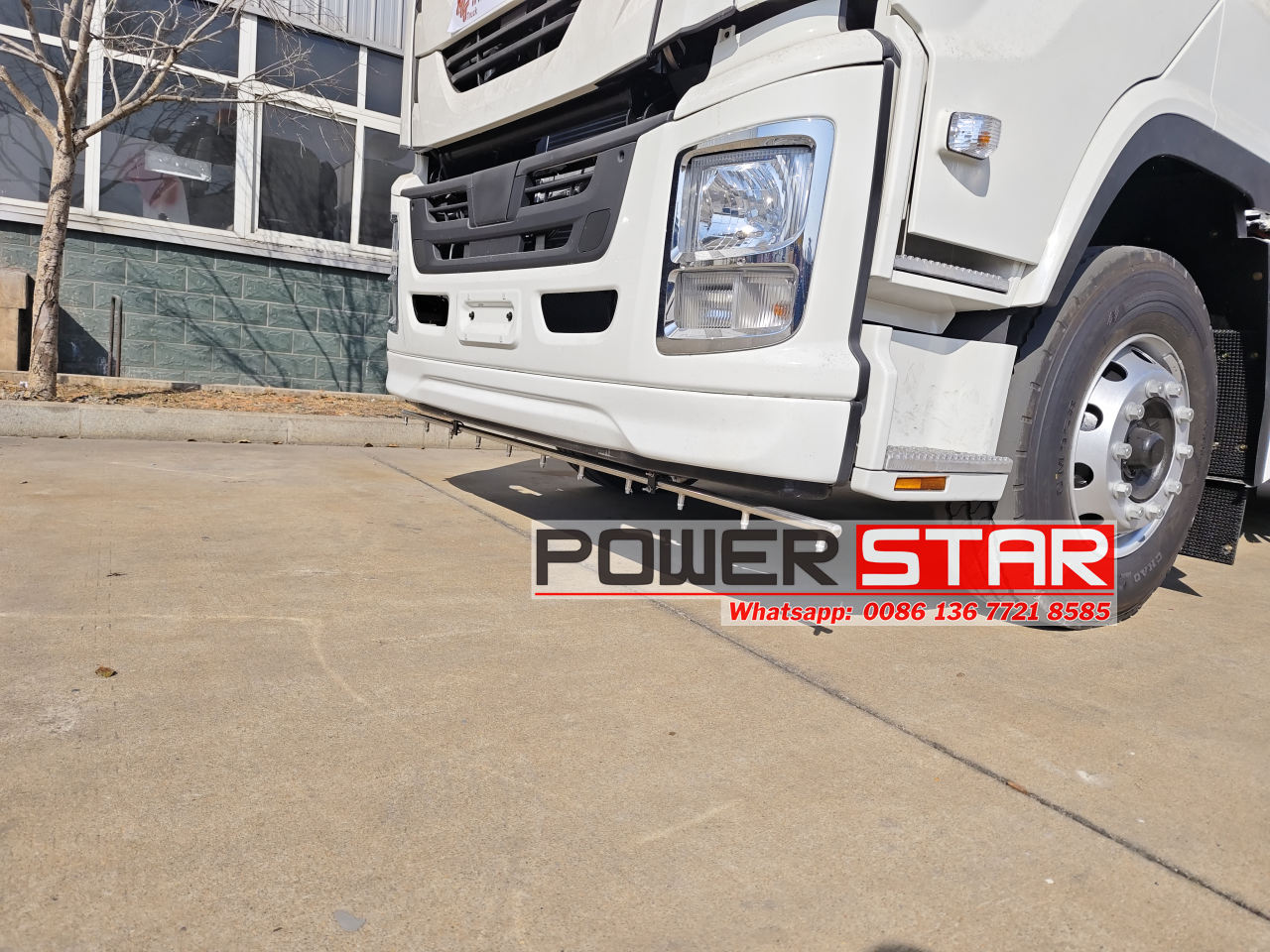

Front high pressure water jetting system, available for road washing and cleaning.
-----

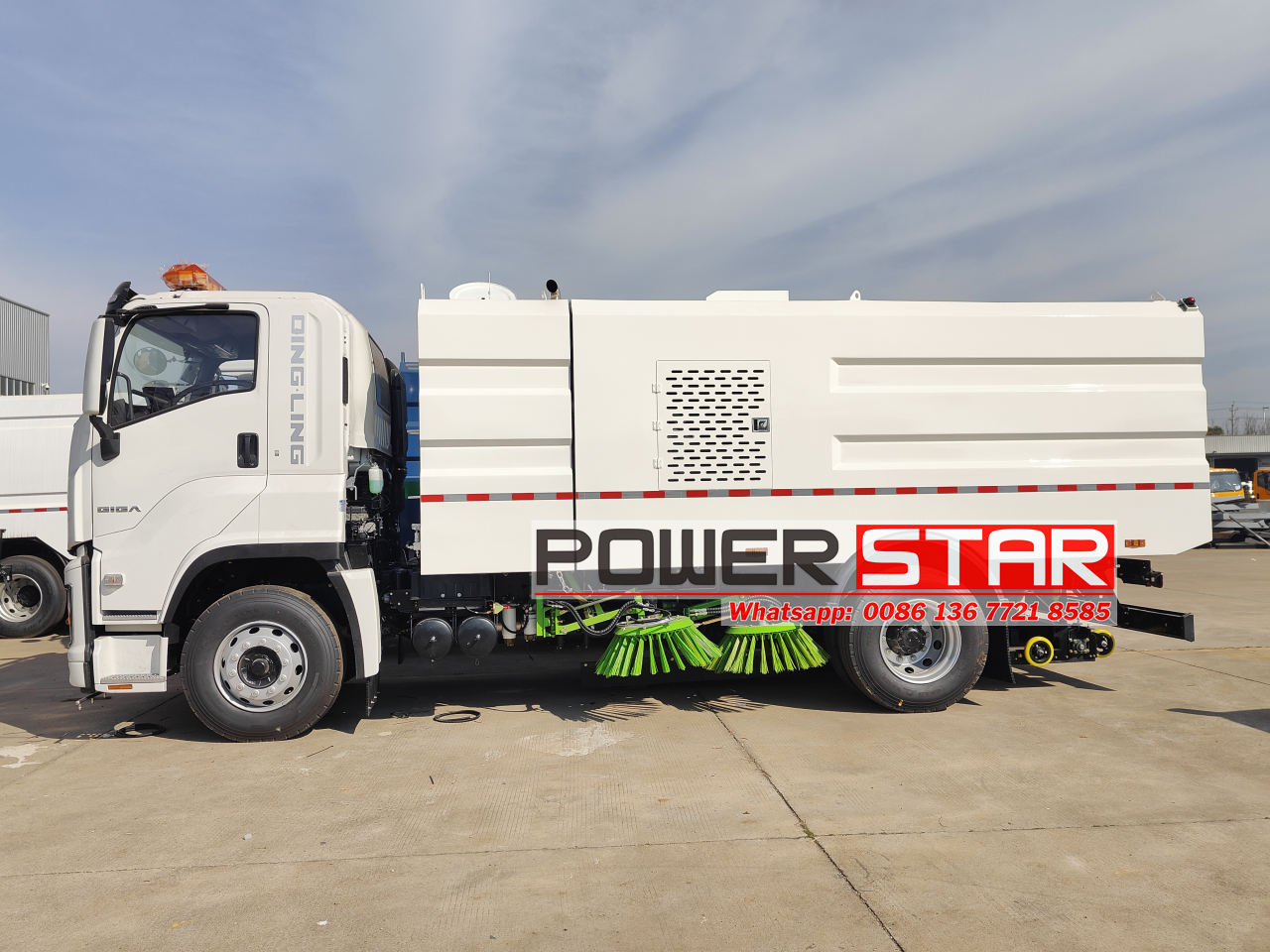

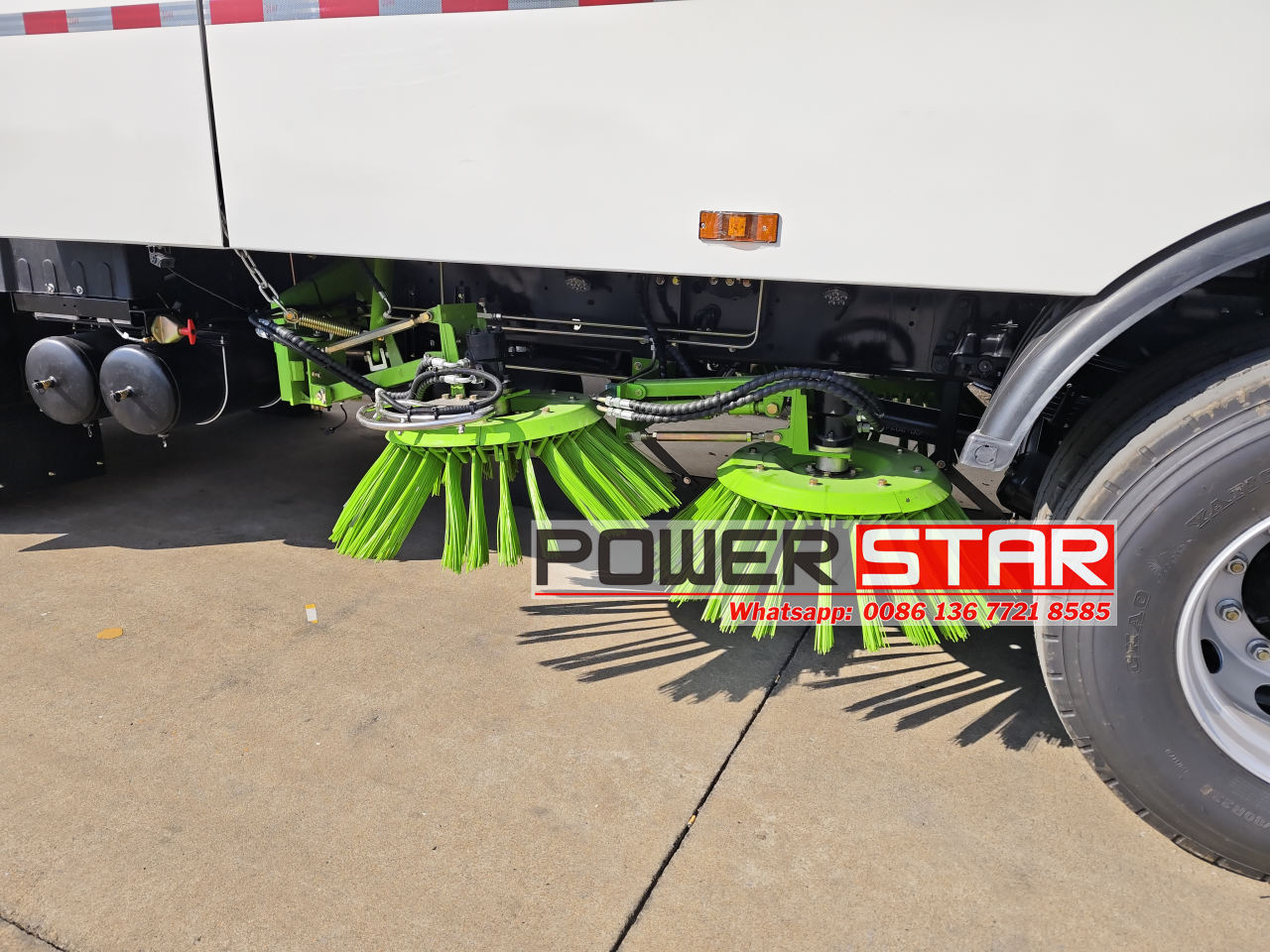

4 sets of brush system, durable and simple construction.
-----

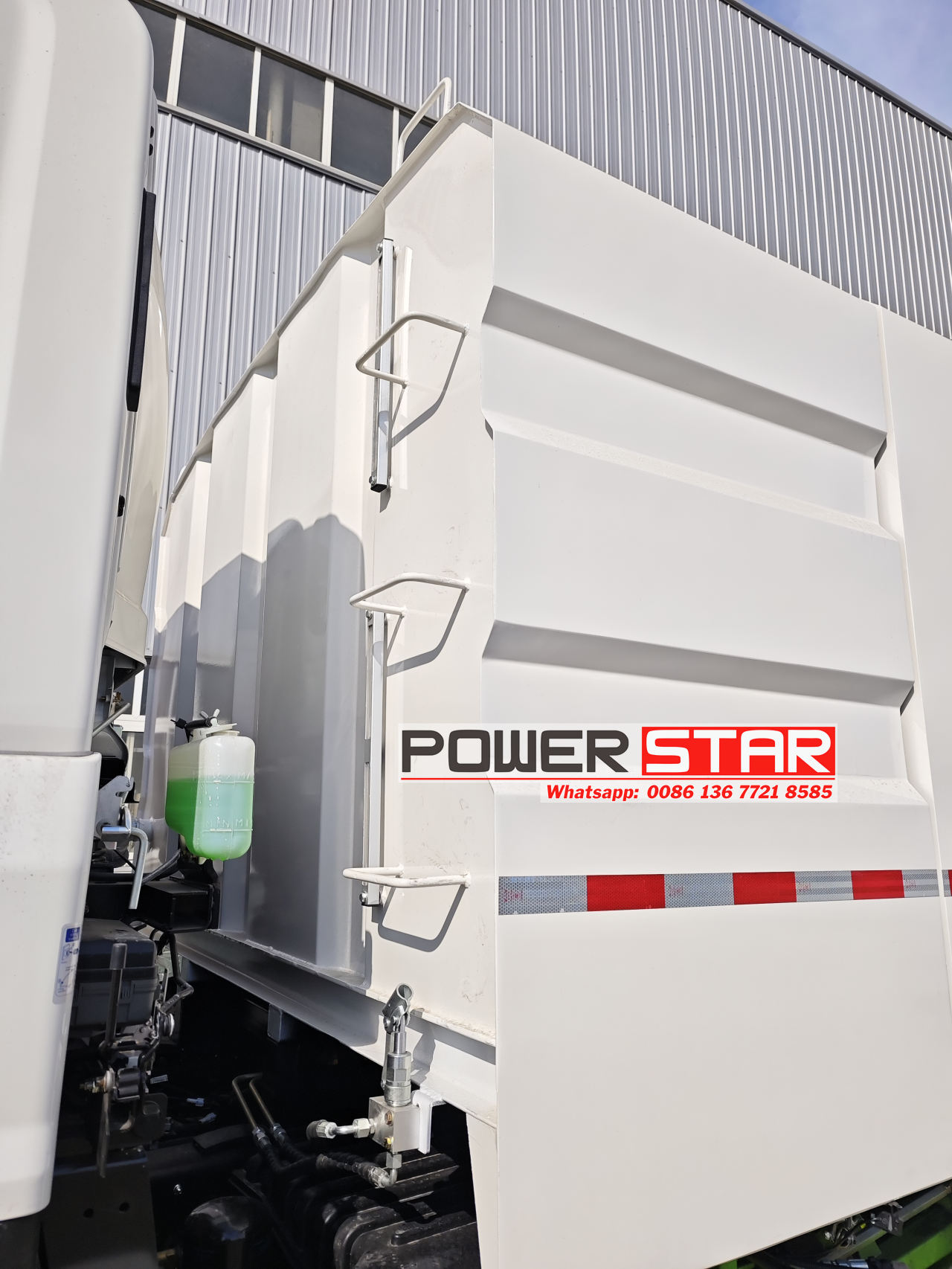

6000L big water tank design, 10 years service life.
-----

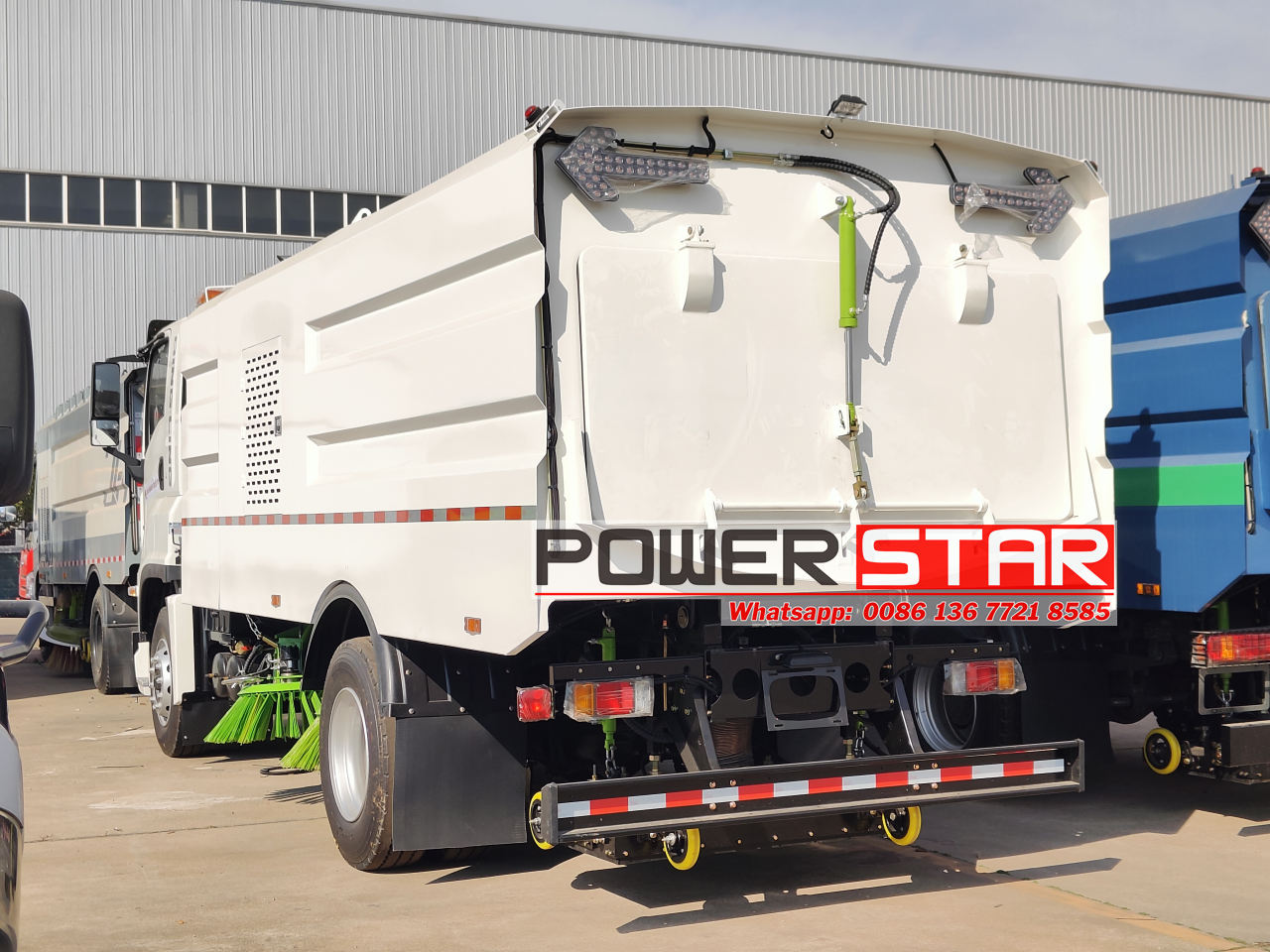

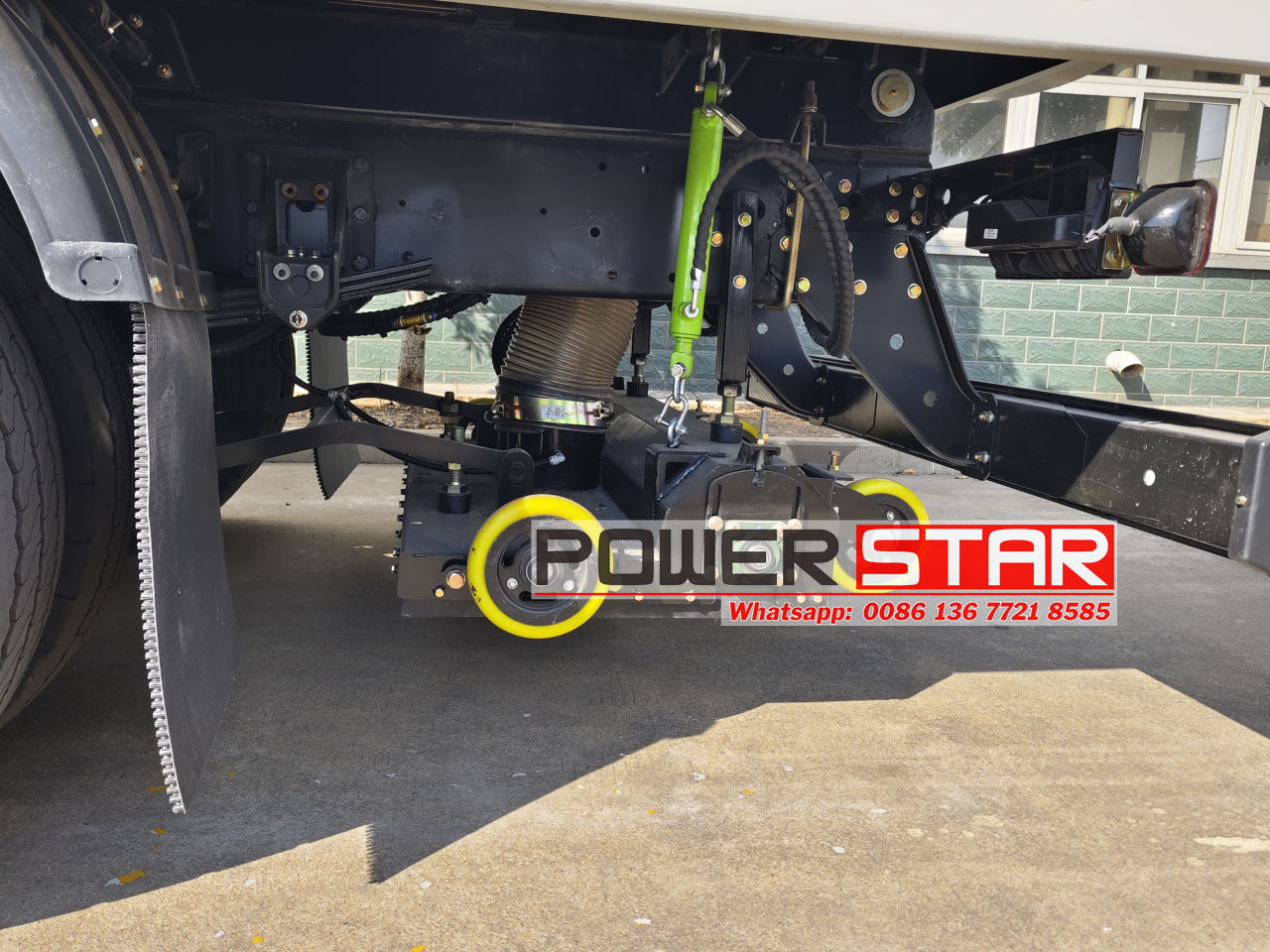

High performance Vacuum suction cup,
-----
**Fourth, technological innovation and future trends of street sweepers**
1. **Intelligent upgrade**
- Autonomous driving technology: Some manufacturers have launched unmanned sweepers, which use laser radar and AI algorithms to achieve autonomous obstacle avoidance and path planning.
- Internet of Things management: Upload operation data to the cloud in real time, and municipal departments can dynamically monitor vehicle status and cleaning effects.
2. **Green energy transformation**
- The pure electric sweeper has a range of more than 300 kilometers and a 60% reduction in noise, making it the first choice for the city's low-carbon process.
- Hydrogen fuel cell models are gradually promoted in heavy-load and long-distance operation scenarios to achieve the goal of "zero emission".
3. **Multi-functional integrated design**
- Some models have the functions of watering, disinfection and snow removal. Through modular design, "one car for multiple uses" is realized to reduce procurement costs.
**V. The value and social significance of street sweepers**
1. **Economic benefits**: The average daily operation volume of a single sweeper is equivalent to 30-50 sanitation workers, which can save a lot of labor costs in the long run.
2. **Ecological value**: Reduce dust pollution, reduce PM2.5 concentration, and help achieve the "dual carbon" goal.
3. **Social value**: Improve the city's image and residents' happiness, and promote the construction of smart cities.
As a Isuzu giga road sweeper manufacturer with 30 years of day-to-day hands-on experience, we’ve built a wide selection of road cleaning vehicles. They’re designed to combine Turkish tradition with cutting-edge technologies, cost-effectiveness, and maneuverability, making our machines a number one choice in more than 50 countries. If you’re interested in a road cleaning vehicle for municipal or on/off-highway applications, CityRay, CityMouse, CityEagle, SmartBee, and other machines are at your service.
With Isuzu giga street cleaning vehicles, you get:
Increased productivity and public satisfaction
State-of-the-art technological solutions
Professional servicing, warranty, and parts
Improved ecological conditions in your area
The Isuzu giga road cleaning vehicle manufacturer that helps make streets cleaner and safer
If you want to pave the way for visible improvements in urban and road industry sectors, street cleaning is a good thing to start with. At Isuzu powerstar trucks, we manufacture innovative street sweeping machines with dust suppression systems and decreased noise pollution. On top of that, you don’t have to spend a fortune on their operation and maintenance since they are wrapped into well-thought-out technologies to cut running costs.
