Isuzu fire engine is one of the special vehicles that are essential for firefighting. It is a firefighting vehicle specially used for firefighting and rescue. Its main feature is that it is equipped with a large number of water tanks and high-pressure water guns. Through the powerful high-pressure water guns, Isuzu fire engine can quickly put into firefighting work at the fire scene and effectively control the fire. It is widely used in fire rescue, emergency treatment of dangerous chemical leaks, personnel evacuation, medical rescue and other fields.
Isuzu fire engine also called fire truck, fire fighting truck, water fire truck, foam fire truck, fire rescue truck) is a vehicle designed primarity for fire fighting operations-to extinguish fire efficientyly to prevent fire spread ,reducing the loss caused by fire maximumly.
Isuzu fire engine body material performance characteristics
The body material of the fire truck needs to meet a series of performance requirements, such as impact resistance, corrosion resistance, high temperature resistance, fire resistance, sealing, etc.
Impact resistance means that the material has a high impact resistance and can effectively protect the equipment and personnel safety inside the vehicle in collisions or accidents.
Corrosion resistance means that the material can resist the corrosive effects of chemical substances to ensure the service life of the fire truck in special environments.
High temperature resistance means that the material can maintain structural stability and mechanical properties in high temperature environments to avoid loosening and deformation caused by temperature increases.
Fire resistance means that the material has good flame retardant properties and can prevent the spread of fire and the spread speed too fast.
Sealing means that the material can prevent flames, gases and smoke from entering the car compartment to ensure the safety of people in the car.
|
TECHNICAL SPECIFICATIONS |
||
|
Main specifications |
Chassis brand |
ISUZU |
|
Overall dimension(L*W*H) |
6200×2000×2860mm |
|
|
GVW |
7300Kg |
|
|
Curb weight |
3300Kg |
|
|
Water tank volume |
3,000 liters |
|
|
Cabin |
double cabin, 2+3seats,with Air conditioner, electronic windows, USB |
|
|

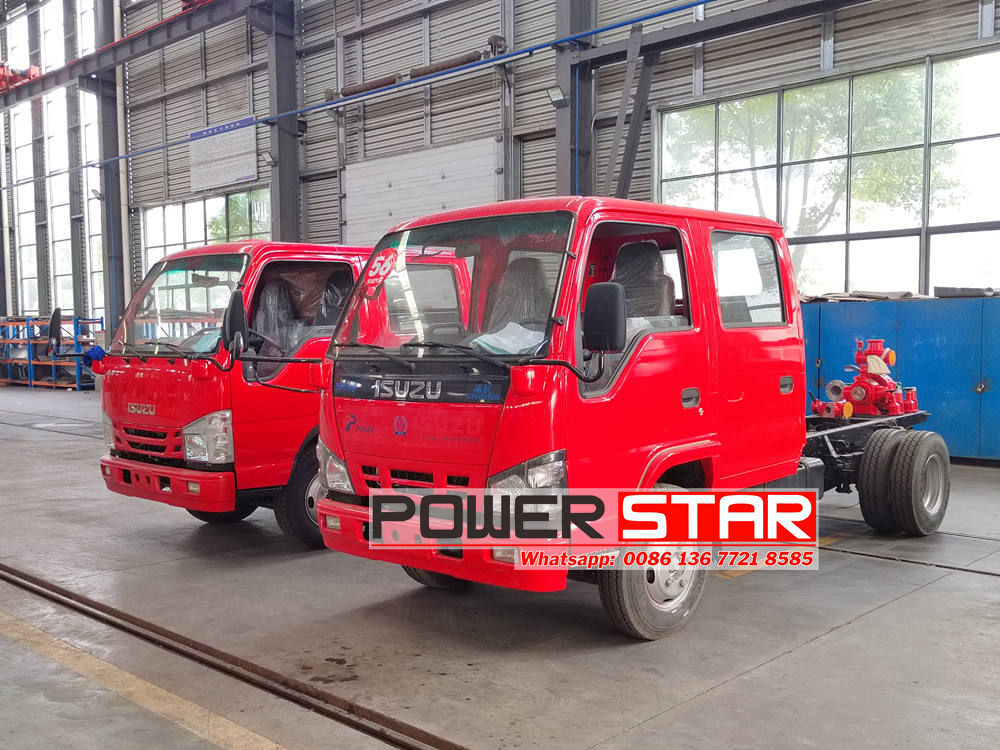

Chassis |
Drive model |
4x2 left hand drive |
|
Axle (front/rear) loading |
2.5t/4.8t |
|
|
Front/rear suspension |
1015/1623mm |
|
|
Wheel Base |
3360mm |
|
|
Approach/departure angle |
24/13(°) |
|
|
Tyre size & number |
7.00R16 with one spare tire |
|
|
Transmission |
ISUZU MSB brand, manual, 5 gears with reverse |
|
|
Brake |
Oil brake, With ABS |
|
|
Color |
Red and white including tanker , standard . |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4KH1CN6LB |
|
|
Engine Type |
Four-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling |
|
|
Horse power |
120 HP/88Kw |
|
|
Displacement |
2999ml |
|
|
Emission |
Euro 6 |
|
|
Upper Body |
||
|
Water tank volume |
3000 Liters |
|
|
Tank material |
Carbon steel |
|
|
Water tank thickness |
4 mm |
|
|

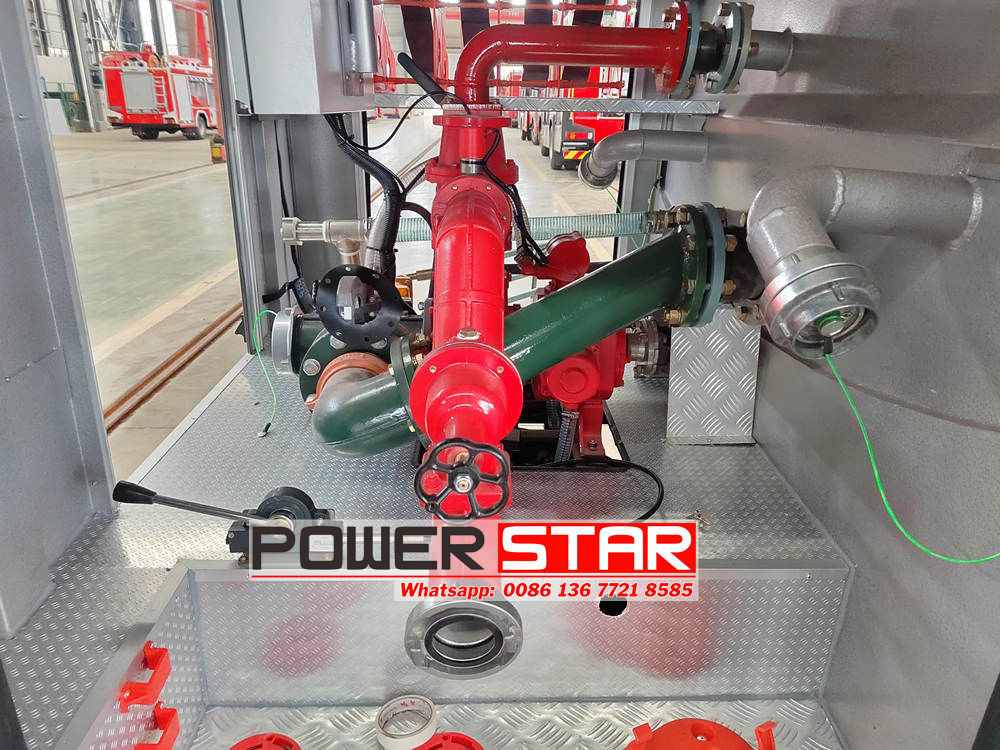

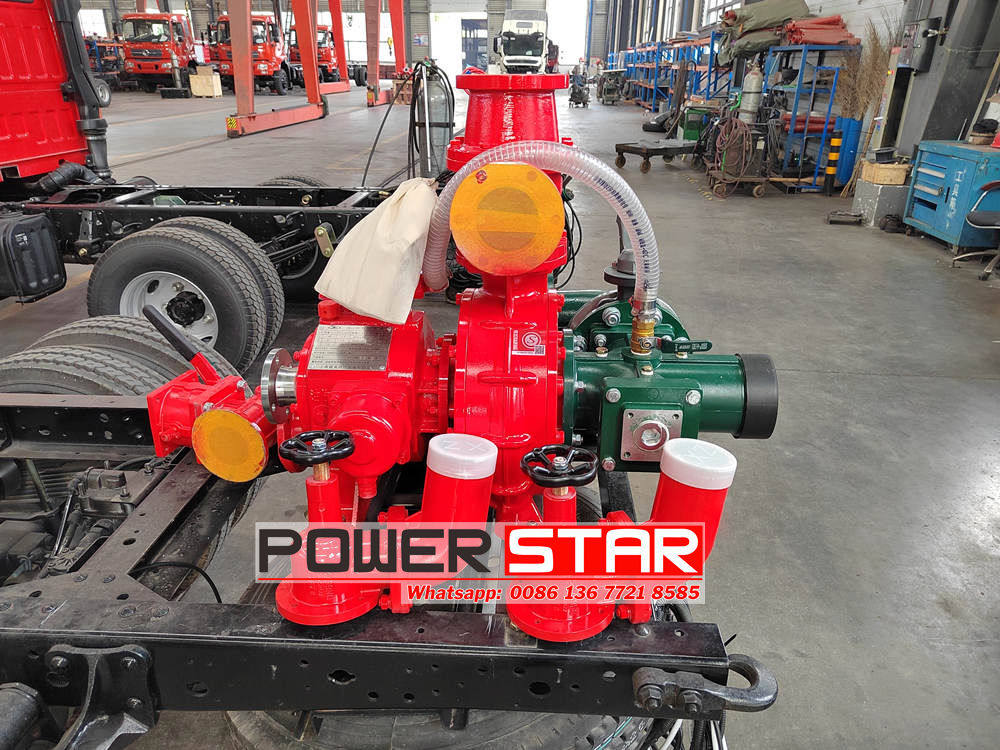

Fire pump model |
CB10/30, Normal pressure pump |
|
|
Fire pump pressure |
≥1.0 Mpa |
|
|
Fire pump max suction height |
7 m |
|
|
Fire pump flow |
30 (L/S) |
|
|
Fire pump rated speed |
3000 (r/min) |
|
|
Fire pump time of drawing water |
≤35 (s) |
|
|
Fire pump Input |
1 unit, diameter: 100mm |
|
|
Fire pump Outlet |
2 units, diameter: 65mm |
|
|
Fire monitor Model |
PS8/30W, mounted on the top of tank |
|
|
Fire monitor rated working pressure |
0.8 Mpa |
|
|
Fire monitor max working pressure |
1Mpa |
|
|
Fire monitor rated flow |
30 L/S |
|
|
Fire monitor rotation angle |
360° |
|
|
Standard configurations |
Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose |
|
1. Body and structural materials
The body and structure of the Isuzu fire engine are mainly made of high-strength steel. This steel not only has excellent strength and toughness, but also can withstand the various pressures and impacts that fire trucks are subjected to in emergency situations.
The welding and assembly processes of the body are also carefully designed and rigorously tested to ensure its structural integrity and safety. In addition, the Isuzu fire engine also uses carbon steel and stainless steel as materials for water tanks and other components, which have excellent corrosion resistance and durability.
2. Firefighting equipment materials
The firefighting equipment on the Isuzu fire engine, such as water pumps, water guns, foam tanks, etc., are made of corrosion-resistant and high-temperature resistant materials. Water pumps and water guns may be made of stainless steel or alloy steel, which can withstand the high temperatures and corrosive substances generated during firefighting.
Foam tanks are made of special plastics or composite materials to ensure their lightness and durability. In addition, the piping system on the Isuzu fire engine also uses corrosion-resistant alloy materials to ensure that firefighting water or foam can be smoothly delivered to where it is needed.
3. Chassis and power system materials
The chassis and power system of Isuzu fire engine also use high-quality materials. The chassis part may be made of high-strength alloy steel to withstand the weight of the fire truck and various stresses during driving. The power system may use advanced diesel engines, which are composed of high-strength alloys and precision components to ensure its efficient and reliable operation. In addition, the transmission system, suspension system and braking system of the fire truck also use high-quality materials and advanced technology to ensure its stability and safety in emergency situations.
In summary, the material selection of Isuzu fire engine covers many aspects such as body and structure, fire equipment and chassis and power system. The selection and combination of these materials together ensure the performance, durability and safety of the fire truck.
