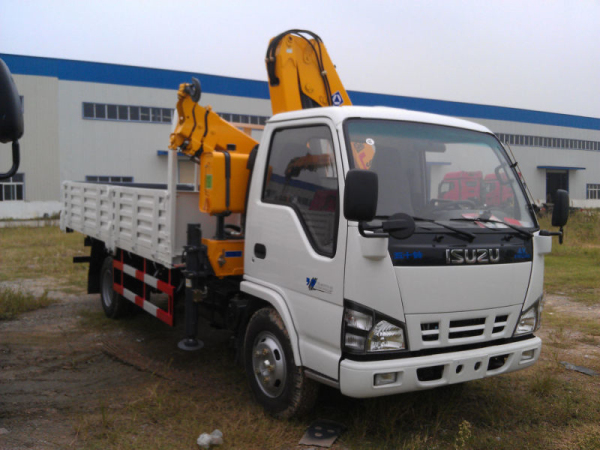

1.4TON isuzu Knuckle Boom Truck Mounted Crane

Isuzu 1400kg T truck mounted crane , the best tipper truck with crane

1.4TON isuzu Knuckle Boom Truck Mounted Crane

5 ton, 5000 kg, SQ5ZA2 knuckle boom truck crane, fold arm truck mounted crane,Isuzu 1400kg T truck mounted crane , the best tipper truck with crane,1.4TON isuzu Knuckle Boom Truck Mounted Crane
  • Order(MOQ):

    1

1.4TON isuzu Knuckle Boom Truck Mounted Crane

1.4TON isuzu Knuckle Boom Truck Mounted Crane



Durable XCMG Knuckle Boom Truck Mounted Crane, 1400kg Wire Rope Raise



  1. Name: Folding boom crane, Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane
  2. Max Lifting Capacity: 1400 kg
  3. Max Lifting Moment: 2 t.m
  4. Max Oil Flow of Hydraulic System: 16 L/min
  5. Max. Lifting height: 5.5meters
  6. Brand: XCMG
  7. Crane Weight: 450 kg
  8. Oil Tank Capacity: 20 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.


Knuckle boom crane SQ1ZK2 is used for lifting 1.5tons, moment is 2T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.



Specifications:



Model

SQ1ZK2

Unit

Max Lifting Moment

2

t.m

Max Lifting Capacity

1500

kg

Recommend Power Needed At Recommend Oil Flow

7

kw

Max Oil Flow of Hydraulic System

16

L/min

Rated Pressure Of Hydraulic System

18

MPa

Oil Tank Capacity

20

L

Rotation Angle

320

°

Crane Weight

540

kg

Installation Space

550

mm

Choice of Chassis

ISUZU



SQ1ZK2  Lifting capability diagram

Working radius (m)

1.33

2.25

3.2

Lifting capacity (kg)

1500

850

550



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
