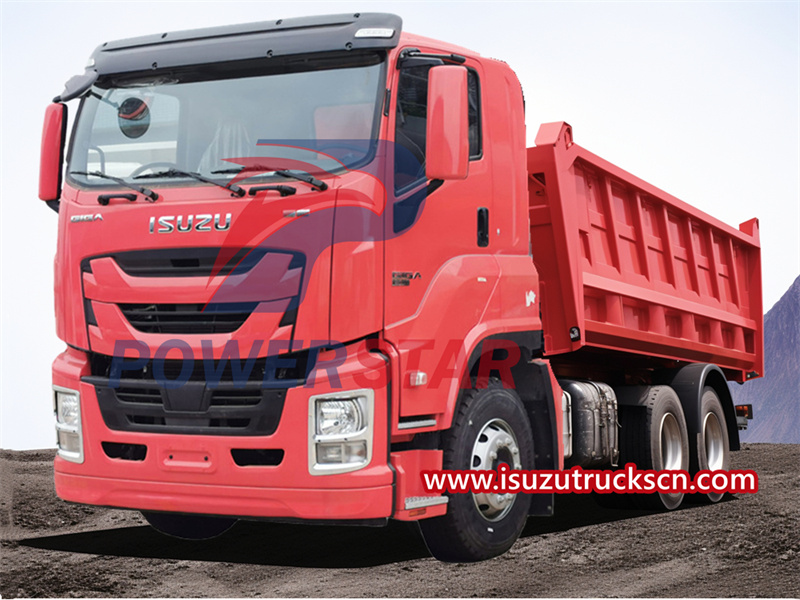

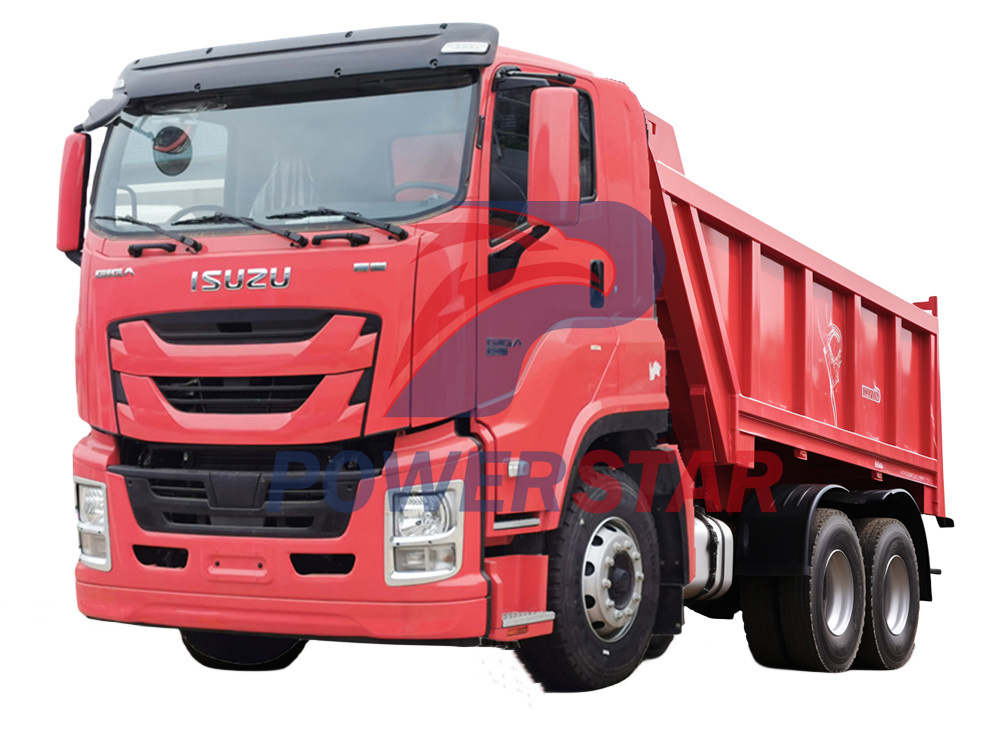

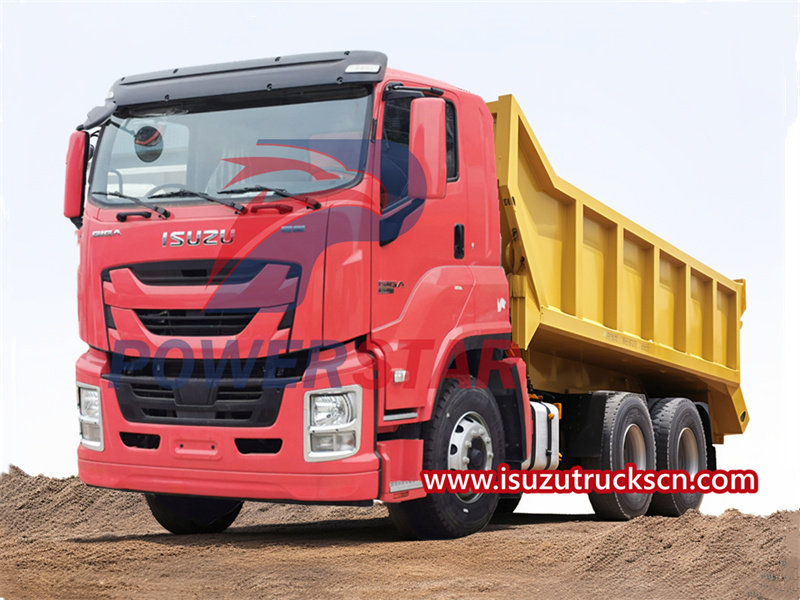

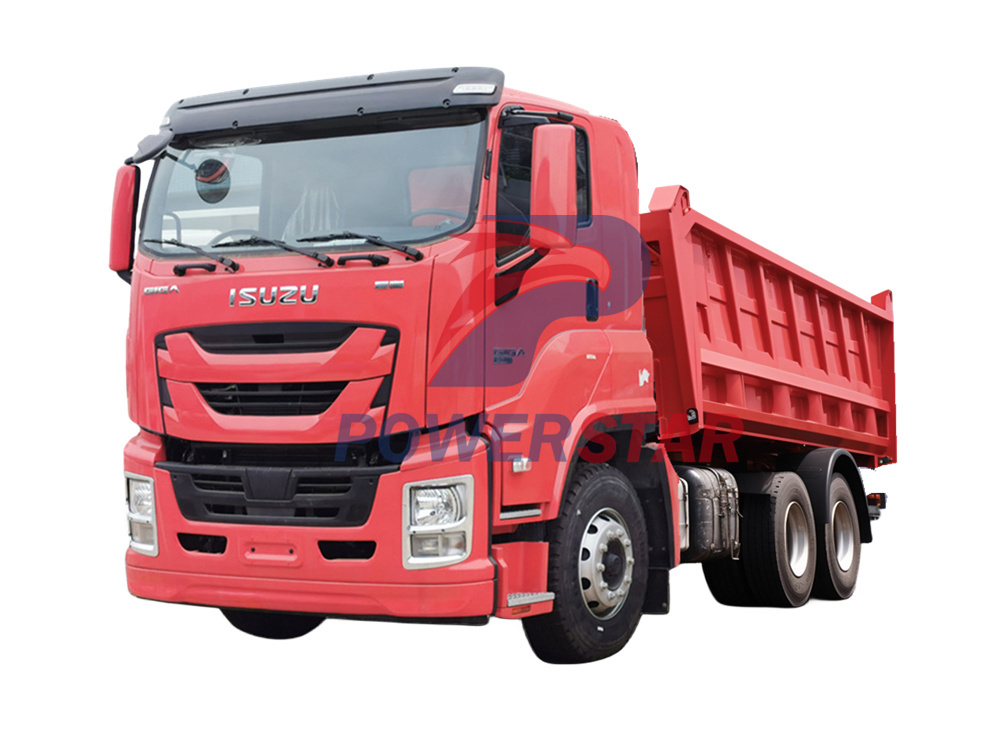

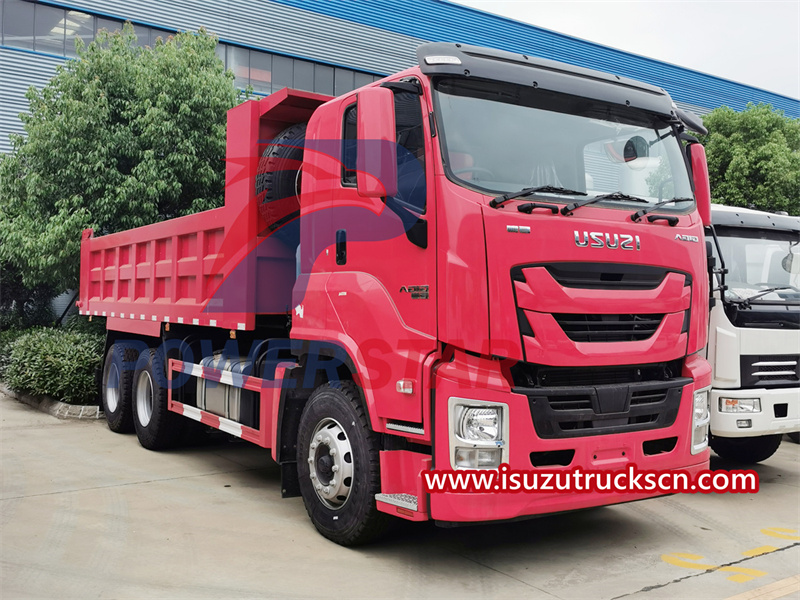

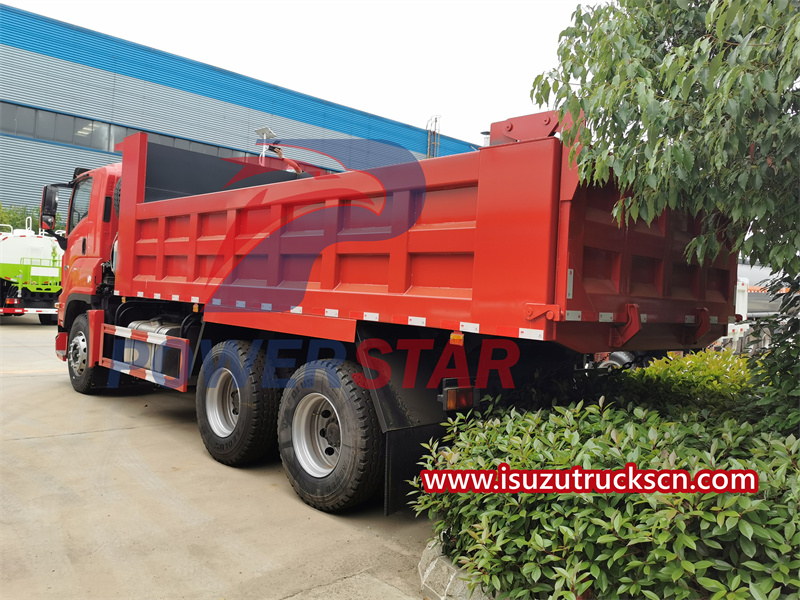

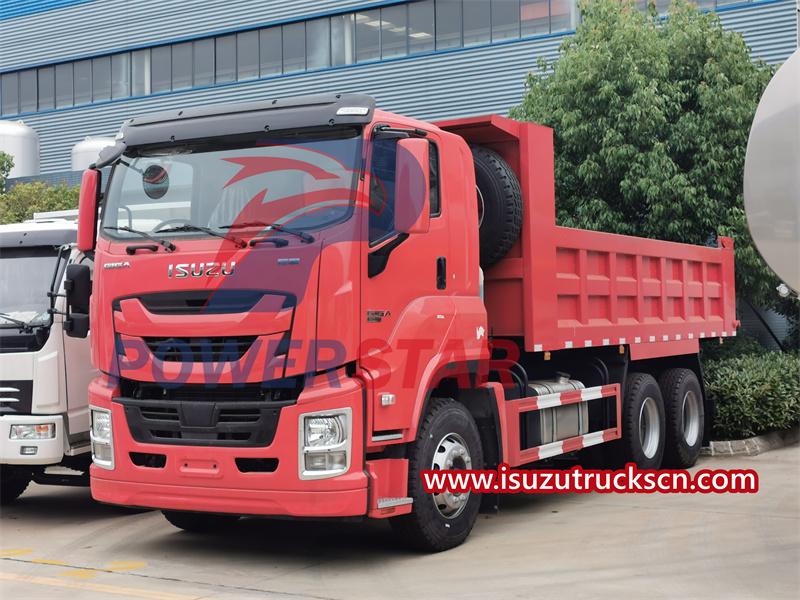

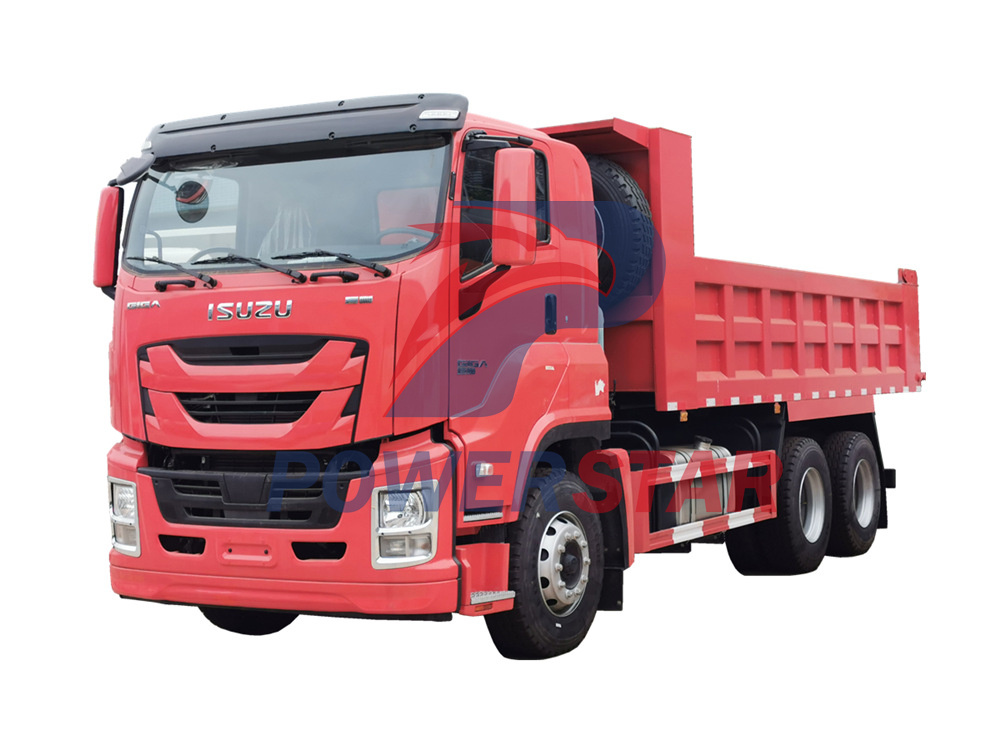

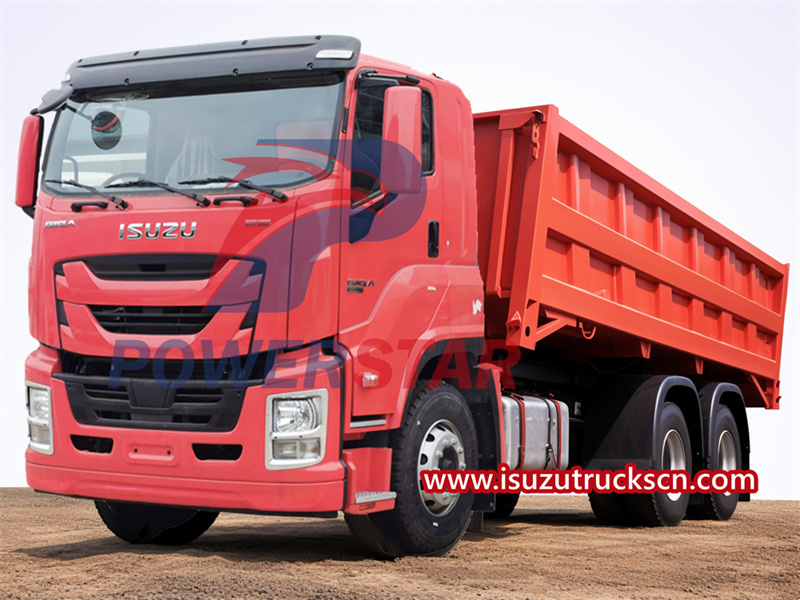

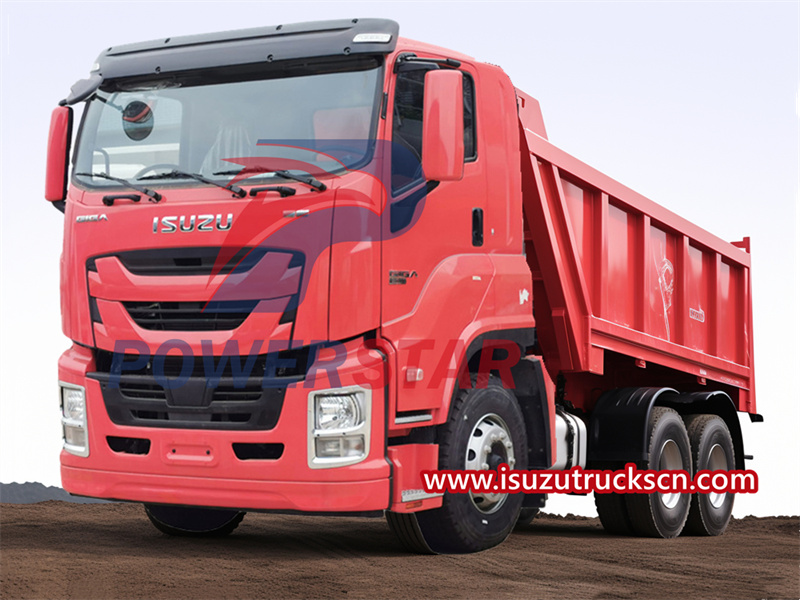

The Isuzu GIGA mining dump truck is a powerful and reliable truck suitable for mining transportation work. The Isuzu dump truck adopts left-hand six-wheel drive and adopts a cab design with two air bag suspension seats and a bed to provide a comfortable driving environment. Standard features also include a raised cargo box frame, hydraulic system, dump plate, safety protection device, rotating lights, work lights, handrails, fenders and rubber mud wings. In addition, Isuzu GIGA mining dump trucks also provide a variety of optional equipment, such as garbage bin lifting systems, rearview cameras, multi-way valves imported from Italy and stainless steel waste water tanks, to meet different needs. This Isuzu GIGA mining dump truck also comes with an English operating manual, spare parts list and all necessary export documents.
Work capacity:
25 tonsTruck model:
PT3050DYDEngine power:
420hpEngine type:
Isuzu 6WG1-TCG60Axle drive:
6x4Gear box:
Fast 12 speed levers with 1 reverseRemarks:
mining dumperIsuzu GIGA mining dump trucks are famous for their powerful performance and reliable quality. Whether on large mining sites or on rugged terrain, Isuzu GIGA mining dump trucks are capable of a variety of transportation tasks. This Isuzu GIGA mining dump truck has a powerful power system, equipped with a carefully designed and tuned 6WG1-TCG52 engine with a rated power of up to 420 horsepower. With these excellent performance parameters, our Isuzu GIGA mining dump trucks can easily cope with various undulating road conditions and load requirements.To ensure driver comfort and ease of operation, our Isuzu GIGA mining dump trucks are equipped with a spacious cab with two airbag suspension seats and a comfortable bed. Whether driving for a long time or taking a break, drivers can enjoy the best experience. Our Isuzu GIGA mining dump trucks also have excellent loading and unloading capabilities. Constructed from high-performance carbon steel materials, dump truck boxes offer exceptional durability and perform well in harsh working environments. With the help of the hydraulic control system and forward lifting device, the Isuzu GIGA mining dump truck can achieve efficient and fast loading and unloading operations to ensure maximum work efficiency.
Applications:
ISUZU GIGA mining tipper trucks(also called Isuzu GIGA 6 Wheel tipper, Isuzu GIGA mining dump truck, Japan ISUZU Rear dumper trucks, Brand new Isuzu dump trucks ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.

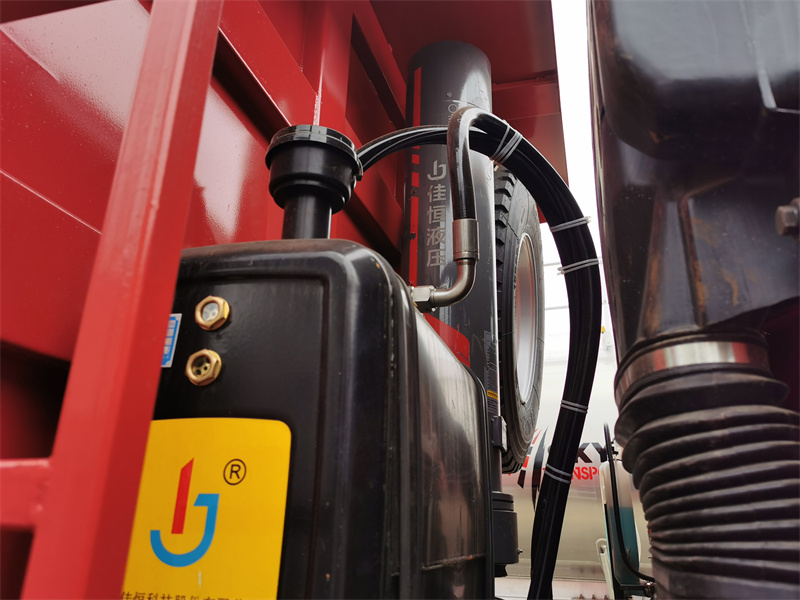

Powerstar ISUZU dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.
Key Features:
---- ISUZU GIGA heavy duty chassis, perfect performance
---- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Virious types of tipper body are available.
Specifications:
Description |
Isuzu GIGA 25 yards mining Dumper |
|
Item |
Powerstar dump truck |
|
Model |
Isuzu GIGA |
|
Cabin |
Two air-suspended seats and one bed |
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
9400*2680*3650 mm |
Dimensions of dump body (L*W*H)mm |
6000*2400*1500 mm |
|
Driving type |
Left hand drive 6×4 |
|
Wheel base |
4565+1370 |
|
Weight data |
Gross weight (kg) |
34,000 |
Kerb weight(kg) |
15,440 |
|
Person in cab (persons) |
3 |
|
whole vehicle main |
Max.speed(km/h) |
105 |
Max.slope of climb(%) |
25 |
|
Min.turning radius (m) |
7.5 |
|
Engine |
Engine model |
6WG1-TCG52 |
Engine type |
Vertical, water-cooled, six-stroke, |
|
Emission standard |
Euro 5,6 |
|
Displacement (L) |
15.681L |
|
Rated power (KW) |
420 hp |
|
Max torque (N.m/rpm) |
2060N.M |
|
Steering gear type |
Power steering |
|
Brake system |
Service brake and boosting type |
Air brake |
Parking brake |
Central drum brake |
|
Auxiliary brake |
Air brake |
|
Tyre size |
295/80R22.5 |
|
Electric system |
Rated voltage |
24V |
Battery |
100Ah |
|
Dump Performance |
Loading Capacity |
25 tons |
Body Material |
High performance carbon |
|
Plate Thickness |
Front/Side are 6mm |
|
Rear/Side are 8mm |
||
Control System |
Hydraulic |
|
Discharging System |
Front lifting device |
|
Lifting Time |
Tipping 45 degree |
|
Lowering Time |
35 s |
|
Tailgate |
25 s |
|
Drop side |
Auto release |
|
Painting |
Detachable |
|
Color & Logo |
Two primers,and one final paint coating |
|
Loading Capacity |
According to wish |
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
Feature:
1. Powerful performance: The Isuzu GIGA mining dump truck has a 420-horsepower engine and a maximum torque of 2060N·m. It has excellent power output and can easily meet the high load requirements of mining work.

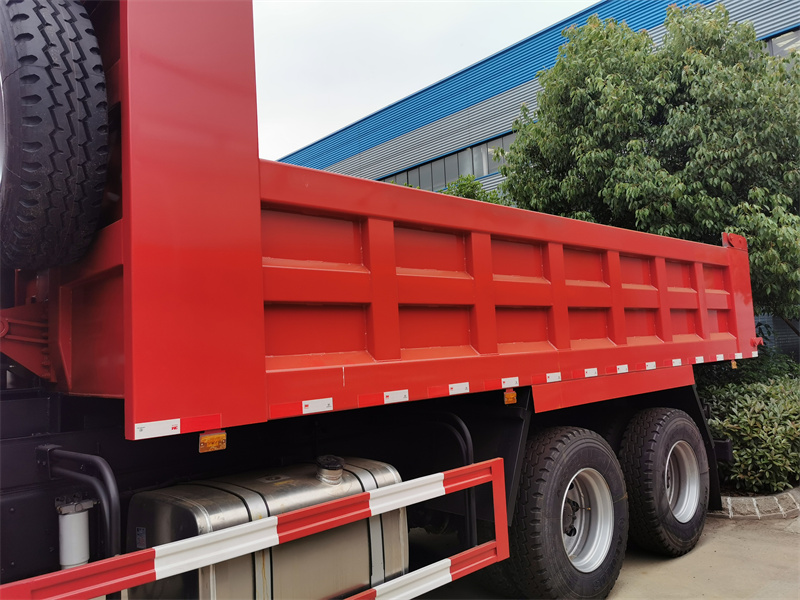

2. Reliable and durable: The dump box made of high-performance carbon steel has excellent durability and wear resistance and can be used for a long time in harsh working environments.
3. Efficient loading and unloading performance: Equipped with a hydraulic control system and a forward lifting device to achieve fast and efficient loading and unloading operations and improve work efficiency.
4. Strong stability: Six-wheel drive and airbag suspension seats ensure driving stability and comfort, and perform well on mining sites and rugged terrains.
5. Multifunctional configuration: Optional configurations such as a dustbin lifting system, a rearview camera, a multi-way valve imported from Italy, and a stainless steel waste water tank can meet the needs of different customers and improve the truck's versatility and practicality.
