Work capacity:
8Ton Unic craneTruck model:
PT5180JSQEngine power:
300HPEngine type:
Isuzu 6HK1-TCHAxle drive:
4x4Gear box:
Isuzu MLD 6-shiftRemarks:

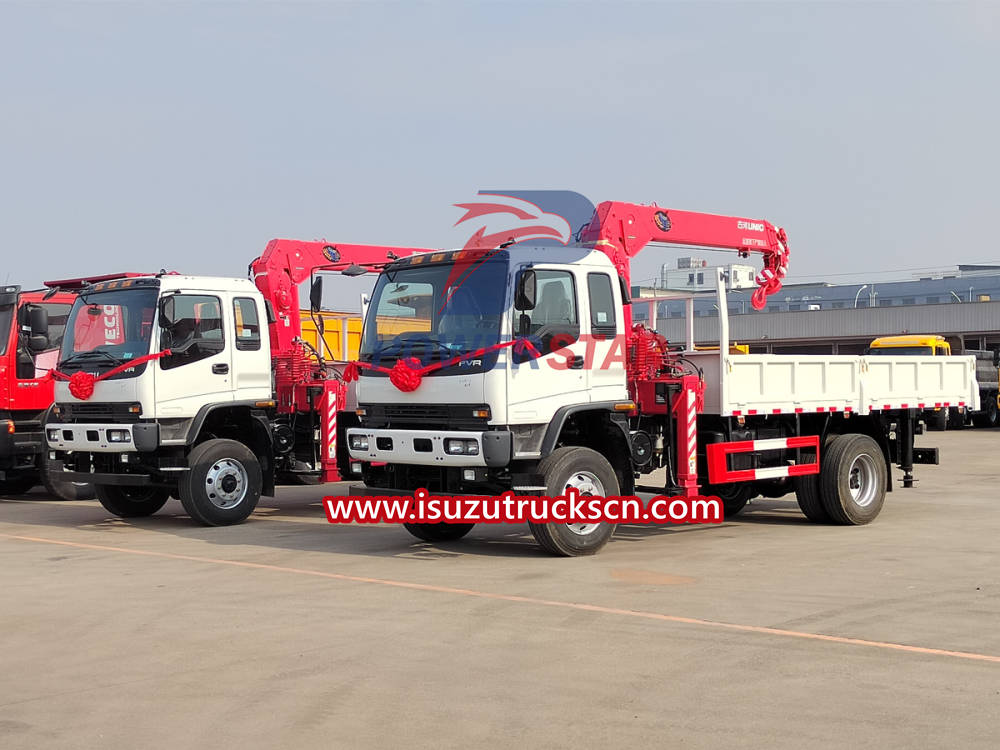

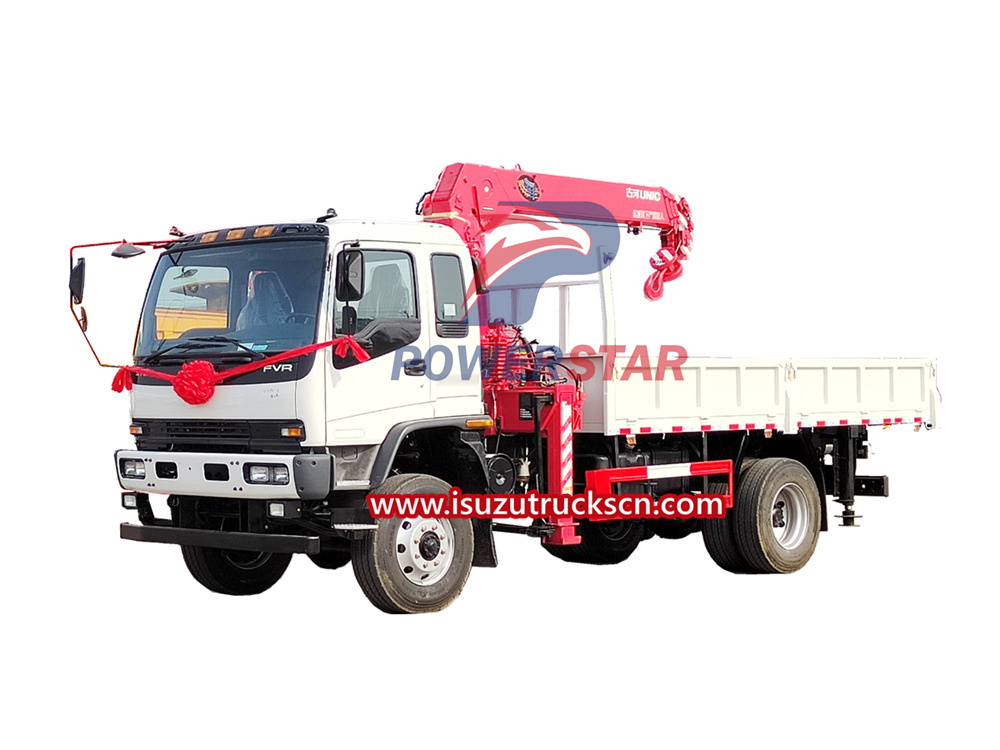

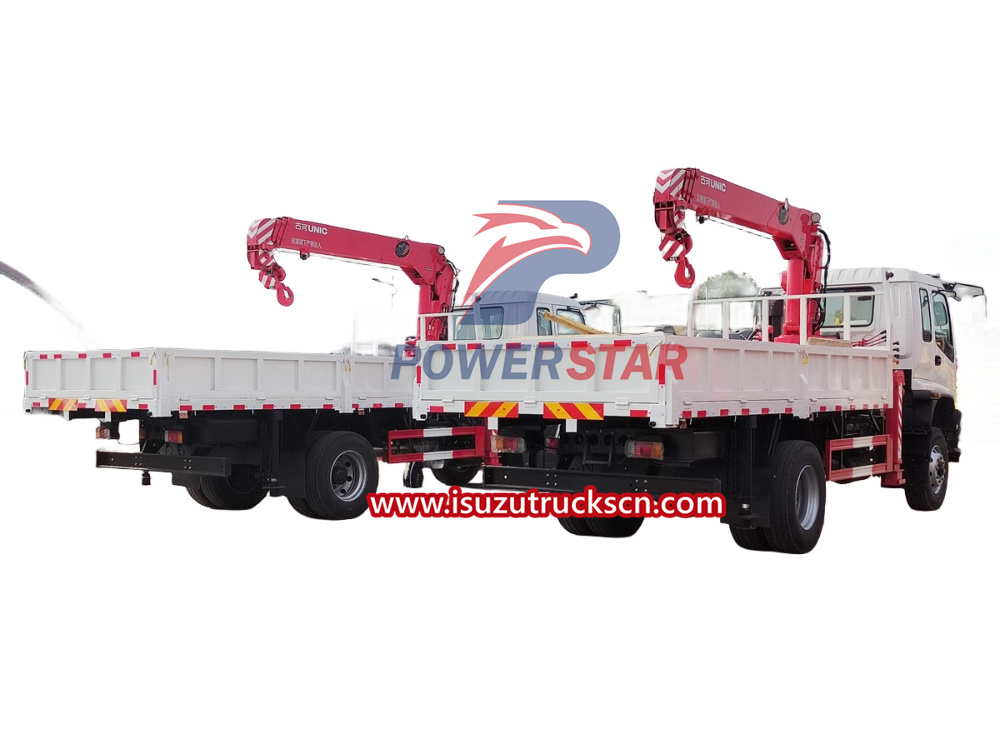

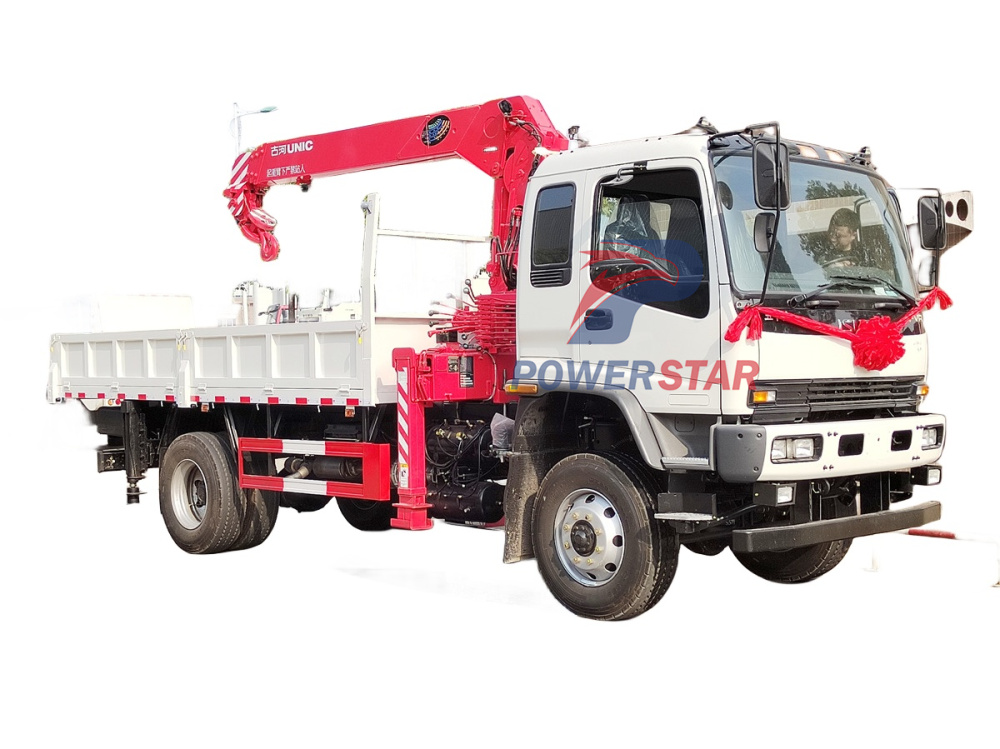

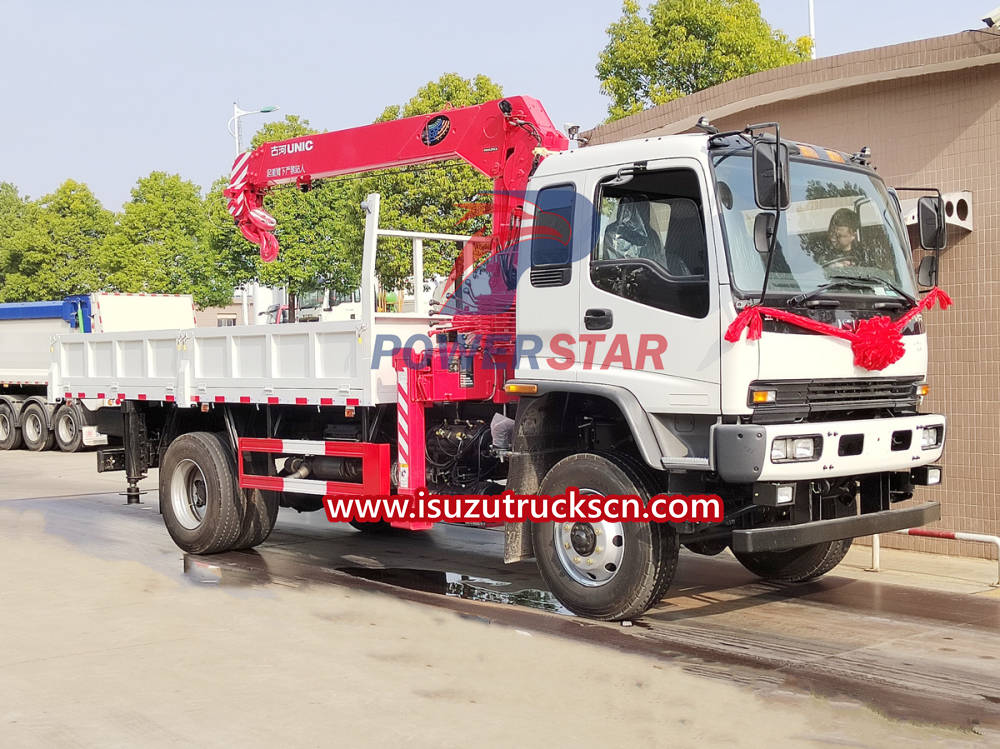

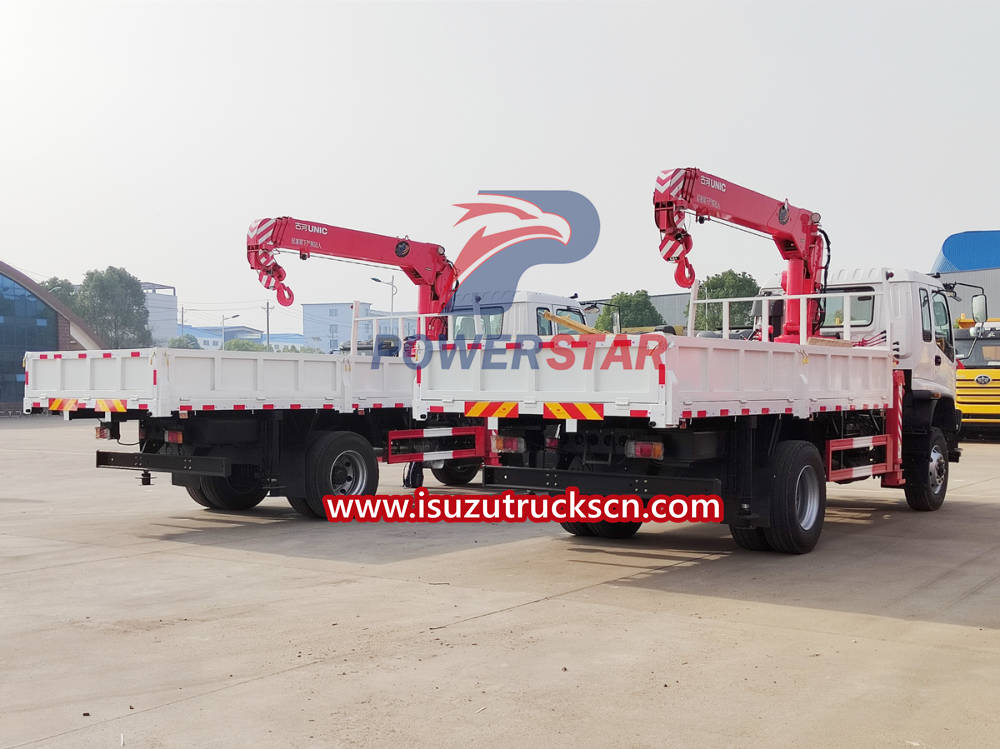

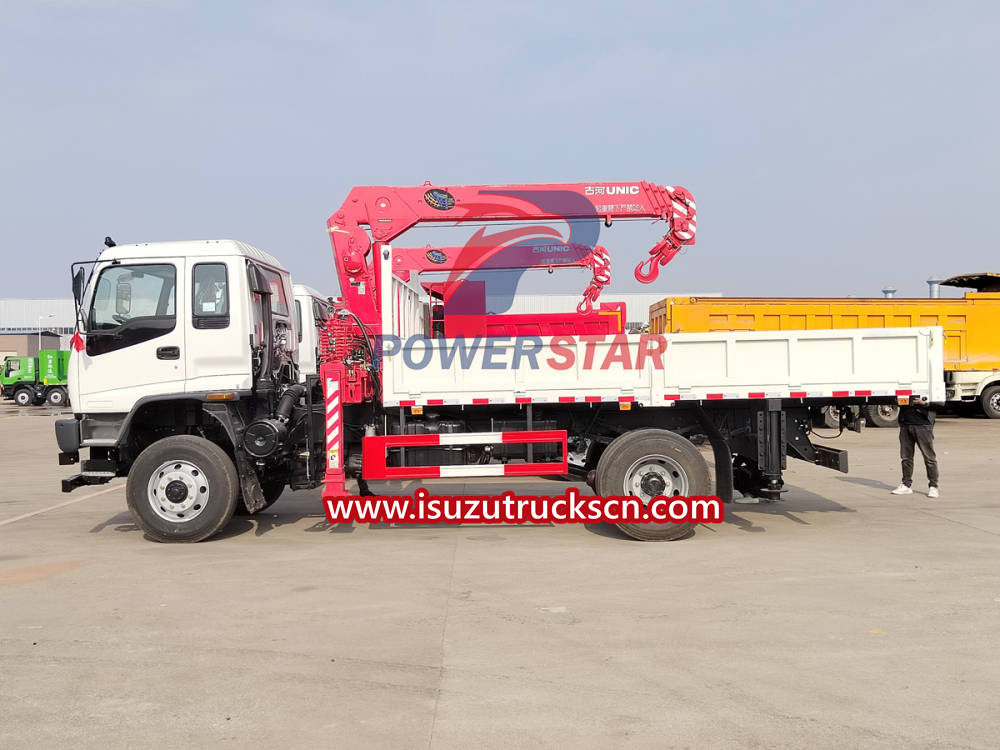

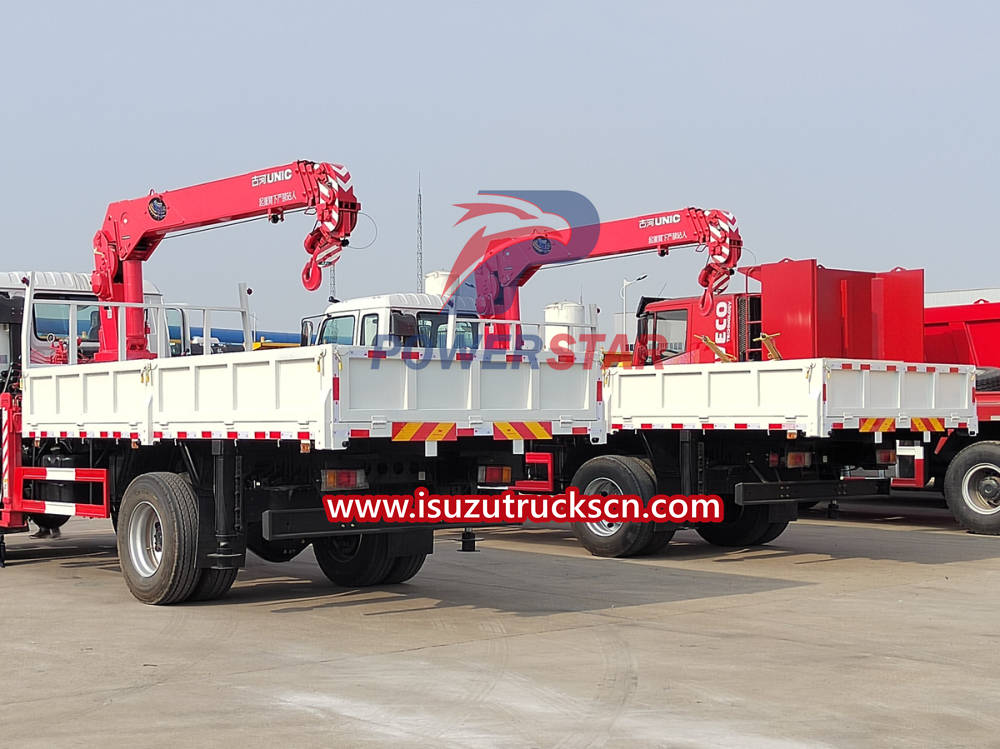

Original Unic crane 8tonsThe Philippines 18 tons Isuzu FVR 4x4 AWD Boom Truck Crane is a versatile and robust vehicle designed for heavy-duty operations in the construction, logistics, and infrastructure sectors. This truck combines the reliable Isuzu chassis with a powerful boom crane, ensuring efficient lifting and transportation capabilities in the Philippines' diverse terrains and demanding working conditions.
2. Features:
- 4x4 All-Wheel Drive: The Isuzu FVR 4x4 AWD Boom Truck Crane is equipped with an all-wheel-drive system, providing exceptional off-road capabilities. This feature allows the truck to navigate through challenging terrains, such as uneven roads, muddy surfaces, or construction sites, ensuring smooth and reliable transportation.
- Spacious Flatbed Platform: The flatbed platform of the truck provides ample space for carrying a wide range of goods and materials. The flat and unobstructed surface allows for easy loading and unloading, and it can accommodate various sizes and types of cargo.
- Safety Features: The Isuzu FVR 4x4 AWD Boom Truck Crane prioritizes safety with features such as stability control, anti-lock braking system (ABS), and airbag systems. These features enhance driver and passenger safety during operations and reduce the risk of accidents.
3. Advantages:
- Versatility: This truck offers versatility for a range of applications, including construction, logistics, transportation, and infrastructure projects. It provides efficient lifting and transportation solutions, making it an excellent investment for businesses operating in the Philippines.
- Reliable Performance: The Isuzu FVR 4x4 AWD Boom Truck Crane delivers reliable performance even in challenging environments. Built on the sturdy Isuzu chassis, it provides stability and durability, ensuring long-lasting operational efficiency.
- Fuel Efficiency: With Isuzu's advanced engine technology, this truck ensures optimal fuel efficiency, reducing operational costs and environmental impact. It satisfies stringent emission standards, contributing to a greener and more sustainable working environment.
- Exceptional Load Capacity: The truck's 18 tons load capacity allows for the transportation of heavy loads and equipment, making it a perfect choice for large-scale projects and logistical operations.
4. Application:
The Isuzu FVR 4x4 AWD Boom Truck Crane is suitable for various applications in the Philippines, including construction projects, infrastructure development, logistics operations, and cargo transportation. It can efficiently handle heavy lifting tasks, making it an indispensable asset for industries requiring robust and reliable transport and lifting capabilities.
| FVR ISUZU 4x4 Truck Chassis parameters | ||||
| Chassis model | FVR | Chassis brand | ISUZU | |
| Overall dimensions | 8390x2370x2760mm | Wheel base | 5000mm | |
| Front/rear wheel track | 1880/1800mm | Front/rear suspension | 1430/2760mm | |
| Approach/departure angle | 20/13° | Maximum speed | 90km/h | |
| Chassis Manufacturer | ISUZU Motor Company | |||
| Cab | Configuration | Isuzu one and a half row cab ,forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, air conditioner, manual window, manual lock | ||
| Color | white,other color is optional | |||
| Engine | Model | ISUZU 6HK1 | ||
| Emission | Euro 5 | |||
| Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | |||
| Rated power | 240hp,rated power speed 2500rpm | |||
| Displacement | 5900ml | |||
| Max.torque | 560N·m | |||
| Bore x stroke | 102x120mm | |||
| Manufacturer | ISUZU Engine Co., Ltd. | |||
| Tire | Size | 10.00-20 nylon tire | ||
| Number | 6+1 nos | |||
| Clutch | push type diaphragm spring clutch,Φ395mm | |||
| Fuel tank | 200L, Steel fuel tank | |||
| Front axle | 4.5T | |||
| Rear axle | 9.0T main reduction ratio 5.286 | |||
| Drive form | 4X4 All drive | |||
| Rated voltage | 24V,DC | |||
| Transmissions | Gearbox MLD 6S, 6 speed forward 1 reverse. | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| Truck mounted crane structure parameters | ||||
| Van dimensions | 5550X2294X600mm | Maximum loading of crane | 8 tons | |

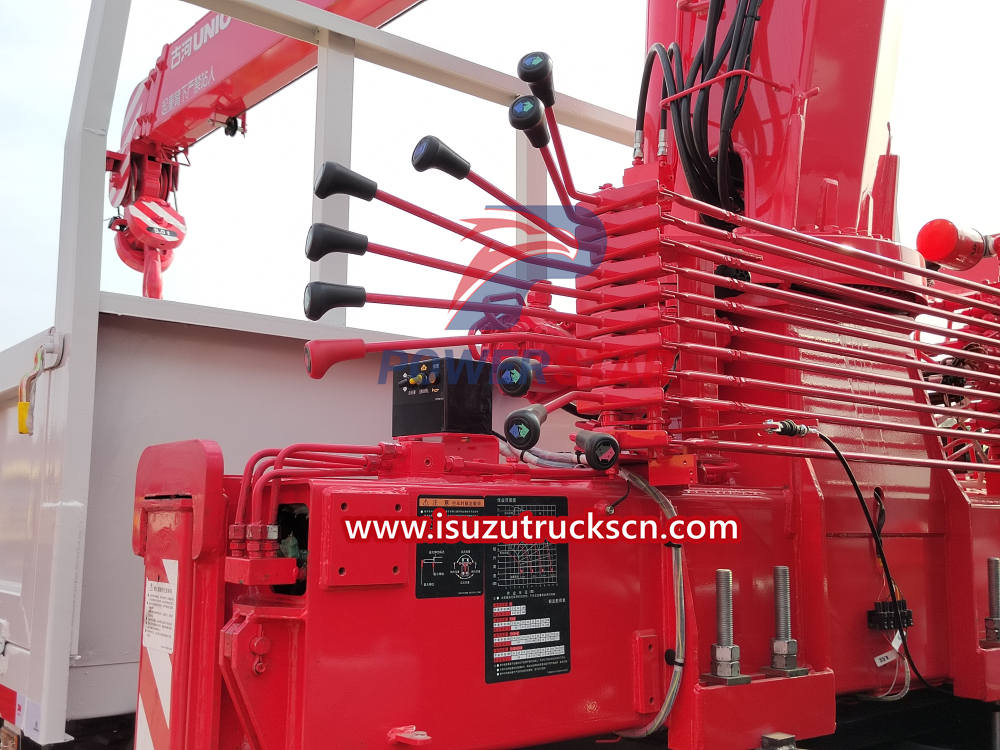

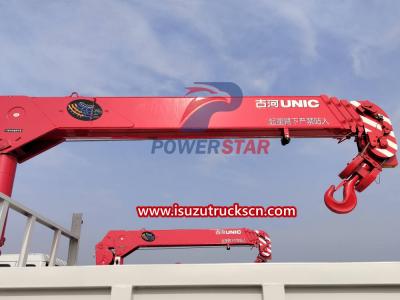

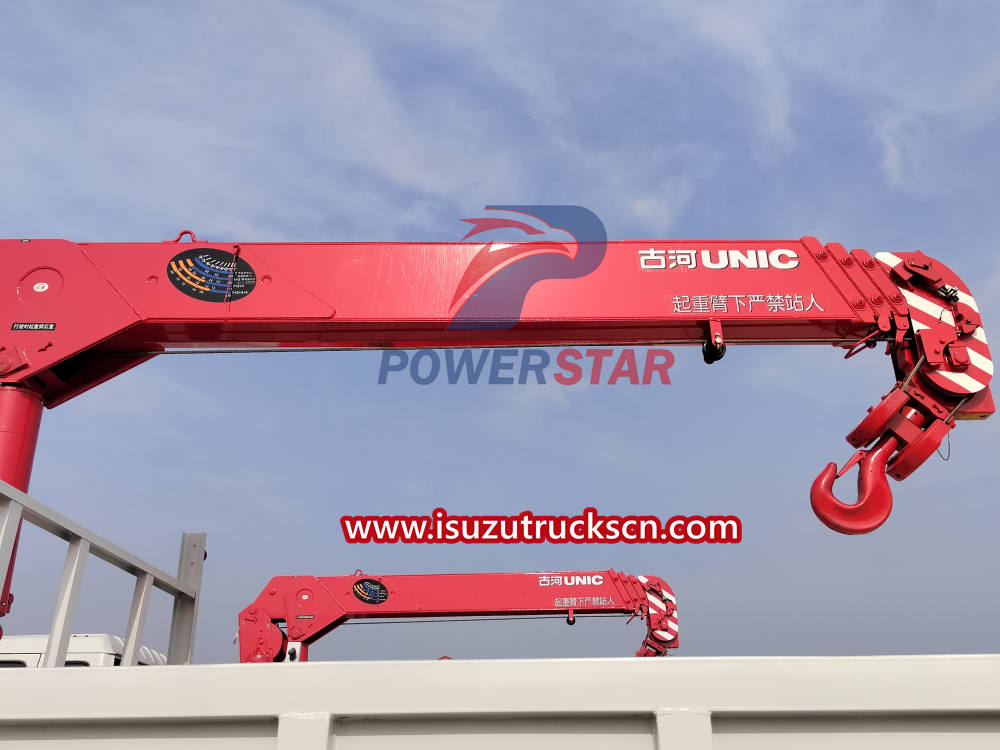

| UNIC boom crane | ||||

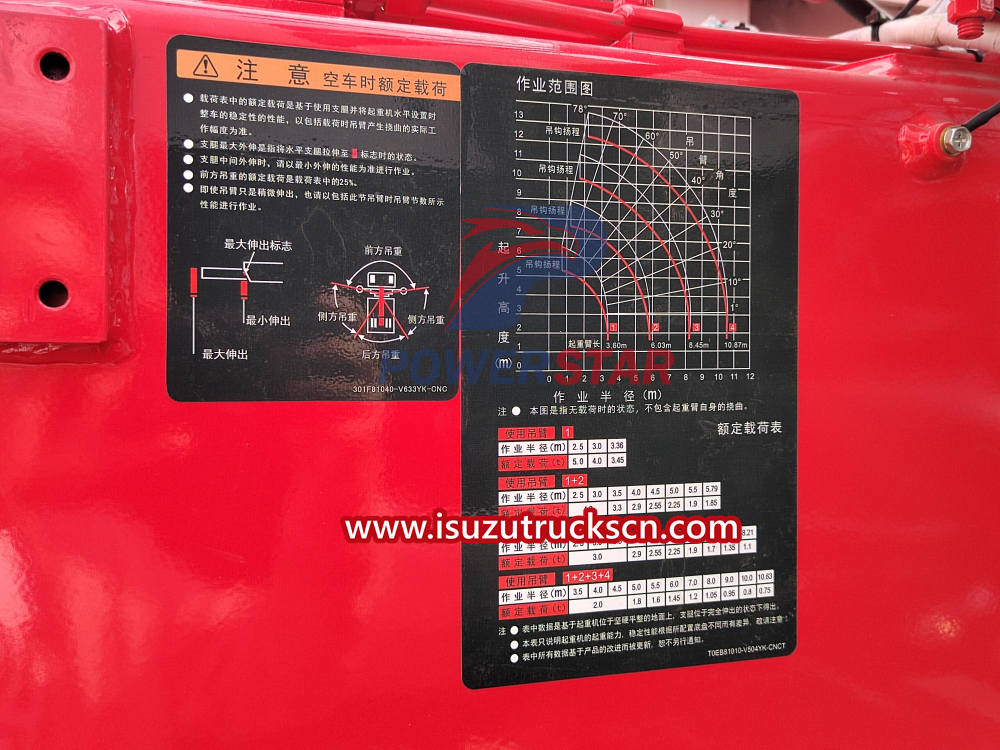

| Crane model | SQZ105 | Maximum lifting height | 11m | |
| Maximum working radius | 8m | Maximum loading | 5 tons | |
| Crane type | Knuckle boom | Telescopic arms number | 3 | |
| Hydraulic, turning angle 360° | Color and Logo | Optional | ||
| Standard configuration | Chassis,sub frame,van body,XCMG Knuckle boom truck crane equipped between the cabin and van body,mechanical leg. | |||
| Selective configuration | 2-20 tons XCMG straight arm truck crane,1-30 tons XCMG Knuckle boom truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat. | |||
5. After-sales service:
Customers can rely on comprehensive after-sales service for the Isuzu FVR 4x4 AWD Boom Truck Crane. This includes regular maintenance, servicing, and technical support to ensure optimal performance and minimize downtime. Spare parts are readily available, enabling quick and efficient maintenance or repairs when needed.
6. FAQ:
- What is the maximum lifting capacity of the boom crane?
The boom crane's maximum lifting capacity is X tons, ensuring efficient handling of heavy loads and equipment during operations.
- Can the upper body of the truck be customized according to specific requirements?
Yes, the upper body of the truck can be customized to accommodate additional storage compartments or specialized equipment installations based on individual customer requirements.
- Can the Isuzu FVR 4x4 AWD Boom Truck Crane be configured for specific applications?
Yes, the truck can be configured with various attachments or accessories, allowing for customization based on specific industry needs, such as construction, logistics, or infrastructure projects.
- What truck chassis options are available for the Isuzu FVR 4x4 AWD Boom Truck Crane?
Customers have the option to choose from a range of Isuzu truck chassis models with varying load capacities and specifications, ensuring the selection of the most suitable truck chassis to fulfill specific operational requirements.
