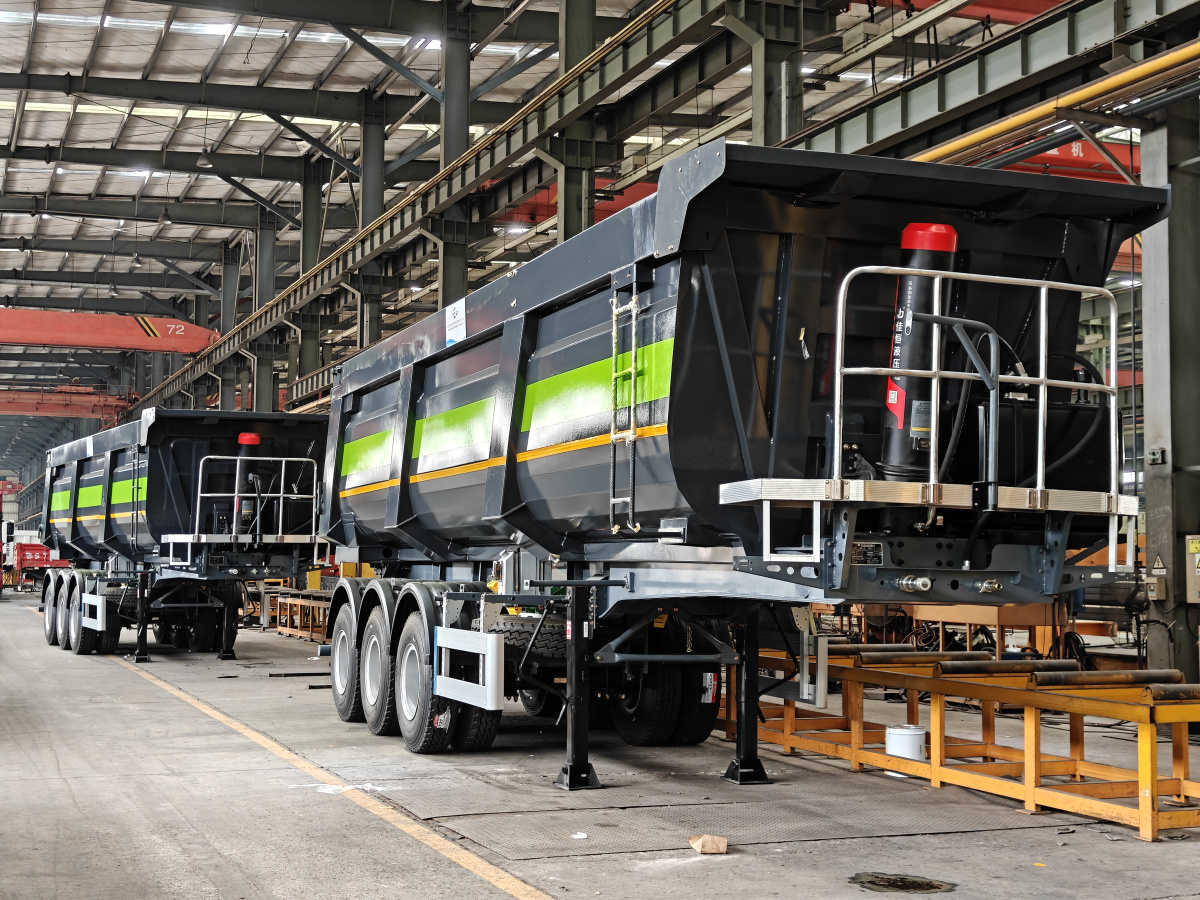

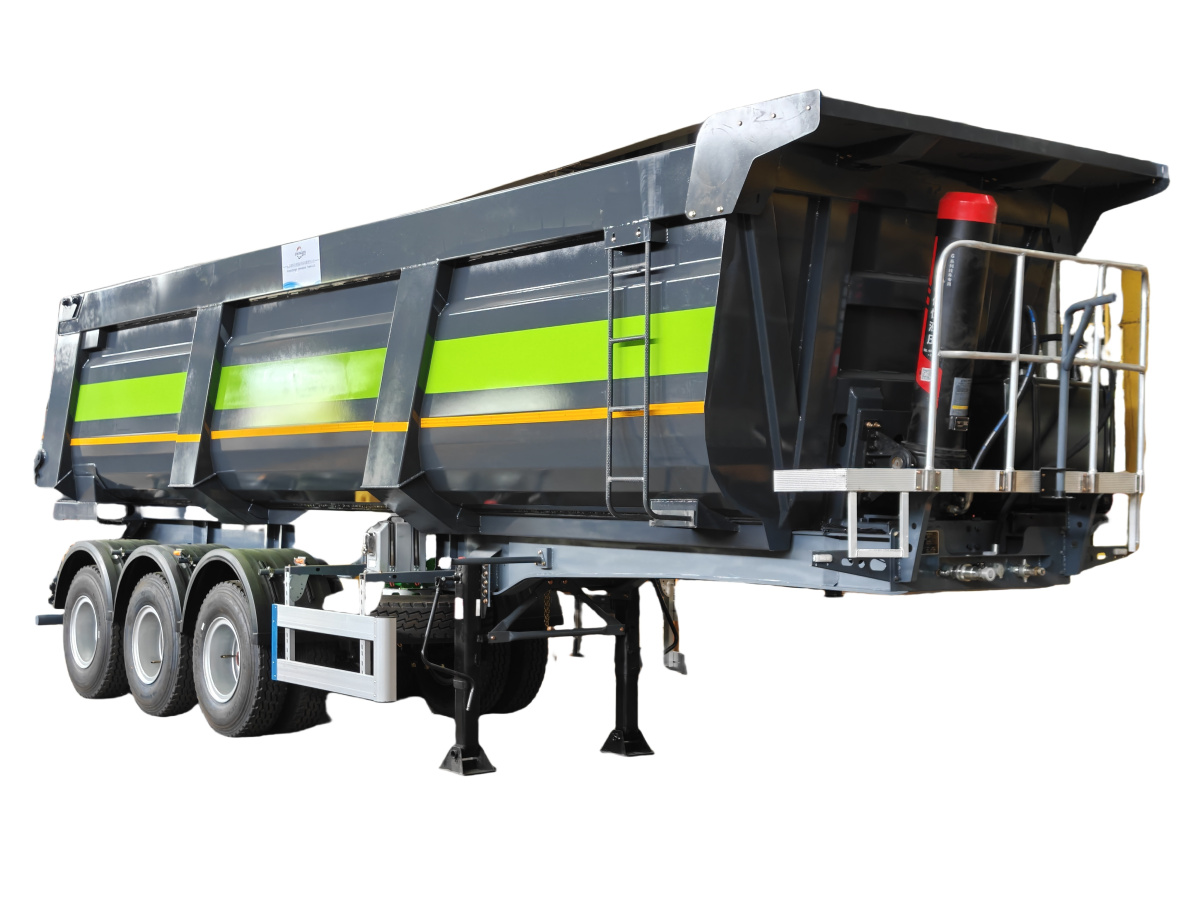

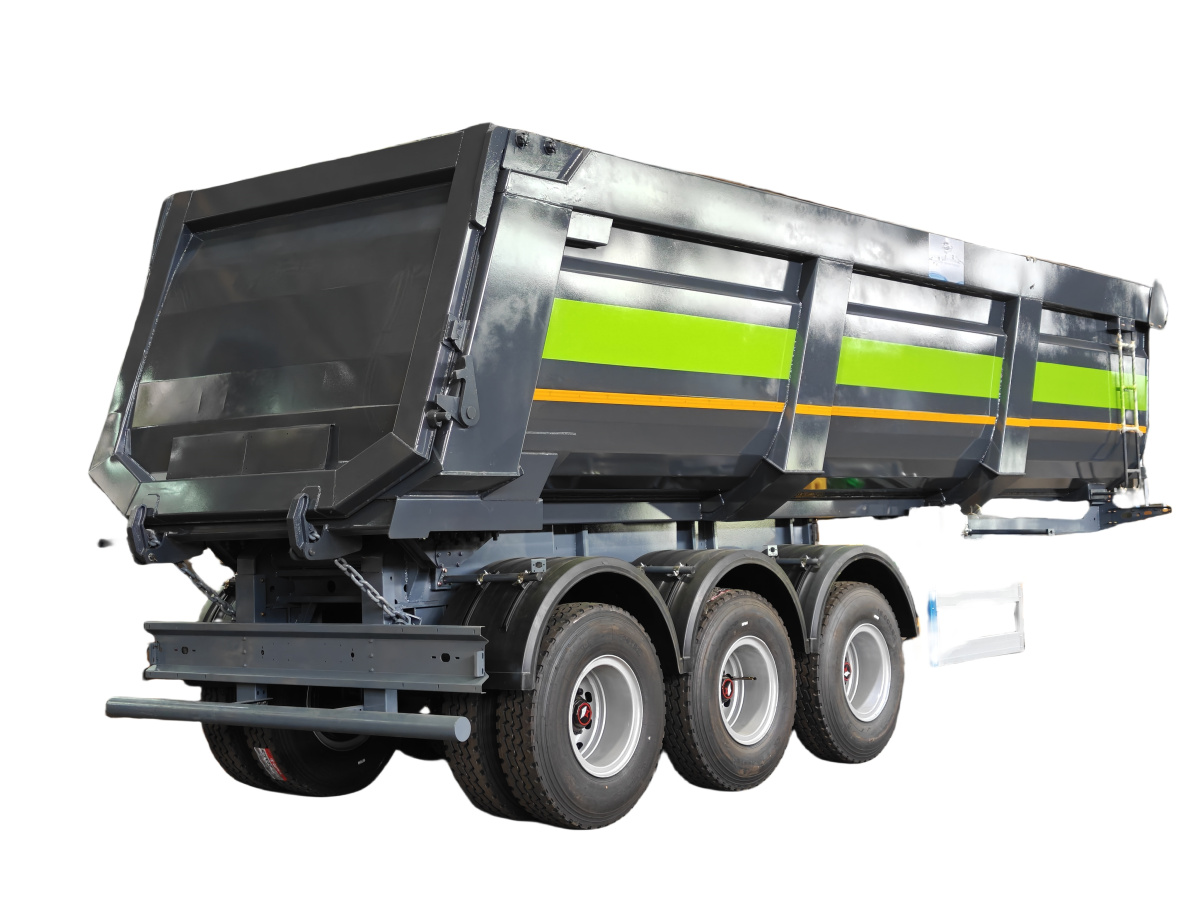

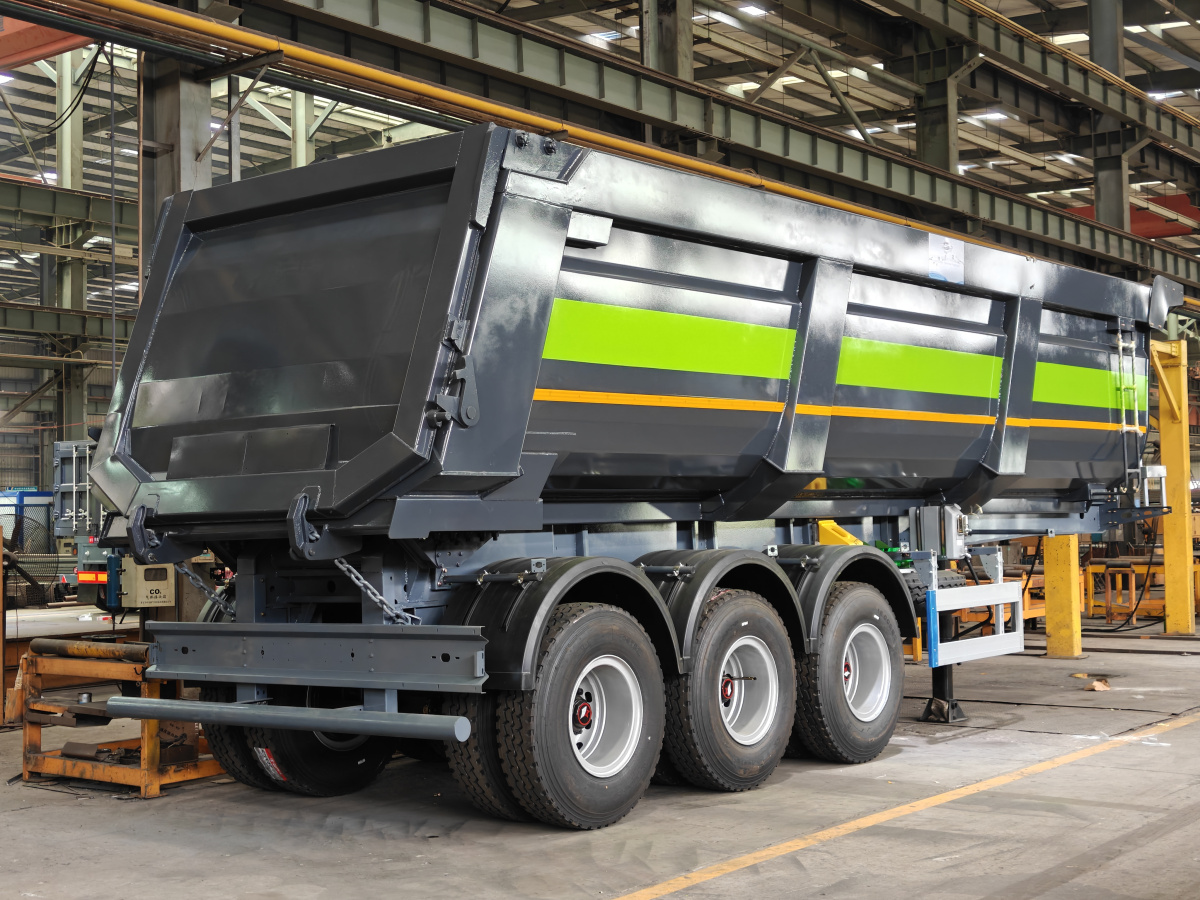

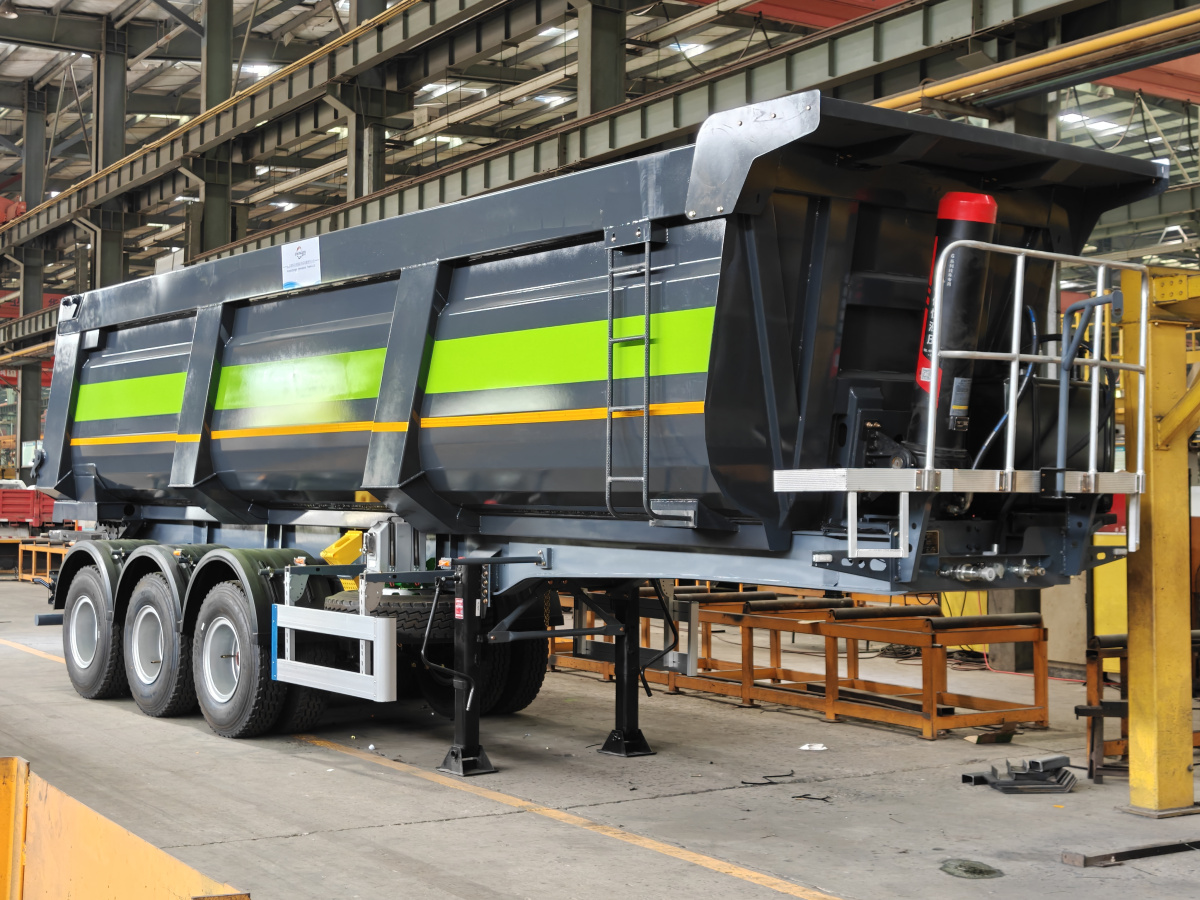

New or used 3 axle tipper trailer for sale, is a heavy duty 45 ton tipper trailer that usually lifts when dumping its hall in a chosen location. 45tons Tipper trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.3 axle 45 tons tipper trailer with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the tipper trailer for sale.
Manufacturer:
Powerstar TrucksWork capacity:
45 TonsDimension:
11573x2550x3700mmCabin type:
according to wishWheelbase:
6571+1310+1310mmEngine power:
NoEngine type:
NoAxle drive:
3 axleGear box:
NoRemarks:
BPW axle available45tons Tipper Truck Trailer, also named 3-axle dump trailer or tri axle tipper semi trailer, Mongolian mining areas have introduced a batch of China's POWERSTAR TRUCKS three-axle tipper trailers to help upgrade mining transportation
On the vast Mongolian Plateau, the development of mineral resources has always been an important pillar for promoting economic development. As one of the world's richest mineral resource areas, Mongolia's mining transportation demand continues to grow, and the demand for efficient and durable heavy-duty transportation equipment is becoming increasingly urgent. Recently, a large mining area in Mongolia reached a cooperation with POWERSTAR TRUCKS, a well-known Chinese semi-trailer manufacturer, to customize 45-ton tri-axle tipper trailers in batches to optimize mining transportation efficiency, reduce operating costs, and further enhance mining capacity.
POWERSTAR Tri Axle Tipper Trailer Application
The tri axle tipper trailer has a wide range of applications. It is most suitable for transporting heavy and hard goods, especially ores.
It is also commonly used in other areas:
| Tri Axle Tipper Trailer Specifications | ||
|---|---|---|
| Parameter | Overall Dimension | Length × Width × Height: 11573x2550x3700mm |
| King Pin Setting | 950mm From the Face of Front Bolster | |
| Axle Space | 6571+1310+1310mm | |
| Tare Weight (kg) | 13,500 | |
| Payload (kg) | ≤70,000 kg | |
| Fabric | Main Beam | Submerged Arc Welding |
| Flange and Web (mm) | 16/10/16 | |
| Body | Inside Dimension | Length × Width × Height: 10500x2350x1800mm |
| Capacity | 22-45m³ | |
| Floor | 8mm | |
| Side Wall | 6mm | |

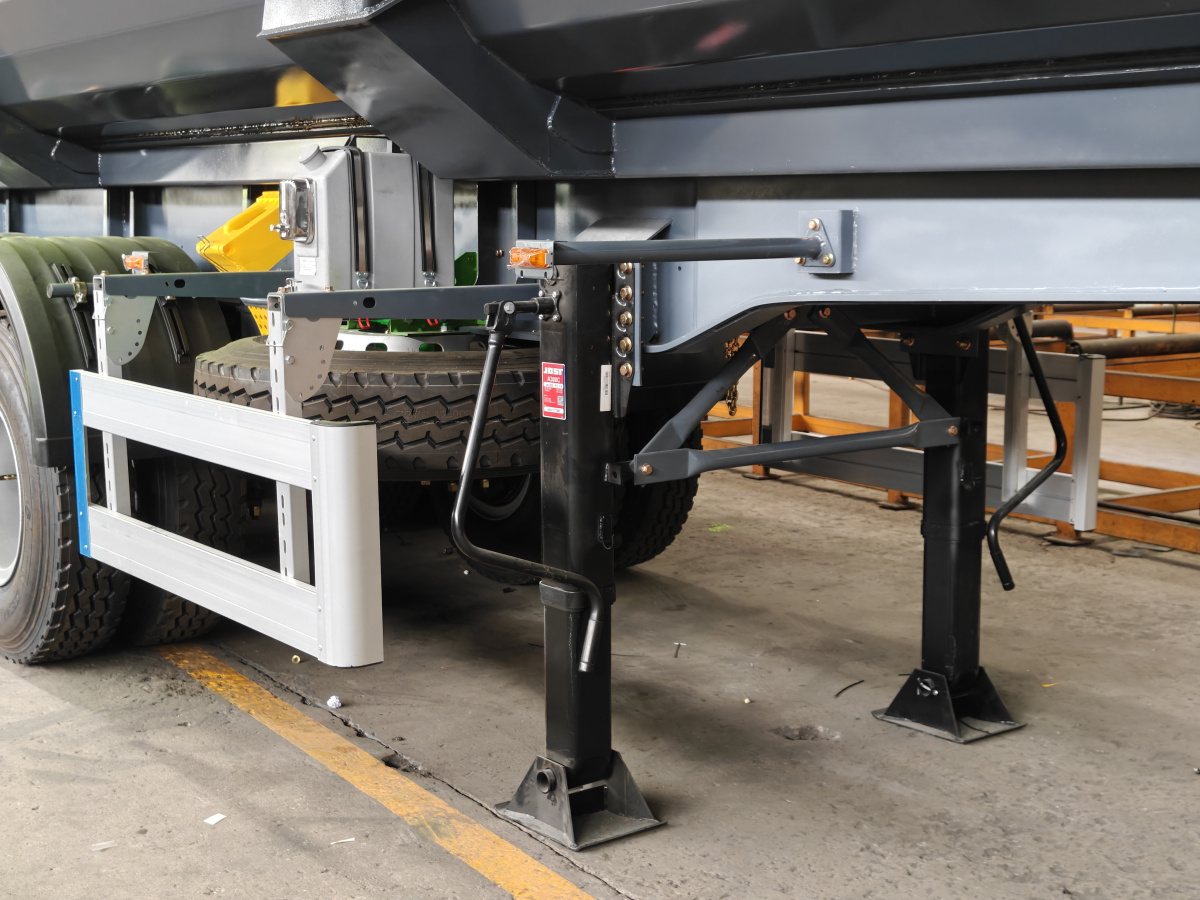

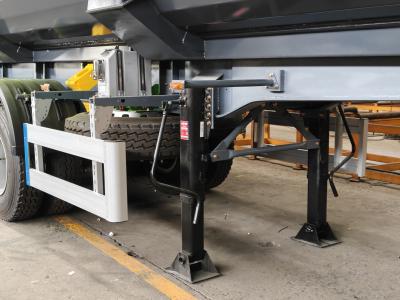

| OEM Parts | Landing Gear | 30T, Single Side Operated |
| Kingpin | JOST 3.5’’ | |

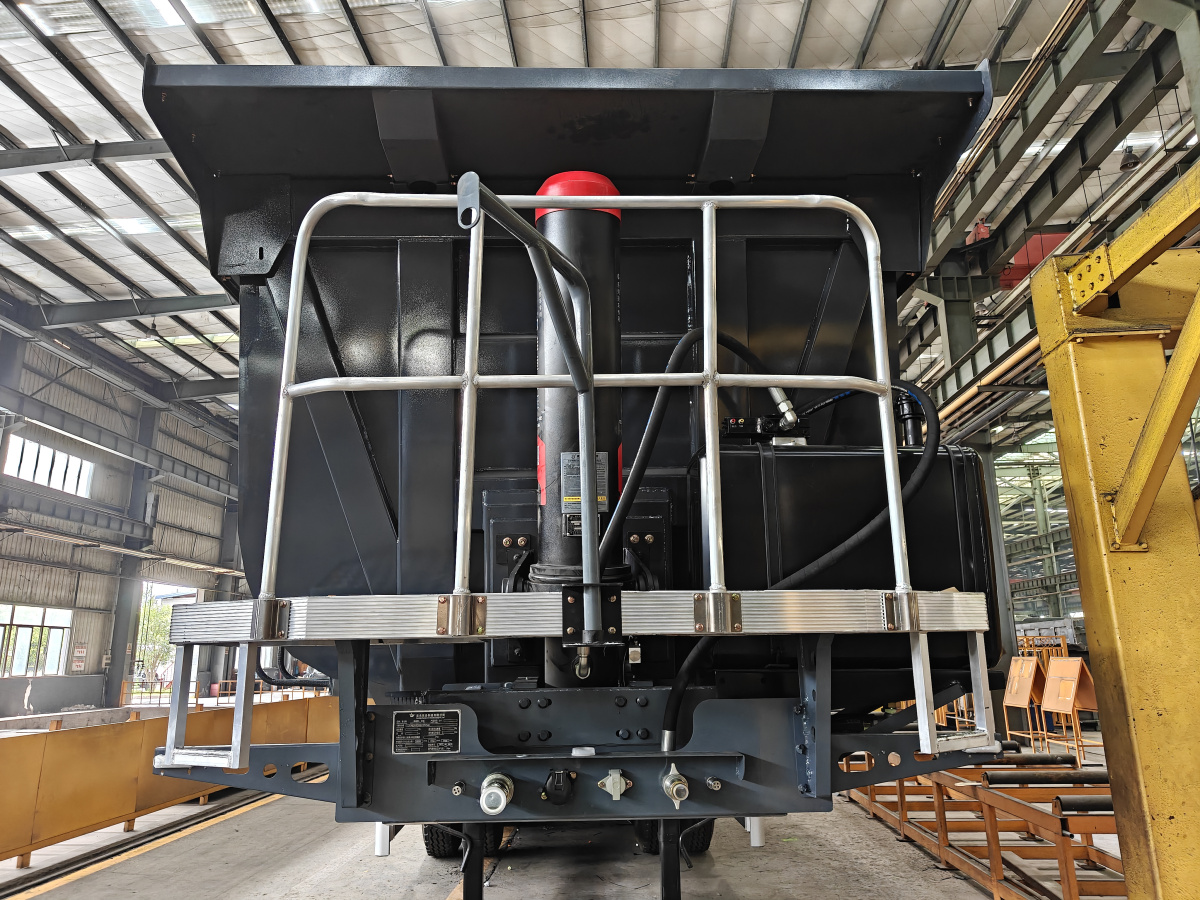

| Hydraulic System | Hyva or Binotto | |
| Brake System | Dual Lines Air Brake System, T30/30 on All Axles, WABCO Brake Valve, Without ABS | |
| Elec System | 24V ISO1185 Standard Modular Harness | |
| Suspension | 3-Axle Reinforced Heavy Duty Mechanical Suspension | |
| Leaf-Spring | 12PCS 90*16 | |
| Axle | 3*16T | |
| Tire | 13*12.00R20-18PR | |
| Rim | 13×8.5*20 | |

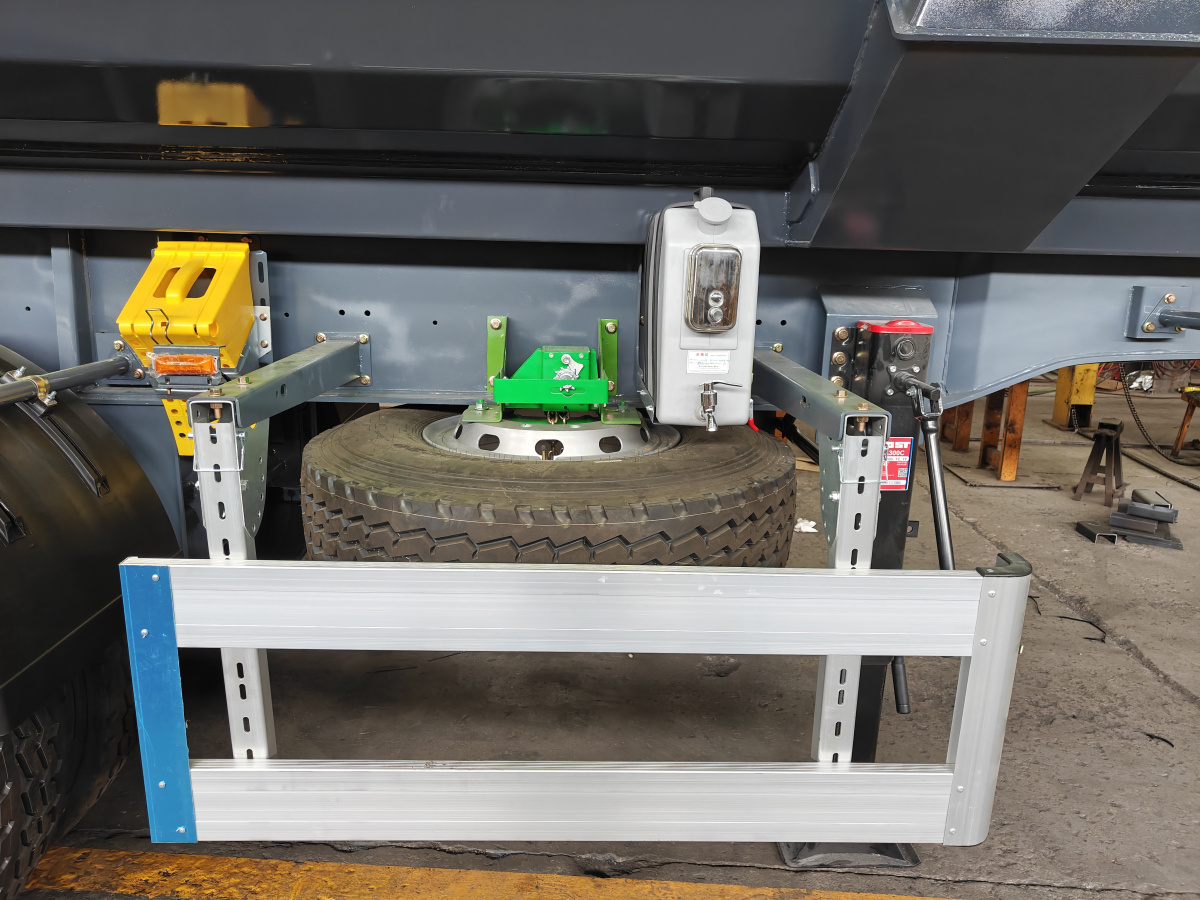

| Spare Tire Carrier | 2 Units Per Chassis | |
| Tool Box | 1 Unit Per Chassis | |
| Paint | Wear-Resistant Two-Component Paint, Color According to Customer’s Requirement | |
| Others | Standard Export Logo and Stickers | |
The powerful combination of Mongolia's mining transportation demand and POWERSTAR TRUCKS
Mongolia is rich in mineral resources, especially the mining volume of bulk commodities such as coal, copper, and gold has increased year by year. However, due to the country's vast land and sparse population and relatively weak infrastructure, mining transportation often faces challenges such as complex road conditions, long transportation distances, and large vehicle losses. Traditional transportation equipment is prone to wear and tear under long-term high-intensity operation, and the maintenance cost is high, which affects the overall operational efficiency of the mining area.
This time, Mongolian customers chose to cooperate with China's POWERSTAR TRUCKS because of its excellent quality and technical advantages in the field of heavy-duty semi-trailers. As China's leading semi-trailer manufacturer, POWERSTAR TRUCKS has won the trust of global customers with its advanced production technology, strict quality control system and mature customized services. The 45-ton three-axle dump semi-trailers purchased in batches this time are specially designed for the high-load transportation environment in Mongolian mining areas, with stronger carrying capacity, higher stability and longer service life.
The significance of the upgrade of 45-ton three-axle dump semi-trailers for mining transportation
Improve transportation efficiency and reduce operating costs
This model is made of high-strength steel, with a stable frame structure, which can easily cope with the rugged road conditions in Mongolian mining areas. The three-axle design makes the load distribution more even, reduces tire wear, and reduces fuel consumption. Compared with traditional two-axle models, the 45-ton load capacity significantly increases the single transport volume and reduces the number of round trips, thereby greatly improving transportation efficiency.
Enhanced durability and reduced maintenance costs
Mongolia has harsh climatic conditions, severe cold in winter and high temperatures in summer, and the dust in the mining area places extremely high demands on the durability of transportation equipment. POWERSTAR TRUCKS's three-axle dump trailer uses anti-corrosion coatings and wear-resistant parts, which effectively extends the service life of the vehicle and reduces the loss of downtime caused by frequent maintenance.
Automated unloading and improved operation safety
This model is equipped with a hydraulic dump system, which can achieve fast and smooth unloading operations, reduce manual intervention, and reduce operational risks. For Mongolian mining areas, this not only improves loading and unloading efficiency, but also ensures the safety of workers' operations.
Future development trends of the Mongolian market: Demand for heavy-duty dump trailers continues to grow
With the continuous deepening of Mongolia's mining development and the strengthening of China-Mongolia economic and trade cooperation under the "Belt and Road" initiative, the heavy-duty transportation equipment market will usher in a broader development space. In the future, the demand for 45-ton three-axle dump trailers in the Mongolian market is expected to show the following trends:
Increasing demand for customization
Different mining areas have different terrain, climate and transportation conditions, and customers have higher requirements for vehicle adaptability. Manufacturers with strong R&D capabilities such as POWERSTAR TRUCKS will be more popular and can provide targeted solutions.
Application of environmental protection and energy-saving technologies
In recent years, the Mongolian government has strengthened environmental protection supervision of mining transportation. In the future, dump trailers may adopt cleaner power systems (such as electric or hybrid) to reduce carbon emissions.
Intelligent upgrade
With the development of Internet of Things technology, future dump trailers may be equipped with remote monitoring, intelligent scheduling and other functions to help mining areas achieve more efficient logistics management.
