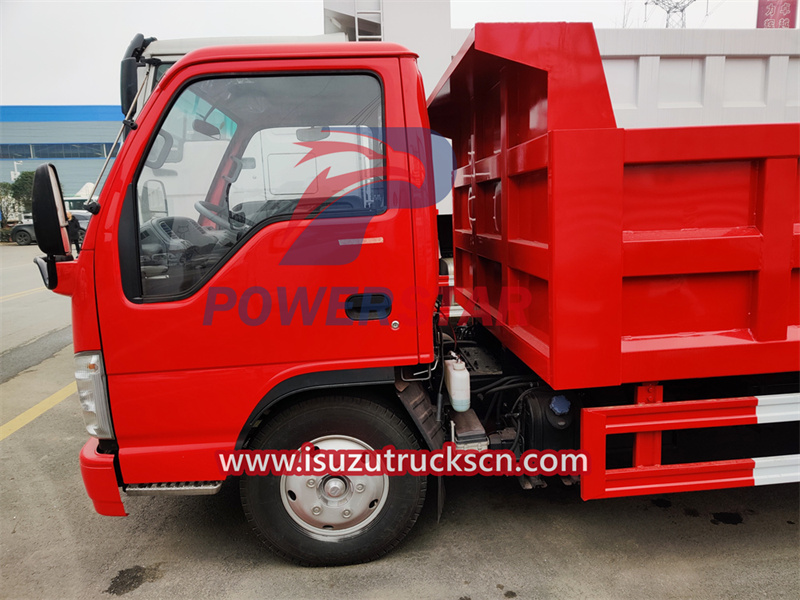

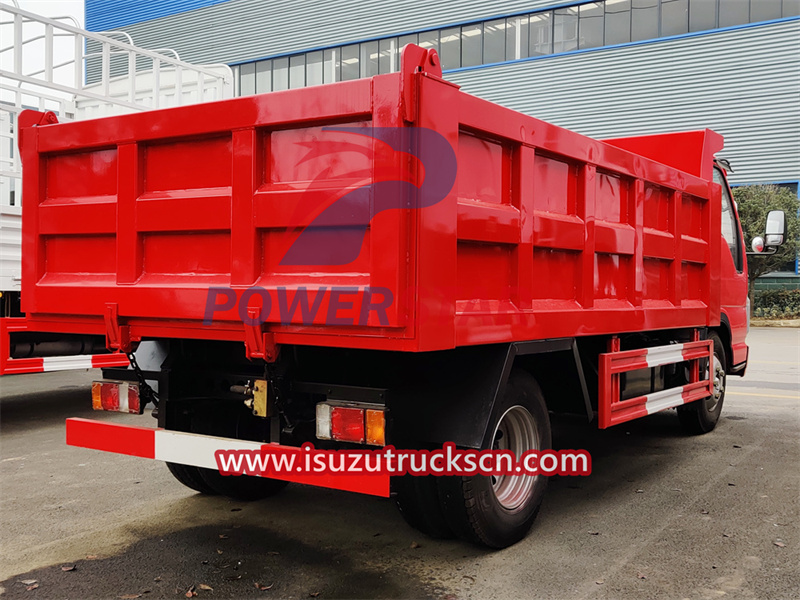

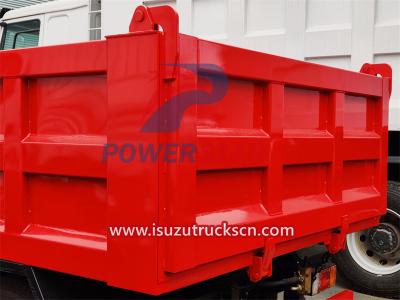

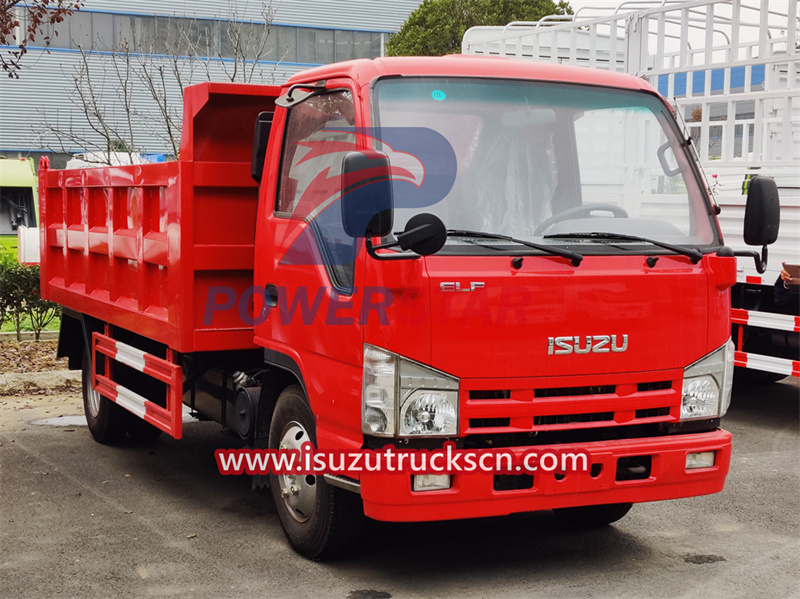

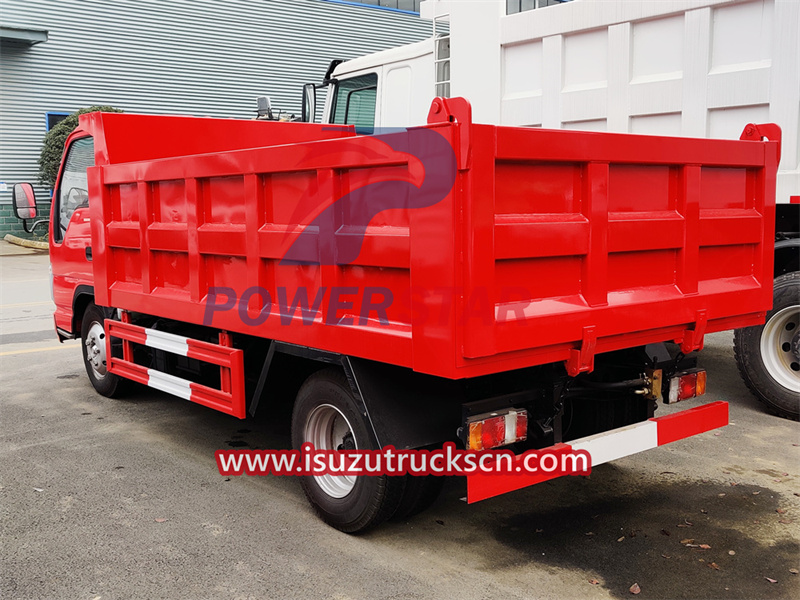

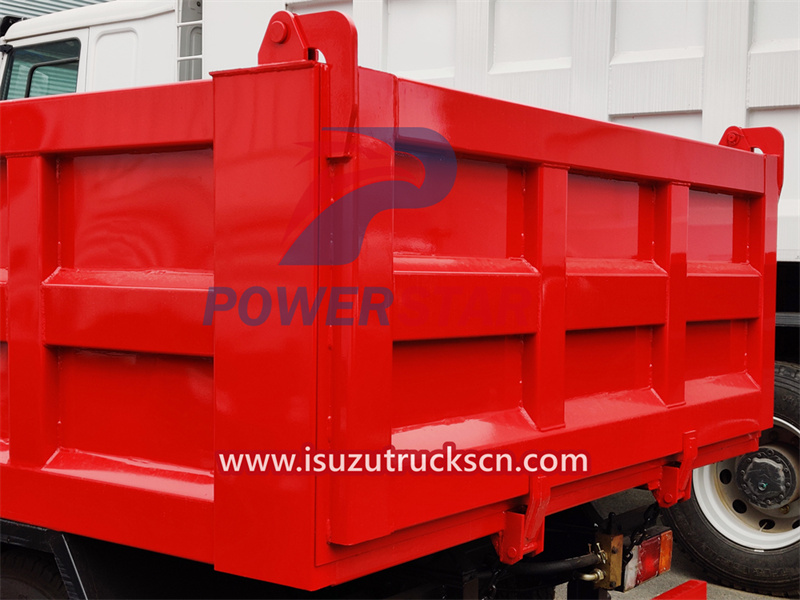

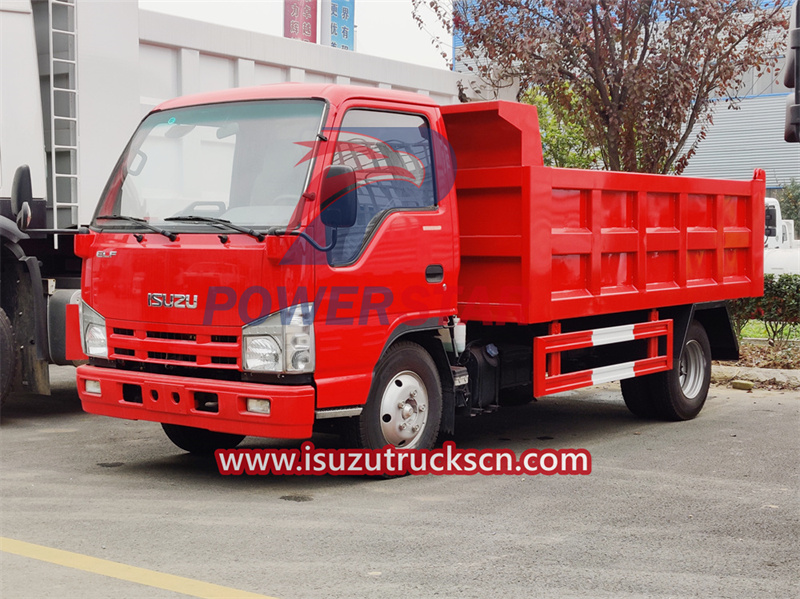

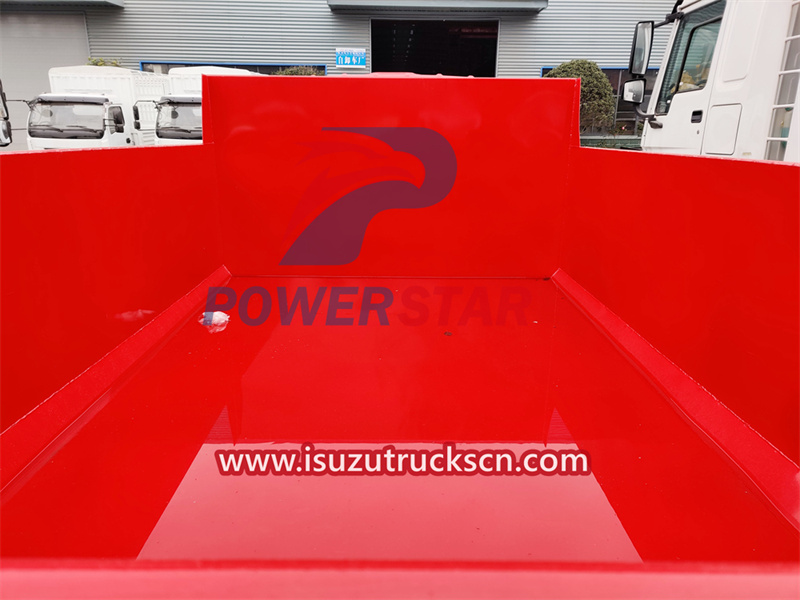

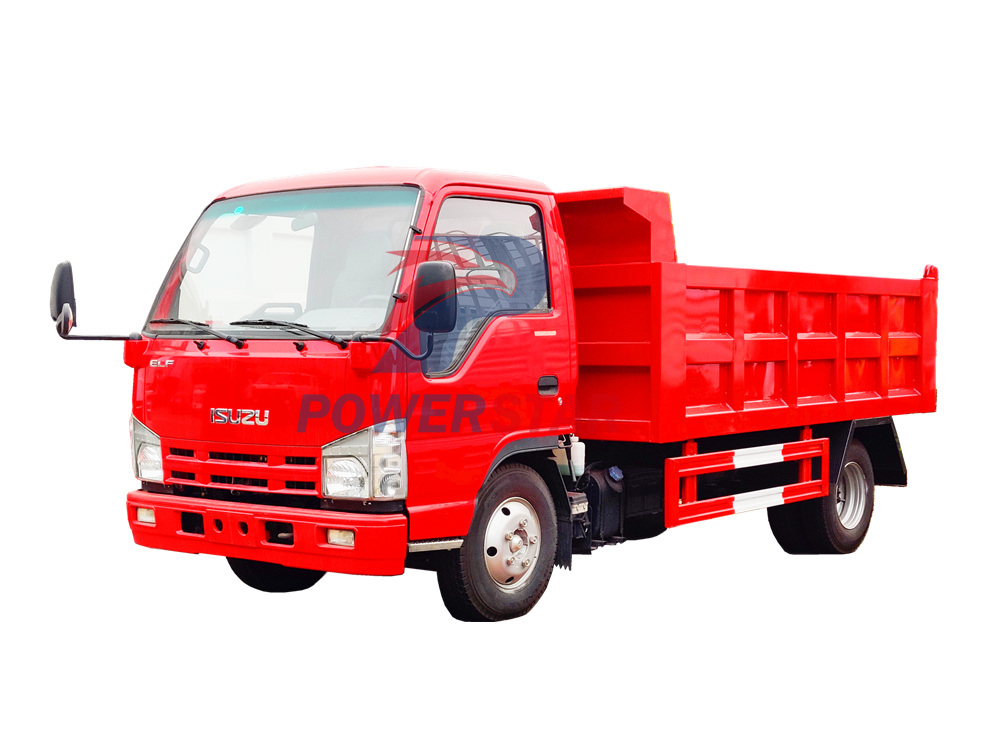

Isuzu mini heavy load dump truck is a reliable and efficient transportation tool. Powerstar uses the Isuzu NKR high-performance chassis and the cab can accommodate three people. The maximum speed can reach 90 kilometers per hour and it can climb 25% gradient. The minimum turning radius is 7.5 meters, ensuring easy turning in congested areas. Equipped with a 4KH1 engine, it adopts vertical, water-cooled, four-stroke, turbocharging and intercooling technology. The load capacity is 3-4 tons, and the cargo box is made of high-performance carbon materials. Front and side panels are 3mm thick, rear and side panels are 4mm thick. Hydraulic lift systems operate efficiently and smoothly. The truck is equipped with a central lift device that can tilt up to 45 degrees. The landing time is 20 seconds and the tailgate opening time is 15 seconds. The truck undergoes two coats of primer and a final coat of paint for durability and an attractive appearance.
Work capacity:
3-4tonsTruck model:
PST5080ZXQEngine power:
98hpEngine type:
4KH1CN5LSAxle drive:
4x2Gear box:
ISUZU MSB 5-shift ManualRemarks:
Heavy laod boxIsuzu mini heavy load dump truck should have a reasonable body design and a simple and beautiful appearance. The vehicle body is compact and moderate in size, making it suitable for narrow urban roads. Use high-strength, lightweight materials to improve safety, energy conservation and environmental protection. Equipped with an efficient and energy-saving power system, it makes full use of electrification technology to reduce energy consumption and emissions, while having powerful power output and torque. It has a good suspension system and fixing devices and can carry all kinds of goods stably. The cabin is spacious and comfortable, equipped with humanized driving seats and operating equipment to reduce driving fatigue and improve work efficiency. Isuzu mini heavy load dump truck combines features such as reasonable design, energy saving and environmental protection, intelligence, stability, and comfort to meet the needs of various work scenarios and improve work efficiency and production quality.
Technical Parameters:
Description |
ISUZU Mini Cabin Dump Truck |
|
Item |
Powerstar dump truck |
|
Model |
Isuzu NKR |
|
Cabin |
Isuzu single cabin |
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
5800*2350*2380 mm |
Dimensions of dump body (L*W*H)mm |
3100*2250*1800 mm |
|
Driving type |
Left/Right hand drive 4×2 |
|
Wheel base |
3360 |
|
Weight data |
Curb weight (kg) |
2800 |
Rated payload(kg) |
4000 |
|
Person in cab (persons) |
3 |
|
whole vehicle main |
Max.speed(km/h) |
90 |
Max.slope of climb(%) |
25 |
|
Min.turning radius (m) |
7.5 |
|
Engine |
Engine model |
4KH1CN5LS |
Engine type |
Vertical, water-cooled, four-stroke, |
|
Emission standard |
Euro5 |
|
Displacement (L) |
2.99L |
|
Rated power (KW) |
98 hp |
|
Max torque (N.m/rpm) |
220N.M/ 1900-2100 r/min |
|
Steering gear type |
Power steering |
|
Brake system |
Service brake and boosting type |
Air brake |
Parking brake |
Central drum brake |
|
Auxiliary brake |
Air brake |
|
Tyre size |
700R16 |
|
Electric system |
Rated voltage |
24V |
Battery |
100Ah |
|
Dump Performance |
Loading Capacity |
3-4 tons |
Body Material |
High performance carbon |
|
Plate Thickness |
Front/Side are 3mm |
|
Control System |
Rear/Side are 4mm |
|
Hydraulic Lifting |
Hydraulic |
|
Discharging System |
Middle lifting device |
|
Lifting Time |
Tipping 45 degree |
|
Lowering Time |
20 s |
|
Tailgate |
15 s |
|
Drop side |
Auto release |
|
Painting |
Detachable |
|
Color & Logo |
Two primers,and one final paint coating |
|
Loading Capacity |
According to wish |
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
The scenarios where Isuzu mini heavy load dump truck can be used are as follows:
1. Construction site: used to transport construction materials, such as sand, bricks, cement, etc.
2. Agricultural field: used to transport crops, feed, pesticides and other agricultural supplies.
3. Garbage disposal: used to transport garbage or waste to garbage treatment plants or landfills.
4. Iron ore and coal mine transportation: used to transport mineral resources such as ore and coal.
5. Municipal engineering: used to transport land, sand, construction waste, etc.
6. Waste transportation: used to remove and transport waste from engineering sites, excavation sites or building ruins.
7. Cement mixing station: used to transport concrete materials to the construction site.
8. Ports and terminals: used to transport goods to the terminal and perform loading and unloading operations.
9. Logistics distribution: used for urban logistics distribution, such as transporting goods to stores, supermarkets, etc.
