New or used 2025 6HK1-TCG61 QL1180EQFRY GIGA FVR Garbage Compactor 16 CBM ISUZU ( Isuzu Giga 16cbm refuse compactor truck, 16CBM Isuzu FVR waste collection truck,12tons compactor garbage truck, 14CBM garbage truck, Isuzu Giga rubbish truck，Isuzu FVR 6HK1 engine compressed Garbage truck, garbage compactor truck, compression garbage truck, ) Designed to collect and transport municipal solid waste, high compression ratio, greatly improve garbage collection efficiency.
Work capacity:
16CBMEngine power:
240 HPEngine type:
ISUZU 6HK1-TCAxle drive:
4x2Gear box:
FAST 8-shiftRemarks:
Bucket lifting system optional6HK1-TCG61 QL1180EQFRY GIGA FVR heavy rear loader 16 CBM ISUZU, (also named Isuzu QL1180EQFRY GIGA garbage compactor 16cbm, or Isuzu FVR chassis cab 16m3 refuse compctor vehicle) made by Isuzu powerstar trucks, is a best-selling model in the market with multiple advantages and adaptability. When purchasing, it is recommended to comprehensively consider factors such as brand, configuration, price and after-sales service according to actual needs. :
● 30 years experience on ISUZU rear loader truck designing

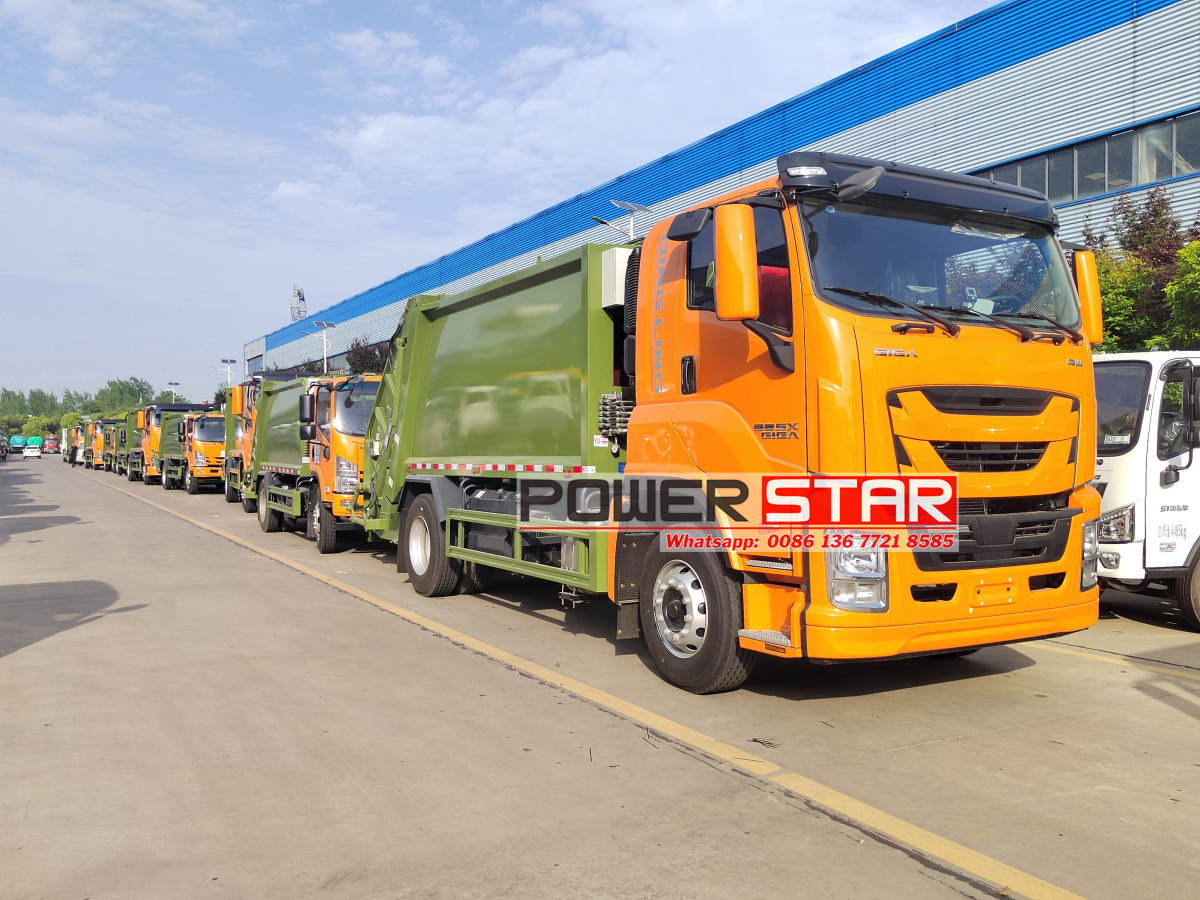

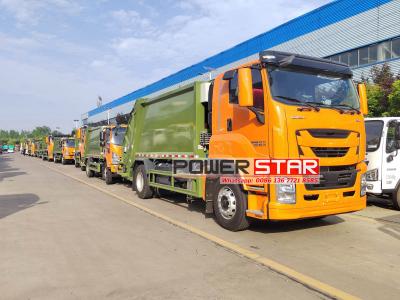

● 50 units Isuzu refuse compactors in stock
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo

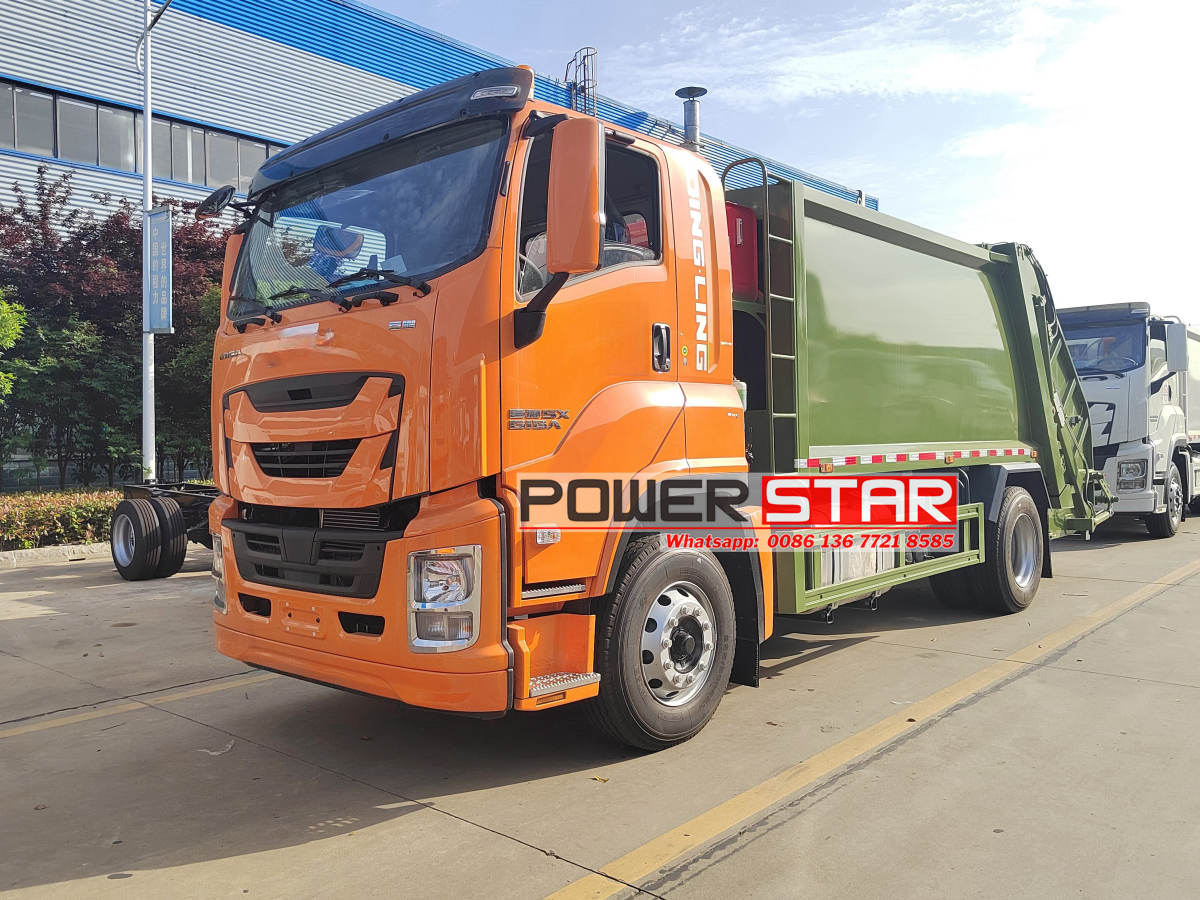

ISUZU GIGA 5X cab chassis with 6HK1-TCG61 Engine, 4500mm wheelbase

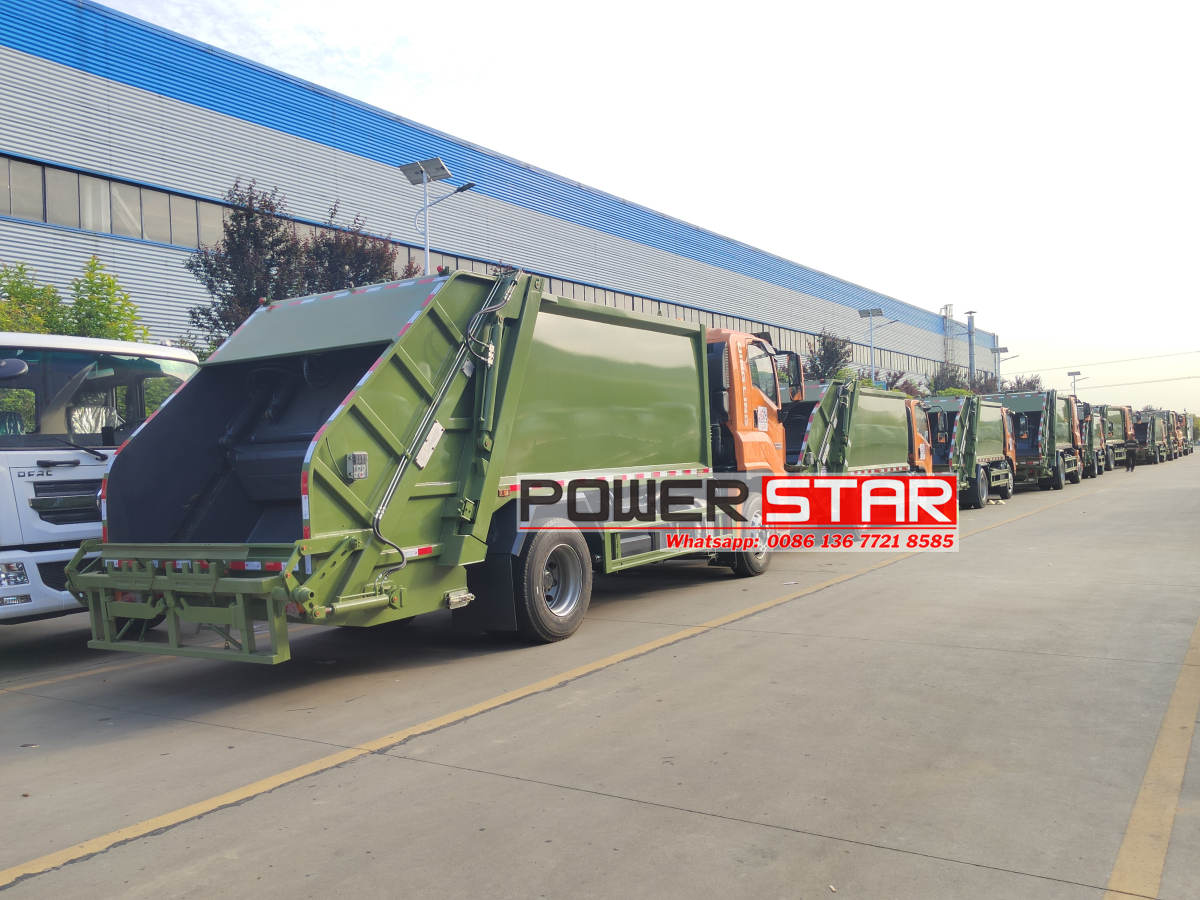

1. 6HK1-TCG61 GIGA FVR heavy rear loader 16 CBM ISUZU
Brand and manufacturer: Powerstar trucks, produced by manufacturer Isuzu powerstar trucks.
Features:
Large volume, large loading capacity, suitable for large garbage collection tasks.
The whole vehicle is fully sealed, with advantages such as high compression ratio, high pressure, good sealing and good environmental protection.
The box body is made of high-strength manganese steel plate, and the full welding process ensures the strength and durability of the box body.
Equipped with advanced hydraulic system, it is easy to operate and has high compression efficiency.
Optional wireless remote control can be installed to realize remote operation and improve work efficiency.
Optional configurations such as flip board, triangle bucket, etc. can be installed to meet different usage needs.
2. Analysis of the reasons for best-selling
The main reasons why 6HK1-TCG61 GIGA FVR heavy rear loader 16 CBM ISUZU is popular in the market include:
Strong adaptability: suitable for various garbage collection scenarios, such as urban streets, communities, parks, etc.
High efficiency: high compression ratio and powerful power system ensure fast and effective garbage collection and treatment.
Good environmental protection: fully sealed design and advanced sewage treatment system reduce secondary pollution.
Low maintenance cost: made of high-quality materials and advanced technology to ensure vehicle durability and reduce maintenance costs.
3. Purchase suggestions
When purchasing 6HK1-TCG61 GIGA FVR heavy rear loader 16 CBM ISUZU, it is recommended to consider the following factors:
Brand and manufacturer: choose well-known brands and manufacturers to ensure product quality and after-sales service.
Vehicle configuration: select appropriate configuration according to actual needs, such as power system, hydraulic system, flip mechanism, etc.
Price and cost-effectiveness: comprehensively consider factors such as price, performance, configuration, etc., and choose a model with high cost-effectiveness.
After-sales service: Understand the manufacturer's after-sales service policy and service network to ensure timely and effective support during use.
Our Philippines client run a garbage collection station, because of the increase in business volume, he decided to purchase 10 sets Isuzu giga 16cbm compression garbage truck. After comparing several Chinese suppliers, he decided to order the garbage truck from our company. Considering the maintenance of accessories, the customer decided to choose this ISUZU GIGA garbage truck, 16CBM garbage container, 240HP engine, high compression ratio 5:1, greatly improve garbage collection efficiency.
We are professional Sanitation truck manufacturers:
garbage truck volume: 3CBM, 6CBM, 9CBM, 12-16CBM, 18-20CBM, 30CBM
Optional compression ratio: 3:1 or 5:1
garbage loading style: compressed Garbage truck, side loading garbage truck, rear loader garbage truck, skip loader garbage truck, hook arm garbage collector
Specifications of 6HK1-TCG61 GIGA FVR Garbage Compactor 16 CBM ISUZU:
| Cabin | Driving type 4x2 LHD ISUZU GIGA 5X standard Cab, with A/C and two seats, one bed, 70°hydraulically tillable to the front as attached photo for ref. |
|
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10550×2550×3500 |
| Wheel base (mm) | 4500 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Weight in KGS | Tare Weight | 8900 |
| Payload | 10000 | |
| Front axles loading capacity | 6300 | |
| Rear axles loading capacity | 13000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | ISUZU |
| Model | 6HK1-TCG61 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 240 HP | |
| Emission standard | Euro 5/6 | |
| Gearbox | FAST, 8-speed forward and 2-reverse | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering | ZF8098, power steering, hydraulic steering with power assistance | |
| Oil tank | 400 L | |
| Tire | 10.00R20 tubeless tire, 11pcs including one spare tire | |
Specialized Device
| Refuse compactor structure parameters | |||
| Equipment | |||
| Structure | Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems | ||
| Modes of the pressing | Manual, semi-automatic, automatic, lifting rear part operation manual, loading, pushing, pressing, pushing out automatic | ||
| Body | |||
| Version | All-metal | Shape | Arc-shaped |
| Sidewalls/Bottom/Roof | Sheet carbon steel (thickness : 4mm) | ||
| Front frame | Sheet carbonaceous steel (thickness : 5mm) | ||
| Rear frame | Shaped profile from sheet carbon steel (thickness : 5mm) | ||
| Basis | 120x120mm (thickness : 5mm) | ||
| Loading bunker | |||
| Working zone Lighting | 2 lamps | Mechanism of raising | Two hydraulic cylinders |
| Loading bunker | All-metal with sidewalls and a loading ladle | ||
| Sidewalls/Ladle floor material | Sheet carbon steel (thickness : 3/4mm) | ||
| Ensuring tightness | Between the body and lifting back part in the lower part profile acid-proof rubber is used. | ||
| Pressing system | |||
| Pressure | 25 Mpa | Compaction ratio | 3.0 : 1 |
| Loading cycle | 25-30 second | Unloading cycle | 15-20 second |
| Features | Control mode diversification, bidirectional compression | ||
| Pressing mechanism | The giving plate and hinge related pressing plate moving on two directing bars | ||
| Pressing mode | Automatic pressing(1 full cycle and continuous pressing) and controlling of each cycle of pressing separately | ||

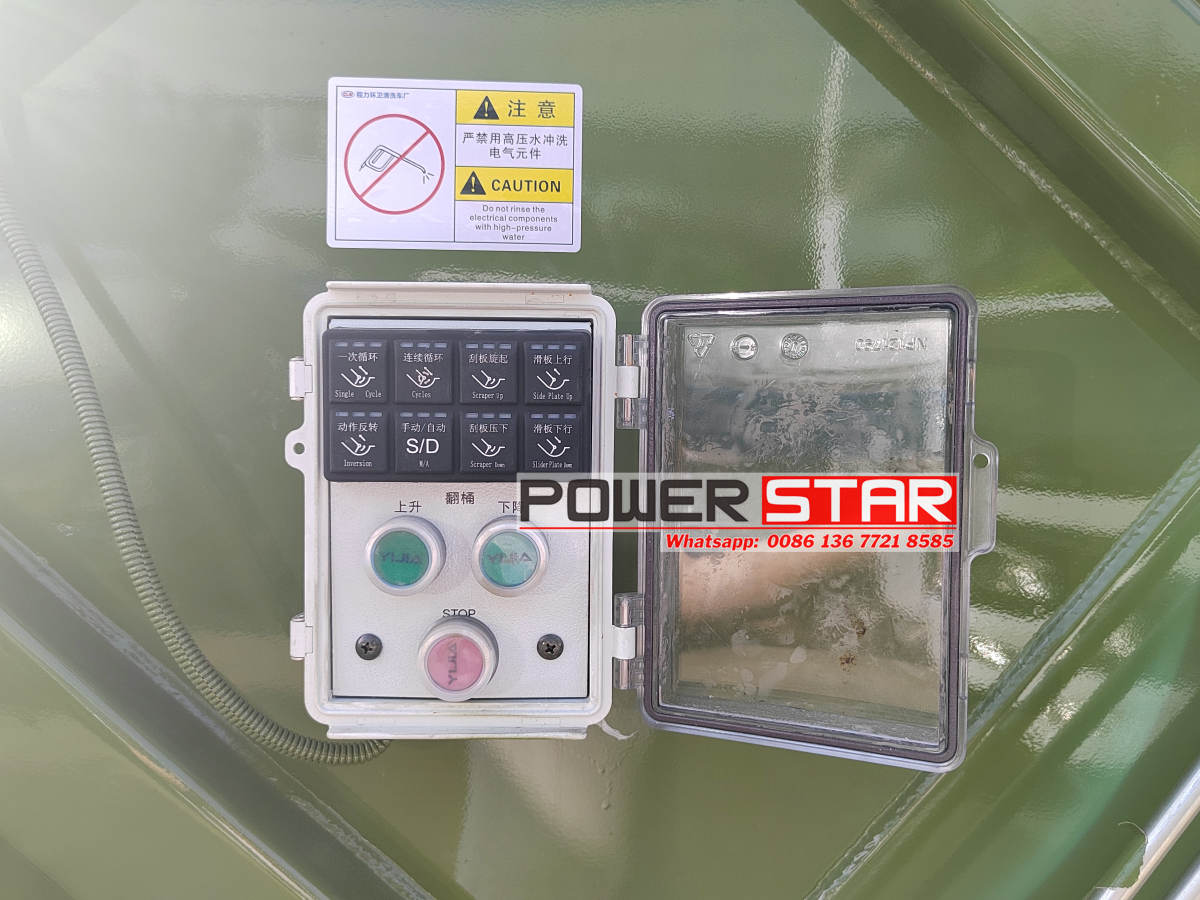

| Control of pressing | Control from the external panel on the bunker | ||

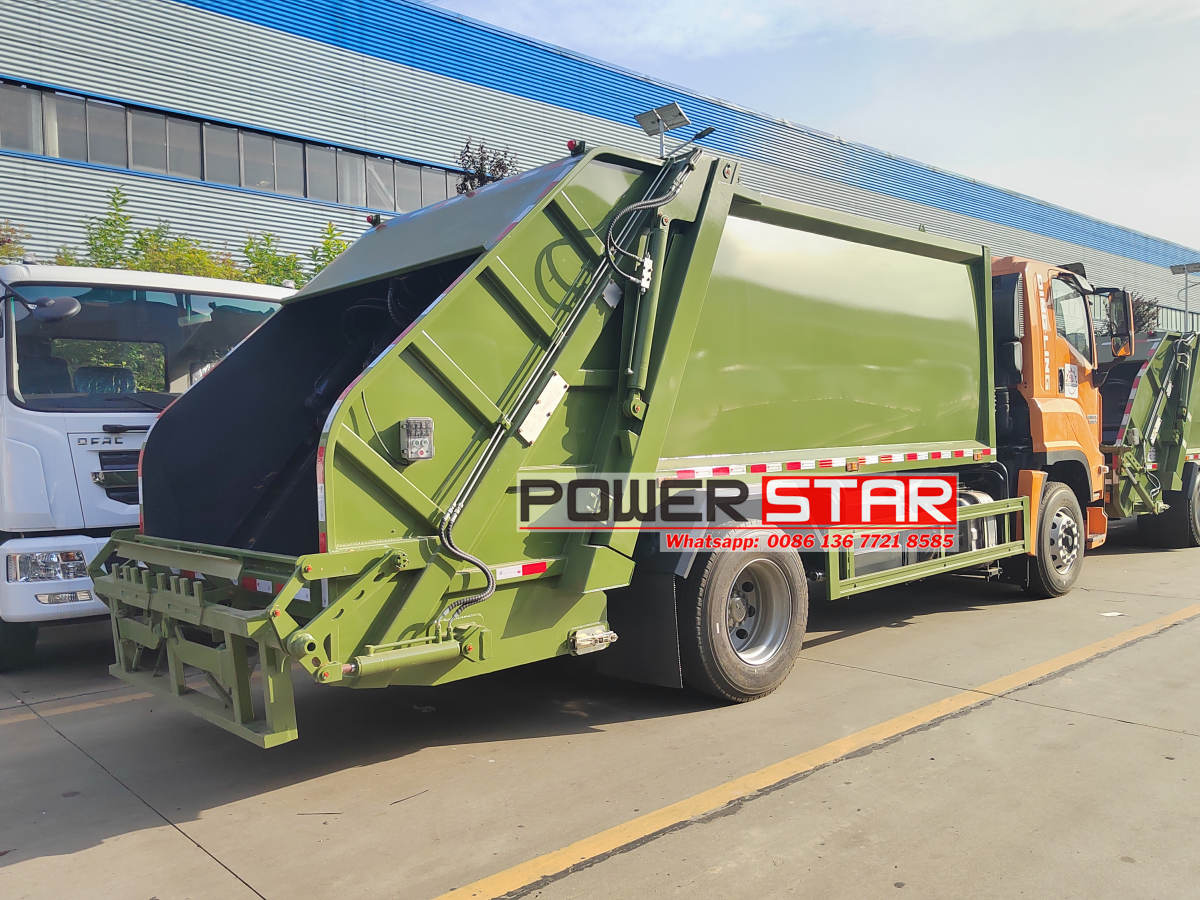

| Lifting rear part | |||
| Mechanism of lifting | Two hydraulic cylinders | ||

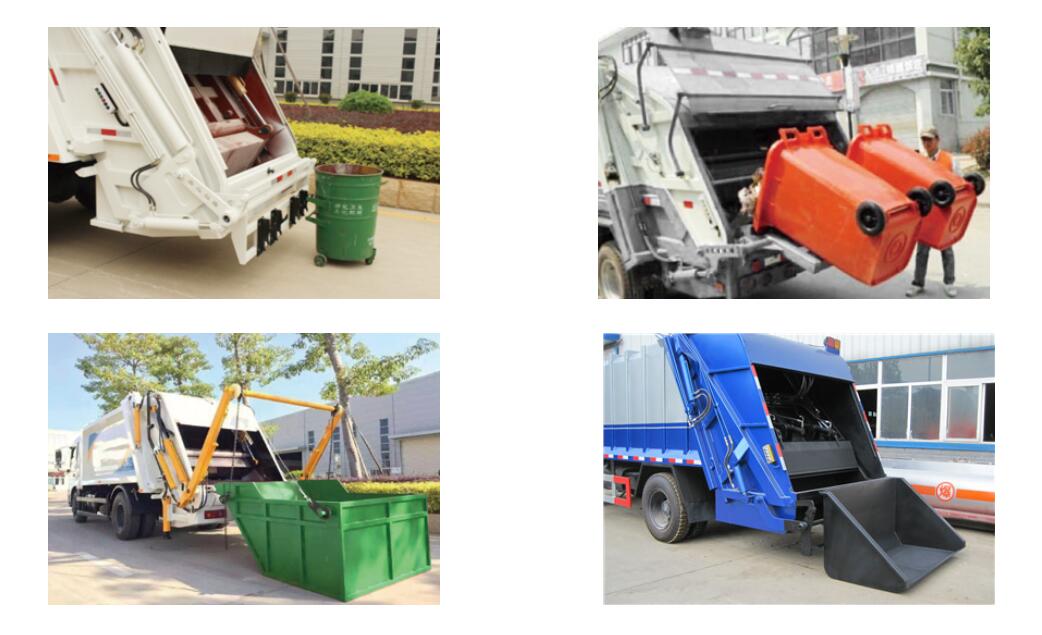

| Function description | Suitable for various rubbish bins | ||
| Others | |||
| Color and logo | Optional | ||
| Standard configuration | Chassis, arc-shaped body, sub frame, rear lifting part, loading bunker, pushing-out plate, hydraulic system, pressing system, sewage tank, climbing ladder, pneumatic control. | ||
| Selective configuration |
PLC electric automatic control, multifunctional rear lifting part, rear handrail and footplate, other shapes of body, rear swing arm, and etc. |
||
Importance of heavy rear loader 16 CBM ISUZU Safety:
Safety for the heavy rear loader 16 CBM ISUZU is paramount for organizations relying on such machinery for excavation, grading, and material handling. These vehicles, due to their size, weight, and power, pose significant risks if proper safety measures are neglected. Accidents can result in severe injuries, fatalities, property damage, and costly operational disruptions. Thus, emphasizing safety for the heavy rear loader 16 CBM ISUZU and implementing a thorough safety checklist is vital for worker protection and operational efficiency.
Safety Checklist for the heavy rear loader 16 CBM ISUZU:
To mitigate risks and foster safe operations of the heavy rear loader 16 CBM ISUZU, consider the following safety checklist:
Pre-Operational Inspection:
Utilize the inspection checklist to confirm the heavy rear loader 16 CBM ISUZU is in good working condition.
Regularly check fluid levels (fuel, hydraulic oil, engine oil, coolant) as part of maintenance routines.
Inspect tires for wear, damage, and proper inflation to avoid accidents.
Test brakes, steering, and hydraulic controls for functionality, adhering to safety guidelines.
Verify the integrity of roll-over and falling object protective structures for operator safety.
Ensure all safety devices, such as seat belts, horns, and backup alarms, are operational.
Clean windows, mirrors, and lights for optimal visibility.
Operator Training and Certification:
Ensure operators are trained and certified for the specific heavy rear loader 16 CBM ISUZU model, emphasizing safety.
Provide regular refresher training and evaluations to maintain safety standards.
Educate operators on load capacities, stability limits, and safe operating techniques.
Work Area Evaluation:
Identify and mark potential hazards like overhead power lines and underground utilities.
Ensure adequate clearance and stability for the heavy rear loader 16 CBM ISUZU’s path.
Establish and communicate a safe working radius.
Maintain clear sightlines and use spotters in areas of limited visibility.
Safe Loading and Unloading Practices:
Position the heavy rear loader 16 CBM ISUZU on level ground when lifting or lowering loads.
Use recommended lifting points and secure loads properly.
Keep loads close to the ground during transport.
Avoid overloading or exceeding the loader's rated capacity.
Ensure the loading/unloading area is clear of personnel.
Proper Operating Techniques:
Always wear seat belts while operating the heavy rear loader 16 CBM ISUZU.
Maintain safe speeds and avoid sudden movements.
Travel with the bucket in the lowest position possible.
Use caution on slopes or uneven terrain.
Never allow passengers unless the loader is designed for it.
Communication Protocols:
Establish clear communication between the operator and ground personnel.
Use standard hand signals or two-way radios for communication.
Ensure all workers understand the communication methods and signals used.
Standard Operating Procedures (SOP):
Developing SOPs for the heavy rear loader 16 CBM ISUZU is crucial for consistency and safety. SOPs should include:
Pre-operational inspections and maintenance schedules.
Proper startup and shutdown procedures.
Load handling and transport techniques.
Refueling protocols.
Emergency response and incident reporting.
Regularly update SOPs to align with industry practices and regulatory compliance.
Preventive Maintenance for the heavy rear loader 16 CBM ISUZU:
A robust preventive maintenance program is essential for equipment safety. Tasks should include:
Lubrication, oil changes, and filter replacements.
Tire inspections and replacements.
Hydraulic system checks and repairs.
Electrical system inspections.
Wear part replacements and structural integrity checks.
By adhering to this preventive maintenance regimen, organizations can minimize downtime, extend the loader’s lifespan, and create a safer work environment.
