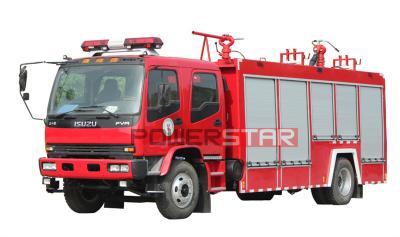

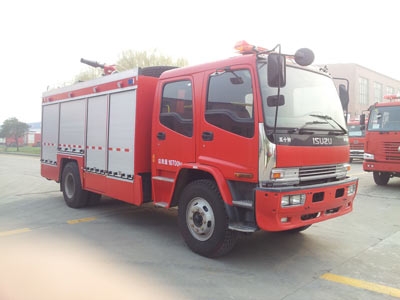

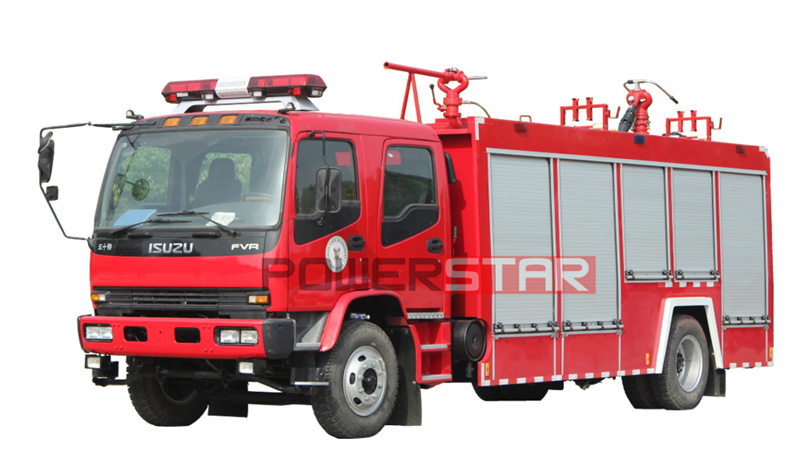

5000-6000L 4*2 ISUZU FVR foam fire truck specifications,Isuzu brand new fire fighting engine,fire truck specifications,6HK1-TCSG40 206KW FVR Fire fighting vehicle
Order(MOQ):
1Work capacity:
6000 LitersEngine power:
240 HpEngine type:
Isuzu 6HK1-TCGAxle drive:
4x2Gear box:
MLD 6 shiftRemarks:
4x4 drive avaiable6HK1-TCSG40 206KW FVR Fire fighting vehicle
Engine Specifications
Powered by a 6HK1-TCG turbocharged diesel engine, it delivers 190 hp at 2,500 rpm and generates 617 Nm of torque. The 5.2L inline-4 cylinder configuration meets Euro V emission standards for reduced environmental impact.
Chassis Design
Features a reinforced ladder-type frame with 8×4 drive configuration, providing 16,000 kg GVW capacity. The wheelbase measures 4,800 mm, optimized for urban maneuverability while maintaining structural rigidity.
Fire Pump System
Equipped with a single-stage centrifugal pump rated at 3,600 L/min flow capacity. Operates at 1.0 MPa standard pressure with a maximum suction lift of 7 meters through 125 mm diameter ports.
Foam Proportioning
Integrated 3%–6% adjustable foam induction system using a balanced pressure proportioner. Includes 2,000L water tank and 500L foam concentrate tank with automatic mixing controls.
Monitor Specifications
Roof-mounted fire monitor achieves 70-meter water jet range and 55-meter foam projection. Features 340° horizontal rotation and +45° to -15° vertical articulation via electronic joystick control.
Cabin Configuration
Ergonomic crew cab seats 6 firefighters with SCBA compartments. Includes thermal imaging camera mounts, integrated communication system, and rollover protection structure (ROPS) certified to ISO 3471 standards.
| Name | Foam Fire Vehicle | Water Tank Fire Vehicle | |
| Model | PM40W | SG40W | |
| Chassis Model | Isuzu FVR34J2 | ||
| Engine Type and Power | 6HK1-TC, 191KW | ||
| Max. Speed(km/h) | 90km/h | ||
| Overall Size(mm) | 8050×2500×3470 | ||
| Number Of Seats | Original cab 2; independent crew compartment 7 | ||
| Max Weight(kg) | ≤ 15000 | ||
| Fire-extinguishing Agents |
Total Weight(kg) | 4000 | |
| Water(kg) | 2000 | 4000 | |
| Foam(L) | 2000 | ||
| Fire Pump | Model | Rosenbauer NH30 high and normal pressure fire pump | |
| Pressure:Low voltage/High | 1.0/4.0 | ||
| Flow Rate:Low voltage/High | 3000/400 | ||
| Fire Monitor | Type | PL24-48(adjustable foam-water cannon) | |
| Rate(L/s) | 48L/S | ||
| Throw Range(m) | Water≥55，Foam≥50 | ||
