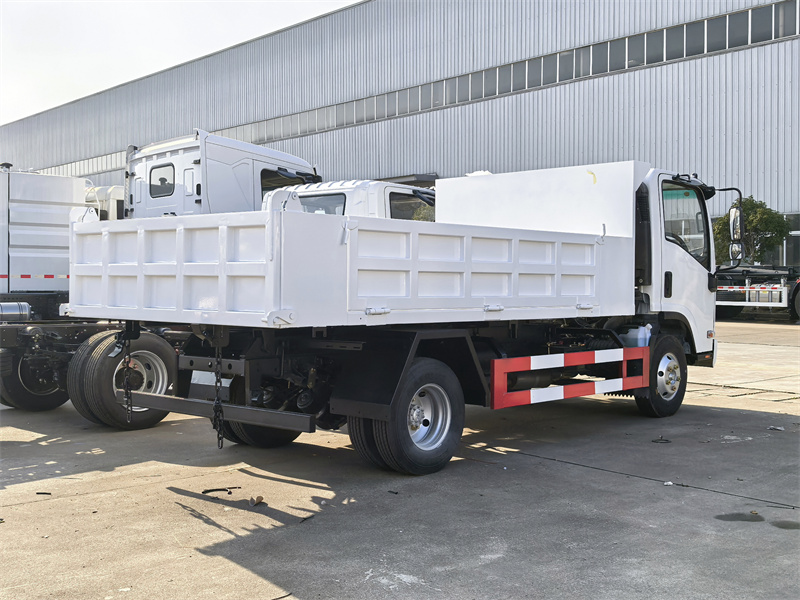

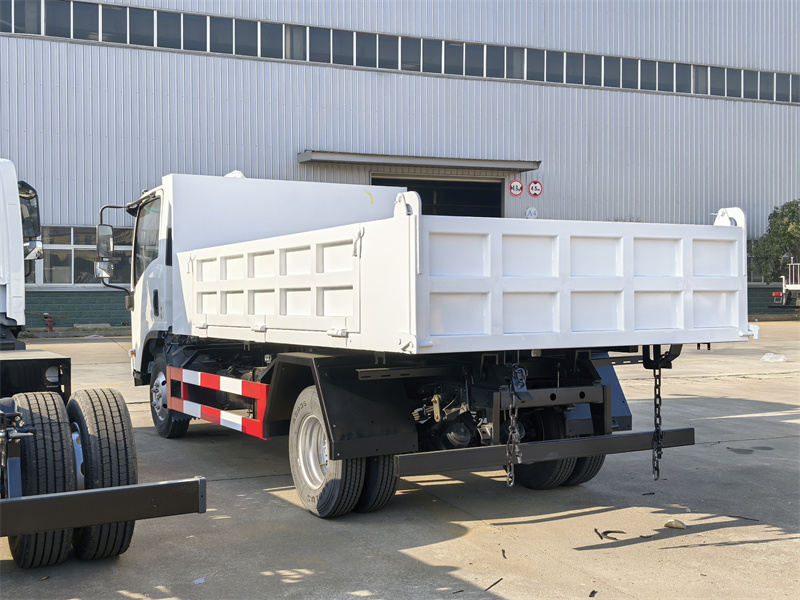

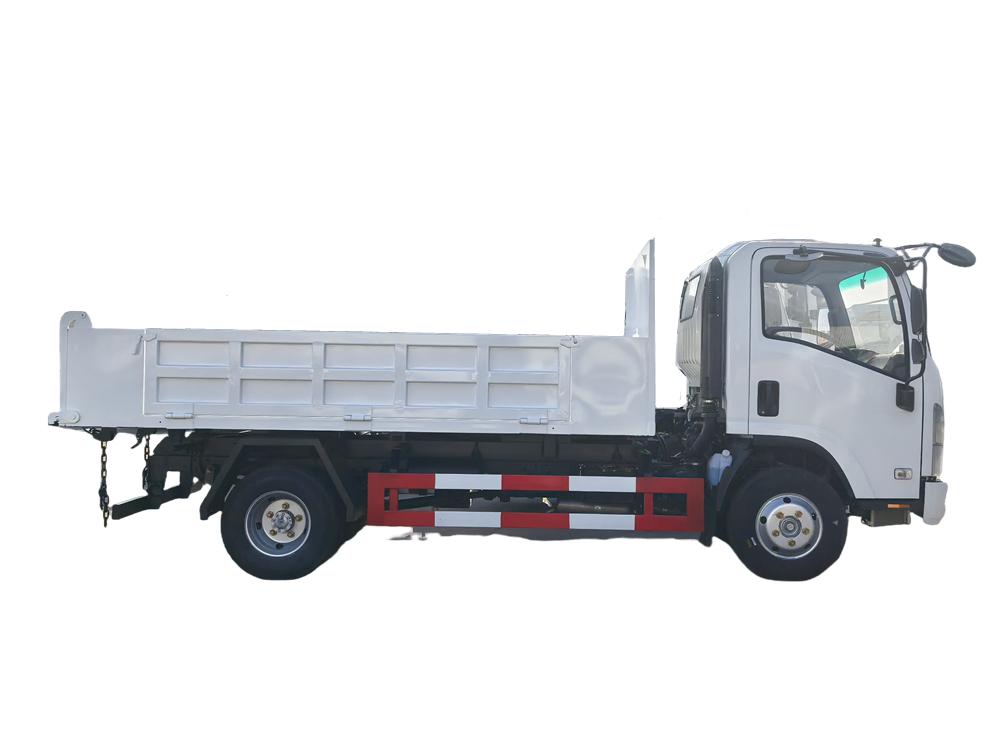

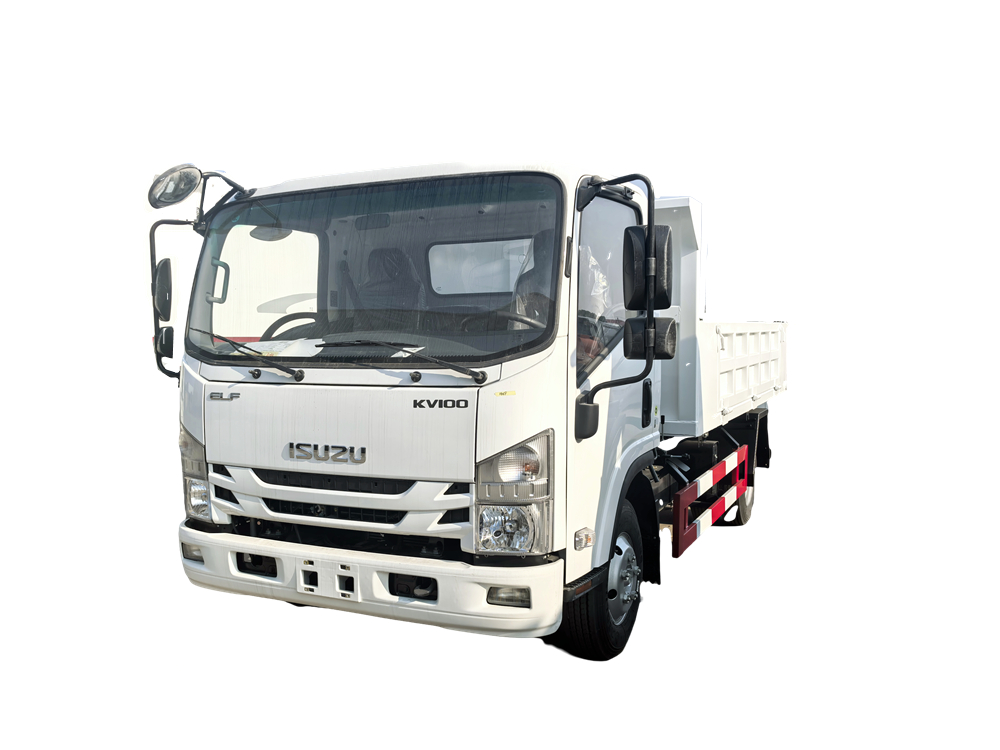

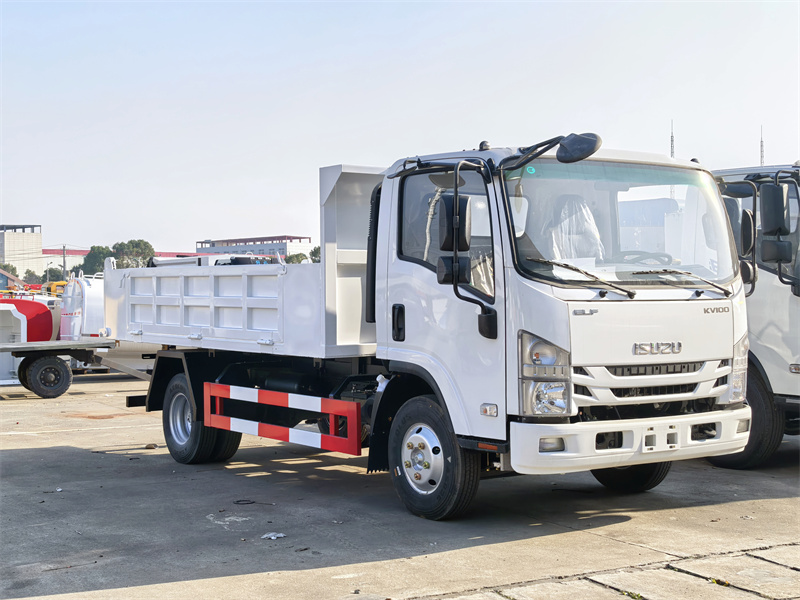

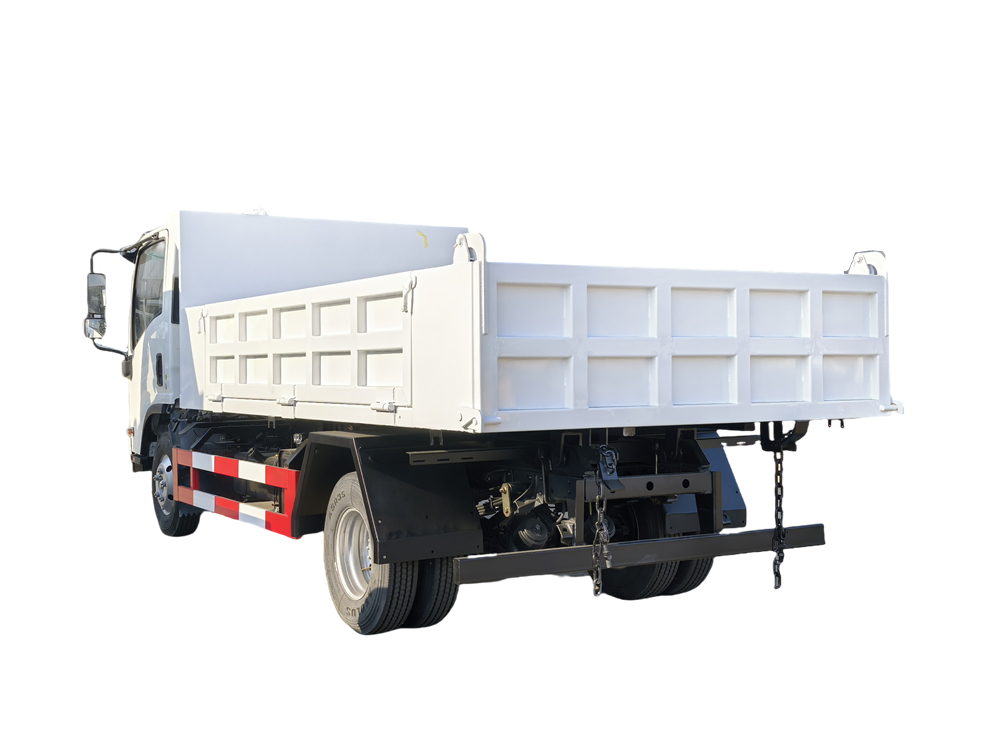

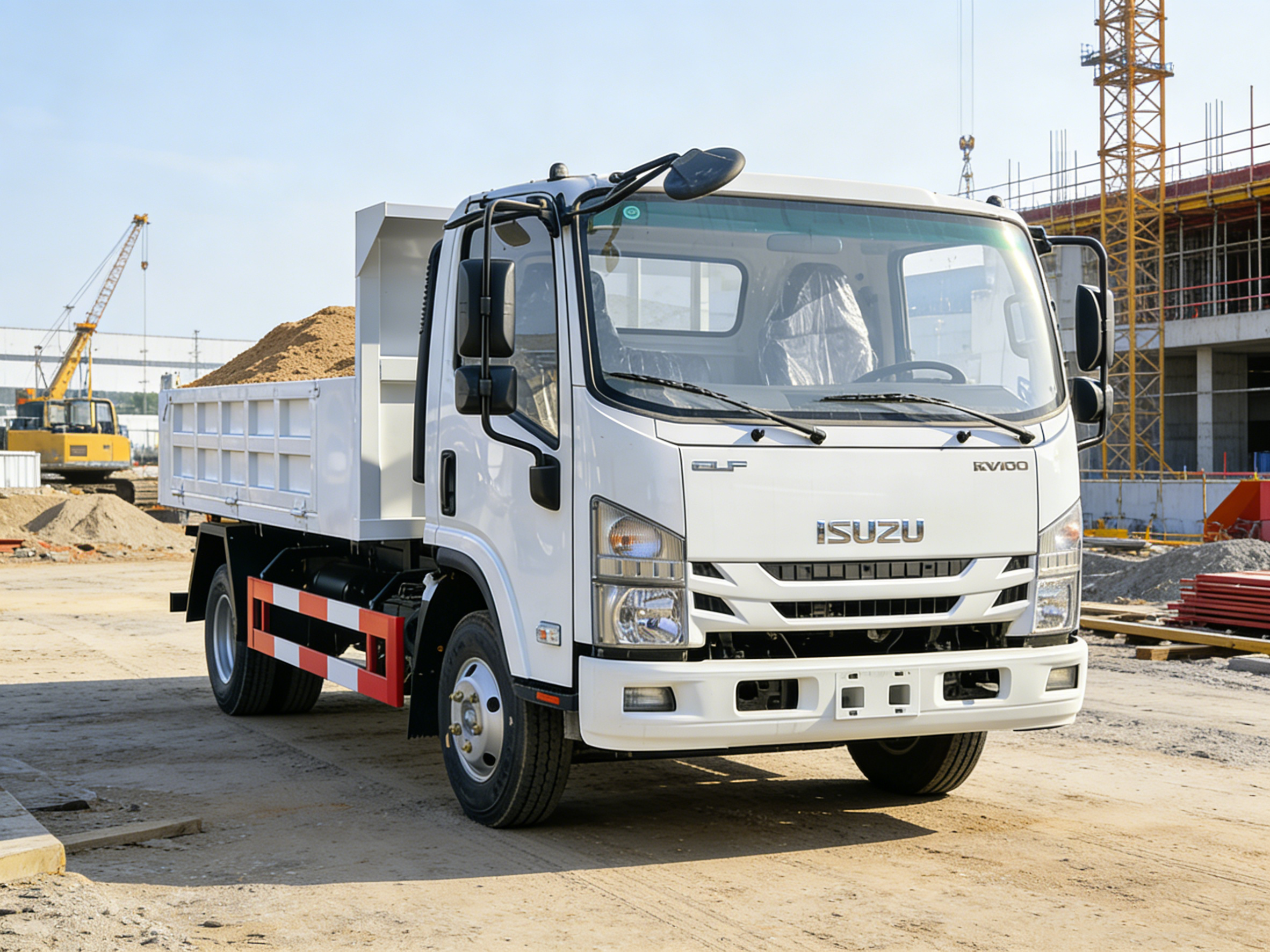

The Isuzu KV100 5-ton dump truck has a 3360mm wheelbase and is equipped with an Isuzu 4KH1N6MD engine and an MSB 5-speed transmission. The superstructure is a dump truck body measuring 3800×2100×500mm, made of Q345B High Tension Steel with 3mm thick edges and a 4mm thick bottom. It features a centrally mounted dual hydraulic cylinder lifting system with a 50° lifting angle and can carry 3-5 tons.
Manufacturer:
Powerstar TrucksWork capacity:
5TDimension:
5850 × 2200 × 2300 mmCabin type:
Isuzu KV100 cab,3 passengersWheelbase:
3360mmEngine power:
140HP/103KwEngine type:
ISUZU 4KH1N6MDAxle drive:
4x2Gear box:
ISUZU MSB 5-speed,manualRemarks:

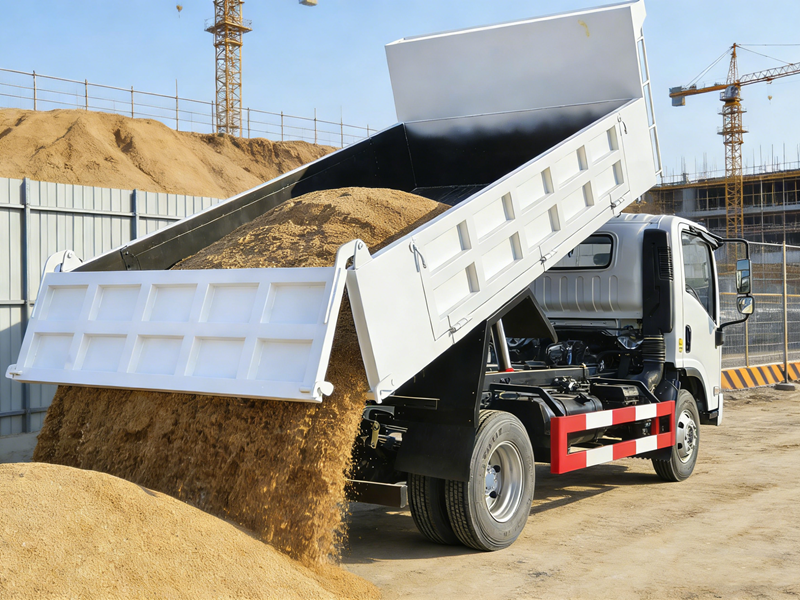

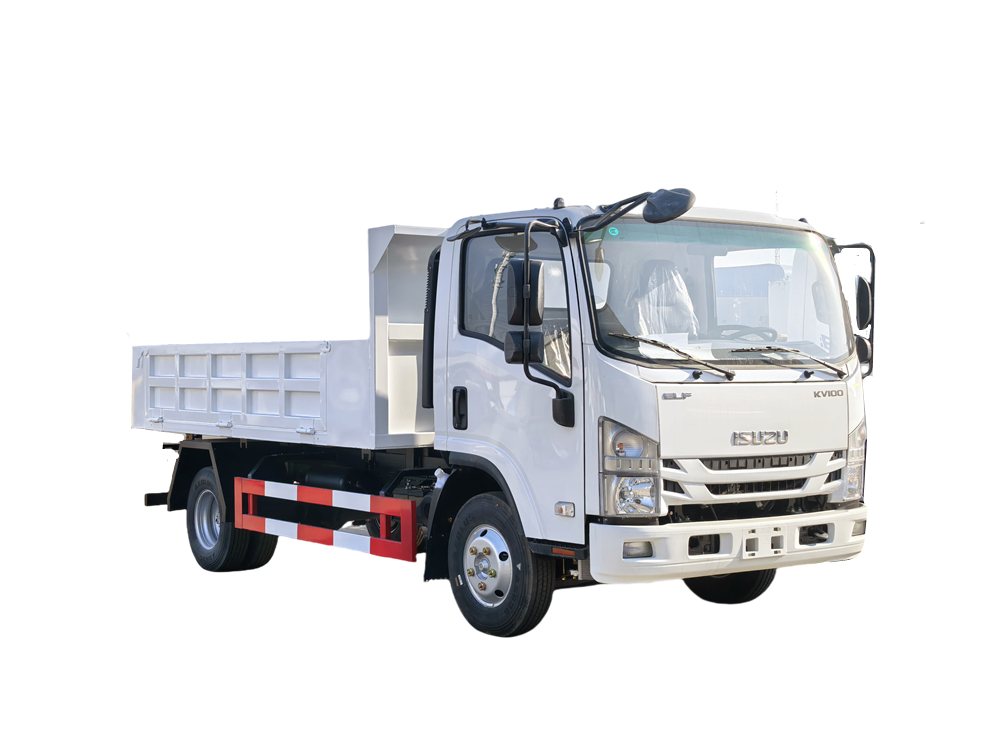

Dump body customizedThe Algeria 5ton Isuzu 140hp sand dump truck is a light-duty dump truck specifically designed for construction sand and gravel, engineering operations, and cargo handling. Its core is equipped with an Isuzu 4KH1N6MD engine, offering strong power and fuel efficiency. The superstructure uses a Q345B high-strength steel cargo box, which is wear-resistant and impact-resistant. The centrally located dual hydraulic cylinders provide a lifting angle of up to 50°, ensuring thorough unloading. The overall design focuses on standard load transportation in the 3-5 ton range, offering reliability, durability, ease of operation, and high cost-effectiveness.
▶ Features:
---- Isuzu KV100 4X2 chassis, perfect performance
---- Isuzu 4KH1 140HP engine, MSB 5-speed gearbox,super powerful; reliable performance, no overhaul within 100,000 km.
---- Loading capacity from 3 to 5T.
---- Easy operation and easy maintenance.
---- Dump body dimensions can be customized.
▶ Product Parameters：
|
ISUZU KV100 4x2 tipping truck |
||
|
Condition |
4X2, New condition, Left Hand Drive |
|
|
Truck model |
PT5070GXY |
|
|
|
Brand |
ISUZU |
|
GVW |
7300kg |
|
|
Curb weight |
3450kg |
|
|
Loading weight |
3~5 tons |
|
|
Wheelbase / No.of |
3360(mm) / 2 axles |
|
|
Dimension |
5850×2200×2300(mm) |
|
|
Front/rear overhang |
1110/1380(mm) |
|
|
Wheel track(front/rear) |
1685/1525(mm) |
|
|
Axle load(front/rear) |
2580/4720kg |
|
|
Max driving speed |
115(km/h) |
|
|
Tire |
700R16,6+1 |
|
|
Paint |
Automotive metallic paint |
|
|
Cab |

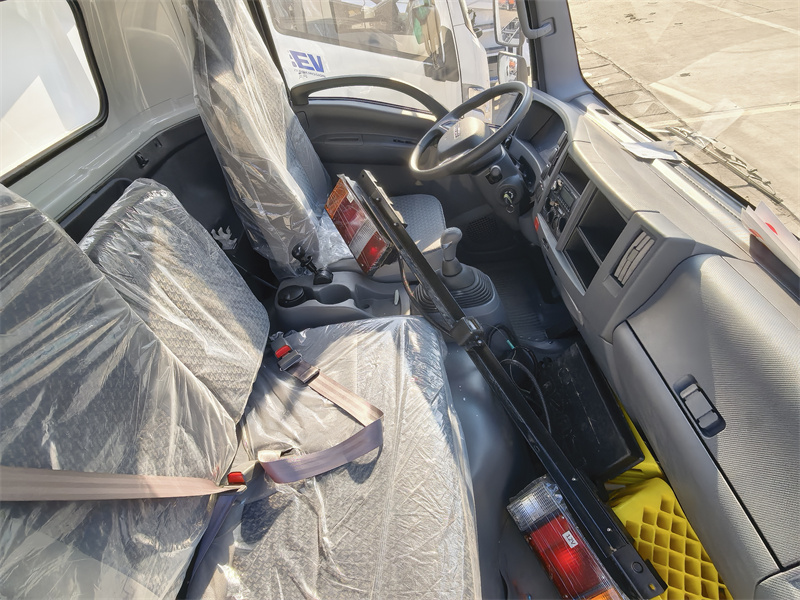

Standard cab, 3 passengers allowed, with Air Conditioner, with FM |
|
|
|
Model |
Isuzu 4KH1N6MD |
|
Fuel type |
Diesel |
|
|
Displacement (ml) |
2999 |
|
|
Max Horsepower (hp) |
140HP/103kw |
|
|
Cylinder number |
Inline 4 cylinder |
|
|
Max Torque |
340N·m |
|
|
Emission standard |
Euro VI |
|
|
Break |
Air break system |
|
|
Transmission |
MSB 5 shift, 5 Forward gear + 1 Reverse,manual |
|
|
Upper |
||
|
Cargo body |
Size (L×W×H) |
3800×2100×500mm |
|
Loading capacity |
3~5 tons |
|
|
Material |
Q345B High Tension Steel. |
|
|
Thickness |
Bottom 4mm, side & front 3mm |
|
|

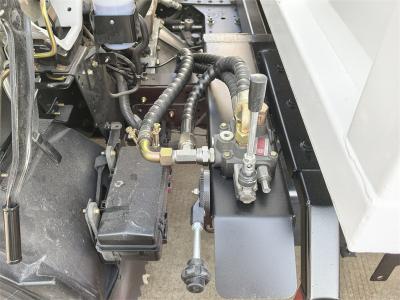

Tipping hydraulics |
Type |
Middle Tipping,double cylinders |
|
Brand |
Chinese brand |
|
|
Tipping Angle |
50° |
|
|

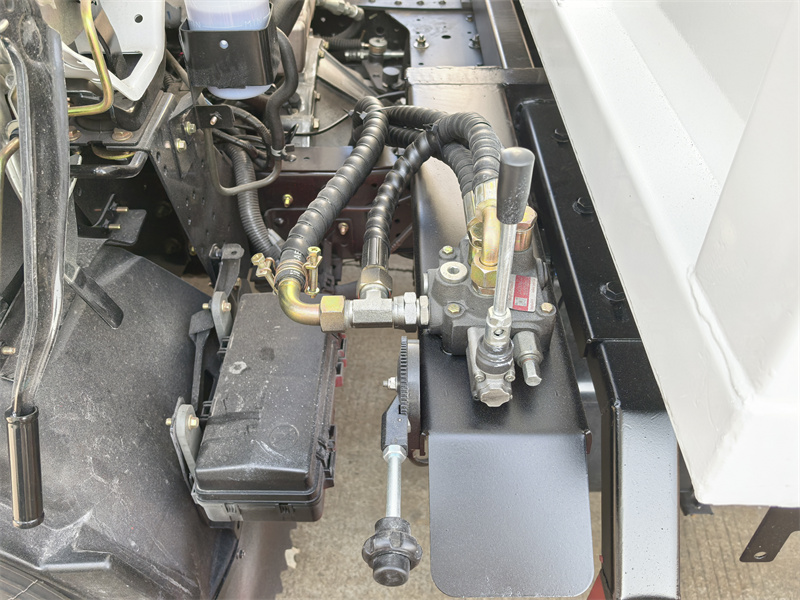

Tipping Control |
By the lever in the cab |
|
|
Color and Logo |
Optional |
|
▶ Chassis System:
• Chassis Model: Isuzu KV100
• Wheelbase: 3360mm
• Engine: Equipped with an Isuzu 4KH1N6MD diesel engine, 2.999L displacement, using high-pressure common rail fuel injection technology, maximum power 140 hp (103kW)

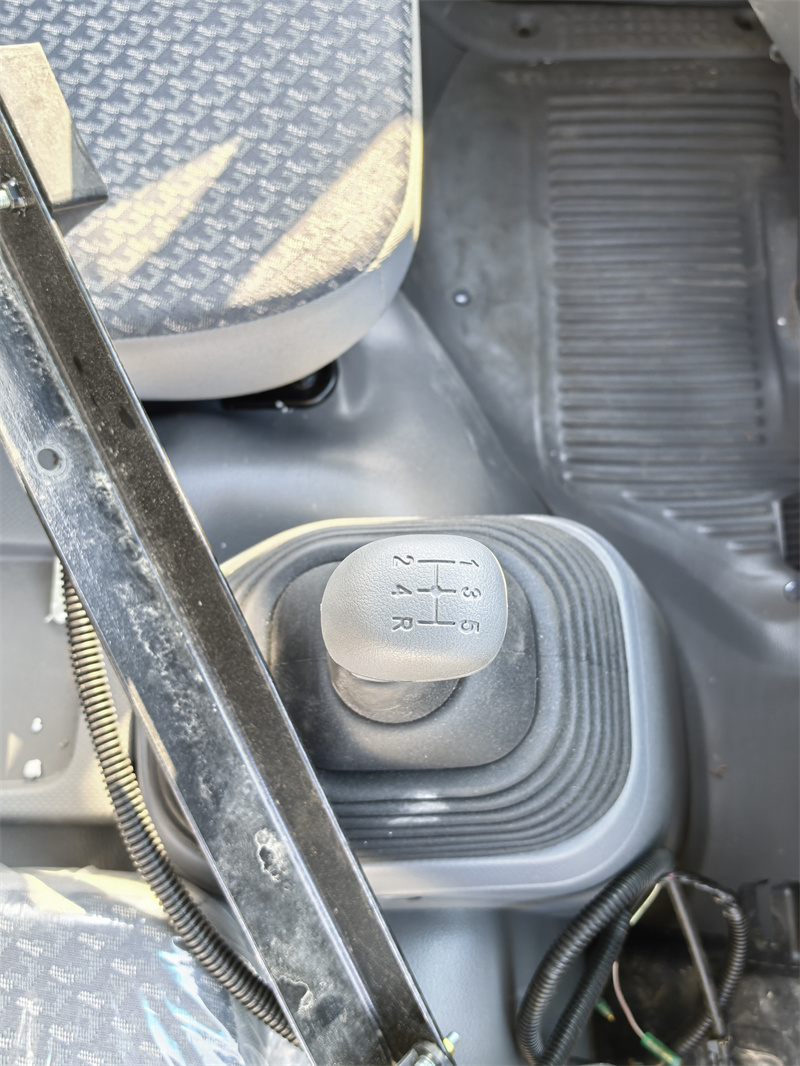

• Transmission: Matched with an MSB 5-speed manual transmission, smooth shifting, high transmission efficiency.

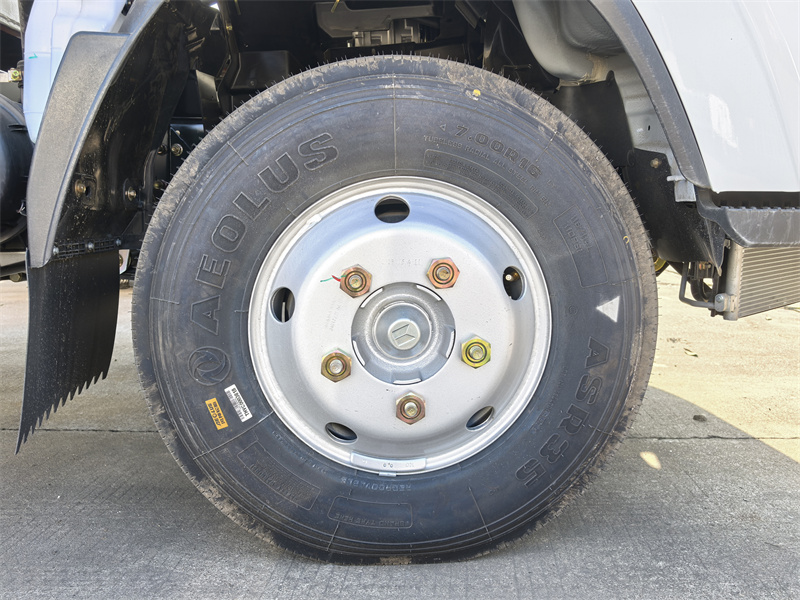

• Tire: 700R16

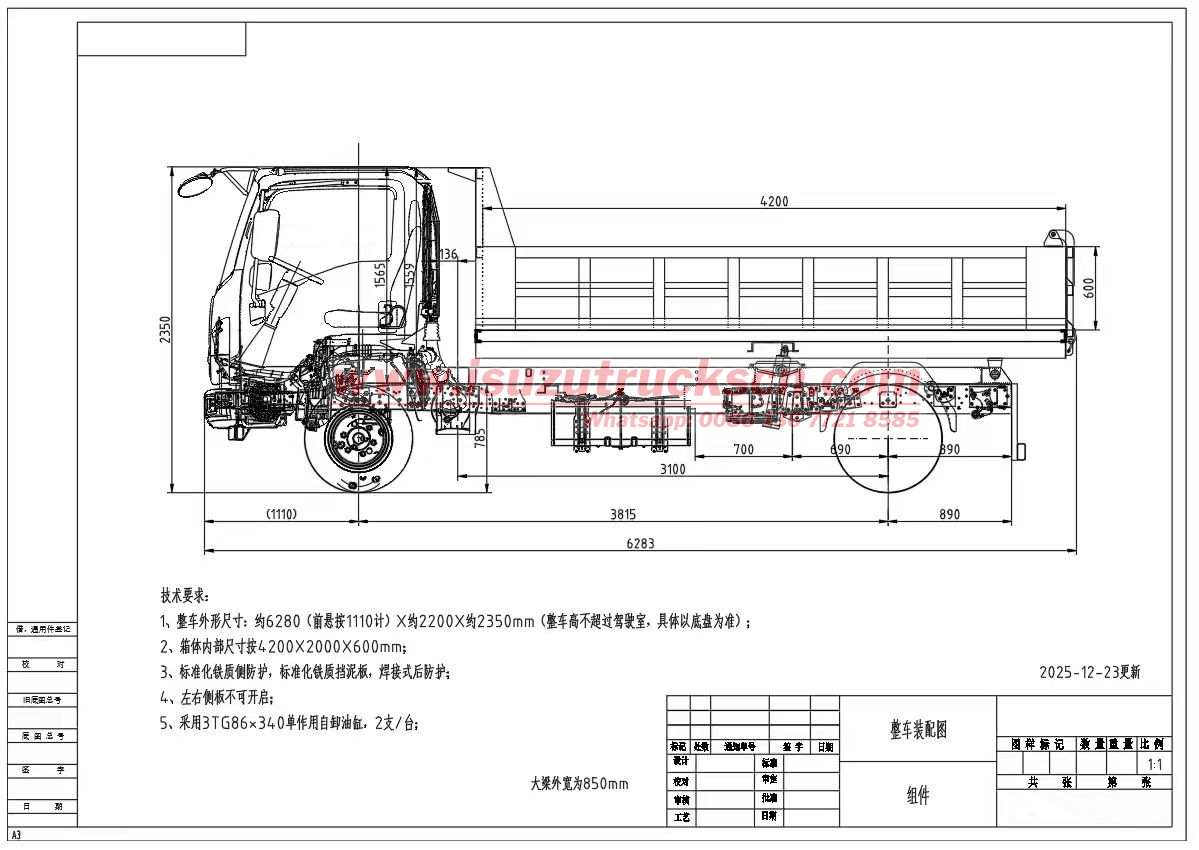

Technical drawing of Isuzu KV100 dump truck

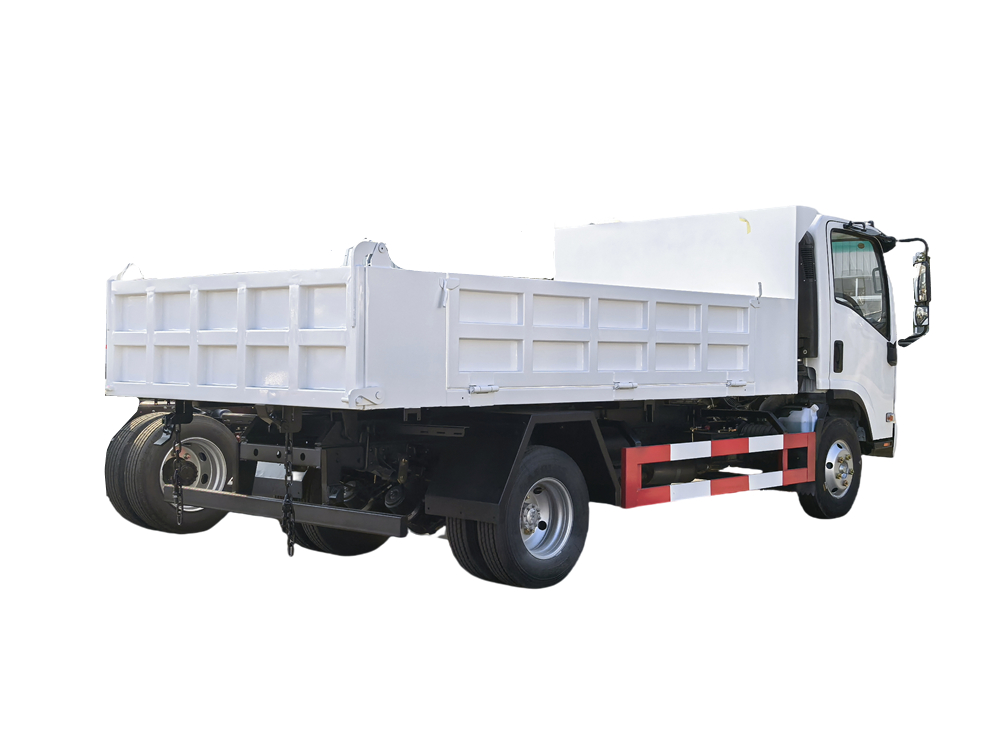

▶ Upper Structure Configuration:
• Cargo Box Dimensions: 3800mm (L) × 2100mm (W) × 500mm (H), with a volume of approximately 4 cubic meters, suitable for transporting bulk materials such as sand, gravel, earth, and construction waste.
• Material and Thickness: The cargo box is made of Q345B high-strength structural steel, with 3mm thick side plates and 4mm thick bottom plates. It features full welding and continuous reinforcement with bottom longitudinal beams, providing strong impact resistance and wear resistance.
• Load Capacity: Rated load capacity 3-5 tons
• Unloading Method: Rear self-unloading, side unloading optional (customization required)
★ Urban Construction: Short-distance sand and gravel transportation, concrete waste disposal, and small-scale construction site material handling.
★ Municipal Engineering: Road maintenance, green waste removal, and pipeline laying support work.
★ Agriculture: Farm fertilizer transportation and short-distance distribution of agricultural products.
★ Individual Transportation: Suitable for small and medium-sized construction teams, logistics companies, and individual operators, meeting diverse freight needs.
