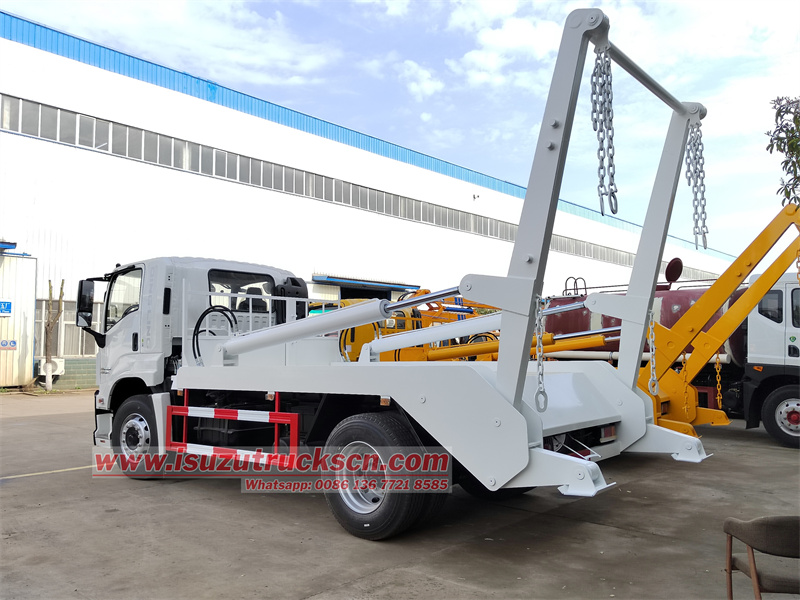

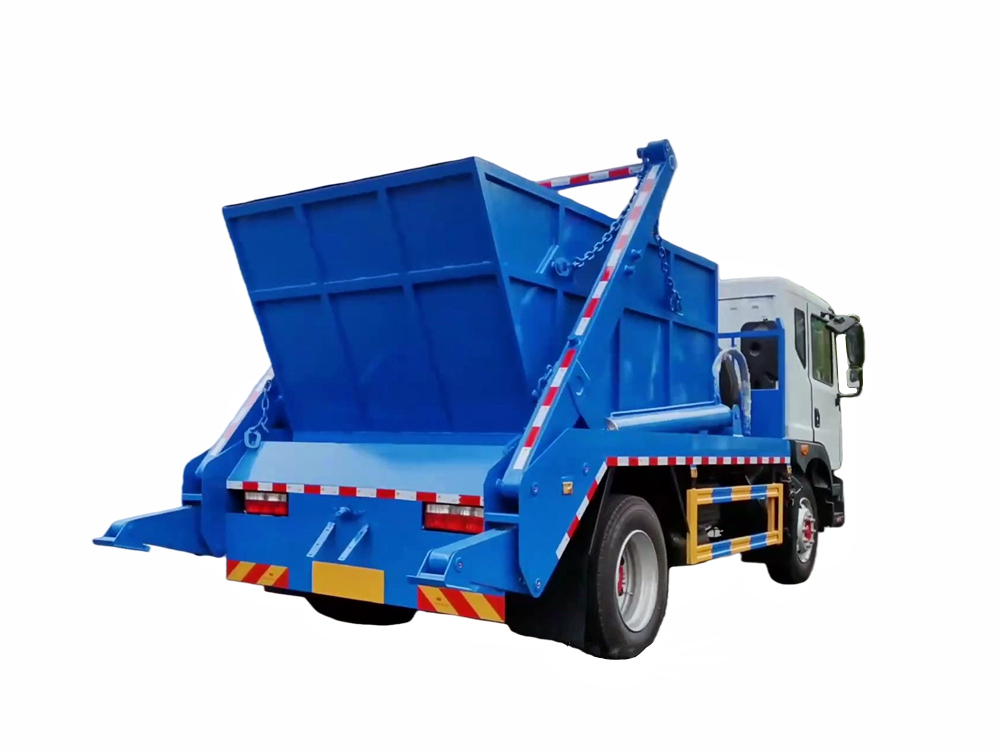

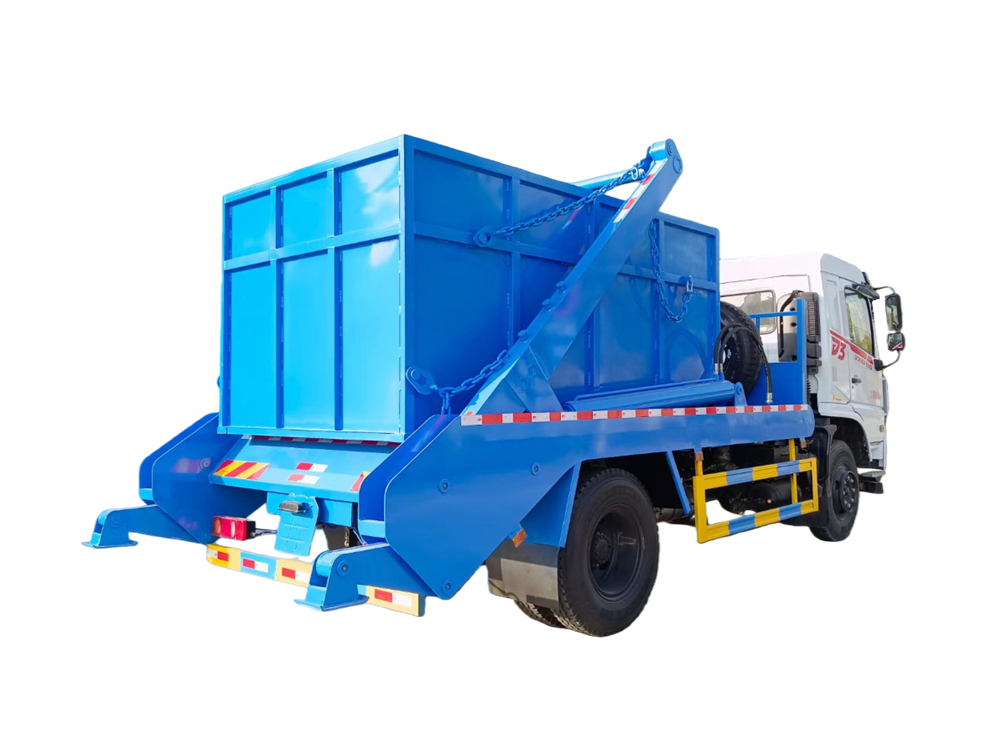

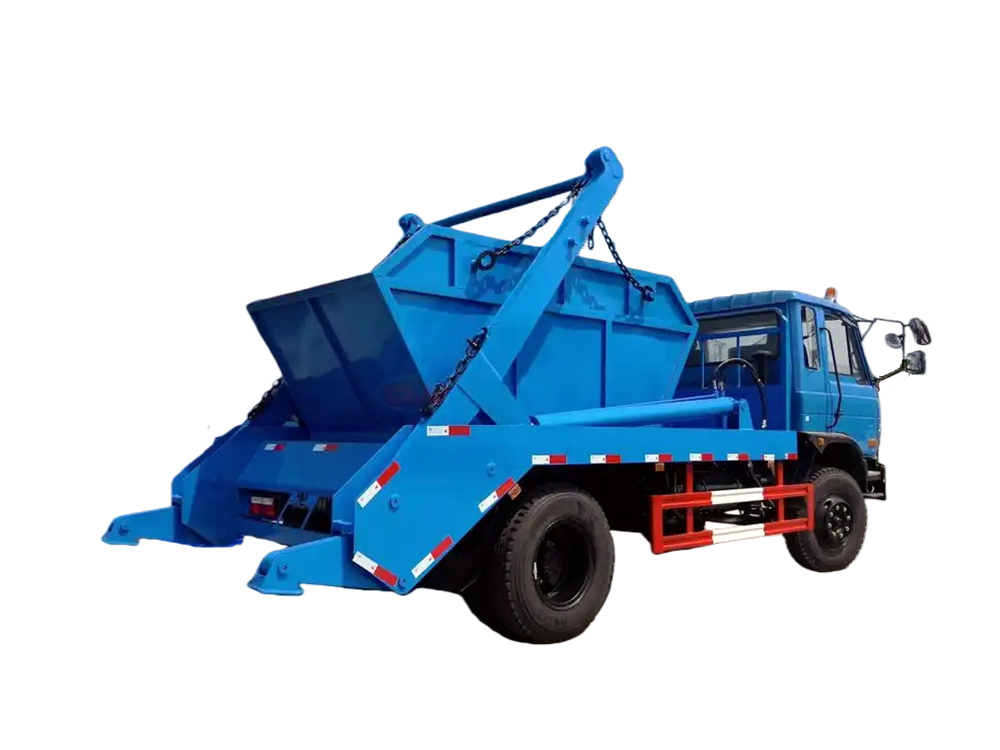

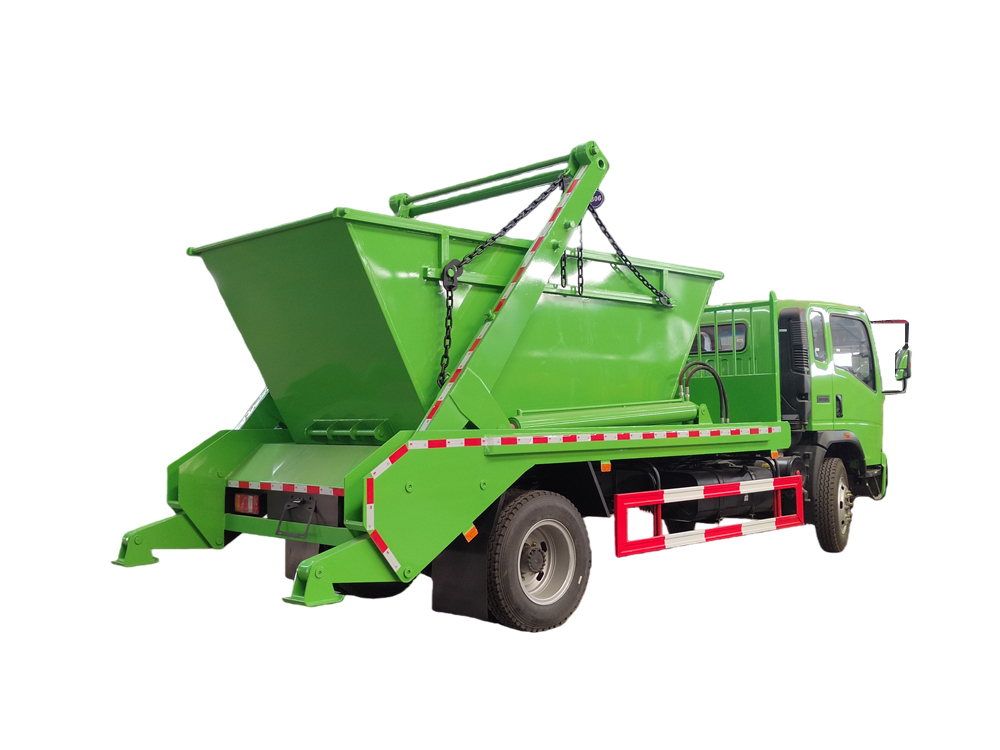

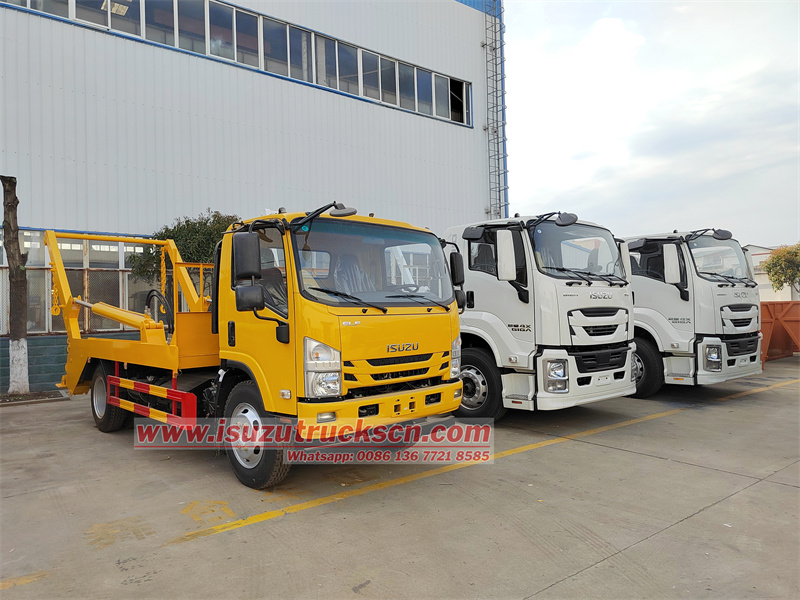

The Isuzu FTR swing-arm garbage truck has a 4500mm wheelbase and is equipped with an ISUZU 4HK1-TCG62 engine and a Fast 8-speed transmission. The truck's main components include the main boom, main boom hydraulic cylinders, chains, hydraulic rear outriggers, hydraulic control valves, and a 10 cubic meter garbage bin.
Manufacturer:
Powerstar TrucksWork capacity:
14000LDimension:
8550 x 2550 x 3250 mmCabin type:
Isuzu FTR GIGA cabWheelbase:
5000mmEngine power:
205HP/151KwEngine type:
ISUZU 4HK1-TCG60Axle drive:
4x2,LHDGear box:
ISUZU MLD 6-speed,manualRemarks:

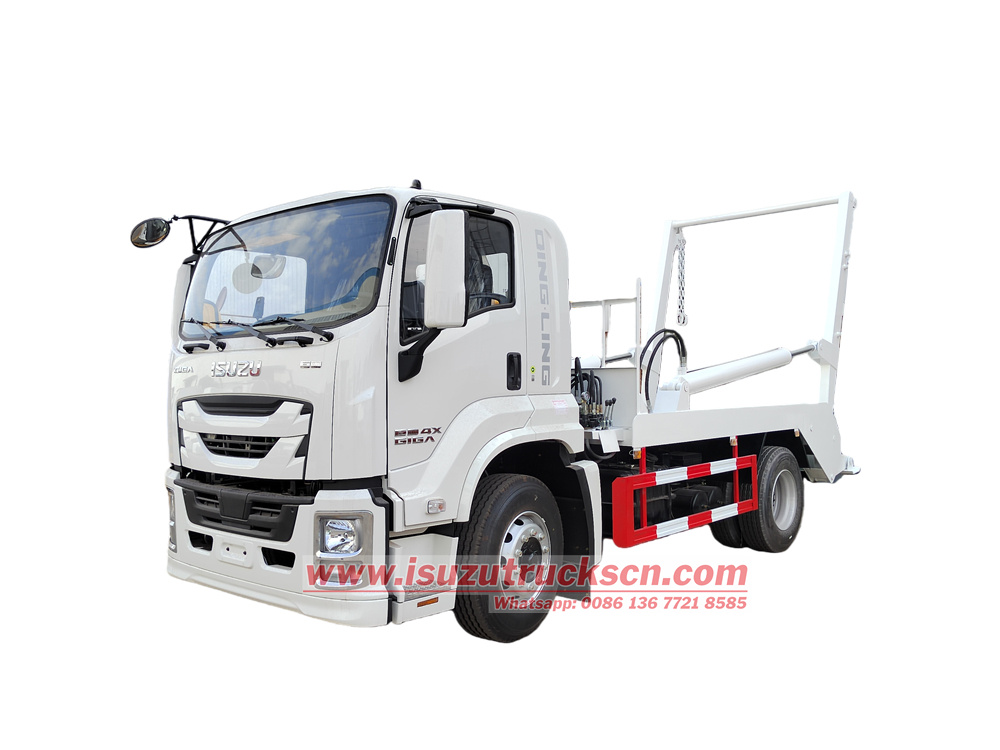

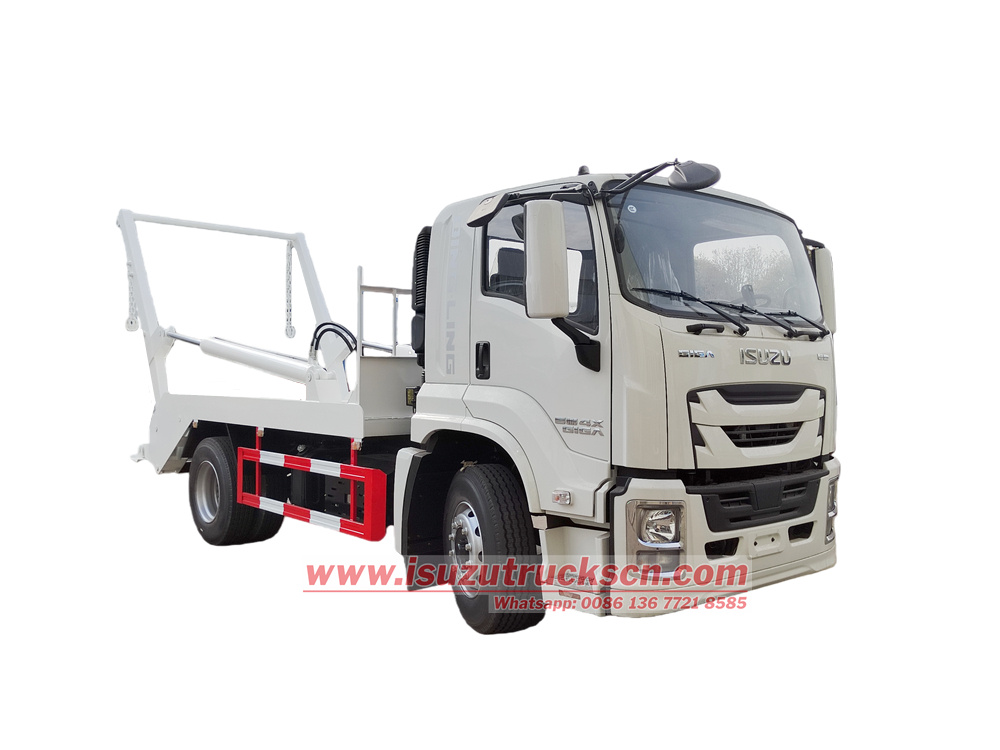

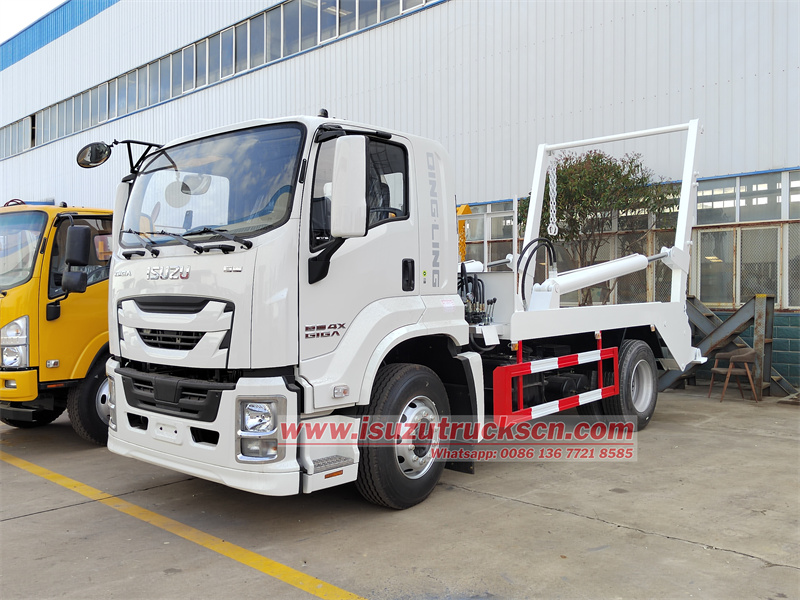

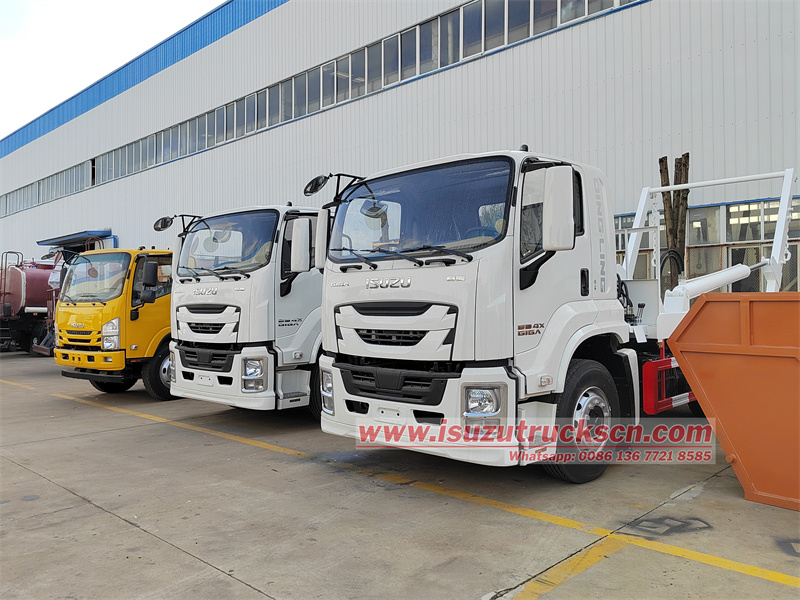

Split-type tankThe GIGA ISUZU 10ton swept-body refuse collector is a high-efficiency special-purpose vehicle designed specifically for urban sanitation and garbage transfer scenarios. It is equipped with a powerful Isuzu 4HK1-TCG62 engine and a Fast 8-speed transmission, providing ample power and smooth shifting. The high-strength main boom of the superstructure, combined with high-quality hydraulic cylinders and chains, along with a large 10 cubic meter garbage bin, can efficiently lift, tilt, and unload garbage. Its core advantage is its ability to handle multiple bins in one vehicle, offering high efficiency and applicability to various garbage bin lifting scenarios, including household waste and construction waste.
▶ Product Parameter :
|
GIGA ISUZU 10cbm swept-body refuse collector |
||
|
Cabin |
ISUZU FTR GIGA 4X,one and half row, with A/C |
|
|
Overall Size(mm) |
8200×2500×3260 mm |
|
|
Bin capacity(mm) |
10CBM |
|
|
Wheel base(mm) |
4500 |
|
|
GVW(kg) |
18000 |
|
|
Front axle loading capacity(kg) |
6300 |
|
|
Rear axle loading capacity(kg) |
13000 |
|
|
Engine |
Model |
ISUZU 4HK1-TCG62 |
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Hose Power |
225HP/165KW |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
105km/h |
|
|
Tire |
295/80R22.5 |
|
|
Transmission |
FAST 8-speed,manual |
|
|
Upperbody |
||
|
Garbage Hopper |
Volume |
Ground type, 10CBM |
|
Thickness |
5mm, Carbon Steel Q235B |
|
|
Dump type |
Hydraulic cylinder lifting and self-loading |
|
|
Dump angle |
≥45° |
|
|
Hydraulic system pressure |
16Mpa |
|
|
Control |
Three-way hydraulic control valve,drive side |
|
|
Other Configuration |
Reinforced hydraulic swept-body system, with Double hydraulic cylinder Swing Arm, Chain. Hydraulic rear outrigger |
|
|
Cycling Time On One Skip Arm |
60s |
|
|
Cycling Time On One Roll Over |
60s |
|
|
Angle of Tipping |
≥85° |
|
|
Options |
Electronically controlled valve, trash bin type, trash bin quantity, etc. |
|
▶ Chassis Configuration:
Model: Isuzu FTR chassis, wheelbase 4500mm,
Engine: ISUZU 4HK1-TCG62 Euro VI diesel engine, 225 hp
Transmission: Fast 8-speed manual transmission,
Chassis load capacity: 6.3 tons front axle, 13 tons rear axle
Tire: 295/80R22.5

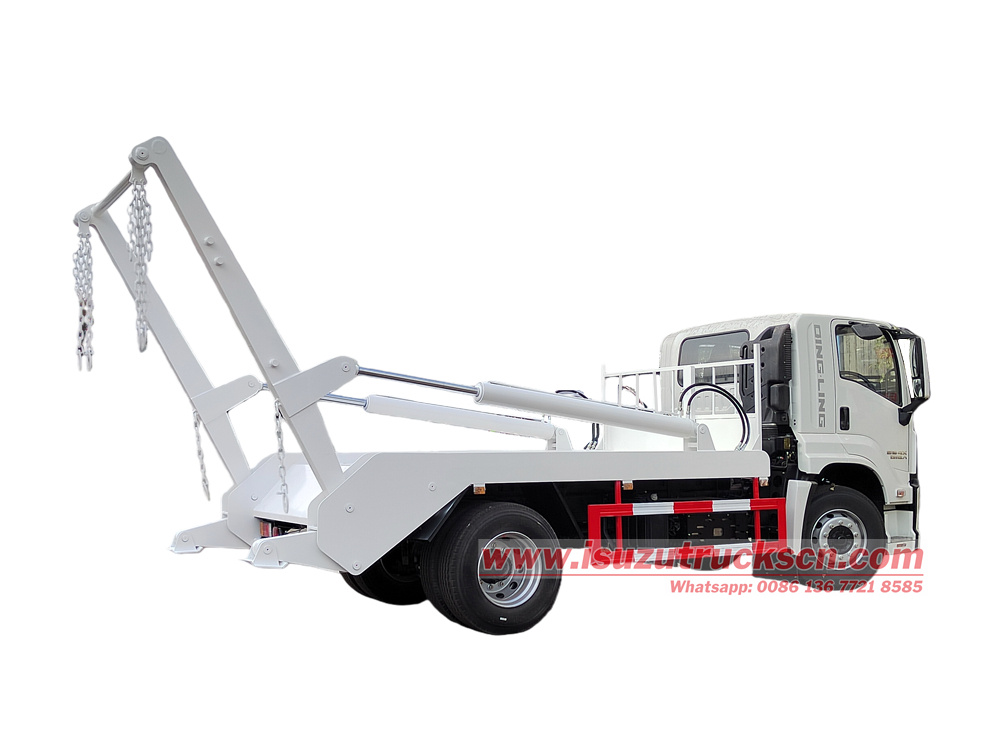

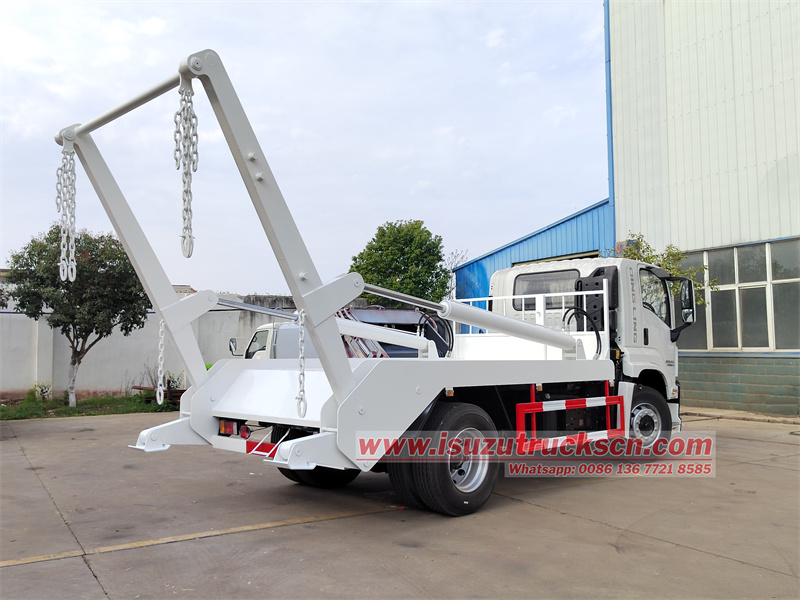

▶ Swing Arm Mechanism:
The upper structure is the core operating device of this vehicle, mainly consisting of the following five components:
1. Main Boom (Lifting Boom):
o A box-shaped structure welded from high-strength Q235B carbon steel. This is the main load-bearing component, responsible for supporting the entire weight of the garbage bin during loading and unloading.

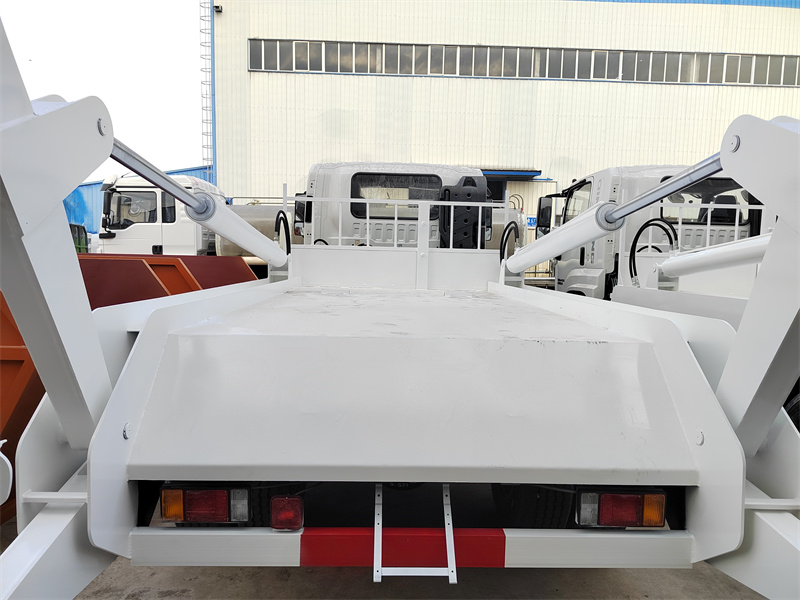

2. Main Boom Hydraulic Cylinders (Lifting Cylinders):
o Equipped with two double-acting hydraulic cylinders. Controlled by hydraulic control valves in the cab, the piston rod extends to push the main boom to rotate around the fulcrum, thereby completing the lifting (from the ground to the vehicle) and unloading (lifting and dumping) actions of the garbage bin.

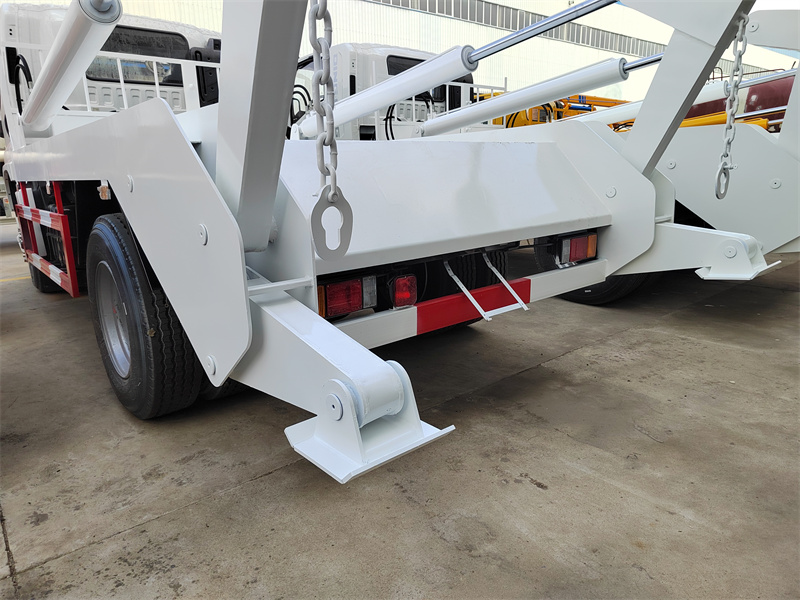

3. Hydraulic Rear Outriggers:
o Installed on both sides of the rear beam of the vehicle. When loading and unloading the garbage bin, the rear outriggers need to be lowered to the ground to relieve the huge downward pressure generated when the rear is suspended in the air, preventing the front of the vehicle from lifting up during operation and protecting the chassis beam.
4. Chain (Lifting Chain):
o Connects the end of the main boom to the garbage bin lifting lugs.
5. Garbage Bin:
Volume: 10 cubic meters. Typically made of carbon steel plate with a 6mm base and 4mm side plates. Depending on the transported medium, either a boat-shaped or square bin can be selected.
Commonly Used Garbage Containers
▶ Hydraulic System:
• The hydraulic system includes an oil tank, oil pump, multi-way directional valve, hydraulic cylinder, balance valve, hydraulic lock, oil filter, and piping.

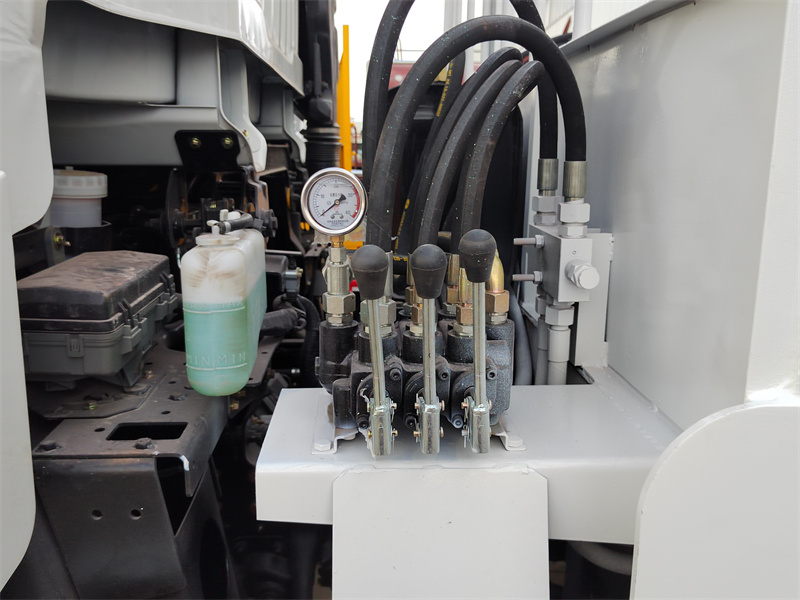

• Hydraulic Operating Valve: Utilizing a manual multi-way directional valve, the system allows for easy control of the boom's lifting, tilting, and unloading operations, as well as the deployment and retraction of the outriggers.
• Power Take-Off: Power to the hydraulic system is provided by a high-pressure gear pump driven by the engine's power take-off unit.

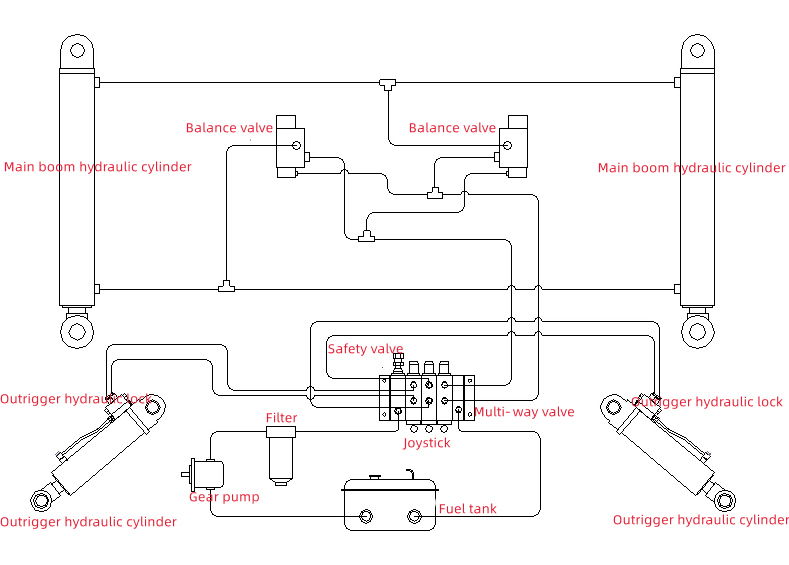

Diagram of the swing arm truck hydraulic system
▶ Working Principle:
The core working principle of this Isuzu FTR swing-arm garbage truck can be summarized as follows: It utilizes a lever mechanism driven by a hydraulic system to achieve three states of operation for the garbage bin: lifting, transporting, and unloading.
Engine power is transmitted to the power take-off (PTO) via the gearbox, which drives the hydraulic pump to generate high-pressure oil, which is then delivered to the multi-way directional valve via oil pipes. Operating the directional valve handle distributes the oil to the swing-arm cylinders or outrigger cylinders. The extension and retraction of the swing-arm cylinders rotates the swing arm, enabling the garbage bin to be lifted, tilted, and unloaded; the extension and retraction of the outrigger cylinders are used to deploy and retract the outriggers, ensuring operational stability.

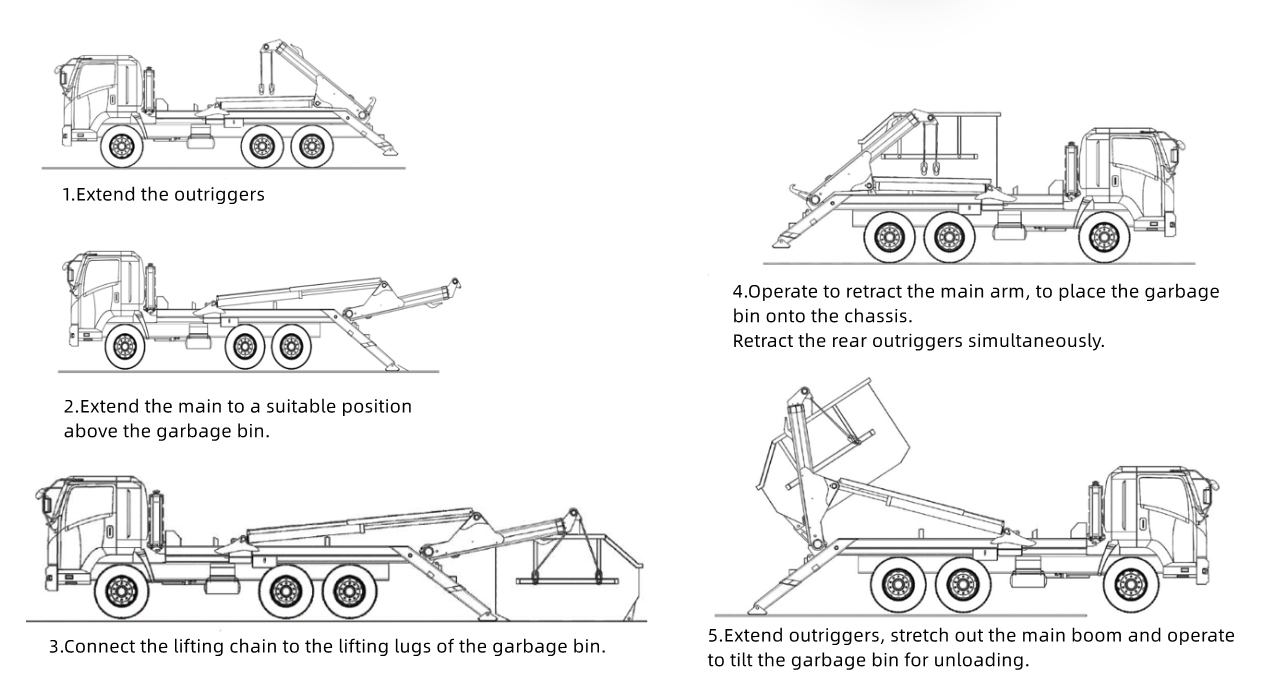

▶ How does the skip loader truck work？
