Hydraulic compactor system for Garbage vehicle

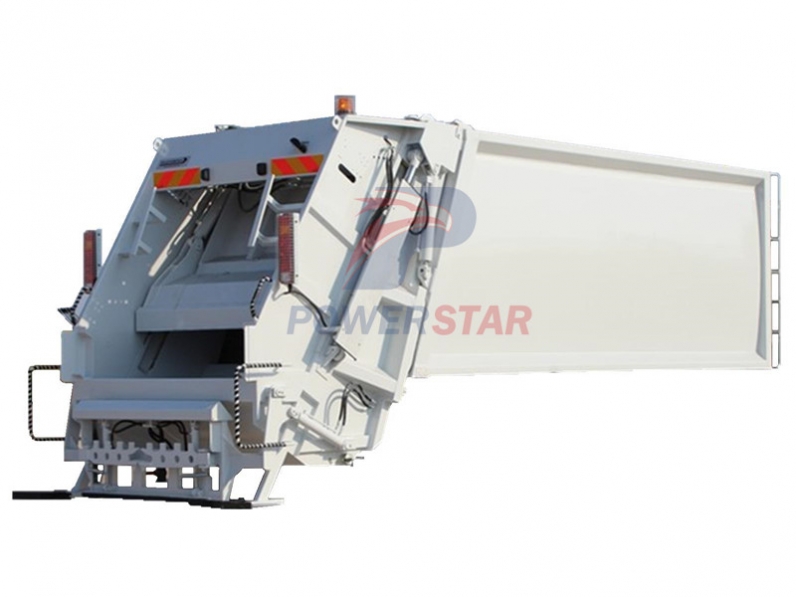

refuse truck with hydraulic compactor system for sale

Details

 Hydraulic compactor system for Industrial garbage trucks

Hydraulic compactor system for Industrial garbage trucks


Introduction
Hydraulic Garbage Compactor System (also called as Compression Garbage Truck Body kit, Rear Loader bodies, Trash compactor body kit )  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.



Advantages


  100% custom-made
  3 cbm to 22 cbm available
  Short delivery time 7~30 days
  Easy operation & Easy maintenance
  15 years spare parts & Technical support



Main Parameters



Hydraulic compactor system for Industrial garbage trucks

Hydraulic compactor system for Industrial garbage trucks

Hydraulic compactor system for Industrial garbage trucks

Hydraulic compactor system for Industrial garbage trucks

Hydraulic compactor system for Industrial garbage trucks

Hydraulic compactor system for Industrial garbage trucks

Hydraulic compactor system for Industrial garbage trucks

Hydraulic compactor system for Industrial garbage trucks


Hydraulic super structure for Hydraulic pressed garbage truck

Powerstar Trucks

Other Supplier

Hydraulic Control Valve

Powerstar trucks Hydraulic Control Valve for garbage compactor truck body kit

Italy brand, 5 years working time

Refuse collection truck upper body for sale

unknown brand, 1 year working time

Electrical Control Box

Powerstar garbage compactor trucks

Germany Siemens, reliability arise 30%

Refuse collection truck upper body for sale

unknown brand, poor reliability

Steel Hydraulic Pipe

powerstar brand garbage compactor trucks

Standard balance valve ,safety

Refuse collection truck upper body for sale

No balance valve, dangerous

Control System

Powerstar refuse compactor trucks for sale

CAN intelligent system, work efficiency arise 20%,

double control box equipped,

Refuse collection truck upper body

Common system, work slow ,

Single control box

Hydraulic Pipe

Refuse collection truck upper body for sale

Galvanized steel hydraulic pipe

Refuse collection truck upper body

Inexperienced steel pipe

Hopper Cylinder System

waste compactor truck body for sale

Reinforced cylinder, good design

Blasting and anti-dust painting

Garbage compactor truck hydraulic body kit for sale

Common cylinder, poor design

simple painting





Specifications:


NO.

Item

Name

Code

Quantity

Comments

1

Compactor tank

Tank Assembly

YS12-0100000

1



2

Tail Gate Assembly

YS12-0200000

1 set



3

Scraper Assembly

YS12-0300000

1 set



4

Slide Plate Assembly

YS12-0400000

1 set



5

Tilt Device Assembly

YS12-0500001

1 set



6

Spare Parts

Oil Pump



1 unit



7

PTO



1 unit



8

Five Function Multi-way Valve



1 set

Installed

9

Hydraulic Oil Tank

80L

1 unit

Installed

10

PLC Control Box



1 set

Installed

11

Electric System



1 set

Installed

12

Balance Valve

5060BF2

2 units

Installed

13

Hosepipe, oil pipe & Joint



1 set

Installed

14

Slide Plate Oil Cylinder

50/90-1300x830

2 units

Installed

15

Scraper Oil Cylinder

50/80-860x570

2 units

Installed

16

Lifting Oil Cylinder

50/80-840x560

2 units

Installed

17

Tilt Device Oil Cylinder

45/80-410x170

2 units

Installed

18

Push Pate Oil Cylinder

55/125-1220x2600

1 unit

Installed

19

Sliding Block

Nylon

1 set

Installed

20

Hose Protector



1 set

Installed

21

Ball Valve

1’ 1/4

1 unit

Installed

22

Stainless Steel Cover

DN50

1 unit

Installed

23

Side lamps



1 set

Installed

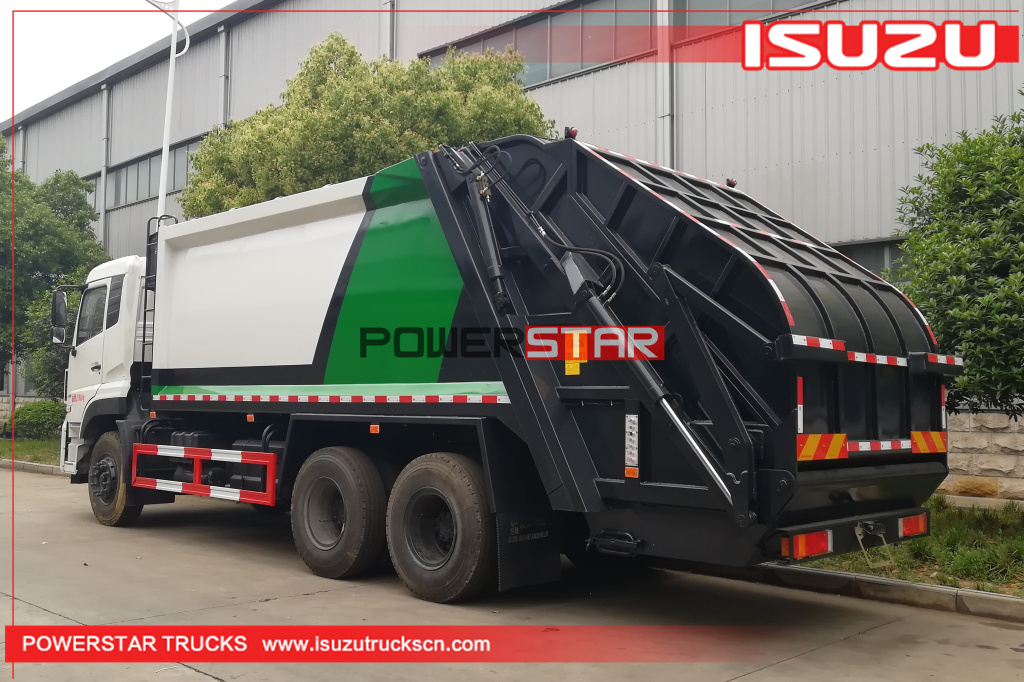

Case:

 Refuse collection truck upper body



More details for our compactor truck body kit

Garbage compactor truck hydraulic body kit for sale




Key words:  ISUZU Waste Truck body, Back loading garbage truck body, Waste transfer compactor truck body
