Isuzu 10 wheeler heavy truck mounted 16T crane

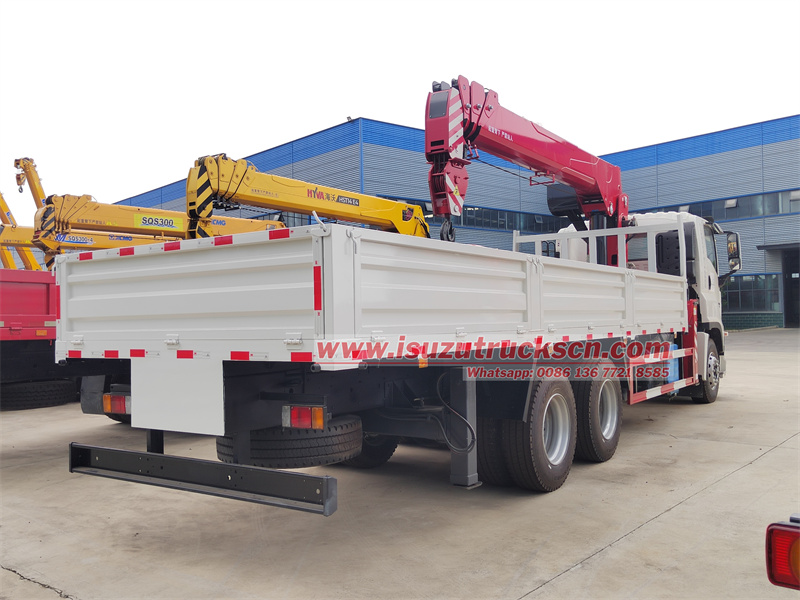

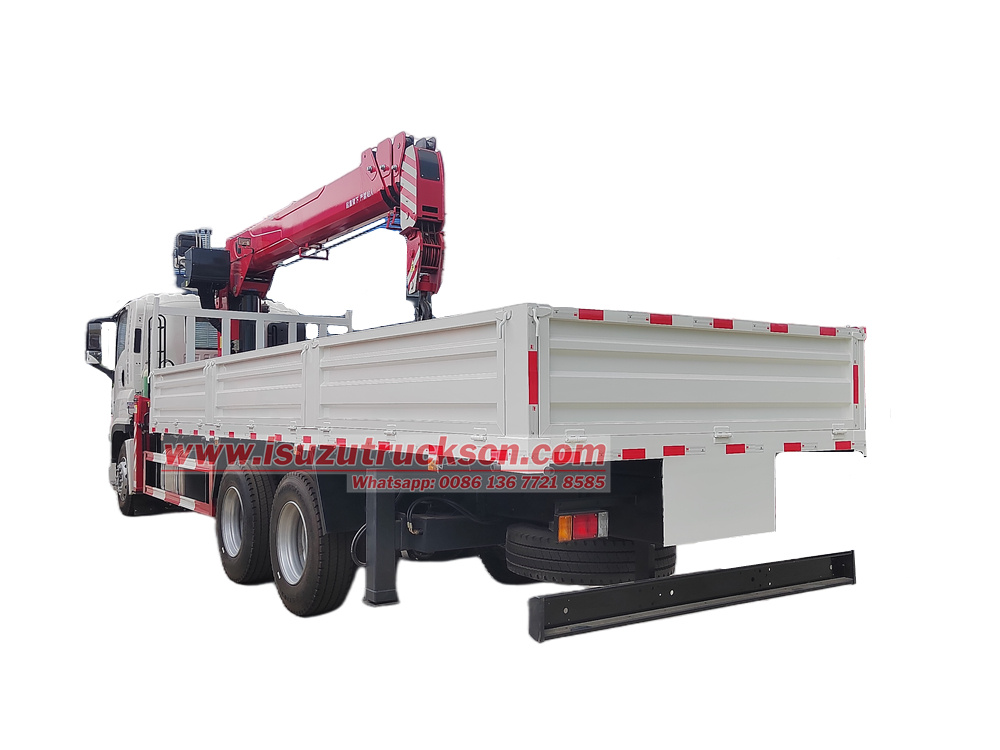

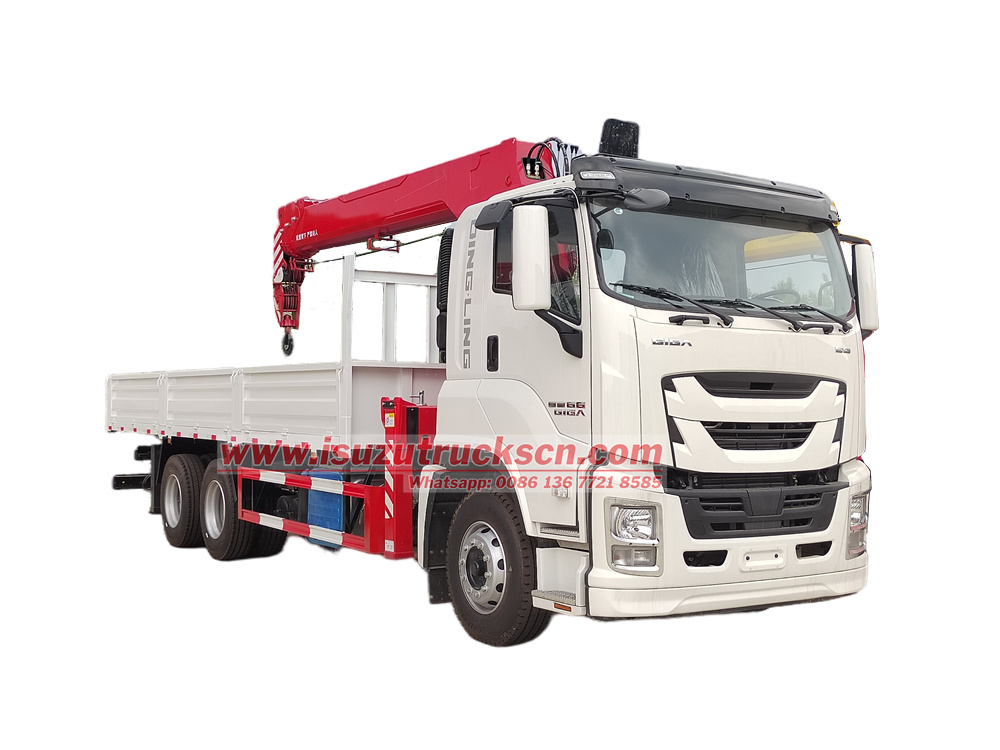

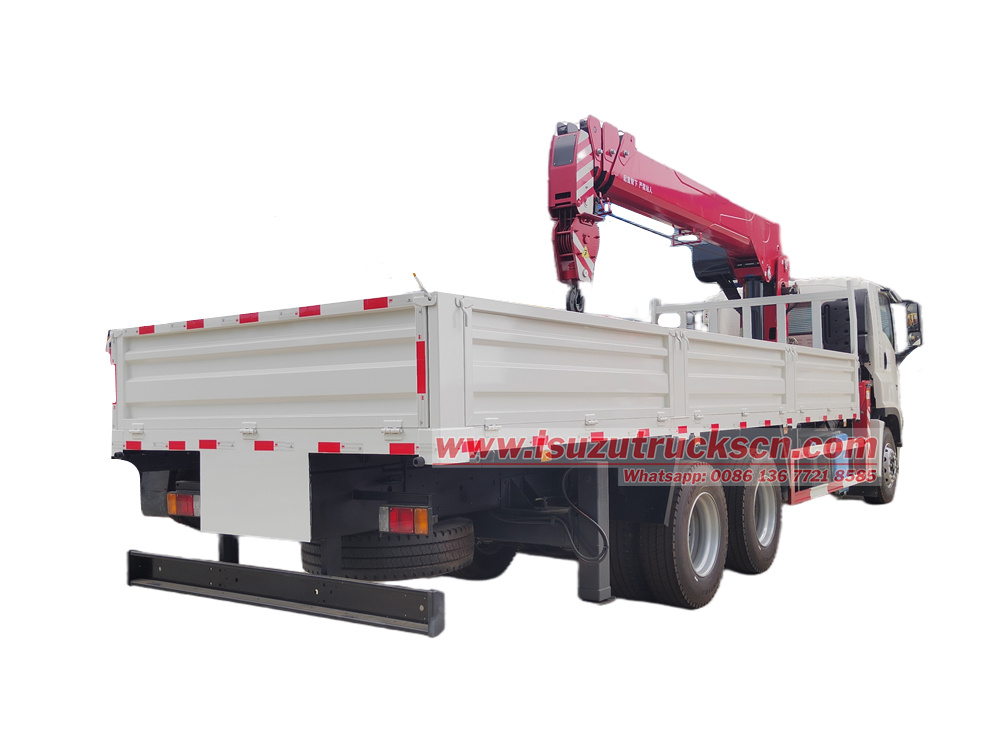

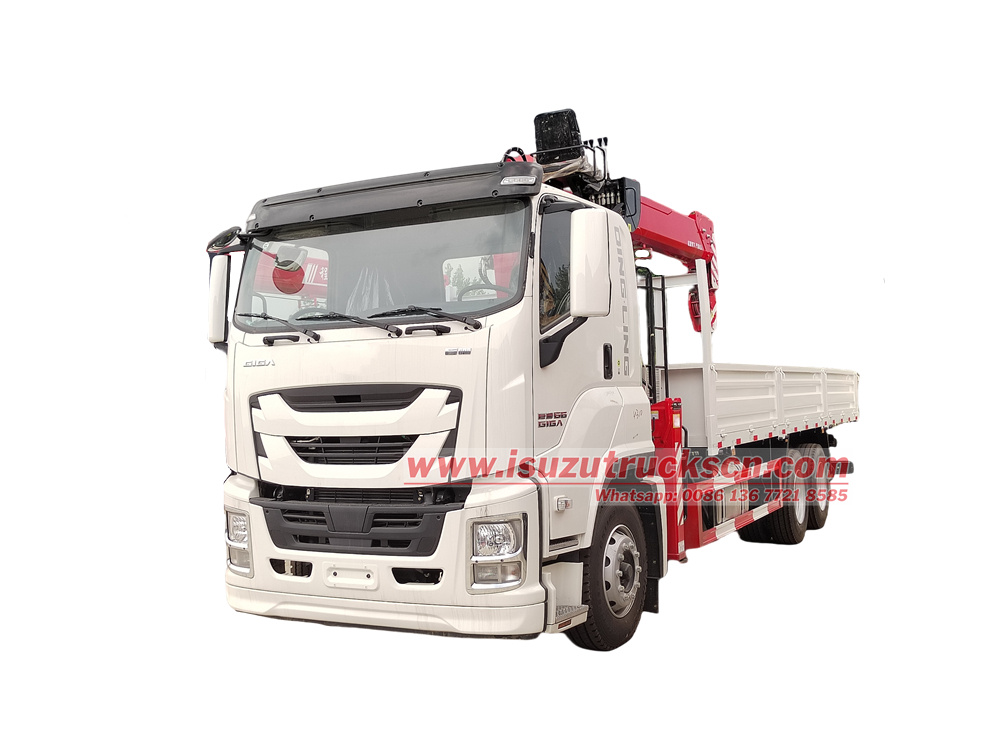

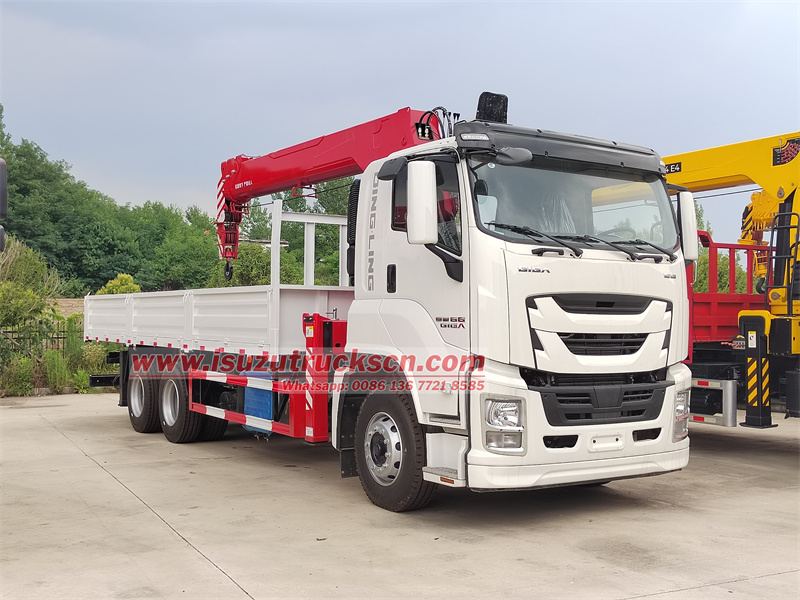

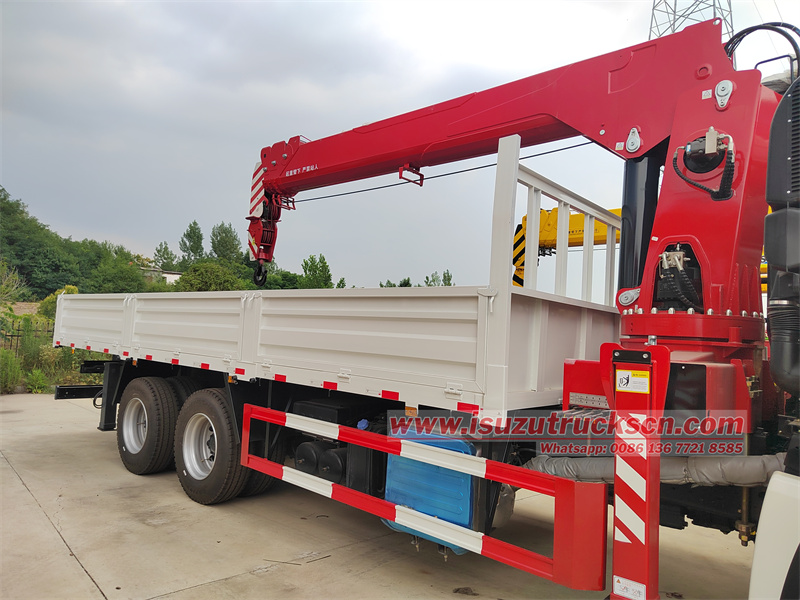

Isuzu 6x4 cargo truck mounted crane, it uses Isuzu GIGA VC66 6X4 chassis, 4600+1370mm wheelbase, equipped with Isuzu 6UZ1-TCG61 380HP engine, FAST 12-speed gearbox, upper equipment XCMG GSQS400-4 boom crane, maximum lifting weight 16 tons, maximum lifting torque 420kN•m, maximum extension arm length 19.3m, 360-degree full rotation, crane deadweight 6206kg, front and rear outriggers, the crane can be controlled by the top console and manual hydraulic operating levers on both sides, cargo box size 6500x2500x1600mm, Side 6mm, Bottom 8mm thickness.
Manufacturer:
Powerstar TrucksWork capacity:
16 tonsDimension:
9700×2600×3830 mmCabin type:
Isuzu VC66 6X4 cabin,Isuzu VC66 6X4 cabinWheelbase:
4600+1370 mmEngine power:
279kW/380HPEngine type:
Isuzu 6UZ1-TCG61cAxle drive:
6x4,LHDGear box:
FAST 12-speed,manualRemarks:
Equipped with XCMG GSQS400-4 boom craneThis Isuzu 10 wheeler heavy truck mounted 16T crane is based on the Isuzu GIGA VC66 6x4 chassis and is equipped with a XCMG GSQS400-4 knuckle-arm crane. It is designed for heavy-load lifting and transportation scenarios. Its core highlights are the 16-ton super-strong lifting capacity and 19.3-meter ultra-long operating radius. With the 360-degree full rotation function, it can easily cope with complex working conditions such as bridge construction and high-rise equipment installation. The crane adopts a high-strength hexagonal arm and synchronous telescopic technology, which is stable and efficient when retracted with load, and is equipped with safety systems such as torque limiter and overload protection to ensure safe operation. The chassis is equipped with a 380-horsepower Isuzu engine and a Fast 12-speed gearbox, which is powerful and adaptable to multiple road conditions. The cargo box size is 6500×2500×1600mm, taking into account large capacity and convenient loading and unloading. The vehicle reduces equipment scheduling costs through the integrated design of "lifting + transportation", making it an all-round weapon in the field of engineering logistics.
● China best cargo mounted crane truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service
|
Isuzu GIGA 6X4 mobile truck with crane |
||
|
General Technical Parameters |
||
|
Overall Dimension |
9700×2600×3830 mm |
|
|
Gross Vehicle Weight |
25000Kg |
|
|
Curb Weight |
16840Kg |
|
|
Chassis Specification |
||
|
Chassis Brand |
Isuzu |
|
|
Drive model |
6x4,LHD |
|
|
Cabin |
Isuzu VC66 6X4 cabin, Left Hand Driving, with air conditional |
|
|
Number of Passengers |
3 |
|
|
Engine |
Style |
Inline 6 cylinders, water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged and intercooled, diesel |
|
Model |
Isuzu 6UZ1-TCG61 |
|
|
Power |
279kW/380HP |
|
|
Emission standard |
EURO 6 |
|
|
Displacement |
9.839L |
|
|
Gearbox |
FAST 12-speed,manual |
|
|
Brake System |
Air brake |
|
|
Wheel Base |
4600+1370 mm |
|
|
Front/Rear Axle Loading |
7000/18000(two axles) kg |
|
|
Front/Rear track |
2060/ 1855/1855mm |
|
|
Front/Rear overhang |
1370/2360mm |
|
|
Tire |
385/65R22.5 / 315/80R22.5，10+1 tires |
|
|
Max Driving Speed |
90km/h |
|
|
Upper structure Specification |
||
|
Cargo Body |
Dimension |
6500x2500x1600mm |
|
Material |
Q235 carbon steel |
|
|
Cargo Thickness |
Side 6mm, Bottom 8mm |
|
|
Boom model |
XCMG GSQS400-4 boom crane |
|
|
Max. Lifting Moment |
420kN•m |
|
|
Max. Lifting Capacity |
16000kg |
|
|
Max. working range |
19.3m |
|
|
Rotation angle |
360° ALL Rotation |
|
|
Amplitude range |
0~75° |
|
|
Installation space |
1340mm |
|
|
Maximum working pressure |
28Mpa |
|
|
Recommended power |
18kw |
|
|
Hydraulic system flow |
80+50L/min |
|
|
Crane weight |
6206kg |
|
|
Outrigger span |
2454~7562mm |
|
|
Oil tank capacity |
240L |
|
|
Other Configuration |
Control system in 2 side and top; 5T arm, etc. |
|
★ Chassis and power system: a strong and reliable operating foundation
The Isuzu GIGA VC66 6x4 chassis is designed for heavy-duty conditions. Its 4600+1370mm wheelbase takes into account both the stability of high-speed driving and the passability of complex road conditions. The Isuzu 6UZ1-TCG61 engine uses an inline six-cylinder, turbocharged technology, with a displacement of 15.68L and a maximum power of 380 horsepower. The matching Fast 12-speed gearbox has smooth shifting and reasonable gear subdivision, which not only meets the needs of high-speed cruising (maximum speed 90km/h), but also provides sufficient torque under low-speed conditions.
★ Upper configuration: professional and reliable transport platform

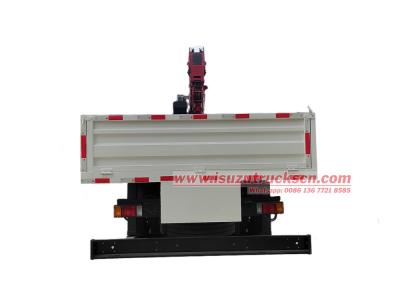

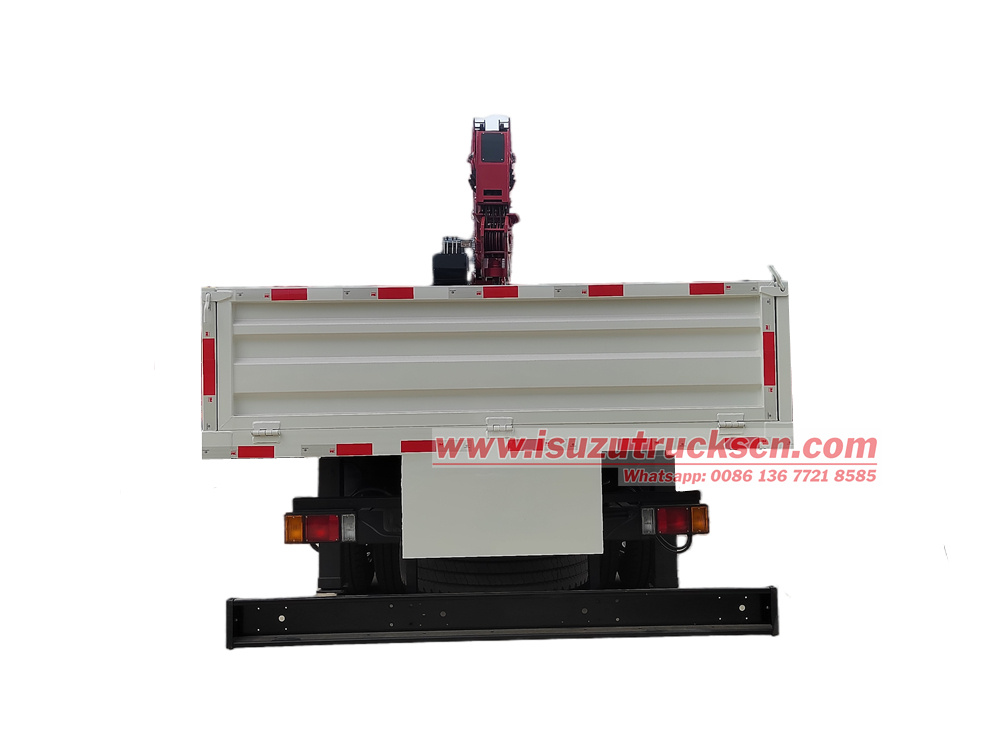

The cargo box of the ISUZU 6UZ1 lorry mounted 16tons crane has a size of 6500×2500×1600mm and is made of high-strength carbon steel. The side panel thickness is 6mm and the bottom panel thickness is 8mm. This design not only ensures the carrying capacity of the cargo box, but also controls the weight of the vehicle. The interior of the cargo box has been anti-slip treated to facilitate the fixing and transportation of various types of goods.
★ Core equipment: Excellent performance of XCMG GSQS400-4 crane
The XCMG GSQS400-4 folding arm crane is the core equipment of the vehicle. Its performance parameters and functional design fully reflect the technical level of modern engineering machinery.
●. Lifting performance
The maximum lifting weight of the crane is 16 tons, and the maximum lifting torque is 420kN·m. It adopts a 4-section telescopic arm design with a maximum extension arm length of 19.3 meters. This parameter enables it to be competent for the lifting operations of most medium and large equipment. The boom adopts a four-section U-section high-strength steel design, which is light in weight and strong in bending resistance. It supports synchronous telescopic and independent telescopic modes to adapt to different working conditions. The hydraulic system supports the compound action of "boom telescopic + rotation + amplitude change". The operator can complete complex lifting trajectories with one click, and the efficiency is increased by 40%.
●. Operation range
The crane can achieve 360-degree full rotation operation. The slewing mechanism is driven by a hydraulic motor and equipped with a high-precision slewing bearing to ensure smooth and accurate rotation. The working radius is adjustable from 2.5 meters to 19.3 meters, and the maximum working height can reach 21 meters (considering the boom elevation angle), meeting the needs of different working conditions.
●. Control system
The crane is equipped with three operating modes:

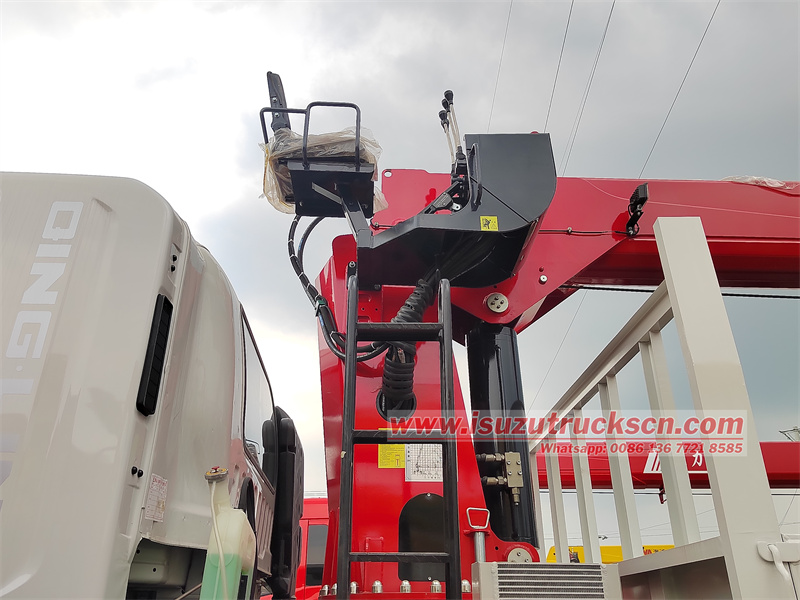

• Top control console: provides a panoramic view for precise operation

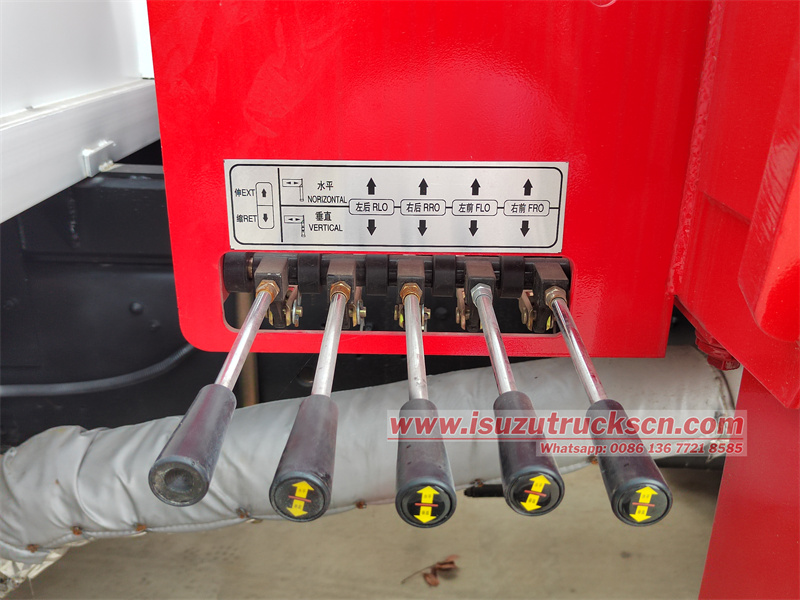

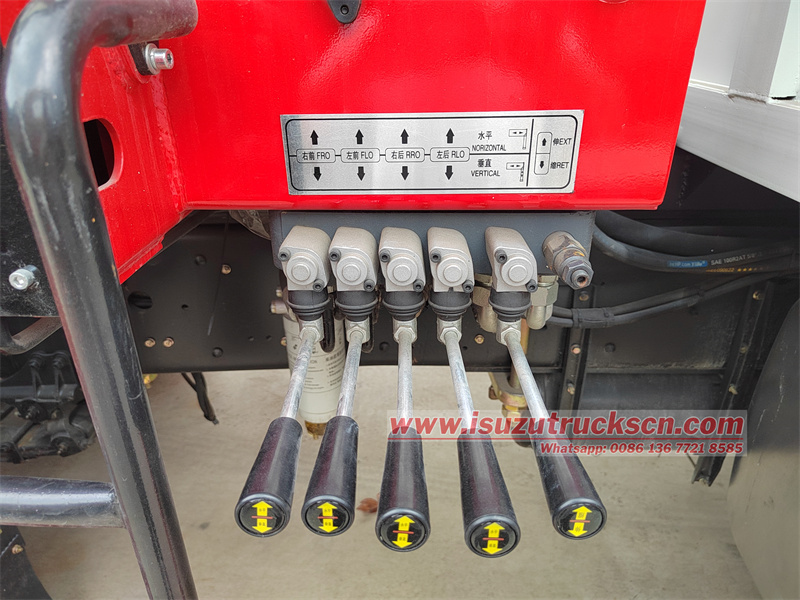

• Manual hydraulic operating levers on both sides: located on the ground, more convenient to operate
• Remote control system (optional): realize remote control
The hydraulic system adopts load-sensitive control technology to greatly reduce operator fatigue. The system is also equipped with safety devices such as overload protection and hydraulic locking.
●. Support system

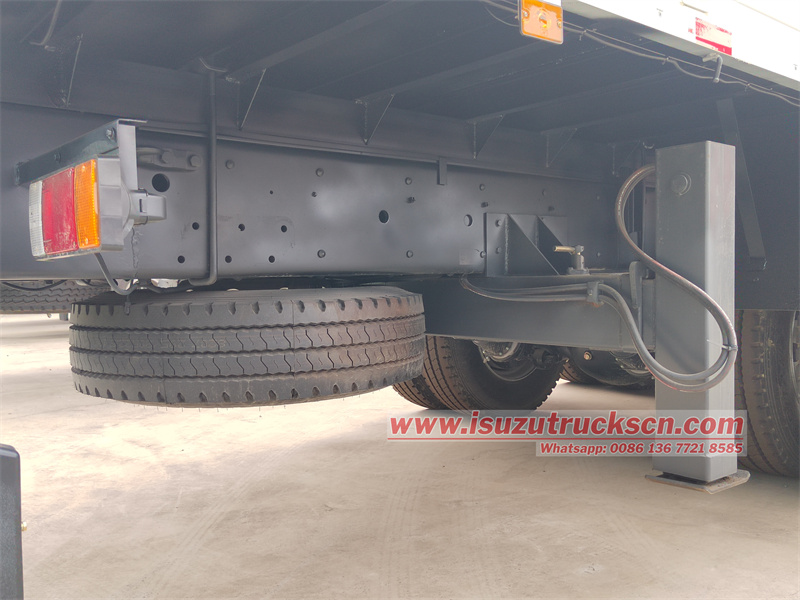

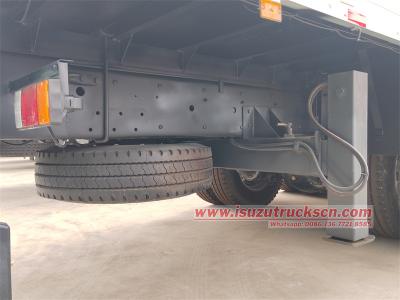

The crane is equipped with front and rear outriggers with a large span. The outriggers adopt a two-stage telescopic design with a maximum support force of 24 tons. A high-strength support pad is installed under the outrigger to ensure stable support under various ground conditions. The outrigger movement is controlled by an independent hydraulic circuit, and the extension length and support force of each outrigger can be adjusted separately.
●. Safety devices
The crane is equipped with multiple safety protection devices:
◇ Torque limiter: real-time monitoring of lifting parameters to prevent overloading
◇ Amplitude limiter: control the working range
◇ Hydraulic system safety valve: prevent excessive pressure
◇ Emergency stop device: respond to emergencies
◇ Anti-overwinding device: protect the wire rope
The Isuzu KV600 truck-mounted crane is a highly efficient, versatile vehicle that integrates transport, lifting, aerial work, and self-loading and unloading capabilities. It utilizes the reliable Isuzu KV600 chassis, a powerful 120-horsepower engine, and a 5-speed transmission. The core of the upper structure is a XCMG KSQS100-4 telescopic boom crane with a maximum lifting capacity of 4 tons. It supports fully hydraulic and fully rotary operation, and precise control of the outriggers and boom movement via manual hydraulic levers. The cargo box is equipped with a removable 200kg hanging basket that can be easily converted into an aerial work platform. In addition, the rear of the vehicle is equipped with a 3-ton hydraulic tailgate with a lifting height of 1.52 meters, enabling fast and safe self-loading and unloading of goods.
