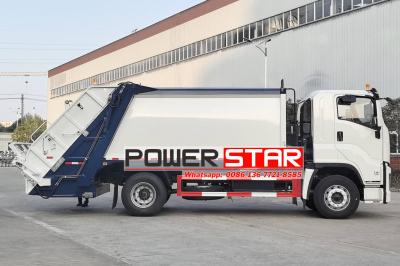

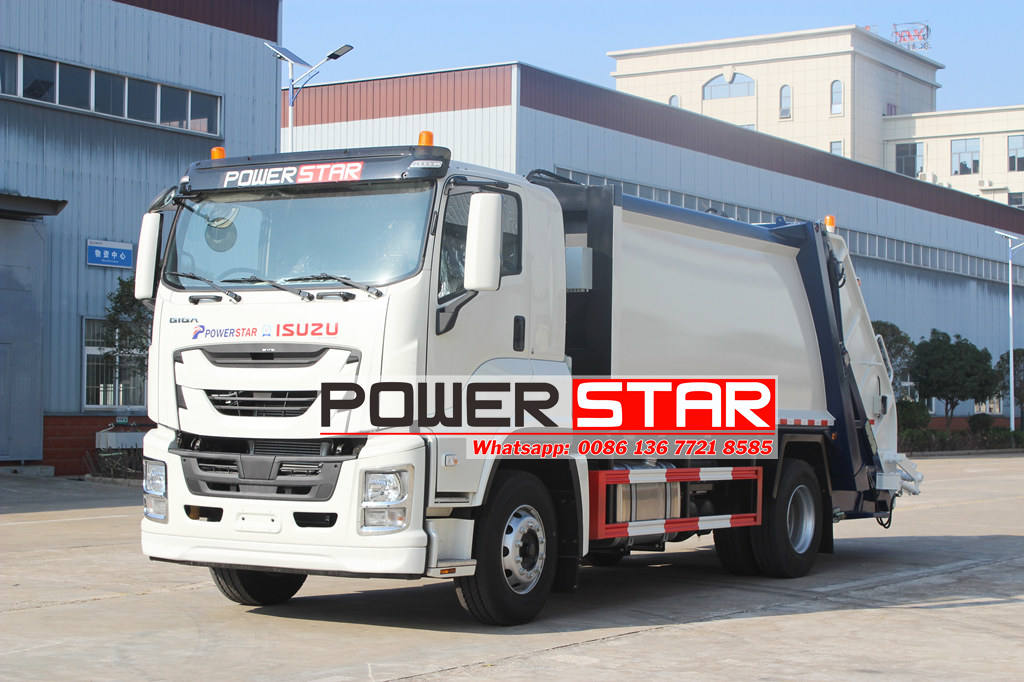

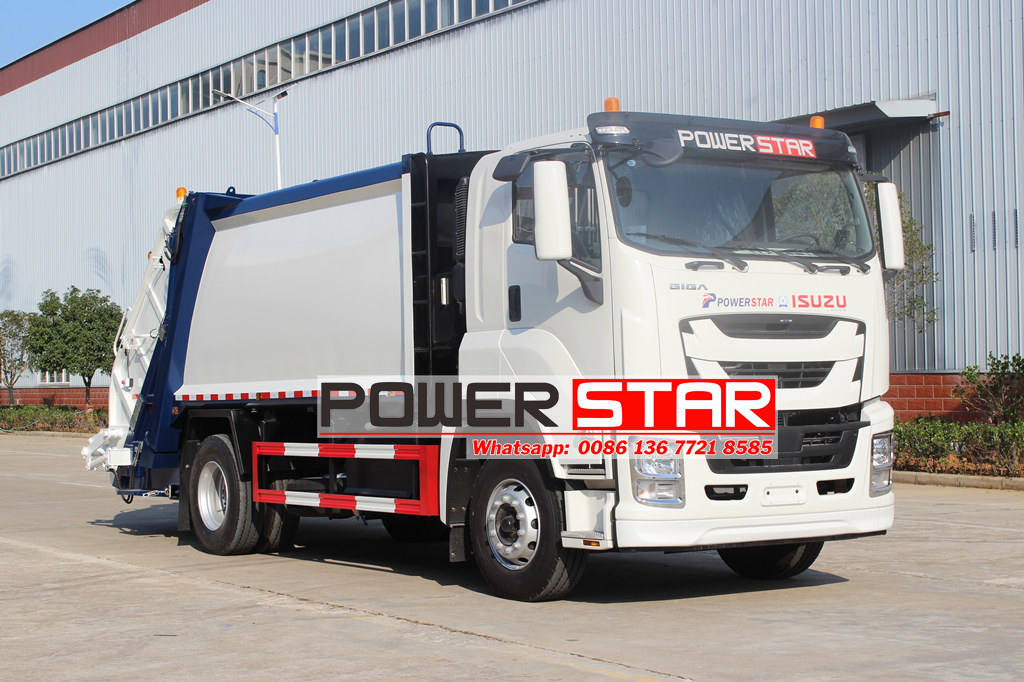

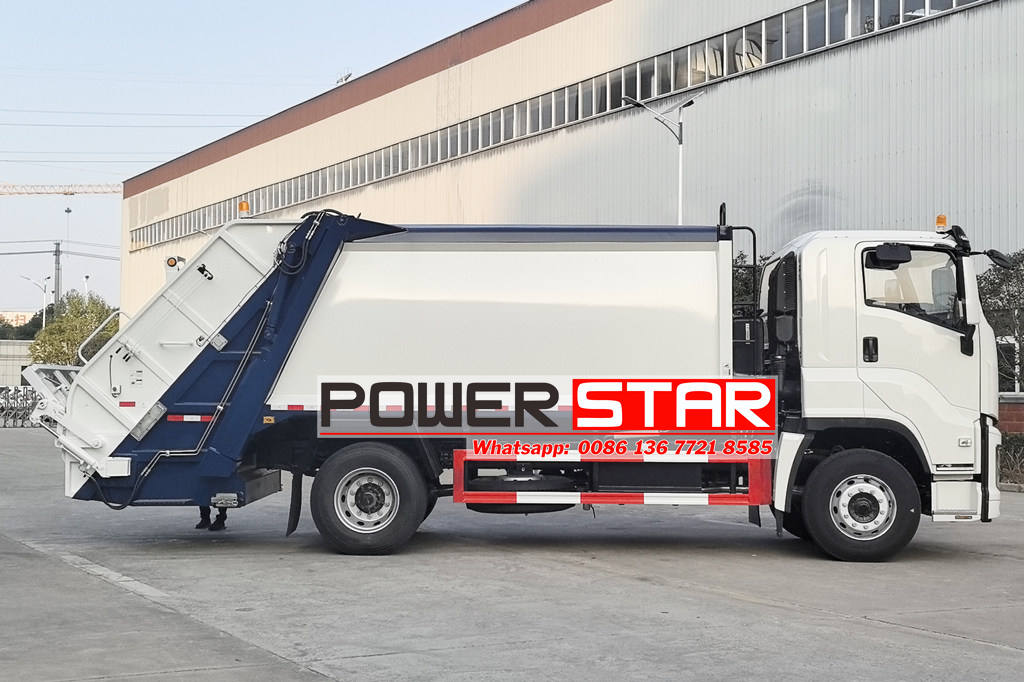

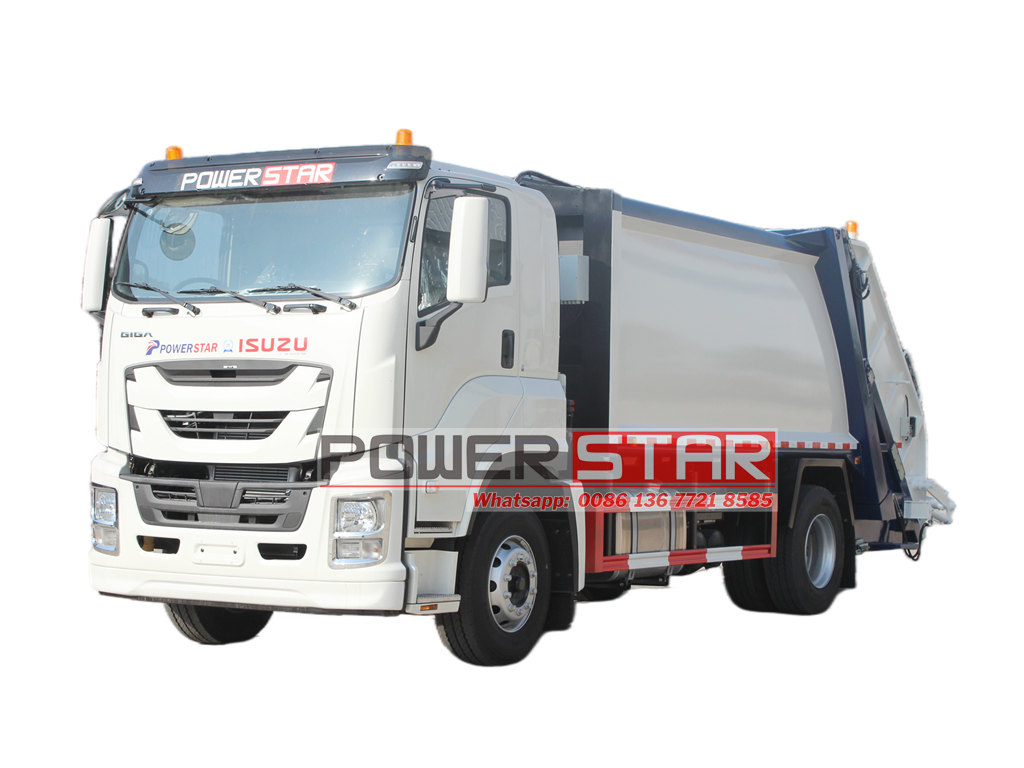

The ISUZU FVR 14CBM Refuse Compactor Truck is a highly efficient and reliable waste management solution, equipped with a ISUZU 6HK1-TCG61 engine delivering a maximum power of 241 horsepower. Featuring a 14-cubic-meter compactor and a 2-cubic-meter tailgate, with a compression ratio of ≥2.5, it significantly enhances loading capacity. The full hydraulic system, CAN-bus control, and dual sewage tank design ensure efficient and eco-friendly operations. Built with a robust T420 special steel structure and intelligent functions, it is suitable for various scenarios, including urban and rural areas, making it an ideal choice for modern waste management.
Manufacturer:
Powerstar TrucksWork capacity:
14 CBMDimension:
9070 x 2550 x 3330mmCabin type:
Isuzu FVR GIGA 5X cabin,3 seatsWheelbase:
4500mmEngine power:
240 HPEngine type:
6HK1-TCG61Axle drive:
4x2Gear box:
FAST 8-speed,manualRemarks:
High strength compactor body with large volumeIn the field of waste management, efficiency, reliability, and durability are paramount. The ISUZU FVR 14CBM Refuse Compactor Truck, introduced by POWERSTAR, is an advanced solution specifically designed to meet the demands of modern waste collection and disposal. With its robust structure, advanced hydraulic system, and user-friendly features, this refuse truck excels even in the most challenging environments. Whether handling municipal waste, industrial refuse, or commercial garbage, the ISUZU FVR 14CBM rear loader is an ideal choice.

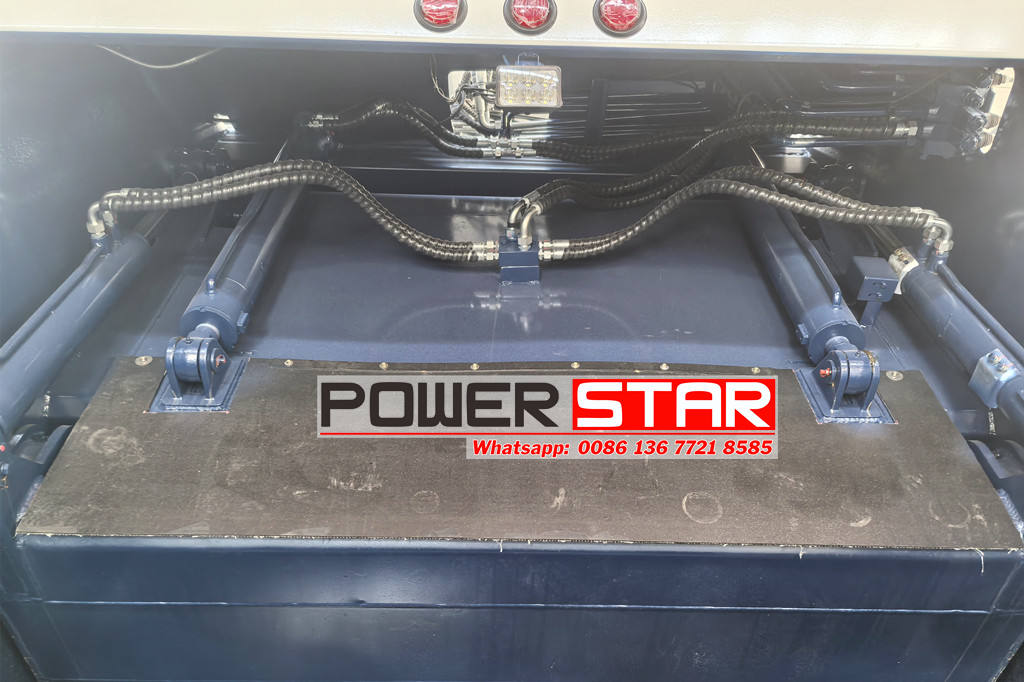

The ISUZU 14CBM Waste Compactor Truck is equipped with advanced hydraulic compression technology, featuring a high-performance hydraulic gear pump, multi-way valve, and hydraulic cylinder, ensuring efficient compression during the loading process. The compactor box offers a volume of 14 cubic meters, with a tailgate volume of 2 cubic meters, capable of accommodating large amounts of waste. Through compression, the volume of waste is significantly reduced, with a compression ratio of ≥2.5, meaning the truck's loading capacity is greatly enhanced, reducing the number of trips required and thereby lowering operational costs and time. The body is constructed from T420 special steel, with a side panel thickness of 5 mm and a bottom panel thickness of 6 mm, ensuring the strength and durability of the compactor box. This high-strength material can withstand the immense pressure generated during waste compression, extending the equipment's service life.
● China best Isuzu road sweeper truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Professional sales team help you to choose suitable truck
Product Specifications
|
ISUZU FVR 14CBM REFUSE COMPACTOR TRUCK SPECIFICATIONS |
|||
|
Vehicle Model |
PT5180ZYS14 |
||
|
Basic Vehicle Parameters |
Drive Type |
4×2 |
|
|
Total Weight (kg) |
18000 |
||
|
Curb Weight(kg) |
11200 |
||
|
Vehicle Appearance Parameters |
Length (mm) |
9070 |
|
|
Width (mm) |
2550 |
||
|
Height (mm) |
3330 |
||
|
Wheelbase (mm) |
4500 |
||
|
Performance Parameters |
Maximum Speed (km/h) |
89 |
|
|
Maximum Climbing Grade (°) |
30% |
||
|
Chassis Configuration Parameters |
Engine |
Emission Standard |
Euro 6 |
|
Manufacturer |
ISUZU |
||
|
Model |
6HK1-TCG61 |
||
|
Displacement(L) |
7.8 |
||
|
Max. output (Kw) |
177 |
||
|
Max. hose power (HP) |
241 |
||
|
Cab |
Type |
Single Row Flat Top Cab |
|
|
Model |
VC61 |
||
|
Standard Configuration |
A/C, Sleeper, Bluetooth Radio, Laminated Glass, Electric Doors And Windows, Central Locking, Multi-Function Steering Wheel, External Sun Visor |
||
|
Gearbox |
Gearbox Type |
FAST, Manual, 8-speed |
|
|
Front Axle |
Type |
Drum Brake |
|
|
Loadable Weight (Kg) |
6500 |
||
|
Rear Axle |
Gearbox Type |
Drum Brake |
|
|
Loadable Weight (Kg) |
11500 |
||
|
Speed Ratio |
5.571 |
||
|
Frame |
Section Size (mm) |
258×80×10 |
|
|
Leaf Spring |
Number of pieces |
9 Front Springs, 7+7 Rear Springs |
|
|
Tire |
Type |
Radial Tire |
|
|
Quantity |
6+1 |
||
|
Model |
295/80R22.5 18PR |
||
|
Steering System |
Type |
Hydraulic Power Steering System |
|
|
Braking System |
Brake Type |
Drum Brakes With ABS Anti-Lock Braking System |
|
|
Service Brake System Type |
Dual Circuit Air Brake |
||
|
Parking Brake System Type |
Spring Brake |
||
|
Parking Control Type |
Manual Brake Operation |
||
|
Electrical System |
System Voltage |
24V |
|
|
Battery |
100AH Dual Battery |
||
|
Upper Body Configuration Parameters |
Compactor |
Compactor Volume (M³) |
14 |
|
Material |
T420 special steel |
||
|
Thickness (mm) |
Side Thickness 5mm |
||
|
Tailgate Volume (M³) |
2 |
||
|
Sewage tanks |
600L+250L |
||
|
Compression Ratio |
≥2.5 |
||
|
Loading Cycle Time (S) |
≤25 |
||
|
Unloading Cycle Time (S) |
≤110 |
||
|
Other Configurations |

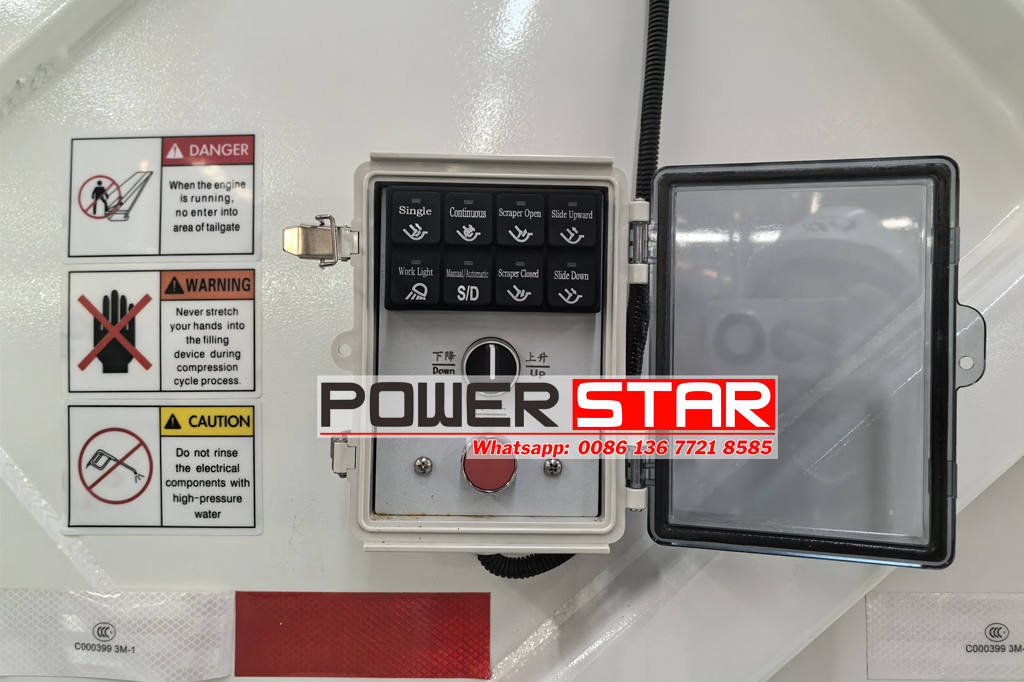

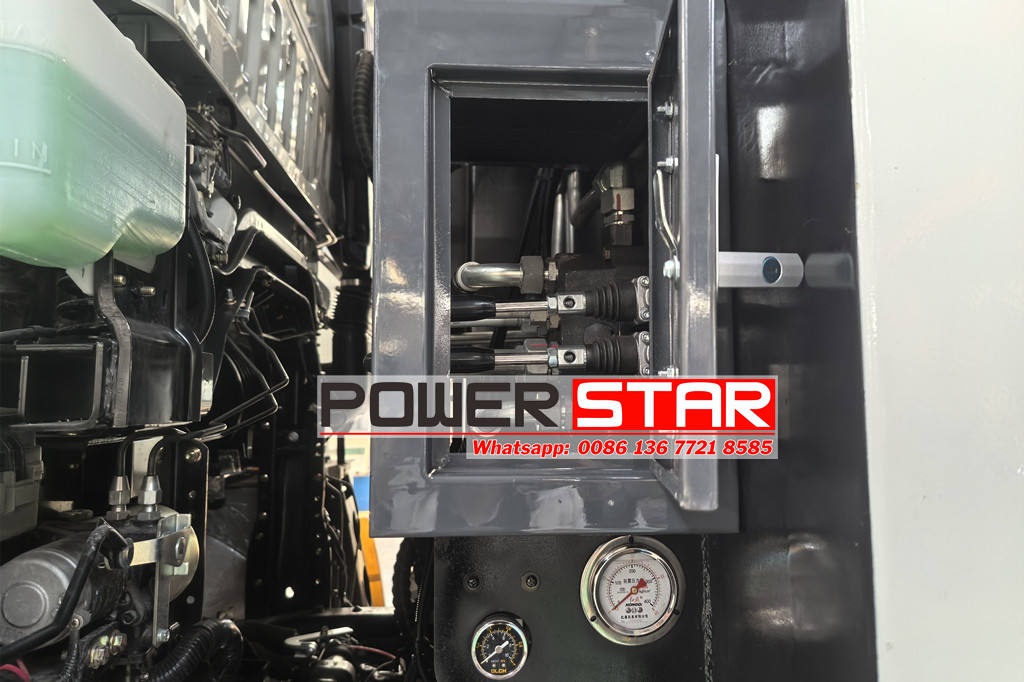

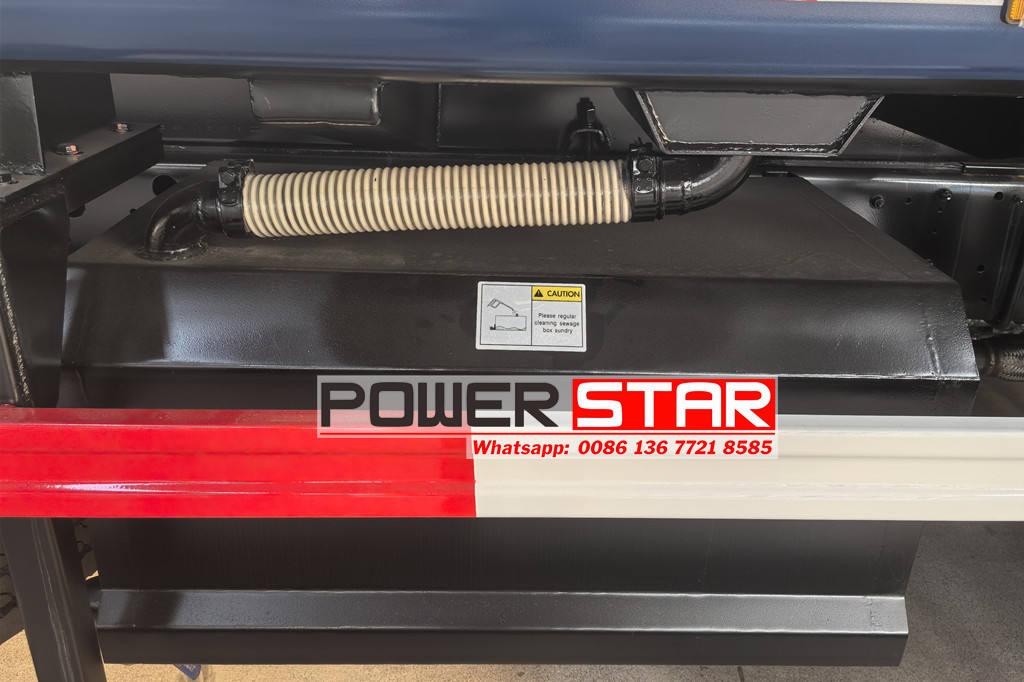

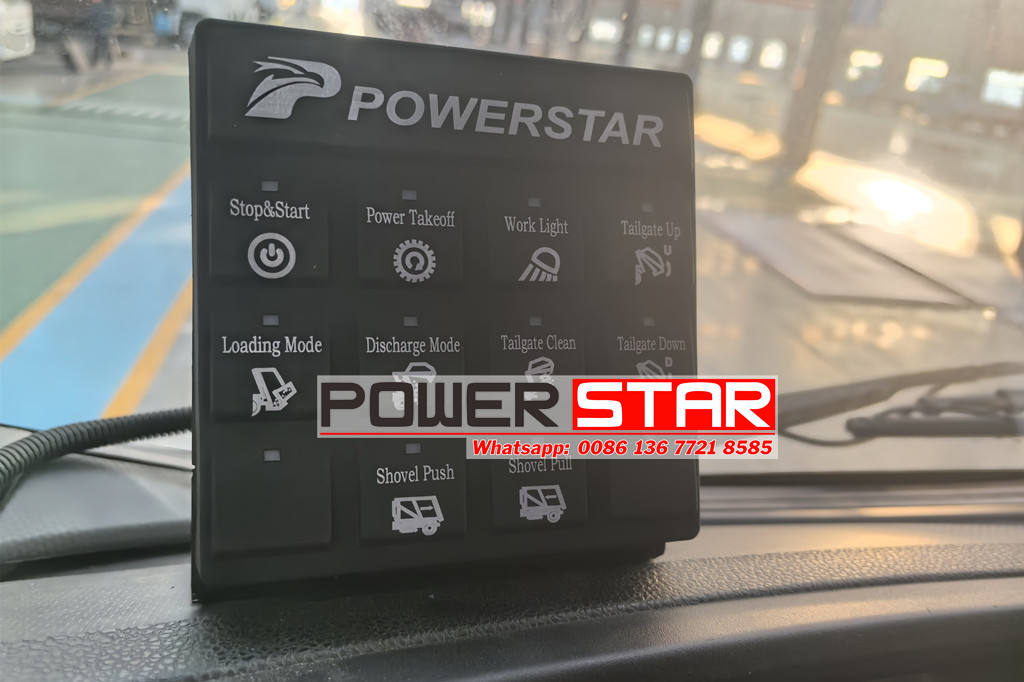

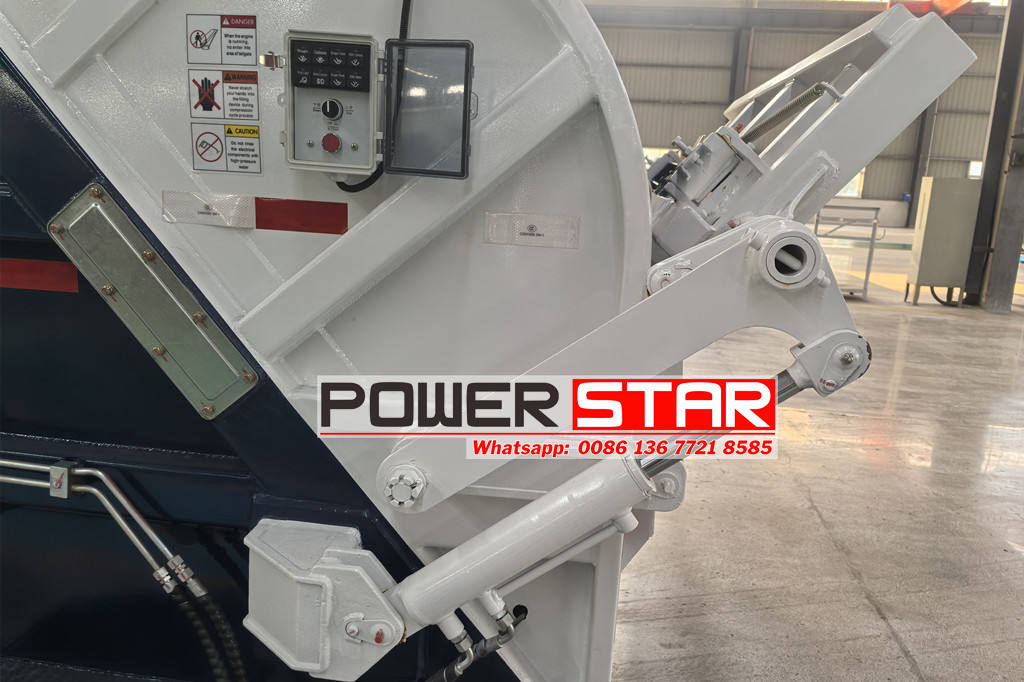

Hydraulic gear pump, multi-way valve, cylinder, full hydraulic operation, with back pressure valve, two-way balance valve, can-bus control system, two operation boxes (one inside the cab and one on the side of the tailgate), lighting lamp, a sewage tank on the side of the beam, a sewage tank at the bottom of the tailgate to ensure that there is no sewage leakage in the tank, and garbage bin lifting mechanism at the rear |
||

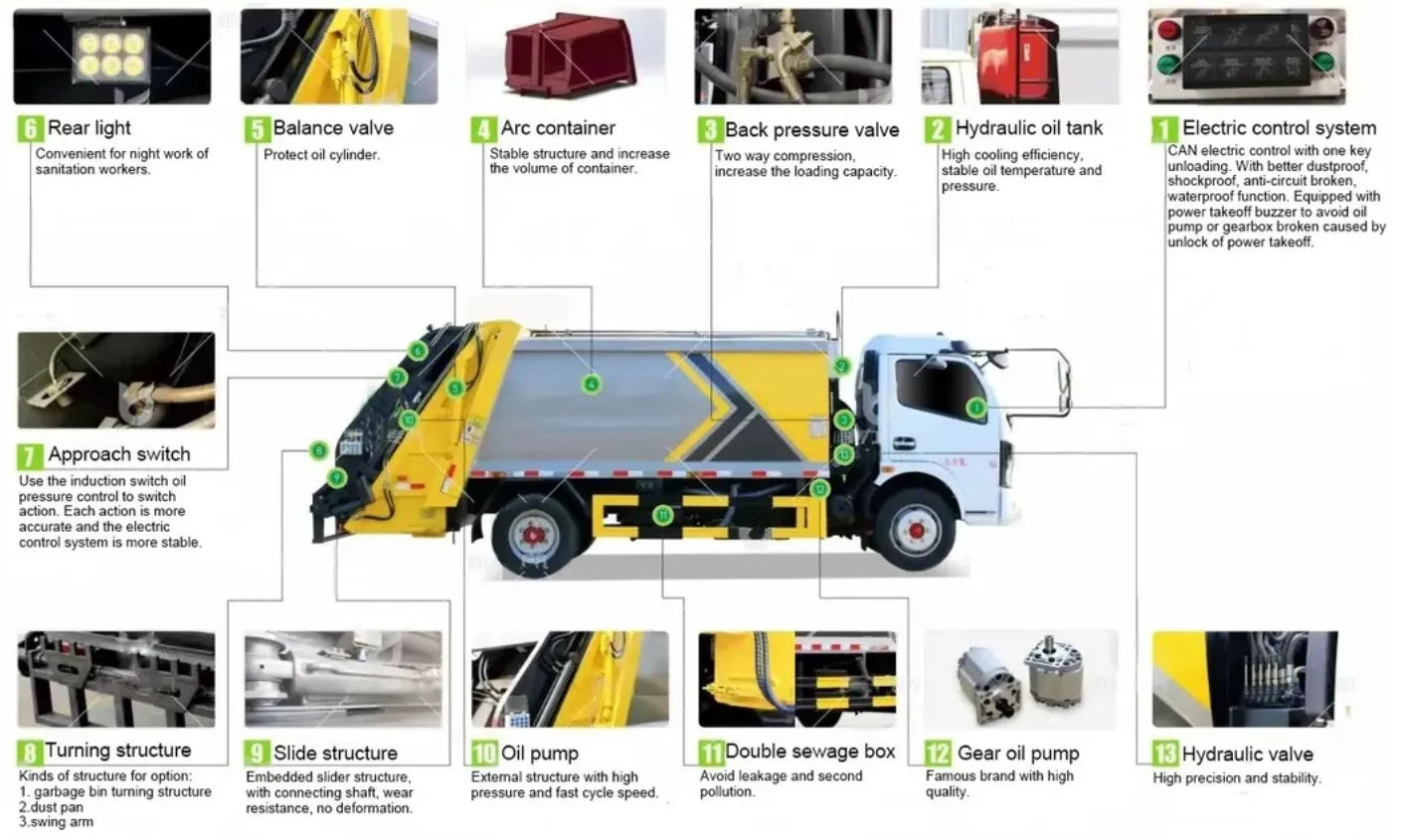

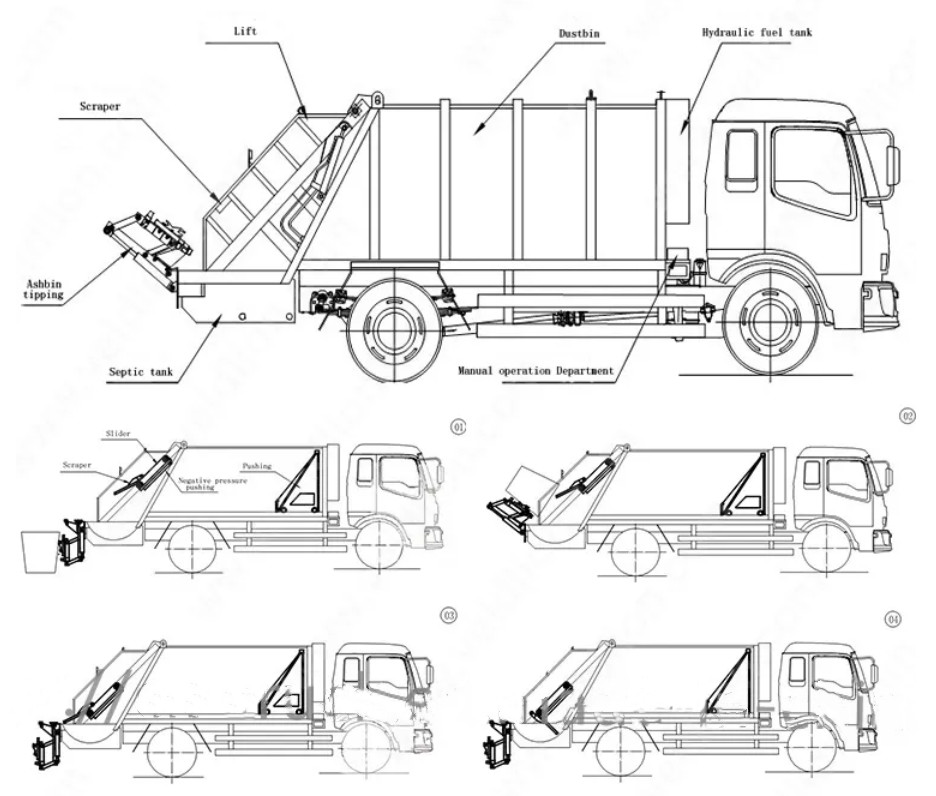

Product Structure

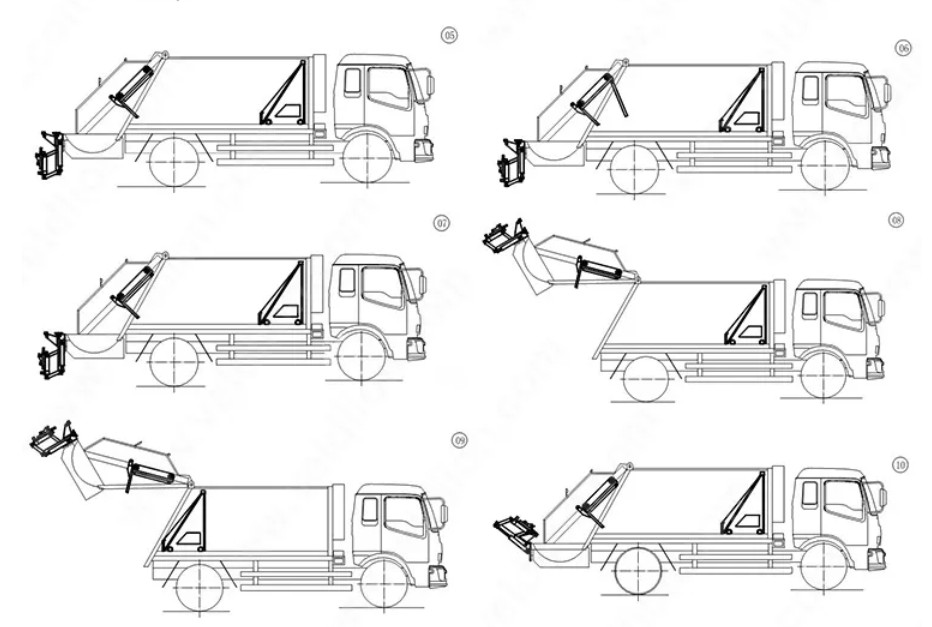

Product Working Process
Common Faults and Solutions for ISUZU Refuse Compactor Trucks
Common Faults
1. Transmission System Faults: The transmission system of the ISUZU refuse compactor truck includes components such as the engine, clutch, and gearbox. Common faults include engine failure to start, clutch malfunction, and gearbox slippage.
2. Compression Device Faults: The compression device is the core component of the ISUZU garbage compactor truck. Common faults include the compression device failing to operate, poor compression performance, and abnormal noises during compression.
3. Hydraulic System Faults: The hydraulic system is a critical part of the ISUZU rear loader compactor truck. Common faults include hydraulic leaks, excessively high hydraulic oil temperature, and hydraulic cylinder jamming.
4. Electrical System Faults: The electrical system of the ISUZU trash compactor truck includes components such as the motor, circuits, and controller. Common faults include circuit short circuits, motor failure, and controller malfunction.
Solutions
1. Timely Inspection and Maintenance: During normal operation, the refuse compactor truck requires regular inspection and maintenance, including the engine, transmission system, compression device, hydraulic system, and electrical system, to ensure all components are functioning properly.
2. Regular Replacement of Wear Parts: Wear parts of the refuse compactor truck, such as clutch plates, brake pads, lubricants, and filters, need to be replaced regularly to prevent malfunctions caused by worn parts.
3. Repair and Maintenance: For faults in the refuse compactor truck, professional repair personnel should be contacted promptly to ensure timely resolution and comprehensive maintenance of the vehicle.
4. Attention to Operational Details: During daily use, operators should pay attention to operational details, such as startup sequence, operational standards, and working environment, to avoid faults caused by improper operation.
5. Replacement of Aging Components: Aging components should be replaced in a timely manner to ensure all parts of the refuse compactor truck are in good working condition, preventing faults caused by aging parts.
