In the world of industrial machinery, efficiency and reliability are of paramount importance, and the Isuzu 15,000 liters gully sucker truck from POWERSTAR is a testament to these qualities. Designed to handle sewers, ditches and more, this rugged vehicle meets stringent Euro 6 emissions standards, ensuring not only productivity but also environmental responsibility.
Work capacity:
15000 litersEngine power:
300HPEngine type:
6HK1-TCG60Axle drive:
6X4,LHDGear box:
FAST 9-speed,manualRemarks:

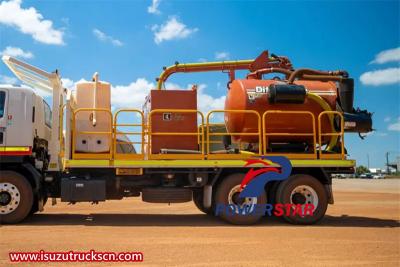

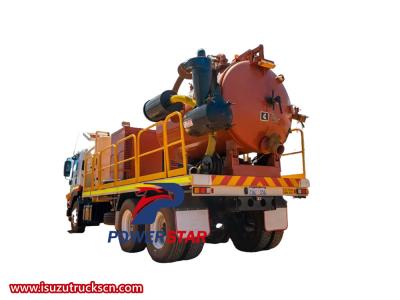

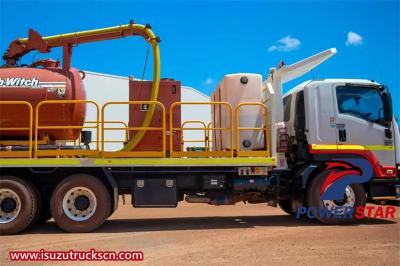

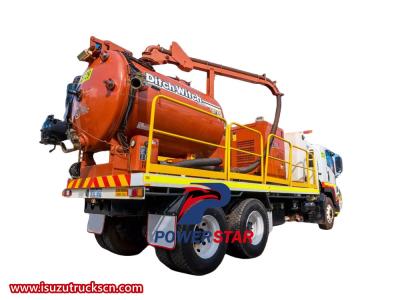

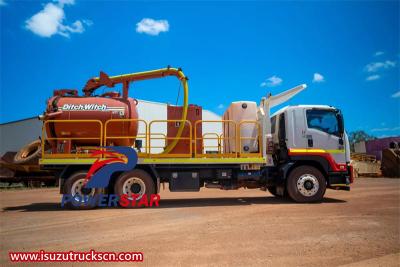

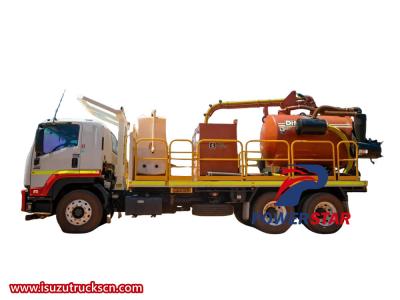

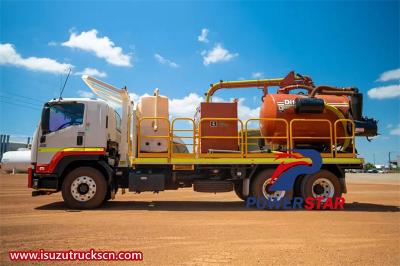

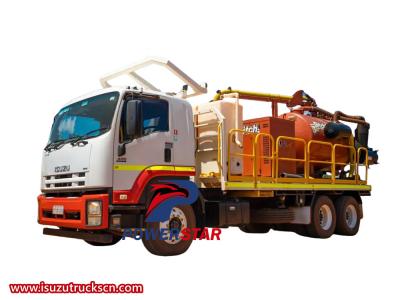

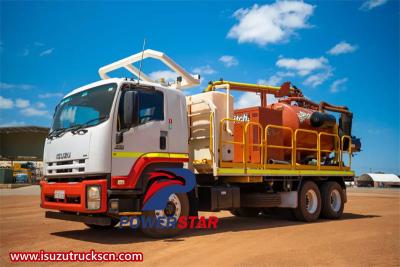

Isuzu FVZ 6x4 chassisIsuzu 15,000 liters gully sucker truck also called Isuzu FVZ gully emptier,Isuzu 6x4 15000L sewage sucking truck,Isuzu FVZ 6X4 sewer suction truck,Isuzu FVZ 15000L gully cleaning vehicle,Isuzu FVZ 6X4 15cbm gully suction truck.The Isuzu 15,000 liters gully sucker truck is a highly capable and versatile machine that is essential for tackling the challenges of sewage and stormwater management, drainage cleaning, and environmental remediation. Its robust construction, high-powered vacuum pump, and large capacity tank ensure that it can perform even the most demanding tasks with ease. With its ease of use, low maintenance requirements, and environmental benefits, it is a valuable asset for any organization that needs to keep its drains and gullies clear and functioning efficiently.
Features
★ Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
★ Adopt EU vacuum pump (ltaly brand) or equivalent China top brand double vacuum pumps, super powerful,highly efficient
★ Pump can be operated by a hydraulic motor or by an auxiliary engine
★ Overfil system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pumpwhen the tank is full.
★ Nice shape, rational structure, durable and long service life.
|
Isuzu 15,000 liters gully sucker truck |
||
|
Cabin |
Driving type 6X4, one and half row,with A/C |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
9000×2500×3550 |
|
Wheel base (mm) |
4650+1300mm |
|
|
Wheel track (front/rear) (mm) |
1960/1855 |
|
|
Weight in KGS |
Gross Weight |
25000kg |
|
payload |
15000kg |
|
|
Front axles loading capacity |
7000 |
|
|
Rear axles loading capacity |
18000 |
|
|
Max. driving speed(km/h) |
95 |
|
|
Engine |
Brand |
Isuzu |
|
Model |
6HK1-TCG60 |
|
|
Type |
Six cylinder inline,water cooling,direct injection type,turbocharged | |
|
Horse Power(HP) |
300HP/221KW |
|
|
Displacement |
7790ml |
|
|
Fuel type |
Diesel |
|
|
Emission standard |
Euro VI |
|
|
Gearbox |
FAST 9-speed,manual |
|
|
Steering |
Left hand drive |
|
|
Tire |
295/80R22.5, 10 tires with one spare |
|
|
Sewage Tank |
||
|
Tank volume |
15000Liters |
|
|
Tank material |
6mm carbon steel Q235 |
|
|
Vacuum Pump |
Chinese Vacuum Pump or Italy Vacuum Pump |
|
|
Sewage suction pipe |
7M |
|
|
Main Performance |
Suction time ≤ 5min, |
|
|
effective suction range ≥ 8m |
||
|
Dump angle |
≥45° |
|
|
Other equipment |
Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve |
|
|
Painting |
Customized painting color and logo as required. |
|
The Isuzu 15,000 liters gully sucker truck is a versatile and powerful machine that plays an important role in the urban environment. It is commonly used to clean up sludge, garbage and wastewater accumulated in urban roads, drains, rainwater collection tanks, etc. This truck is commonly seen in busy urban and industrial areas such as city streets, parking lots, factory areas and construction sites.
During the rainy season or when the sewage pipe fails,Isuzu FVZ gully emptier is used to extract, clean and transport blockages and wastewater to ensure smooth roads and the normal operation of urban drainage systems. It is also commonly seen in urban maintenance projects, municipal cleaning and environmental services. Whether it is cleaning the stormwater drainage system or solving drainage problems caused by water surges, this truck has demonstrated excellent performance and efficiency, providing indispensable support for the cleanliness, hygiene and smoothness of the urban environment.
Design and Construction
At the heart of the Isuzu 6x4 15000L sewage sucking truck lies its robust construction, which ensures reliability and longevity even under the toughest working conditions. The truck's chassis is built to withstand the rigors of daily operation, with reinforced steel frames and robust suspension systems that ensure stability and maneuverability. The cab, meanwhile, is designed for operator comfort and safety, featuring ergonomic controls, ample visibility, and advanced safety features such as airbags and anti-lock braking systems.
Under the hood, the Isuzu FVZ 6X4 sewer suction truck boasts an impressive 300 horsepower engine, providing the necessary power to tackle tough tasks with ease. Whether transporting bulk dry materials from a construction site or cleaning up an industrial space, the truck’s powerful engine ensures seamless and powerful performance.
The star of the show, however, is the gully sucker system itself. This sophisticated setup incorporates a high-powered vacuum pump capable of generating immense suction force, allowing it to efficiently and quickly extract debris, water, and other materials from gullies, manholes, and other confined spaces. The system is designed to be highly efficient, with minimal energy consumption and low maintenance requirements.
The 15,000-liter tank is a testament to the truck's impressive capacity. Constructed from durable materials such as stainless steel or polyethylene, the tank is designed to withstand the corrosive effects of sewage and other waste materials. Its large size ensures that the truck can operate for extended periods without the need for frequent emptying, maximizing productivity and minimizing downtime.
Performance and Capabilities
The Isuzu FVZ 15000L gully cleaning vehicle is a true workhorse, capable of tackling even the most demanding tasks with ease. Its high-powered vacuum pump and large capacity tank allow it to rapidly extract large volumes of water and debris from clogged drains and gullies, restoring flow and preventing flooding. This is particularly important in urban areas where heavy rainfall can quickly overwhelm drainage systems, leading to flooding and other water-related hazards.
The truck's versatility is another key strength. In addition to its primary role in sewage and stormwater management, it can also be used for a wide range of other applications, including cleaning out ponds and lakes, removing sludge from industrial tanks, and even assisting in emergency response situations. Its powerful suction capabilities make it an invaluable tool for environmental remediation, helping to restore contaminated sites and protect the environment.

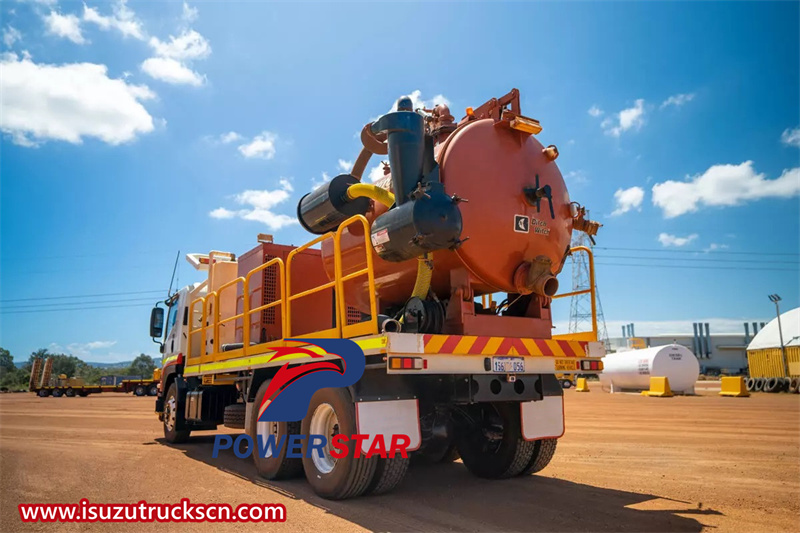

Isuzu FVZ 6X4 sewer suction truck

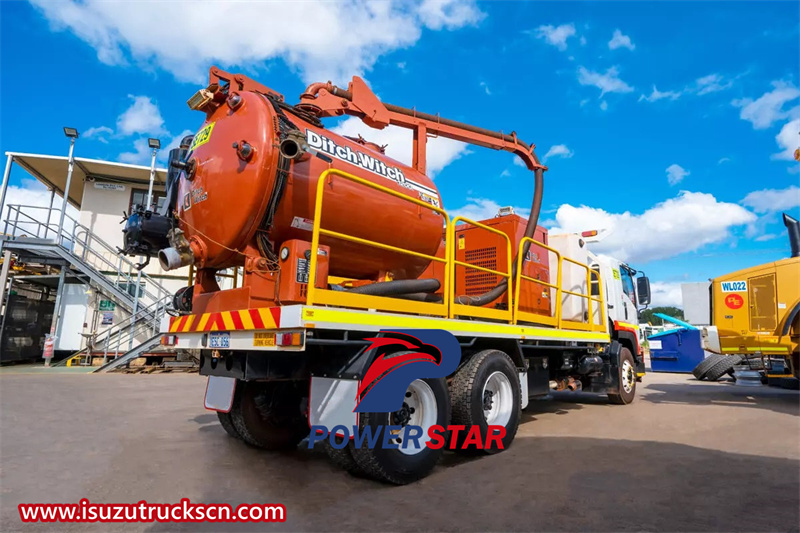

Isuzu FVZ 15000L gully cleaning vehicle
Environmental Impact
In today's world, the environmental impact of our actions is increasingly important. The Isuzu FVZ 6X4 15,000 liters gully sucker truck is designed with this in mind, incorporating features that minimize its environmental footprint. The truck's powerful suction capabilities enable it to quickly and efficiently remove debris and waste from drains and gullies, reducing the risk of water pollution and protecting the environment.
In addition, the truck's use of advanced engine technology helps to reduce emissions and improve fuel efficiency. This not only reduces the truck's carbon footprint but also saves money on fuel costs, making it a cost-effective solution for municipalities and other organizations.

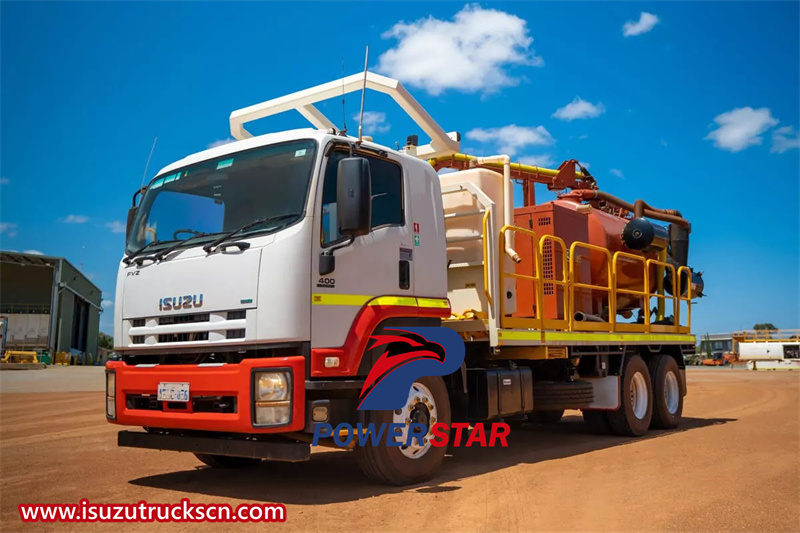

Isuzu 15,000 liters gully sucker truck
Sewage tank&Fuel tank&Spare tire
