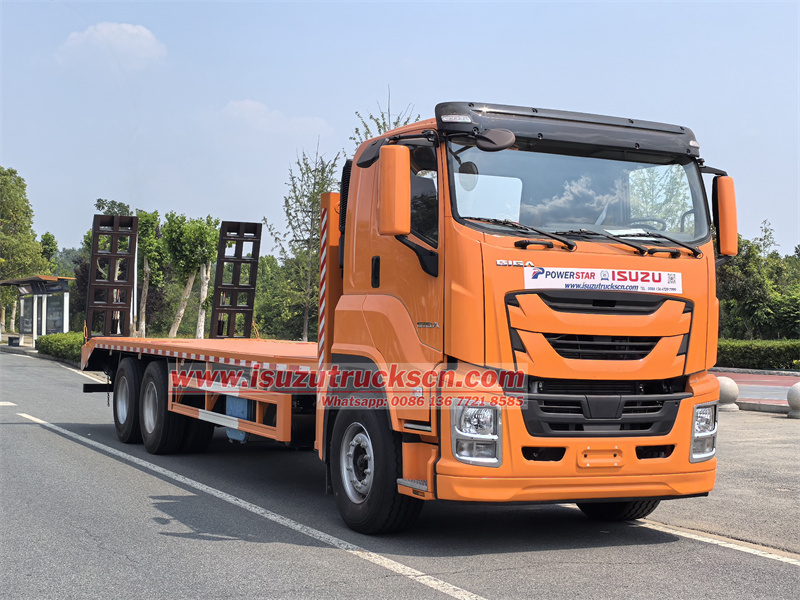

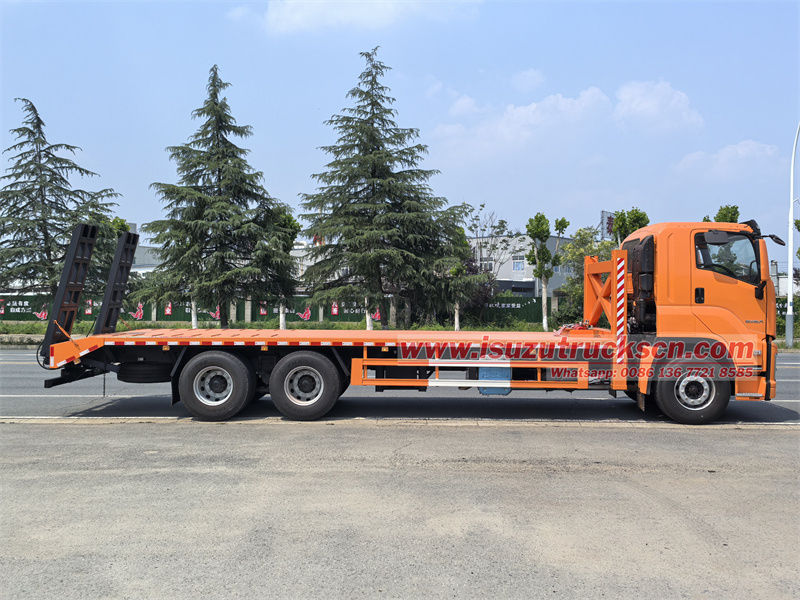

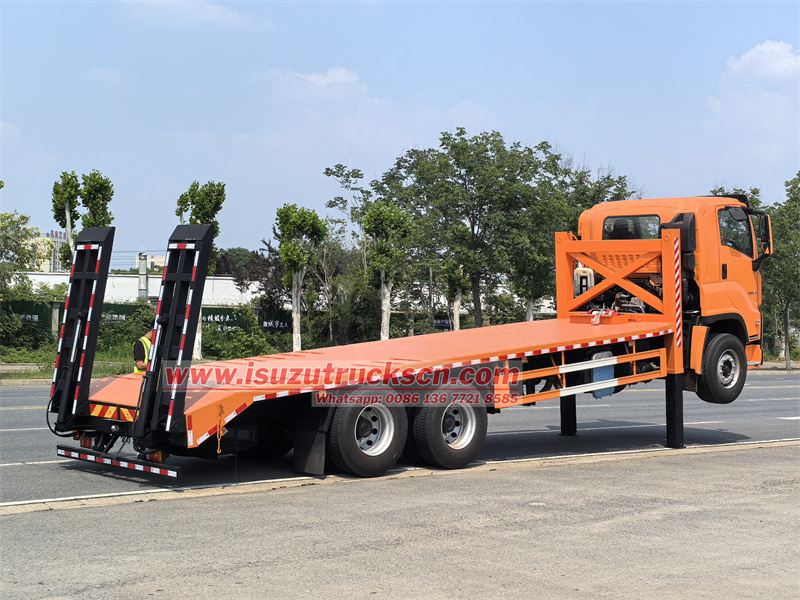

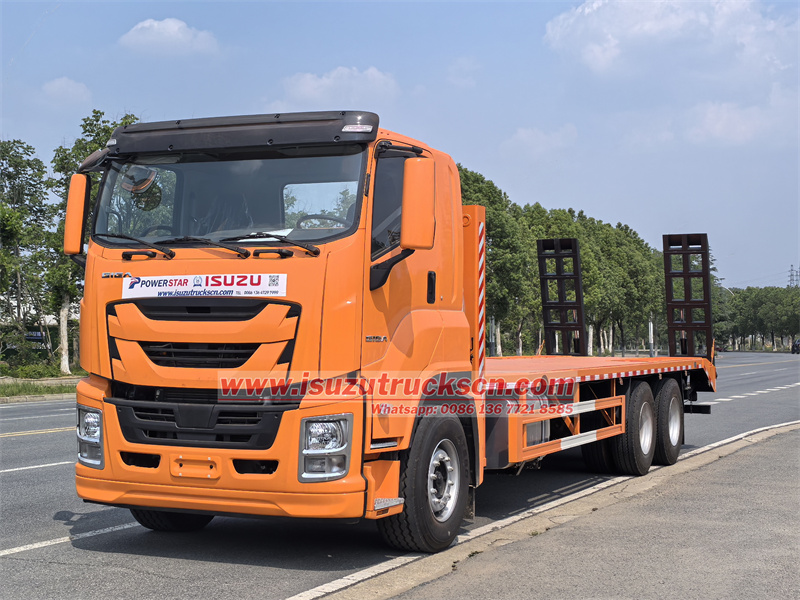

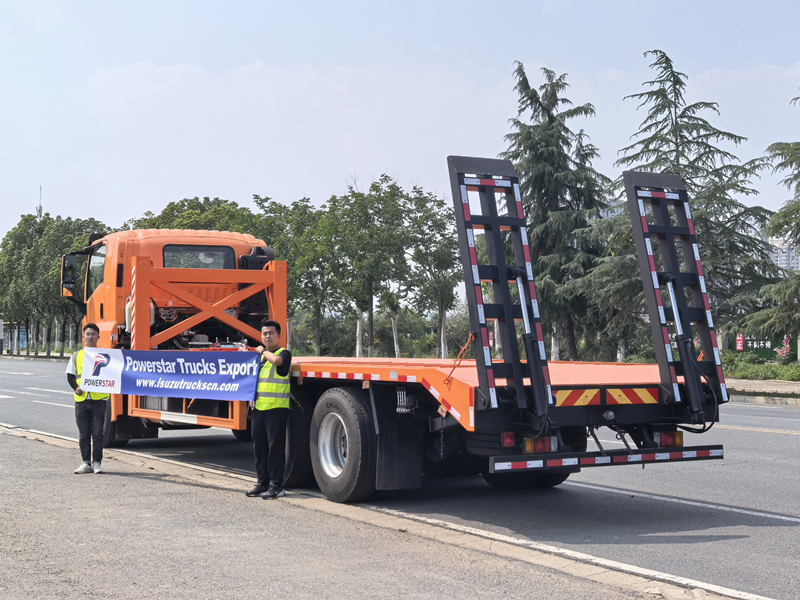

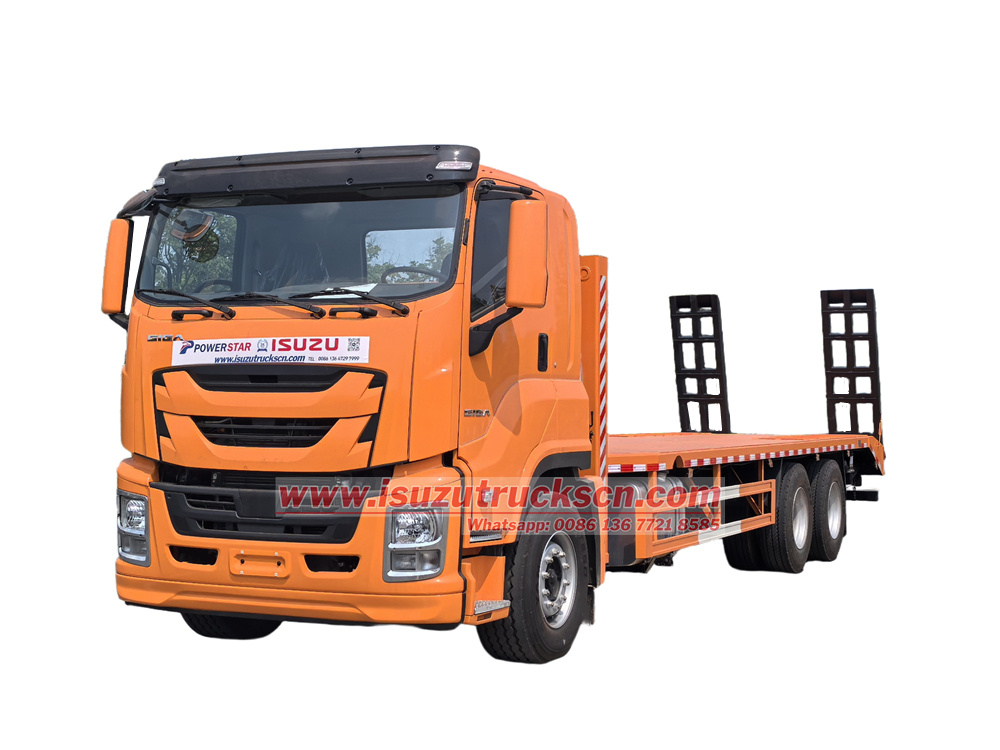

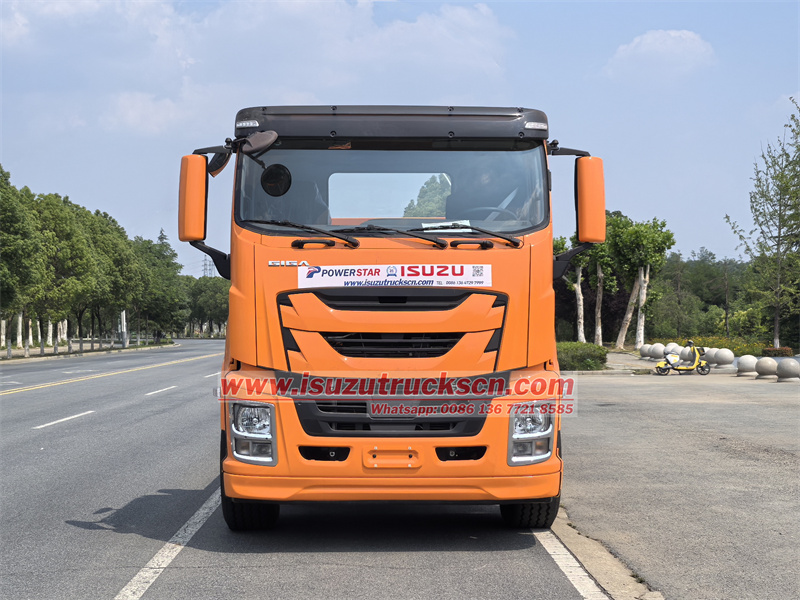

Isuzu GIGA 6X4 flatbed transporter is modified on the basis of Isuzu 6x4 VC66 GIGA chassis, with a half-row cab, 5820+1370mm wheelbase, equipped with Isuzu 6WG1-TCG61 460HP engine, Fast 12-speed gearbox, and a transport flatbed on the upper body, 8.5 meters long, 2.5 meters wide, 8mm anti-skid patterned plate, equipped with hydraulic outriggers, 45 meters 20 tons winch, and a mechanical spring full-steel ramp at the rear. A manual hydraulic operating valve is installed on the left rear to control the extension and retraction of the left and right outriggers, the retraction of the winch rope, the extension and retraction of the rear ladder, etc. The vehicle can transport 20 tons cargo.
Manufacturer:
Powerstar TrucksWork capacity:
20tonsDimension:
11250*2550*3180mmCabin type:
Isuzu VC66 6x4 chassis,2 seats with a sleeperWheelbase:
5820+1370mmEngine power:
460 HP (337 KW)Engine type:
ISUZU 6WG1-TCG61Axle drive:
6x4,LHDGear box:
FAST 12-speed,manualRemarks:
Large capacity loadingIsuzu 20 Ton hydraulic self-loader truck is a powerful player in the field of heavy-duty transportation. It is based on the mature and reliable Isuzu 6x4 VC66 GIGA chassis, and is carefully designed to adapt to a variety of complex transportation scenarios. The Isuzu 6WG1-TCG61 power system is like a strong heart, and the surging power output can easily cope with various road conditions. The upper body design is exquisite, from the non-slip and wear-resistant transport flatbed to the practical and efficient hydraulic outriggers and winch configuration, which shows professionalism everywhere. The rear ramp makes loading and unloading operations easy and safe. The convenient operation valve allows users to clearly operate specific functions. With a powerful heavy-duty capacity of 20 tons, it widely serves various transportation industries and becomes a capable partner on the road of transportation.
● China best Isuzu flatbed truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome.
|
ISUZU GIGA 6x4 flatbed transport truck |
||
|
General |
Chassis Brand |
Isuzu |
|
Overall Dimension |
11250*2550*3180mm | |
|
GVW / Curb Weight |
35000/14500kg |
|
|
|
Loading capacity |
20tons |
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Chassis |
Drive type |
6x4,LHD |
|
Wheelbase/No. of axle |
5820+1370mm/3 |
|
|
Front/rear overhang |
1370/2690mm |
|
|
Front/rear track |
2140/1855/1855mm |
|
|
Tire Specification |
385/65R22.5 / 315/80R22.5 |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Max Speed |
100 km/h |
|
|
Transmission |
FAST 12-speed,manual |
|
|
Paint |
Metallic paint |
|
|
Engine |
Fuel Type |
Diesel, Inline 6 cylinder 4 stroke |
|
Engine Brand |
ISUZU |
|
|
Model |
6WG1-TCG61 |
|
|
Power |
460 HP (337 KW) |
|
|
Displacement |
15681 ml |
|
|
Emission Standard |
Euro 6 |
|
|
Rated speed |
1500rpm |
|
|
Maximum torque |
2250N.m |
|
|
Maximum torque speed |
900-1300rpm |
|
|
Flatbed Body |
Length |
8500mm |
|
Width |
2500mm |
|
|
Bottom beam |
120x120x5mm GB square steel |
|
|
Thickness |
8mm checkered plate with antiskid |
|
|
Mechanical ramp |
Type |
mechanical spring |
|
Length |
2200mm |
|
|
Material |
All Steel Ramp |
|
|
Feature |
It adopts heavy load strengthening design, and three reinforcement, double spring reinforcement treatment, with rear outrigger |
|
|
Winch |
Type |
20ton,45m,18mm thick |
★. Half-row cab, comfortable driving experience
The Isuzu GIGA 6X4 flatbed transporter is modified based on the Isuzu 6x4 VC66 GIGA chassis. The vehicle adopts a half-row cab design, creating a relatively spacious driving space for the driver. The 5820+1370mm wheelbase provides sufficient space and stability for cargo transportation.
★. Strong power, efficient driving guarantee
• Engine: Equipped with Isuzu 6WG1 - TCG61 460HP Euro VI diesel engine, providing 2250N.m peak torque. Faced with various complex road conditions and transportation needs such as climbing, acceleration and heavy-load transportation, the engine can operate stably and efficiently, providing the vehicle with a steady stream of power support to ensure the smooth completion of the transportation task.
• Transmission: Equipped with Fast 12-speed transmission, the gear shifting process is smooth and the operation is flexible and free. It not only improves the vehicle's handling, allowing the driver to control the speed and power output more accurately, but also optimizes fuel economy and reduces the cost of use.
★. Practical topology to meet diverse needs
• Transport flatbed: The flatbed is 8.5 meters long and 2.5 meters wide, and is made of 8mm anti-slip patterned plate. This material and design greatly enhance the wear resistance and anti-slip properties of the flatbed, effectively preventing the goods from sliding during transportation, ensuring the safety of the goods, and reducing transportation risks.

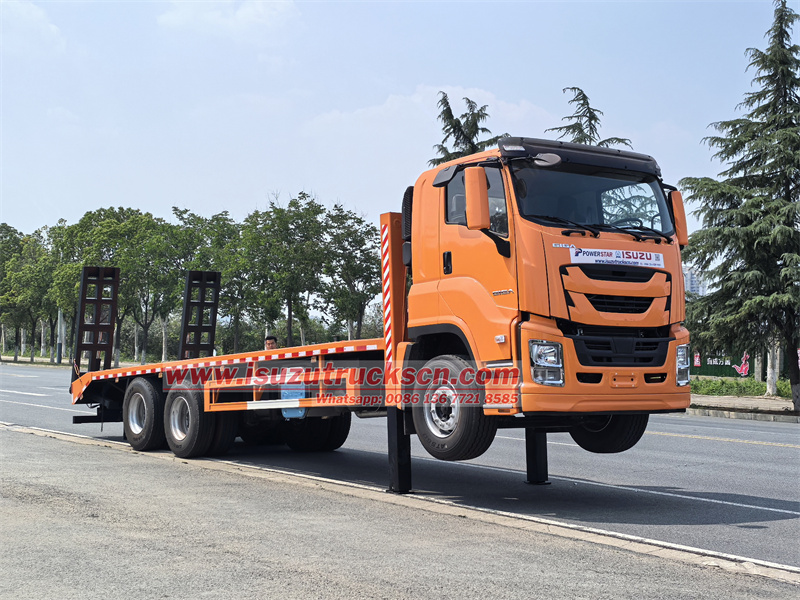

• Hydraulic outriggers: The hydraulic outriggers at the front of the flatbed provide stable support for the vehicle when loading and unloading goods. Ensure that the vehicle remains stable during loading and unloading, avoid safety accidents caused by vehicle shaking, and improve the safety and efficiency of loading and unloading operations.

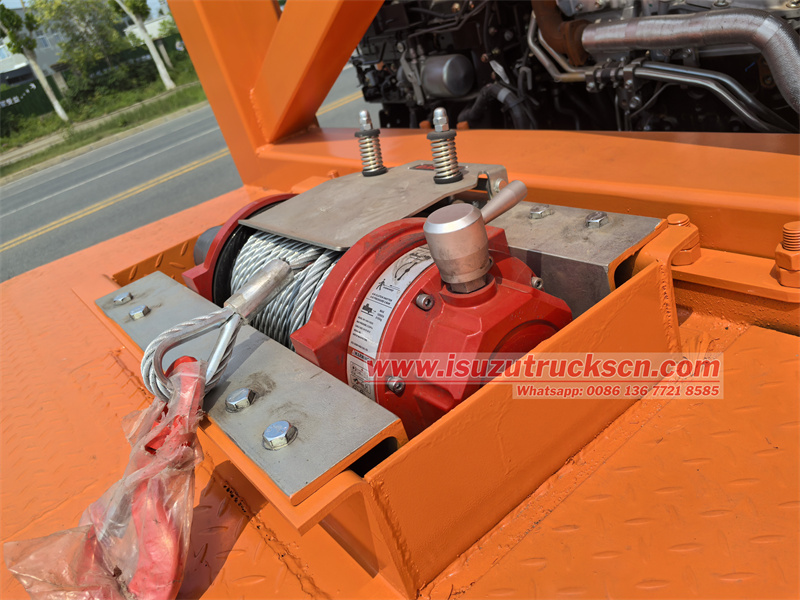

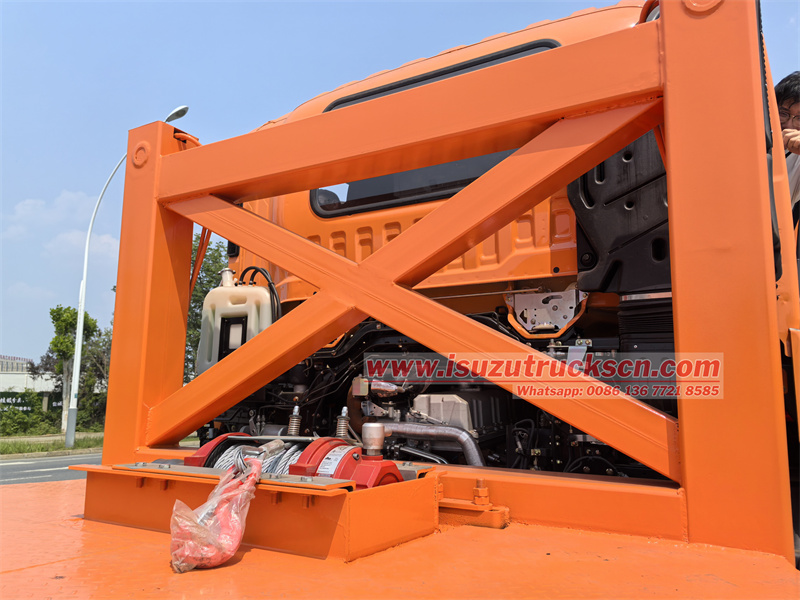

• Winch system: The 45-meter 20-ton winch uses high-strength steel wire rope with strong pulling force, and can easily drag the goods onto the flatbed in complex environments. Whether it is a construction site with rugged terrain or a place with narrow space, the winch can play an important role, greatly simplifying the loading and unloading process and improving work efficiency.
★. Special configuration, convenient and worry-free operation

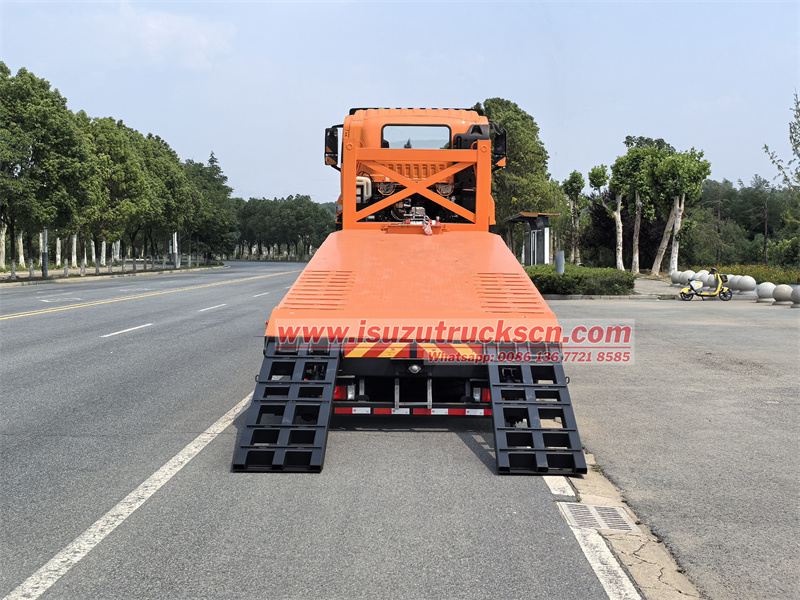

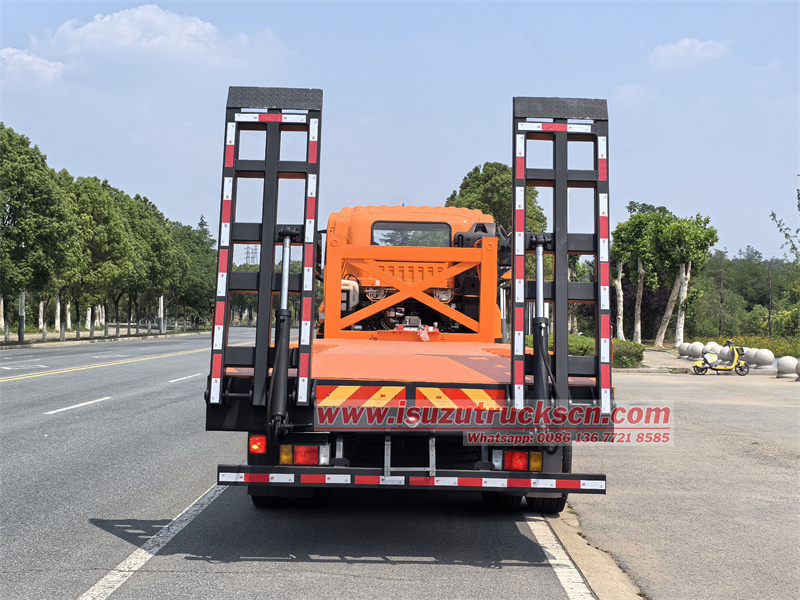

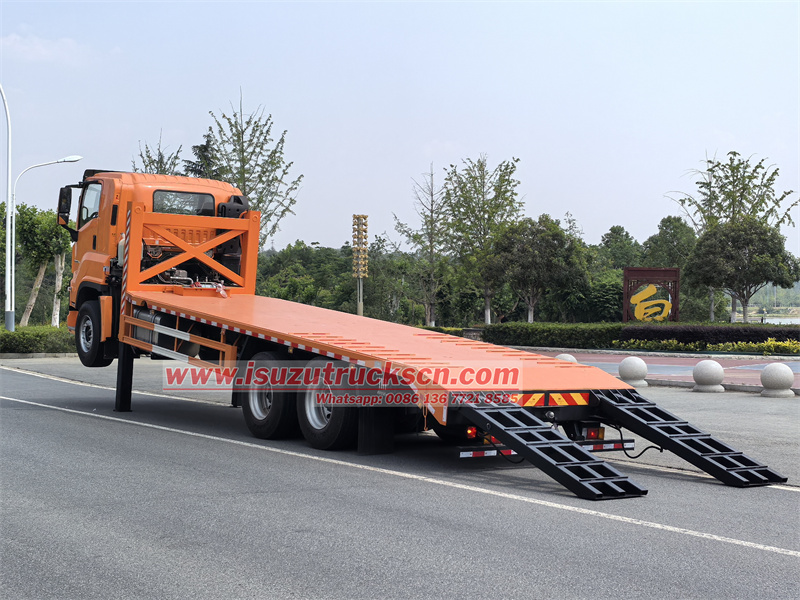

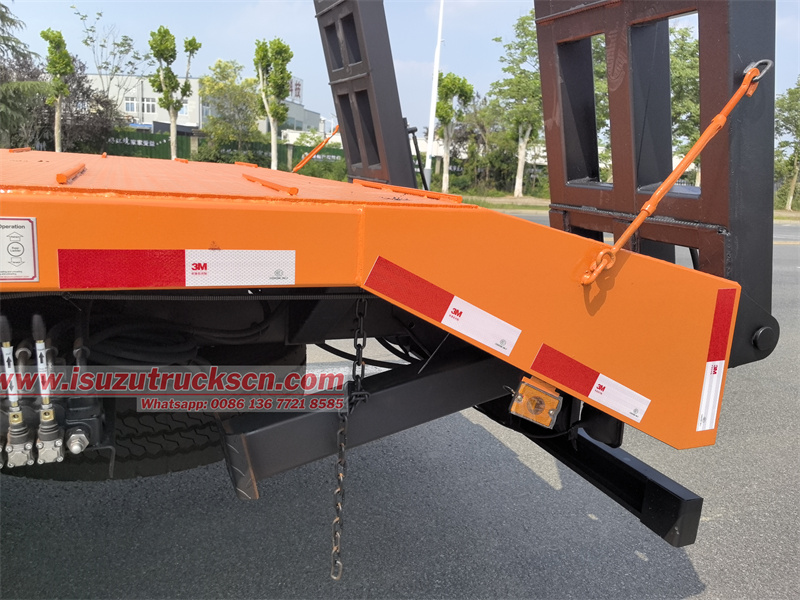

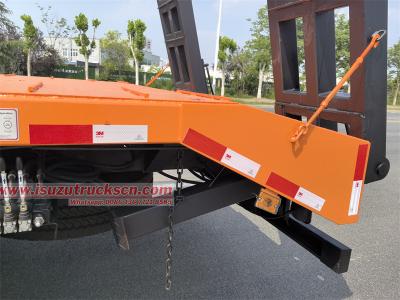

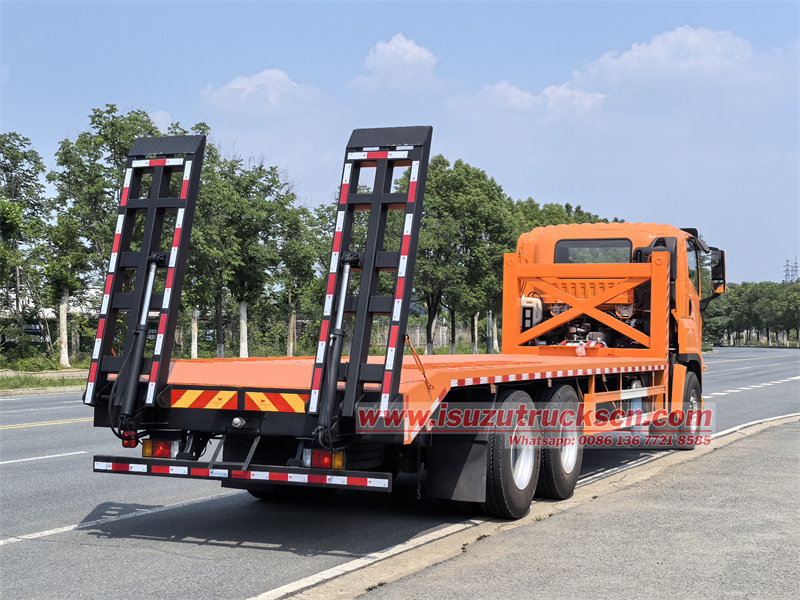

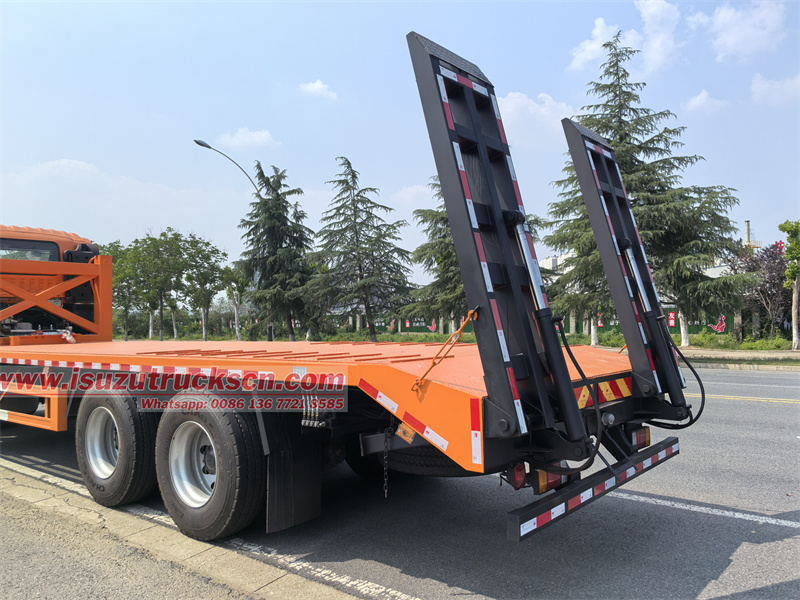

• Mechanical spring all-steel ramp: The mechanical spring all-steel ramp configured at the rear of the vehicle is sturdy and durable. It provides convenience for heavy equipment to get on and off the flatbed, reduces the difficulty and risk of manual handling, and improves the efficiency and safety of equipment loading and unloading.

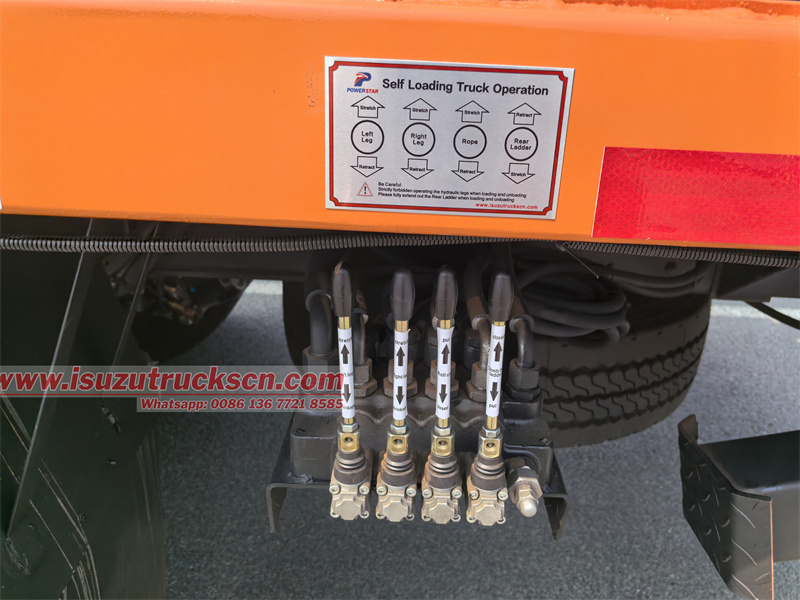

• Manual hydraulic operating valve: The manual hydraulic operating valve installed on the left tail is cleverly designed. The driver can easily control the extension and retraction of the left and right legs, the retraction and release of the winch rope, and the retraction and release of the rear ladder. The operation is convenient and accurate, allowing the driver to complete various tasks more efficiently.
★. Heavy load capacity, widely applicable to industries
The Isuzu GIGA self loader flatbed transport truck has a strong ability to transport 20 tons of cargo and is widely used in engineering construction, equipment handling, logistics transportation, emergency rescue and other fields. Whether it is the transportation of large-scale mechanical equipment or the long-distance transfer of heavy-loaded goods, the Isuzu GIGA 6X4 flatbed transporter can solve transportation problems for users with its excellent performance and reliable quality, and become a powerful assistant in industry transportation.
