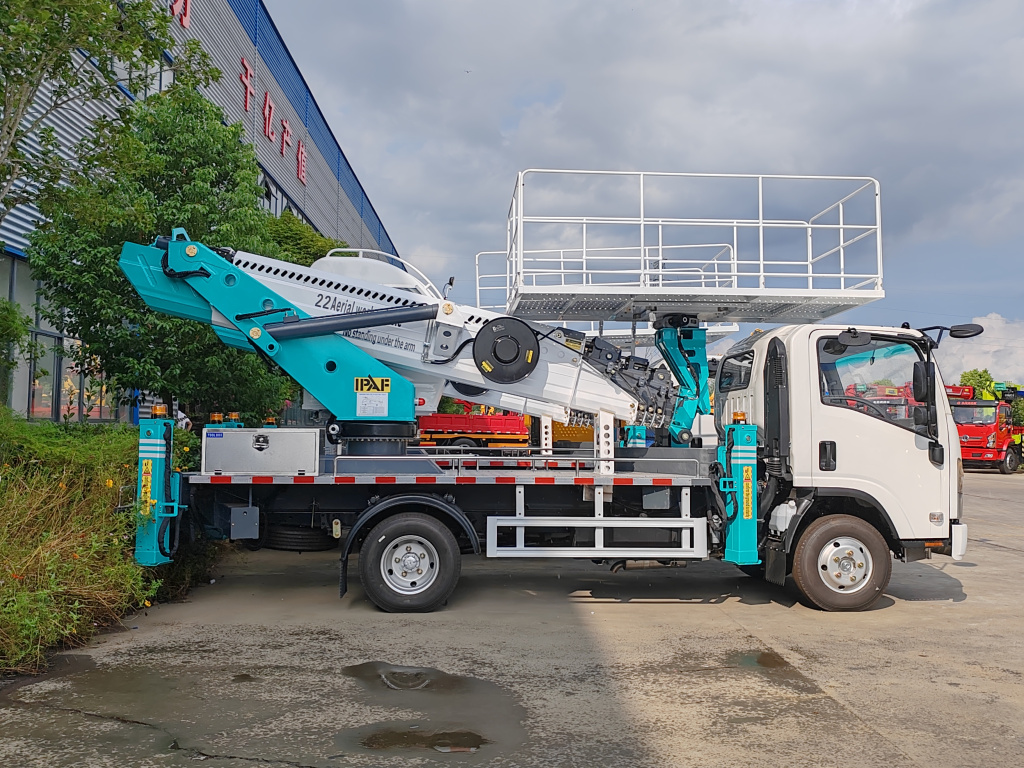

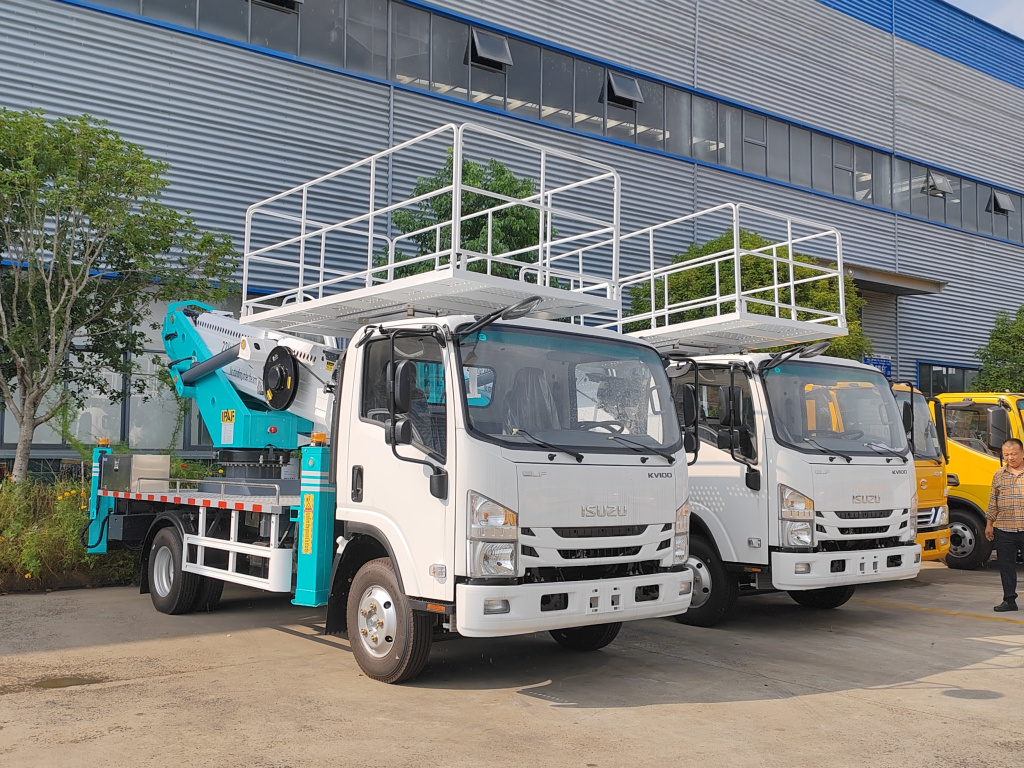

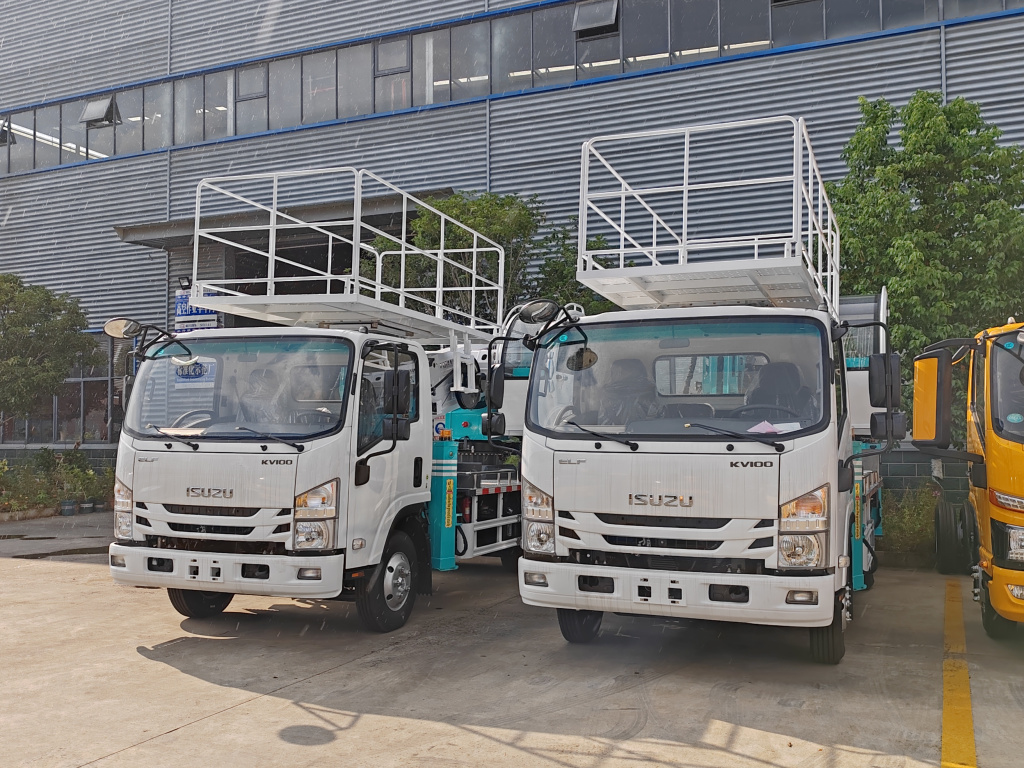

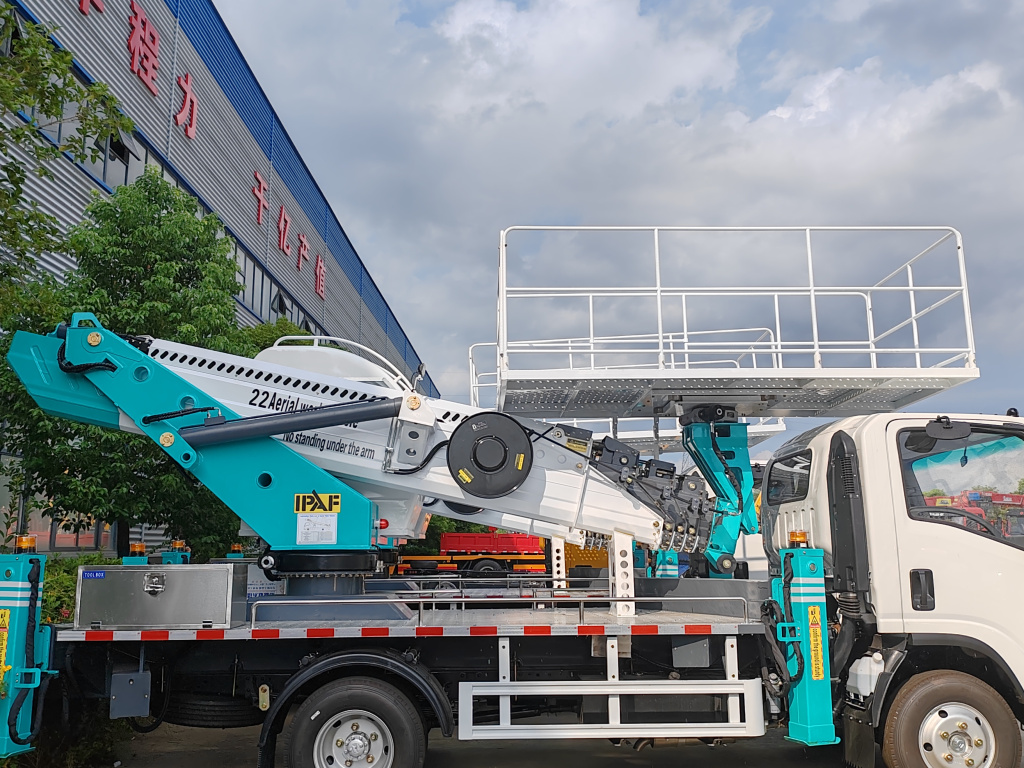

Isuzu 20M KV100 Truck-Mounted Aerial Platform
20M Isuzu KV100 telescopic boom aerial work platform truck (also called Isuzu Man Lifter truck, KV100 truck mounted aerial work platform , knuckle boom aerial platform truck,Telescoping boom aerial platform, ISUZU Aerial working platfrom truck, aerial boom lift, bucket truck, overhead working truck, sky lift truck,etc).mainly used for the street lights maintenance, high-rise building maintenance, cleaning, maintenance, also used for elevator installation, ship repairing and cliff homework, etc, is essential to the construction machinery.
Manufacturer:
Powerstar TrucksWork capacity:
20MDimension:
5950 x 2360 x2920 mmCabin type:
Isuzu NPR cabin chassisWheelbase:
3360 mmEngine power:
120 HP/88kWEngine type:
Isuzu 4KH1CN6LBAxle drive:
4*2,LHDGear box:
Isuzu MSB 5-shift gearbox,manualRemarks:

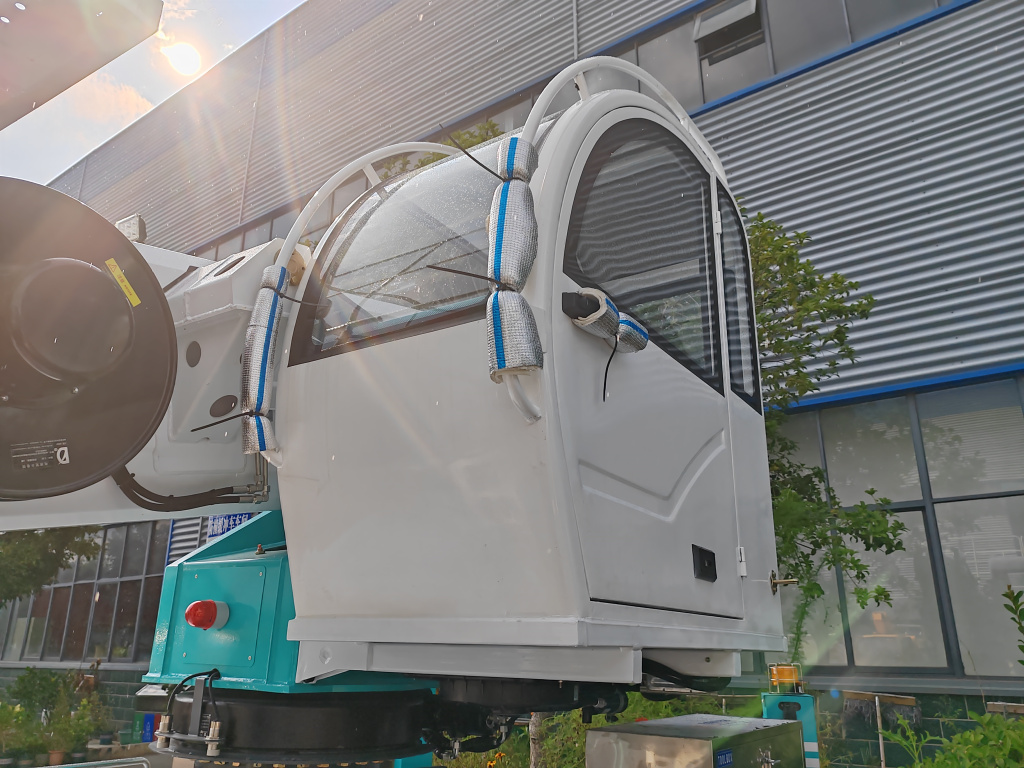

Control cabin availableIsuzu 20M 22M KV100 Truck-Mounted Aerial Platform, also named Isuzu Truck Mounted Man Boom Lift OR Telescoping boom aerial platform, ISUZU Aerial working platfrom truck, aerial lift, hydraulic beam lifter is the combination of truck and boom lift. Boom Lift are installed on the back of the truck. Truck Mounted Boom Lift is very suitable for long distance travel and much more convenient for aerial working.Furthermore, truck mounted boom lift are equipped with lifting hook which enlarge its working range widely. Operator can control lifting and lowering both on the platform and on the ground through the control system.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Product Features
Safety Precautions:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Check Valve
5. Adjustment Valve
6. Gradienter
» Ⅱ. Product Parameter for Isuzu 18M 20M Aerial platform truck:
| Vehicle Basic Specifications | |||
| Vehicle Model | PST5070JGKQ5 | Maximum Working Height | 20 meters |
| Chassis brand | ISUZU 4x2 | New or Used | Condition new |
| Overall dimension | 7450x2000x3300mm | Cargo Box Dimension | - |
| Gross weight | 7300 kg | Rated Weight | - |
| Curb weight | 5068 kg | Wheelbase | 3360mm |
| Axle No. | 2 | Cab Seat No. | 3 |
| Axle Load | 2500/4800 kg | Fuel Type | Diesel |
| Engine | ISUZU 120HP Diesel | Steering System | LHD, power aissist steering |
| Transmission | Manual 5- speed | Clutch | Single dry clutch plate |
| Brake | Hydraulic brake | Tire No. | 6 +1 pcs |
| Front/Rear Suspension | - | Tire Model | 7.00R16 |
| Fuel Tank | 100 liter | Battery | 12V |
| Max speed | 90km/h | ||
| Superstructures Parameters | |||
| Model | CLW GK20S | Maximum Working Height | 20 meters |

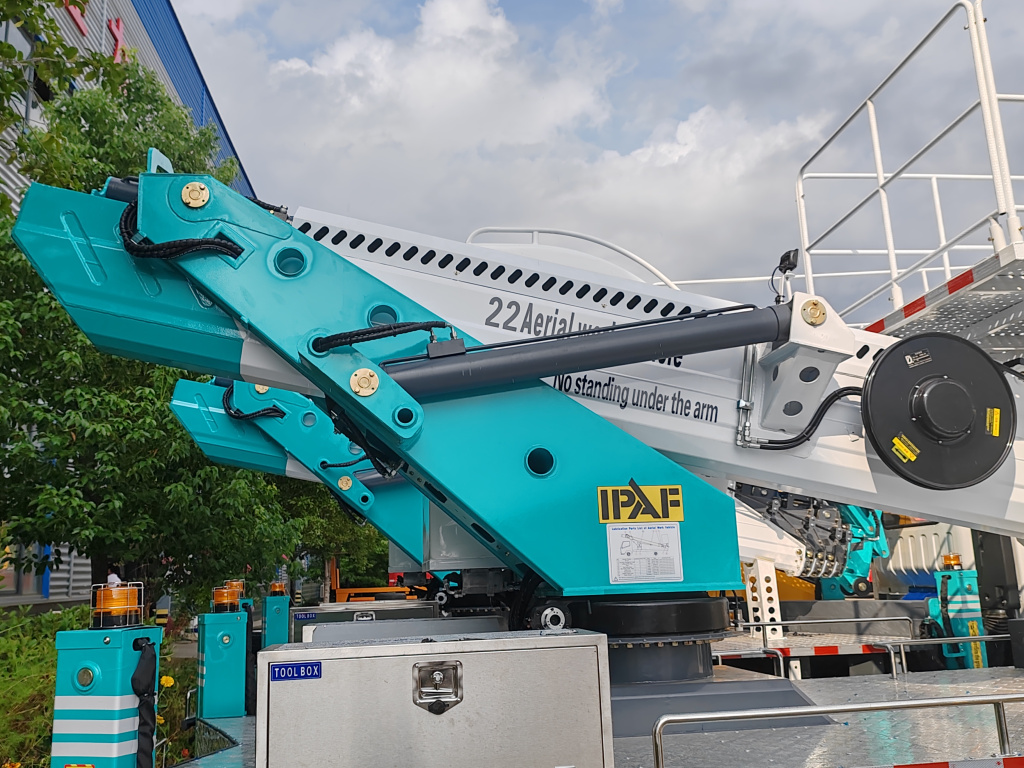

| Boom Type | 4-section arm, telescopic arm | Maximum Working Radius | 18.4 meters |

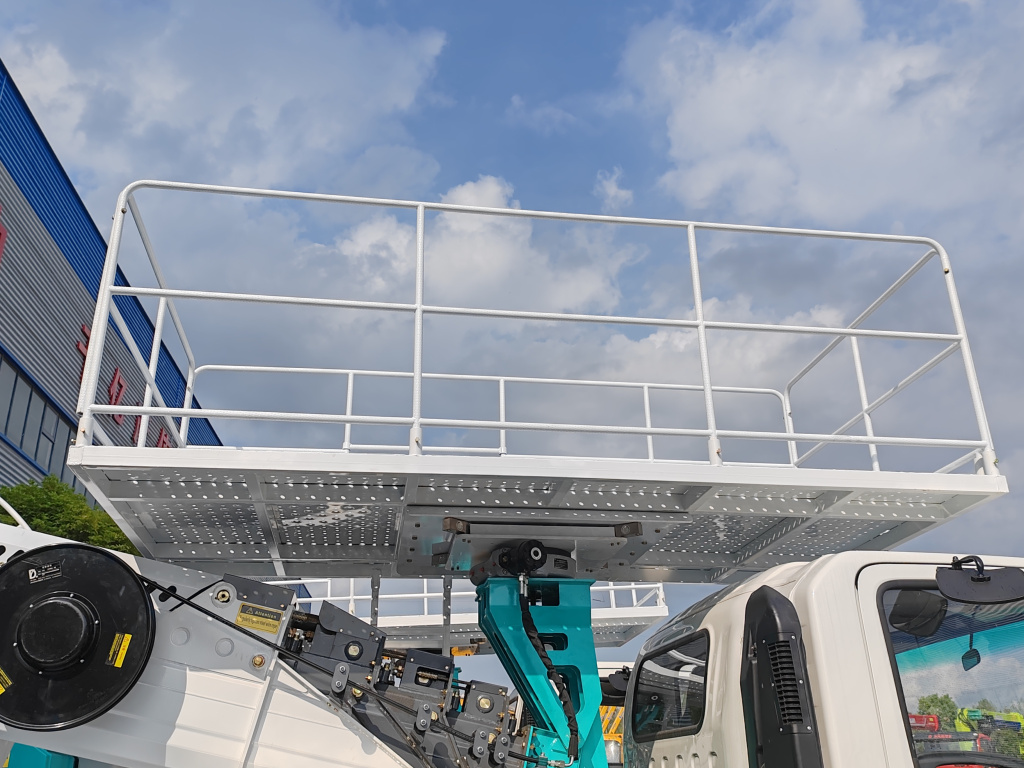

| Basket Dimension | 1000x750x1200 mm | Slewing Angle | 360° continually rotary |

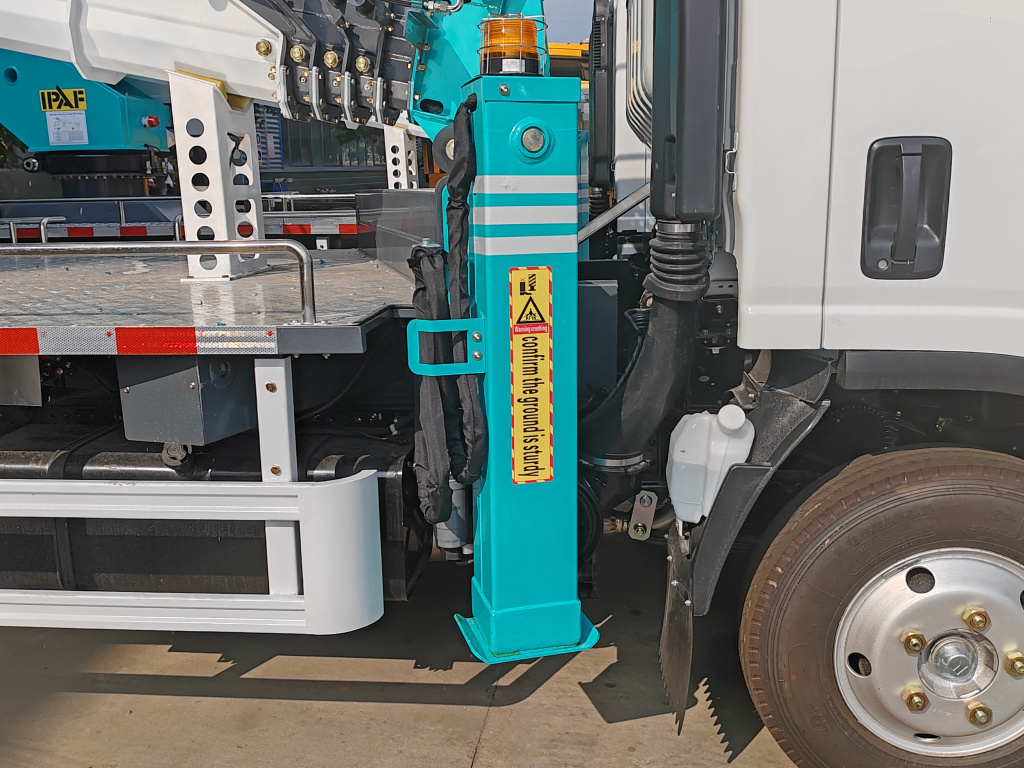

| Basket Load | 200kg | Outrigger | Front V rear H shape hydraulic legs |
| Basket Slewing | 360° | Outrigger Span |
Horizontal 4.0meter, Vertical 4.0 meters
|

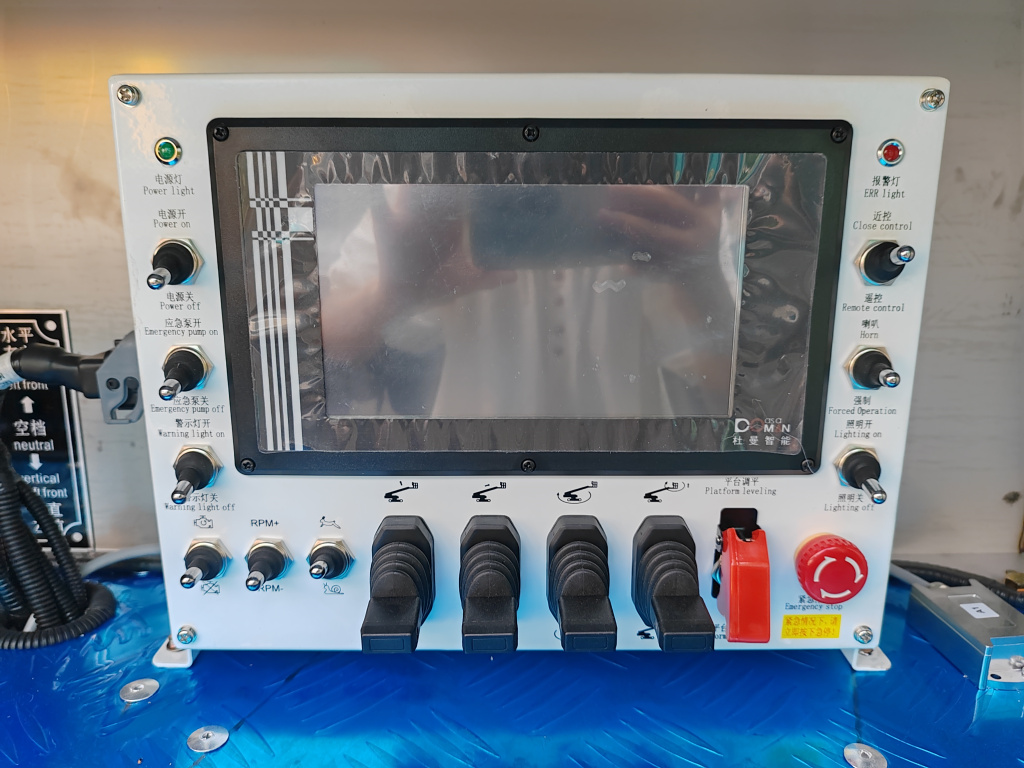

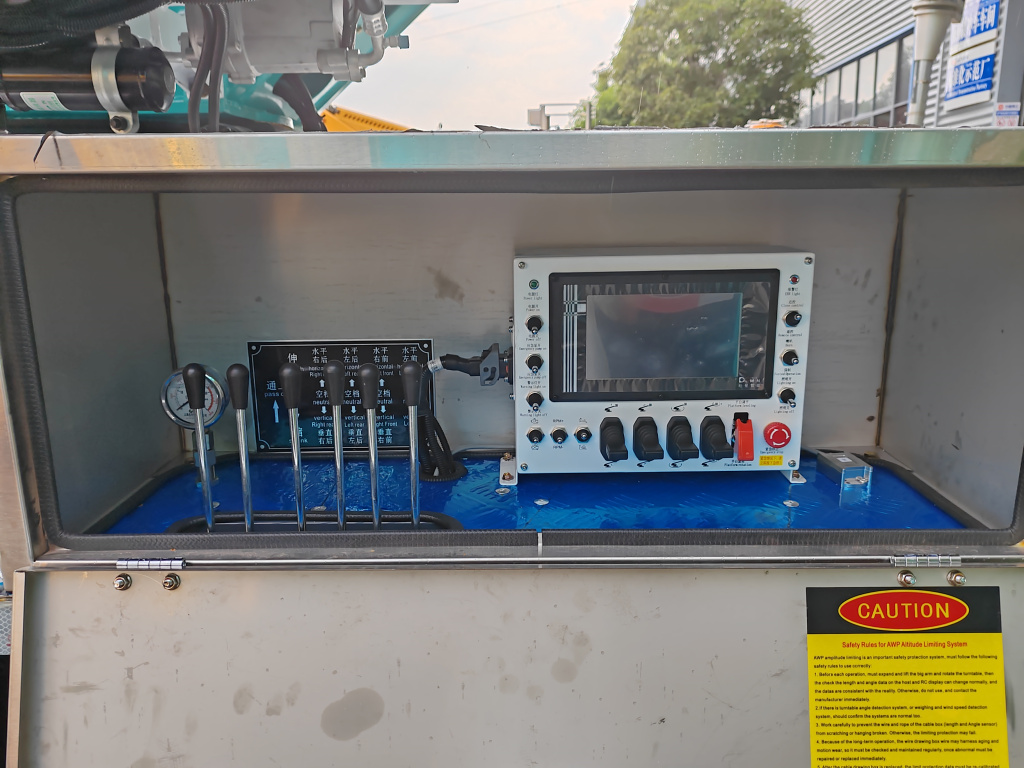

| Operation System |
One set at down turntable position, one set on upper basket.
Optional: computer control system + wireless remote controller
|
||
| Safety System |
1. Whole vehicle automatically balance leveling real-time test;
2. Outrigger auto leveling, basket auto leveling;
3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;
4. When people on basket, outrigger operation is locked, can't operate, to prevent damage happened;
5. Emerngecy pump is installed to prevent emergency situation.
|
||
» Ⅲ. Product Details & Advantages:
 |
 |
 |
 |
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
« Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.
« Ⅴ. Application Scenarios
The Isuzu KV100 truck lift mounted is extremely rigid, and safe to accommodate 2 persons and tools with a maximum rated capacity of 220 kg. The compact boom is made up of a double articulating boom giving straight "Plumb line" movement making it great for working up a vertical face such as the side of a building. The Isuzu KV100 Truck Mounted Lift is a super compact 20m truck mounted lift. This versatile package is a favorite with tree trimming & trades industries.
The top section is telescopic providing point and shoot functionality providing 9m outreach. With almost zero tail swing, it is well adapted to work roadside and in confined spaces. The heavy-duty hydraulic proportional multifunctional joysticks are housed within a fully protected area and provide the operator with exceptional smoothness and accuracy even at full height and outreach. Hoses and cables are placed within the booms, with internal tracking which is protected from debris by a set of self-cleaning brushes placed at each of the telescopic sections.
The 20-meter aerial work platform, with its flexibility and efficiency, is widely used in various fields. Key application scenarios include:
1. Construction and Steel Structure Work
It is suitable for high-altitude work such as steel structure installation, repair, and maintenance. The hydraulic system can stably reach heights of 20 meters, meeting complex construction requirements. In warehouses and factories, it can be used for tasks such as equipment installation, repair, and exterior wall cleaning.
2. Municipal and Public Facility Maintenance
It is used for power line inspection, streetlight maintenance, billboard installation, and high-altitude work on municipal facilities, with a wide coverage area and rapid relocation capabilities.
3. Industrial and Specialty Applications
It provides high-altitude work support in ports, industrial and mining enterprises, aerospace, and communications. Some models feature integrated crane functions, enabling integrated transport and lifting.
4. Multi-sector Applications
Including landscaping, aerial photography, firefighting, and rescue operations. Its maneuverability and multifunctional design (such as a six-section boom and wireless remote control) adapt to diverse needs.
