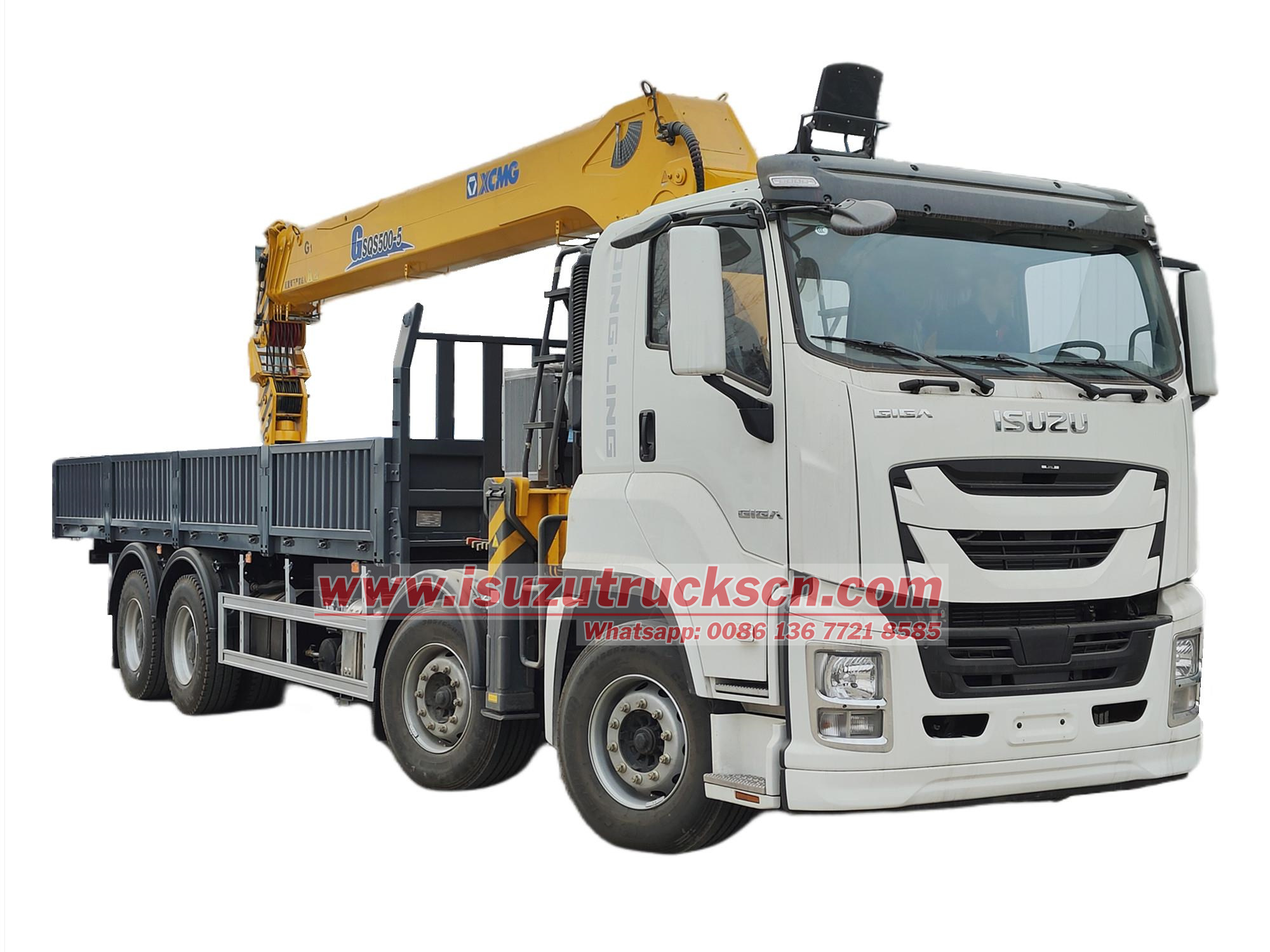

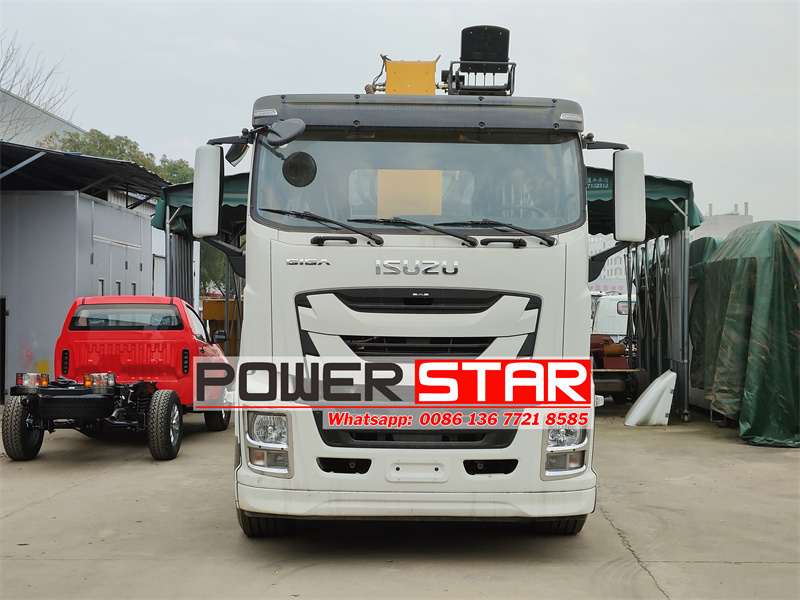

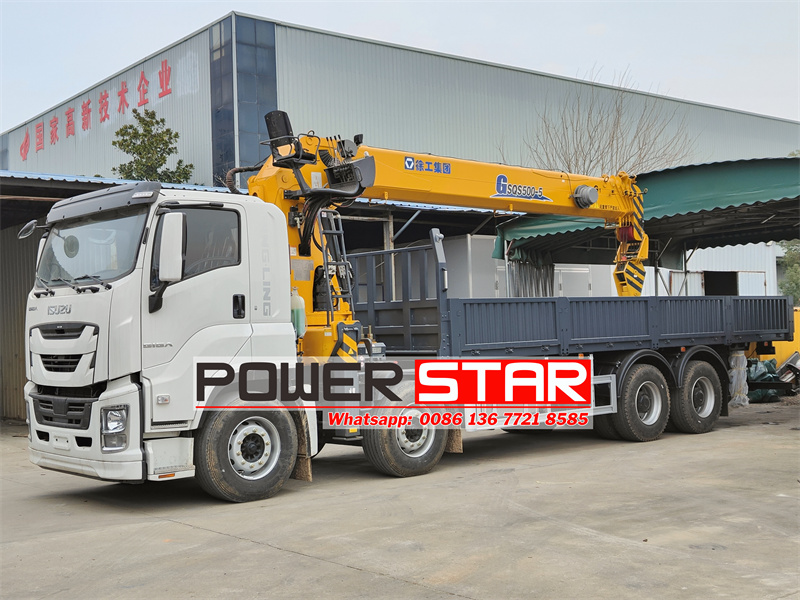

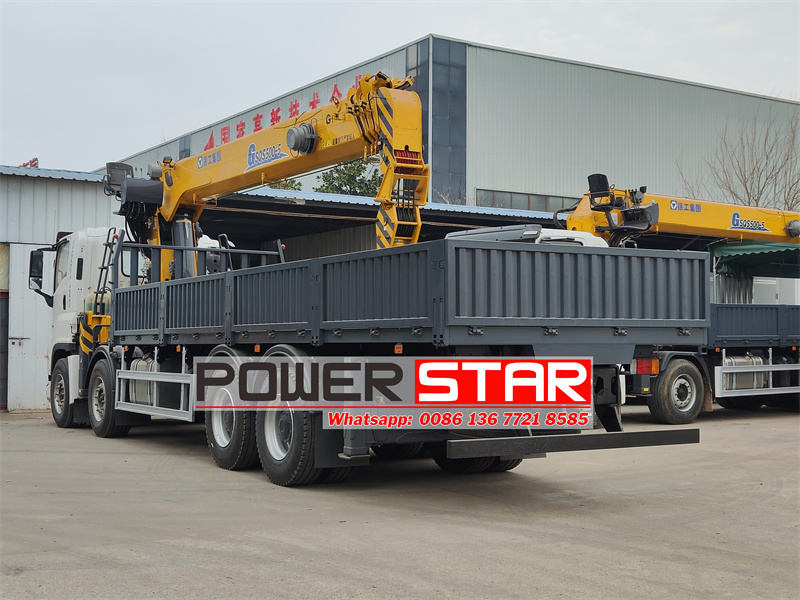

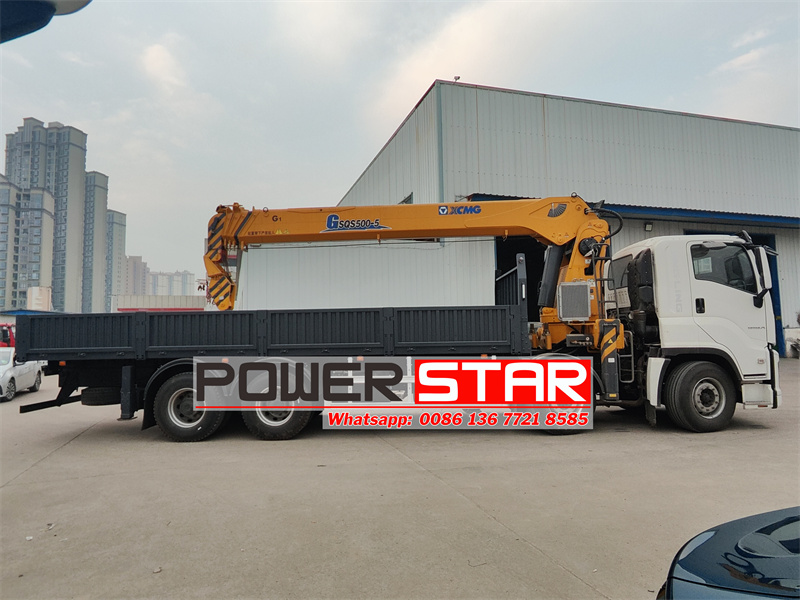

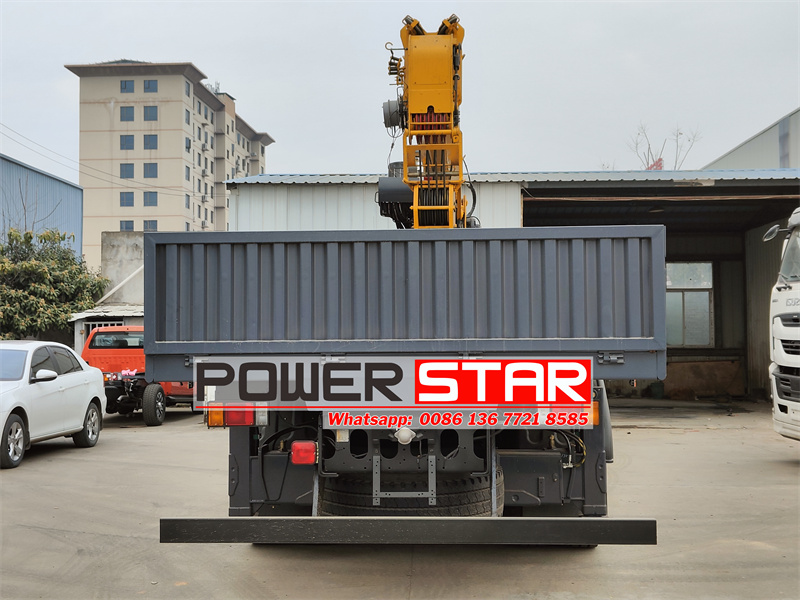

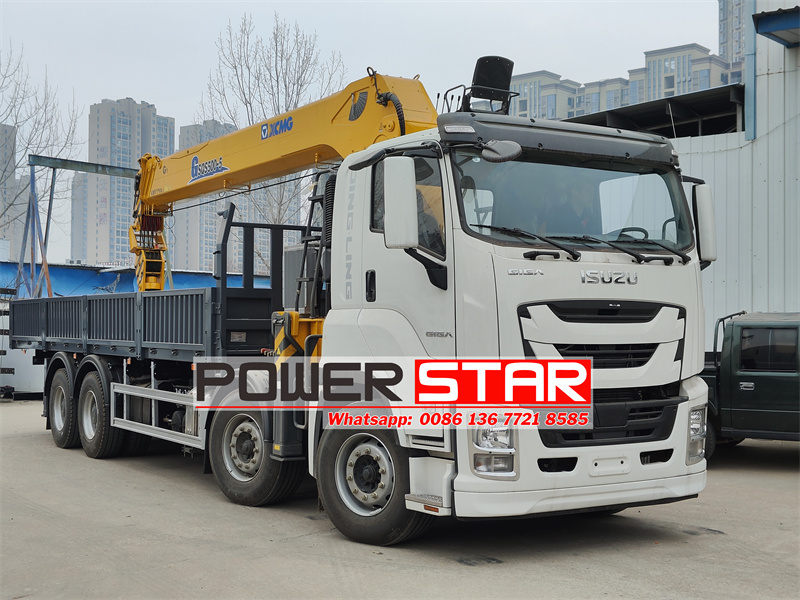

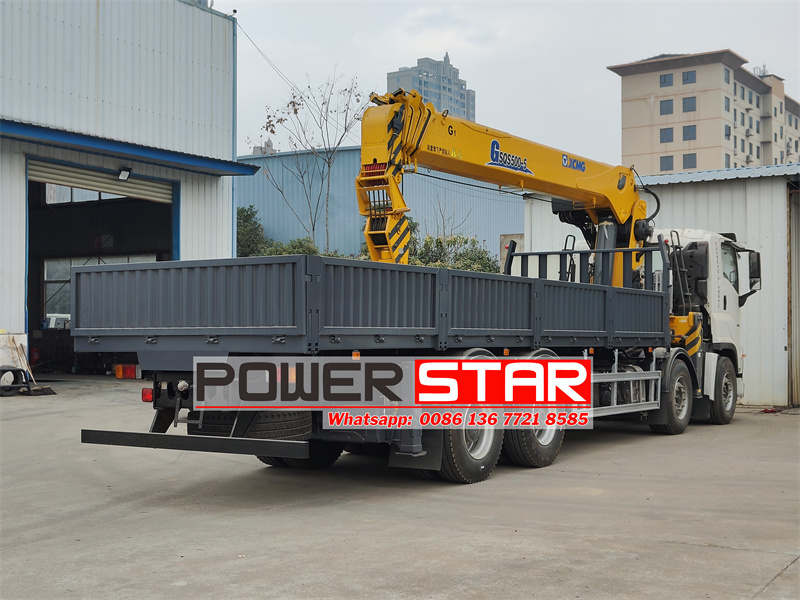

Isuzu 20tons boom truck crane with dropside cargo
Isuzu truck mounted XCMG 20Ton telescopic crane, the vehicle adopts 8x4 GIGA VC66 newly designed cabin chassis, with model QL5440TZZW7VDHY, diesel engine 6WG1-TCG62 model with 520HP / 381KW, Fast 12-speed gearbox, XCMG SQS500 telescopic boom crane, max lifting weight 20 tons, Max Lifting Moment 50 T.M, with working radius 23.6m and lifting height 25.6m, mounted with dropside cargo body 7000x2350x550mm
Work capacity:
20tonsEngine power:
520HPEngine type:
Isuzu 6WG1-TCG62Axle drive:
8X4, LHDGear box:
Fast 12 Forwards & 2 ReverseRemarks:

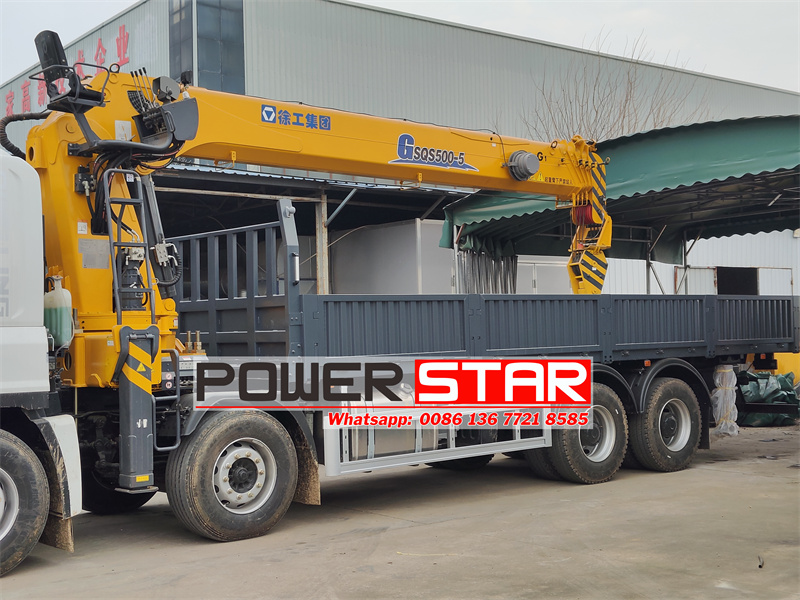

Isuzu straight crane truck with dropside cargoISUZU truck mounted crane is a multi-purpose engineering vehicle that integrates carriage and lifting functions. ISUZU GIGA 8x4 boom truck crane core feature is that the mounted crane is directly installed on the original Japanese technology truck chassis to achieve "transport + lifting" integrated operation. The newly designed ISUZU GIGA 8x4 dropside cargo truck equipped with a 20ton straight arm XCMG crane, the lifting capacity and application range of this vehicle are further expanded.
XCMG SQS500 model telescopic boom crane is a fast and flexible crane type designed specifically for recovery service vehicles. The cranes are suitable for hook application work and for operating in difficult working conditions.
● China best Isuzu telescopic crane truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Features for ISUZU GIGA 20tons boom crane truck with dropside cargo:
★ Adopt world-class lSUZU GIGA 8X4 Chassis, High power and Fuel efficiency, Reliability, Uptime
★ All Structural made of High Strength Steel
★ Easy to mount and Minimum space required for Mounting
★ Optional ISUZU GIGA Chassis 4x2, 6x4, 8x4 and engine 6UZ1 and 6WG1
★ Optional Crane brand: XCMG, UNIC, PALFINGER, POWERSTAR...
★ Optional Crane type: Telescopic boom crane or knuckled boom crane
Product Parameters
| General Technical Parameters | |||
| Overall Dimension | 11980×2500×3980 (mm) | ||
| Gross Vehicle Weight | 44000(Kg) | ||
| Curb Weight | 18500(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | ISUZU | ||
| Drive model | 8x4 | ||
| Cabin | Double, Left Hand Driving, with air conditional | ||
| Number of Passengers | 3 | ||
| Engine | Model | 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR | |
| Power | 380KW / 520HP | ||
| Emission standard | EURO 6 (Customized to remove DPF and ADBlue to make truck working as EURO 3 and EURO 4) | ||
| Displacement | 15681 (ml) | ||
| Fuel type | Diesel | ||
| Gearbox | FAST 12 Forwards & 2 Reverse | ||
| Brake System | Air break | ||
| Wheel Base | 2100+4325+1370 mm | ||
| Front/Rear Axle Loading | 9000+9000/13000+13000(Kg) | ||
| Approach/Departure Angle | 23/12(°) | ||
| Overhang | 1250/3545(mm) | ||
| Tire | 12R22.5 with 12+1 units | ||
| Max Driving Speed | 90(km/h) | ||
| Upperstructure Specification | |||
| Cargo Body | Dimension | 7000×2350×550(mm) | |
| Material | Q235 carbon steel | ||
| Cargo Thickness | Side 3.2mm, Bottom 4mm | ||
| Working System | Boom Type | Straight 5-Arm telescopic boom | |
| Crane | Crane Brand | SANY PALFINGER or XCMG or UNIC | |
| Range of Sprayer | 23.6m | ||
| Max Lifting Moment | 50(T.M) | ||
| Max Lifting Capacity | 20000(kg) | ||
| Max lifting height | 25.6(m) | ||
| Rotation angle | 360(°) | ||
| Installation space | 1300(mm) | ||
| Recommented power | 60(kw) | ||
| Maximum working pressure | 26(Mpa) | ||
| Max Flow | 63+63(l/min) | ||
| Crane weight | 7750(kg) | ||
| Oil tank capacity | 260(L) | ||
| Leg | Leg type | H type (2 sets front and 2 sets rear) | |
| Leg Span | 2.238-8.198(m) | ||
| Hydraulic system | Pressure | 26(M pa) | |
| Capacity | 260(l) | ||
| Other Configuration | Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc. | ||
| Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. | ||

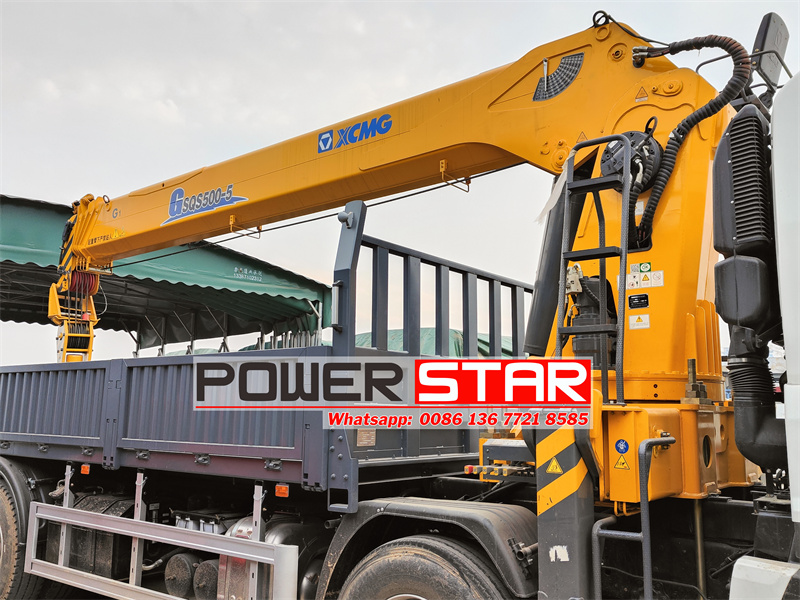

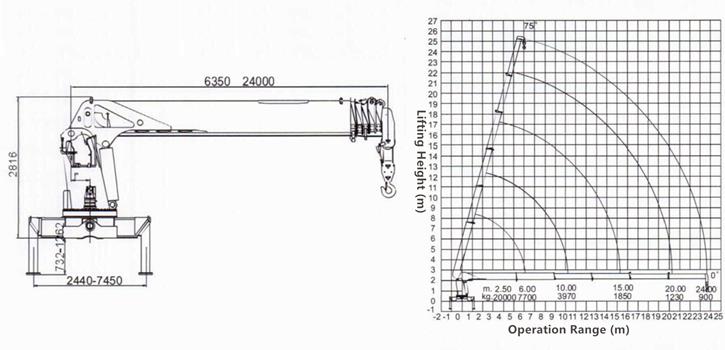

SQS500 Boom Crane Features

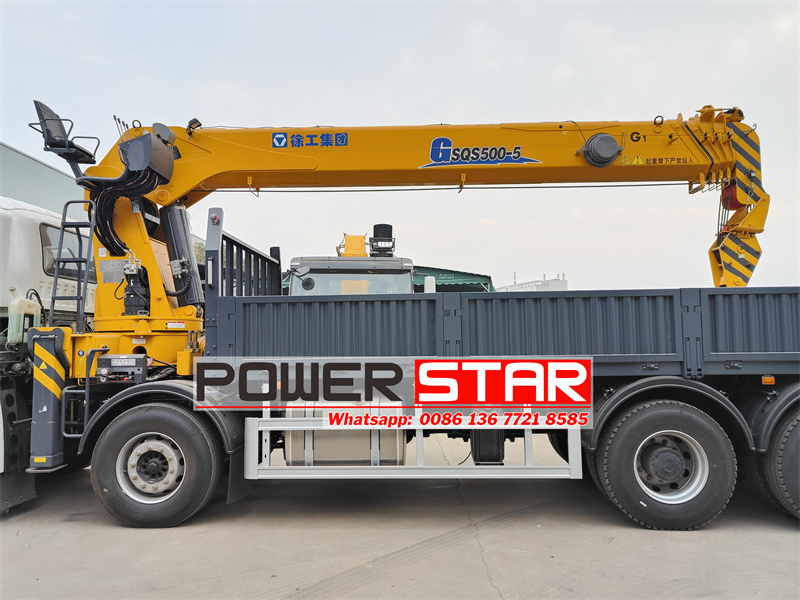

The Isuzu GIGA heavy duty truck mounted with XCMG brand SQS500 telescopic boom crane, which have below advanced features.
Boom Tip:
The speedy-reeve boom tip and sheave blocks simplify rigging changes. Load line wedge socket removal is not required for reeving of multi-part line options.
Five-section booms:
At 23,6 m (77.5 ft) the SQS500 boom is the longest in its size range. The longer boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency, also convenient for working.
Overload protection:
All Isuzu brand National Crane boom trucks are equipped with overload protection. A Rated Capacity Limiter (RCL) is required on all machines equipped with jibs or personnel baskets.
Color graphical RCL system:
Easy to setup and operate color graphical RCL system with enhanced userability and jog dial menu selection. It also includes enhanced troubleshooting features for ease in serviceability, work area definition system and on-board outrigger monitor system. And all these design make ISUZU heavy duty 20tons crane truck an ideal crane truck for daily working.
Options and Lift Solutions:
• Hydraulic hose reels
• Hydraulic tilting pole grab
• Factory installed tool box options
• Bulkhead and flat-bed options
• One-option hydraulic tool circuit
ISUZU 20tons Truck Crane Applications
ISUZU 8x4 truck crane is widely used in the fields of industry, construction, urban construction, etc., for the disassembly, transportation and lifting of small and medium-sized equipment. ISUZU 8x4 heavy duty boom trucks crane combines the advantages of ISUZU trucks and XCMG cranes, with excellent maneuverability and rapid transfer. The crane truck can be used not only as a truck, but also as a crane, realizing the function of one vehicle for multiple uses. Through the hydraulic lifting and telescopic system, the lifting and transportation of goods can be completed quickly and accurately.
On construction sites: Isuzu boom crane mounted truck can be used for the disassembly, lifting and transportation of tower crane equipment, as well as the lifting and transportation of goods such as steel bars and building materials.
In the waste recycling industry: Isuzu telescopic crane trucks and knuckle crane trucks can be responsible for the disassembly, lifting and transportation of equipment throughout the process, improving transportation efficiency and saving total costs.
Why choose POWERSTAR Isuzu giga 20tons boom crane truck
Pre Sale Service: 1. Technical Communication With skilled POWERSTAR Engineer
2. Factory and Workshop Visit.
3. Making Design Drawings according to customer request.
After Sale Service: 1. Customizing Installation & Commissioning
2. Spare Parts Support
3. Technical Support
Chassis: According to your request, choose various chassis and refit it to truck.,
such as: ISUZU, HOWO, DONGFENG, SINOTRUCK, JAC, SHACMAN, FOTON, FAW ...
Upper Body: Can supply only upper body without chassis according to your chassis drawing, design function parts.
Crane brand: Original import brand Palfinger, UNIC, HIAB, etc. China various famous brand XCMG, POWERSTAR, etc
Customization: Communicate with engineer, making design drawings and produce customized products.
Spare Parts: Supply all kinds of spare parts on chassis and upper body, replace main parts on trucks as tank and box.
Warranty: From the date of receiving, in normal using within 30,000 km or within one year, we will repair for free,Technical support and commissioning are free always.
