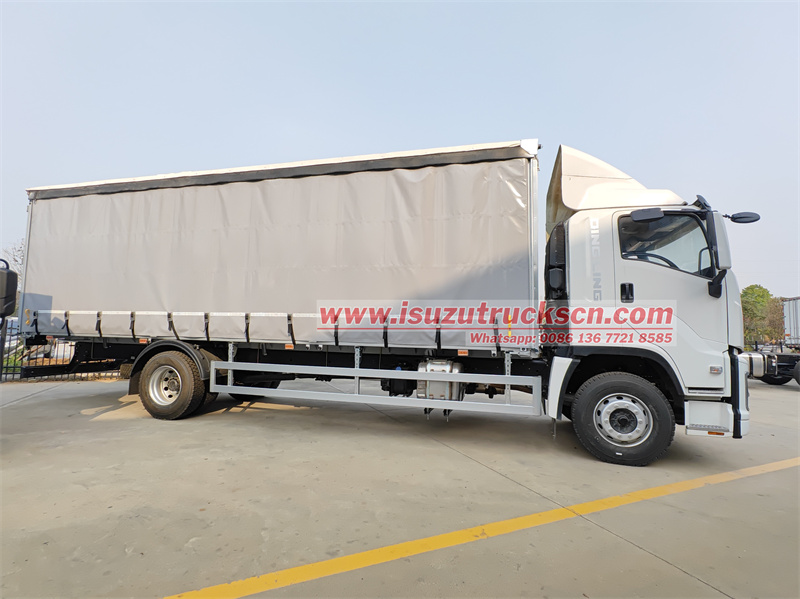

The Isuzu FVR side curtain tarpaulin truck adopts Isuzu FVR GIGA chassis, 5800mm wheelbase, equipped with Isuzu 6HK1-TCG61 240HP engine, 7790ml displacement, FAST 8-speed gearbox, and the upper is a 7600*2500*2620mm cargo body, the cargo body is surrounded by high-quality material panels, can carry 9 tons, and the sides of the box body are equipped with PVC coated awnings, which have excellent waterproof and sun protection performance.
Manufacturer:
Powerstar TrucksWork capacity:
9tonsDimension:
10000 x 2550 x 3990 mmCabin type:
Isuzu GIGA 5X cabin, 3 seatsWheelbase:
5800mmEngine power:
240HPEngine type:
Isuzu 6HK1-TCG61Axle drive:
4x2Gear box:
FAST, Manual, 8 Forward & 1 Reverse GearRemarks:
Isuzu cargo van truck with PVC TarpaulinIsuzu 240 Hp engine tarpaulin transport vehicle is built on the powerful chassis of Isuzu GIGA series heavy trucks, inheriting its excellent load-bearing capacity, power performance and driving comfort. The tarpaulin design is flexible and can effectively protect the goods from wind and rain, and is convenient for quick loading and unloading. As a leader in the field of commercial vehicles, it perfectly combines the reliability of the Isuzu brand with the practicality of tarpaulin vehicles, providing efficient and durable solutions for logistics transportation, construction site operations and a variety of outdoor application scenarios.
● More than 500 workers, large and advanced production
● Build strict QC team to guarantee the quality
● Professional sales team which will help you to choose suitable truck
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
|

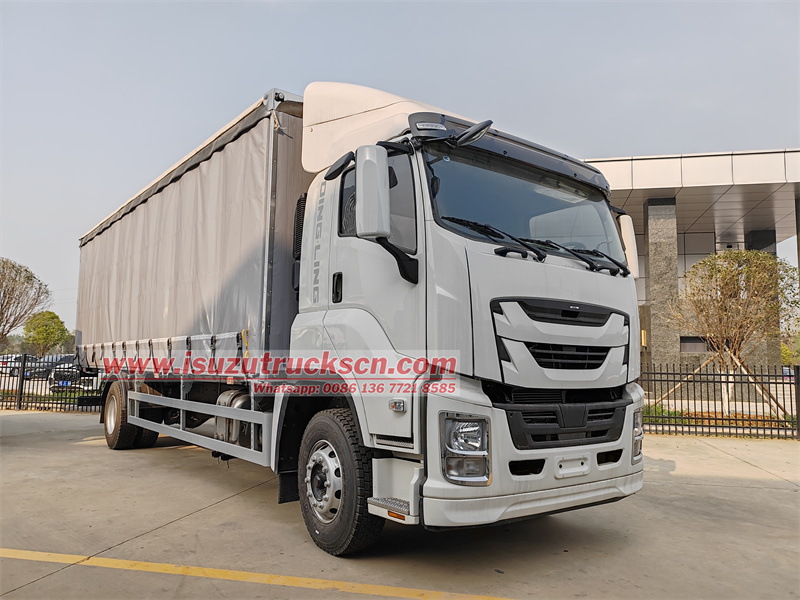

ISUZU GIGA Tarpaulin Side Curtain Truck |
||
|
General |
||
|
Overall Dimension |
10000x 2550 x 3990 mm |
|
|
Gross Vehicle Weight |
18000 kg |
|
|
Curb weight |
9tons |
|
|
Loading Weight |
8.75tons |
|
|
Cabin |
Isuzu GIGA cabin,one and half row,3 Passenger Allowed, with A/C |
|
|
Chassis |
||
|
Wheel Base |
5800mm |
|
|
Engine |
Type |
Watering Cooling, Four Stroke, 6 Cylinder in Line, Direct Injection. Diesel Engine, with ABS. |
|
Model |
Isuzu 6HK1-TCG61 |
|
|
Horse Power |
240HP/177kW |
|
|
Displacement |
7.79L |
|
|
Max torque |
850N.m |
|
|
Emission standard |
Euro 6 |
|
|
Gearbox |
FAST, Manual, 8 Forward & 1 Reverse Gear |
|
|
Axle |
6500/11500kg |
|
|
Front/rear overhang |
1370/2830mm |
|
|
Front/rear track |
2060/1855mm |
|
|
Max Driving Speed |
89 km/h |
|
|
Tire |
295/80R22.5, 6 pieces with 1 spare tire |
|
|
Speed Ratio |
4.555 |
|
|
Fuel tank |
200 Liters |
|
|
Upper |
||
|
Cargo dimension |
7600*2500*2620mm |
|
|
Cargo loading |
9tons |
|
|
Tarpaulin material |
PVC coated awning |
|
|
Front plate material |
5mm carbon steel |
|
|
Side plate material |
3mm flat aluminum |
|
|
Bottom plate material |
25mm thickness transport plywood |
|

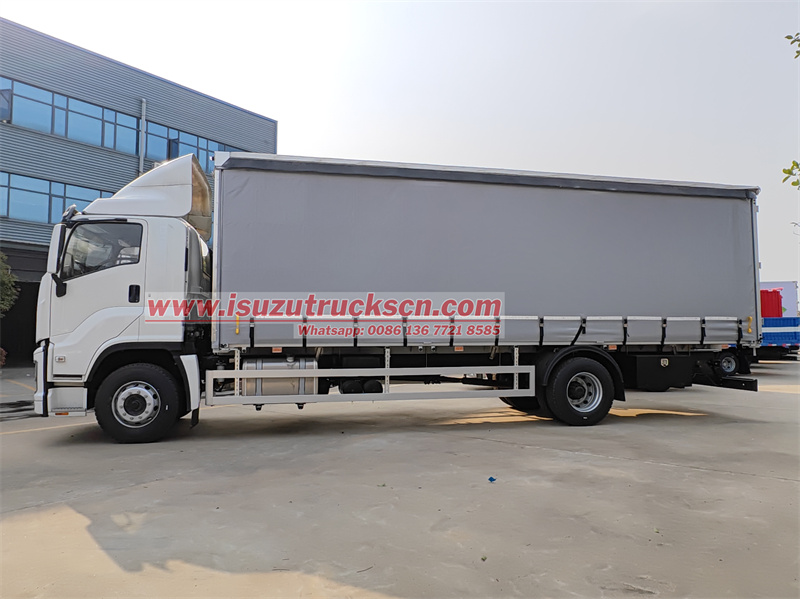

In the logistics and transportation industry, a truck with excellent performance and reasonable design is the key to efficient operation. The Isuzu FVR GIGA 4x2 9T PVC Tarpaulin Truck has become the first choice for many logistics companies with its excellent chassis configuration, powerful power system and well-designed upper structure.
The vehicle is built on the Isuzu FVR GIGA chassis, which is famous for its excellent carrying capacity and stability. The 5800mm wheelbase design not only ensures the stability of the vehicle's driving, but also provides sufficient installation space for the upper structure, making the overall layout more reasonable.
In terms of power, the Isuzu FVR side curtain tarpaulin truck is equipped with the Isuzu 6HK1-TCG61 engine, which is known for its efficient and reliable performance. It can output strong power and easily cope with various complex road conditions. With the FAST 8-speed gearbox, the gear shifting is smooth and the power transmission is efficient. Whether it is a city street or a rugged mountain road, it can be easily handled.
The design of this vehicle fully considers the various needs during the transportation process, and has been carefully optimized in terms of structure and function.
Combination of a solid frame and a practical awning
The Isuzu GIGA PVC Tarpaulin Haulage Truck is equipped with a solid frame and assembled with high-strength bolts. This connection method gives the frame excellent stability, allowing it to easily cope with bumps and vibrations during transportation and provide solid and reliable support for the goods. The frame is carefully equipped with grooves for installing and inserting wooden poles. This design greatly enhances the convenience and stability of cargo fixation and effectively avoids the risk of cargo displacement during transportation.
The matching awning is made of gray PVC coating material with excellent waterproof and sun-proof properties. It is like a loyal guardian, protecting the goods from wind and rain and resisting ultraviolet rays, thereby extending the service life of the goods. At the same time, the gray appearance adds a touch of beauty and fashion on the basis of ensuring practicality.
High-quality floor and reasonable material combination
The cargo compartment floor is made of 25mm thick plywood, which not only has good load-bearing capacity and can withstand the weight pressure of various types of goods, but is also relatively light, which helps to reduce the weight of the entire vehicle, thereby reducing fuel consumption and contributing to the economy of the vehicle.
In terms of the choice of body panels, the front panel is made of 5mm carbon steel, and the side panels are made of 3mm aluminum alloy. Aluminum alloy has significant advantages such as light weight, high strength and corrosion resistance. While ensuring the sturdy structure of the vehicle, it effectively reduces its own weight and improves fuel economy. It complements the gray awning cloth, not only with a coordinated and unified appearance, but also provides reliable side protection for the cargo to prevent side collisions or scratches during transportation.
Strong and durable tail design

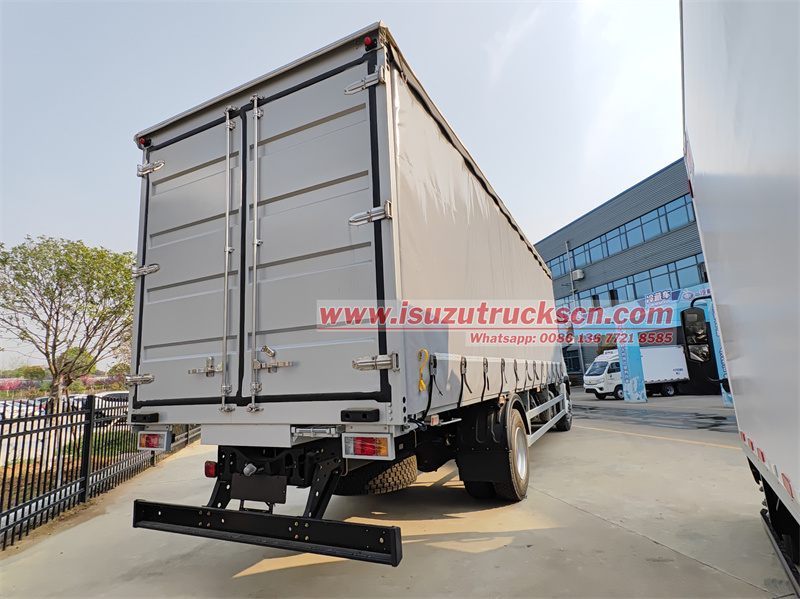

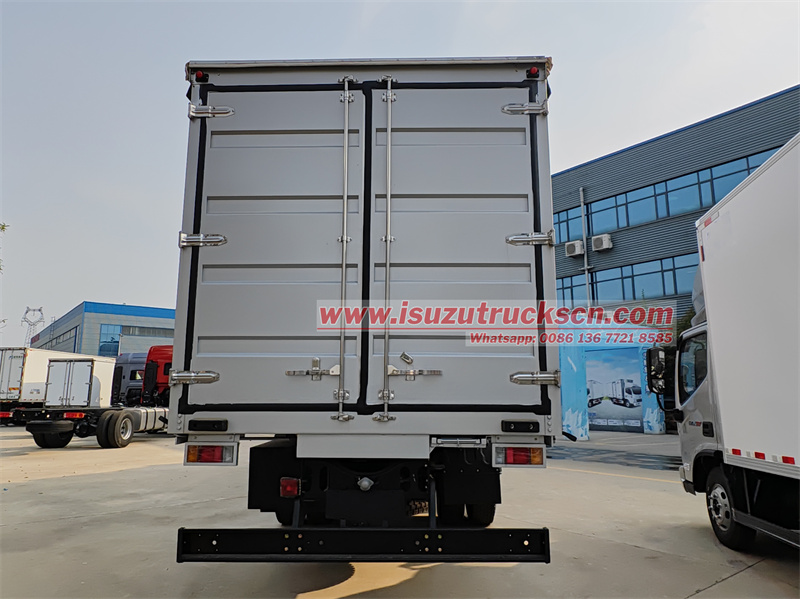

The tail of the cargo compartment adopts a double-door design. The door panel is made of strong and durable carbon steel, which can withstand frequent opening and closing operations. At the same time, the stainless steel accessories and stainless steel frames have excellent corrosion resistance, which effectively extends the service life of the door. This design combination ensures the sealing and safety of the tail of the cargo compartment, whether it is to prevent the cargo from falling during transportation or to facilitate operation when loading and unloading the cargo, it performs very well.

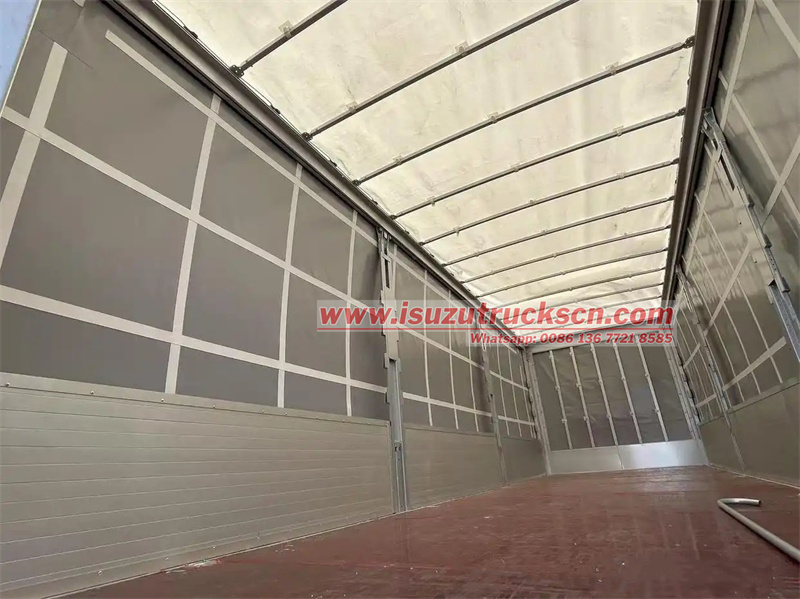

Translucent and flexible car roof design
The top of the cargo compartment adopts a white PVC-coated awning material with light transmission. This unique design allows the compartment to maintain a certain brightness during daytime transportation, making it convenient for the driver to check the status of the cargo and reducing operational errors caused by insufficient light. In addition, the top tarpaulin and the side tarpaulin can slide and can be opened quickly when loading and unloading cargo, greatly improving the efficiency of cargo loading and unloading and saving time costs.
In terms of painting, except for stainless steel and galvanized parts, all other parts of the vehicle are electrophoretically treated. Electrophoretic treatment can form a uniform and dense protective film on the metal surface, effectively improving the anti-rust and anti-corrosion capabilities of metal parts, and ensuring that the vehicle maintains a good performance state for a long time even in harsh transportation environments, extending the service life of the vehicle and reducing maintenance costs.
