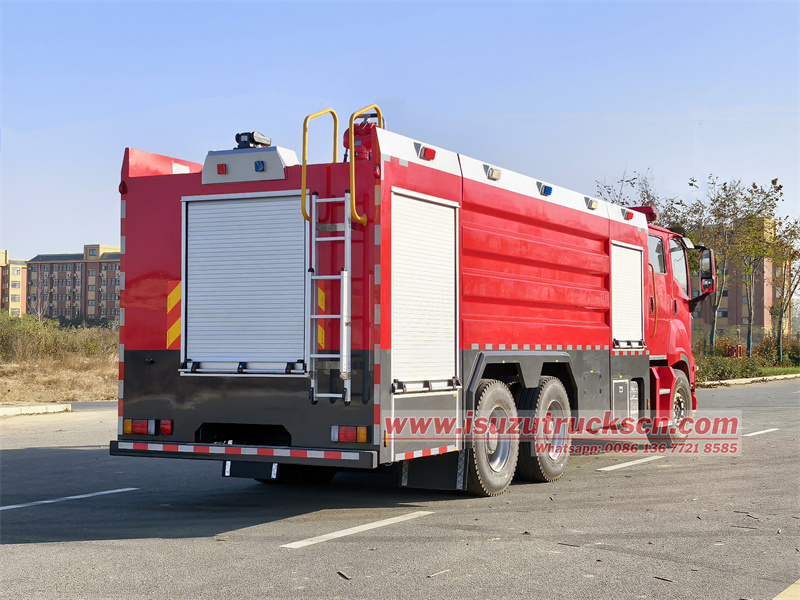

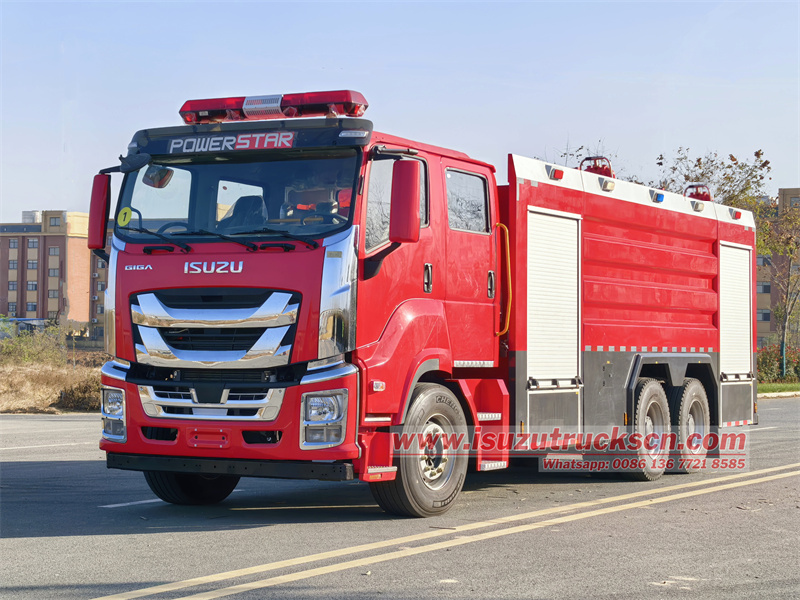

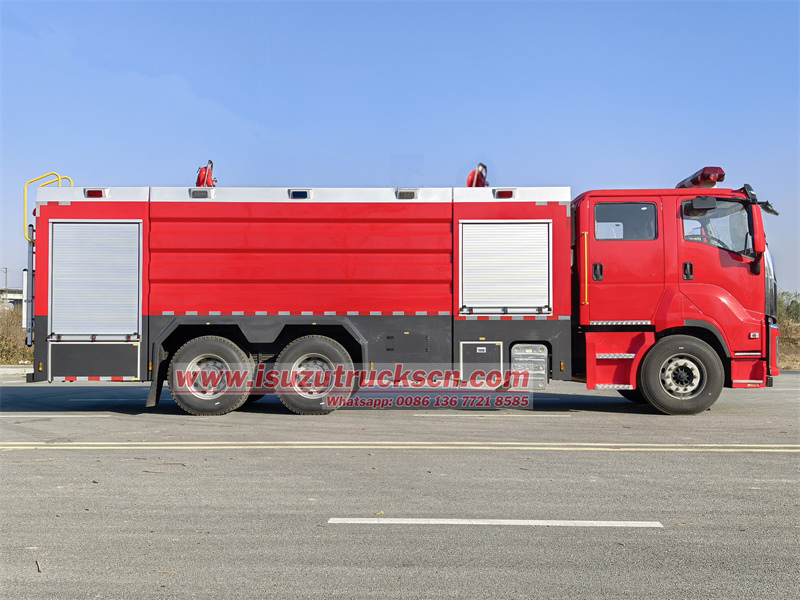

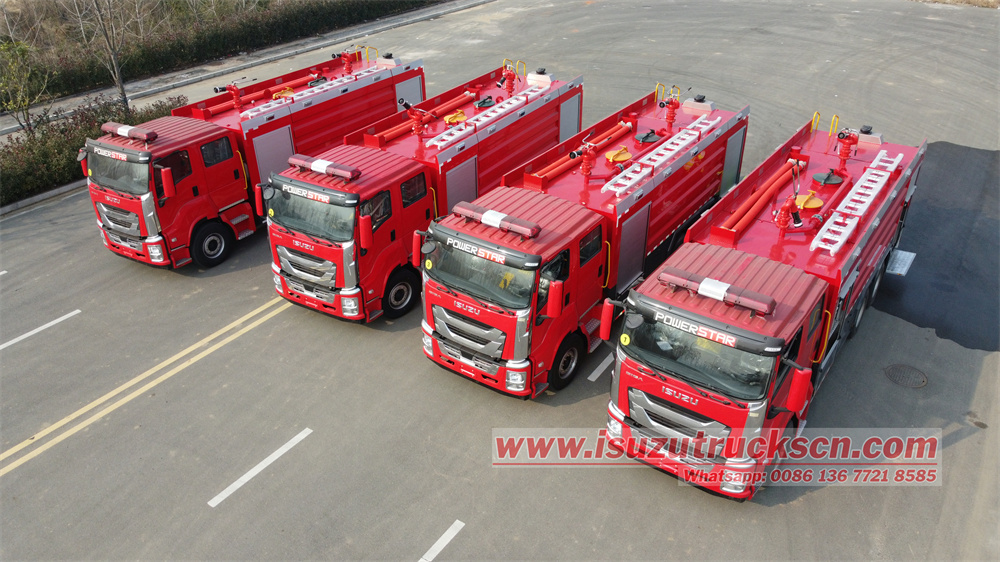

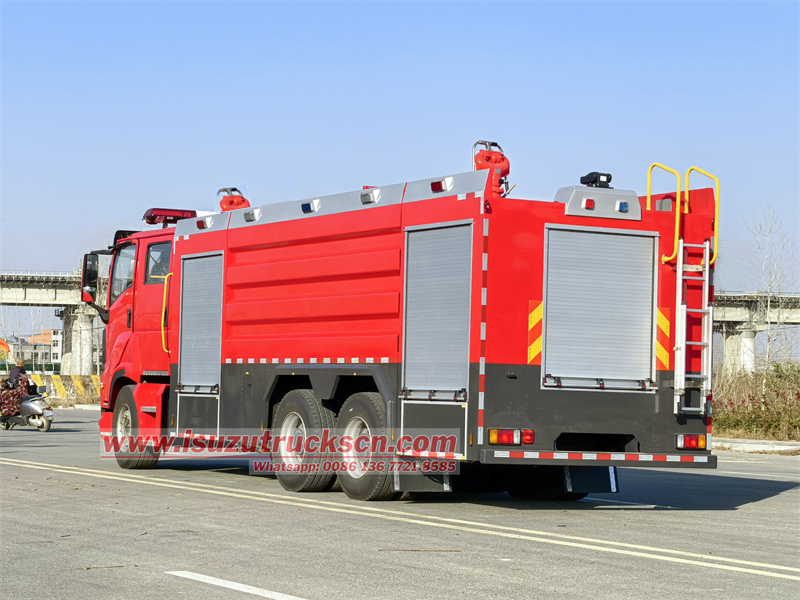

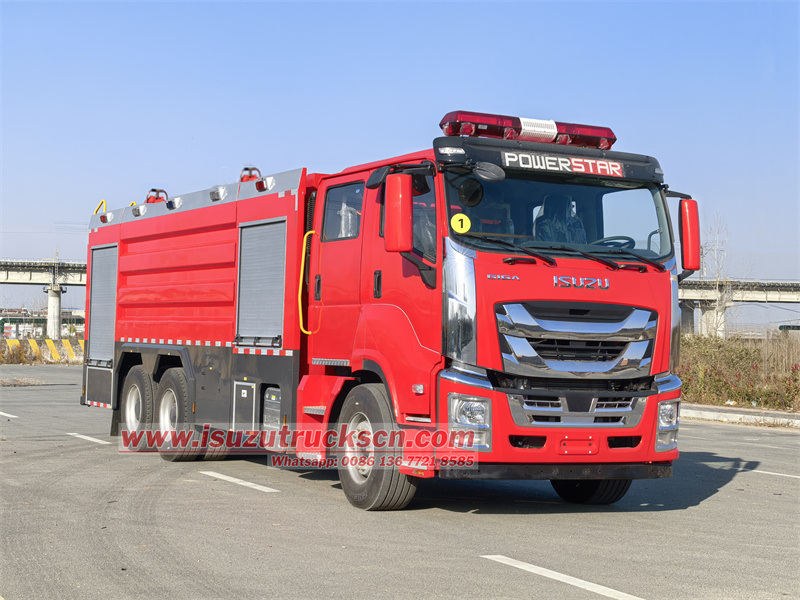

The Isuzu GIGA 6X4 12 cubic meter foam fire truck has 35 tons GVW, 4800+1370mm wheelbase, and is equipped with an Isuzu 6WG1-TCG62 engine and a Fast 12-speed transmission. The upper body front feature a equipment compartment,a 10000L carbon steel water tank and a 2000L stainless steel foam tank in the middle, and a pump room at the rea(with a CB10/140-XZ fire pump, control panel, fire hoses, firefighting equipment, etc.) Two sets of PL8/64 fire monitors are located on the roof.
Manufacturer:
Powerstar TrucksWork capacity:
10cbm water+2cbm foamDimension:
9980 x 2540 x 3650mmCabin type:

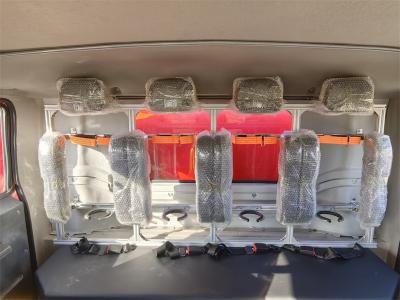

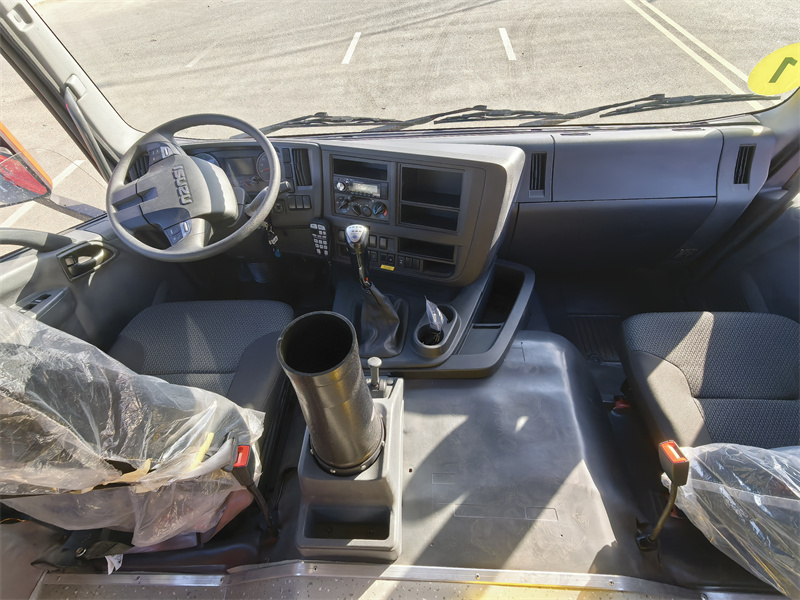

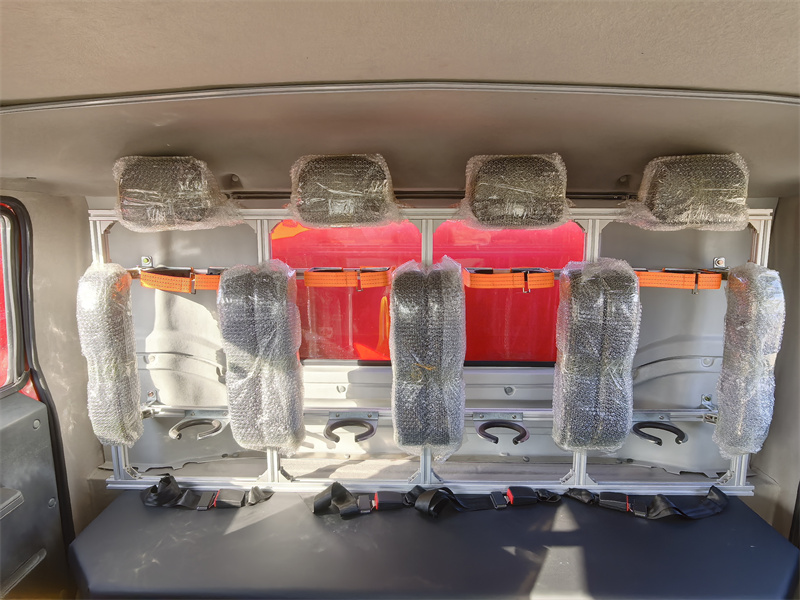

Isuzu GIGA 6X4 cab,2+4 seatsWheelbase:
4800+1370mmEngine power:
520HP/382kWEngine type:
ISUZU 6WG1-TCG62Axle drive:
6x4,LHDGear box:
FAST 12-speed,manualRemarks:

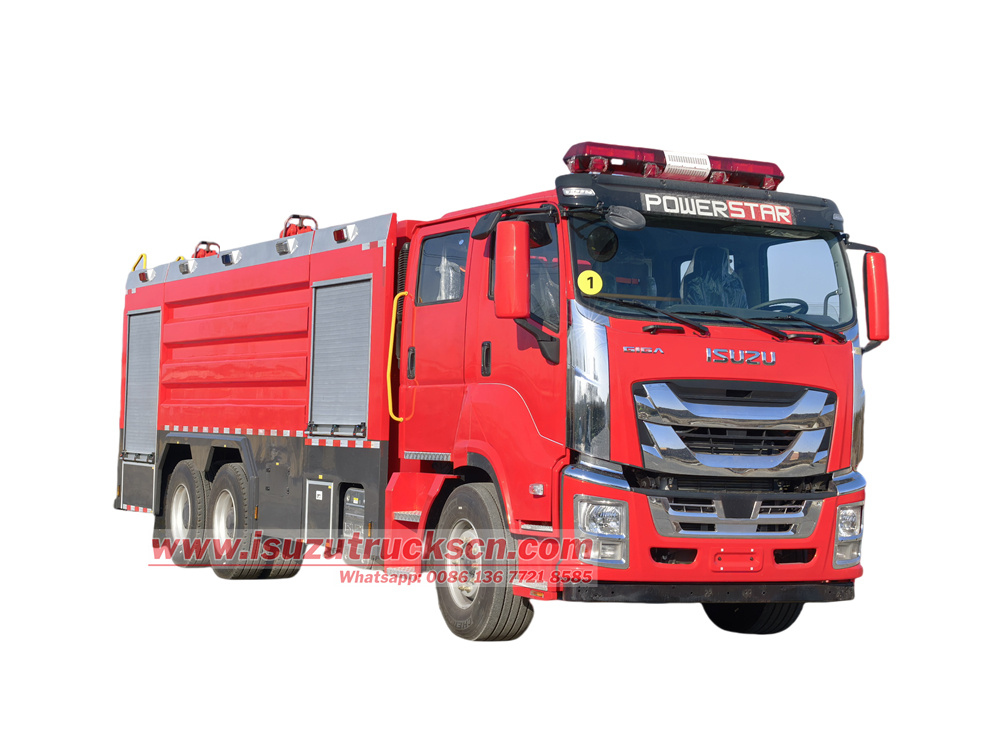

dry powder tank availableThis Isuzu 3200 gallons foam tanker fire apparatus is specifically designed for large-scale industrial and urban fires. It features a 520-horsepower Isuzu engine and a Fast 12-speed transmission, providing ample power and a reliable chassis. The vehicle has a 12cbm extinguishing agent capacity, equipped with a 140-liter/second high-flow-rate fire pump and two sets of fire monitors with a range exceeding 70m, offering wide firefighting coverage and high operational efficiency. The balanced combination of its power, liquid-carrying capacity, and pump-monitor systems makes it suitable as a primary or reinforcement force in urban fires and chemical accident suppression.
|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
10000L water+2000L foam |
6WG1/ 520HP |
4800+1370mm |
★Water tank carbon steel ★Foam tank 304 stainless Steel, ★China famous CB10/140-XZ fire pump ★ China famous PL8/64 Fire monitor ★ 2026 year brand new |
▶ Product Parameter :
| ISUZU GIGA 6X4 12000L foam water fire truck | |||
|
General |
Work capacity |
10000L water tank,2000L foam tank |
|
|
Truck chassis |
Isuzu GIGA 6X4 |
||
|
Engine Power |
520 HP/ Isuzu 6WG1-TCG62 |
||
|
Fire pump |
CB10/140-XZ |
||
|
Chassis |
Drive Type |
4X2 |
|
|
Transmission |
FAST 12-shift, manual |
||
|
Wheelbase |
4800+1370mm |
||
|
Tire |
385/65R22.5 / 315/80R22.5,10+1wheel |
||
|
Fire pump |
Model |
CB10/140 |
|
|
Pressure |
1MPa |
||
|
Max working pressure |
1.430MPa |
||
|
Max allowable inlet pressure |
0.4MPa |
||
|
Flux |
140L/s |
||
|
Max suction height |
7m |
||
|
Rated speed |
2600±50r/min |
||
|
Speed ratio |
1:1.09 |
||
|
Water diversion time |
≤50s |
||
|
Foam Water Proportioning Mixer |
Model |
PH64-RS |
|
|
Mixing ratio |
6% |
||
|
Work pressure range |
0.6～1.4MPa |
||
|
Flow range |
16～64L/s |
||
|
Suitable foaming liquid categories |
Category B |
||
|
Fire monitor |
Model |
PL8/64 |
|
|
Flow |
64L/s |
||
|
Rated working pressure |
0.8MPa |
||
|
Max working pressure |
1.2MPa |
||
|
Range |
Water |
≥75m |
|
|
Foam |
≥70m |
||
|
Pitch rotation |
- 45～+70° |
||
|
Horizontal rotation |
0～360° |
||
|
Suction tube |
125*2m,2pic |
||
▶ Basic Vehicle Information:

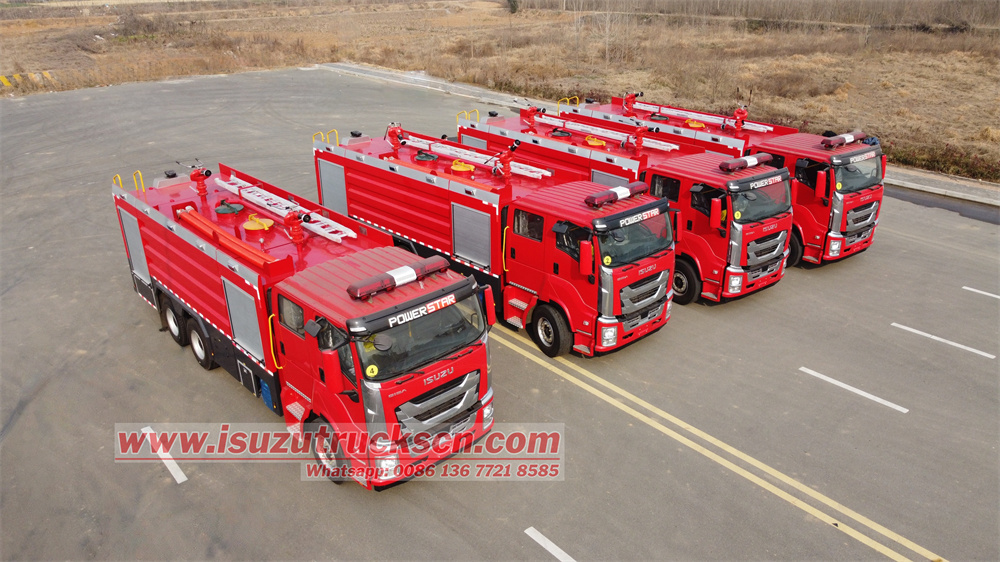

• Vehicle Type: Heavy-duty Foam Fire Truck
• Chassis Brand: Isuzu GIGA
• Drive Type: 6×4
• Gross Vehicle Weight: 35,000 kg
• Wheelbase: 4800 + 1370 mm
• Engine: Isuzu 6WG1-TCG62 520 hp
• Transmission: Fast 12-speed manual transmission
• Total Extinguishing Agent Capacity: 12 cubic meters (10 cubic meters water + 2 cubic meters foam)
▶ Upper Structure:

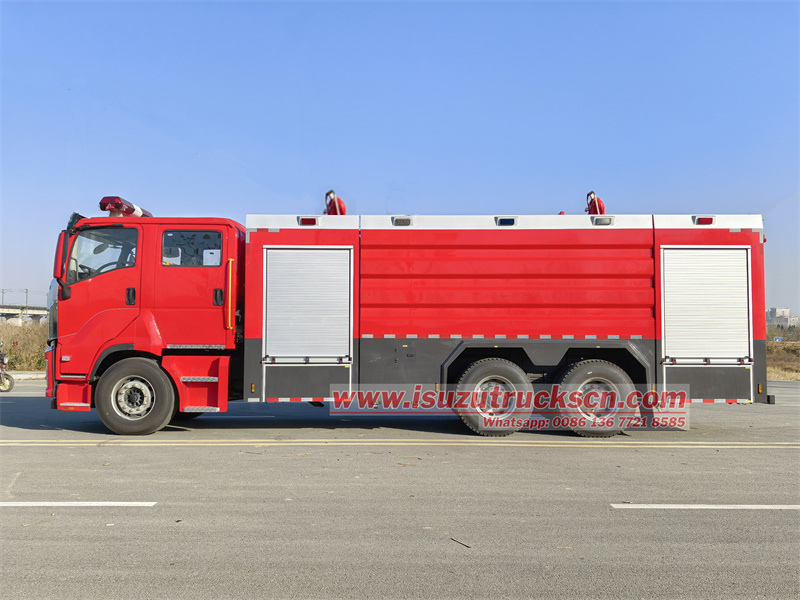

The overall vehicle layout adopts a typical structure of front equipment, middle tank, rear pump room, and top fire monitor, which conforms to actual combat operation habits.
|
Area |
Material/Structure |
Functions and Configuration |
|

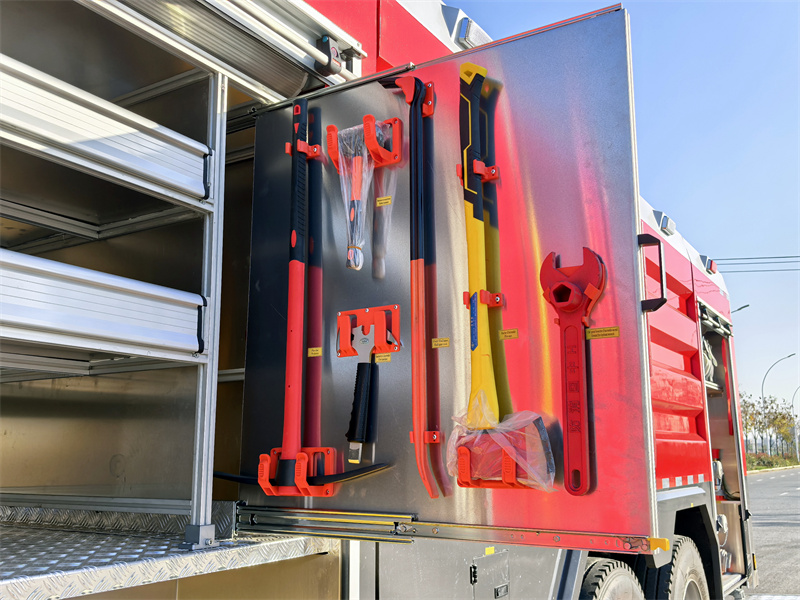

Front Equipment Room |
High-strength aluminum alloy profiles, equipped with equipment racks and pull-out equipment hanging panels, roller shutter door. |
Store fire hoses (including 80/65 quick-connect nozzles), dry powder fire extinguishers, breaching tools (fire axes, crowbars, pry bars, etc.), and personal protective equipment. |
|
Middle tank |
Water tank: Carbon steel (10,000 L) Foam tank: Stainless steel (2,000 L) |
The tank is corrosion-resistant and equipped with a manhole, level gauge, overflow pipe, and drain valve. The foam tank has internal stainless steel foam liquid piping. Water and foam can be discharged separately or in a mixed ratio. |
|

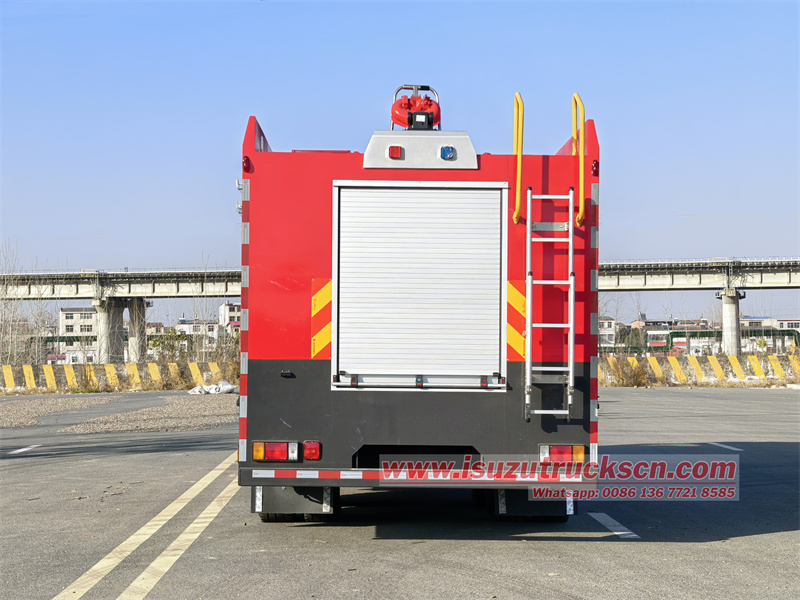

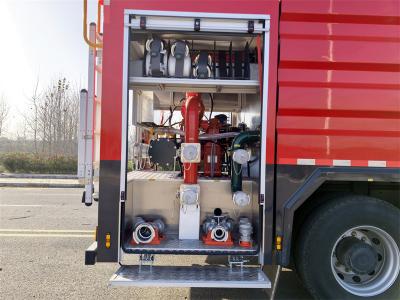

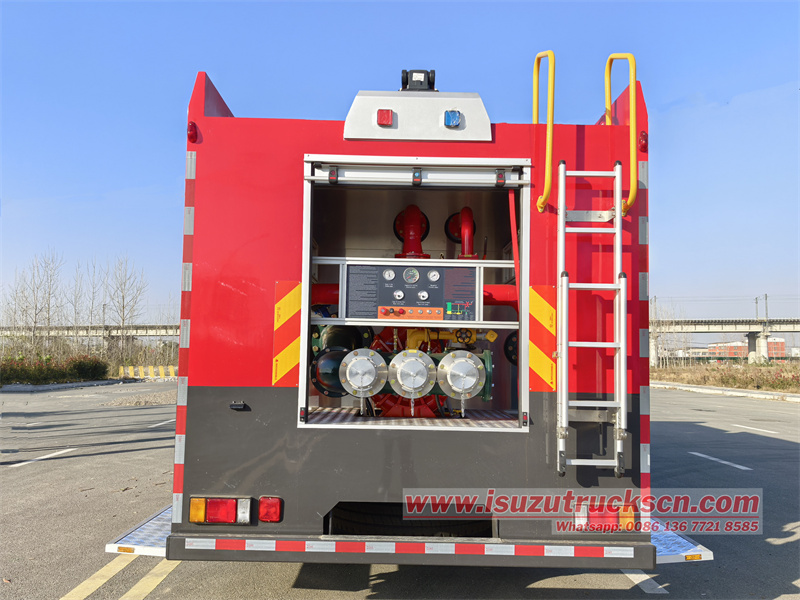

Rear pump room |
Aluminum alloy frame |

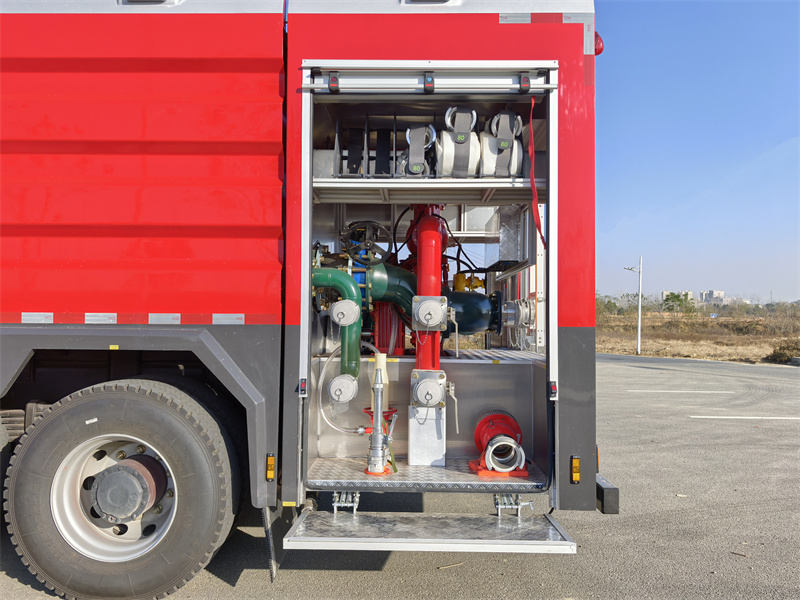

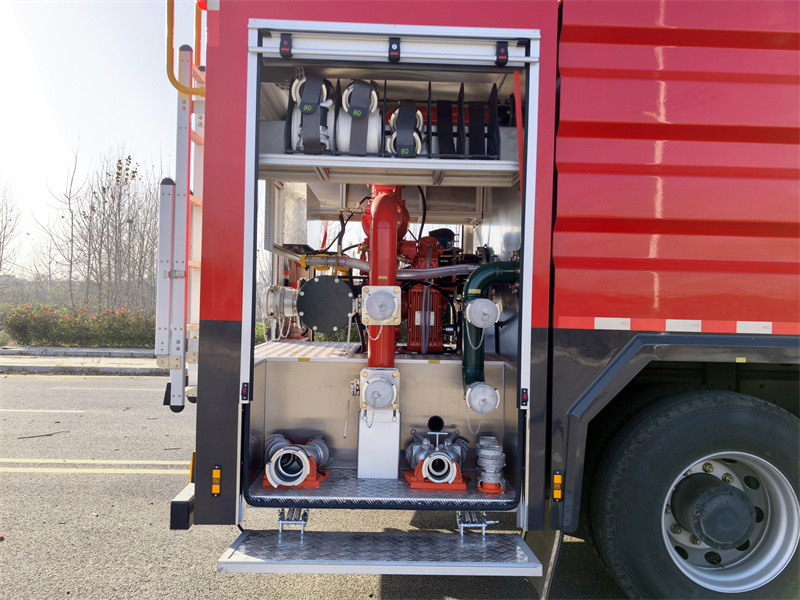

It contains a fire pump, vacuum pump, foam proportioner, control panel, piping system, and some fire-fighting equipment: suction hose wrench, water filter, water collector, reducer, switch for direct current water gun, foam gun, and fire hose. |
|
Top fire monitor |
Precision cast aluminum material |
Two sets of foam and water combined fire monitors, PL8/48 model, capable of spraying water and foam. |
▶ Fire Pump and Piping System:

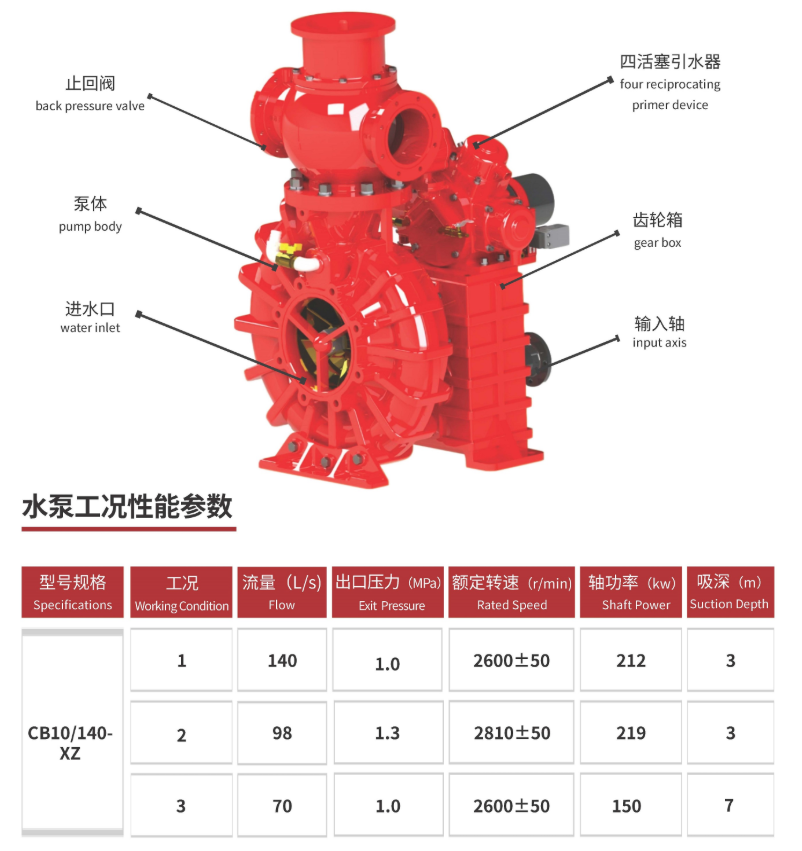

• Fire Pump Model: CB10/140-XZ (Low-pressure, high-flow vehicle-mounted fire pump)
o Rated Flow Rate: 140 L/s @ 1.0 MPa
o Maximum Pressure: 1.43 MPa
o Suction Depth: 7 meters
o Priming Time: ≤ 50 seconds
• Piping System:

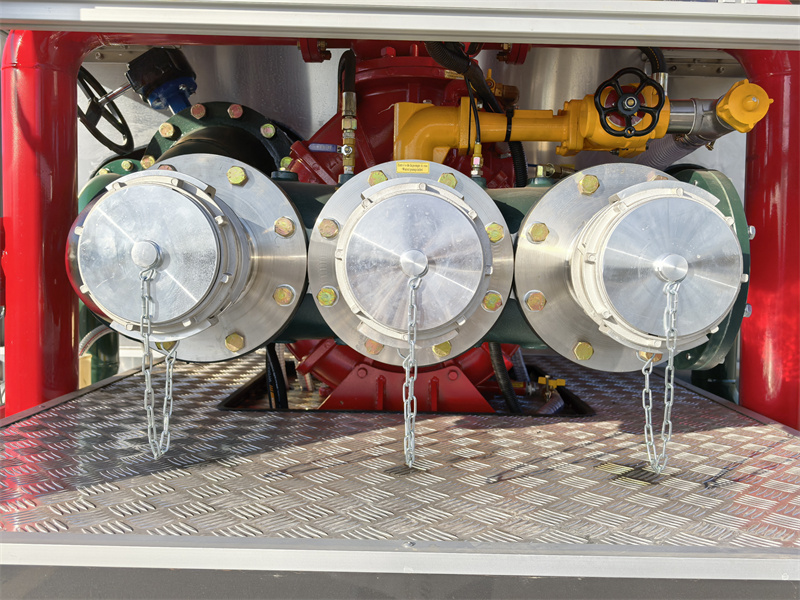

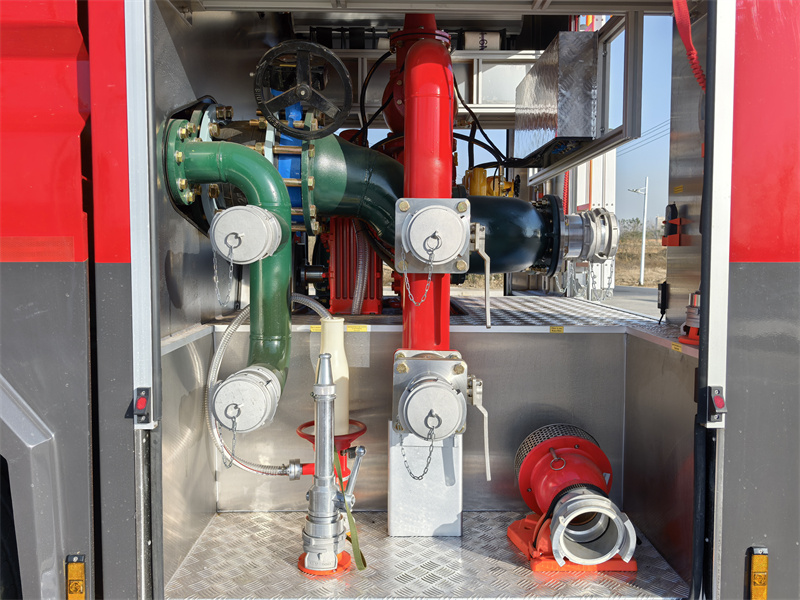

o Pump Suction Port: 3 DN 125 French joints

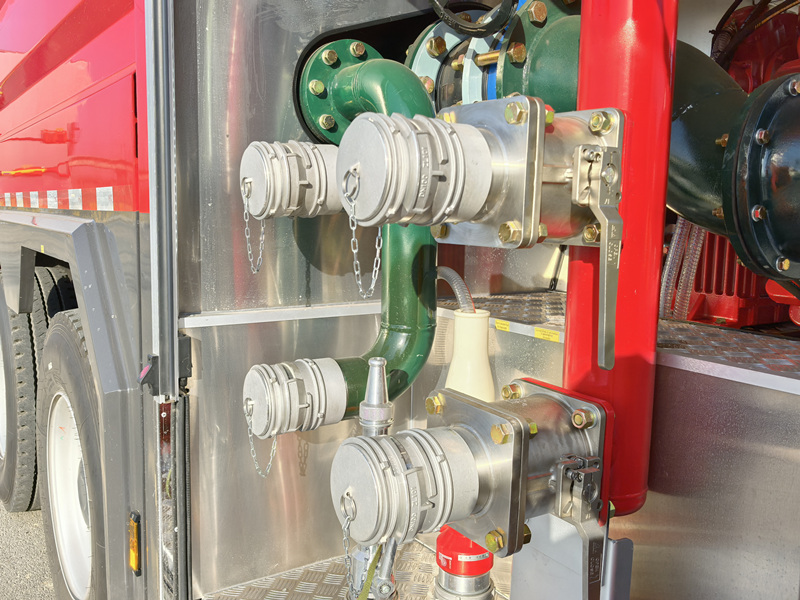

o External Inlet: 2 DN100 French inlets (with covers) on each side of the pump house
o Outlet: 2 DN100 French outlets (with covers) on each side of the pump house.
o Foam Proportioning Mixer: Ring pump type, mixing ratio 6%.

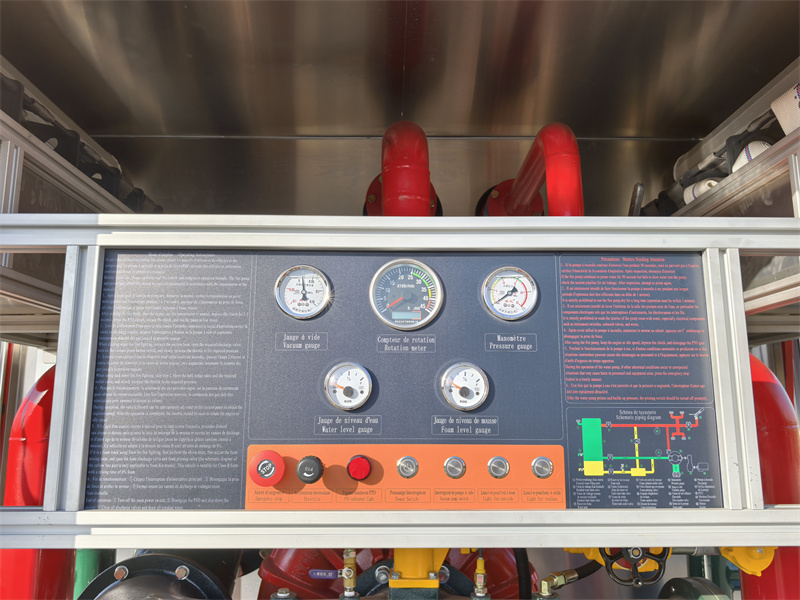

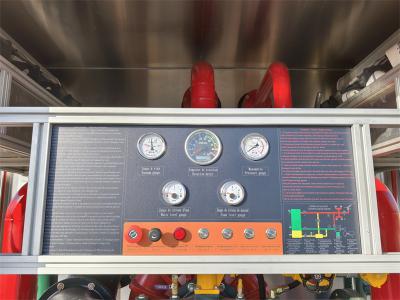

▶ Control panel:
Includes operating instructions, precautions, tank piping diagram, vacuum gauge, tachometer, pressure gauge, water level gauge, foam level gauge, emergency stop, electronic throttle, PTO, main power, vacuum pump switch, external lights, equipment room lights, and other buttons.

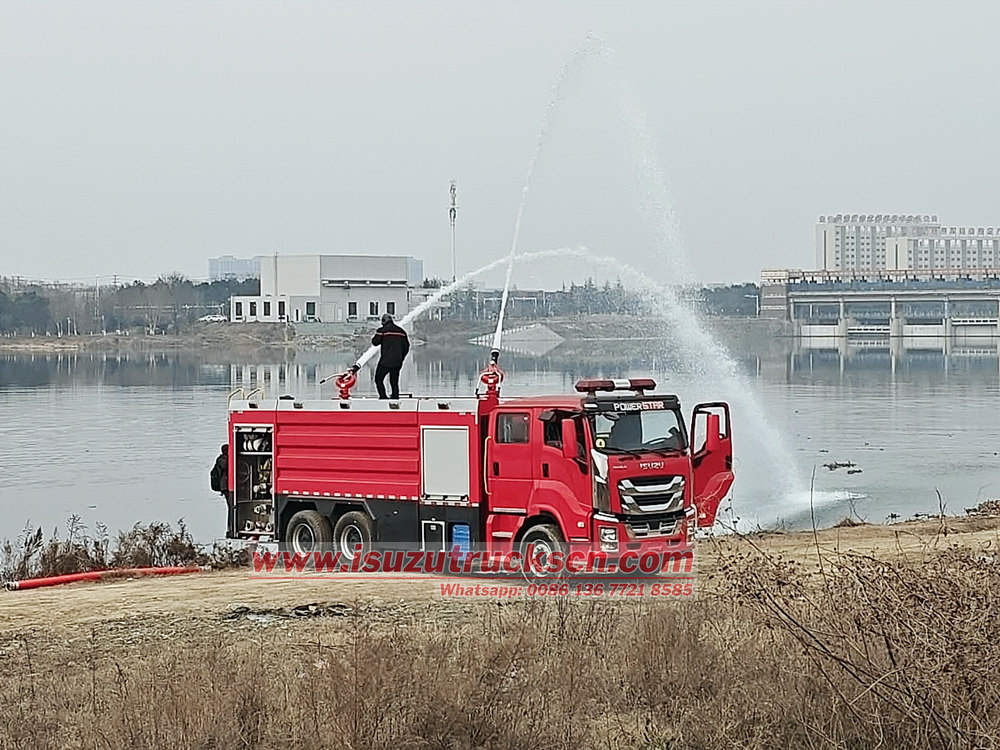

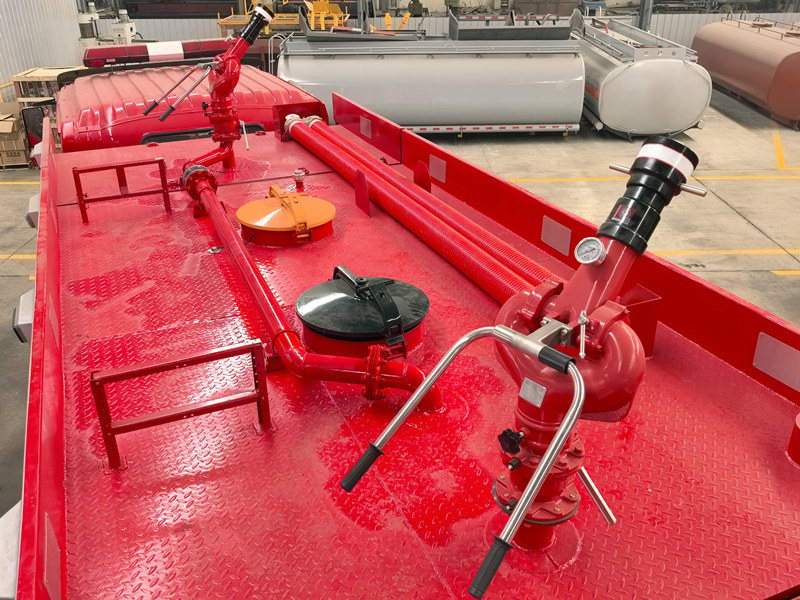

▶ Fire Monitors:
Two units PL8/64 type fire monitors are mounted on the roof, with a flow rate of 64 L/s @ 1.0 MPa and a range (water ≥75m, foam ≥70m). They can spray water and foam independently or mix them in proportion, effectively extinguishing oil and solid fires, and have strong continuous combat capability.
|
Fire Monitor Model |
Flow |
Range |
Rated Pressure |
Pitch Rotation |
Horizontal rotation |
Weight |
|
PL8/64 |
64L/s |
water ≥75m, foam ≥70m |
0.80MPa |
-45°～+70° |
0～360° |
27kg |
▶ Applicable Scenarios:
• Fires in urban high-rise buildings and large complexes
• Fires in petrochemical plants, oil depots, docks, and tank farms
• Large-scale fire suppression in factories, mines, logistics parks, airports, etc.
• Long-distance water supply, foam mixed fire extinguishing, and collaborative emergency rescue operations
