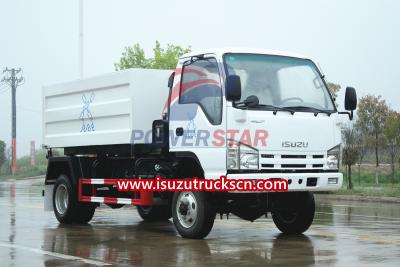

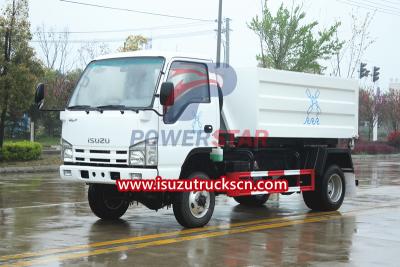

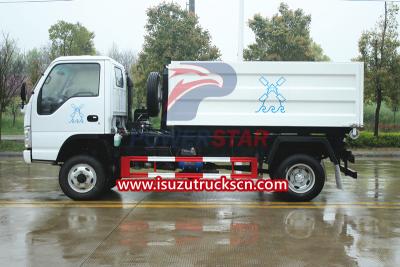

City hookloaders set the standard when it comes to durability and lowest life time cost. These welded platforms for urban areas have a range from 1 up to 10 tons. The City Hookloader is low on maintenance, saving costs for light commercial vehicles and comes with all the advantages of various options such as draw bar applications, hook demountable skip or hook/ crane combinations. Brand New Isuzu hook loader truck is based on 4x4 offroad truck chassis, MSB 5 shift manual gearbox with 5 forward and 1 reverse, 4tons hook loader device for suitable garbage bins, electric control box in cabin for easy usage. Also prepare with English version detailed Operation manual and Parts Manual, which makes the truck regular usage and maintenance more fast and convenient.
Work capacity:
4 TonsTruck model:
PT5070ZXXEngine power:
120 hpEngine type:
4KH1CNAxle drive:
4x2Gear box:
MSB 5-shift manualRemarks:
Isuzu 4x4 offroad truck mounted with 4tons hook loader device, garbage bins can be customzied as open top dumpster or sealed dumpster

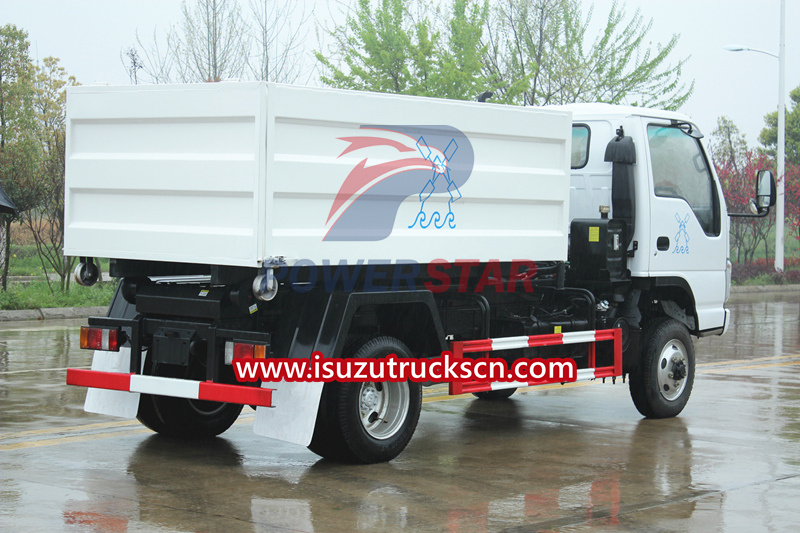

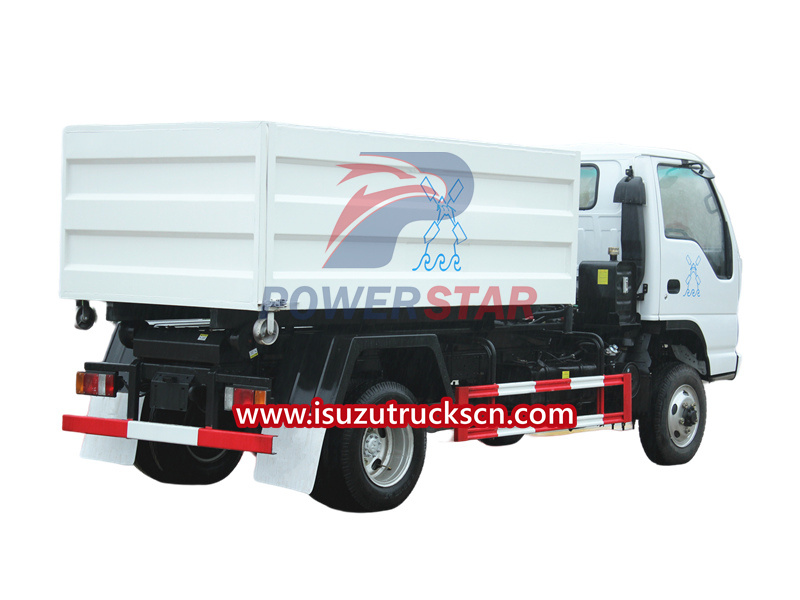

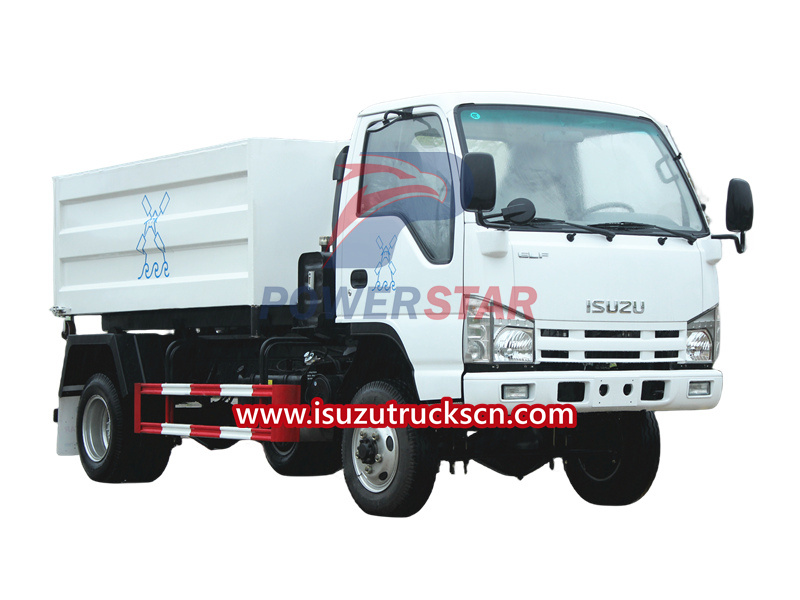

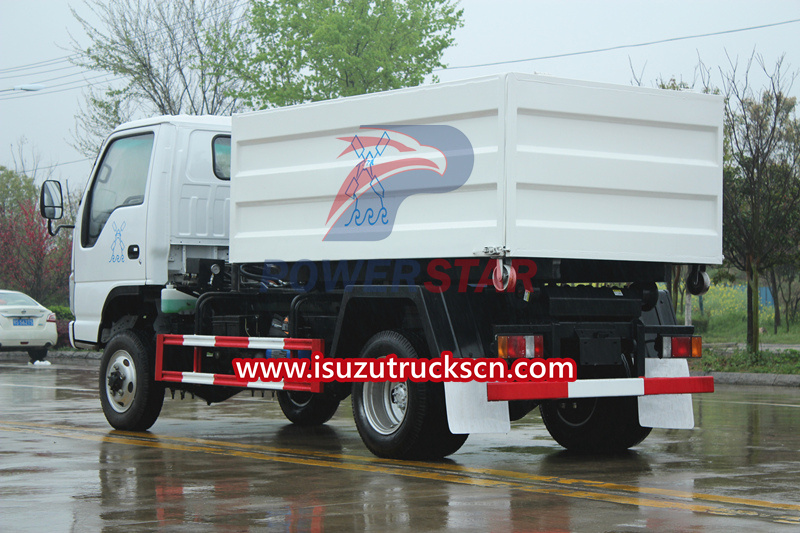

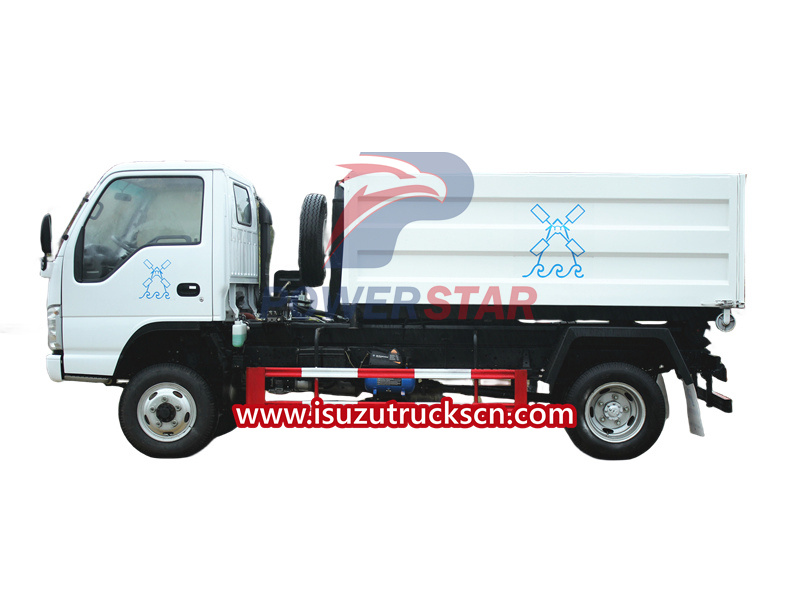

The newly designed ISUZU NKR hook arm garbage truck adopts a full hydraulic control operating system. The garbage dumpsters and the Isuzu offroad 4x4 truck chassis can be completely separated. It has the advantages of reasonable structure, simple and convenient operation, stability, high use efficiency, good sealing performance, and easy dumping. It can realize a vehicle and multiple garbage. Carry out joint operation and circular transport to fully improve the transport capacity of vehicles. An Isuzu hookloader truck can be worked with multiple boxes, high efficiency, energy saving, cost savings.
Isuzu hook loader garbage truck adopts a high-tech design to provide a high strength hook arm.
A vehicle can take multiple dumpsters, open top dumpster, sealed dumpster, flatbed dumpster, etc, facilitate loading and
unloading, realize the secondary lifting of the carriage and make the
organization the most labor-saving, with a simple structure, stable and
convenient operation, high efficiency loading and unloading, and saving
Manpower and other advantages. Hook-up garbage trucks can be equipped
with several garbage transfer boxes as required by the user. The
transfer box can be used as a simple, beautiful and environmentally
friendly waste transfer station, which maximizes the efficiency of the
use of the vehicle.
Products Parameters
HOOK LIFT Garbage truck (also called hooklifting garbage truck, hook lifting garbage truck, waste collection truck, rear tipping garbage truck, refuse truck,waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
ISUZU 4WD HOOK LOADER TRUCK SPECIFICATION SHEET |
|||
Chassis Parameters |
|||
Truck model |
PT5070ZXX |
Chassis brand |
ISUZU 4x4 NKR |
Overall dimensions |
5500*2200*2500mm |
Wheel base |
3360 mm |
Front/rear wheel track |
1504/1520mm |
Front/rear Axle Capacity |
2500/4800 kg |
Spring |
8/6+5 |
Maximum speed |
90km/h |
Cab |
Configuration |
Isuzu NKR single air suspension cab, with air conditioner, allowable 2 passengers, with ABS, with air suspension seat |
|
Color |
White, other color is optional |
||
Engine |
Model |
ISUZU model 4KH1CN6LB |
|
Emission |
Euro 6 |
||
Type |
4 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, 4- valve, diesel engine |
||
Rated power |
120hp |
||
Displacement |
2999ml |
||
Max.torque |
290 N·m |
||
Tire |
Size |
7.00R16 Tire, With one spare tyre |
|
Number |
6+1 nos |
||
Front axle loading |
2.5 tons |
||
Rear axle loading |
4.8 tons |
||
Rated voltage |
12 V,DC |
||
Transmissions |
ISUZU MSB 5-shift gears 5 forward and 1 reverse. |
||
Steering device |
Power assisted steering |
||
Steering wheel |
LHD / RHD |
||
LIFTING SYSTEM |
|||
Dumpster |
All-metal, size L*W*H (3.2m*2.0m*1.6m), about 6 cubic meters |
||
Sidewalls |
Sheet carbon steel (thickness: 3 mm) |
||
Bottom |
Sheet carbon steel (thickness: 3 mm) |
||
Discharge time |
20S-30S |
||
Discharge system |
lifting/dump type |
||
Dump angle |
50 degree |
||
Hydraulic system pressure |
16 Mpa |
||
Standard equipment |
ITALY BRAND
Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main
operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm,
hydraulic oil pipe , hydraulic oil tank, Hydraulic strengthen rear
outrigger. |
1. Introduction: Isuzu Detachable Hookloader Truck represents an innovative sanitation vehicle designed to cater to the demands of modern cities and towns. It efficiently collects and transports garbage, providing time-saving and labor-saving features.
2. Overall Structural Design: The Detachable Isuzu NKR Hookloader Truck comprises a Type II Isuzu truck chassis, sub-frame assembly, hookloader assembly, different types dumpster garbage bins, and hydraulic system.
3. Chassis Section: the Detachable Hookloader Truck must possess adequate power performance, dimensions, and overall vehicle mass. Considering the specifications, the Type II Isuzu chassis is manufactured by Original Isuzu technology.

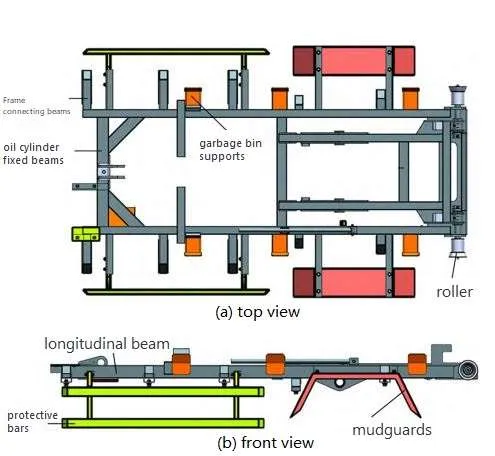

4. Subframe Design: The sub-frame assembly consists of protective bars, mudguards, longitudinal beams, oil cylinder fixed beams, flip support frames, roller mechanisms, and garbage bin supports, all welded and assembled together. Protective bars, made by welding 50mm×30mm×2.0mm rectangular steel tubes and 20mm×20mm×2.0mm rectangular steel tubes, are connected to the longitudinal beams with four M10 bolts for simple manufacturing and reliable strength. Mudguards, crafted from 1.5mm Q235 steel, offer both lightweight and reliable support. The flip support frame, combining rectangular tubes, thick plates, and bushings, operates with hinge pins and roller mechanisms to facilitate smooth garbage bin lifting and loading.

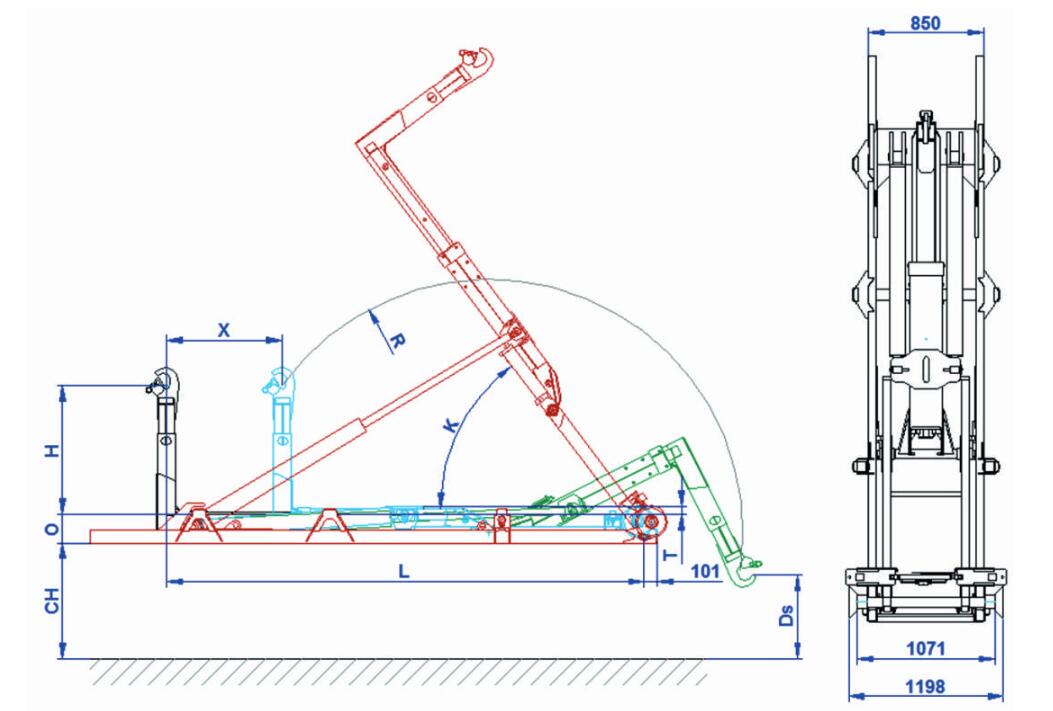

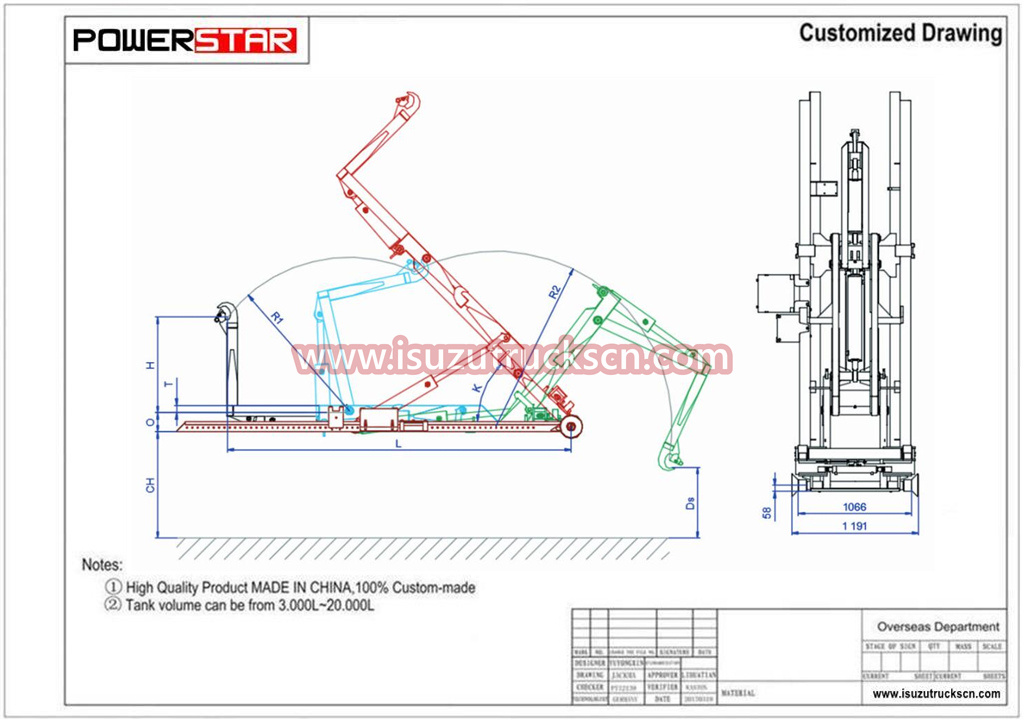

5. Hook Loader Assembly Design: The hookloader assembly, as illustrated comprises a hook, vertical arm, horizontal arm, main arm cylinder shaft sleeve, flip axis sleeve, and bent hook. The hook is pivotal in lifting the garbage bins, while the main arm cylinder shaft sleeve connects to the hydraulic system’s main arm cylinder using a hinge pin. The flip axis sleeve connects to the front axle sleeve of the connecting frame assembly through a hinge pin, enabling rotation between the hook arm assembly and the connecting frame assembly. The rotatable bent hook regulates the connection status between the flip support frame and the hook arm. By designing additional reinforcing ribs, the stress concentration points at the connections between the vertical arm and the horizontal arm, as well as the main arm cylinder shaft sleeve, ensure that the hookloader assembly meets strength requirements.
6. Hydraulic system Design: The Detachable Hookloader Truck’s hydraulic system controls the lifting and lowering cylinders for efficient garbage bin loading and unloading. The hydraulic oil is drawn from the reservoir into the gear pump via motor rotation. The lifting speed of the cylinder is managed by the pressure regulating valve. The three-position four-way solenoid valve, when in position A, activates the lifting function, while the overflow valve ensures excess hydraulic oil flows back to the reservoir during high oil pressure. The two-position three-way solenoid valve, in position B, enables cylinder descent, regulated by the one-way valve and flow control valve, ensuring safe and controlled operations.
7. Power System Design: The chassis power supply derives from the engine’s generator and the power battery.
8. Electric Principle Design: The overall electrical principle design is represented in Figure 6. The control handle operates the push rod motor, which controls the bending hook connecting the hookloader assembly and the flip support frame. The unloading and unboxing states are achieved through the manipulation of various switches and relay-controlled circuits (Figure 8). The emergency stop switch effectively prevents battery consumption when not in use.
9. Operation Process: demonstrates the operational steps of the Detachable Hookloader Truck, including loading, unloading, and self-unloading processes. The hookloader assembly’s movement is controlled by buttons on the control handle, and the bending hook regulates the hook’s connection status for effective unloading.

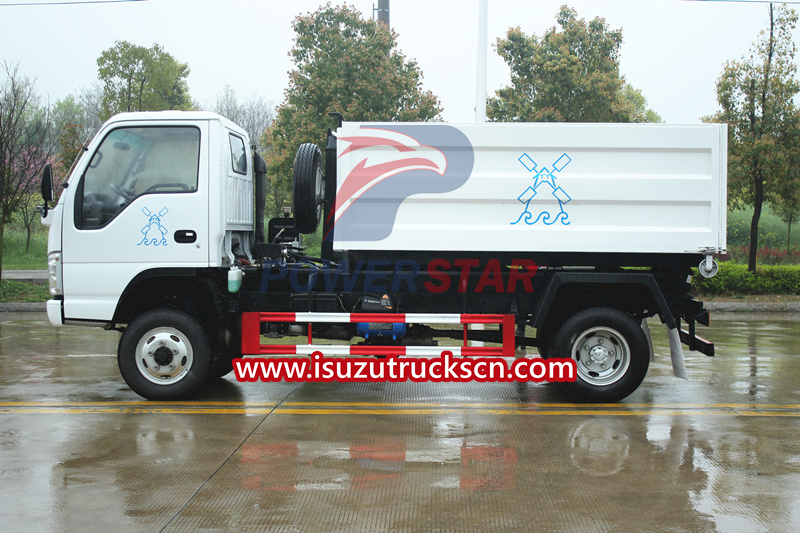

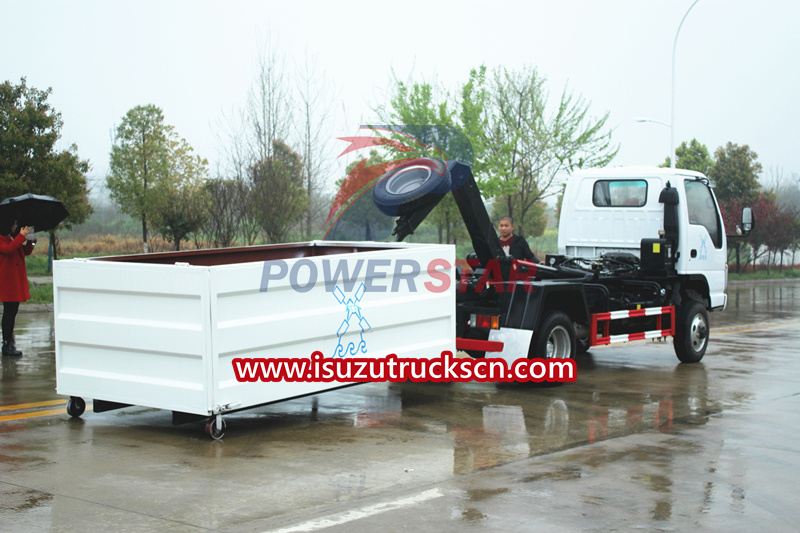

Isuzu 4x4 hook loader truck detachable the dumpster

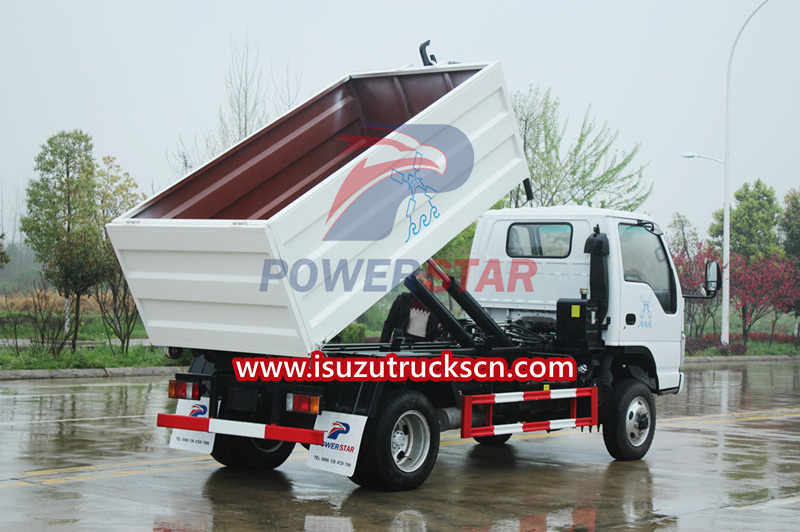

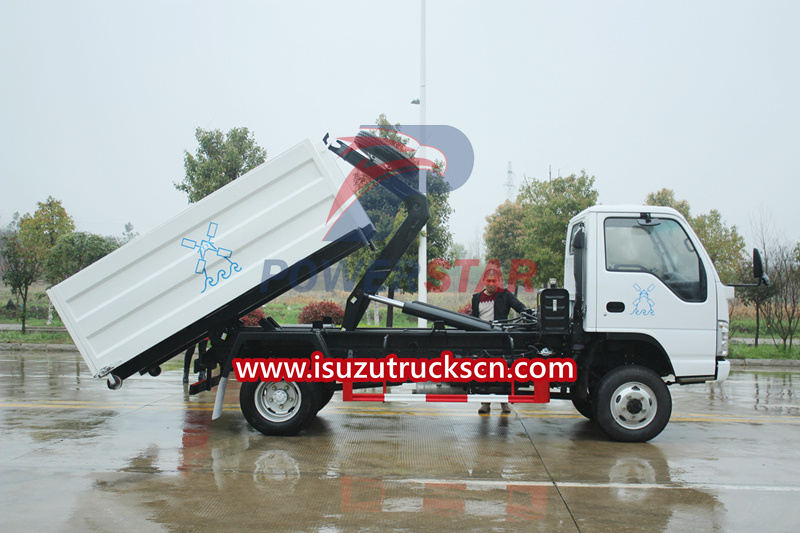

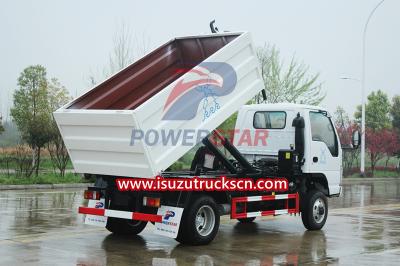

Isuzu 4x4 hook lift truck working as a dump truck to discharge garbage
