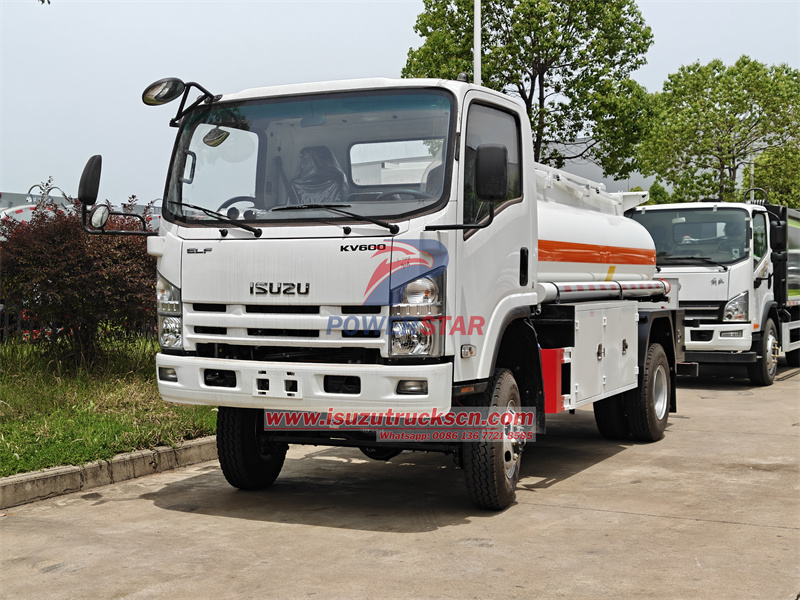

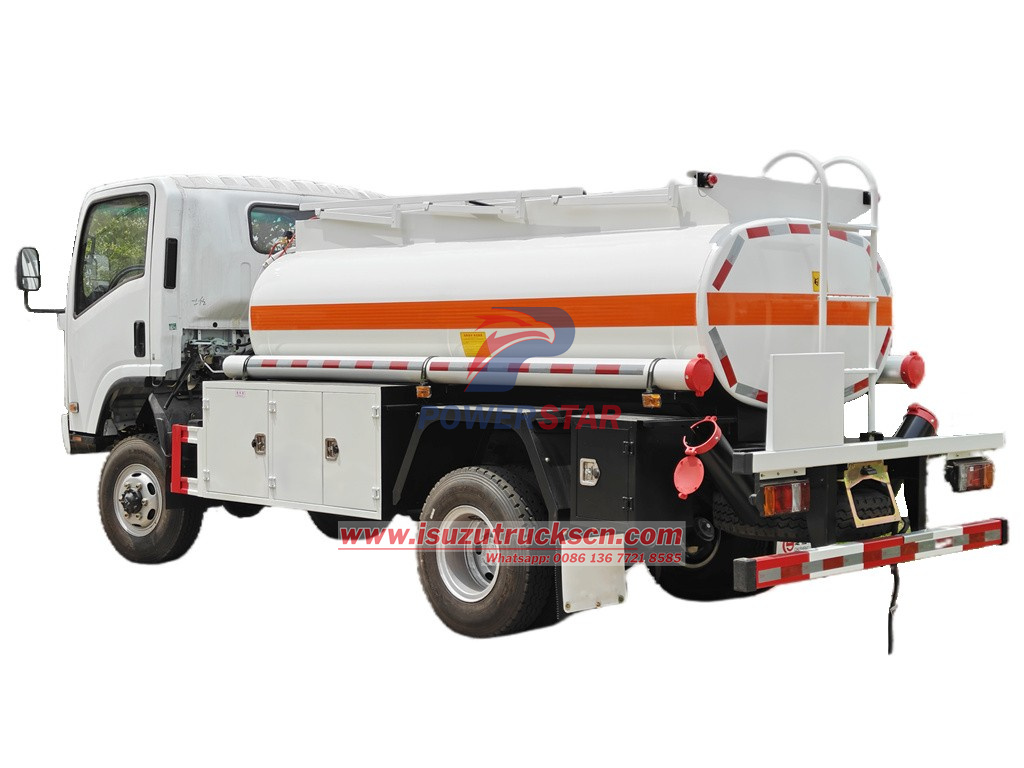

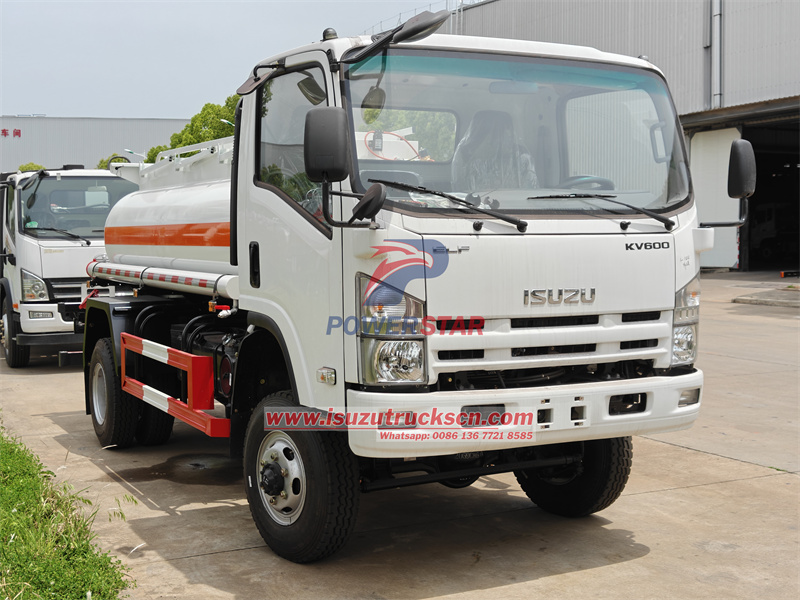

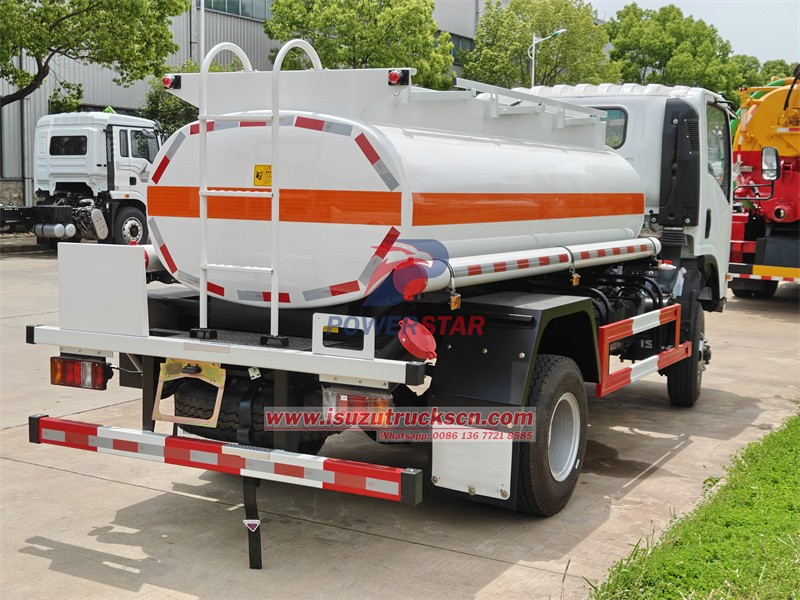

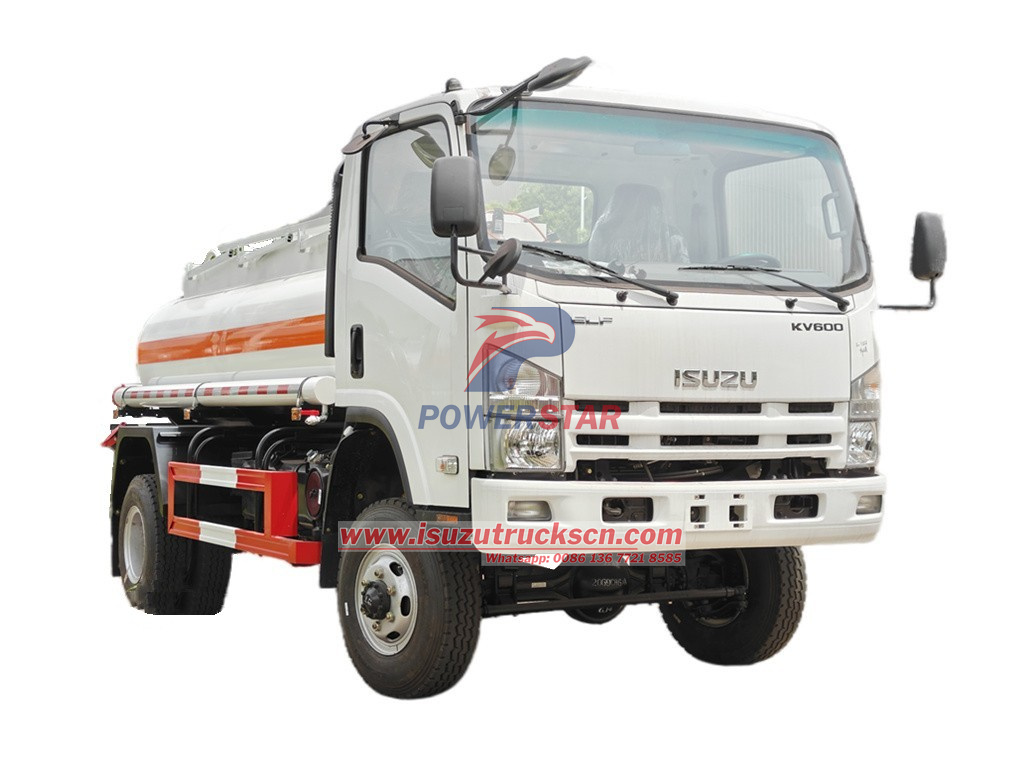

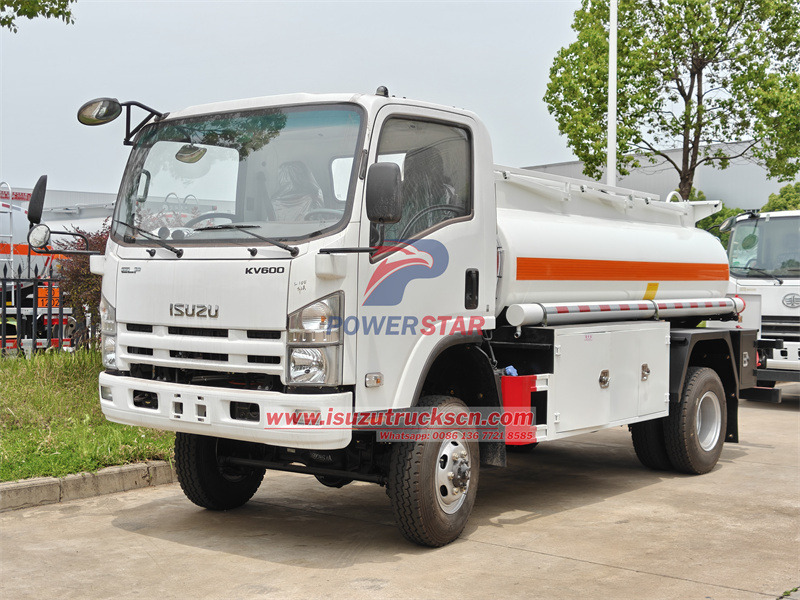

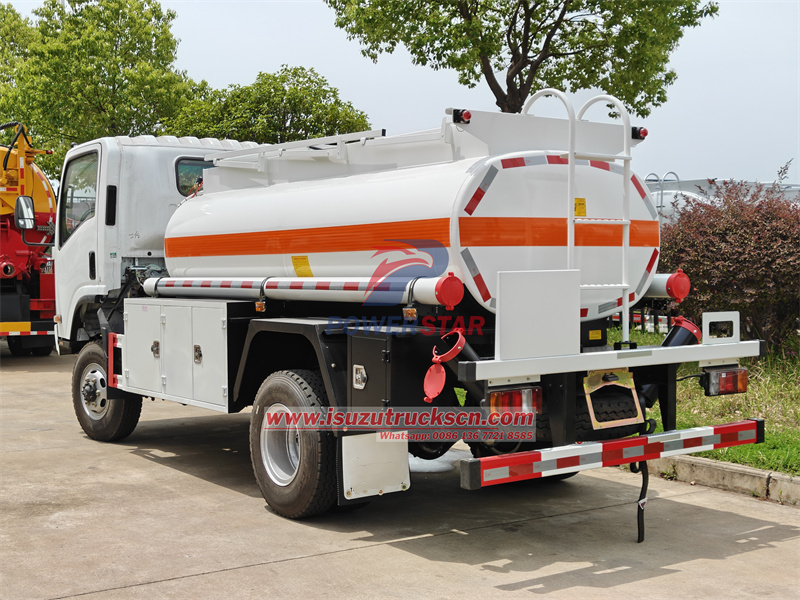

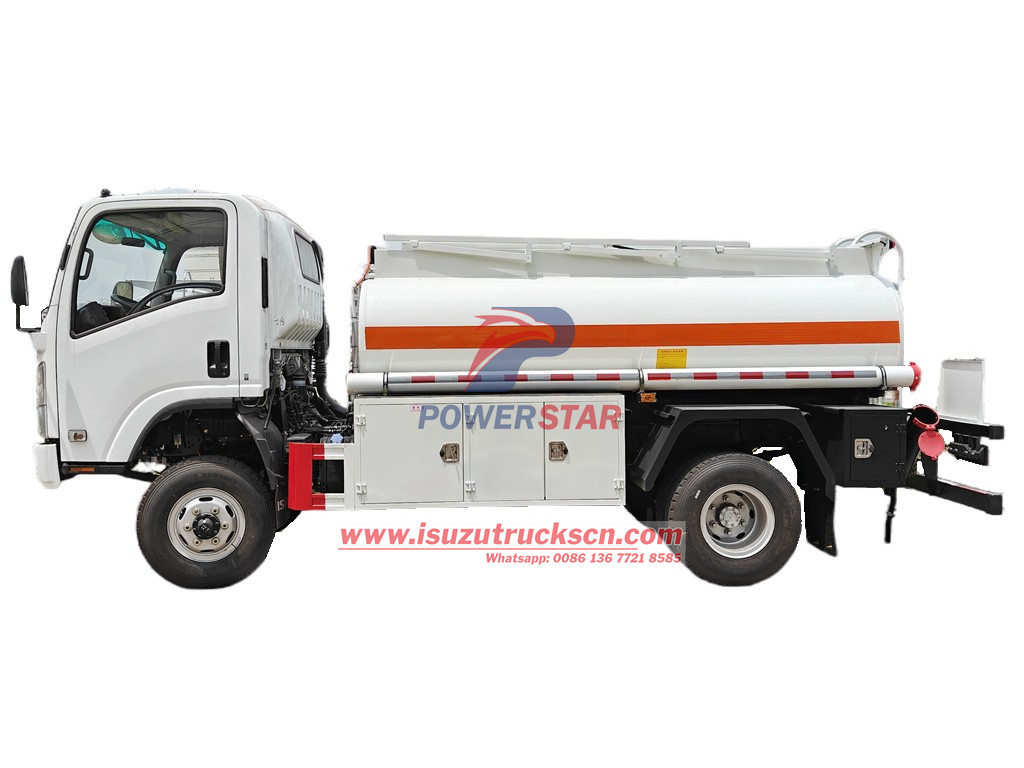

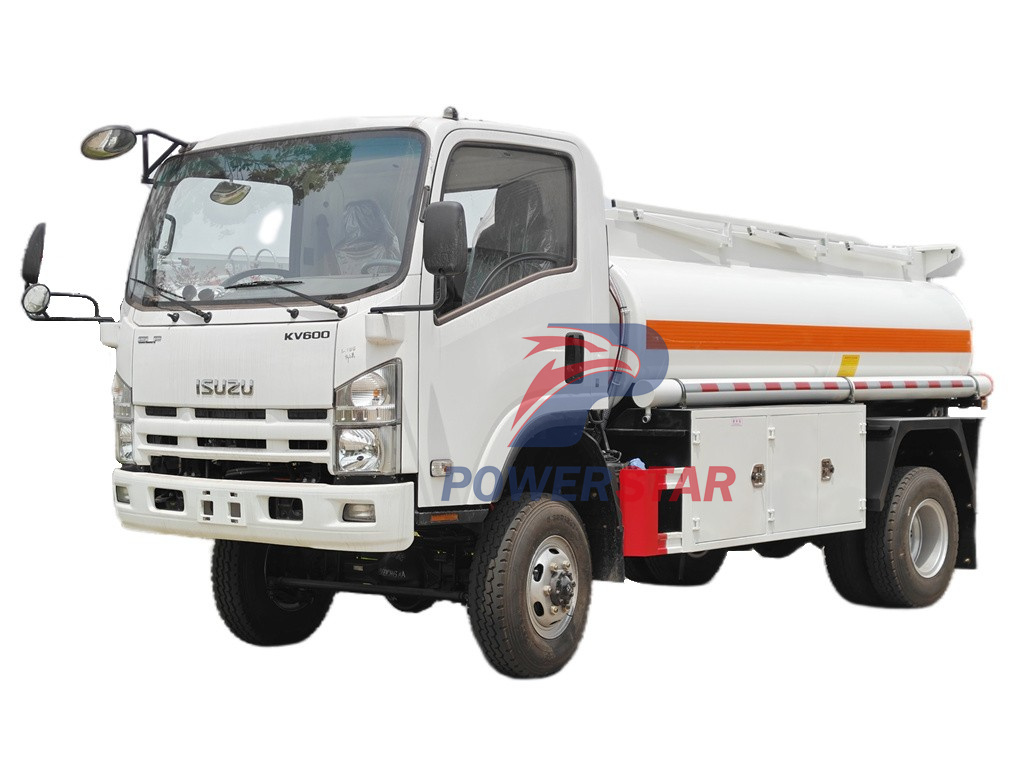

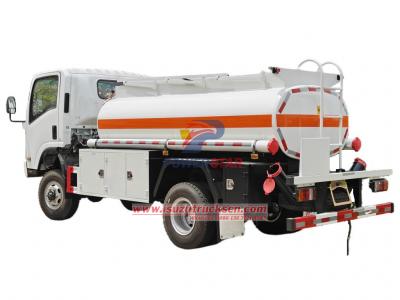

Isuzu 4x4 all wheel drive offroad fuel tanker truck is a professional diesel and gasoline transport vehicle built on an Isuzu new NPR 4WD truck chassis, mainly used for the transportation of fuel, diesel, gasoline. Its core feature is the all wheel drive AWD design, which has strong passability and adaptability to complex tough road conditions. The customized fuel tank body volume is 5 cubic meters, taking into account flexibility and loading efficiency. Equipped with Japanese technology Isuzu diesel engines 4KH1 series with 120HP / 130HP / 150HP power and Euro 6 emission, to ensure sufficient power and meet environmental protection standards. It is suitable for fuel storage and transportation.
Manufacturer:
POWERSTARWork capacity:
5000 L fuelDimension:
6200x2250x2550 mmCabin type:
New NPR / NQRWheelbase:
3360Engine power:
132 HPEngine type:
Isuzu 4KH1CN6HBAxle drive:
4x4Gear box:
Isuzu MYY 6-shiftRemarks:
ISUZU 4x4 model with refueling dispenserFuel tank truck also called oil tank truck, fuel bowser, which could be equipped with fuel pump to realize pumping in and out, Isuzu 4x4 offroad fuel bowser tank truck with fuel dispenser to filling different kinds of oil, fuel, diesel and gasoline to the other equipment at anywhere. The fuel truck tanker body could be divided into many compartments for transporting different types of fuel, which could be loading and discharging totally separate. The material of the tanker could be carbon steel, stainless steel, aluminum alloy.
From the perspective of Isuzu truck chassis configuration, Isuzu 4x4 fuel bowser model is PT5070GYY, equipped with Japanese ISUZU technology diesel engine 4KH1CN6HB with 132HP and 2999cc emission, MYY 6 shift manual gearbox with 6 forward and 1 reverse, equipped 7.50R16 tires with 6+1 pc, including one spare tyre, with a wheelbase of about 3360mm, equipped with a high-strength frame and heavy-duty suspension system to meet the special needs of oil tank transportation, also modify as 4x4 offroad type, the all wheel drive system are available to cover different type. It is also equipped with safety devices such as ABS and air brakes to ensure stability during transportation.

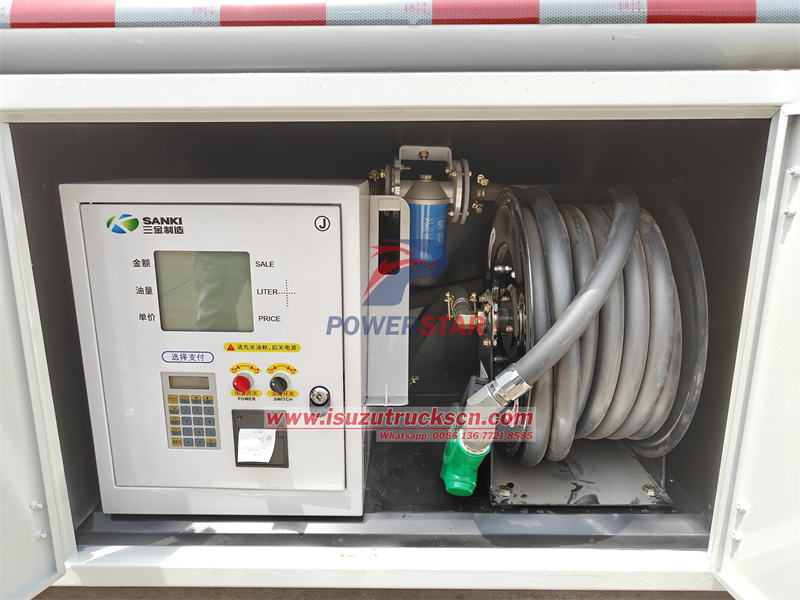

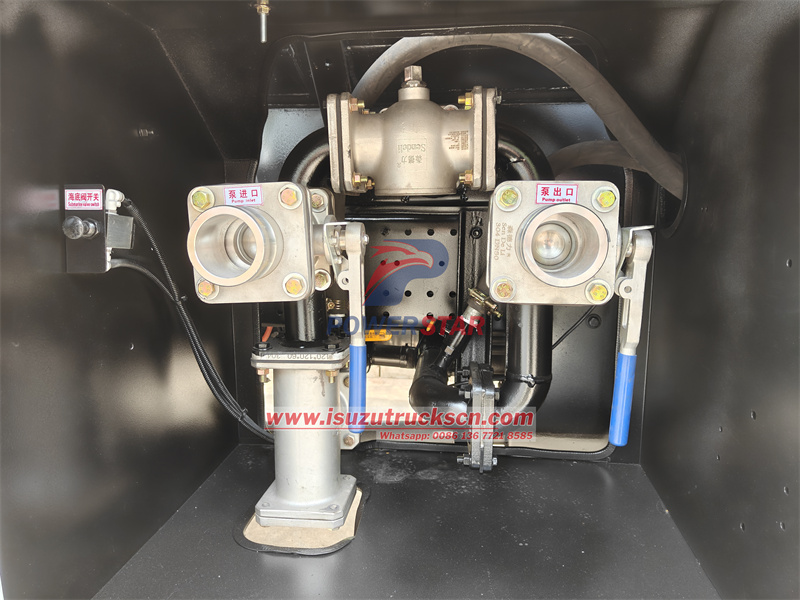

An ISUZU oil tanker truck is a flammable liquid transport vehicle equipped with a tank, anti-static device, fuel pipeline, handle valve and fire extinguishing equipment, which is used for transporting diesel. In addition to the basic devices and functions of an oil tanker vehicle, which is also equipped with an fuel pumping system, fuel dispenser with refueling pipeline, working instruments and control devices. It can draw the oil from the oil depot into its own oil tank and fill the oil in its own tank into other containers as a liquid transport vehicle.

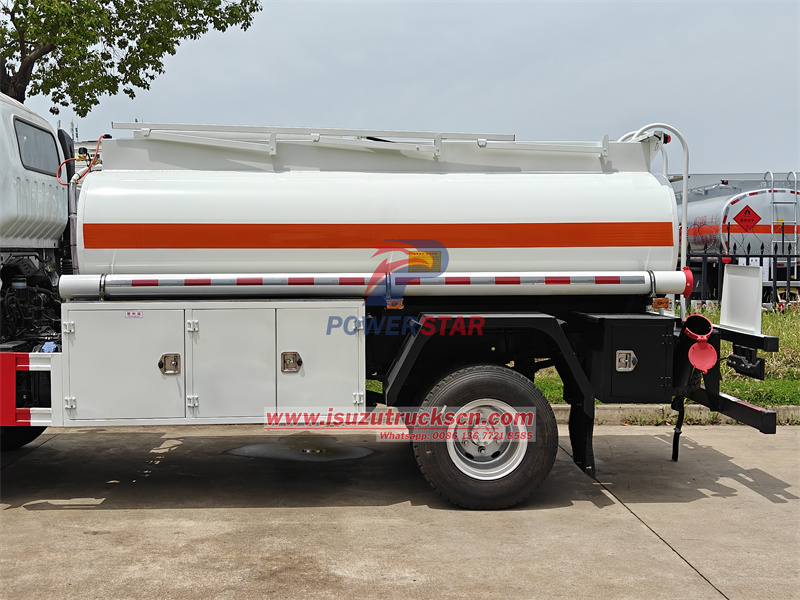

The tank body of ISUZU 4x4 offroad fuel truck is usually made of carbon steel with inside and outside with anti-static painting. The interior is smooth and has no dead corners. A multi-cabin structure can be designed according to needs to achieve sub-packaging and transportation. In terms of application scenarios, the Isuzu fuel tank truck is not only suitable for conventional oil transportation, but can also be customized as a dangerous goods transport vehicle according to regulatory requirements, such as adding anti-static devices, emergency shut-off valves and other safety equipment. Isuzu offroad refueling tank truck 4x4 all-wheel drive characteristics are particularly suitable for complex terrains such as mountainous areas and oil fields, while the 5000Liters volume design maintains compliance under urban traffic restrictions, balances loading capacity and operating costs, and becomes an efficient transportation tool for logistics companies and individual car owners.
| Isuzu 4x4 offroad fuel bowser tank truck Description | |

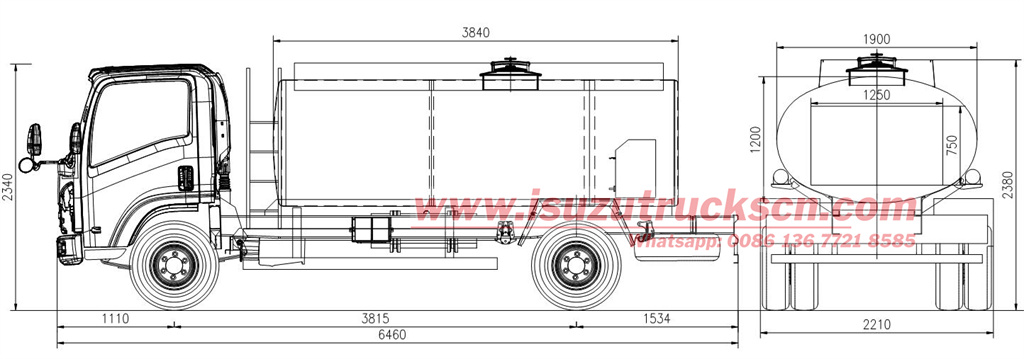

| Overall dimensions | 5995*1960*2650 |
| GVW | 64350kg |
| Curb weight | 3450kg |
| Chassis brand | ISUZU 600P |
| Isuzu fuel bowser tanker Description | ||
| Tank capacity | 5cbm / 5000L | |
| Tanker material | Carbon steel | |
| Thickness | Tanker body | 4mm |
| End cover | 5mm | |
| Tanker shape | Square | |
| Tanker compartment | 2 compartment (optional: several compartment) | |
| Standard configuration |
2 set manhole Equipped with double discharge valve and valve box. Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. Electrostatic conducting tape and double fire extinguishers. |
|
| Optional |
Tanker material: aluminum alloy; stainless steel Chinese standard configuration is available, or other world famous fuel configuration. The whole set of European configurations for each compartment: European type manhole,over flow probe system, vapor recovery system, bottom valve, API adaptors. Emergency bottom valve and foldable aluminum handrail. Others: fuel pump, refueling dispenser, flow meter, dipstick, etc. |
|
| ISUZU 4x4 NPR Truck Chassis Description | ||
| Chassis model | QL1073 | |
| Cab | New NPR Single row, with A/C | |
| Wheelbase | 3360mm | |
| Tire specification | 7.50R16 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | 4KH1CN6HB |
| Emission level | Euro 6 | |
| Displacement/output | 2999ml/97kw | |
| Horse power | 132hp | |
| Gear box | Model | ISUZU MYY |
| Number of gears | 6 forward gears& 1 reverse | |
| Brake system | Full air brake with ABS for safety | |
| Axle | Front | 2.5T |
| Rear | 4.8T | |
| Fuel tanker | Type | Stainless steel tanker |
| Capacity | 100L | |
As one of the most popular fuel truck, ISUZU 4x4 offroad diesel bowser vehicle is the best option, and the design of truck tanker have below advanced features:

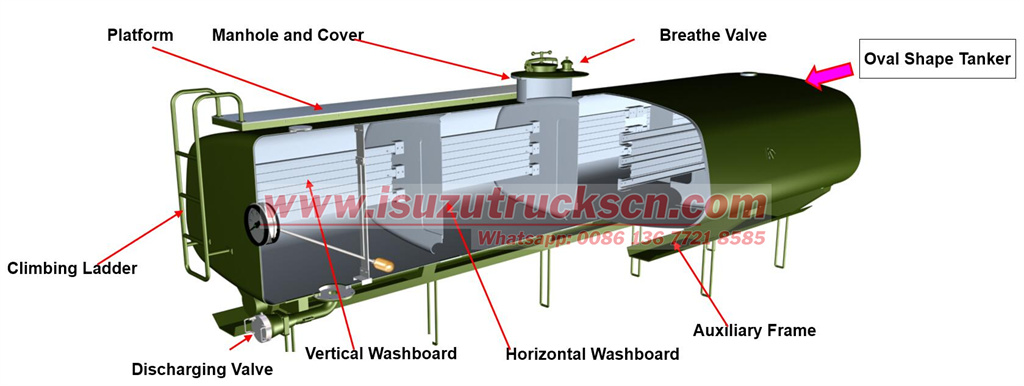

The shape of the fuel truck tank body varies according to the special vehicle companies, including round, oval, rectangular, trapezoidal, etc.

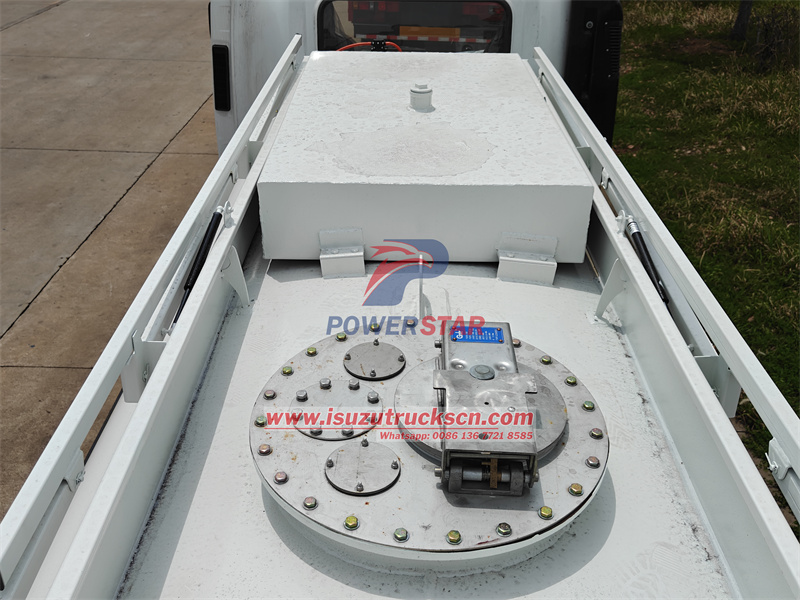

The top of the tank body is equipped with a manhole cover, a breathing valve, an oil and gas recovery system and a guardrail;
The bottom of the oil tank is equipped with a sedimentation tank, and the tail is equipped with a rear oil drain valve;

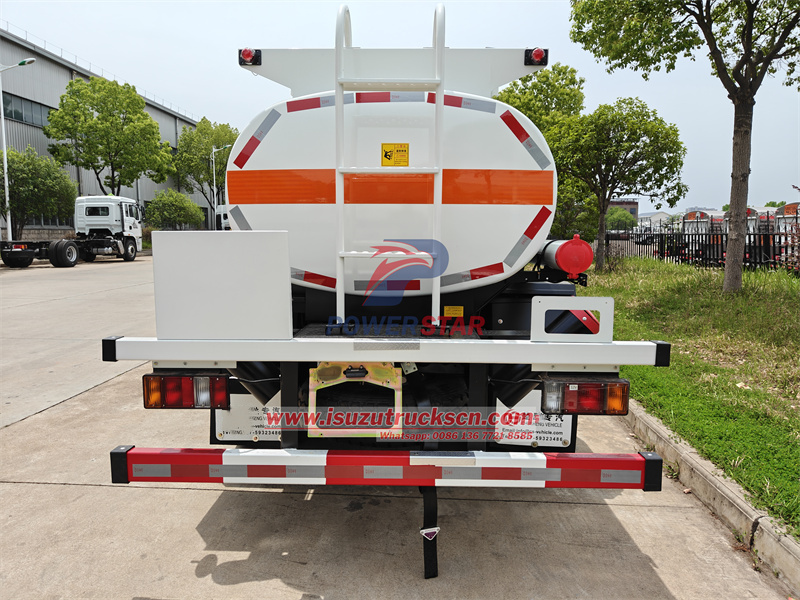

The tank body is equipped with ladders and walkways for getting on and off the oil tank (optional tank top walkway);
The inside of the tank is equipped with horizontal and vertical partitions to reduce the fluctuation of the liquid in the tank when the car accelerates and decelerates
In order to allow Isuzu 4x4 offroad new NPR fuel bowser truck owners to better use the four-wheel drive function, the precautions, operating instructions, and maintenance cycles are listed for reference.
We POWERSTAR build four-wheel drive has a low-speed four-wheel drive function, and the four-wheel drive and two-wheel drive can be switched.

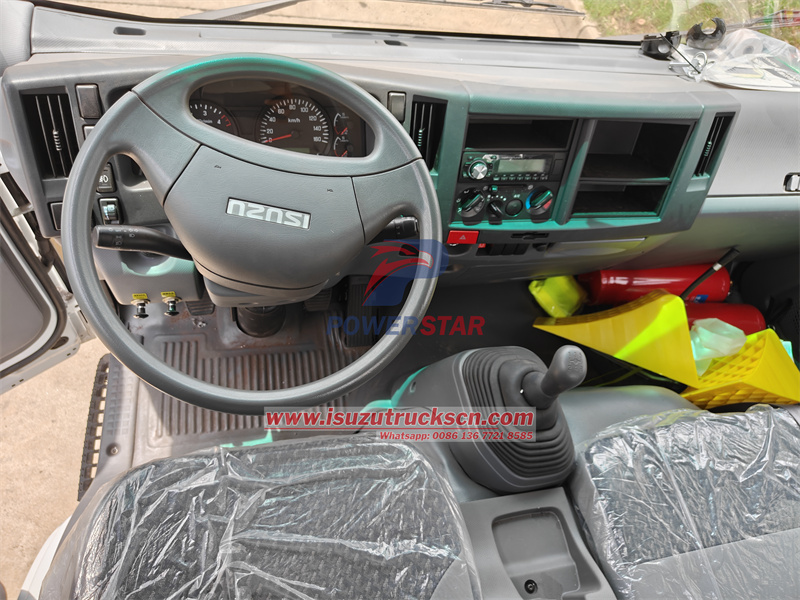

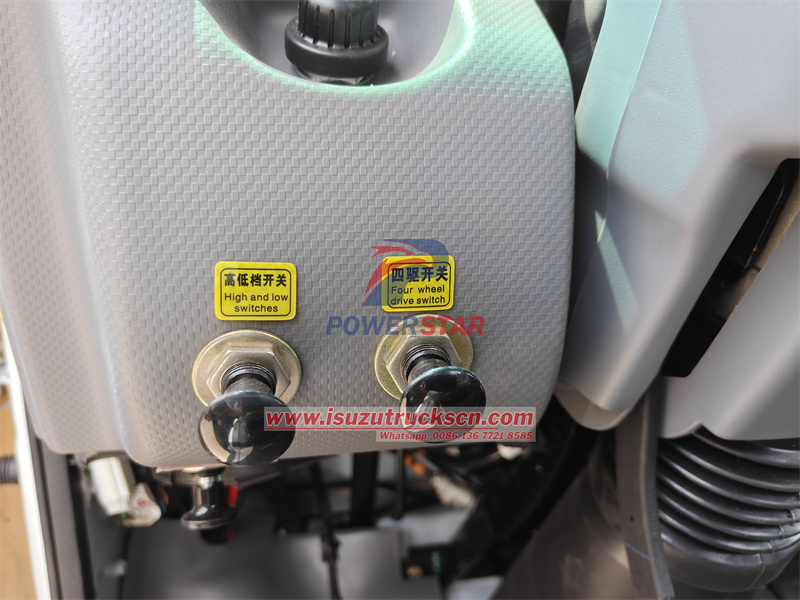

There are two red rocker switches on the cab work bench.
The right switch is the switch between two-wheel drive and four-wheel drive.
Press the upper position for two-wheel drive, and press the circle below for four-wheel drive.
The left switch is the switch between high speed and low speed.
Press the upper position for high speed, and press the circle below for low speed.
1. When the four-wheel drive is not used, the right switch is on the two-wheel drive, and the left switch is on the high speed, which is convenient for high-speed driving, car delivery, and long-distance transportation.
2. When the four-wheel drive is used, the right switch is on the four-wheel drive, and the left switch is on the low speed, so that the speed of the Isuzu AWD fuel truck is reduced, the four-wheel drive is involved in the work, and it is convenient to get out of trouble. Convenient to drive in places with poor road conditions.
The switch between high speed and low speed, and the switch between two-wheel drive and four-wheel drive must be done when the car is parked. The truck cannot move, and the air pressure must be above 8 pressures.
The gear oil of the transfer case and the front drive axle should be changed after the first 3,500 kilometers of driving, and the second oil should be changed after 6,500 kilometers of driving. The later oil change cycle should be changed after 20,000 kilometers or half a year. The oil products should be selected in accordance with national standards and local temperatures. Because the working environment of the four-wheel drive vehicle is poor, the front drive axle should be maintained frequently. The grease of the grease fitting should be applied once a month, and the grease maintenance of the shaft head should also be done once every two months to prevent abnormal wear. Moreover, pay attention to the damage caused by the aging of the front steel plate, the decrease in elasticity, and the excessive load in the front, which leads to the engine and the front drive axle being too close.
The Isuzu All wheel drive Fuel Tank Transportation Trucks are specifically designed for oil transportation in Philippines. They are well-suited for applications in industries such as mining, construction, and logistics, where the efficient and secure delivery of oil products is crucial for uninterrupted operations. The upper body of the Isuzu 4x4 fuel bowser tank truck can be customized according to specific customer requirements. Additional features, such as specialized compartments, equipment mounts, or safety enhancements, can be incorporated to enhance functionality and meet individual needs.Philippines cusotmer purchased Isuzu All Drive Oil Transportation Truck is a specialized vehicle designed for transporting and storing oil and other fuels. These trucks are equipped with advanced features and capabilities to ensure safe and efficient transportation of oil products. Some key features of 4x4 offroad fuel bowser include:

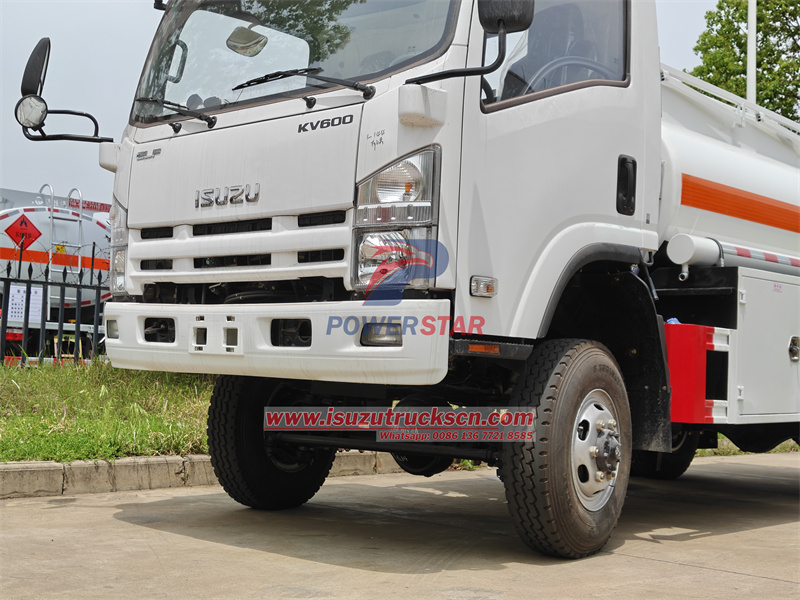

4x4 All-Wheel Drive: These 4x4 fuel trucks Isuzu are designed with all-wheel drive systems, providing excellent traction and stability in various terrain conditions, making them suitable for off-road and challenging environments.
High Capacity Tanks: All Drive Oil Transportation Trucks Isuzu are equipped with large tanks to store and transport oil products. The tank capacity can vary depending on the specific model and configuration.
Fuel Dispenser: These Isuzu 4x4 offroad fuel trucks are often equipped with fuel dispensers, allowing them to fill different types of oil to other equipment at any location.
Customizable Material: The tank material can be made of carbon steel, stainless steel, or aluminum alloy, depending on the intended use and environmental conditions.
Powerful Engines: All wheel drive oil tanker trucks are powered by high-performance engines, ensuring efficient and reliable transportation of oil products.
Advanced Safety Features: These trucks are equipped with safety features to ensure the safe transportation of oil products, such as anti-lock braking systems, stability control, and collision avoidance systems.
