An Isuzu Pickup tow truck (also called an Isuzu wrecker, a breakdown truck, recovery vehicle or a breakdown lorry) is a truck used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location. Brand new Isuzu pickup tow truck is distinct from a car carrier trailer, which is used to move multiple new or used vehicles simultaneously in routine transport operations.
Work capacity:
1000kgEngine power:
143HP/105kwEngine type:
Isuzu 4KH1CT6H1Axle drive:
4×4, LHDGear box:
Isuzu 5 speed,manualRemarks:
Road recovery towing truckISUZU pickup truck tow truck is a special vehicle modified based on ISUZU pickup truck chassis, Isuzu 4x4 pickup tow truck mainly used for road fault vehicles, urban illegal vehicles and emergency rescue. The following is a detailed introduction to ISUZU pickup truck tow truck: The Isuzu pickup truck tow truck adopts a pickup truck chassis, with a small and flexible body, which can respond quickly and reach the accident scene. Isuzu road recovery truck has multiple functions such as lifting, pulling and lifting and traction, which can cope with different types of vehicle failures and accidents. Due to its short body and low height, it is particularly suitable for vehicle rescue in small spaces such as underground garages.

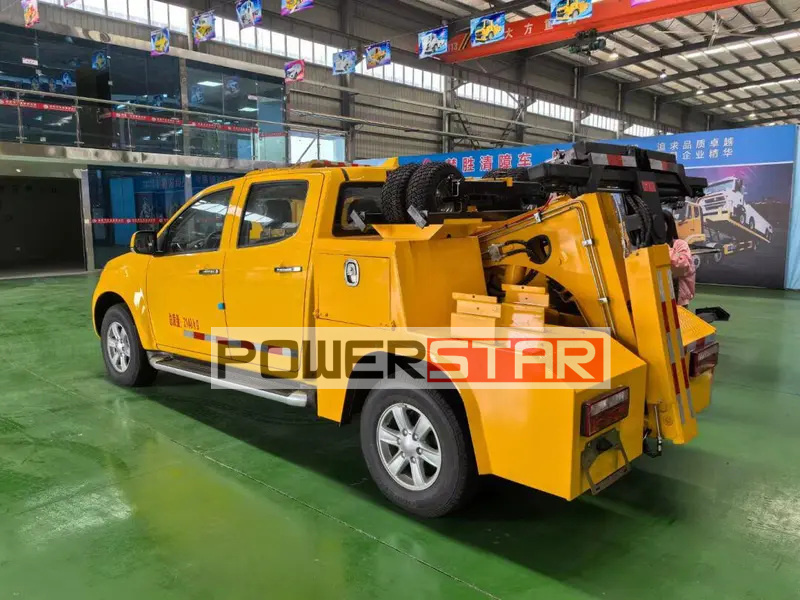

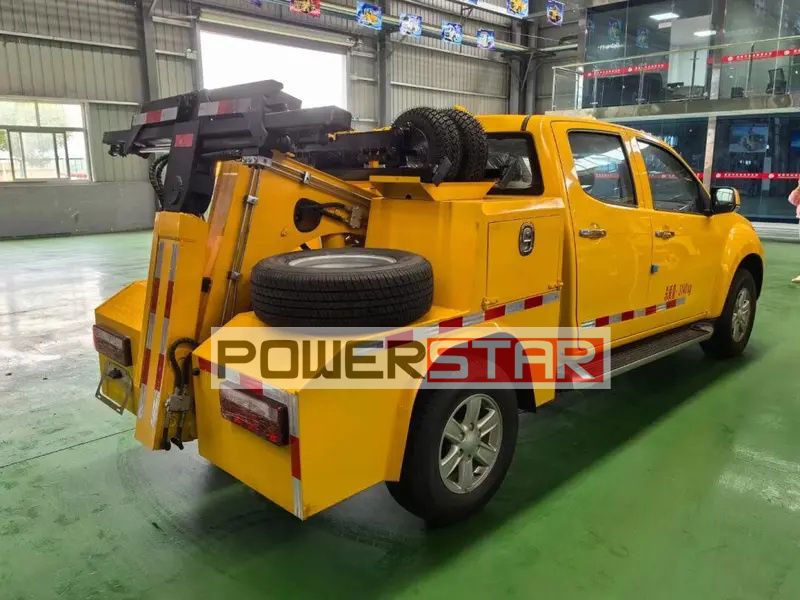

Integrated (also called a "Pickup self-loader", "Pickup snatcher", "Pickup quick pick" or "Pickup repo truck"): boom and wheel-lift integrated into one unit. Used in light-duty trucks to repossess vehicles or move illegally-parked vehicles. Most have controls for the apparatus inside the cab of the tow truck to make quick pickup possible without the inconvenience of exiting the truck to hook up the vehicle. Though similar to a wheel-lift truck, an integrated truck differs in that the end of its boom features movable arms that can more easily and quickly clamp onto the wheels of a vehicle, often controlled from the cabin of the truck. On a wheel-lift truck, the wheels of a vehicle must be manually secured to the yoke by the operator before being lifted. There are also heavy-duty trucks manufactured with integrated lifts.

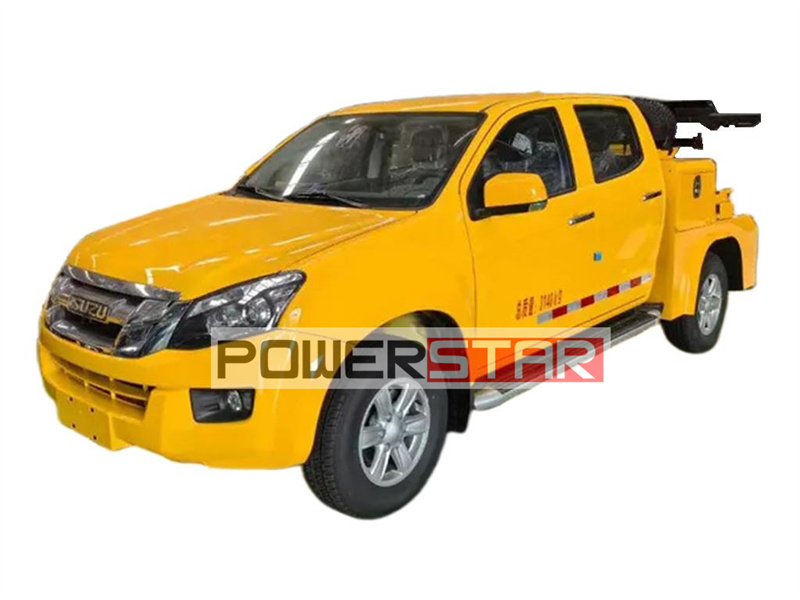

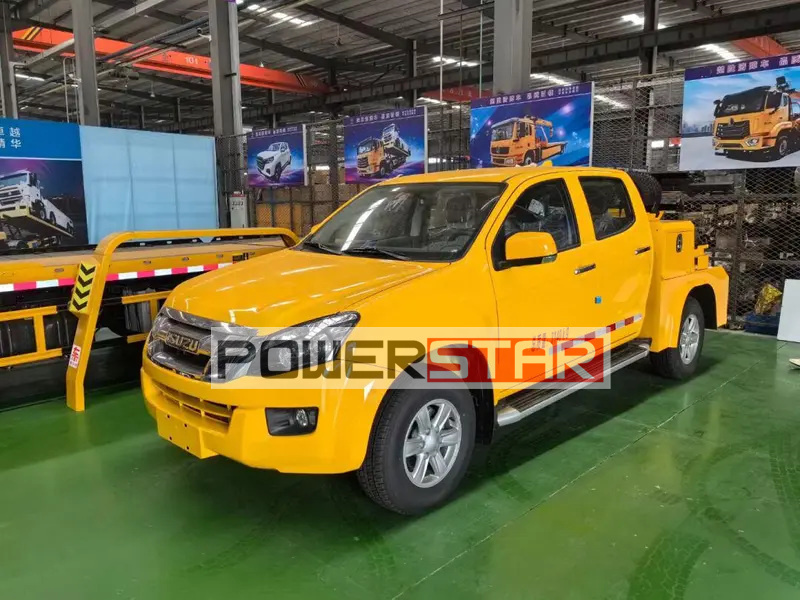

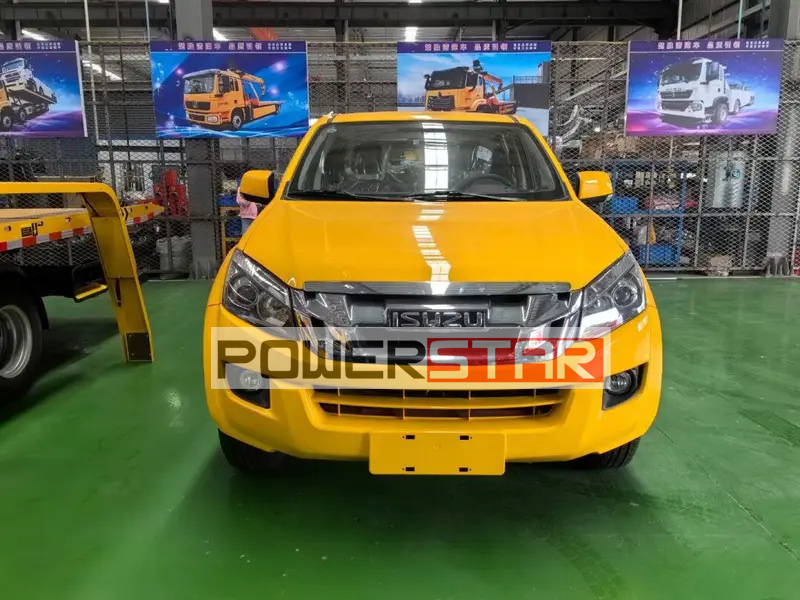

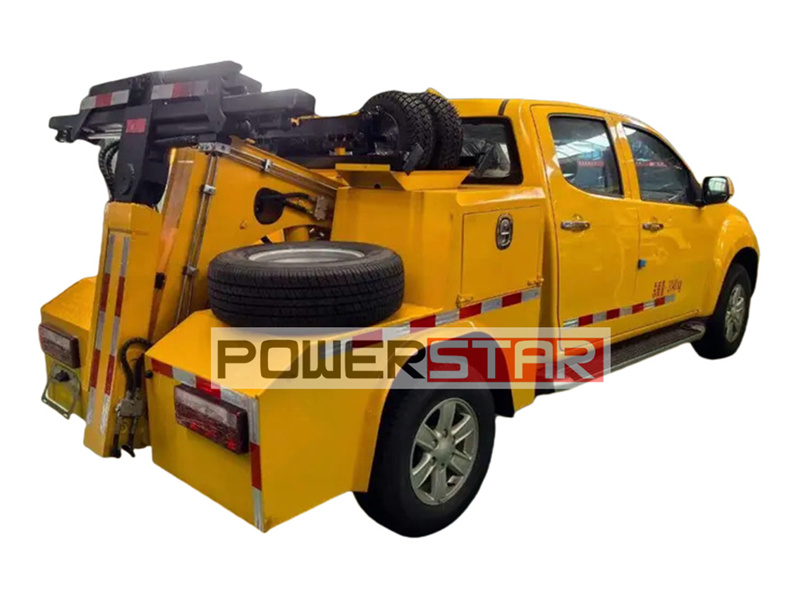

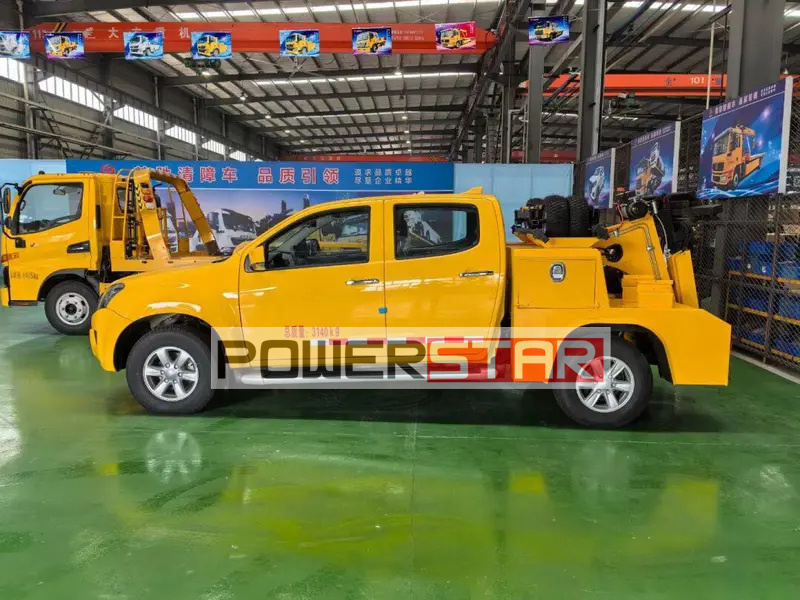

Isuzu pickup Recovery Tow Truck Brief Introduction:

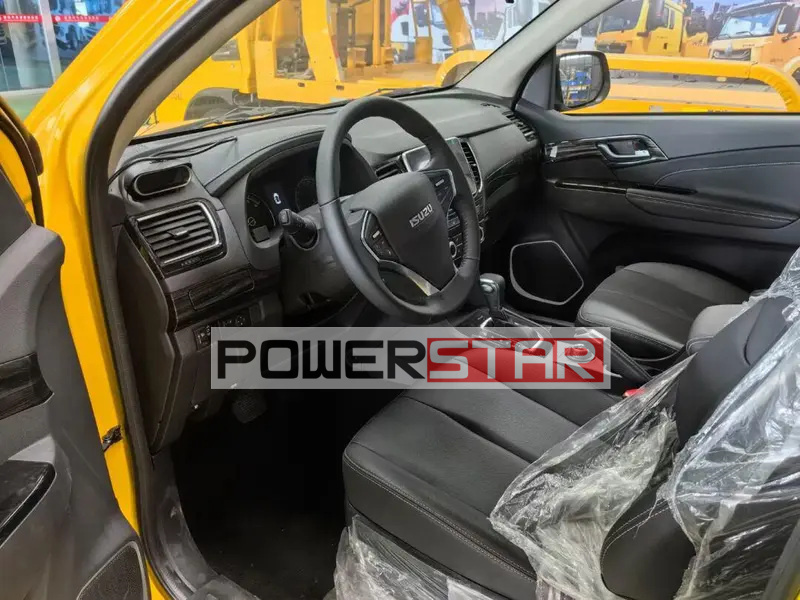

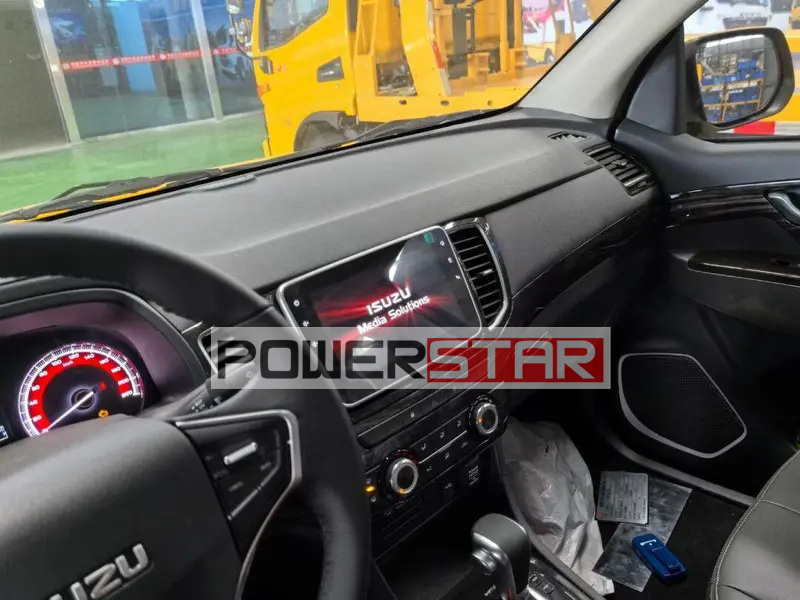

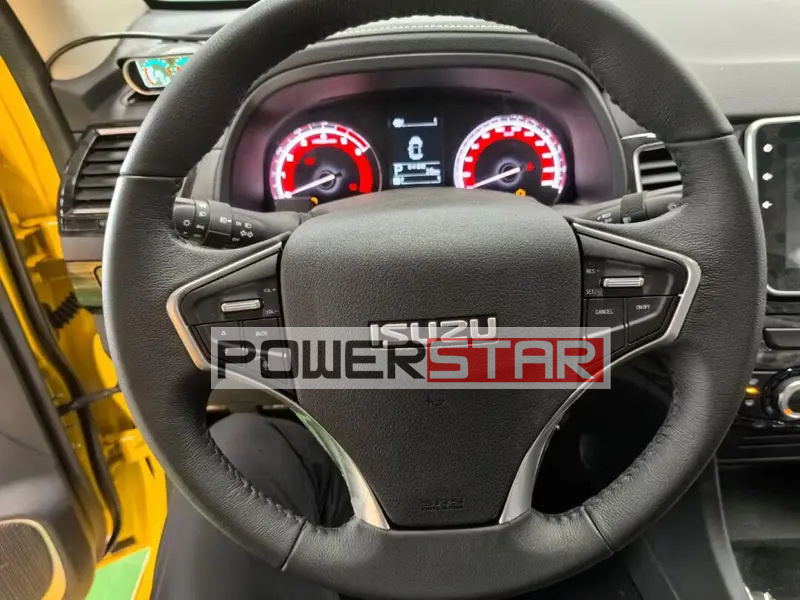

Brand new Isuzu pickup wrecker towing truck with model QL1030CZHW2, double cabin row with 2+3 seats, independent safety belt equipped, also the airbags for front driver seat and passenger seat. Japanese design 4KH1CT6H1 model diesel engine 105KW / 143HP, and emission 2999cc with EURO 6 standard. ISUZU brand 5 shift manual gearbox with 5 forward and 1 reverse. 4x4 offroad driving model with electric control, convenient for working. 245/70R17LT 10PR tires can be customized as offroad type, Aluminium alloy wheel rim, both front and rear equipped disc brake, ABS+EBD+ESC for safety guarantee. Remote control key, tire inspection system, front and rear electric windows and equipped with electric folding function. Air conditional for warm and cooling function.
An Isuzu newly designed road wrecker (also called a tow truck,a breakdown truck, recovery vehicle or a breakdown lorry) is a truck used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. which have details specifications as below:
| Chassis Parameters | |||||
| Chassis Manufacturer | ISUZU TAGA |
||||
| Cab Model | Double-row cabin, with A/C | ||||
| Drive Type | 4x4 offroad, Left Hand Drive |
||||
| Dimension (Lx W xH) | 5800×2000×2450mm | ||||
| Wheel base(mm) | 3406mm | ||||
| Engine | Model | ISUZU 4KH1CT6H1 |
|||
| Max. output | 143HP | ||||
| Type | 4 cylinders, in-line, turbo inter-cooling | ||||
| Fuel type | Diesel | ||||
| Emission | EURO 6 (2999cc) | ||||
| Gearbox | Manual 5F+1R | ||||
| Tyre | 245/70R17 steel wire tire, 4+1pc | ||||
| Color | Optional | ||||
| Wrecker structure parameters | |||||
| Towing System | Max Towing Capacity (kg) | 1000 | |||
| Length of Steel Rope |
25 m | ||||
| Extension stroke of towing arm (mm) | 3.23~8 m/min |
||||
| Standard Equipment | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Optional Equipment |
Caution light, air condition,inlet valve. | ||||
Isuzu pickup offroad 4x4 fire pumper truck Advanced Features:
ISUZU pickup tow trucks are a special vehicle with diverse functions, strong adaptability and advanced configuration, which plays an important role in road traffic rescue and emergency rescue.
Chassis: ISUZU pickup 4x4 offroad chassis has excellent off-road performance and carrying capacity, ensuring that the tow truck can run stably under various terrain conditions.
Engine: Usually equipped with a high-performance diesel engine 4KH1CT6H1 model with 143HP and 2999cc emission, providing sufficient power output to meet the needs of tow removal operations.
Operating system: Equipped with advanced operating systems, such as wireless and wired remote controls, so that the driver can more conveniently control the various functions of the tow truck.
Safety configuration: In order to ensure operational safety, ISUZU 4x4 pickup tow trucks are usually equipped with safety configurations such as ABS, EBD, dual airbags, and reversing radar.
Isuzu pickup fire towing truck Application:
Isuzu pickup truck towing equipment trucks are widely used on urban roads, highways, and rural and mountain roads. For example, in the city, when a vehicle breaks down or a traffic accident occurs, Isuzu pickup tow trucks can quickly arrive at the scene, use lifting, traction and other functions to tow the faulty vehicle away from the scene, and restore road traffic. On the highway, Isuzu pickup recovery trucks can also play an important role, timely remove accident vehicles and obstacles, and ensure the smooth and safe operation of the highway.
Road traffic accident site clearance: After a road traffic accident occurs, ISUZU pickup tow trucks can quickly arrive at the scene and remove the accident vehicle or other obstacles to restore road traffic.
Vehicle breakdown on-site processing: When a vehicle breaks down on the road, ISUZU pickup wreckers can go to the scene to diagnose and repair the fault, or tow the faulty vehicle away from the scene.
Illegal parking processing: For vehicles that are illegally parked in prohibited areas or affect traffic, ISUZU road wrecker towing trucks can tow them away from the scene and make way for other vehicles.
Emergency rescue: In natural disasters or other emergencies, ISUZU pickup road recovery trucks can assist in emergency rescue work, such as towing trapped vehicles and clearing road obstacles.
The Isuzu all-wheel drive pickup tow truck is a pickup truck specially designed for road clearance and rescue work. It uses an all-wheel drive system to maintain stability and reliability in various road conditions. The vehicle is equipped with powerful towing equipment and rescue tools, which can effectively perform car towing, accident scene processing and other rescue tasks. It also has sufficient load capacity and storage space to meet the needs of different scenarios. The Isuzu all-wheel drive pickup tow truck is an ideal choice for the road rescue and tow truck industry, providing users with safe and efficient rescue services.
