Isuzu 6000 gallons potable drinking water tanker

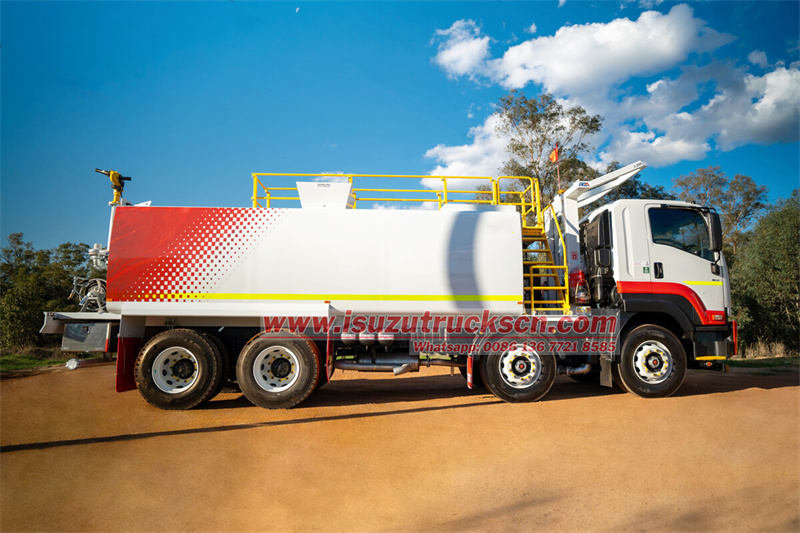

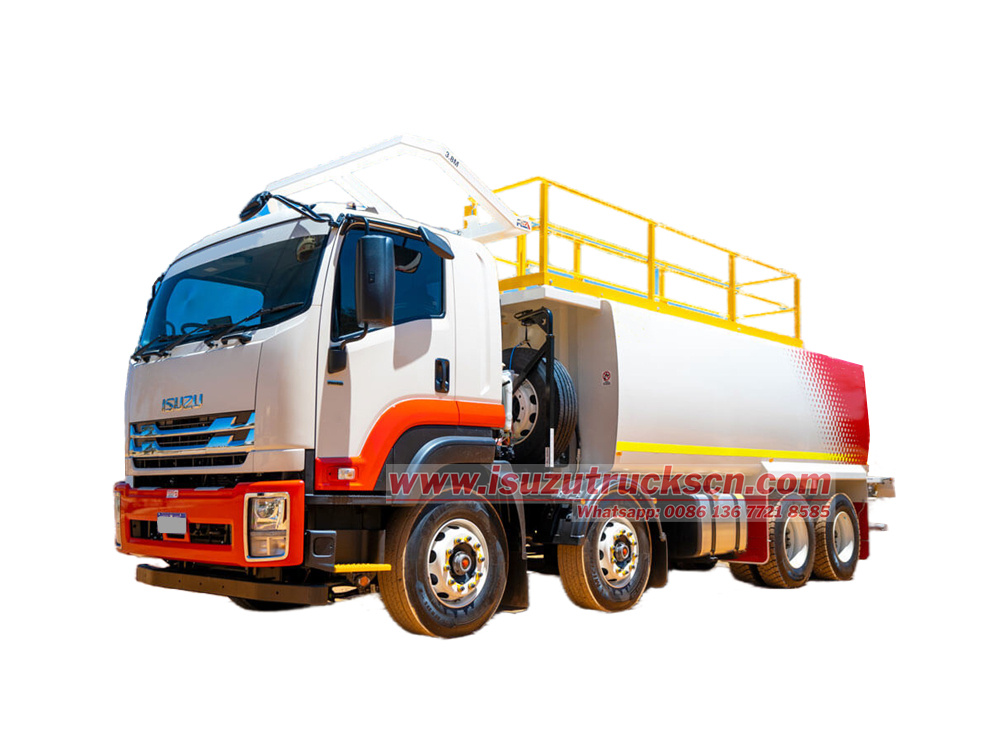

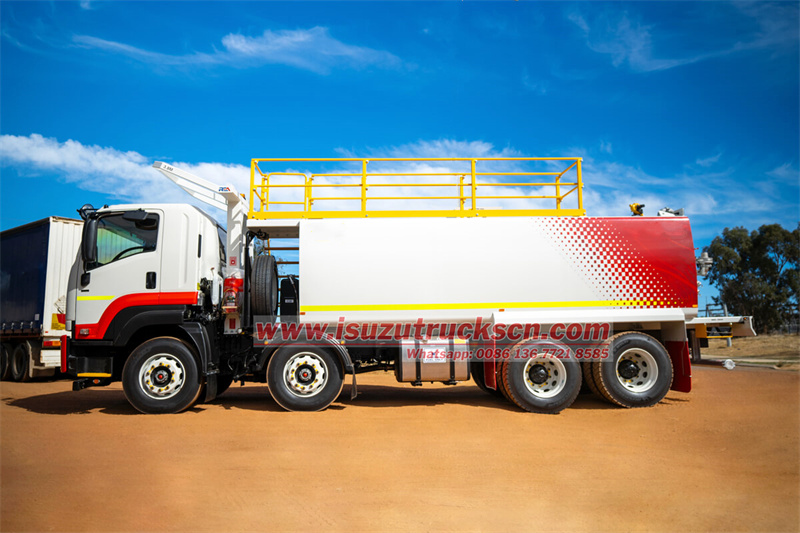

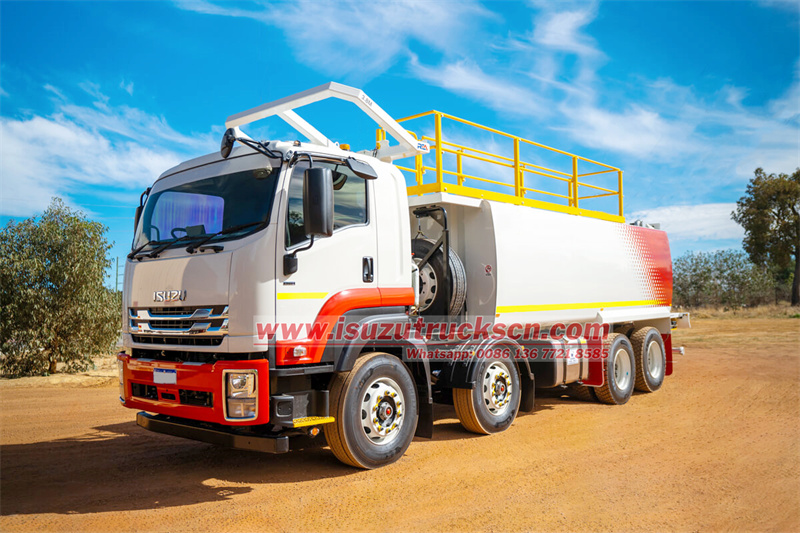

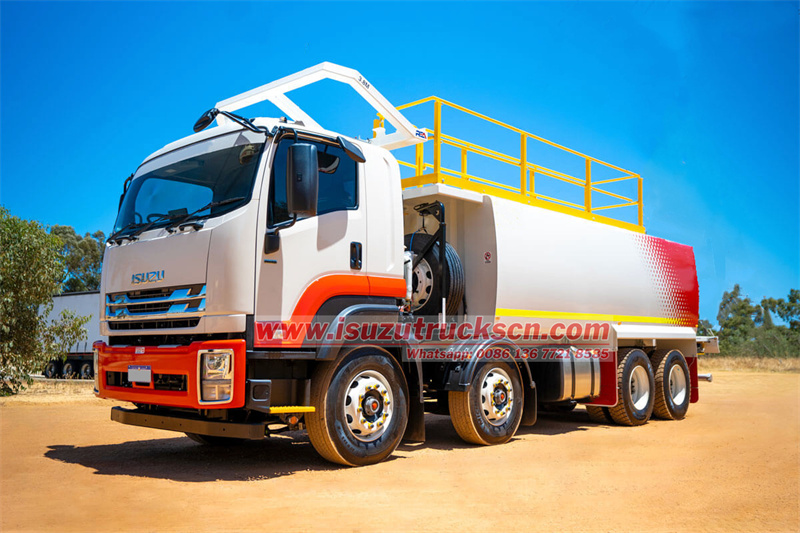

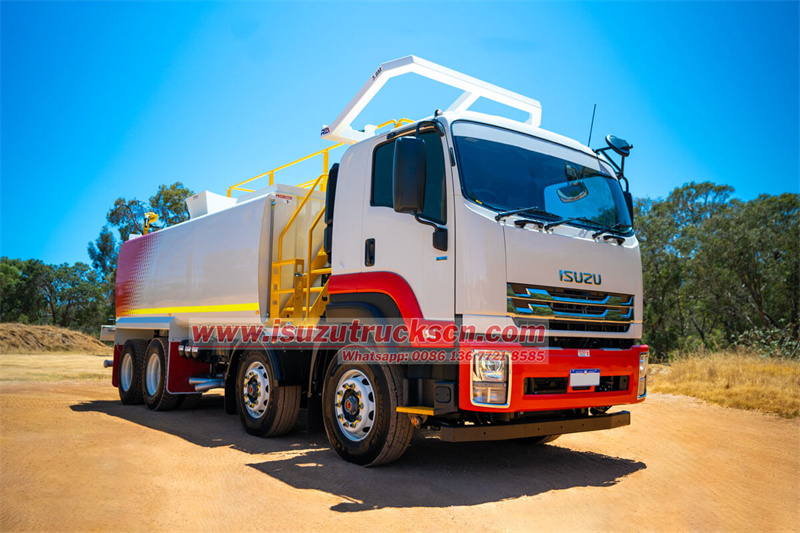

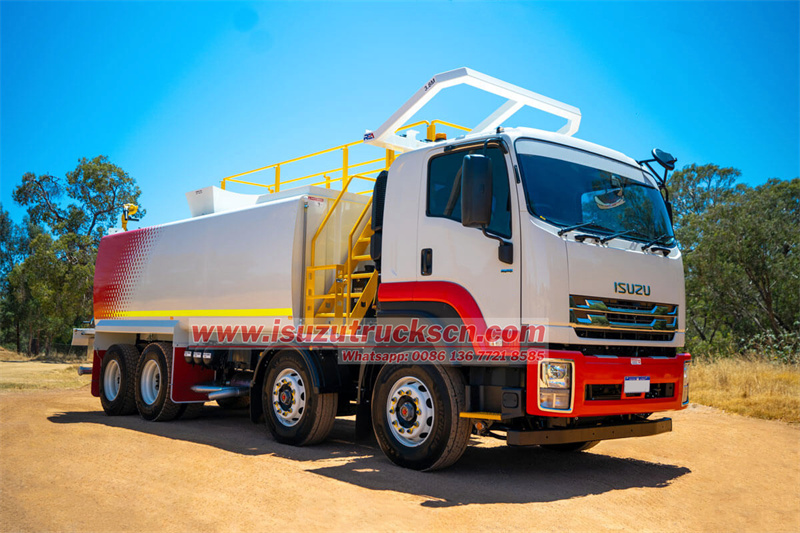

The Isuzu GIGA 8X4 20 cbm drinking water truck is modified based on the Isuzu GIGA 8x4 chassis. It has a wheelbase of 1850+4575+1370mm and is equipped with an Isuzu 6UZ1-TCG60 350HP engine and a Fast 12-speed gearbox. The truck is equipped with a 20 cubic meter 304-2B stainless steel drinking water tank with a square tank body and a 5mm thickness. It has an optional HALO ROPS roll cage at the front, a handrail with a ladder on the top of the tank body, an anti-skid walkway, a rear sprinkler head, a fire monitor (optional), and a reel (optional). The vehicle is equipped with a Weilong 80QZ60/90 water pump and stainless steel pump inlet and outlet ports.
Manufacturer:
Powerstar TrucksWork capacity:
20000 litersDimension:
11750 x 2550 x 4150 mmCabin type:
Isuzu GIGA VC66 8x4 cabin, one and half rowWheelbase:
1850+4575+1370 mmEngine power:
350HP/257kWEngine type:
Isuzu 6UZ1-TCG60Axle drive:
8×4,left hand driveGear box:
FAST 12-speed,manualRemarks:
Powerful engine,large tank capacityThe Isuzu 6000 gallons potable drinking water tanker is a professional-grade, multi-purpose water supply and transportation vehicle. Equipped with a 350-horsepower Isuzu 6UZ1 engine and a Fast 12-speed transmission, it offers powerful power and smooth handling. The tank body is constructed from a 20-cubic-meter 304-2B stainless steel square tank with a 5mm thick wall and a professional wave-resistant structure, ensuring water quality and stable transportation. The vehicle is equipped with a high-efficiency Weilong water pump and stainless steel pump connectors, enabling rapid water transfer operations. Optional expansion features include a fire monitor, rear sprinkler system, and reel, enabling integrated water supply and firefighting capabilities.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Product Features
1. Powerful and Reliable Chassis: Equipped with an Isuzu 6UZ1-TCG60 350HP engine, it delivers ample power and smooth shifting. The Isuzu 8X4 heavy-duty chassis provides strong stability under heavy loads and adapts to complex road conditions.
2. Professional-Grade Superstructure Design: The 20-cubic-meter tank is constructed of 304-2B stainless steel and features built-in wave-breaks, a non-slip walkway, and a folding ladder. The Weilong 80QZ60/90 water pump ensures efficient water transfer, and the stainless steel pump inlet and outlet ports are highly adaptable.
3. Versatile Operation Configuration: The rear-mounted unit is equipped with a rear sprinkler, optional fire monitors, and an automatic reel to meet road dust suppression, emergency firefighting, and remote water flushing needs.
» Ⅱ. Product Parameter for Isuzu GIGA 20CBM drinking water truck:
|
Main Technology Parameter |
||
|
Model Name |
Isuzu GIGA 20000L drinking water truck |
|
|
Driving Type |
8×4,left hand drive |
|
|
Color |
White,color can choose |
|
|
Weights |
||
|
GVW |
31000kg |
|
|
Curb weight |
12550kg |
|
|
Dimensions |
||
|
Wheelbase |
1850+4575+1370 mm |
|
|
Overall Dimension |
11750*2550*4150mm |
|
|
Front/rear overhang |
1370/2585mm |
|
|
Front/rear track |
2060/2060/1855/1855mm |
|
|
Max speed |
89km/h |
|
|
Engine |
||
|
Engine model |
Isuzu 6UZ1-TCG60 |
|
|
Engine type |
Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled |
|
|
Horsepower |
350HP/257kW |
|
|
Displacement(L) |
6839ml |
|
|
Emission standard |
Euro 6 |
|
|
Drive Line |
||
|
Transmission |
FAST 12-speed,manual |
|
|
Steering |
Power steering |
|
|
Brake |
Air brake |
|
|
Cab |
||
|
Cabin |
Isuzu GIGA VC66 8x4 cabin, one and half row |
|
|
Standard configuration |
with A/C,USB,direction assistance,electric lift |
|
|
Axle |
||
|
Front axle |
13000kg(two axles) |
|
|
Rear axle |
18000kg(two axles) |
|
|
Tire specification |
||
|
Tire specification |
385/65R22.5 /315/80R22.5 standard tire,12 tires+1 spare tire |
|
|
Water truck |
||
|
Tank volume |
20000L |
|
|
Water tanker material |
304-2B stainless steel,5mm |
|
|
Equipment |
Rear – Left, right, center sprays heads |
|
|
Rear mounted water cannon kit with extension harness（optional） |
||
|
Manual fire fighting 15M, hose reel（optional） |
||
|
Top fill |
||
|
Rear fill point at chassis level with ball valve, cam lock fitting and cap |
||
|
Discharge outlet with manual valve for water transfer duties |
||
|
Safety hand railing with stairway |
||
|
Flashing light |
||
|
Compartment(5000L,4000L,3000L,3000L,5000L), with intemal waves baffles) |
||
|
1 x E-Stop at ground level |
||
|
Fire coupling, Standard |
||
|
Water pump |
Model |
WEILONG 80QZ60/90 |
|
Type |
Self-priming centrifugal water pump |
|
|
Flow |
60 m³/min /1000L/min |
|
|
Lift |
90m |
|
|
Input shaft speed |
1180r/min |
|
|
Shaft power |
22.5kW |
|
|
Self-priming height |
6.5m |
|
|
Self-priming time |
1.5min/4m |
|
» Ⅲ. Product Details & Advantages:
Chassis System
• Chassis Model: Isuzu GIGA 8×4 Drive Chassis
• Wheelbase Configuration: 1850+4575+1370mm (Short Front Overhang + Long Span + Rear Stable Wheelbase)
• Powertrain:
• Engine: Isuzu 6UZ1-TCG60 Inline Six-Cylinder Diesel Engine
• Power: 257kW/350HP
• Emission Standard: Euro VI
• Transmission: Fast 12JSD220TA Transmission (12 forward speeds + 2 reverse speeds, with overdrive)
Superstructure
Tank System
• Material: 20m³ 304-2B Food-Grade Stainless Steel
• Structure:
• Square-section laser-welded tank, 5mm wall thickness (4mm top/6mm bottom gradient design)
• Internal transverse wave shields (spacing ≤1.5m to mitigate liquid impact)
• Manhole Standard: DN500 quick-opening stainless steel manhole with breathing valve
Protection System:
• Front HALO ROPS roll cage (optional)
• Diamond-shaped anti-slip walkway on the tank roof
• Dual side handrails + rear ladder (anti-slip steps)

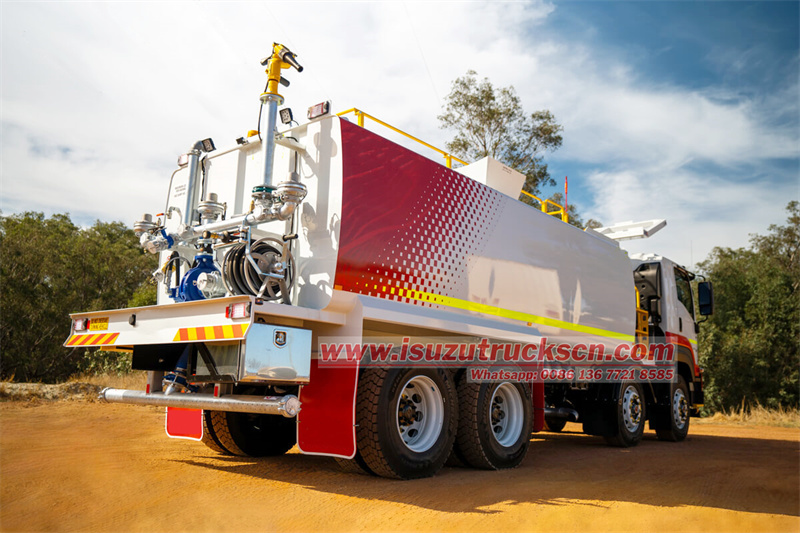

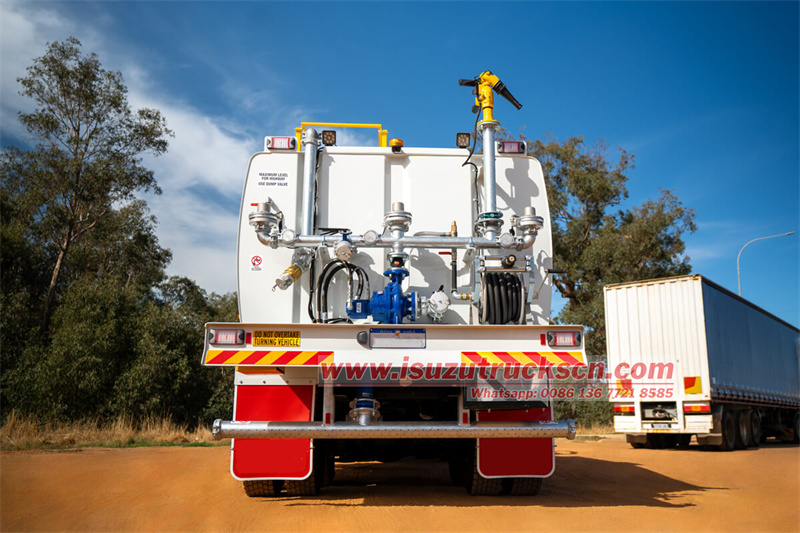

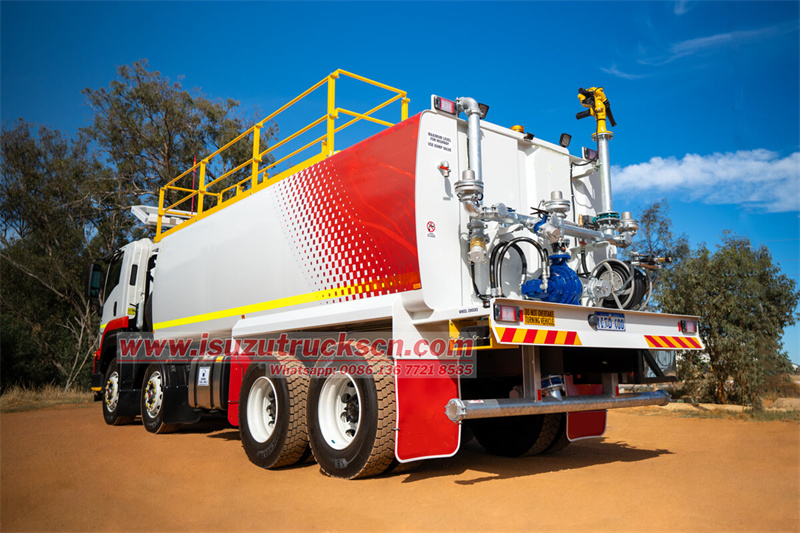

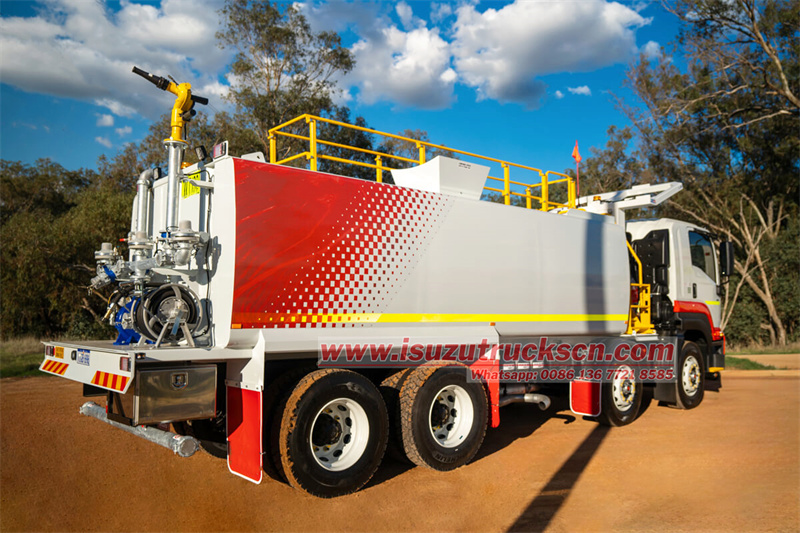

Rear Devices:
• Rear sprinkler: Carbon steel, coverage width ≥ 10 meters, suitable for road dust suppression.
• Fire monitor (optional): Range ≥ 45 meters, 360° rotation, supports direct current/spray dual modes, suitable for emergency firefighting or long-distance water supply.
• Reel (optional): Built-in high-pressure hose, 20 meters long, for easy flushing operations.
Pumping System:
• Water Pump: Weilong 80QZ60/90 centrifugal pump, flow rate 60 m³/h, head 90 meters, self-priming height ≥ 7 meters. o Interfaces: All-stainless steel pump inlet and outlet ports with quick-connect connectors support two-way water transfer.
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ. Hydraulic Conveying Principle:
Equipped with a Weilong 80QZ60/90 centrifugal pump, the pump boosts pressure to circulate water.
• Impeller Rotation: Engine power drives the impeller at high speed, creating a negative pressure zone at the center of the impeller.
• Water Intake and Pressurization: Water is drawn in through the stainless steel pump inlet. After being accelerated by the centrifugal force of the impeller, it flows along the pump casing into the outlet, significantly increasing pressure (up to 0.8-1.2 MPa).
• Bidirectional Water Delivery: By switching the valve, the pump can achieve the full "pumping-storage-delivery" process, meeting the needs of various scenarios.
» Ⅴ. Application Scenarios
• Municipal Water Supply: Providing clean drinking water to remote areas or temporary water points.
• Emergency Rescue: Rapidly deploying mobile water sources after disasters such as earthquakes and floods, as well as firefighting at the scene of a fire.
• Engineering Support: Drinking water distribution to construction sites, mines, and field troop logistics support facilities.
• Municipal Greening: Can be used as a sprinkler for road washing and landscaping.
