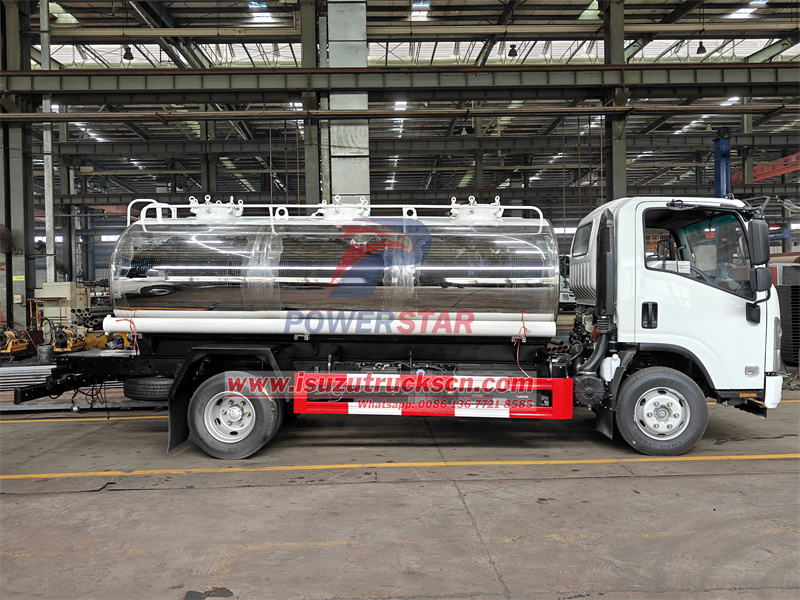

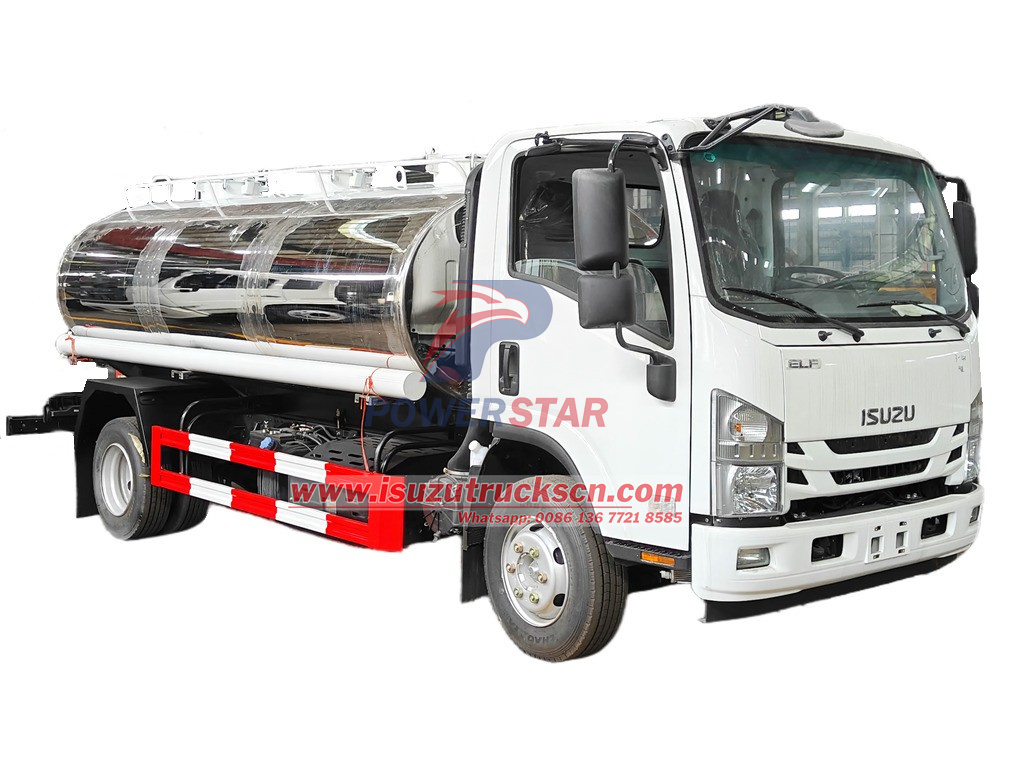

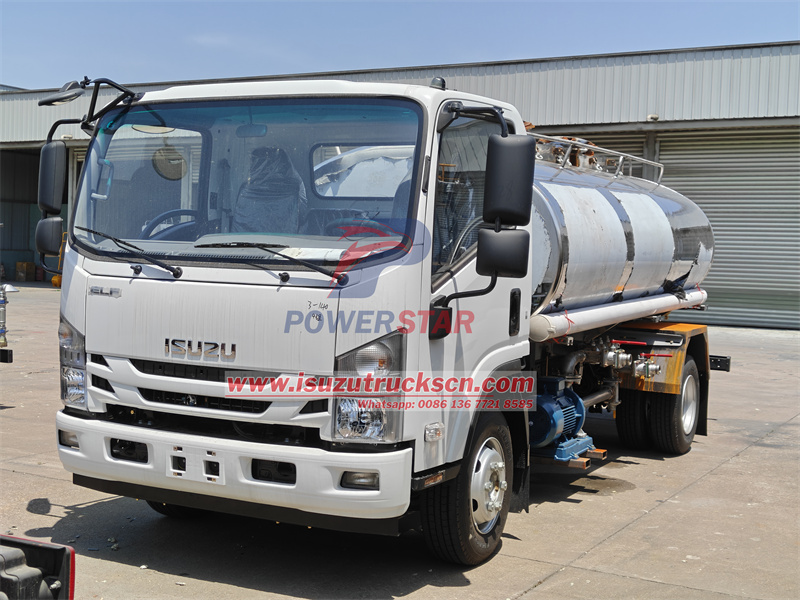

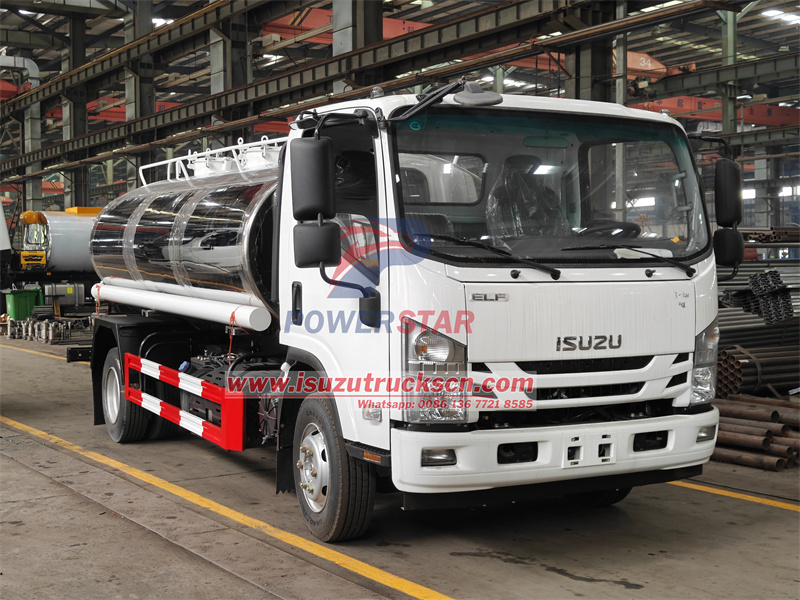

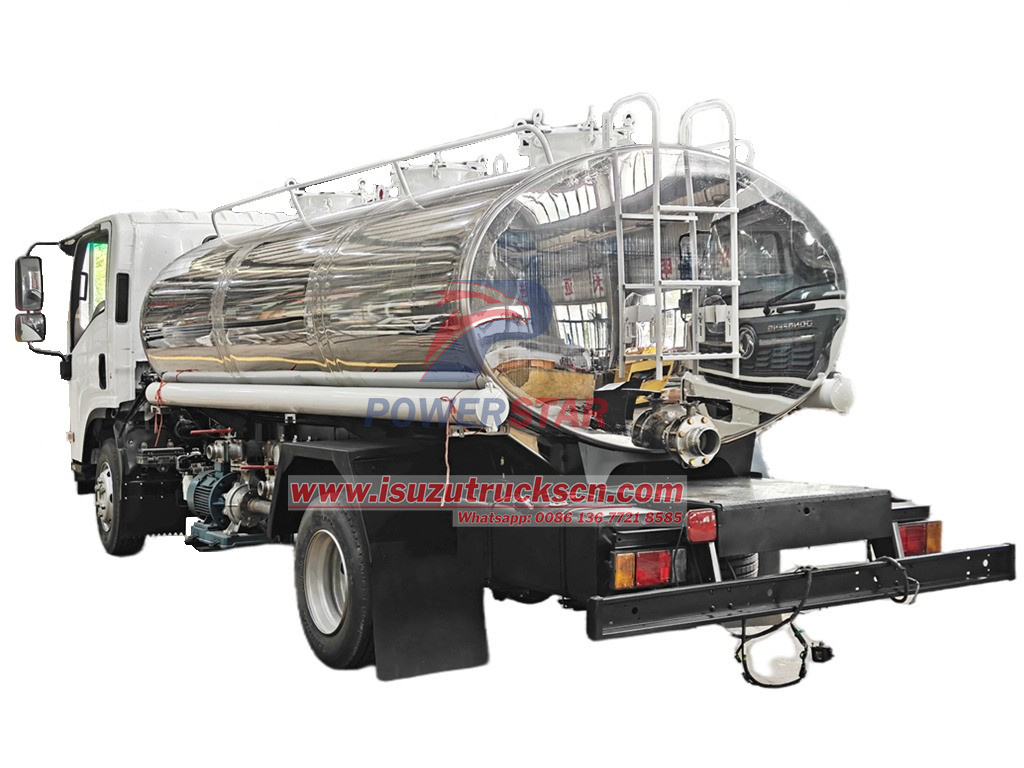

Isuzu new ELF NPR Potable Water Tank Trucks are built fully customizable with an array of different component options available. The drinking water bowser truck is suitable for potable water storage and distribution. Also can cover all kinds of road surface washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude building flushing.It has the functions of watering, dusting, high and low level spraying, guardrail washing, etc.It also has functions such as water transport, control smog, spray disinfectant, drainage and emergency fire fighting.
Manufacturer:
POWERSTARWork capacity:
6000 Liters Potable WaterDimension:
6500x2200x2550mmCabin type:
ISUZU NPR NQR ELF 700P cabinWheelbase:
4175 mmEngine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×2Gear box:
ISUZU MLD 6-speed, manualRemarks:

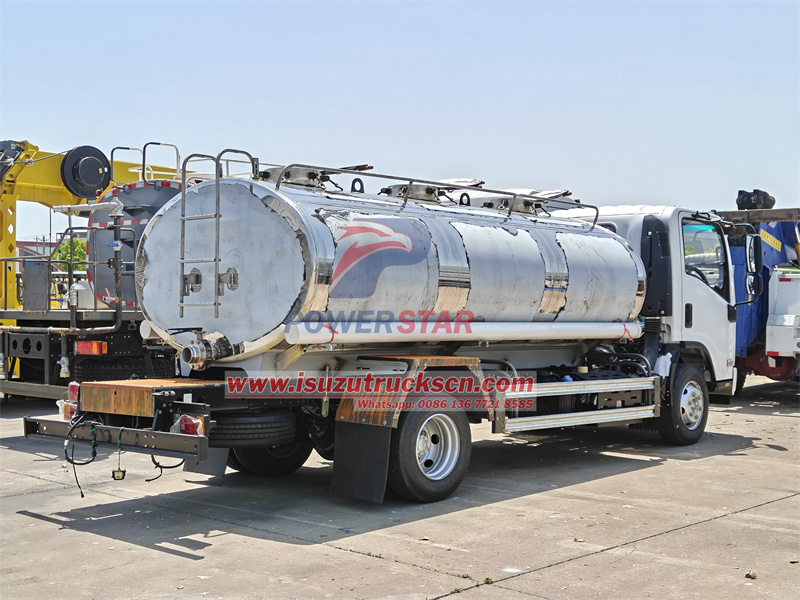

Customized food grade stainless steel 304-2B materialNewly designed ISUZU Potable Water Tank Truck is a reliable solution for drinking water storage, transportation and distribution. Isuzu 6000L drinking water truck NPR NQR is a robust and versatile vehicle specifically designed fully relay on the Japanese ISUZU NPR truck chassis. With its exceptional performance and reliability, it has become a popular choice in various industries. Featuring a large capacity tank 6000L and a powerful diesel engine 4HK1-TCG61 with 140KW/190HP, the Isuzu potable water bowser can carry a substantial amount of water to remote locations or areas with limited water access. Its sturdy construction ensures durability and longevity, even in challenging terrains. Customized Potable Water Truck based on type II ISUZU 4x2 classical ELF NPR NQR truck chassis, Isuzu drinking water cannon truck capacity could up to 6,000liters, the working aerial can be city street, factory, community and other areas of need. Fully consider the product's convenience and reliability. The potable water truck equipped with stainless steel water pump for regular use. The water tanker material is food grade stainless steel, which can be durable and service for a long time. With one manhole on top, at rear of the truck equipped with 6 to 10 sets fast delivery nozzles for easy operation, and can cover all customers’ water delivery requirement.
● R&D department make trucks 100% customized
● 24 months long guarantee time assurance
● Optional tanker material: Food grade SS316 or 304-2B, Aluminium Alloy, PP, Carbon Steel
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu boom crane truck factory
● More than 30 years professional manufacturer experience.
Feature Application for ISUZU NPR 6000Liters Potable Water Bowser Tanker:
1. Equipped with high power self-suction stainless steel water pump that characterized by high-pressure and fast speed suction.
2. Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3. The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 50M.
4. Equipped with fire coupling, flow valves, filter screen and water level gauge.
5. According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6. Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
| Mian Technology Parameter | |
| Model Name | Isuzu ELF potable water truck 6000L |
| Driving Type | 4×2,left hand drive |
| Color | White, Orange, Black, Blue, 100% customized |
| Weights | |
| Rated payload weight(kg) | 10000 |
| Curb weight(kg) | 4200 |
| Dimensions | |
| Wheelbase(mm) | 3815 |
| Overall Dimension(mm) | 6250×2200×2650 |
| Box dimension | 5000L(1350 gallon) |
| Max speed(km/h) | 110 |
| Engine | |
| Engine model | 4HK1-TC(190HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight- 4 cylinders |
| Displacement(L) | 5.193L |
| Max. output (kw) | 140kw |
| Drive Line | |
| Transmission | MLD 6 speeds, 6 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Air brake with ABS |
| Cab | |

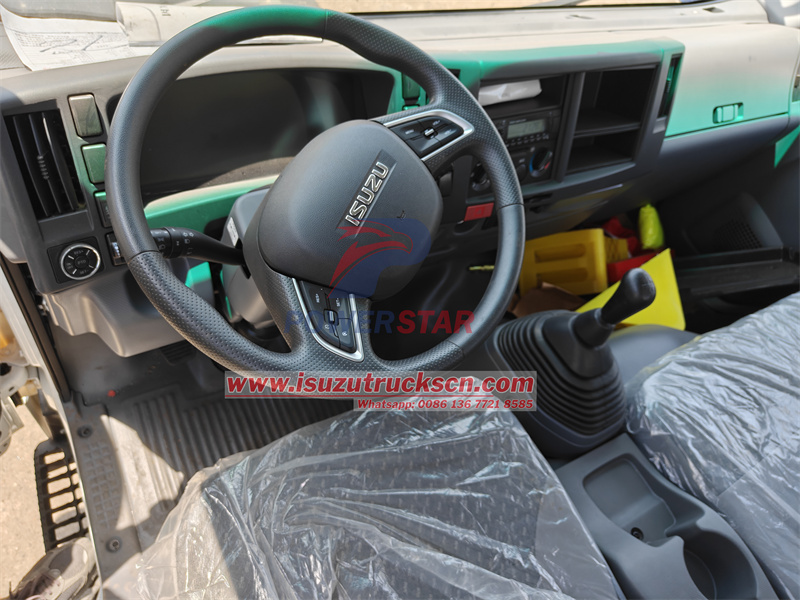

| Cabin | Isuzu 700p NPR NQR |
| Standard configuration | with A/C,oil brake with vacuum booster pump,power steering |
| Axle | |
| Front axle | 4 tons |
| Rear axle | 7 tons |
| Tire specification | |
| Tire specification | 235/75R17.5 standard tire,6 tires+1 spare tire |
| Water truck | |
| Water tanker material | Of high quality food grade stainless steel (304-2B). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function | |
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |

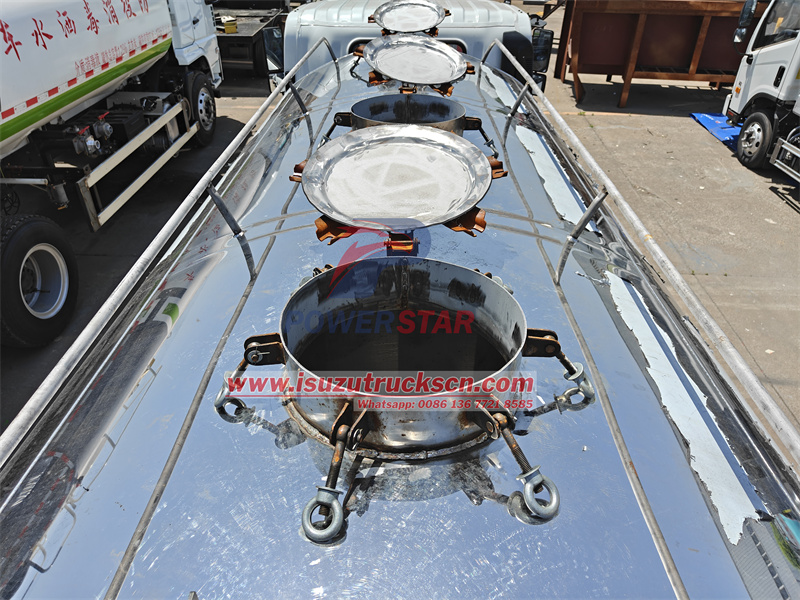

| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |

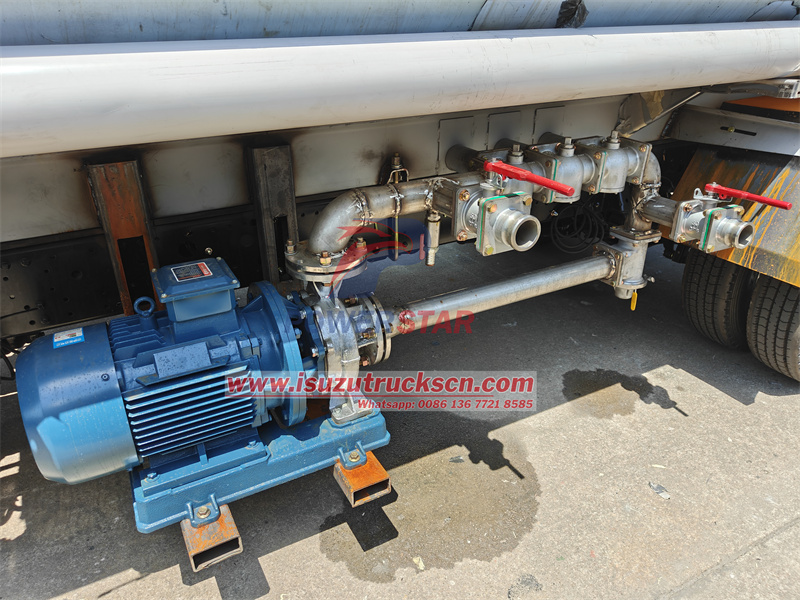

| Water pump | Water pump model: 45QZF-40/50N (N/S) |
| Water pump flow rate(L/m): 40m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m):1.5 | |
| Efficiency(%):95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kw):22 | |
An ISUZU water tank truck, ISUZU street sprinkler, ISUZU water bowser, ISUZU water tanker truck or ISUZU potable water tanker, is a motor vehicle designed to carry water on road. Custom-built water tanks are used to deliver potable drinking water and non potable water for dust control or any other specific use that non drinking water can be used for. Our tanks transport water that is dispensed through a pumping system either through a hose reel for delivery or through a series of spray heads and nozzles to spray the water in different directions. We POWERSTAR produced ISUZU potable water tankers are available in steel, stainless steel, or aluminum, and can be constructed to haul drinking water and non drinking water each with their own specific and different types of pumping systems.
1. Start the engine of the Isuzu Water Tank Truck, ensuring that the barometer reads 0.8Mpa.
2. Adjust the pressure to a level above 0.5Mpa for optimal sprinkling performance.
3. Open outlet valve 1 to allow water flow.
4. Open outlet valve 2 to activate the second outlet for water distribution.
5. Turn the three-way valve until you can see the bright ball surface, ensuring proper water flow direction.
6. Push down the clutch pedal to disengage the transmission.
7. Press the switch corresponding to either front spraying or rear sprinkling, depending on the desired water distribution.
8. Press down the take-off switch and slowly lift the clutch pedal, initiating the water sprinkling process.
By following these steps, you can effectively start sprinkling water using the ISUZU 6000L Drinking Water Tank Truck, facilitating efficient and controlled water distribution for various purposes.
