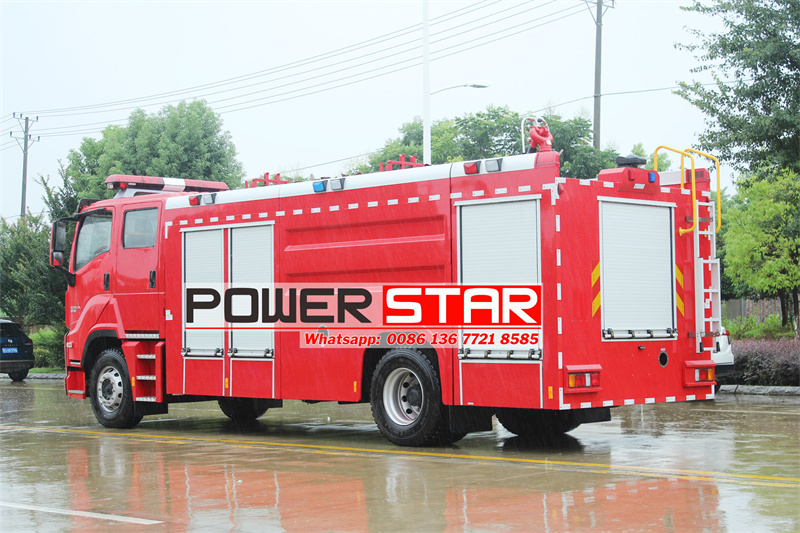

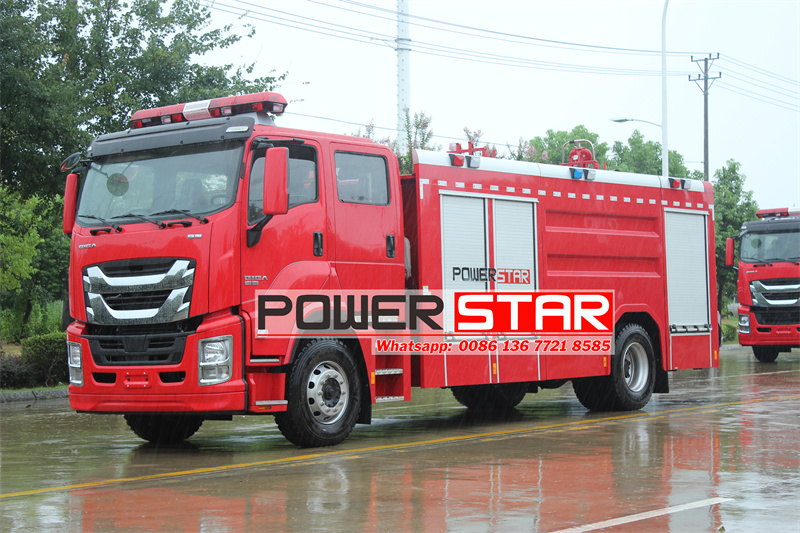

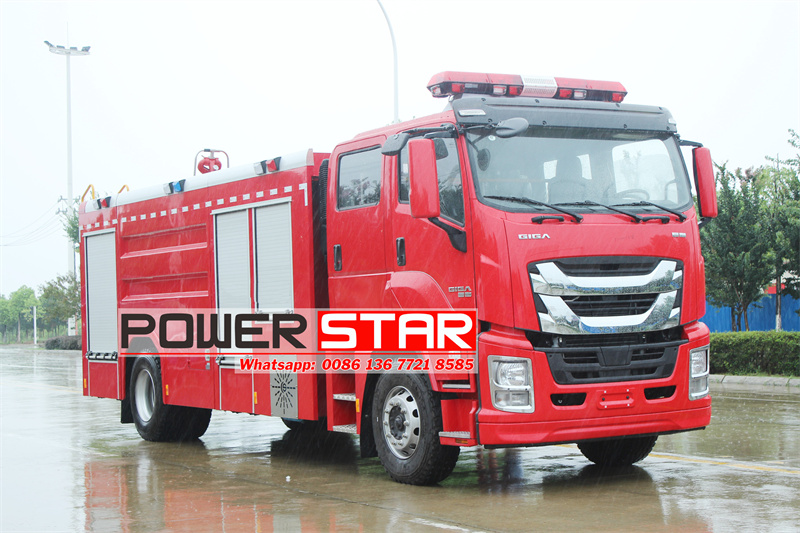

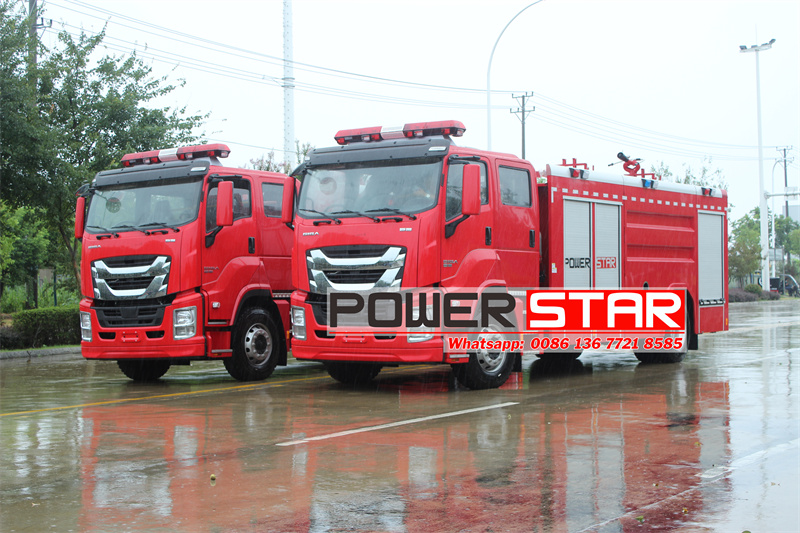

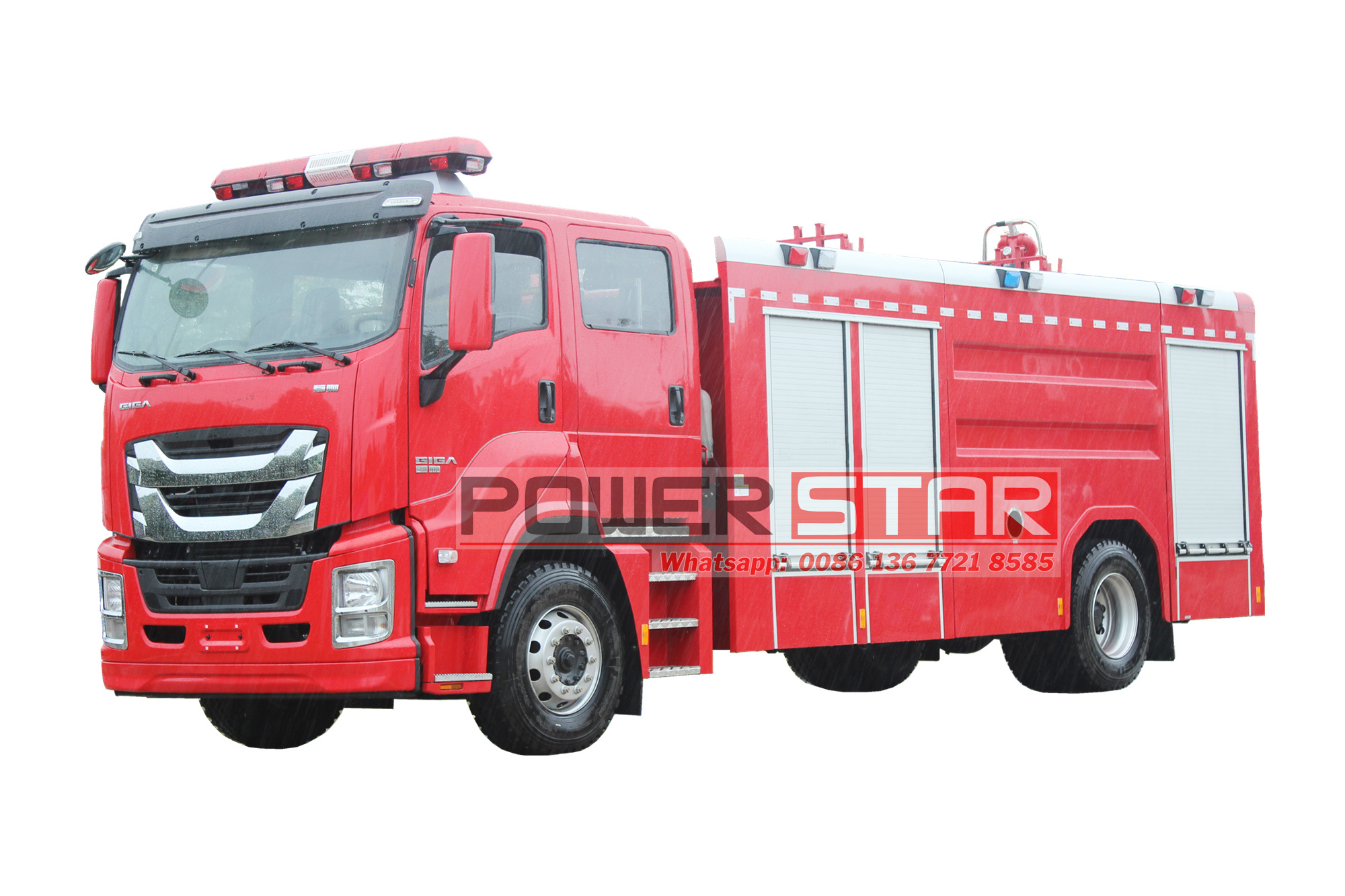

Isuzu FVR municipal fire tanker truck is modified from Isuzu FVR GIGA 4x2 fire truck chassis, 4500mm wheelbase,with A/C,equipped with a 240hp 6HK1-TCG61 diesel engine,Euro 6 emission, and Fast 8-speed transmission. The upper water tank can carry 8000kg water. The vehicle is equipped with a CB10/40 medium and low pressure fire pump, a PS8/40W fire water monitor installed on the roof, and a series of fire fighting equipment.
Manufacturer:
Powerstar TrucksWork capacity:
8CBMDimension:
8350 x 2540 x 3500mmCabin type:
Isuzu new FVR GIGA 5X chassis,3 seatsWheelbase:
4500mmEngine power:
240HPEngine type:
Isuzu 6HK1-TCG61Axle drive:
4X2Gear box:
FAST 8-speed,manualRemarks:
Equipped with CB10/40 fire pump and PS8/40W monitorThis Isuzu 6HK1 engine municipal fire tanker truck, which is modified based on the special chassis of Isuzu FVR GIGA 4x2 fire truck, is equipped with 6HK1-TCG61 engine and Fast 8-speed transmission. It has strong power and can adapt to various road conditions. The body design is scientific, the front equipment box is convenient for storing fire equipment, the middle 8000kg water tank meets the needs of long-term fire fighting, and the rear is equipped with CB10/40 medium and low pressure fire pumps to provide stable and efficient water flow output. The PS8/40W on-board fire water monitor is installed on the roof, with a range of over 65 meters and flexible pitch angle, which is suitable for extinguishing high-rise buildings or large-scale fires. The vehicle is also equipped with water hoses, water guns, foam guns and demolition tools, etc., to adapt to various rescue tasks. Its lighting and warning systems ensure the safety of operations at night or in harsh environments. This vehicle integrates efficient power, large-capacity water tanks and multi-functional equipment. It is a reliable equipment for urban firefighting and emergency rescue, providing solid protection for protecting urban safety.
● China best Isuzu water fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Feature
★ High quality lSUZU chassis;

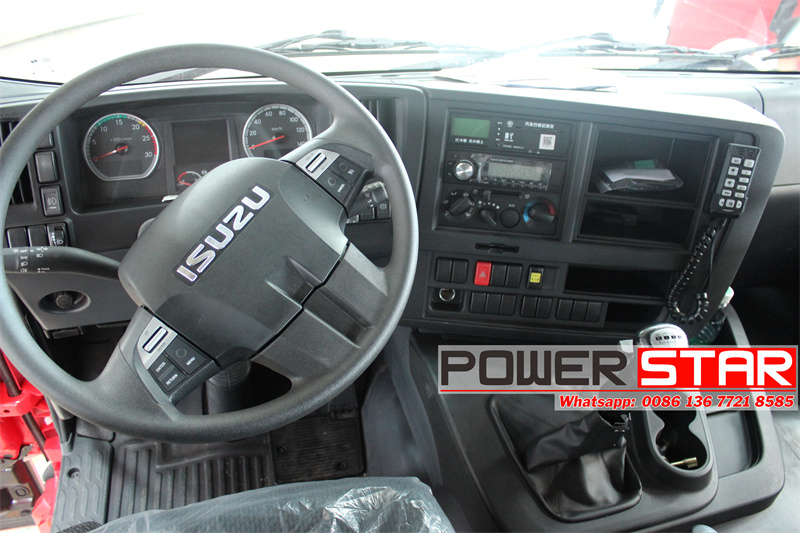

★ Spacious new FVR truck cabin with A/C;
★ Powerful 240HP engine for tough road with reliable performance,
★ Continuously adjusted into fog, heavy rain, light rain and drizzle ;
★ Reliable chinese brand fire fighting pump and fire cannon.
Isuzu FVR GIGA 4x2 fire truck is equipped with a powerful 6HK1-TCG61 engine, which is matched with Fast 8-speed transmission. It not only provides excellent power output, but also ensures the stability and maneuverability of the vehicle under various complex road conditions. Whether it is narrow city streets or rugged suburban roads, it can quickly reach the fire scene and buy precious time for rescue.

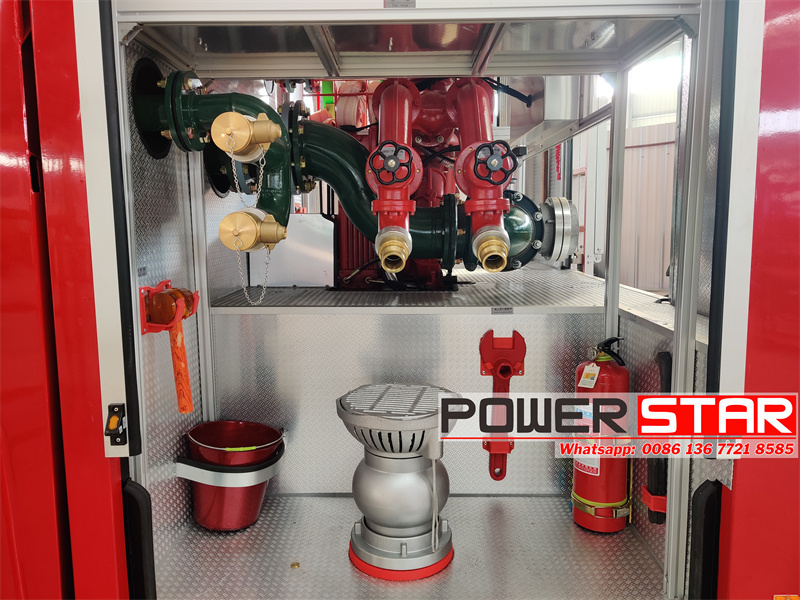

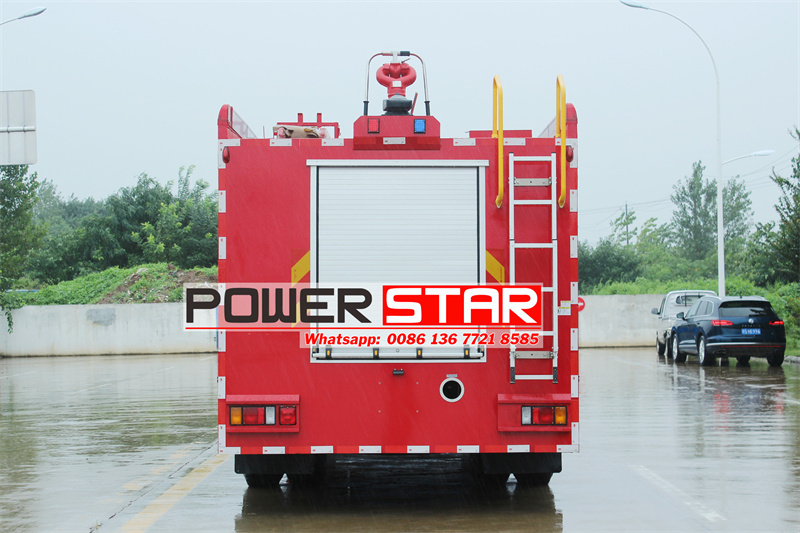

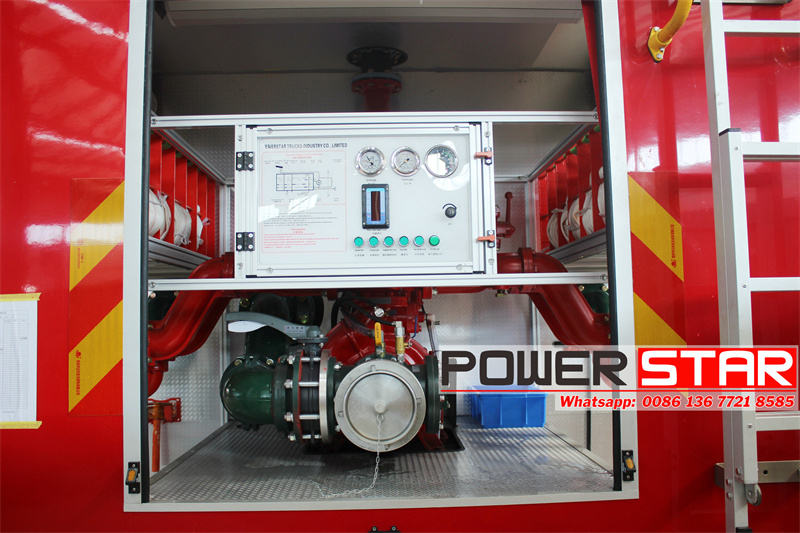

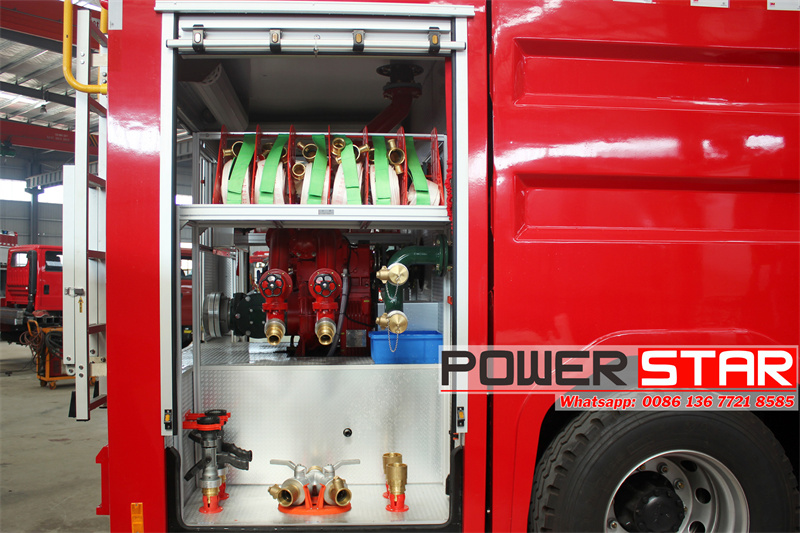

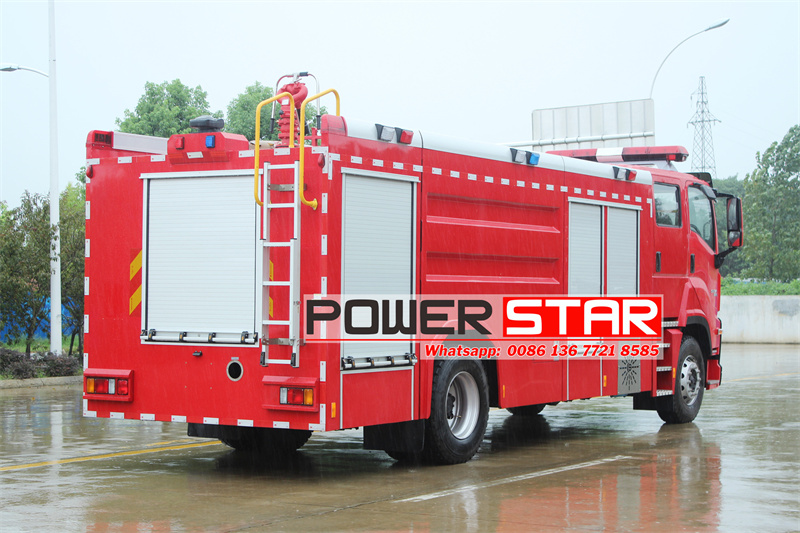

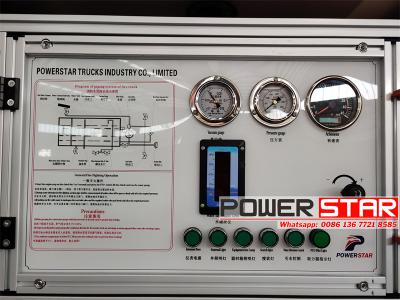

The body design is scientific and reasonable, with a spacious equipment box at the front for storing various firefighting equipment and rescue tools, which is convenient for firefighters to quickly access. The water tank capacity in the middle is as high as 8000kg, which can meet the needs of long-term firefighting operations, especially suitable for medium and large fire fighting. The rear pump room is equipped with a CB10/40 medium and low pressure fire pump, which can be flexibly switched between high pressure and low pressure modes to adapt to different fire fighting scenarios. Whether it is extinguishing building fires or dealing with industrial accidents, it can provide stable and efficient water flow output.

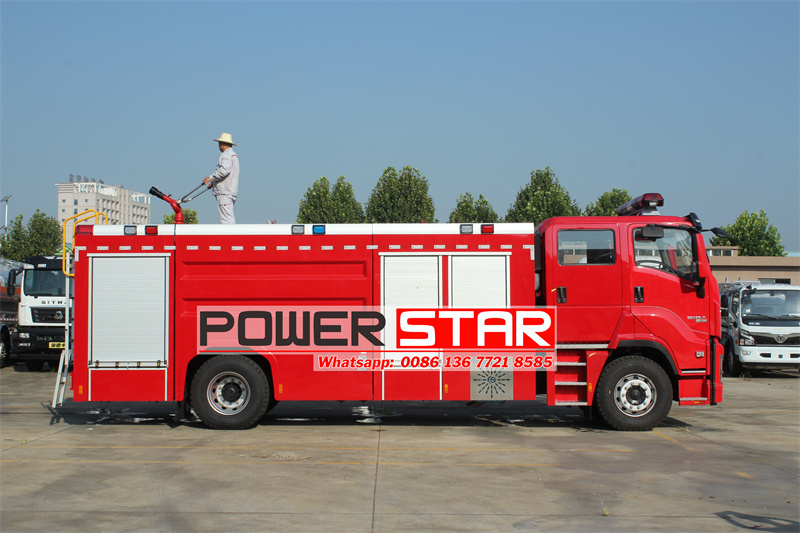

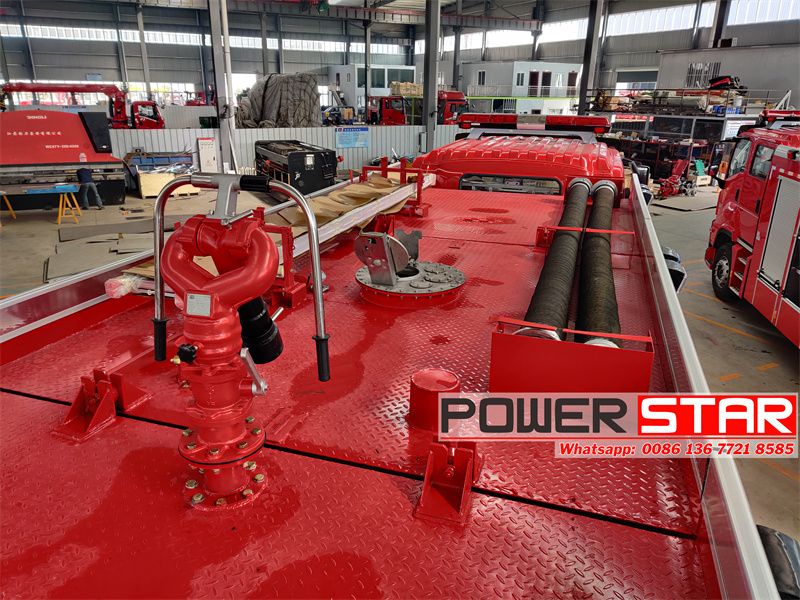

The PS8/40W vehicle-mounted fire water cannon installed on the roof is one of the highlights of this car. Its range exceeds 65 meters, which can cover high-rise buildings or large fire areas. It has a wide range of pitch angles (-30° to +70°) and is flexible to operate. Firefighters can accurately adjust the angle and flow of the water cannon according to the fire situation.
In addition, the vehicle is also equipped with a variety of firefighting equipment, including hoses, water guns, foam guns, and demolition tools, to ensure that it can cope with various complex situations at the fire scene.
|

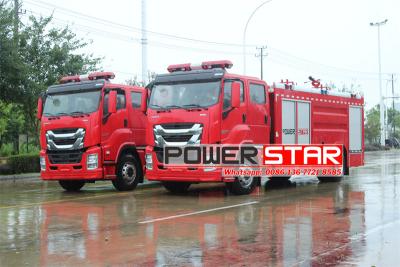

Isuzu FVR GIGA 8cbm water fire truck |
||
|
Chassis |
Chassis brand |
ISUZU |
|
Drive type |
4x2 left hand drive |
|
|
Cabin |

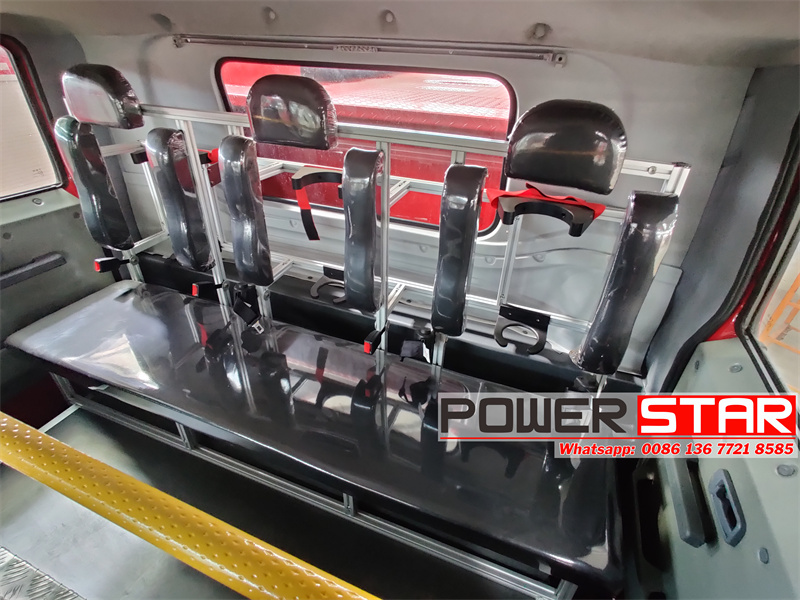

Isuzu new FVR GIGA chassis,one row and a sleeper,with A/C,USB,direction assistance |
|
|
Overall dimension(L*W*H) |
8350*2540*3500mm |
|
|
GVW |
18000kg |
|
|
Rated Loading capacity |
8tons |
|
|
Wheel Base |
4500mm |
|
|
Tyre No. |
6, (front 2, rear 4) |
|
|
Type & Size of Tyre |
295/80R22.5 |
|
|
Axle No. |
2 |
|
|
Gear box |
FAST ,8 speed, manual |
|
|
Engine |
Engine model |
6HK1-TCG61 |
|
Engine brand |
ISUZU |
|
|
Engine type |
6 cylinders in line |
|
|
Maximum power |
240HP/177Kw |
|
|
Fuel type |
diesel |
|
|
Displacement |
7790ml |
|
|
Rated speed |
2200rpm |
|
|
Emission Standard |
Euro VI |
|
|
Tanker |
Water tanker |
8000Liters,carbon steel |
|
Fire pump |
Model |
CB10/40 |
|
Pressure |
≥1.0MPa |
|
|
Max suction height |
7m |
|
|
Flux |
40L/s |
|
|
Rated speed |
3135r/min |
|
|
Time of drawing water |
≤35 s |
|
|
Input diameter |
125mm |
|
|
Outlet diameter |
2xΦ75mm |
|
|
Fire monitor |
Model |
PS8/40W |
|
Flux |
40L/s |
|
|
Rated Working pressure |
0.8MPa |
|
|
Pitch rotation |
-30°～+70° |
|
|
Horizontal rotation |
0～360° |
|
Xiongzhen CB10/40 fire pump
Principle:
Xiongzhen CB10/40 fire pump is a high-efficiency centrifugal fire water pump. Its working principle is based on the physical characteristics of centrifugal force. When the motor drives the impeller to rotate at high speed, the blades on the impeller generate strong centrifugal force on the water, so that the water gains kinetic energy and is thrown out from the periphery of the impeller to form a high-pressure water flow. At the same time, a low-pressure area is formed in the center of the impeller, and the water source in the suction pipe is continuously pressed into the center of the impeller under the action of atmospheric pressure, realizing a continuous and stable water supply process.
• Model: CB10/40,
• Flow: 40L/S
• Head: High head design ensures that the water flow can be transported to the fire scene over a long distance. The specific head value depends on the design and use conditions of the pump.
• Power: Equipped with an adaptive motor power to ensure that the pump can withstand the high load requirements during fire fighting while operating efficiently.
Performance:
• High efficiency and energy saving: Xiongzhen CB10/40 fire pump adopts advanced hydraulic model and manufacturing process, which significantly improves the efficiency of the pump and reduces energy consumption, meeting the requirements of energy saving and environmental protection.
• Stable and reliable: The pump body, impeller and other key components are made of high-quality and durable materials, and are precision-processed and rigorously tested to ensure the stability and reliability of the pump under long-term high-load operation.
• Easy to maintain: The structural design is reasonable and easy to disassemble and repair. The internal flow channel of the pump body is smooth, which reduces the water flow resistance, and also reduces the difficulty and cost of maintenance.
• Strong adaptability: The CB10/40 fire pump is suitable for various fire fighting scenarios. Whether it is a fire in an urban building, an industrial park or a forest fire, it can respond quickly and provide stable water source support.

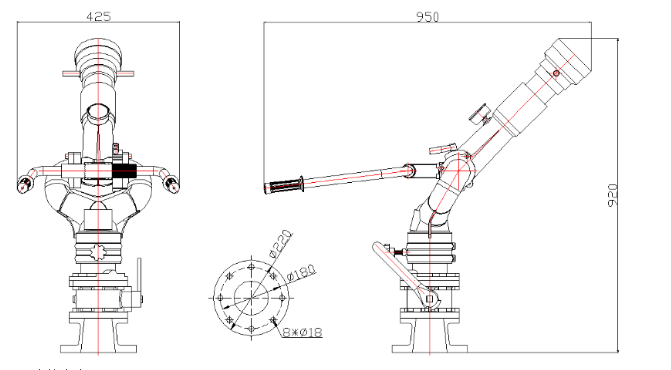

PS8/40W fire monitor
Principle:
The PS8/40W fire cannon adopts the diversion principle design. By adjusting the spray angle and flow rate of the muzzle, the water flow can be sprayed remotely and accurately. When the high-pressure water flow provided by the fire pump enters the fire cannon, it passes through the diversion device in the cannon body to form a concentrated and high-speed water flow, which is ejected from the muzzle to strike the fire source.
Parameters:
• Flow rate: 40 liters/second (L/s), matched with the fire pump to ensure sufficient water supply.
• Working pressure: 0.8 MPa, which indicates the maximum working pressure that the fire monitor can withstand.
• Range: ≥65 meters (m), which indicates the maximum distance that the fire monitor can spray at the rated working pressure.
• Pitch angle: -30°~+70°, which indicates the angle range that the fire monitor muzzle can be adjusted up and down.
• Horizontal rotation angle: 360°, which indicates the angle range that the fire monitor muzzle can rotate horizontally.
Performance:
• Long range: With high flow and working pressure, the fire monitor can achieve long-distance spraying and effectively cover the fire source area.
• High precision: By adjusting the spray angle and flow of the muzzle, the fire source can be accurately hit to improve the efficiency of fire extinguishing.
• Flexible operation: The gun body can be rotated horizontally and pitched, which is convenient for firefighters to operate flexibly according to the fire scene.
• High-pressure resistance and high-strength: Made of high-pressure resistant and high-strength materials to ensure stability and durability under harsh working conditions.
Synergistic performance
The CB10/40 fire pump provides a stable high-pressure water flow for the PS8/40W fire monitor. The two work together to form a complete firefighting chain from water source to fire source. The efficient water supply of CB10/40 and the long-range precision spraying of PS8/40W enable this fire truck to cover a large area of fire in a short time, significantly improving the efficiency of firefighting.
