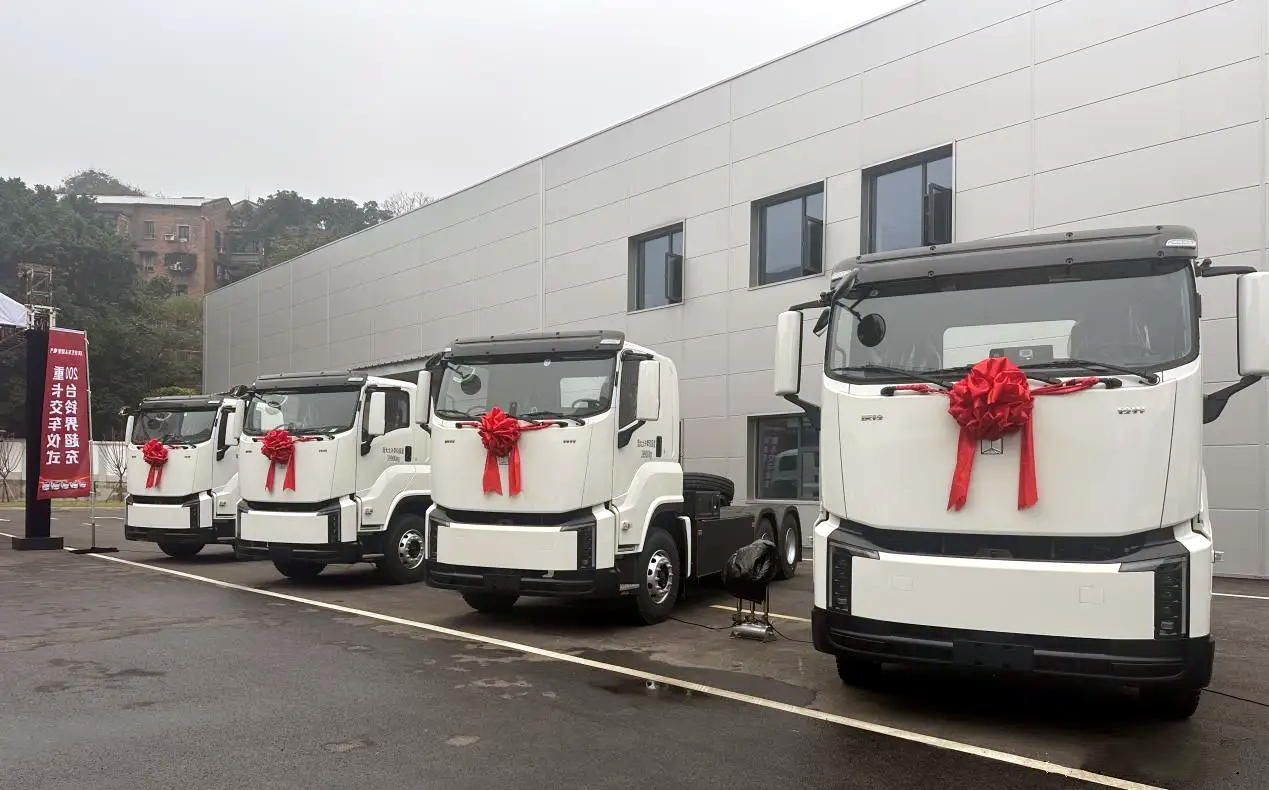

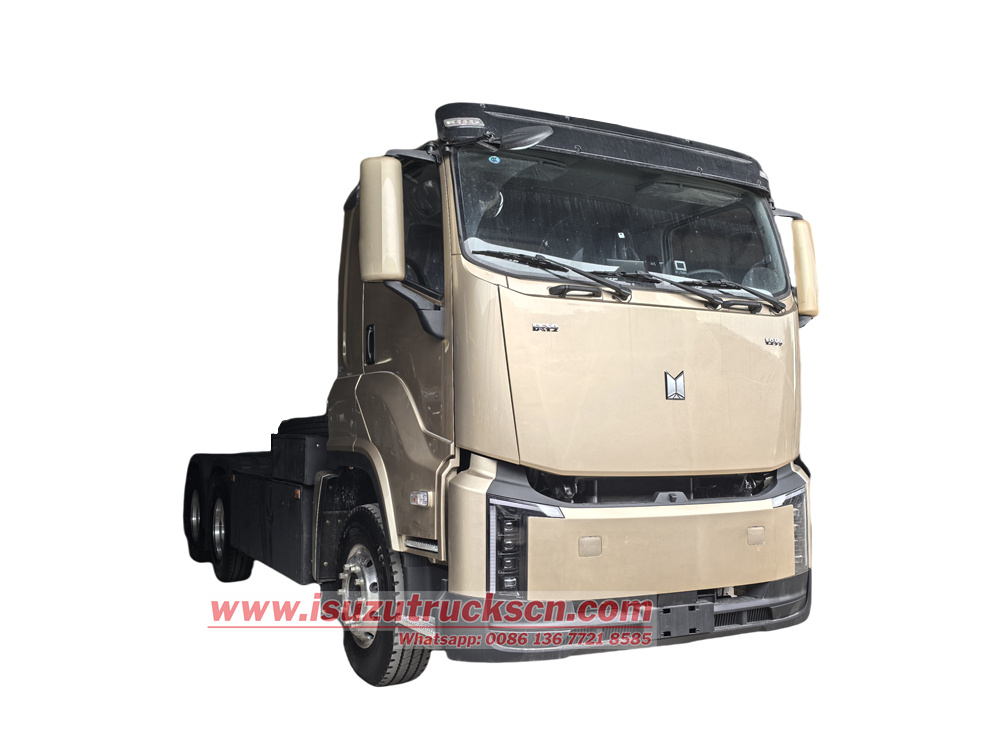

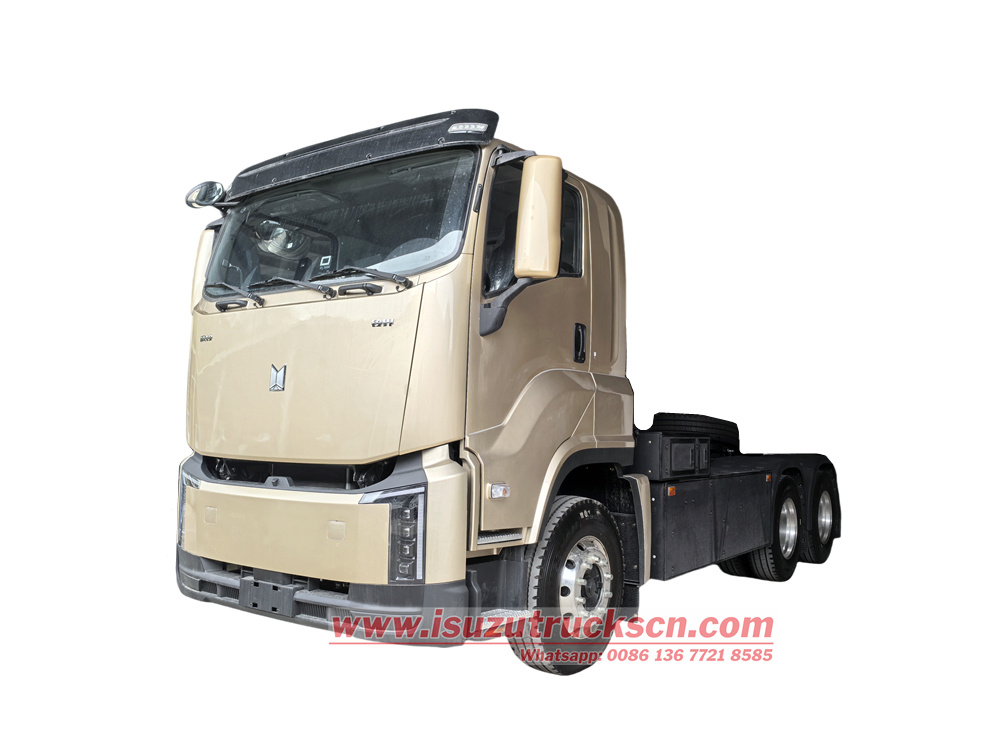

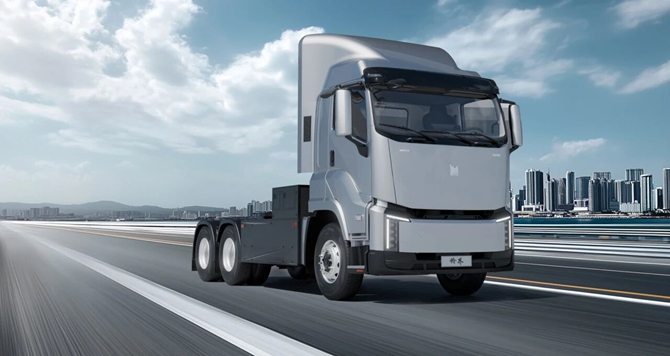

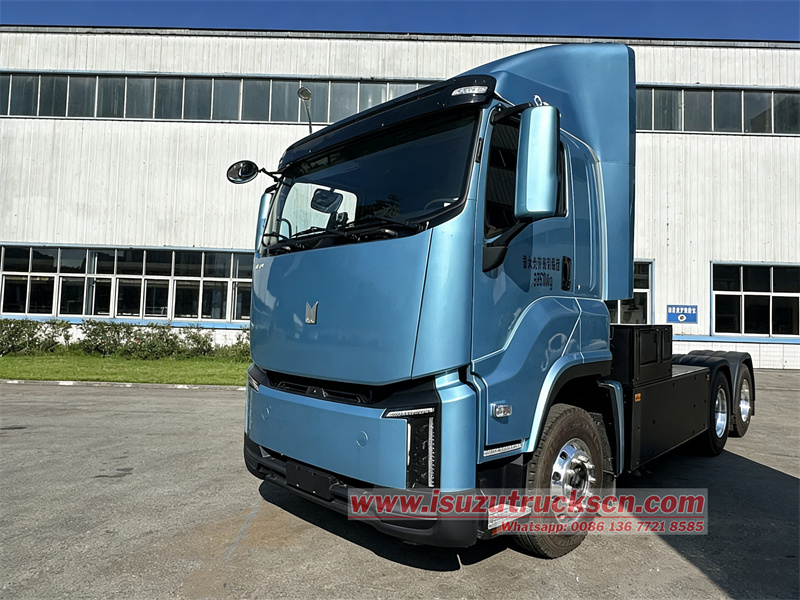

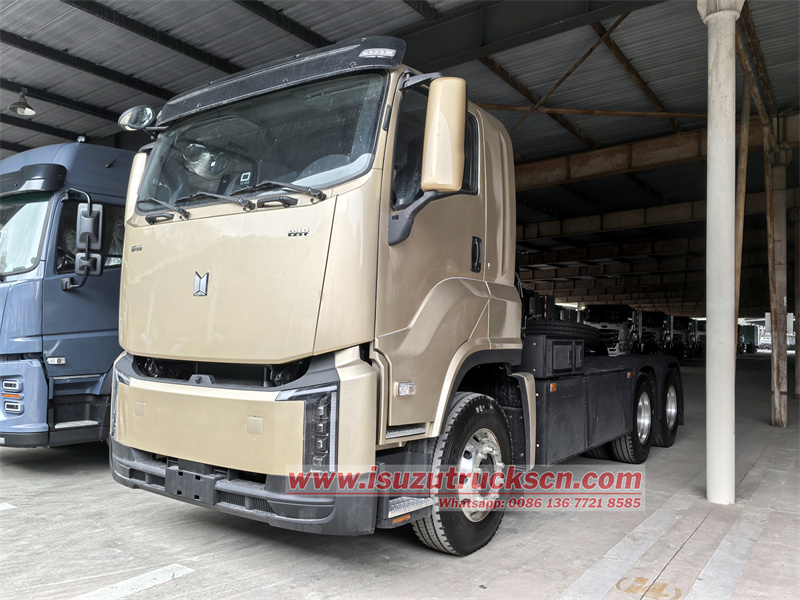

Isuzu 6x4 EV tractor head with electricity power
The Qingling Lingjie is no ordinary electric vehicle; it's a "monster-level" pure electric heavy-duty truck equipped with Huawei's megawatt-level supercharging and Bosch's electric drive axle! The entire vehicle, including the battery, weighs only 8.97 tons. It features a Bosch dual-motor + electric drive axle system and a Sunwoda battery pack, focusing on solving the pain points of slow charging and short range in electric heavy-duty trucks. It is suitable for scenarios such as trunk logistics, ports, and mines.
MarketPrice:
$26000Manufacturer:
Powerstar TrucksWork capacity:
39.9 tonsDimension:
7420 × 2540 × 3055 mmCabin type:
Isuzu EVF cab,2 seats with A/CWheelbase:
3800+1370 mmEngine power:
510Kw / 684HPEngine type:
Bosch TZ230XS004 Dual drive motorsAxle drive:
6x4Gear box:
2-speed AMTRemarks:
Sunwood 352kWh Lithium Iron Phosphate BatteryThe Qingling Motors QL4250BEVHHPH Isuzu 6x4 EV tractor head with electric power is a strategic model designed specifically for high-efficiency, high-load long-haul logistics scenarios. It not only achieves an impressive 39.9-ton towing capacity with an ultra-light weight of only 8.97 tons, but also boasts a powerful combination of Bosch's cutting-edge TZ230XS004 dual-motor + electric drive axle system, a Sunwood 352kWh lithium iron phosphate battery pack, and Huawei's megawatt-level supercharging technology, creating a robust competitive advantage of "strong power, long range, and fast charging."
▶ Features:
★ Isuzu 6x4 heavy-duty type,electric tractor,perfect performance
★ Isuzu EVF 352 kWh pure electric , super powerful;
★ Bosch TZ230XS004 dual-motor flat-wire permanent magnet synchronous motor,peak power of 510kW/684hp
★ Sunwood 352kWh High Energy Density Battery Pack,300km range with full load
▶ Product Parameters:
|
Isuzu 6x4 EV tractor head with electricity power |
||
|
Vehicle Model: |
QL4250BEVHHPH |
|
|
Dimensions and Parameters |
Overall Dimension(L x W x H) |
7420×2540×3055mm |
|
Wheelbase: |
3800+1370 mm |
|
|
Front/ Rear Wheel Distance: |
2065 / 1870/1870mm |
|
|
Front/Rear Suspension: |
1400/850mm |
|
|
Approach/ departure angle |
17/28° |
|
|
Leaf Spring: |
2/3,3/4 |
|
|
Weights and Capacities |
GVW: |
25000 kg |
|
|
Curb Weight: |
8970kg |
|
Max permissible traction mass: |
39900 kg |
|
|
Max design static load on the traction seat |
15900 kg |
|
|
Axle Loads: |
7000/18000（2 axles）kg |
|
|
Drive motor |
Engine Model: |
Bosch TZ230XS004 Dual motors |
|
Peak power: |
510(255/255) kW |
|
|
Rated power: |
330(165/165)Kw |
|
|
Battery System |
Model |
Sunwood Lithium Iron Phosphate Battery |
|
Total Energy |
352kWh |
|
|
Rated Voltage |
656.88V |
|
|
Rated capacity |
536Ah |
|
|
Transmission: |

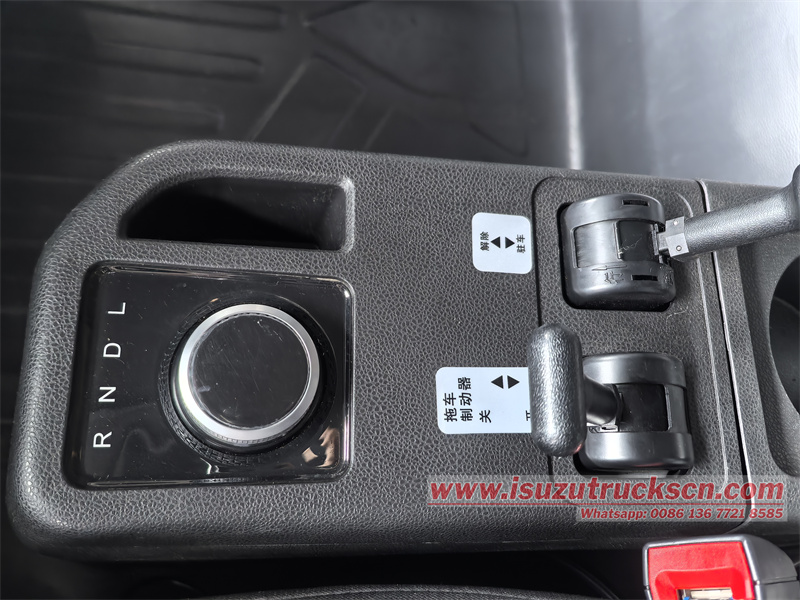

Bosch 2-speed AMT |
|
|
Charging type |
Dual-gun fast charging 15min |
|
|
Cab |

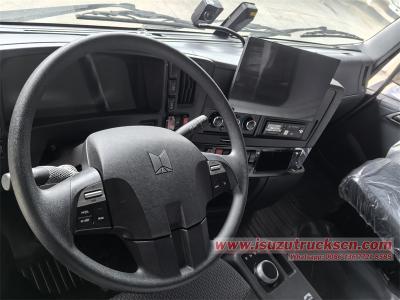

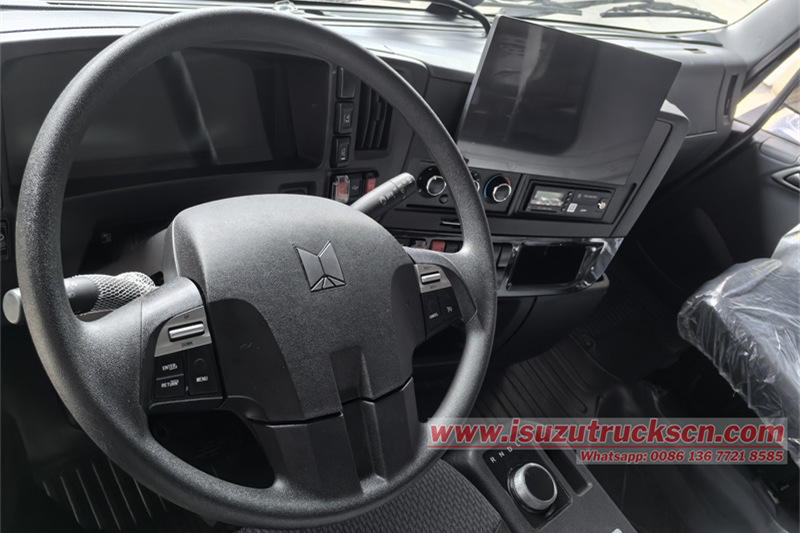

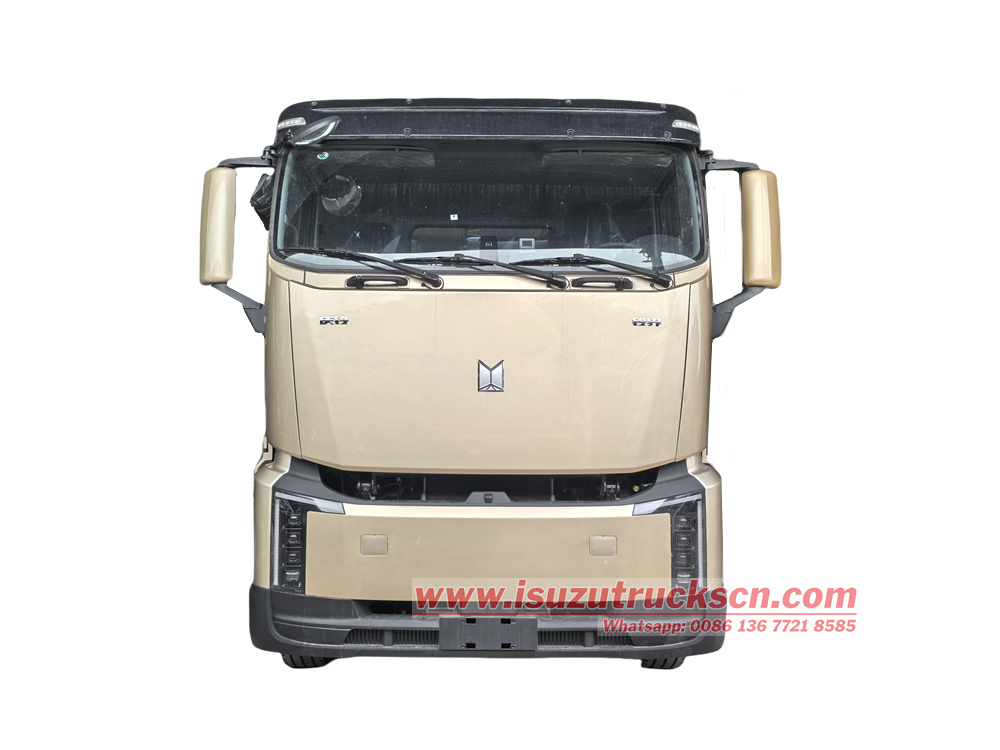

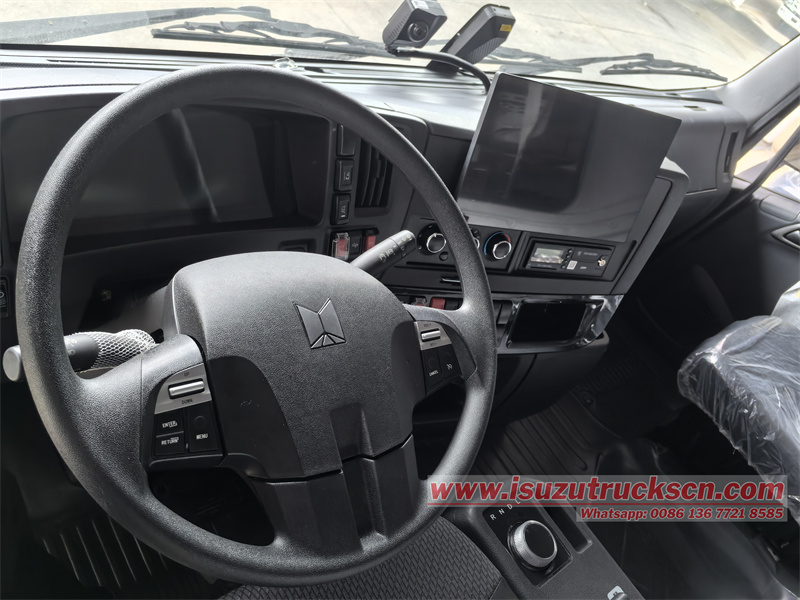

Isuzu EVF cab,2 seats with A/C |
|
|
Brake |
Air brake |
|
|
Chassis |
Drive Type: |
6x4 |
|

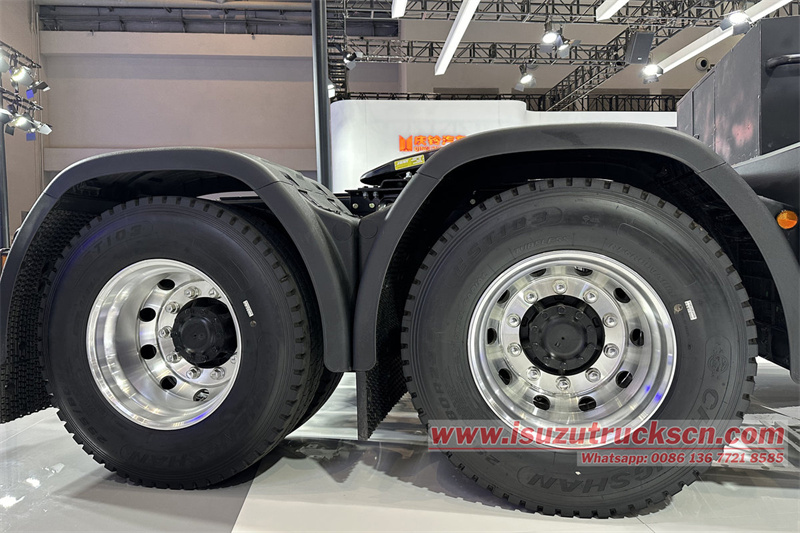

Tires: |
10 (Including Spare Tire) |
|
|

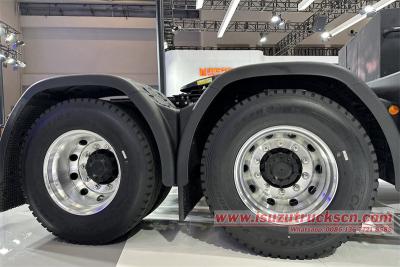

Tire Model: |
295/80R22.5 |
|
|
Max speed |
89km/h |
|
|
Axle |
Front: Hande 6.5T engine; Rear: Bosch 2-speed electric drive axle |
|
|

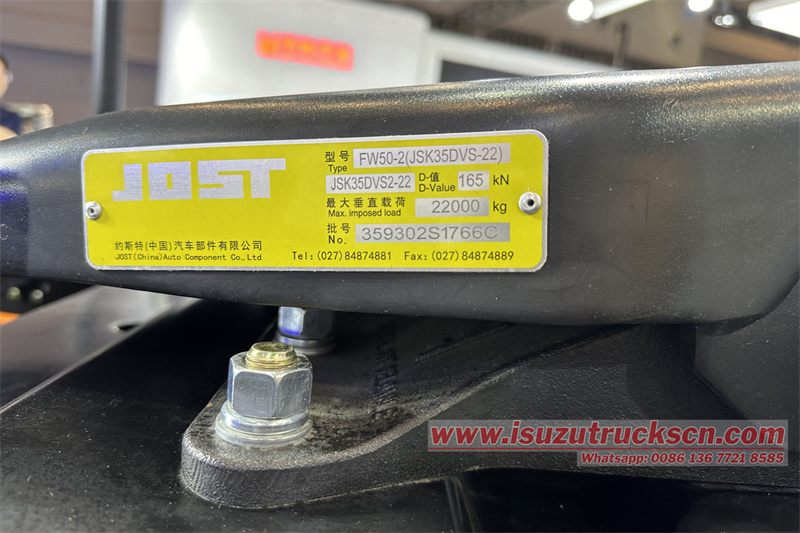

Traction pin |
JOST FW50-2,50 # |
|
|
Optional |
Optional with fairing,PTO |
|
▶ Basic Information:
• Drive Type: 6x4
• Battery Capacity: 352kWh (Sunwood Lithium Iron Phosphate Battery)
• Peak Motor Power: 510kW (Bosch TZ230XS004 Dual motors)
• Maximum Speed: 89km/h
• Gross Towing Capacity: 39.9 tons
• Maximum Speed: 89km/h
• Traction pin：JOST FW50-2,50 #
▶ Peak Performance Powertrain:

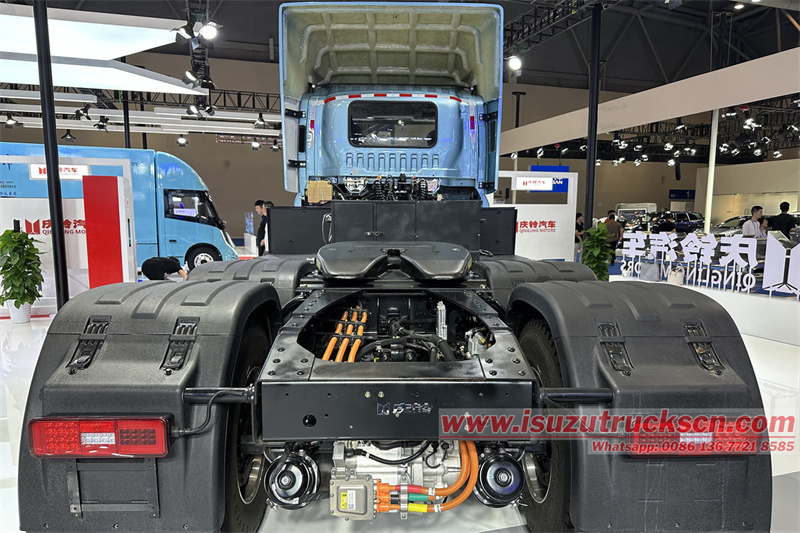

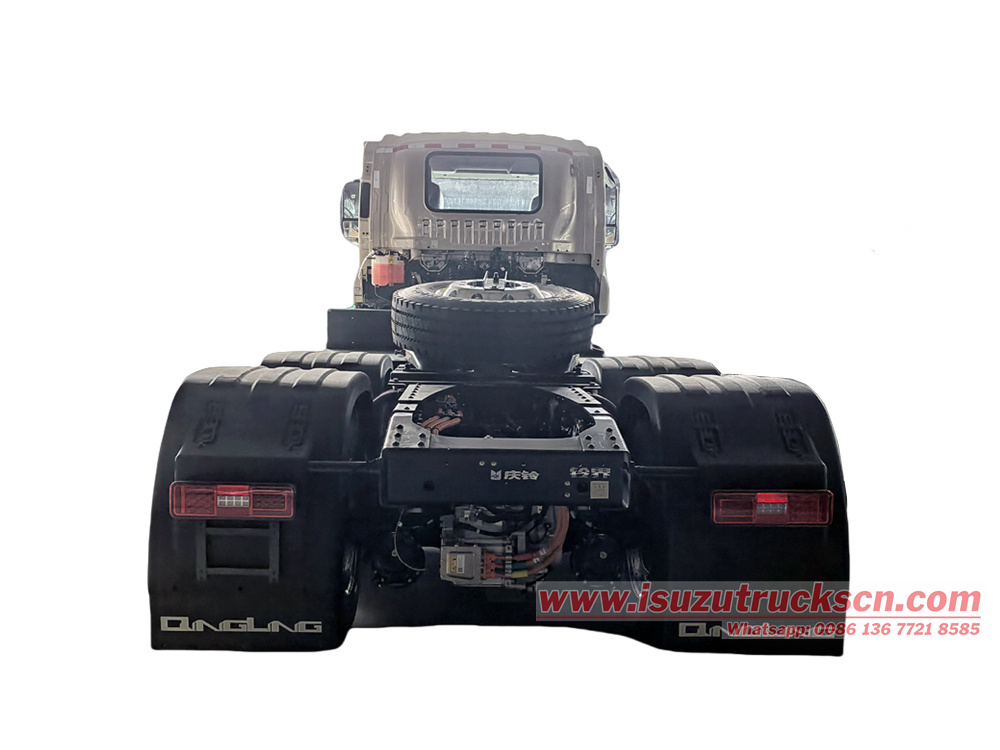

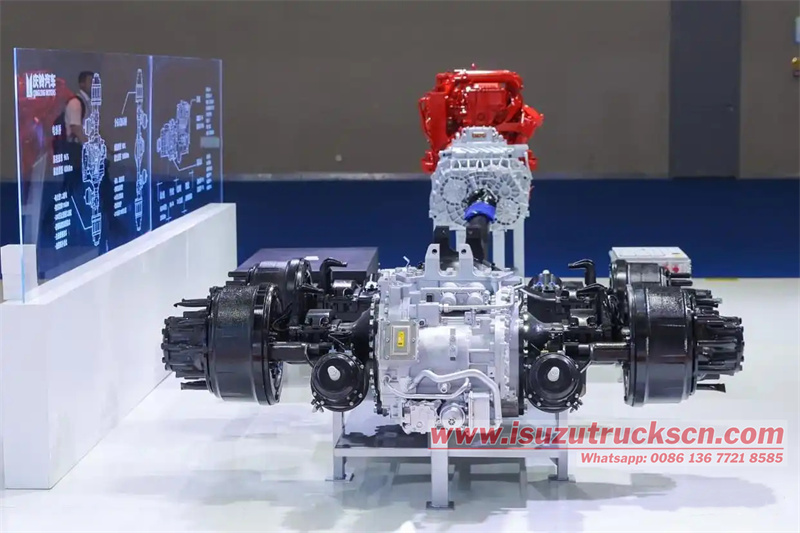

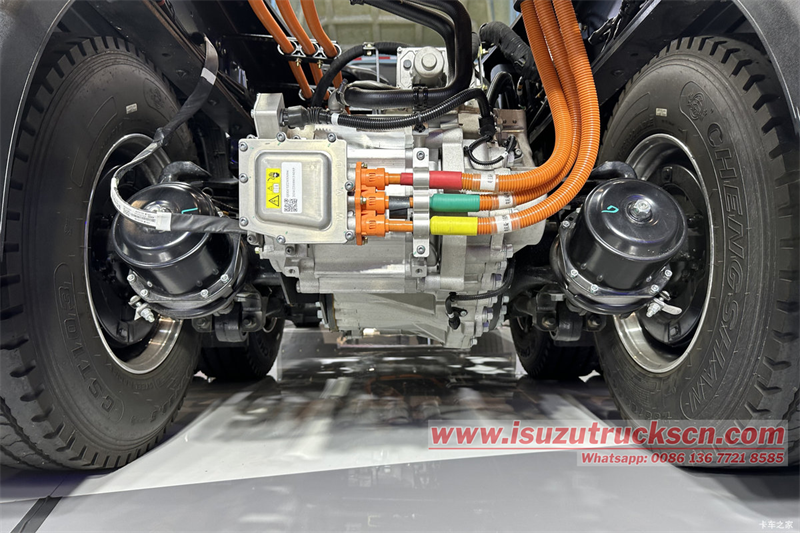

1. Bosch TZ230XS004 Electric Drive Axle System
In terms of motors and electronic controls, the Lingjie utilizes Bosch's electric drive axle system, achieving a comprehensive upgrade in efficiency, space, and reliability through a highly integrated design of the motor, reducer, and differential.
The Bosch TZ230XS004, driven by dual motors, achieves a maximum power of 510kW, approaching 700 horsepower, delivering robust performance and a transmission efficiency exceeding 94%. The two motors can work independently or collaboratively, and the motor windings employ flat-wire oil cooling technology.
The efficient electric drive axle, combined with an intelligent energy recovery system, effectively recovers braking energy, significantly reducing energy consumption and improving the vehicle's range.
Furthermore, in conjunction with Bosch's electronic control system and super radiator thermal management system, the vehicle consumes only 120 kWh per 100 kilometers, effectively reducing energy consumption.

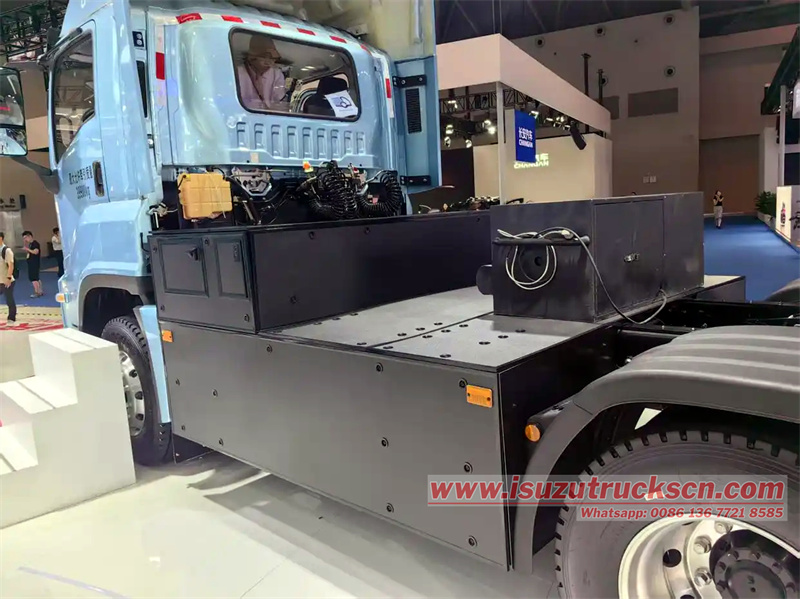

2. Sunwood 352kWh Lithium Iron Phosphate Battery Pack
This Isuzu 352kWh pure electric heavy-duty tractor superchargeable pure electric heavy-duty truck is equipped with a Sunwood 352kWh lithium iron phosphate battery pack, ensuring an ultra-long driving range. The lithium iron phosphate battery material boasts a long cycle life and exceptional safety.
The battery pack features a highly efficient liquid-cooled thermal management system, ensuring stable output in all weather conditions, while maintaining optimal charging speed, discharging power, and battery health.

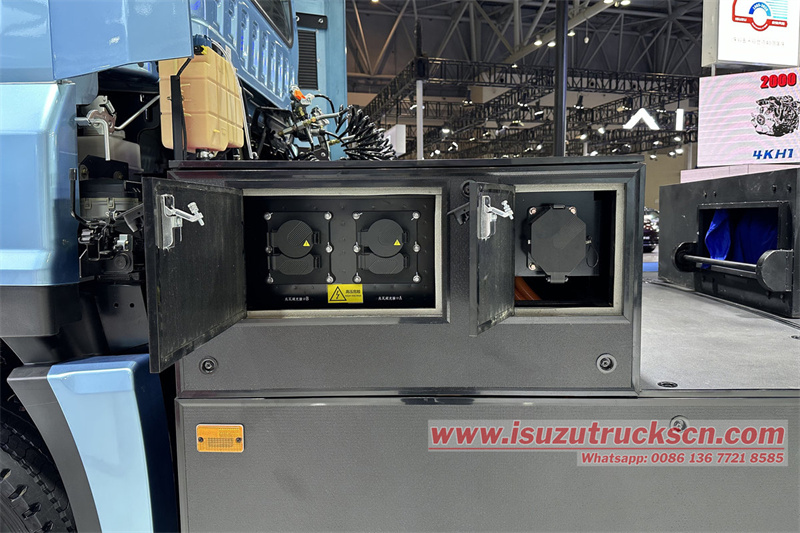

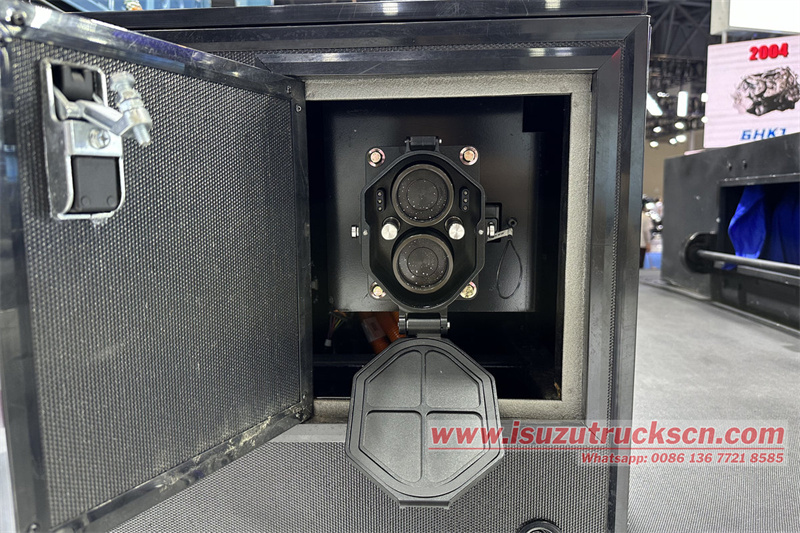

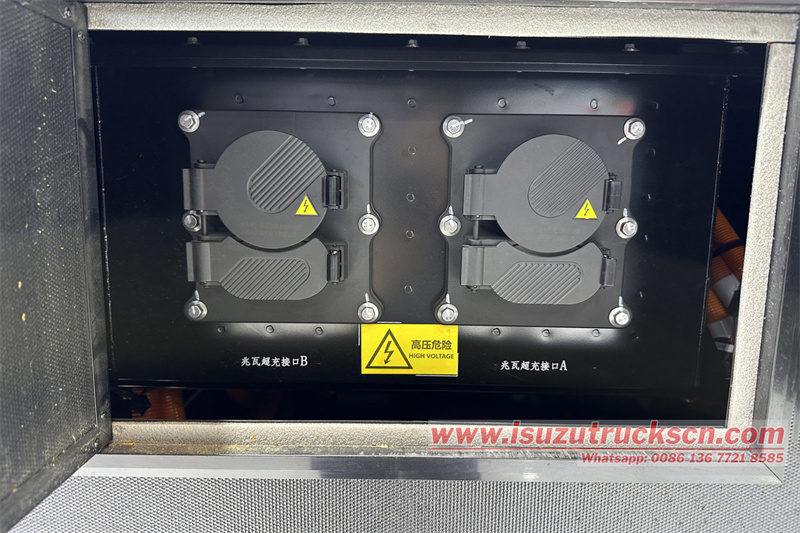

▶ Huawei's Megawatt-Level Liquid-Cooled Supercharging:
Having solved the power and range issues, Qingling Lingjie, in partnership with Huawei, has completely overcome the final bottleneck in the energy replenishment efficiency of electric heavy-duty trucks through megawatt-level supercharging technology.
This model supports "300 kWh in 15 minutes," a charging speed that reduces charging time by approximately 75% compared to traditional charging methods. This saves more than 2 hours of charging time per day, effectively ensuring operational efficiency in high-intensity, long-distance transportation scenarios.
