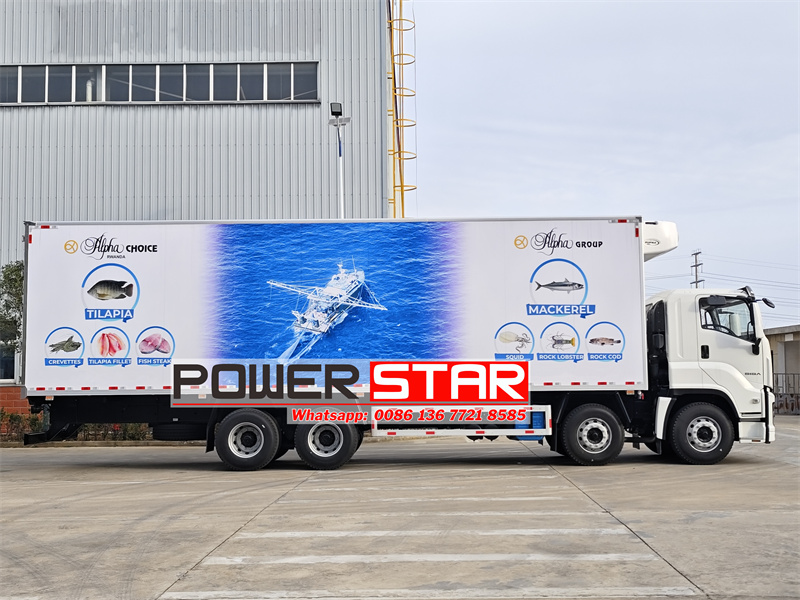

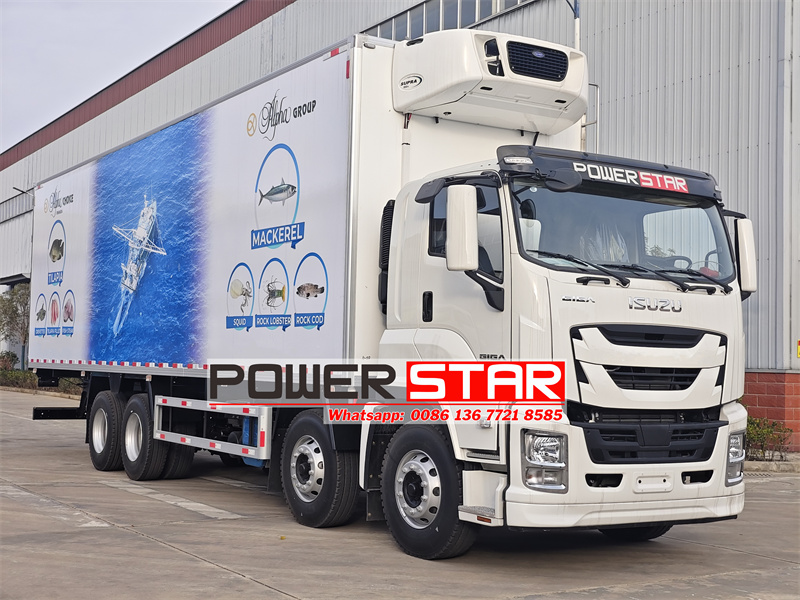

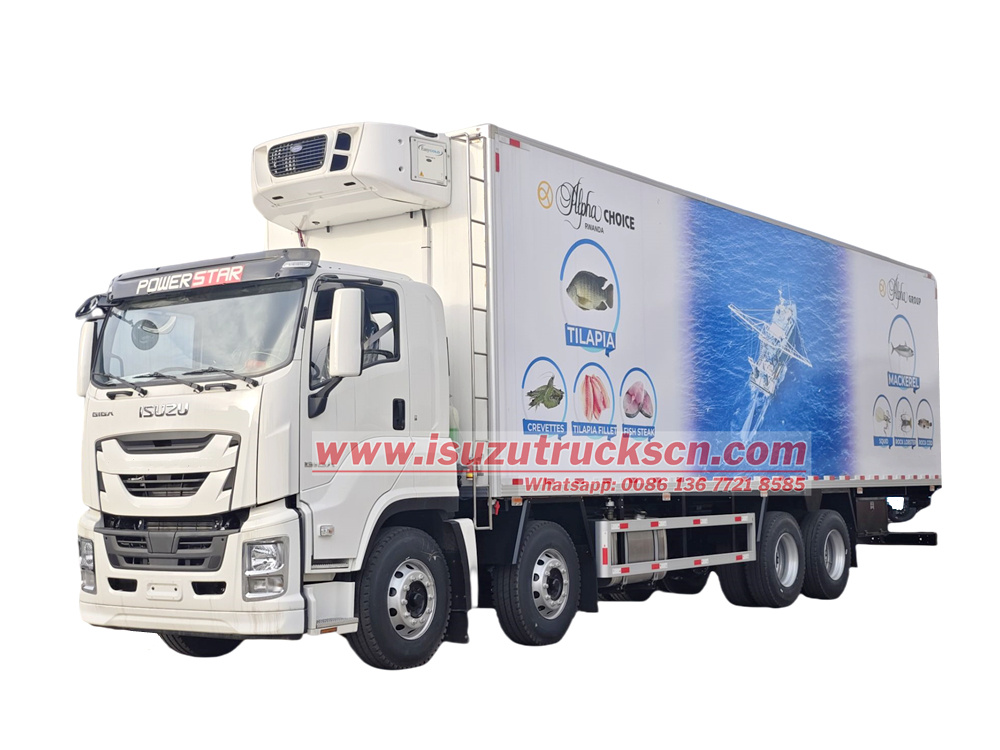

Isuzu GIGA 8X4 refrigerated truck is modified on the basis of Isuzu GIGA VC66 cab chassis, equipped with 1850+4575+1370mm wheelbase, 6UZ1-TCG61 380HP engine, Fast 12-speed gearbox, the vehicle adopts carrier SUPRA 1250 refrigeration unit, the internal dimensions of the vehicle body are 10500*2400*2800mm, FRP+ PU Foam + FRP 105mm material, Full Size Double Opening Rear Door. This refrigerated truck is mainly used to transport seafood and is an ideal choice in the cold chain logistics field such as seafood.
Work capacity:
30 feetEngine power:
380HPEngine type:
Isuzu 6UZ1-TCG61Axle drive:
8x4，LHDGear box:
FAST 12-shift gearbox, manual, 12-Forwards & 2-ReversesRemarks:
Isuzu heavy freezer truck with Carrier Supra 1250 refrigerator unitThe Isuzu 8x4 refrigerated reefer box truck is a high-end heavy-duty transport vehicle specifically designed for cold chain logistics. It is equipped with an efficient engine and advanced transmission, providing powerful dynamics and stable handling. Its refrigeration system adopts a high-efficiency refrigeration unit and high-quality insulation materials, ensuring that the cargo remains in optimal refrigerated condition during transportation. The spacious carriage is equipped with full-size double rear doors for easy loading and unloading. The cab is comfortable, featuring modern interiors and advanced driving assistance systems, enhancing the driving experience. The overall design emphasizes practicality and durability, making it suitable for cold chain logistics fields such as seafood and frozen food transportation. It is an efficient, reliable, and safe transportation solution for the food industry.
● China best Isuzu refrigearted truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, any order is welcome.
Features:
★ Isuzu GIGA VC66 chassis,perfect performance
★ Isuzu 6UZ1 engine,super powerful;reliable performance,no overhaul within 100,000km.
★ High efficiency refrigeration system
★ Carrier，thermo King，KX ,etc. refrigeration unit available
★ Energy saving and environmental protection
Product Parameters
|
Isuzu 8x4 refrigerated reefer box truck |
||
|
|
Chassis |
Isuzu GIGA 8X4 |
|
Cab |
Isuzu GIGA VC66 cab, two seats and one bed,with A/C,USB,direction assistance |
|
|
Dimension |
12385x2560x4336 mm |
|
|
Driving type |
8x4 |
|
|
Steering |
LHD |
|
|
Wheel base |
1850+4575+1370mm |
|
|
GVW |
44000kg |
|
|
Curb Weight |
10350kg |
|
|
Transmission |
FAST 12-shift gearbox, manual, 12-Forwards & 2-Reverses |
|
|
Fuel tank |
400L aluminum alloy |
|
|
Axle Load |
Front Axle: 18000kg |
|
|
Rear Axle: 13000kg x 2 |
||
|
Tire |
385/65R22.5 |
|
|
12+1pcs, including 1 spare |
||
|
Engine |
Model |
Isuzu 6UZ1-TCG61 |
|
Horsepower |
380HP/278Kw |
|
|
Speed |
1800rpm |
|
|
Displacement |
9.839L |
|
|
Type |
four strokes,6 cylinders in line with water cooling, directly injection |
|
|
Emission standard |
Diesel, Euro 6 |
|
|
Cargo Box |
Dimension |
10500x2400x2800 mm |
|
Material |
FRP+ PU Foam + FRP 105mm |
|
|
Structure |
All Closed Sandwich |
|
|
Door |
Full Size Double Opening Rear Door |
|
|
Flooring |
Antiskid and abrasion resistant |
|
|
Marker Light |
2 sets white on front,2 sets red on rear |
|
|
Celling Light |
2 sets of 12/24V LED |
|
|
Control Panel |
English |
|
|
Refrigerator unit |
Brand |
Carrier |
|
Model |
Carrier SUPRA 1250 |
|
|
Temperature |
-20 deg-(0+2) deg |
|
Technical drawing of Isuzu GIGA 8X4 refrigerated van truck
Product Applications
Isuzu GIGA 8X4 Refrigerated Truck is a high-end model specifically designed for efficient, long-distance cold chain logistics. It integrates Isuzu's advanced technology and rich experience in the commercial vehicle sector, making it particularly suitable for transporting perishable agricultural products such as seafood that require stringent transportation environments.
Vehicle Overview
• Chassis Foundation: The Isuzu GIGA 8X4 Refrigerated Truck is equipped with the Isuzu GIGA VC66 cab chassis, renowned for its excellent durability, driving comfort, and fuel economy, providing a solid foundation for the stable operation of the refrigerated truck.
• Wheelbase Configuration: The vehicle adopts a three-segment wheelbase design of 1850mm + 4575mm + 1370mm. This layout not only optimizes the vehicle's load distribution but also enhances driving stability and turning flexibility, making it particularly suitable for operating under complex and varied road conditions.
Powertrain System
• Engine: The powerhouse is the 6UZ1-TCG61 engine, a high-performance, low-emission diesel engine with a rated power of 380 horsepower (approximately 283 kilowatts). It ensures that the refrigerated truck can respond quickly even under full load, easily handle various road conditions, and meet modern environmental protection requirements.
• Transmission: It is matched with a Fast 12-speed transmission, which shifts smoothly and has high transmission efficiency, providing the driver with a wide range of gear ratios. Whether for high-speed driving or low-speed climbing, the appropriate gear can be found, further improving fuel economy and driving experience.
Refrigerated Box Body
• In terms of materials, the truck body adopts a sandwich structure of FRP + PU Foam + FRP with a total thickness of 105mm. This material combination not only has excellent thermal insulation performance but also effectively resists corrosion and wear, extending the service life of the truck body.

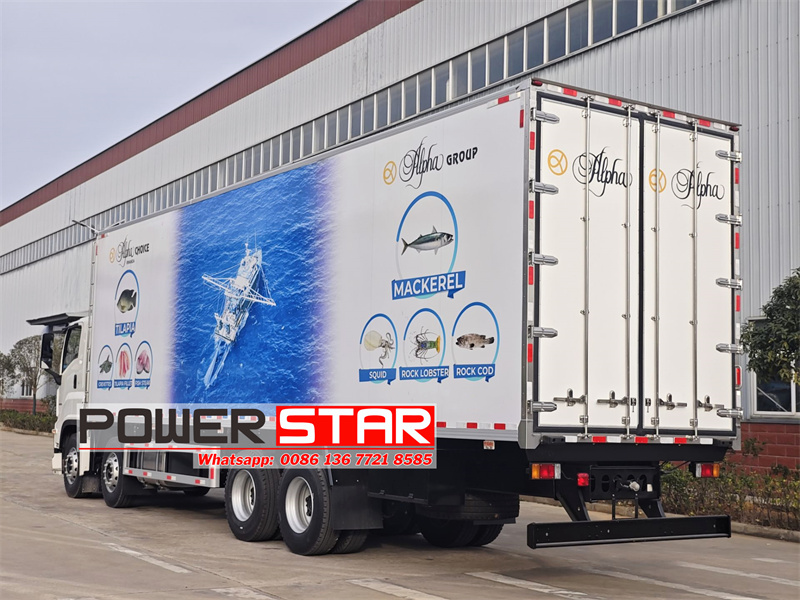

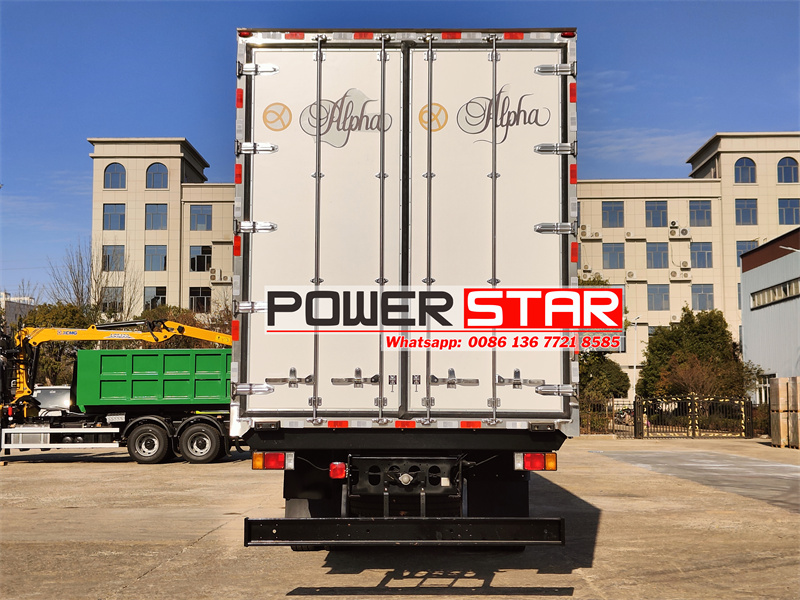

• The truck is also equipped with a Full Size Double Opening Rear Door, which makes loading and unloading cargo more convenient and fast, improving transportation efficiency.
• The internal dimensions of the truck body reach 10500mm x 2400mm x 2800mm, providing ample storage space for seafood and other cargo.
• The truck uses high-performance sealing strips and door locks to ensure the sealing performance of the compartment, preventing the intrusion of outside air and moisture.
• Additionally, the truck is equipped with a lighting system and ventilation system to maintain air circulation and adequate lighting inside the compartment, facilitating operation and monitoring by the driver and loading/unloading workers.
Refrigeration System

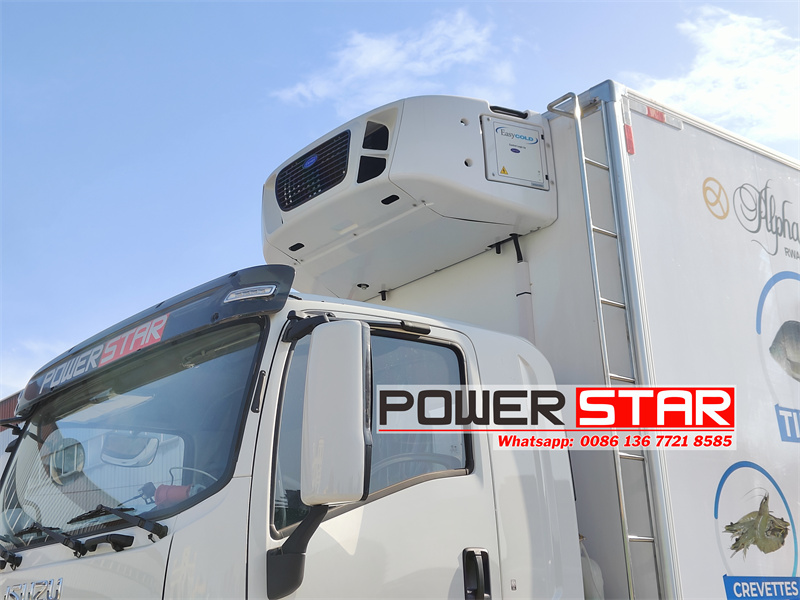

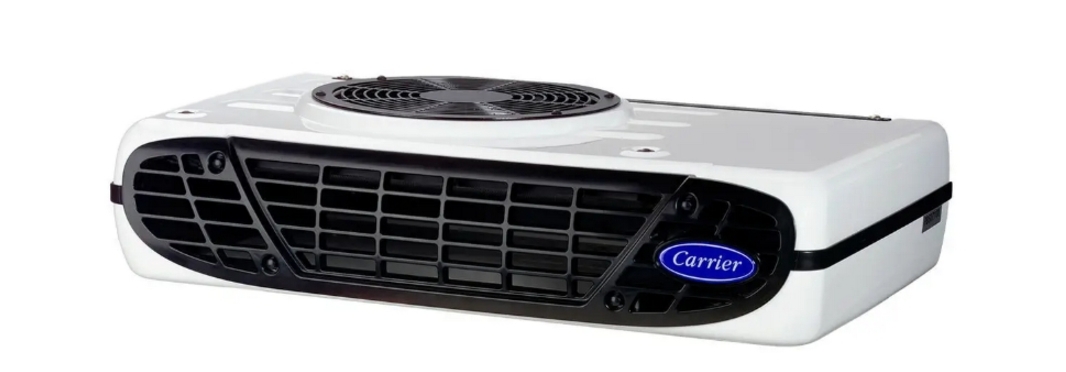

• Refrigeration Unit: The vehicle is equipped with the Carrier SUPRA 1250 refrigeration unit, a well-known brand in the industry renowned for its efficient cooling, stability, reliability, and intelligent control. This unit has powerful cooling capacity and a precise temperature control system, capable of quickly reaching and maintaining the set refrigeration temperature, ensuring the freshness and quality of perishable cargo such as seafood during transportation. Through advanced refrigeration technology and optimized refrigerant circulation, the system can maintain stable cooling effects under various environmental conditions, ensuring the freshness and safety of the cargo.
• Temperature Control System: The temperature control system of the truck adopts advanced sensors and controllers, capable of real-time monitoring of the internal temperature of the compartment and automatically adjusting the cooling power of the refrigeration unit as needed. With precise temperature settings and a stable control system, the truck can ensure that the cargo remains in the optimal refrigerated state throughout the transportation process.
Application Fields
• Main Uses: With its powerful dynamic performance, advanced refrigeration technology, and flexible wheelbase configuration, the Isuzu GIGA 8X4 Refrigerated Truck is particularly suitable for long-distance seafood transportation. Whether for direct delivery from fishing ports to markets or cross-regional cold chain logistics, it can provide safe, efficient, and reliable transportation solutions.
