This modified crane truck is competent to lift 5 tons of materials. It is very efficient when it comes to moving heavy equipment, machinery, vehicles, and other items. It is widely used in construction sites, manufacturing sectors, mills, factories, and for transportation of heavy tools. Any special requirements regarding the specifications and configurations can be discussed and met accordingly.
Work capacity:
5 tonsTruck model:
PT5110GXREngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2,LHDGear box:
MLD-6Q,manualRemarks:
Isuzu 4 sections telescoping boom crane with basketThe Isuzu boom crane truck with manlifter also called Isuzu 700P manlift truck with basket,Isuzu truck mounted crane with basket,Isuzu NPR 5 tons crane truck with basket,is a powerful and versatile machine, ideal for a wide range of lifting and material handling tasks. Its powerful engine, sophisticated boom crane system and Manlifter system make it ideal for construction, utility and industrial applications. With its user-friendly controls, durable structure and wide range of attachments, the Isuzu boom crane truck with manlifter is a valuable addition to any heavy vehicle fleet.
The Isuzu 700P boom crane truck with manlifter is a highly specialized vehicle, designed for a wide range of lifting and material handling tasks. Its sophisticated boom crane system and Manlifter system make it a valuable tool for industries that require heavy lifting capabilities and the ability to access hard-to-reach areas.
The Isuzu 700P telescopic boom crane truck with boom embodies the pinnacle of utility vehicles, seamlessly integrating power, precision and versatility to revolutionize operations across a wide range of industries. This engineering marvel combines Isuzu's heritage of reliability with cutting-edge technology to deliver unrivalled performance in lifting and working-at-height tasks.
Isuzu 700P boom crane truck with Manlifter |
||
Vehicle Model: |
PT5110GXR |
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
7400×2350x3340mm |
Wheelbase: |
4175mm |
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
Front/Rear Suspension |
1110/2115mm |
|
Rear Axle Ratio: |
4.1 |
|
Approach/Departure angle: |
17/15° |
|
Leaf Spring: |
8/10+6 |
|
Weights and Capacities |
Curb Weight: |
3420kg |
Payload: |
7000kg |
|
GVW: |
10550kg |
|
Axle Loads: |
3550/7000kg |
|
Engine |
Engine Model: |
4HK1-TCG61 |
Max output: |
139Kw |
|
Displacement: |
5193ml |
|
Horsepower: |
190HP |
|
Exhaust Gas Treatment Technology: |
DPF |
|
Transmission |
Transmission: |
MLD-6Q |
Forward Gear: |
6 Speed Gear |
|
Backward Gear: |
1 Speed Gear |
|
Brake |
Air Brake |
|
Generator |
24V-80A |
|
Max speed |
110Km/h |
|
Cab |
Number of Seats: |
3 |
|
Type |
Isuzu 700P single row,with A/C |
Chassis |
Drive Type: |
4x2,LHD |
Tires: |
7(Including Spare Tire) |
|
Tire Model: |
235/75R17.5 |
|
Fuel Tank |
Number: |
1 |
Type: |
Diesel |
|
Capacity: |
100L |
|
Configurations: |
1 |
Power Steering System |
2 |
Air Conditioning |
|
3 |
Retro-reflective Marking |
|
4 |
ABS |
|
5 |
Free Maintenance Battery |
|
Crane Parameter |
Brand |
XCMG |
Model |
SQS125-4 |
|
Boom type |
4 sections telescoping boom |
|
Max. working height |
12.5 m |
|
Max. Boom length |
11.2 m |
|
Max lifting moment |
12.5 t·m |
|
Max. Working radius |
11 m |
|
Max. lifting capacity |
5000 kg |
|
Max. pressure of hydraulic system |
22MPa |
|
Crane weight |
2260Kg |
|
Rotation of turntable |
360° continuous |
|
Rotation of turntable |
±90° |
|
Outrigger |
Front H type,5000mm |
|
Installation space |
900 mm |
|
Cargo Box Dimension |
4500x2300x550mm |
|
Basket material |
Stainless steel |
|
Basket max. loading capacity |
200 kg |
The Isuzu 700P 4x2 5ton boom crane truck with manlifter is a versatile, powerful machine designed for a wide range of lifting and material handling tasks. This truck combines the rugged reliability and durability of an Isuzu truck chassis with the precision and versatility of the boom crane and Manlifter system, making it ideal for construction, utility and industrial applications.
At the heart of the Isuzu 700P crane truck with basket is its powerful engine. The truck is equipped with a rugged diesel engine that provides ample power and torque to handle the most demanding lifting jobs. The engine is designed for durability and efficiency, ensuring the truck can operate reliably in a variety of environments and conditions.
The boom crane system on the Isuzu 700P is designed to be precise and versatile. The boom can be extended to a length of 11.2m, enabling it to reach high places and tight spaces. The crane is equipped with a range of hydraulic cylinders and controls that allow the operator to precisely position the boom and attachments, allowing for easy and precise lifting and moving of heavy loads.

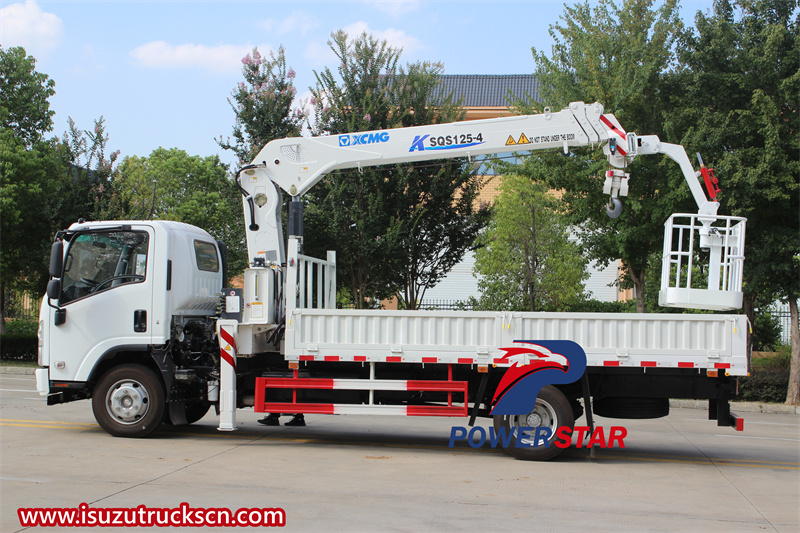

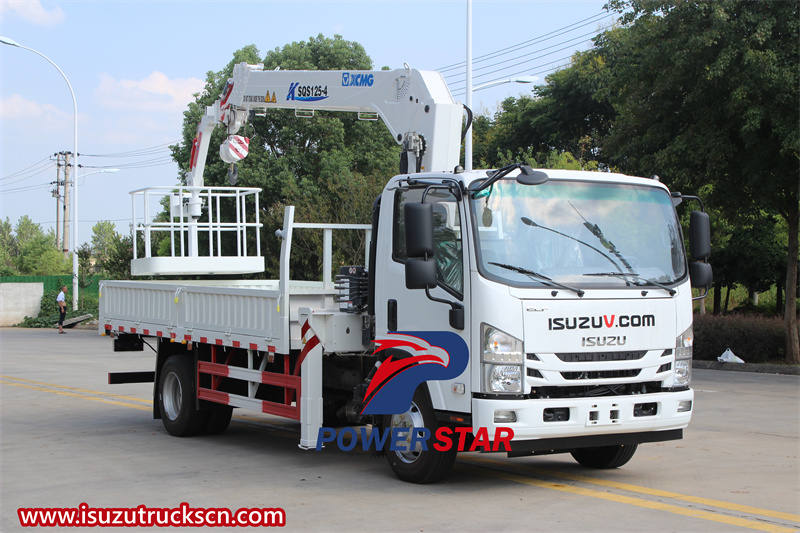

Isuzu boom crane truck with manlifter
One of the main features of the 5ton ISUZU Truck Mounted Hydraulic Crane is its Manlifter system. The Manlifter is a specialized attachment that can be mounted on the end of a boom crane, enabling it to lift and transport personnel in addition to materials and equipment. This feature makes the truck particularly useful in applications where workers need to be lifted to heights or hard-to-reach areas.
The manlifter system on the Isuzu 700P is designed for safety and comfort. It comes with a spacious and comfortable cab that provides workers with ample space to move around and perform tasks. The cab is also equipped with safety features such as seat belts, guardrails, and an emergency stop button to ensure workers are always protected.
The boom crane and Manlifter system on the Isuzu 700P are also versatile. The crane can be equipped with a variety of attachments, including buckets, hooks, and winches, enabling it to handle a variety of materials and loads. The Manlifter system can also be configured to accommodate different types of personnel platforms, making it easy to transport workers of different sizes and weights.

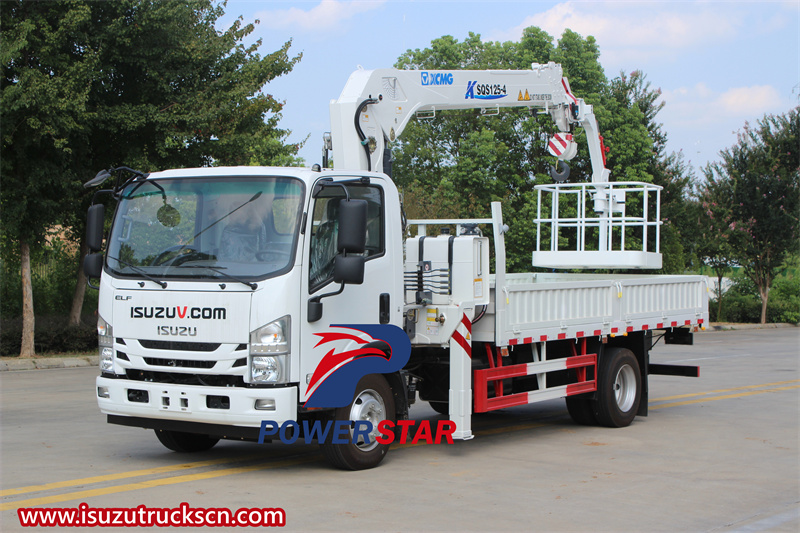

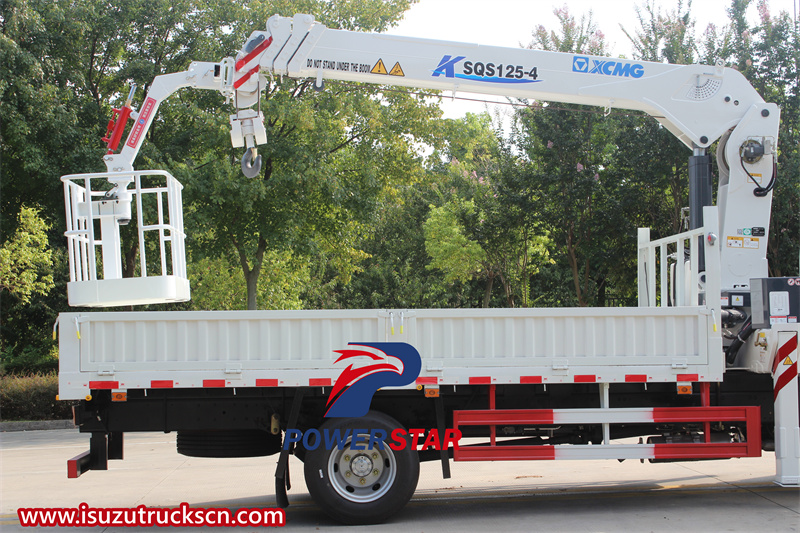

Isuzu 700P manlift truck with basket
In addition to its lifting capacity, the ISUZU ELF/NPR cargo truck with 5tons manlift crane is equipped with a range of features that make it easy to operate and maintain. The truck is equipped with a user-friendly control system that allows the operator to easily control the boom crane and manlifter systems. The truck also features a sturdy suspension system that ensures a smooth ride even when driving over rough terrain.
The Isuzu NPR telescopic crane truck and manlifter is also built for durability. The truck's chassis and body are made of high-strength steel, ensuring it can withstand the rigors of heavy-duty use. The truck's components are also designed for long-term reliability, with many of them built to withstand extreme temperatures, vibrations and other harsh conditions.
This modified crane truck is competent to lift 5 tons of materials. It is very efficient when it comes to moving heavy equipment, machinery, vehicles, and other items. It is widely used in construction sites, manufacturing sectors, mills, factories, and for transportation of heavy tools. Any special requirements regarding the specifications and configurations can be discussed and met accordingly.

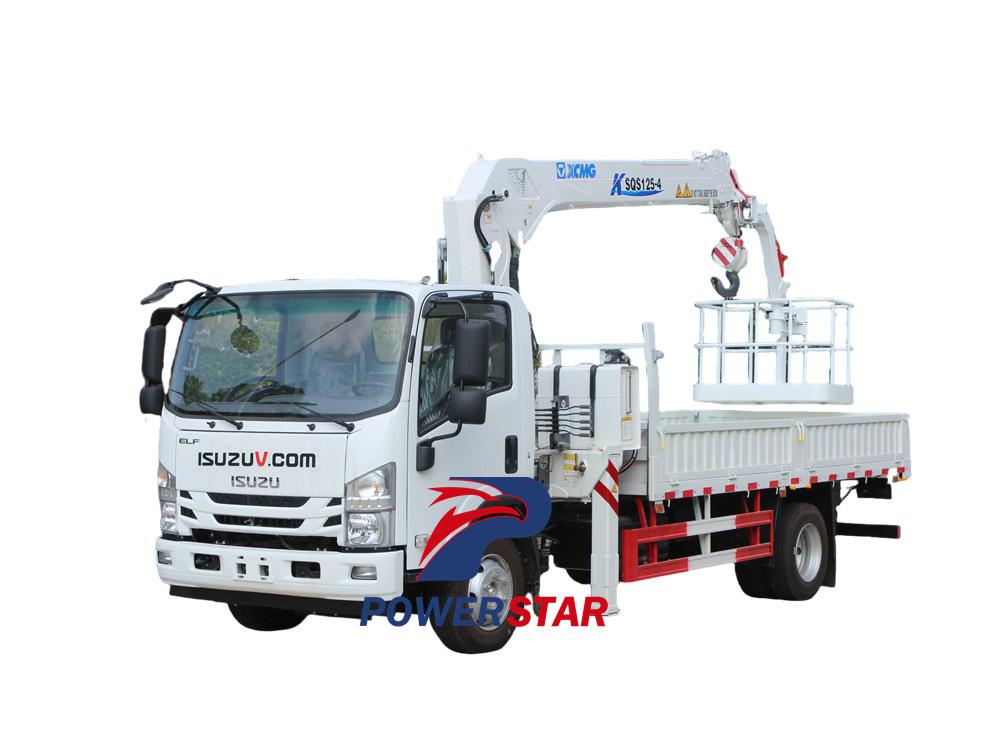

Isuzu truck mounted crane with basket
Feature:
● New Cabin
The new cabin model adopted front headlight follow-up steering technology, new 700P cabin is more beautiful, comfortable, and safe.
● New Power
ISUZU world-leading 4HK1-type brand new diesel engine with fully-electronic precise control and high-pressure common rail is employed, with stronger power, lower oil consumption, better oil adaptability, and better low-temperature starting property.
● More environmentally friendly
POWERSTAR Trucks have achieved low pollution and low fuel consumption throughout the life cycle, and the perfromance of the whole vehicle is simultaneously improved, the noise is lower, the jitter is smaller, and the vehicle is quieter and more comfortable.
● More economical (fuel efficient)
Low fuel consumption, compared with other vehicles of the same load capacity, fuel economy 10%-15%; high reliability, maintenance costs low.

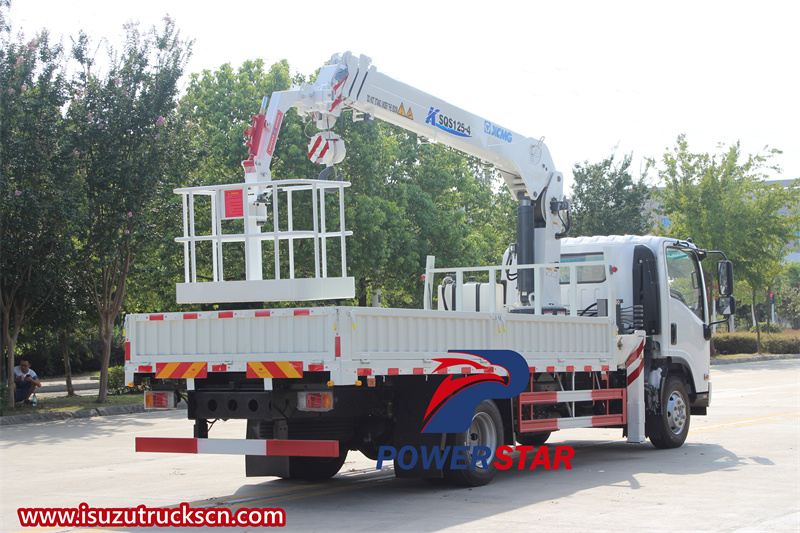

Isuzu NPR 5 tons crane truck with basket

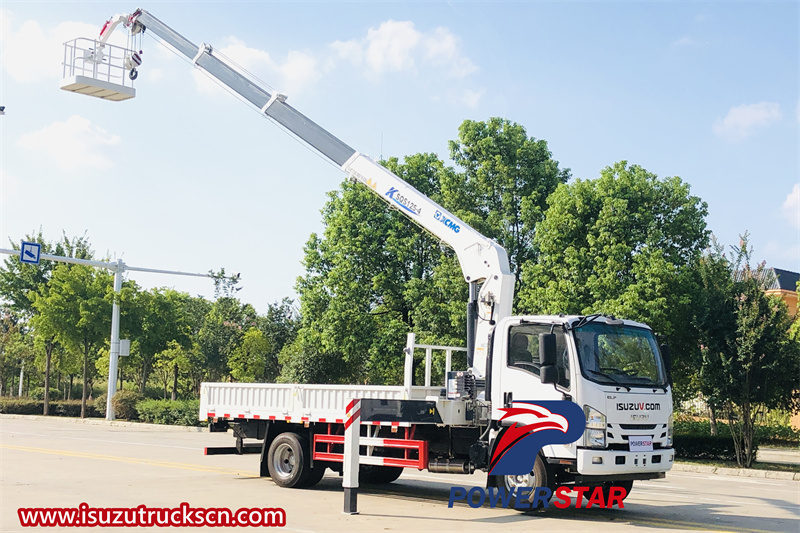

XCMG 4 sections telescopic arm extended
The 5ton telescopic boom with ISUZU 700P truck mounted XCMG crane is a highly specialized and versatile vehicle that has a wide range of uses across industries. Its primary purpose is to perform lifting and material handling tasks that require precision and heavy lifting capabilities. Here are some of the main applications this truck excels in:
★ Construction: In the construction industry, the Isuzu 700P Boom Crane Truck with basket is useful for tasks such as lifting building materials to heights, installing structural members such as beams and columns, and moving heavy equipment around the construction site. The Manlifter system also allows workers to be lifted into hard-to-reach areas to perform tasks such as welding, inspection, or repairs.
★ Utilities and Infrastructure: For utility and infrastructure projects, boom crane trucks can be used to lift and install power lines, telecommunication equipment, and other utilities. The Manlifter system allows technicians to access and operate these systems safely and efficiently.

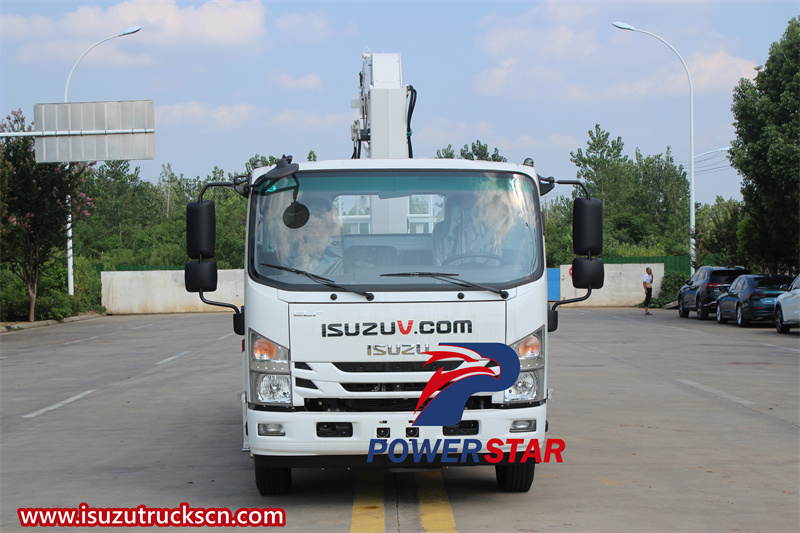

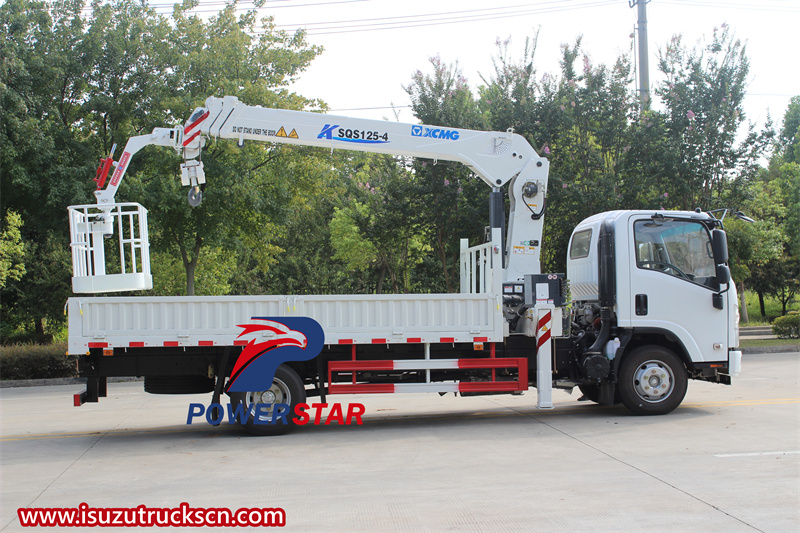

Front view

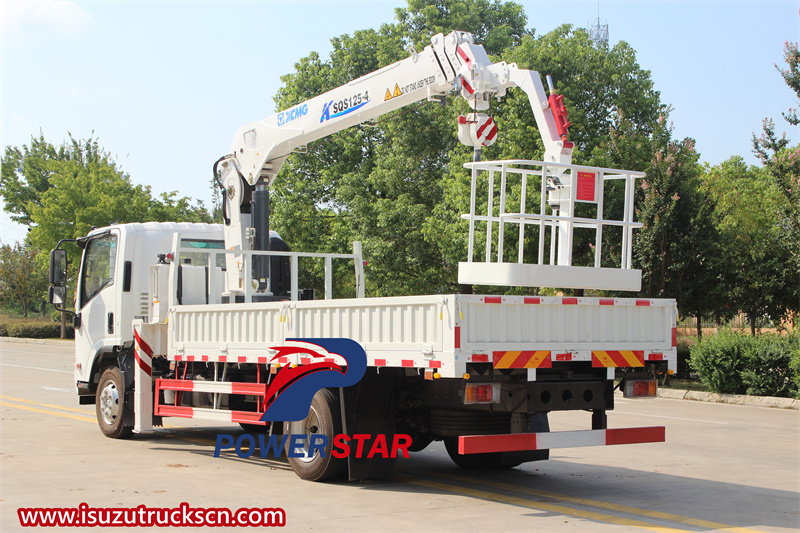

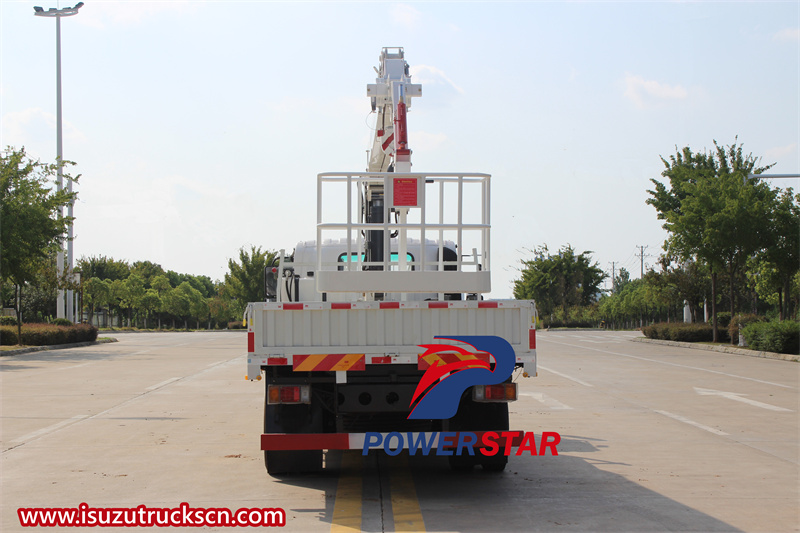

Rear view
★ Industrial and Manufacturing: In industrial and manufacturing settings, the Isuzu 700P 5ton crane truck with basket can be used to lift and move heavy machinery, components, and materials. It can also be used to assist on assembly lines or for maintenance and repair tasks that require workers to be lifted to a specific height.
★ Emergency Response: In emergency situations, such as natural disasters or accidents, a boom crane truck equipped with a Manlifter can be used to rescue trapped or injured people. The Manlifter system allows responders to safely lift and transport victims to safety.
★ Agriculture: Although less common, the Isuzu 700P boom crane truck equipped with a basket can also be used in agriculture, such as lifting and moving heavy equipment or materials on a farm or ranch.
★ Special Applications: The truck's versatility also makes it suitable for a variety of special applications, such as tree pruning, sign installation, and window washing. The boom crane and Manlifter system provide the precision and range needed to perform these types of tasks safely and efficiently.

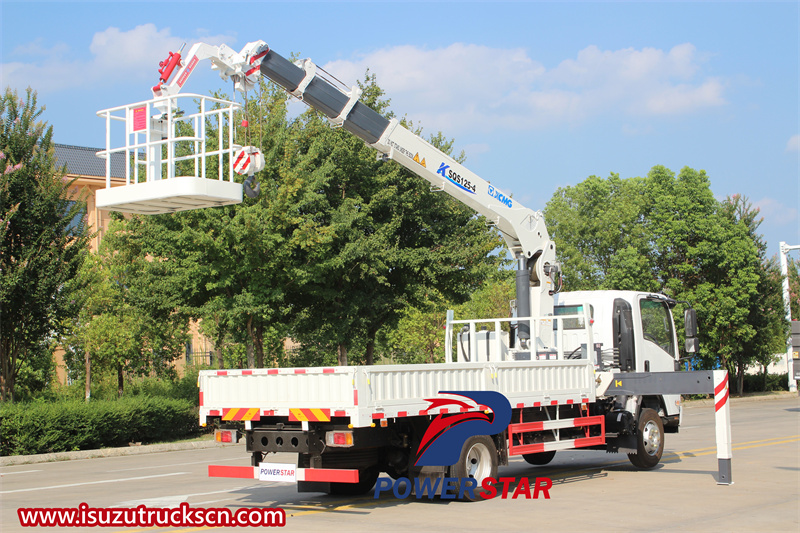

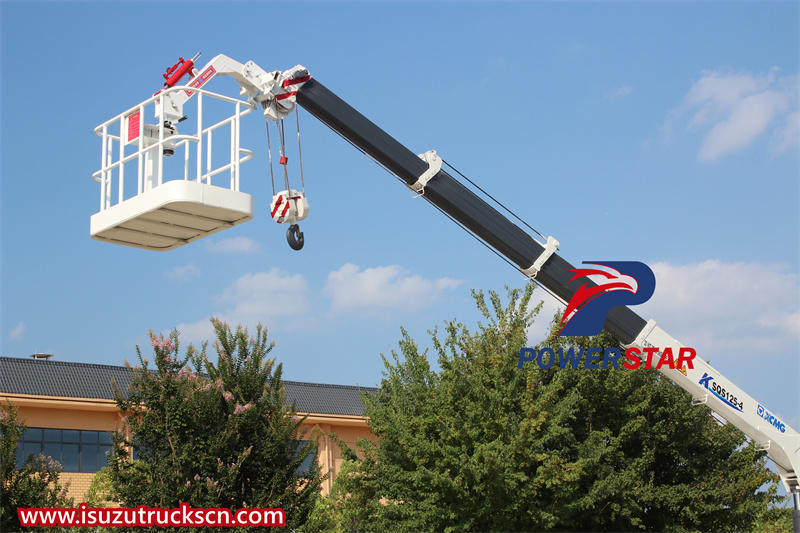

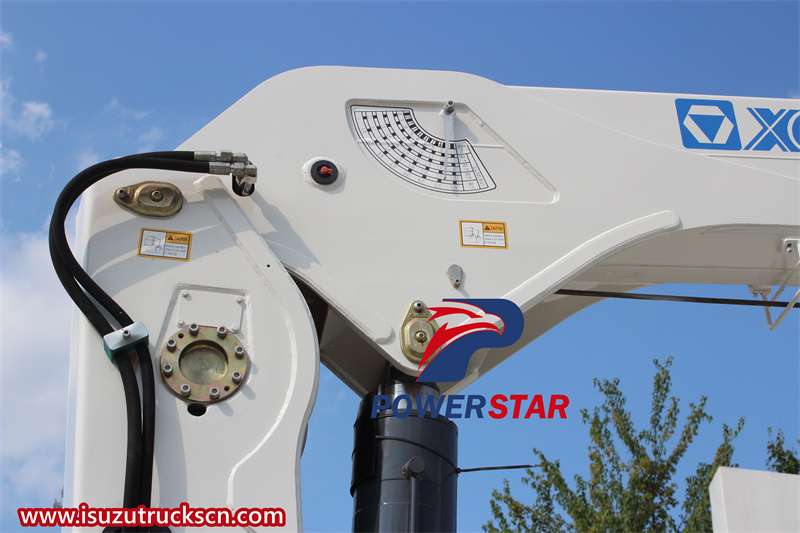

XCMG 4 sections telescopic arm with basket

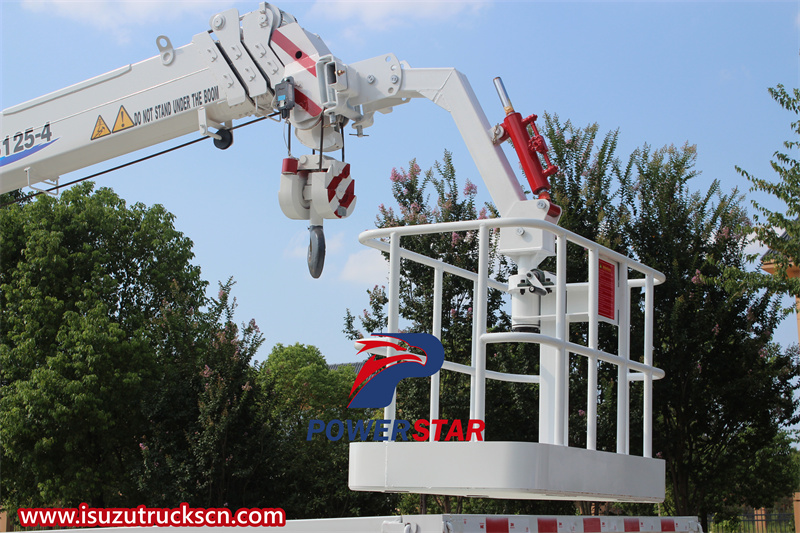

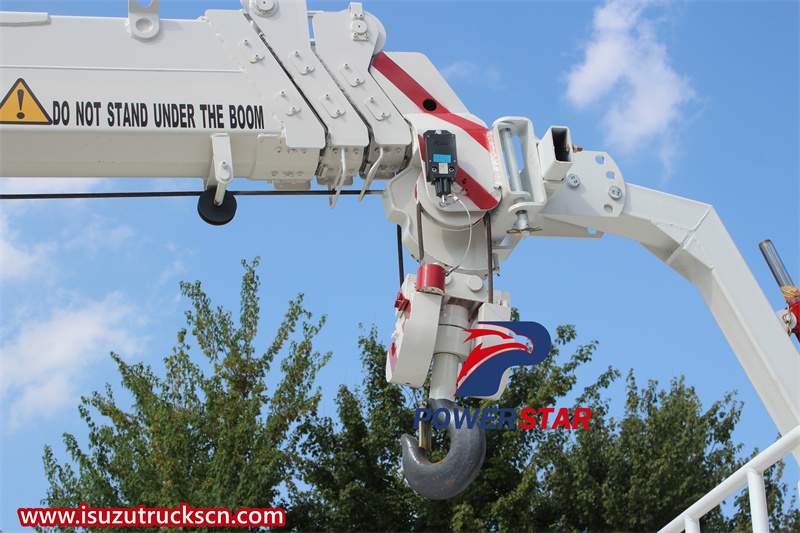

Hook

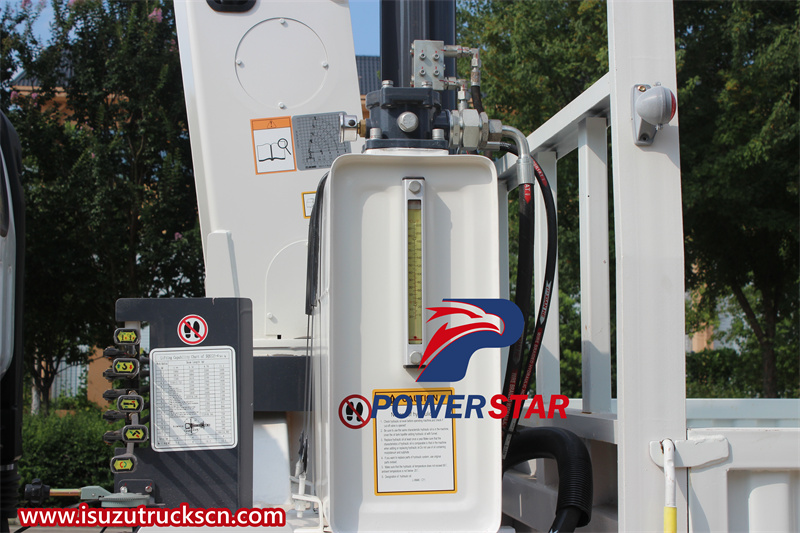

Hydraulic oil tank

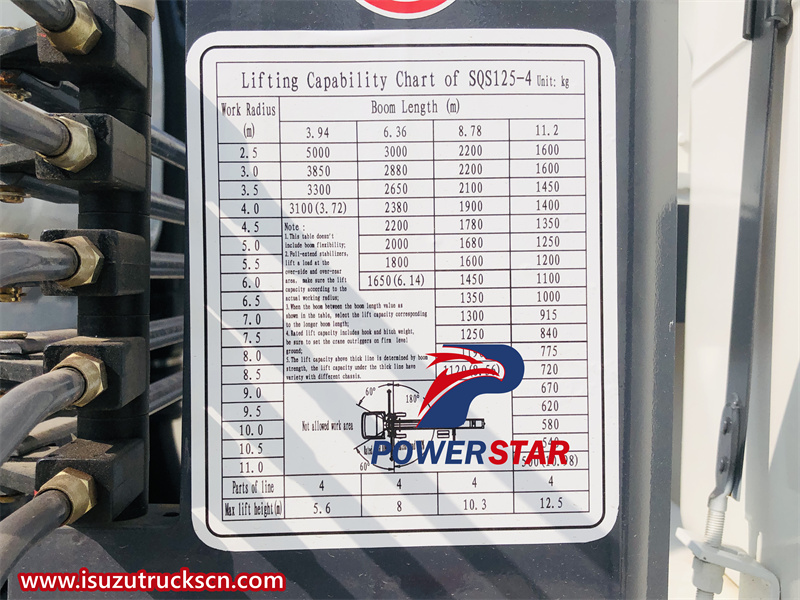

Lifting Capability Chart of XCMG SQS125-4

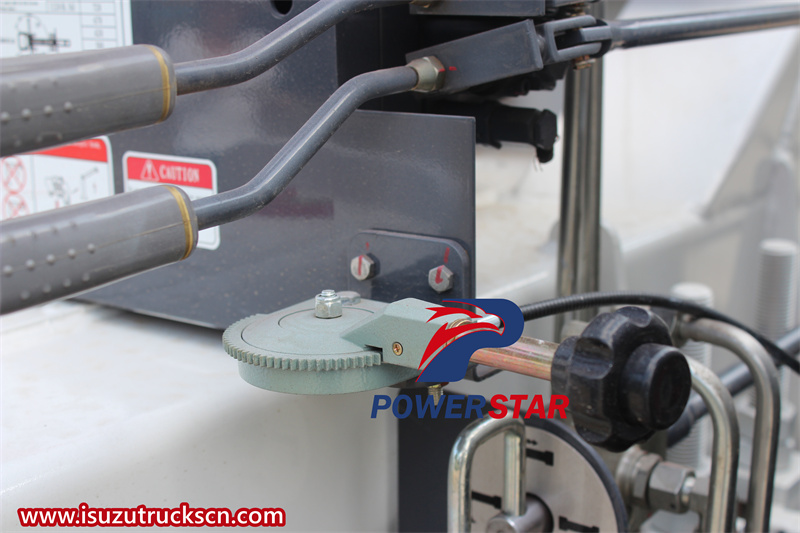

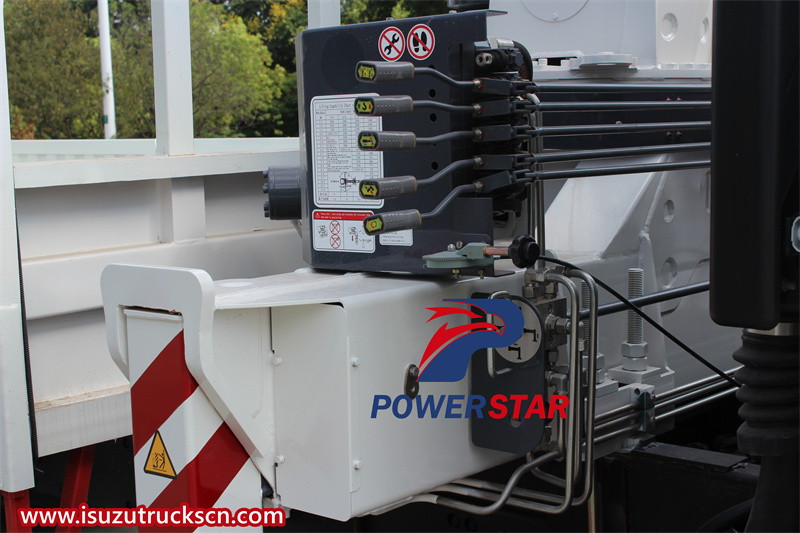

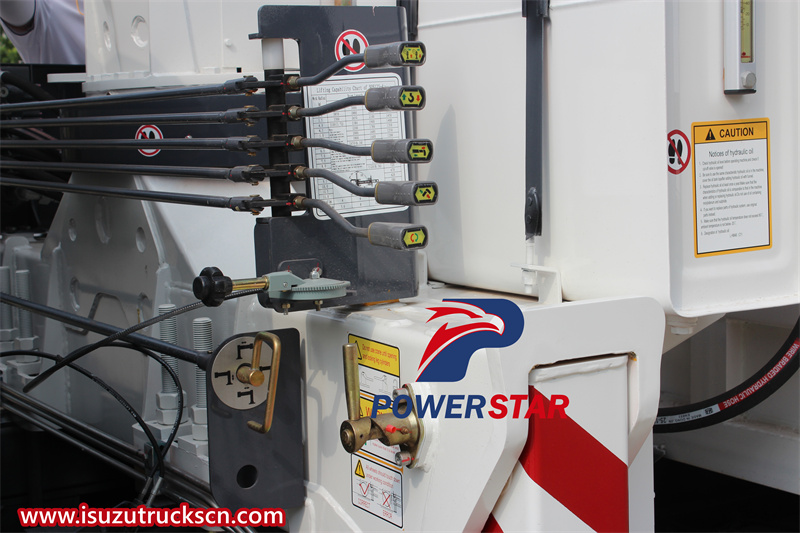

Joystick
Joystick

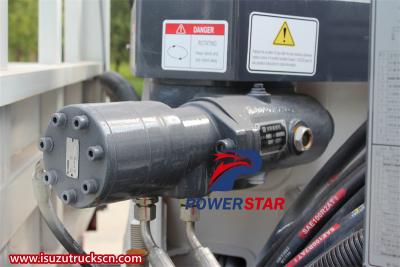

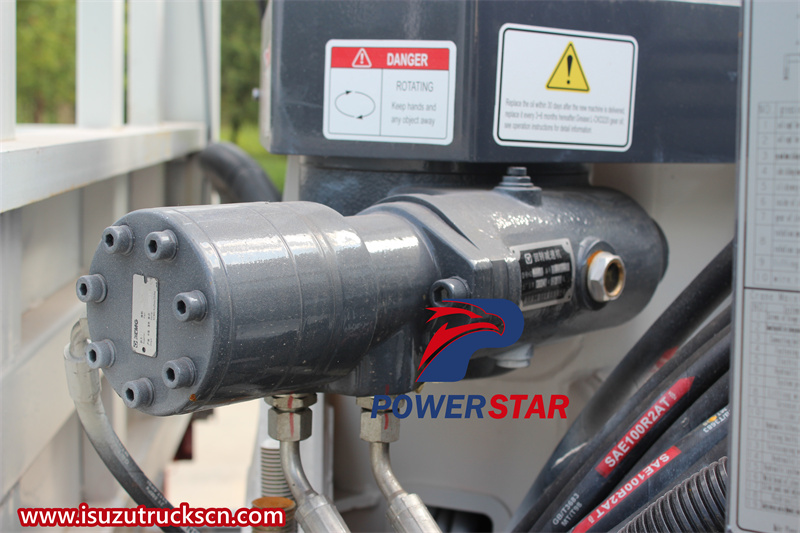

Rotary reducer

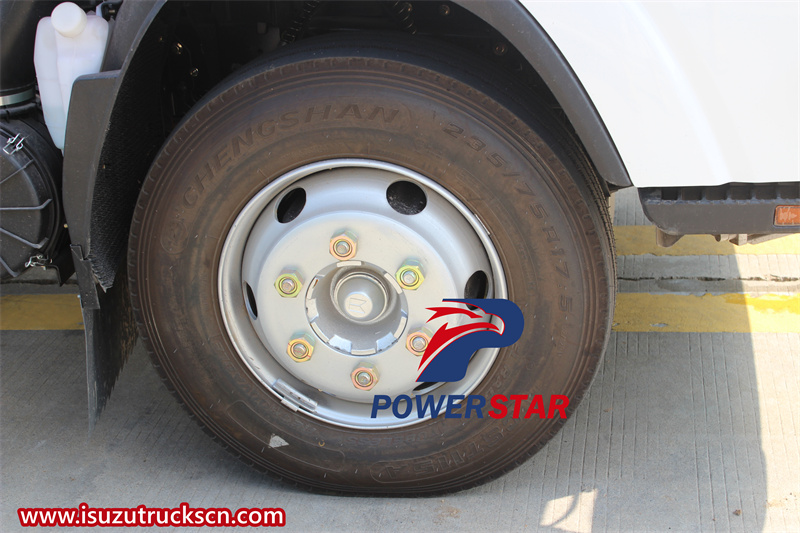

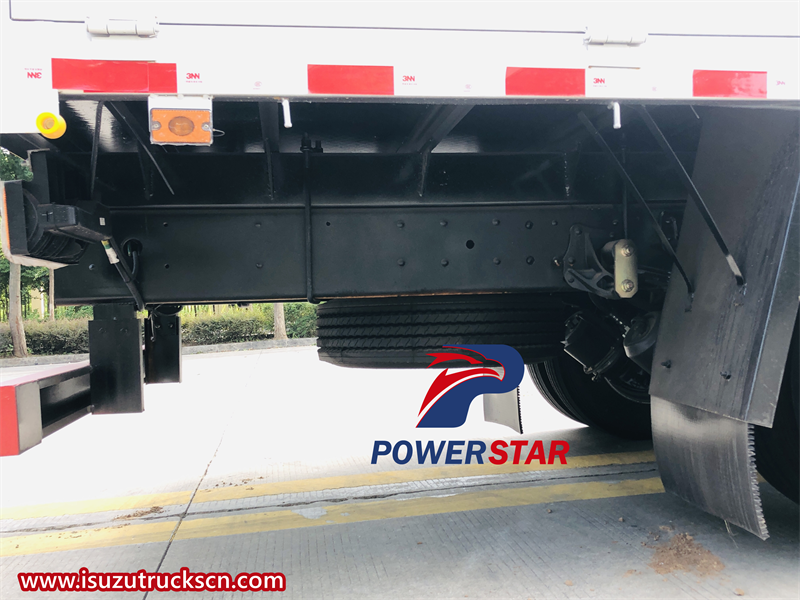

Spare tire
