The Isuzu fire rescue tender truck is a fire truck equipped with power generation, lighting equipment, communication equipment and related fire rescue equipment. It provides lighting for night fire fighting and rescue work, and also serves as a temporary power source for fire scene communication, broadcast publicity and demolition equipment. The vehicles can participate in rescue work in natural disasters such as earthquakes and floods, and provide support such as emergency medical rescue and material transportation.
Work capacity:
7M working heightTruck model:
PT5107GXFPM51Engine power:
120hpEngine type:
4HK1-CN6LBAxle drive:
4x2Gear box:
MSB 5-speed, ManualRemarks:
Vehicles can be used for fire lighting and to provide fire fighting equipment
I. Description of Japan ISUZU Fire Rescue Tender Truck
Isuzu fire rescue tender truck, also called Isuzu fire tender,Isuzu fire fighting tanker, Isuzu water tank fire truck, Isuzu fire appliance, Isuzu fire fighting engine, Isuzu fire-extinguishing rescue truck, Isuzu fire service truck,Isuzu lighting emergency rescue vehicle, is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Isuzu fire rescue tender truck Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.
---- Extended model: water fire truck, Foam fire truck, Dry powder fire truck, Forest fire truck, water tower fire truck, Emergency rescue fire truck, Lighting tower fire truck.
II. Specification of Japan ISUZU Fire Rescue Tender Truck
ISUZU 4x2 600P Fire Rescue Tender Truck |
||
Vehicle Parameters |
||
General |
Vehicle Model |
PT5107GXFPM51 |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
ISUZU |
|
Overall Dimension(mm) |
7350×1920×2980 |
|
GVW/Curb Weight(kg) |
12800/7000 |
|
Generator |

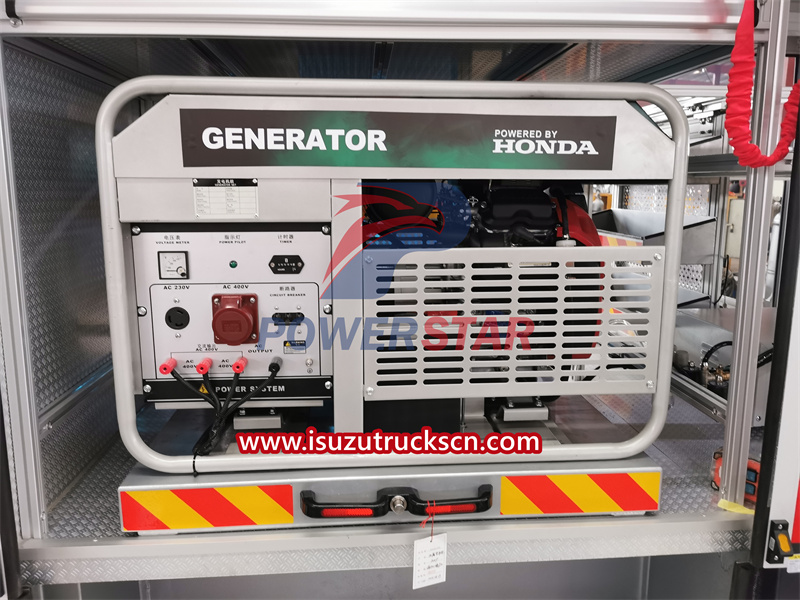

HONDA Generator Set,Rated Power10KW |
|

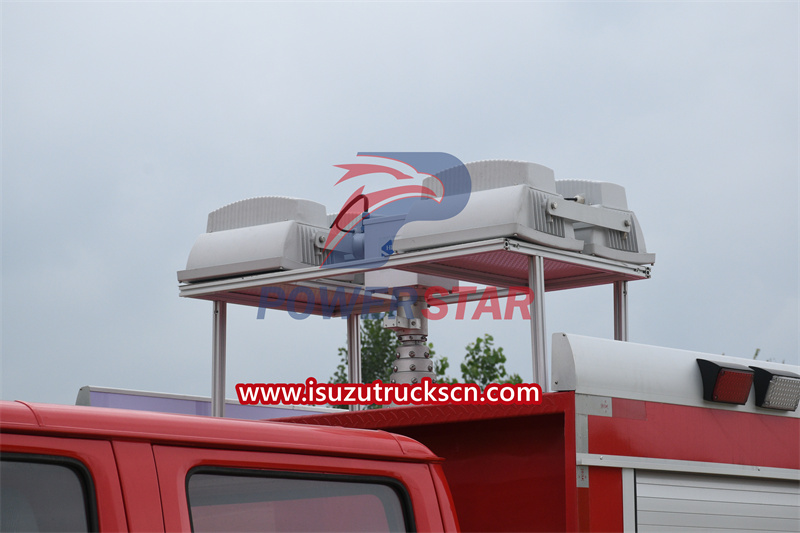

Pneumatic lifting LED light |
Max lifting height:7m |
|
Main light power |
4KW |
|
Chassis Parameters |
||
Cab |
Cab Seat |
5 |
Air Conditioner |
Optional |
|
Engine |
Fuel Type |
diesel |
Engie Model |
4HK1-CN6LB |
|
Engine Brand |
Japan |
|
Power |
120HP/88KW |
|
Emmission Standard |
Euro6 |
|
Chassis |
Drive Type |
4*2 |
Transmission |
MSB 5-speed, Manual |
|
Wheelbase(mm) |
3815 |
|
Tyre Specification |
7.00R16LT 14PR |
|
Tyre No.(pcs) |
6+1 |
|
Max Speed(km/h) |
95 |
|
F/R Tread |
1960/1855mm |
|
F/R Overhang |
1335/2420mm |
|
Paint |
Red and white |
1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc.all available.
2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
4.Water, foam ,powder together type, Customized.
Isuzu 100P fire truck |
Isuzu ELF/NPR fire tender |
Isuzu FTR fire engine |
Isuzu 700P fire truck |
Isuzu FVR/FVZ fire truck |
Isuzu VC66 levels firetruck |
4x2 |
4x2 |
4x2 |
4x2 |
4x2.6x4.8x4 |
4x2. 4x4。6x4.8x4 |
98hp |
190hp |
205hp |
190-205hp |
240-300hp |
350hp.380hp.420hp.460hp.520hp |
III. ISUZU Fire Rescue Tender Truck Details

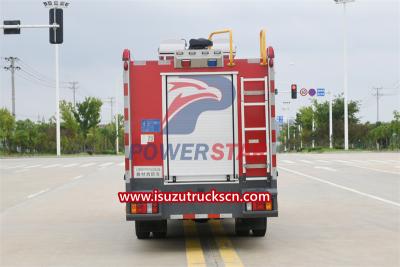

● Isuzu fire rescue tender truck photos for reference

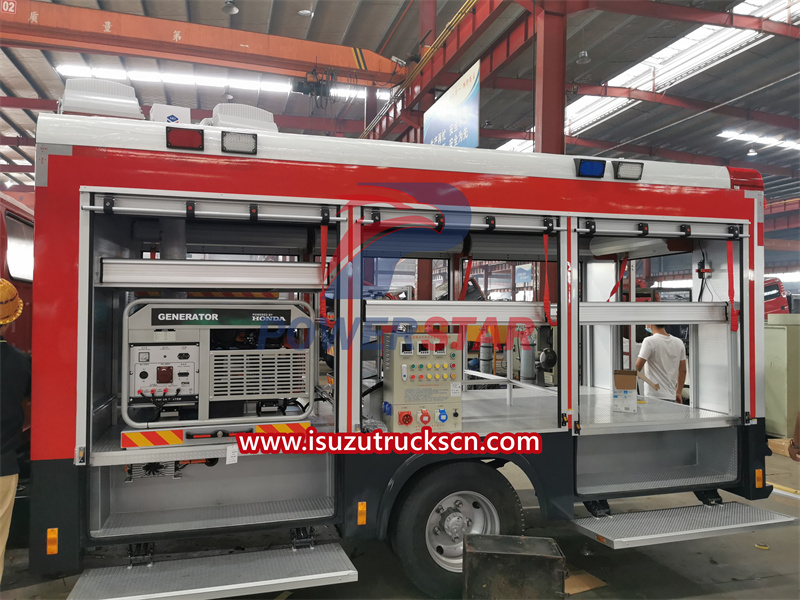

The Isuzu 600P emergency rescue and firefighting equipment vehicle is equipped with rolling shutter doors on three sides of the vehicle and equipped with equipment racks. It can be equipped with firefighting and rescue tools and equipment as required. The vehicle is used by firefighting forces for fire extinguishing, auxiliary fire extinguishing or fire rescue, and can also participate in natural disasters such as earthquakes and floods. It provides emergency medical rescue and material transportation support for rescue work; a lifting light is installed on the top of the car body, and the main light power can reach 4KW; it comes with a 10.5 kilowatt generator set to provide lighting for night fire rescue.

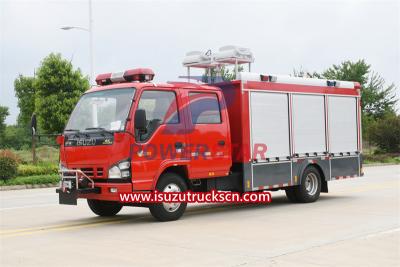

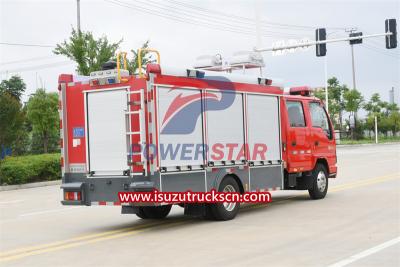

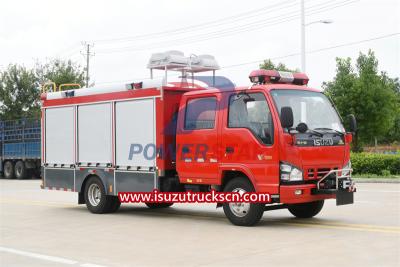

Isuzu 600p fire truck for fire rescue

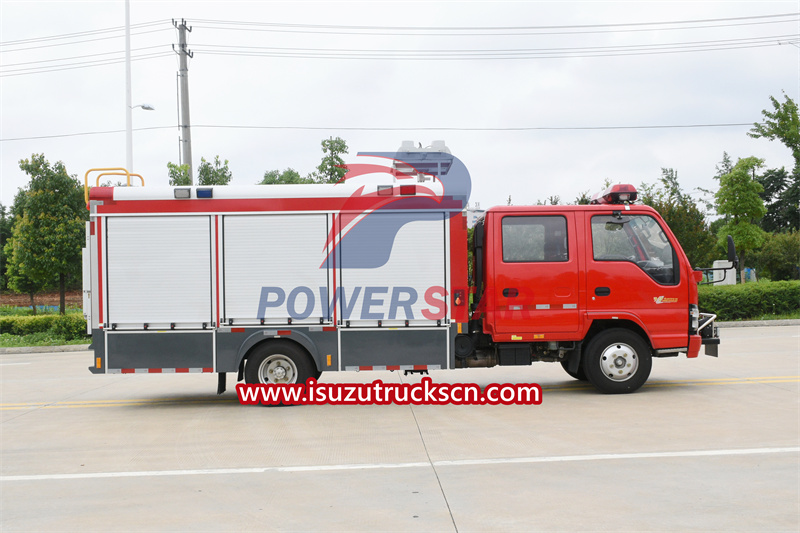

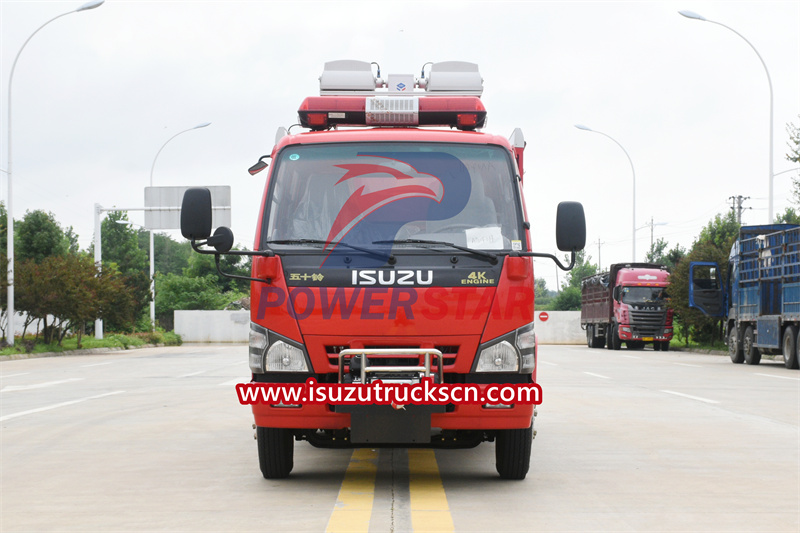

Isuzu 4X2 600p fire truck front view

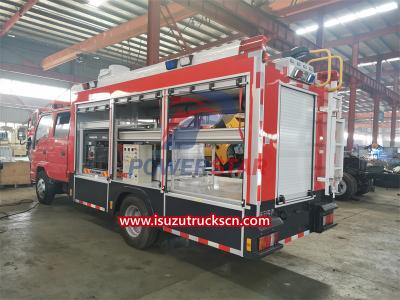

Isuzu lighting fire truck in our plant

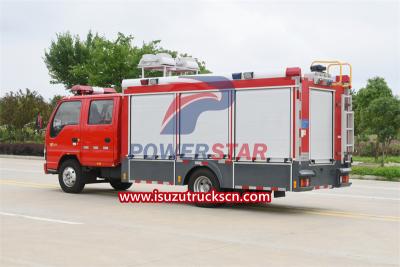

Isuzu fire rescue truck for sale

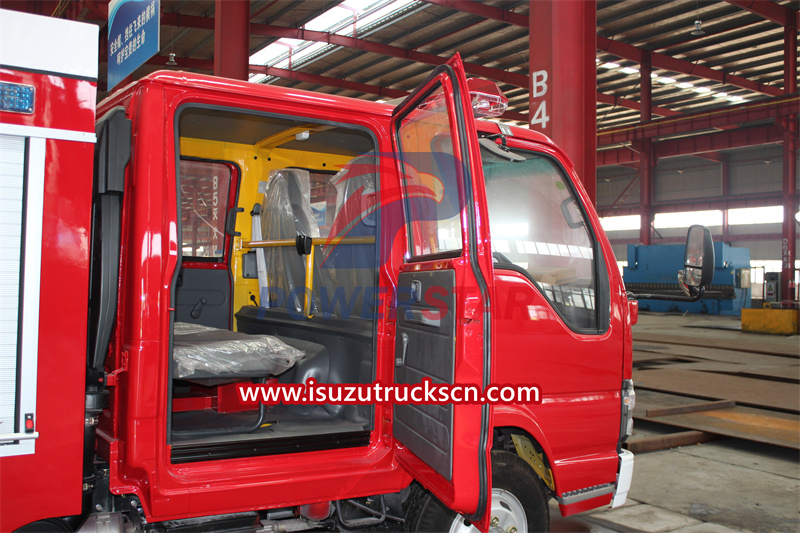

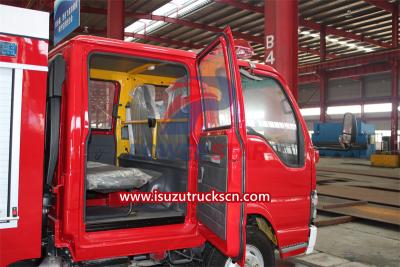

1. The fire truck adopts a double-row integrated structure, with a wide field of vision and a large number of passengers, and can accommodate 5 people. The carriage is made of high-quality aluminum alloy profiles and is made of an integral welded frame structure using patented technology. Built-in bolt connection makes space adjustment easy. It has the advantages of high strength, corrosion resistance and light weight. All wiring harnesses are preset in grooves to avoid wear and tear.
2. It is manufactured using aluminum alloy profile built-in tower connection technology introduced from European technology, with a full joint structure and an aluminum alloy rolling shutter door.

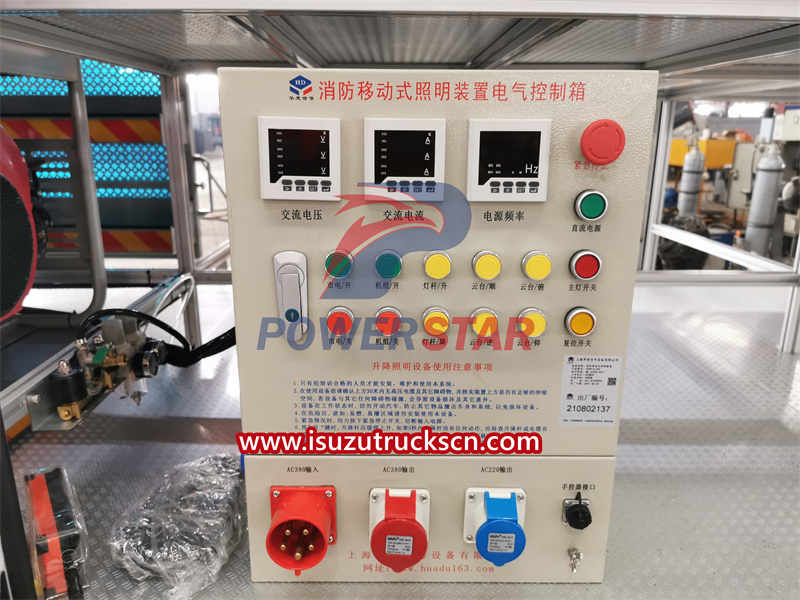

3. The vehicle control system adopts intelligent program design and fully electronic control operation. Different control program modules are available according to vehicle configuration. It adopts waterproof and dustproof design with high protection level. The lighting equipment on the Isuzu rescue lighting fire truck can be remotely operated and adjusted through the remote control or on-board control panel, allowing the operator to adjust the lighting function as needed.
Optional equipment
Generator set |
Folding lift lighting system |
GPS navigation |
Rescue tool box |
Hydraulic power station |
water pump |
Hydraulic Breaking Pick |
Explosion-proof exhaust blower |
Hydraulic disc cutting machine |
Explosion-proof portable lighting |
Movable lighting |
Car PTZ |
Explosion-proof intercom |
Multifunctional long ladder |
welding machine |
Hydraulic Diamond Chain Saw |

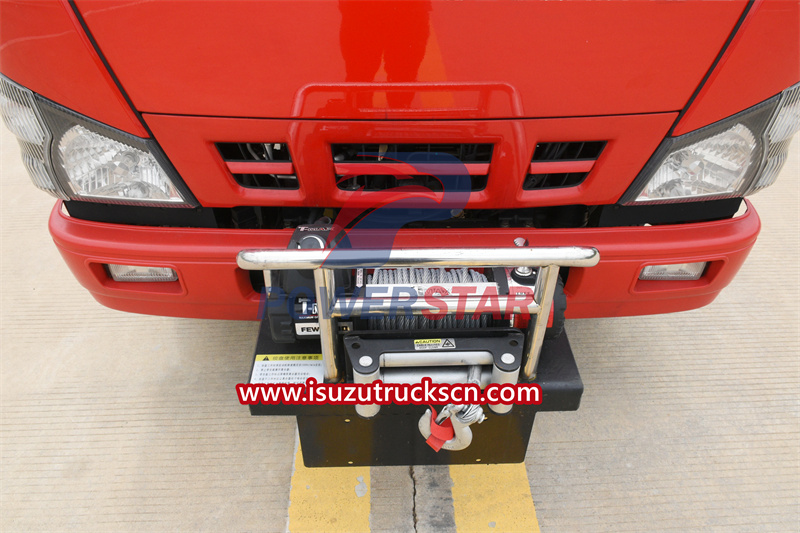

Electric winch |
Gas detection equipment |
Infrared thermometer |
Intelligent integrated control system |
Submersible pump |
Cable tray |
Explosion proof tool set |
Power lightning protection system |
4G wireless image transmission system |
Vehicle mounted fire extinguisher |
Medicine kit |
Stanley Combination Tools |
… |
|
Actual assembly equipment is tailored to customer needs |

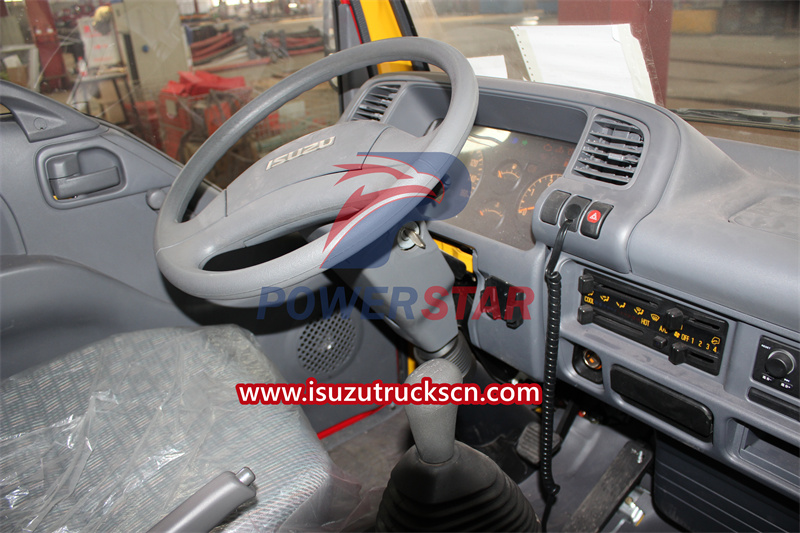

● Isuzu fire rescue tender truck details
