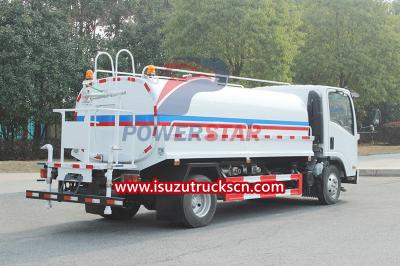

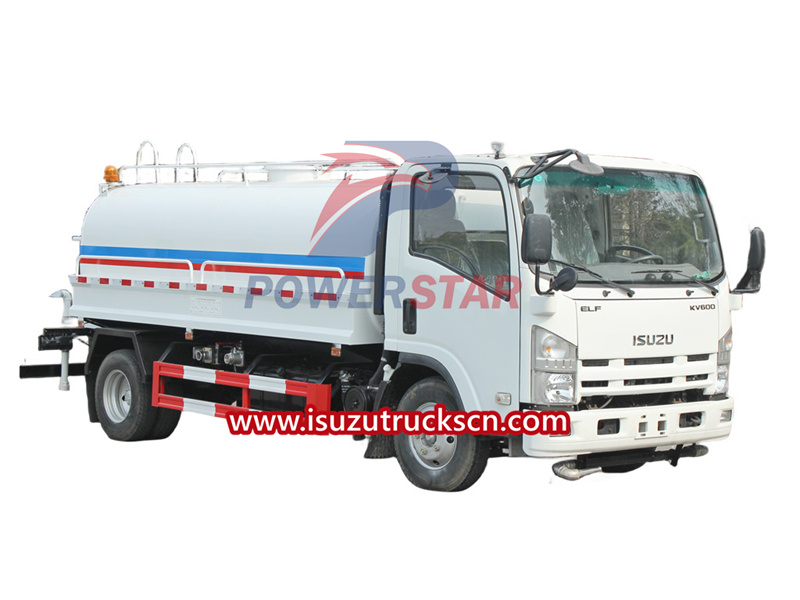

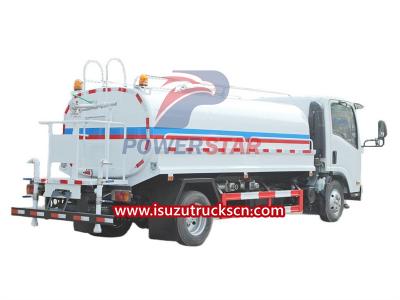

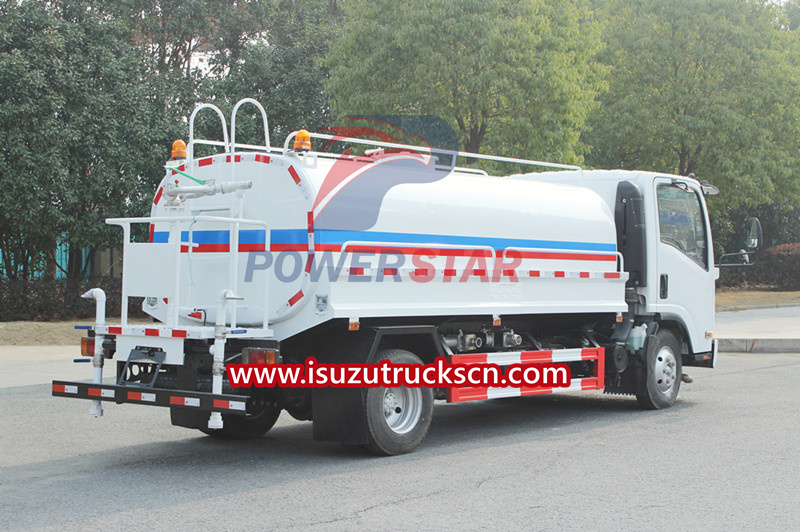

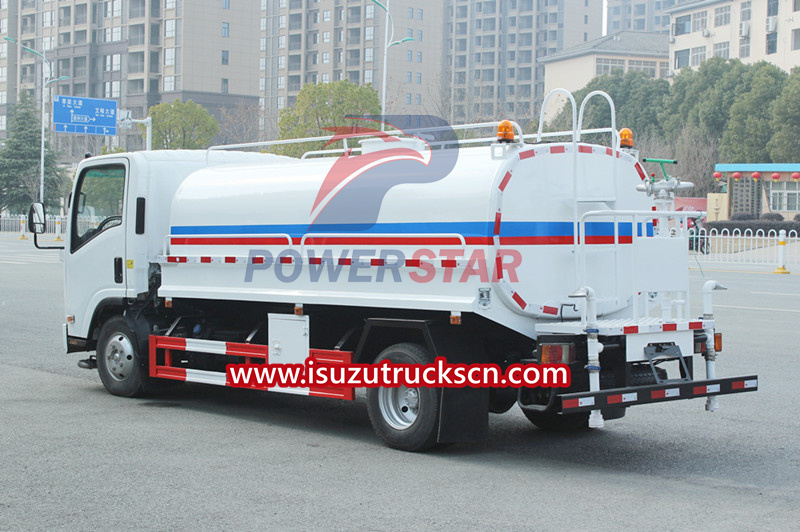

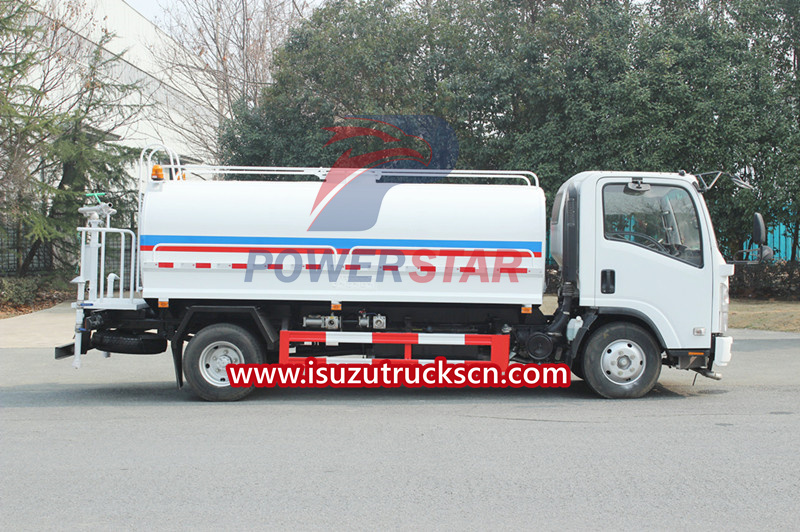

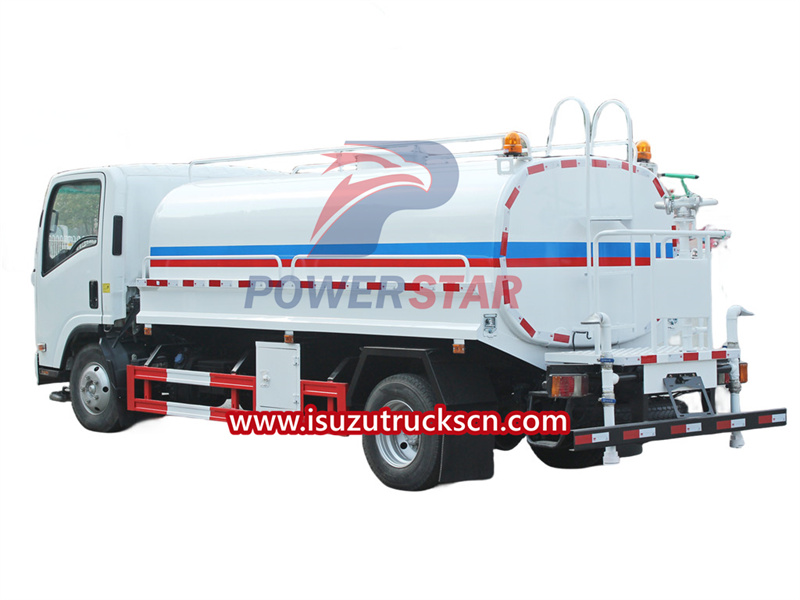

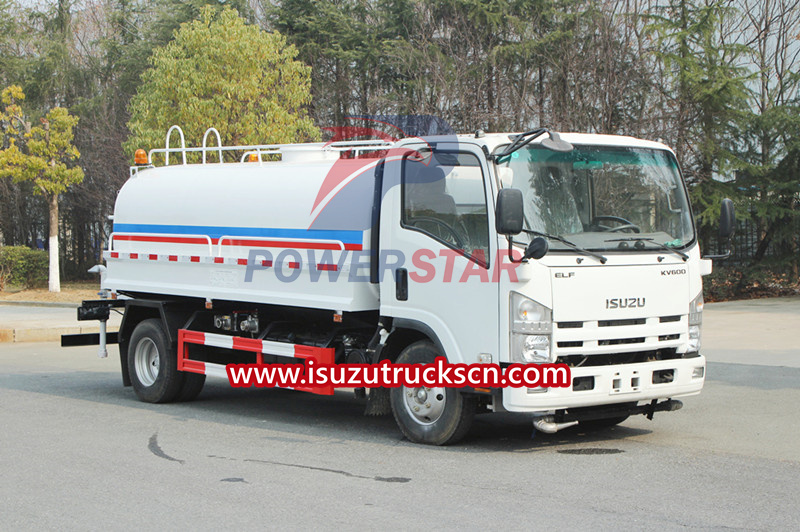

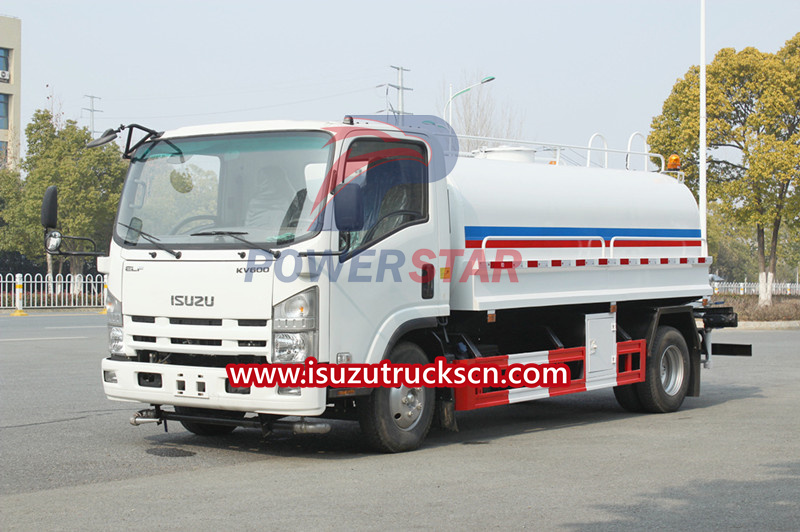

ISUZU NPR 7000 Liters 4X2 potable water tanker wagon for sale, Original Japan ISUZU truck chassis, equipped with 4KH1CN diesel engine 120HP, MSB 5-shift manual gearbox with 5 forward and 1 reverse, food grade Stainless steel 304-2B material for whole tanker device and pipeline device, This Customized 2024 Isuzu Potable Water Service Truck has been manufactured using the base of an Isuzu truck and a specialized stand-alone tank system from POWERSTAR Specialties. The FDA-approved 1900-gallon (7,000 liter) POTABLE water tank includes an immersion heater to keep the water from freezing. The pump and fill hose sit in the insulated and heated, split-lid rear compartment.
Work capacity:
7000 LitersTruck model:
PT5080GJY07QEngine power:
120 HPEngine type:
4KH1CNAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
7CBM elliptic water tanker with front and rear water spraying nozzles
Isuzu water truck newly NPR drinking water truck is a commercial vehicle specially designed for transporting and supplying drinking water. The Isuzu fresh water tanker trucks are equipped with special water tanks and treatment equipment to ensure the safety and hygiene of the drinking water supplied. Isuzu Water tanks are usually made from high-quality stainless steel or food-grade polyethylene materials, ensuring excellent protection of water quality. Isuzu loaded drinking water trucks are also equipped with water treatment equipment such as filters and sterilizers. These devices can effectively remove impurities and bacteria from water, ensuring that the supplied drinking water reaches safe drinking standards. The truck is also equipped with a water supply system and distribution lines, allowing potable water to be distributed from the truck's tank.
Product Parameters:
Isuzu potable water tanker trucks manufacturer sale. This model isuzu water tanker has flexible and diverse water supply methods, such as direct water supply in residential areas, or for emergency purposes such as fire extinguishing when needed. Isuzu fresh water tanker trucks are designed with conservation and environmental protection in mind, equipped with advanced fuel-saving engines and power systems to reduce fuel consumption and carbon emissions. In addition, the safety performance of trucks is taken seriously, with advanced braking systems, stable suspension systems and other safety equipment to ensure stability and driving safety during transportation. All in all, the Isuzu drinking water truck is a reliable, efficient and professional commercial vehicle used for transporting and supplying safe, hygienic drinking water. In areas where water supplies are scarce or far away from water sources, such trucks play an important role in meeting people's needs for high-quality drinking water.
| ISUZU NPR 4X2 120HP Drinking Water Tanker Truck 7KL | |||
| 1.Cab & Chassis | |||
| Standard | Option | ||
| Chassis make | ISUZU NPR, 4*2, 3360MM wheelbase | ||
| Engine | 4KH1CN, Euro V, 120 HP; 2.999L displacemen | ||

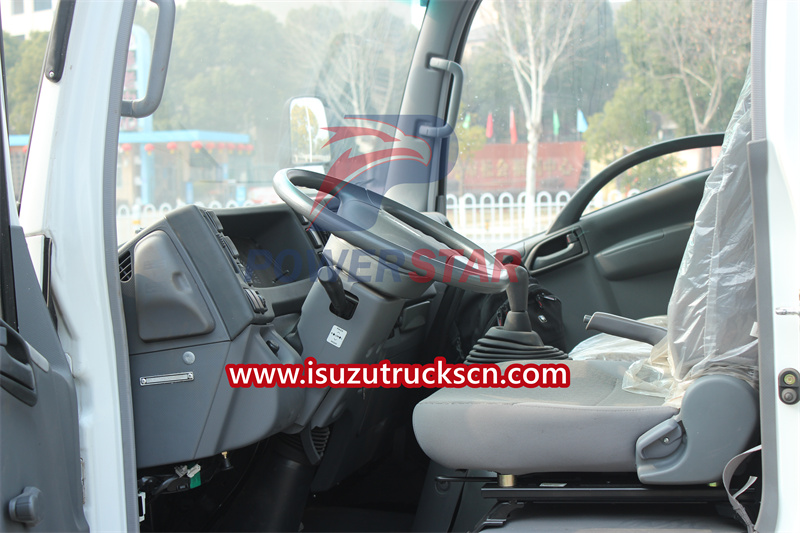

| Cab | NPR flat roof, 2 seats+ 1 bed ,with A/C; central lock, electric window glass, color white | air seats, air suspension cabin, Chrome grill face; | |
| Gearbox | MSB 5-shift, Manual type 5 forward & 1 revers | ||
| PTO | Include | ||
| Brake system | With AB | ||
| Tire | 7.00R16, 6+1 pieces; | 7.00R16 | |
| Wheel cover | Plastic made, without brus | ||
| Exhaust pipe | In front, under front bumper, spark extinguishe | ||
| Fuel tank | 100 | ||
| 2.Tank Specs | |||
| Item | Standard FOOD GRADE STAINLESS STEEL 304-2B |
||
| Medium | Potable Water | ||
| Loading system | Top loading | ||
| Capacity & Compartments | 7,000L, ullage as per +5%, single compartment | ||
| Tank shell Material and thickness | SS304-2B steel, 5.0 | ||
| Tank end and thickness | SS304-2B steel, 5.0, dished | ||
| Compartment wall and thickness | SS304-2B steel, 5.0, dished | ||
| Anti-wave plate and thickness | SS304-2B steel, 5.0, dished | ||
| Manhole | 1pcs, DN500 | ||
| Bottom loading system | One 3" SS304-2B steel pipe line Pipe line outlet is lies at right side of tank, located in the front of rear axle. Each pipe line outlet, a 3" carbon steel ball valve is fixed. | ||
| Ladder | A detachable Carbon steel ladder is equipped at the front of the tank | ||
| Walkway: | Anti-skid walk way along the entire length of tank. | ||
| Hose carriers: | Two pcs. Carbon steel | ||
| Hose: | Two pcs. 3"x4m, 3" stainless female camlock coupling on both end. | ||
| Pump | Carbon steel material, driven by PTO | ||
| Fire extinguisher box: | Two boxes are fixed on the left and right side of the tank. | ||
| Fire extinguisher: | Two 4kg dry powder fire extinguisher. | ||
| Fender: | Plastic material mudguards with plastic flap. | ||
| Tool Box: | Supplied by CIMC | ||
| Drain pipe; | Mild Steel | ||
| Side guard: | Both. Manufacture's standard design | ||
| Rear bumper: | Manufacture's standard design | ||
| 3.Tank Configuration | |||
| 1) SS304-2B steel water tank, thickness 5mm. | |||
| 2) With water pump. | |||

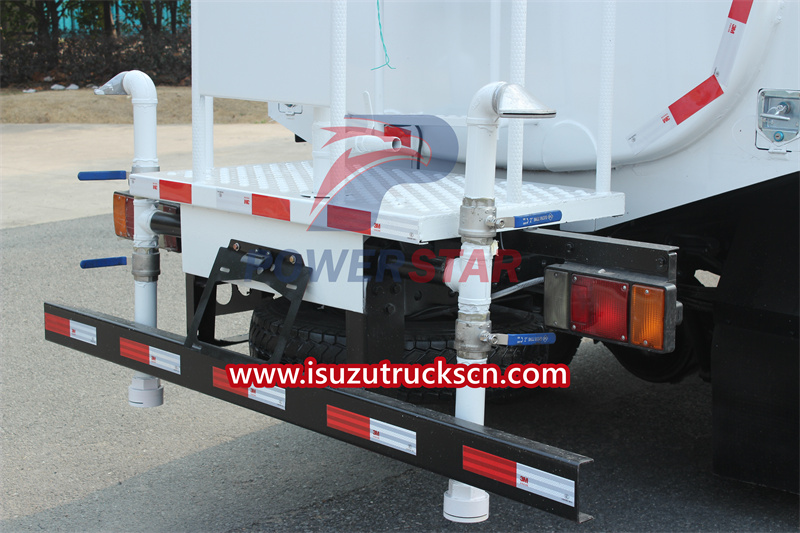

| 3) With rear working platform. | |||
| 4) With suction pipe. | |||
| 5) With fire connector | |||
| 6) With gravity valve | |||
| 4. Applicable scope | |||
| a. for a variety of road cleaning | |||
| b. City green sanitation | |||
| c. Trees, green belt and lawn watering | |||
| d. High altitude building rinse | |||
| e. Delivery water | |||
| 5. Special performance | |||
| 1) Front and rear spraying water. | |||
| 2) Left and right side spraying water. | |||
| 3) Platform has a sprinkler, spraying water. | |||
| 4) Water column can be adjusted into mist | |||
| 5) Width of spraying water : ≥14m. | |||
| 6) Distance of spraying water : ≥28m. | |||
| 6.Steel Treatment And Painting | |||
| Tank shell pre-treatment | Sand blasting before painting | ||
| Paint | All white with 3M reflective sticker (Red/White) | ||
| Hazchem sticker | As per requirements | ||
| 7.Other | |||
| As per factory standard. | |||
Customized SS304-2B material water tanker system, thickness for side and floor can be 5mm, inside with baffles for safety during delivery/ Whole pipelines use SS304-2B material, very suitable for drinking water truck delivery.

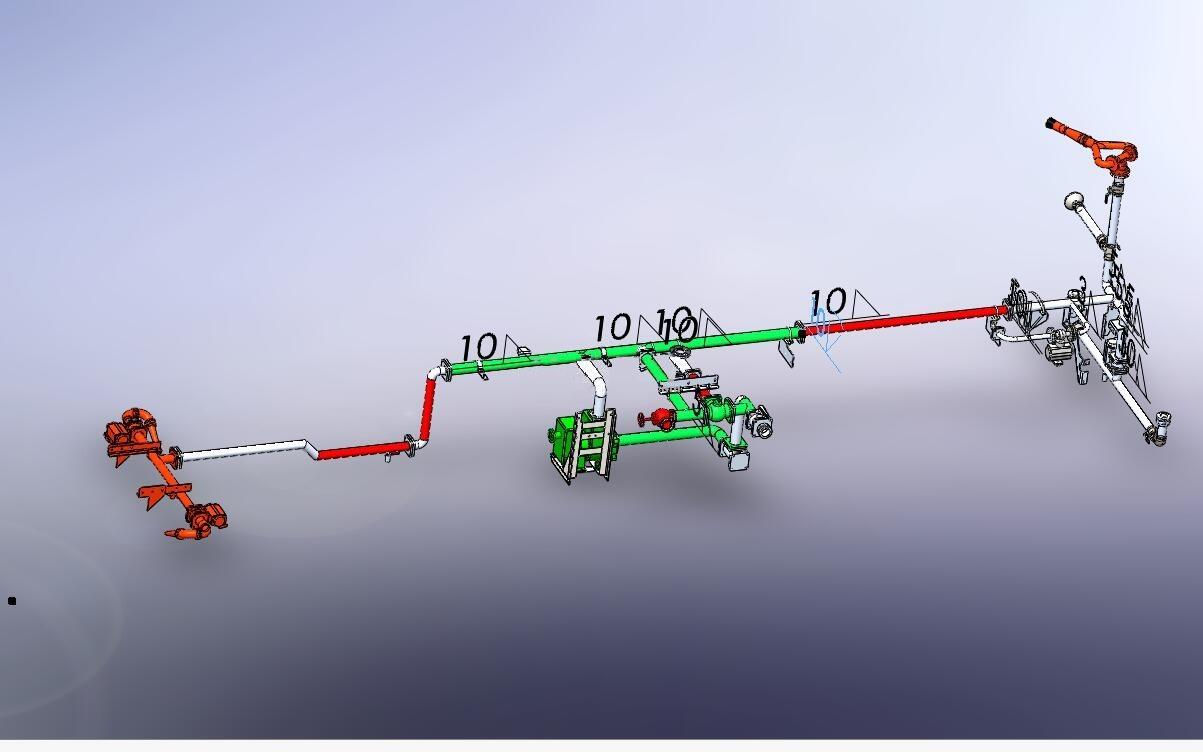

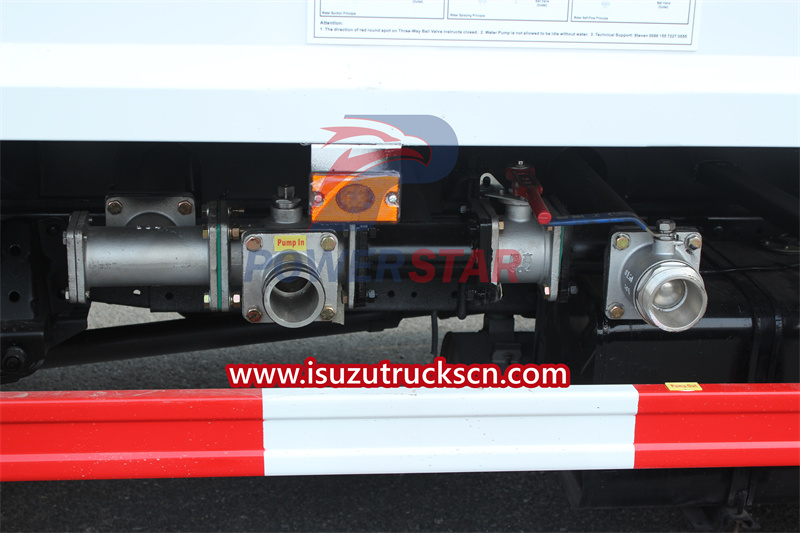

How does watering pipelines working?

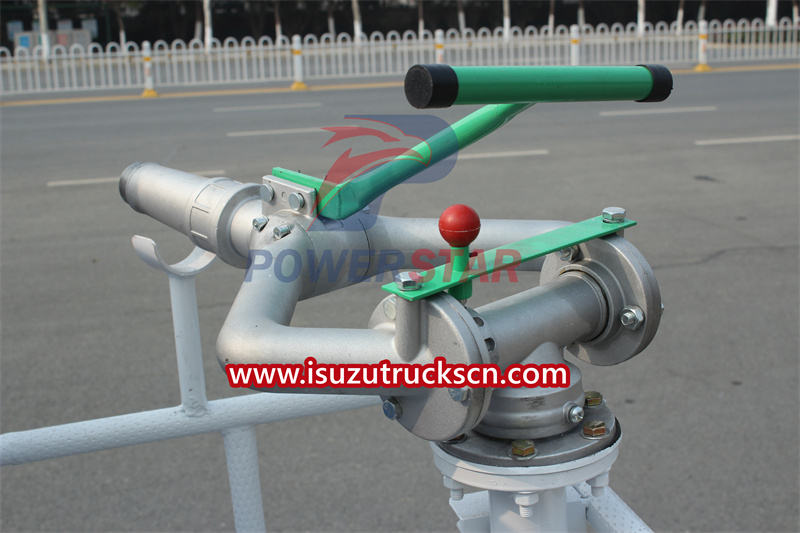

Reliable quality appearance of the water tanker device, reasonable layout of valve and fire ball valve, mounted with stainless steel material water tanker, also rear platform with water cannon, which can spraying water over distance 35m.
