ISUZU FTR dust suppression truck Disinfection vehicle

Original Factory ISUZU FTR Green Water Truck With Dust Suppression Sprayerr

Details

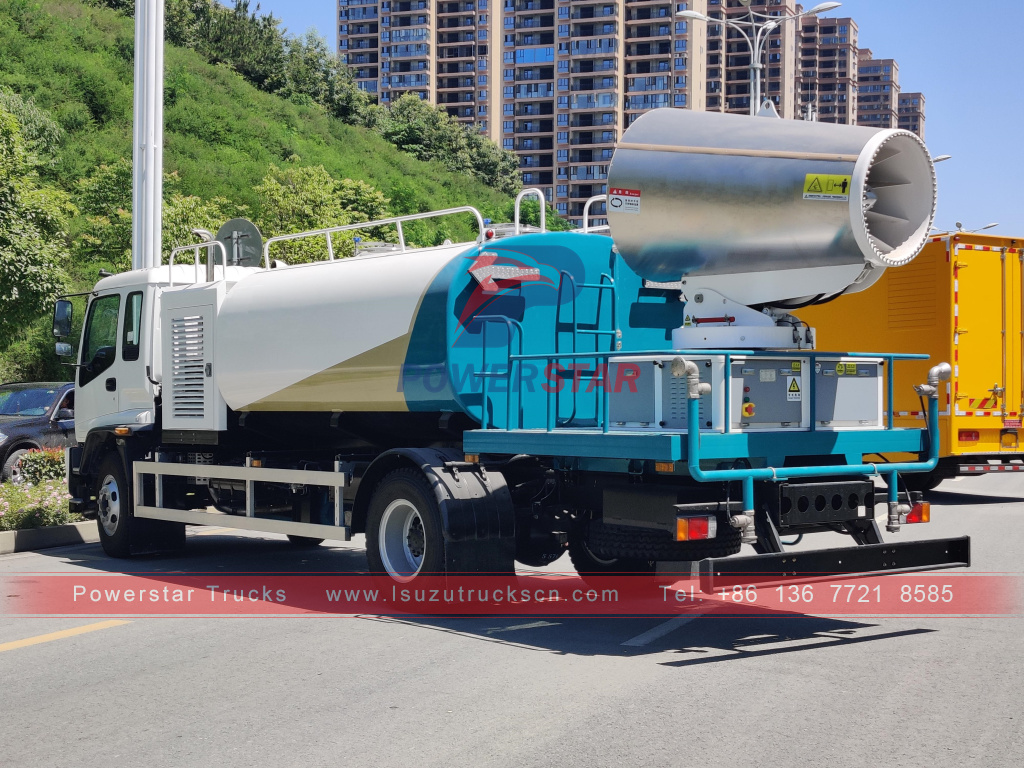

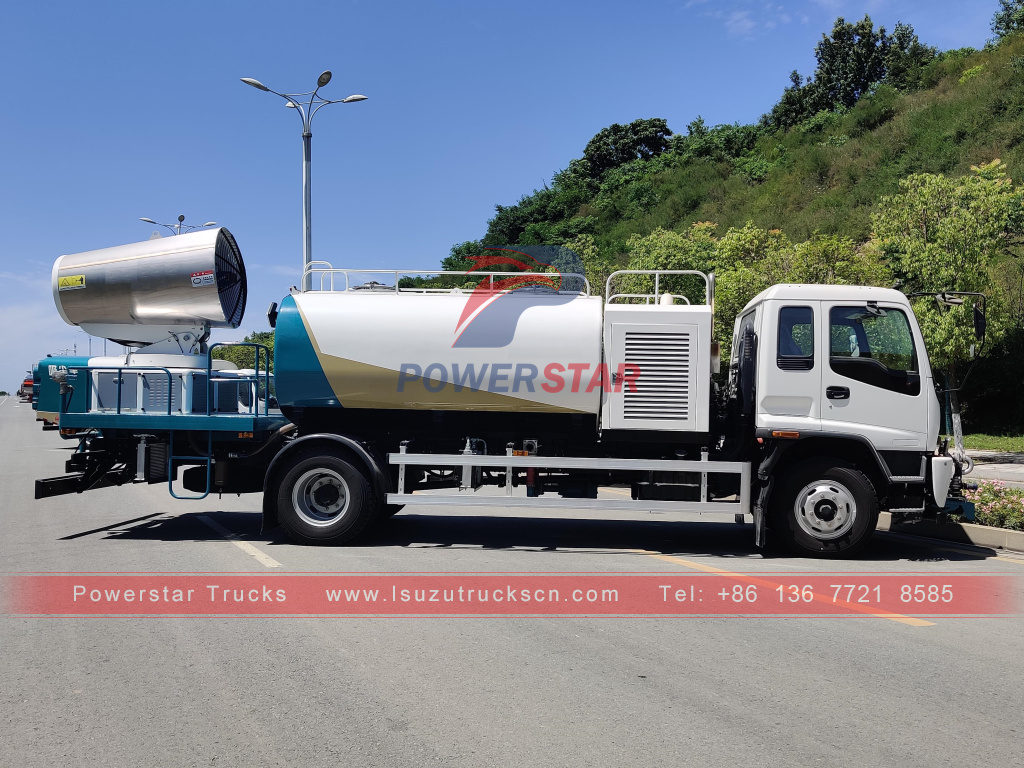

Original Factory ISUZU FTR Water Mist Spray Dust Suppression Truck Disinfectant Vehicle

Original Factory ISUZU FTR Water Mist Spray Dust Suppression Truck Disinfectant Vehicle



Introduction


Isuzu Dust suppression truck (also called Isuzu  disinfectant spray truck, Isuzu water mist spray trucks ) is is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.

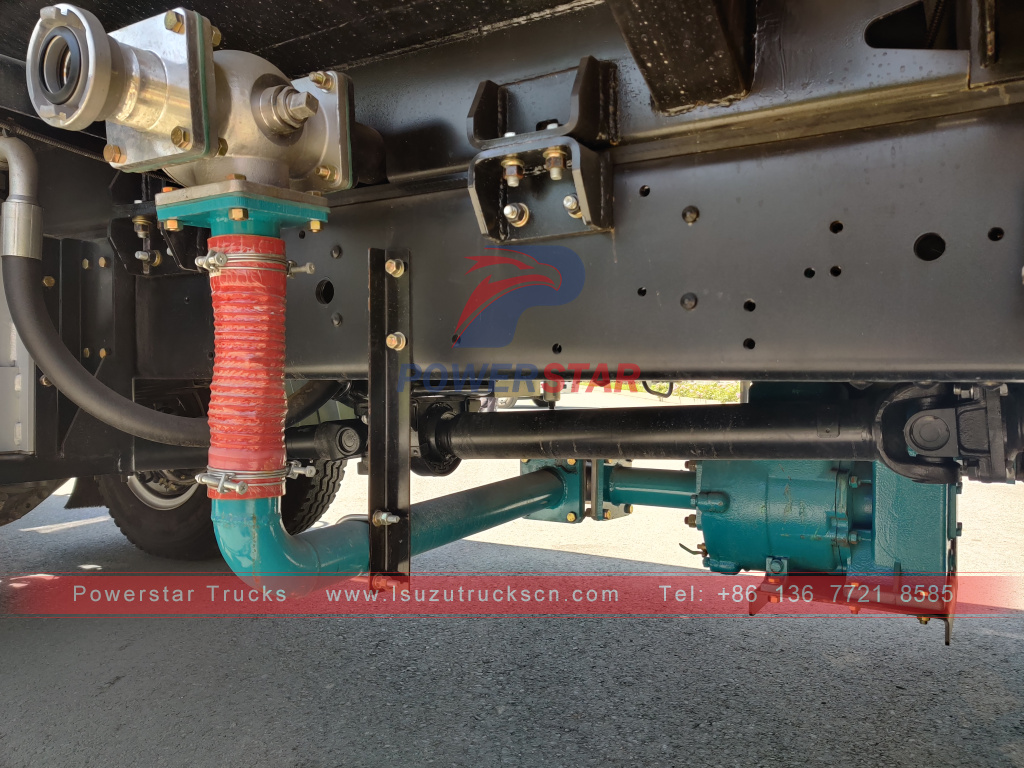

ISUZU water truck is mainly composed of chassis, tanks, pumps, valves, and the water pipe, sprinkler and other parts. Water truck is made of high quality carbon steel sheet.




Advantages


  100% custom-made
  3,000L to 30,000L available
  Short delivery time 7~30 days
  Easy operation & Easy maintenance
  15 years spare parts & Technical support



Main Parameters




PST5180TDY5DF Multi-functional dust suppression truck

Item

Unit

parameter

remark























Performance specification

Working Speed

Low pressure washing

km/h

8-20


Fog spray system

km/h

8-20

Fixed point operation can be realized

Longest range of water fog spray

m

>100


Water flow rate of fog spray

L/min

100~200


Longest working time of fog spray

min

120


Water flow rate of low pressure washing

L/min

600~800


Low pressure washing width

m

≥24


Water spray width

 m

14


Water cannon range

m

≥38


Announced volume of water tank

M³

9.66


Maximum volume of water tank

L

12000




Drive performance

Highest speed at full load

km/h

98


Brake distance(Full load at the speed of 30km/h)

m

≤10


Minimum turning diameter

m

<18




Weight

Kerb weight

kg

8600


Pay load

kg

9205


GVW

kg

18000














Structure Size





Overall dimension(L×W×H)

mm

9650x2500x3600

Standard Configuration

10200x2500x3600

Optional auto flushing device

Tread

Front wheel

mm

1880


Rear wheel

mm

1860


Approach angle

(°)

8


Departure angle

(°)

9


Min. ground clearance

mm

210


ater Delivery Truck

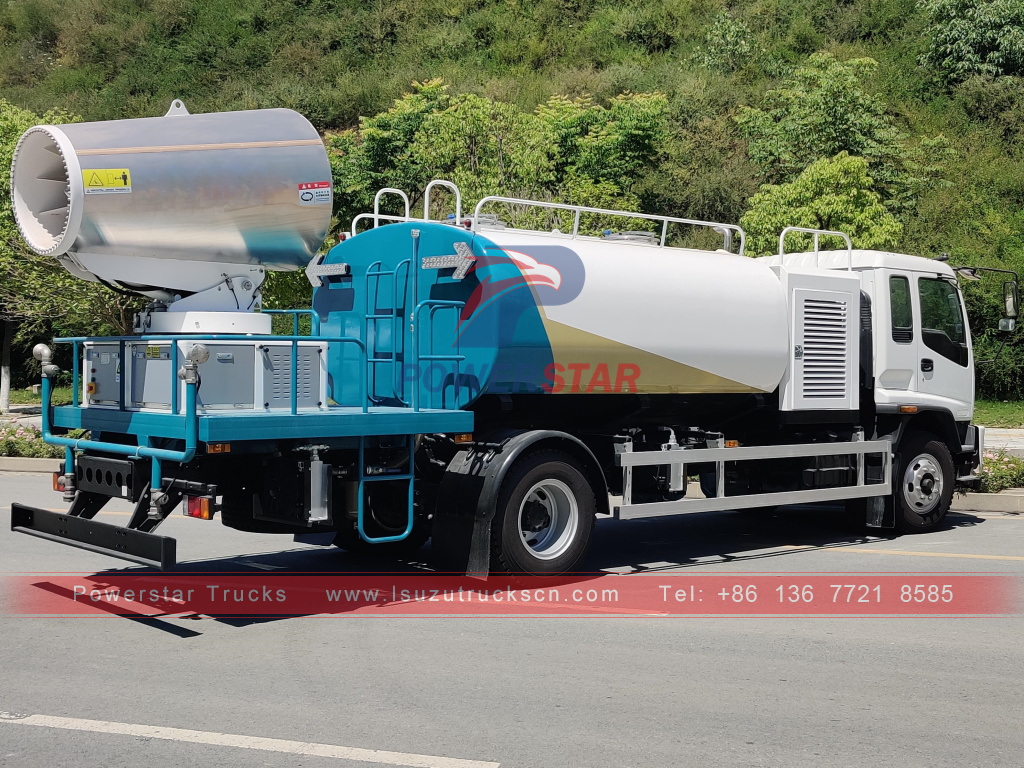

 Original Factory ISUZU FTR Water Mist Spray Dust Suppression Truck Disinfectant Vehicle

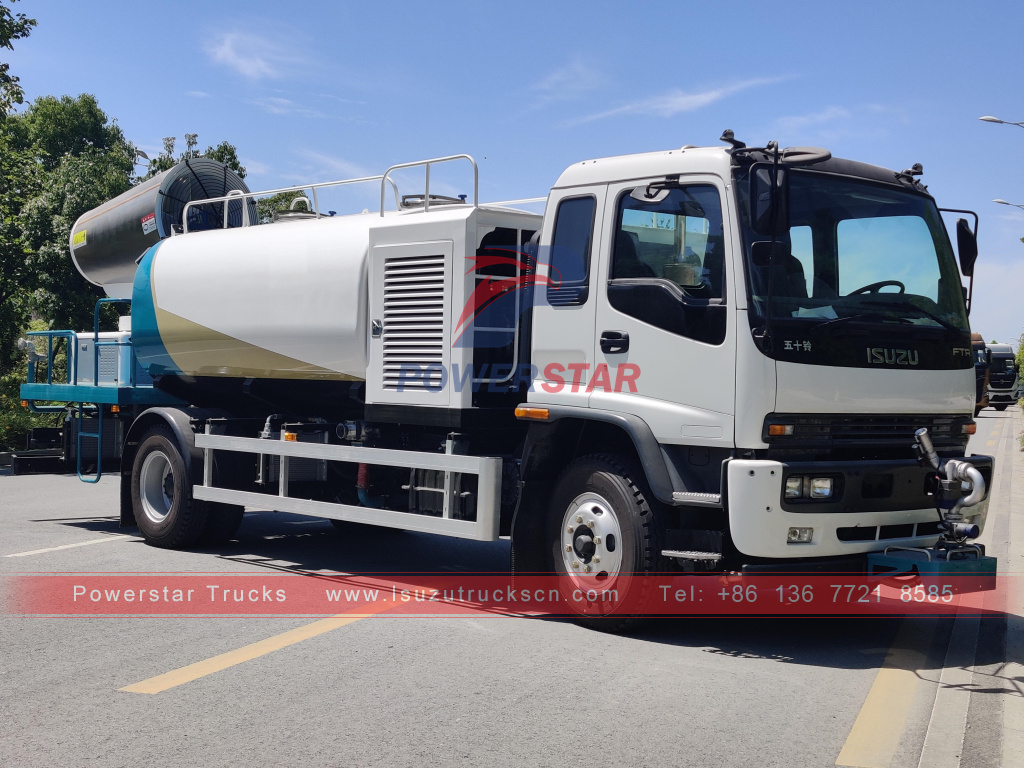

Original Factory ISUZU FTR Water Mist Spray Dust Suppression Truck Disinfectant Vehicle

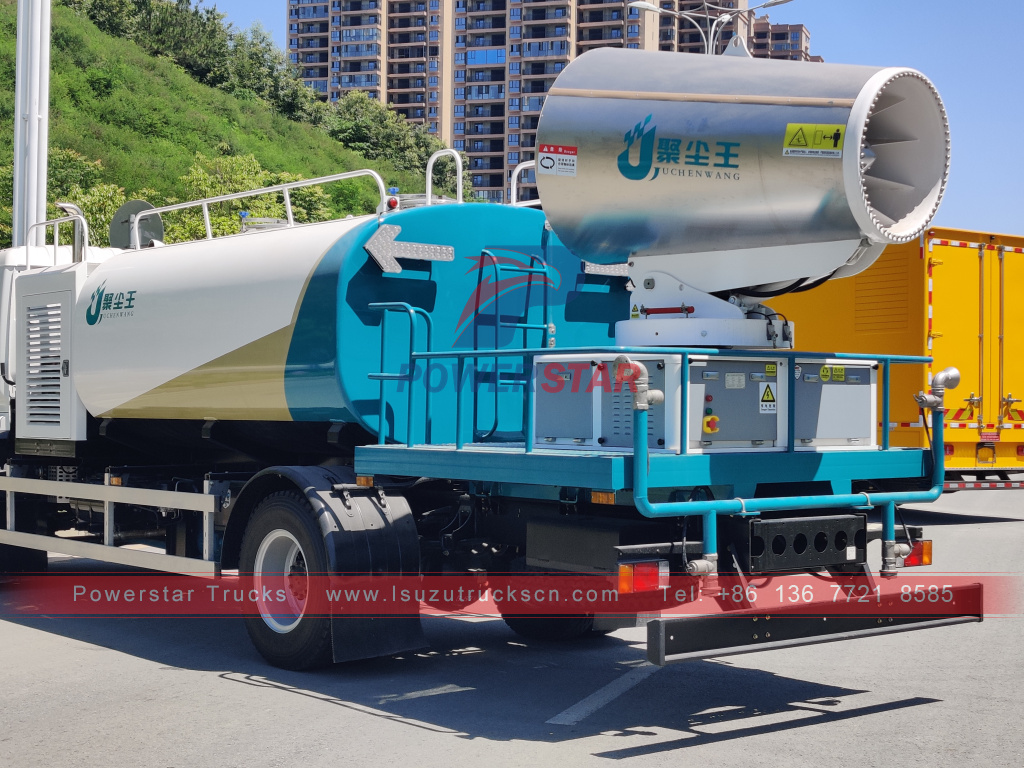

Original Factory ISUZU FTR Water Mist Spray Dust Suppression Truck Disinfectant Vehicle

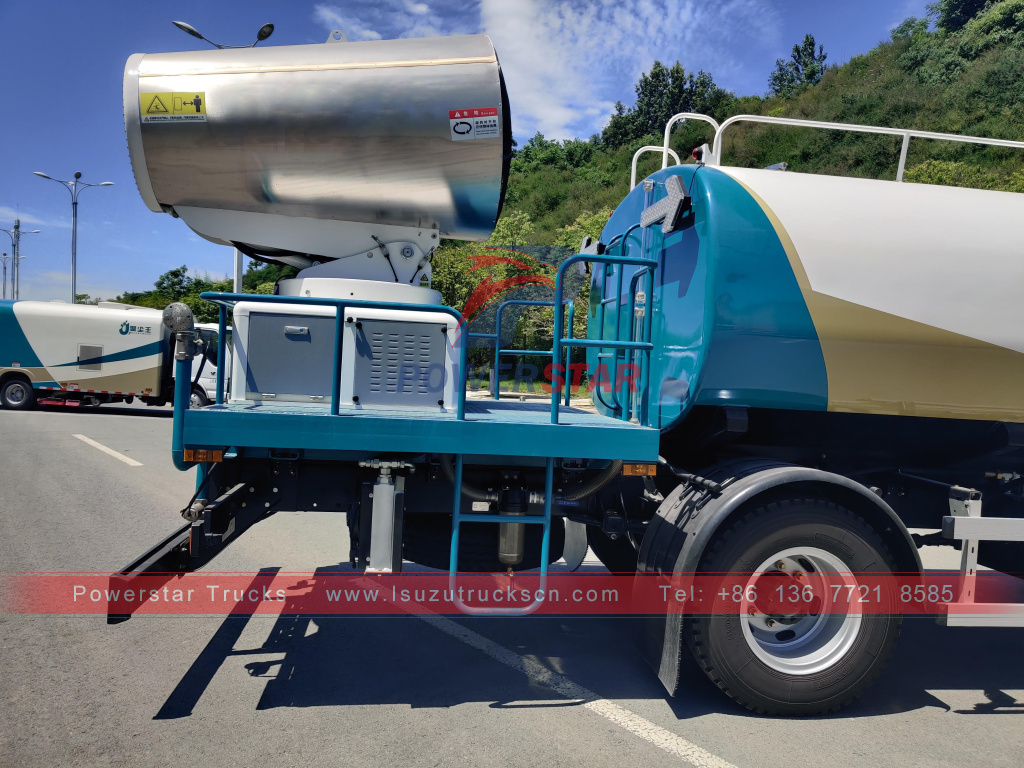

Original Factory ISUZU FTR Water Mist Spray Dust Suppression Truck Disinfectant Vehicle

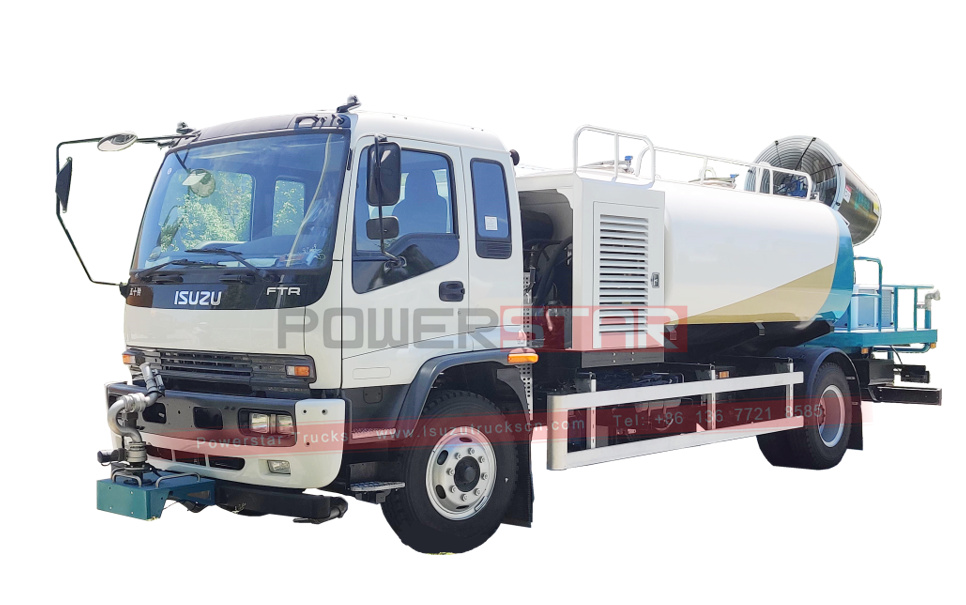

Original Factory ISUZU FTR Water Mist Spray Dust Suppression Truck Disinfectant Vehicle

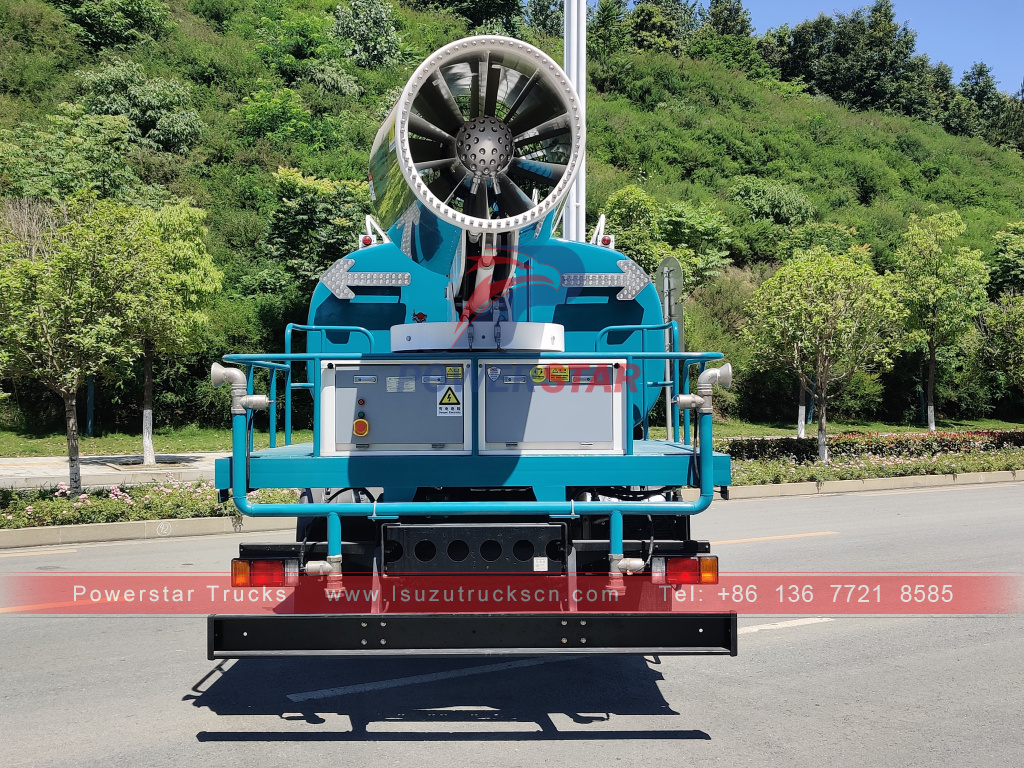

Original Factory ISUZU FTR Water Mist Spray Dust Suppression Truck Disinfectant Vehicle
