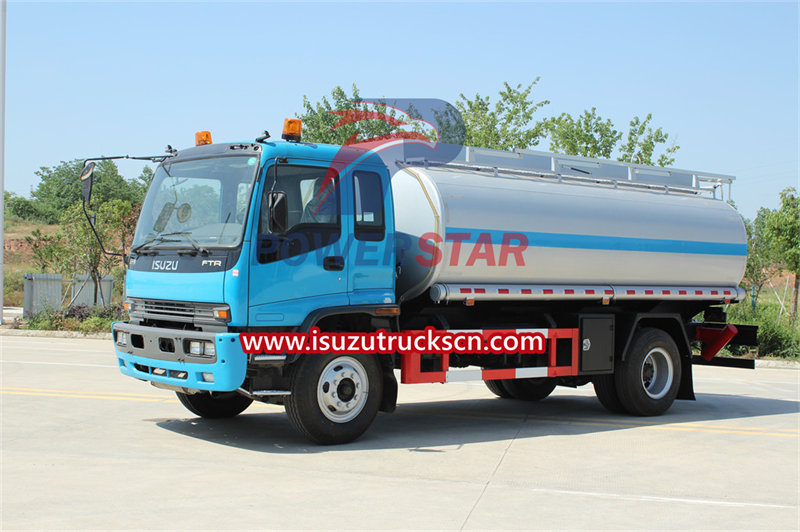

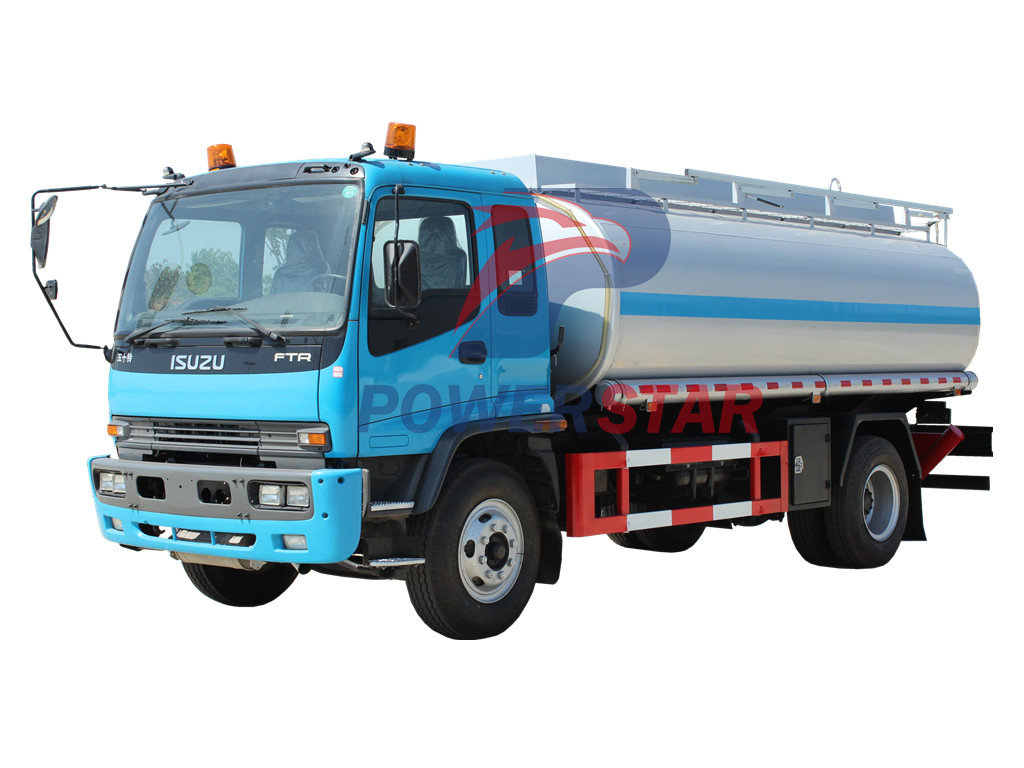

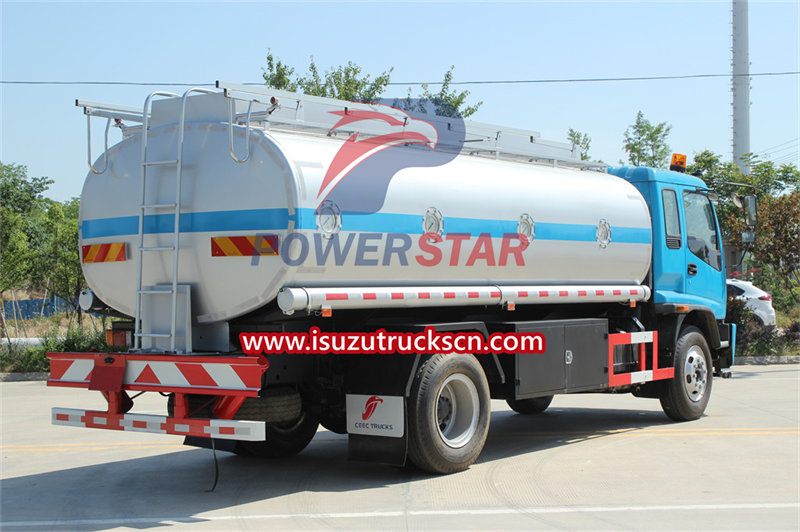

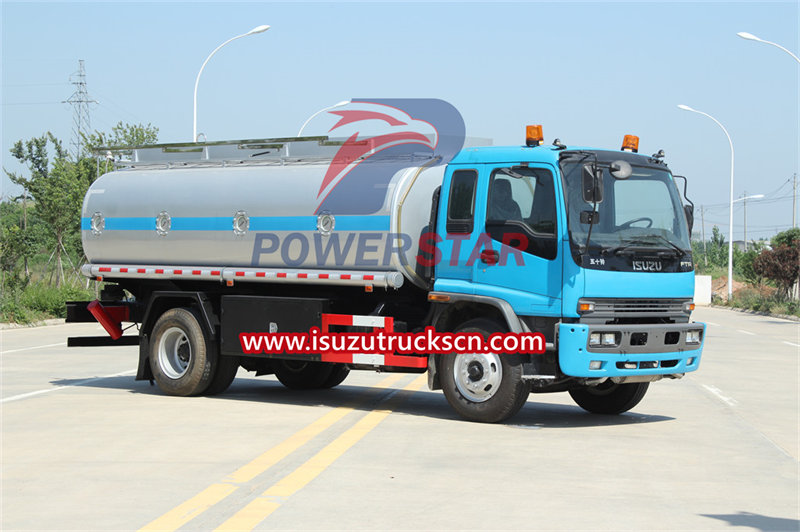

Isuzu FTR fuel tanker truck is based on ISUZU FTR truck chassis, equipped 4HK1 diesel engine 205HP, also has been equipped with computer fuel dispenser. It could be used as the mobile filling station. Then the truck is with great flexibility. According to different needs, Isuzu fuel bowser is always used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places where there is no filling station. The Isuzu fuel tanker truck has brought great convenience for people who have to get the station for the truck. And it actually can be called as the mobile filling station.
Work capacity:
16000 LitersTruck model:
PT5180GJYEngine power:
205 HPEngine type:
4HK1-TCAxle drive:
4×2Gear box:
MLD 6-speed manualRemarks:
Optional ISUZU 4x4 offroad truck model
POWERSTAR TRUCKS produced and export ISUZU Isuzu FTR / FSR / FRR model 4x2 /4x4 16000L fuel tanker trucks is mainly used for fuel dispensing and transport, POWERSRAR as international professional ISUZU trucks supplier, we can offer professional support for all Isuzu fuel trucks:
According to the definition of ISUZU's special vehicle business, tank-type special vehicles that transport liquids such as Isuzu oil trucks, Isuzu refueling trucks, Isuzu chemical liquid transport trucks, and Isuzu liquid food trucks are liquid transport vehicles.
a. An Isuzu oil bowser truck is a liquid transport vehicle equipped with tanks, static elimination devices, oil pipelines, vent valves and fire extinguishing equipment, and is used to transport oil.
b. In addition to the basic equipment and functions of an Isuzu oil transport truck, the fuel truck is also equipped with an oil pumping system, working instruments and control devices. It can suck the oil in the oil depot into the oil tank of the vehicle, and fill the oil in the tank into Liquid transport vehicles in other containers.
c. Isuzu Chemical liquid transport trucks are transport vehicles equipped with tanks, static elimination devices, oil pipelines, vent valves and fire extinguishing equipment, and are used to transport chemical liquids.
| Isuzu 16000 liters diesel bowser technical specifications | |
| Product Name | Isuzu FTR fuel tank truck 16000L |
| Driving Type | 4×2, Left hand drive |
| Weights | |
| Related weight (kg) | 14000 |
| Curb weight(kg) | 8800 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8000×2500×3100 |
| Box dimension | 16000 liters |
| Max speed(km/h) | 90 |
| Engine | |
| Engine model | 205 HP |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-4 cylinders |
| Displacement(L) | 5.193 L |
| Max. output (kw) | 150 kw |
| Drive Line | |
| Transmission | MLD 6 forwards,1 reverse gear,manual operation |
| Steering | With power steering |
| Axle | |
| Front axle | 6.3 tons |
| Rear axle | 13 tons |
| Tire specification | |
| Tire specification | 10.00R20 standard tire,6 tires+1 spare tire |

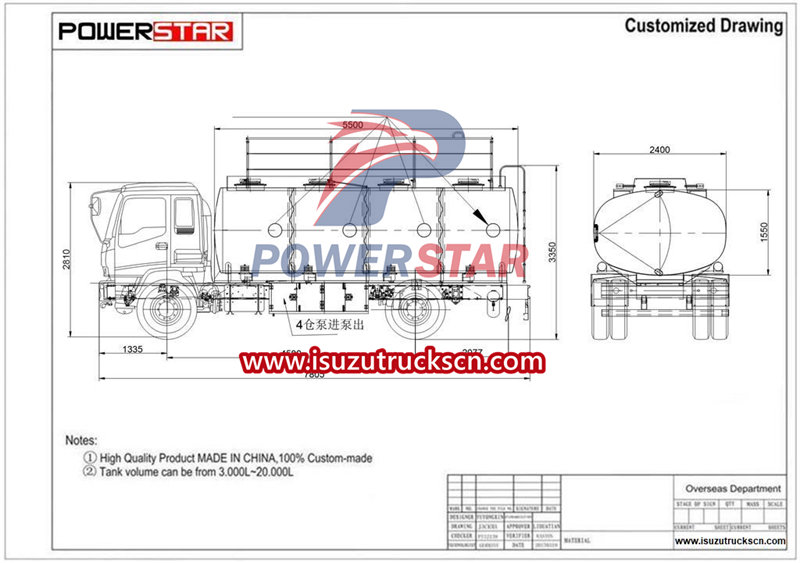

| Specification of fuel tanker | |
| Tanker shape | Ellipse water tanker |
| Tanker material | Q235, carbon steel, 5mm |

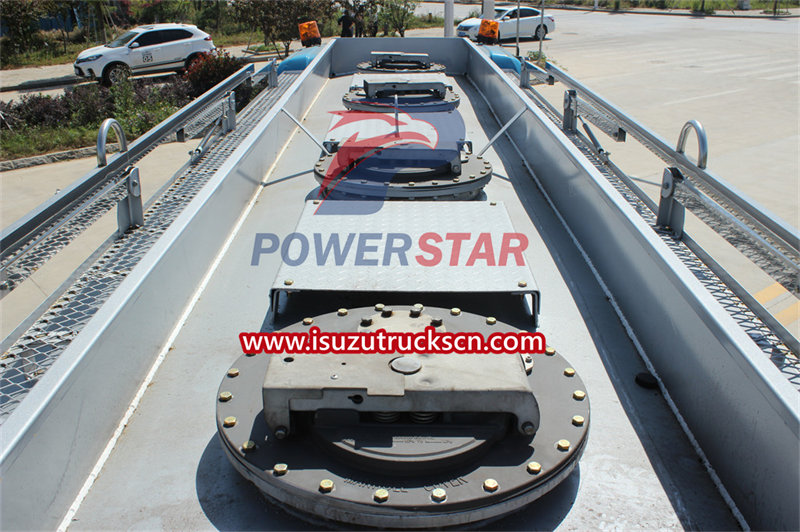

| Manhole | Man way access hole on top of tank;4 units DN500mm manhole based on 4 compartments |
| Horse reels | Two 75 ft hose reels at each side of the truck |
| Standard configuration | With pump |
| optional | compartments,sea valve,bottom loading,flow meter,european manhole,oil vapor recovery, |
| fuel dispenser | |
| flowmeter |
|

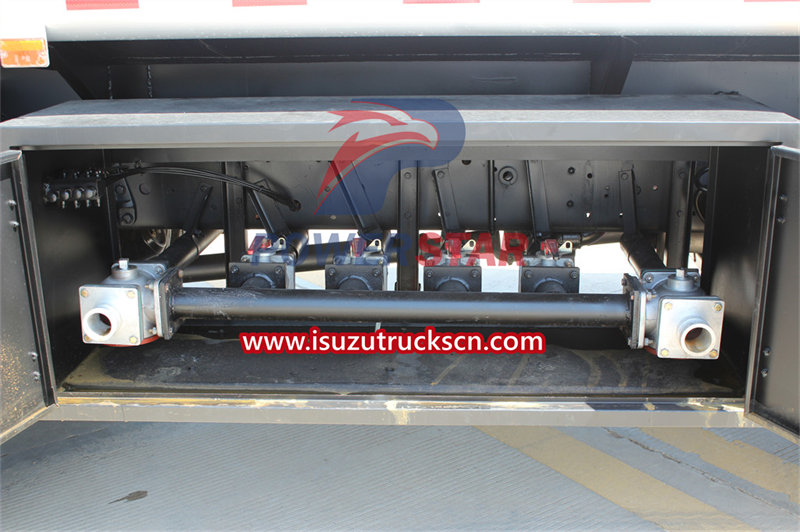

The ISUZU Fuel Tanker Truck makes use of the special power take off (PTO) to get power from the engine, and then transfer the power to the Fuel Pump via drive axle so to rotate the pump. The fuel pump, pipelines, valves and joints consist of the pipeline system. Turn on / off valves through the regulated program, the pump can absorb fuel into the tank, also can pumping-out the fuel. As for the 20m refueling pipeline with gun and reel that equipped on the ISUZU diesel bowser, this can be used refueling all trucks through the special gun. And then come to all function.
The Isuzu mobile refueling truck is refitted based on the ISUZU NKR 4x2 LHD chassis. The refit part includes fuel carrying assembly, actuator device, pipeline system, operation system and refueling machine.
The ISUZU medium duty FTR diesel tank truck is a special vehicle specially used to transport diesel and other liquid fuels. The ISUZU fuel bowser has a reasonable structure and perfect functions. Isuzu oil tanker truck is an important equipment for transporting diesel and other liquid fuels. Its safety performance and efficient transportation capabilities make it widely used in the petrochemical industry and related fields.

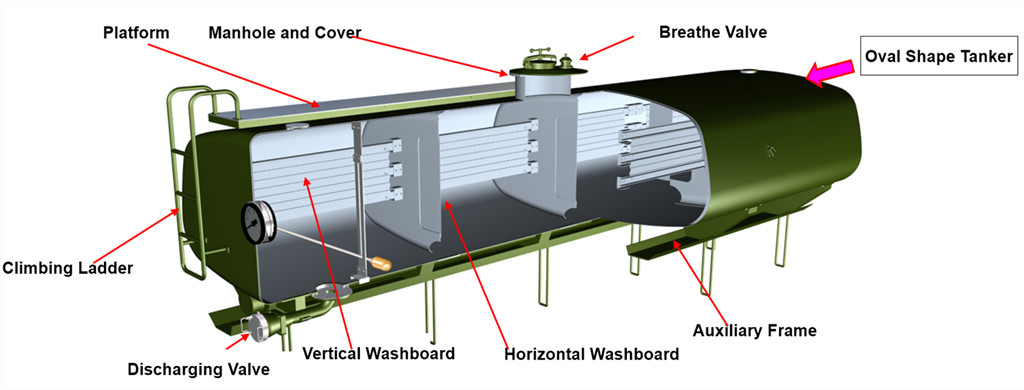

The shape of the tank varies according to each special vehicle company, including round, oval, rectangular, imitation trapezoid, etc.;

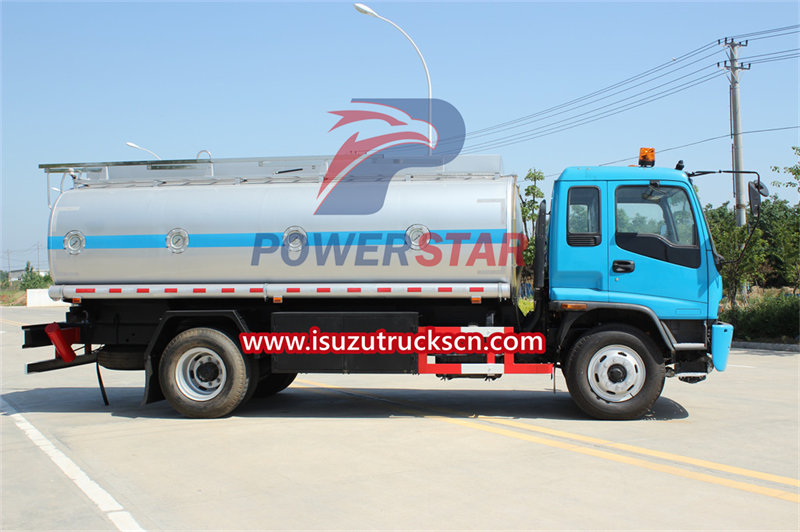

The top of the tank is equipped with a manhole cover, breathing valve, oil and gas recovery system and guardrail;
There is a sedimentation tank at the bottom of the tank and a rear oil drain valve at the tail;

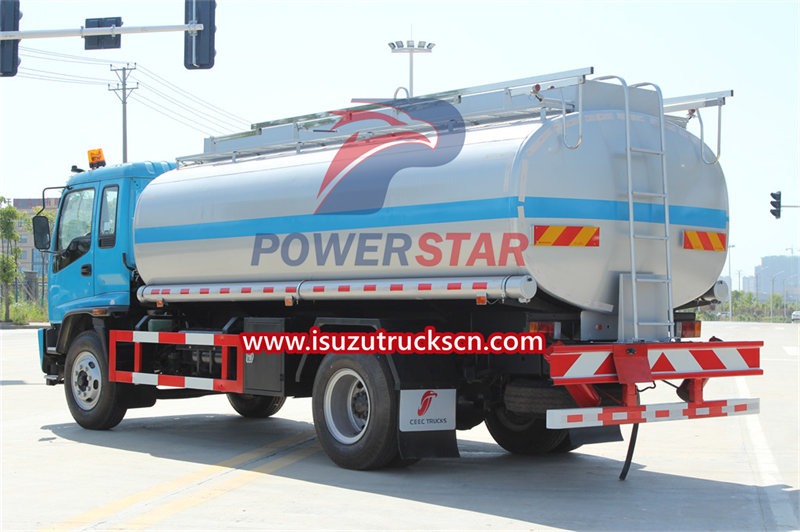

The tank is equipped with a ladder and a walkway for getting up and down the oil tank (a walkway on the top of the tank is optional);
There are horizontal and vertical partitions inside the tank to reduce the fluctuation of the liquid in the tank when the car accelerates and decelerates.
